Basic Information
Usage
Ceramics, Granite, Marble
Application
Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
Cutting Ability
High Speed
Work Bench Specs
3500*2000 (2100) mm
Production Capacity
50 Pieces/Month
Packaging & Delivery
Package Size
620.00cm * 390.00cm * 300.00cm
Product Description

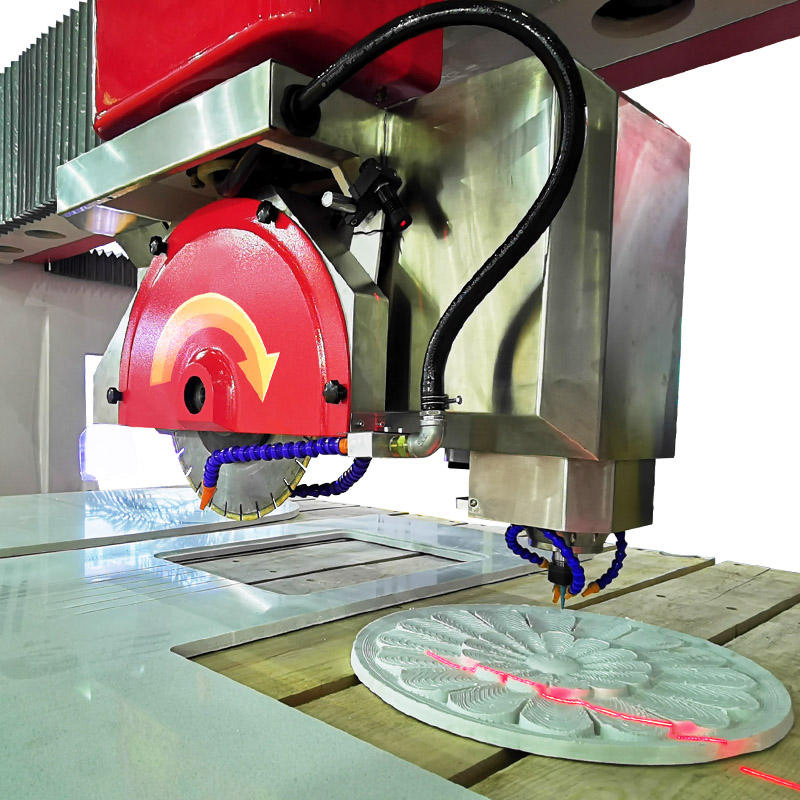

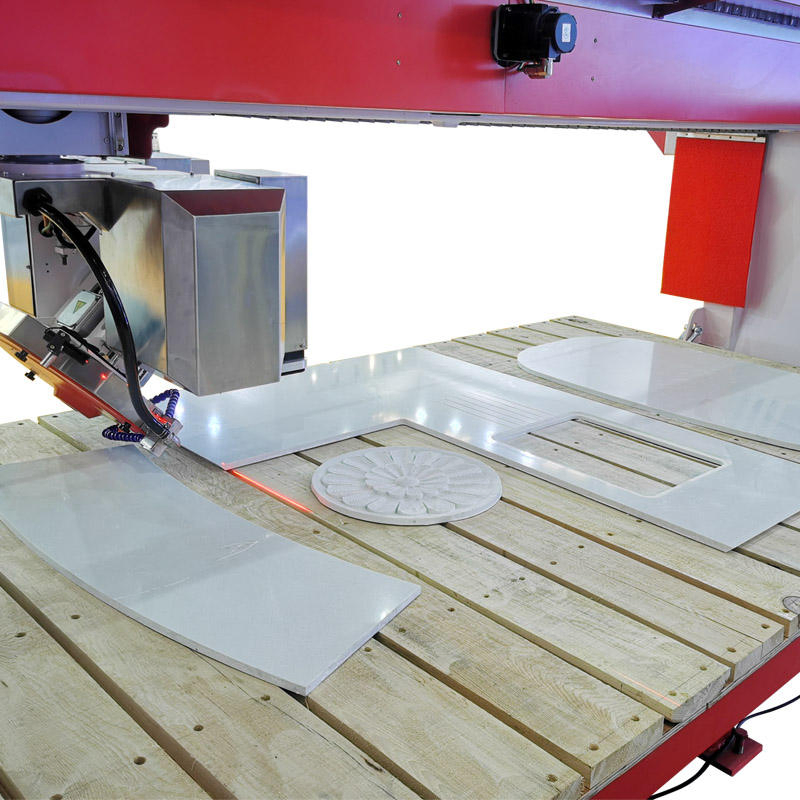

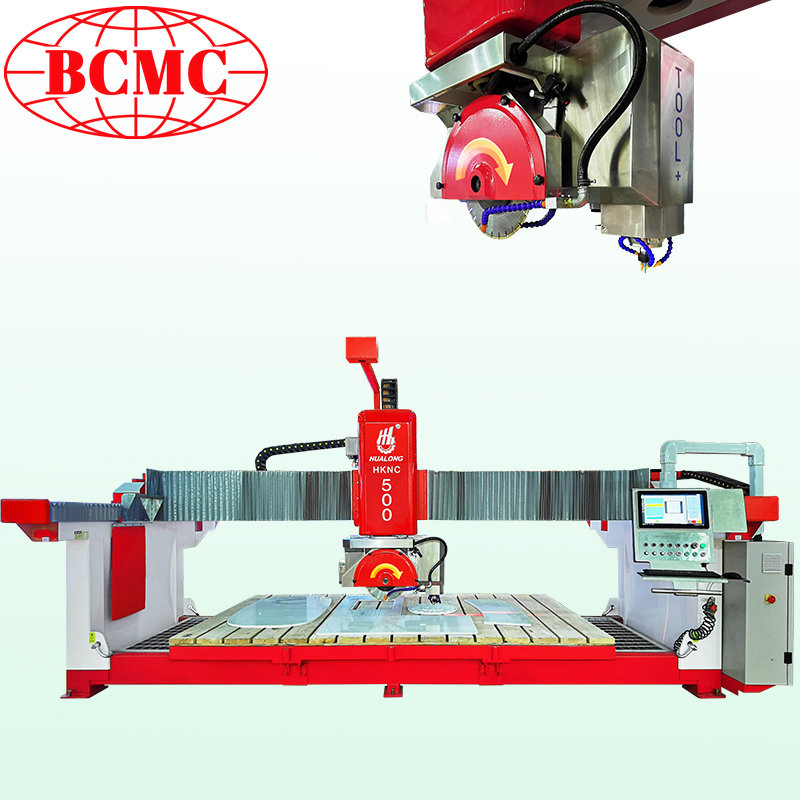

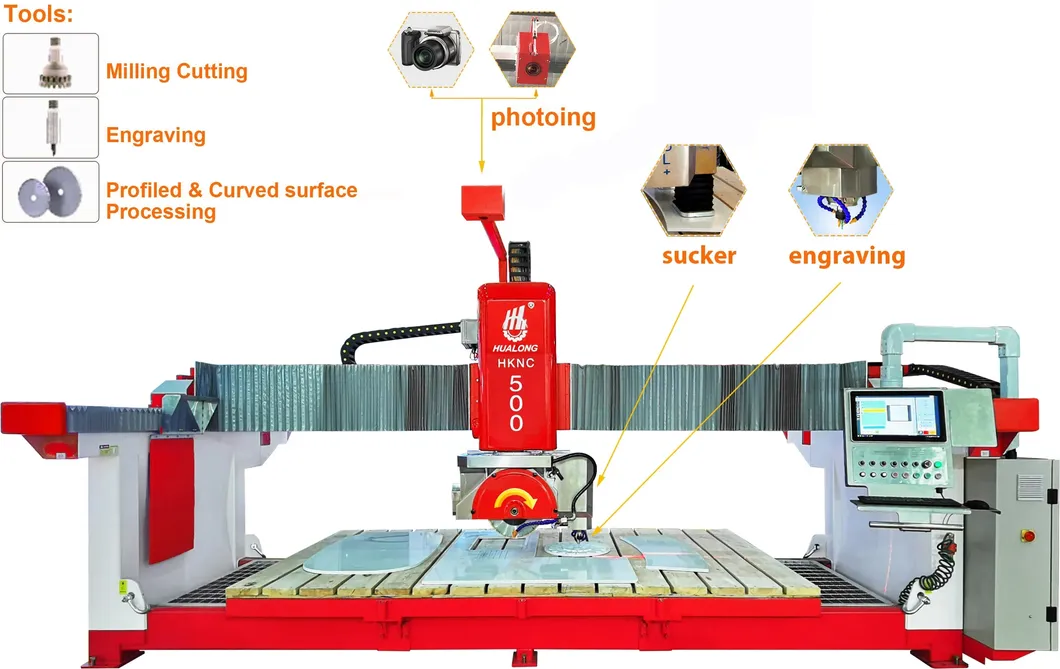

BCNC-500plus is a multifunctional manufacturing machine designed for slab cutting, milling, drilling, and carving. It handles diverse and difficult tasks within a single unit. Equipped with a CNC touch screen system, USB port, WIFI connectivity, photographing camera, and vacuum lifter, it is the ideal partner for kitchen top, cooking bench, marble, granite, and artificial stone processing.
Main Features
- Equipped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation simultaneously.

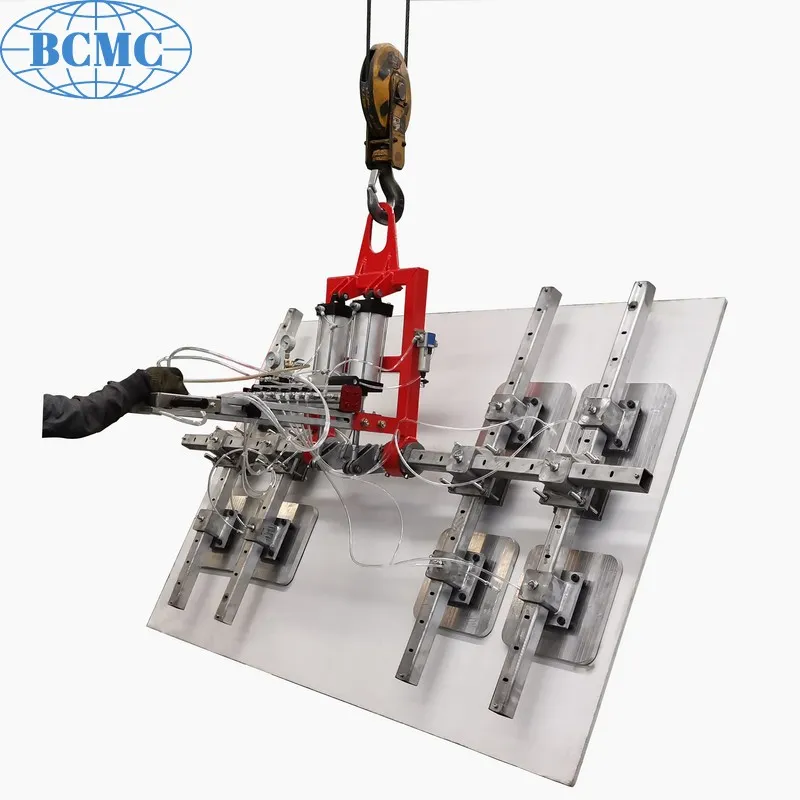

- Updated with vacuum lifter for easy slab movement.
- CNC touch screen control system for intuitive interactivity and simple control.
- Integrated photographing camera for precise slab positioning and typesetting, reducing processing waste.
- Multifunctional processing capabilities including complex cutting, milling, drilling, carving, and curved surface processing.
- Cutter head moves 90 degrees up/down and rotates 360 degrees horizontally for automatic chamfering at any angle.
- USB and WIFI connection for seamless CAD/CAM file uploads.
Technical Parameters
| Category |
Item |
Unit |
Specification |
| Configuration | Diameter of saw blade | mm | Φ400 - Φ500 |
| Working platform dimension | mm | 3500*2000(2100) |
| Main motor power | kw | 26.4 |
| Tool slide motor power | kw | 2 |
| Crossbeam shifting motor power | kw | 1.1 |
| Hydraulic station motor power | kw | 2.2 |
| Elevator motor power | kw | 0.85 |
| Performance | Max. horizontal cutting length | mm | 3300 |
| Max. cutting thickness | mm | 140 |
| Max. lifting travel of cutter | mm | 250 |
| Water consumption | m3/h | 2 |
| Measurement | Gross weight | kg | 5800 |
| Dimensions (L x W x H) | mm | 5700x3260x2765 |
Detailed Information For Spare Parts

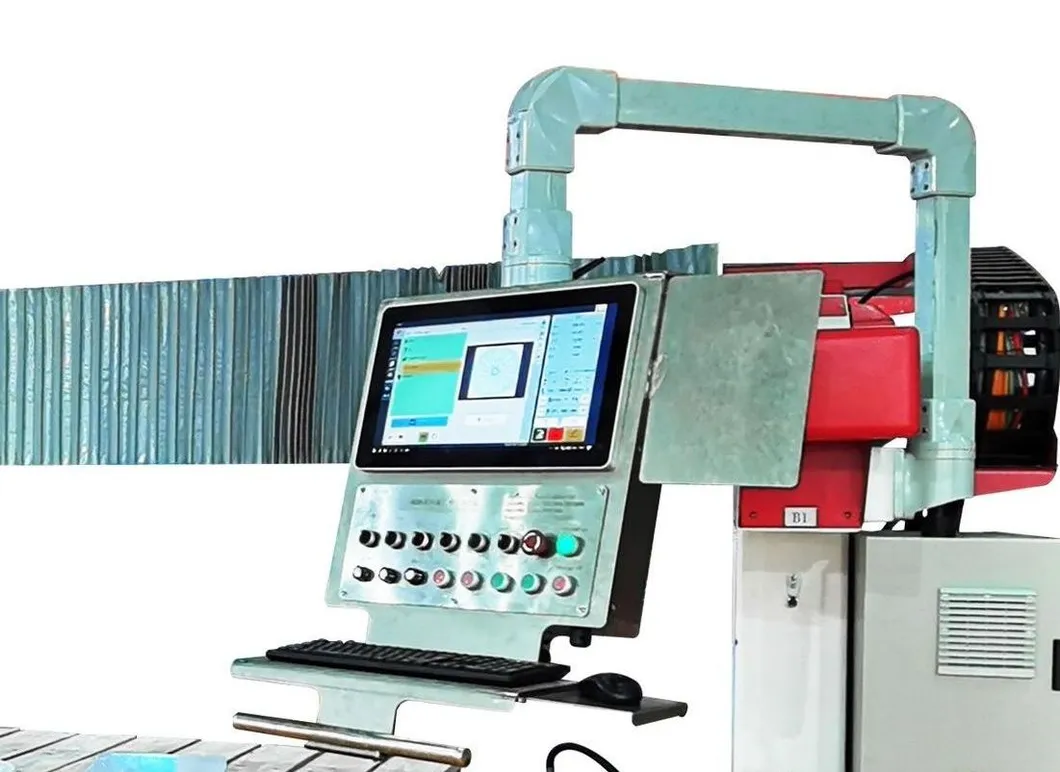

Control system:
Italian ESA CNC control system with touch screen for easy computer setting and visible control. Streamlines complicated workflows without the need to switch frequently between PC and machine.

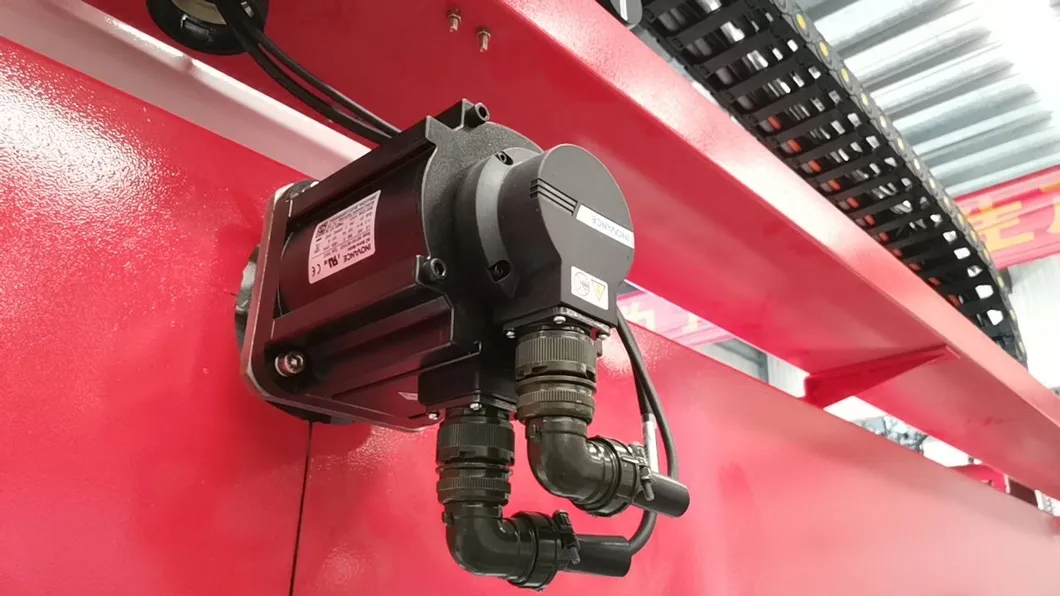

Digital Servomotor:
Italian digital permanent magnet brushless servomotor with integrated drives. Designed for total digital integration with ESA CNC to provide reliable power for X, Y, Z, A, and C axes.

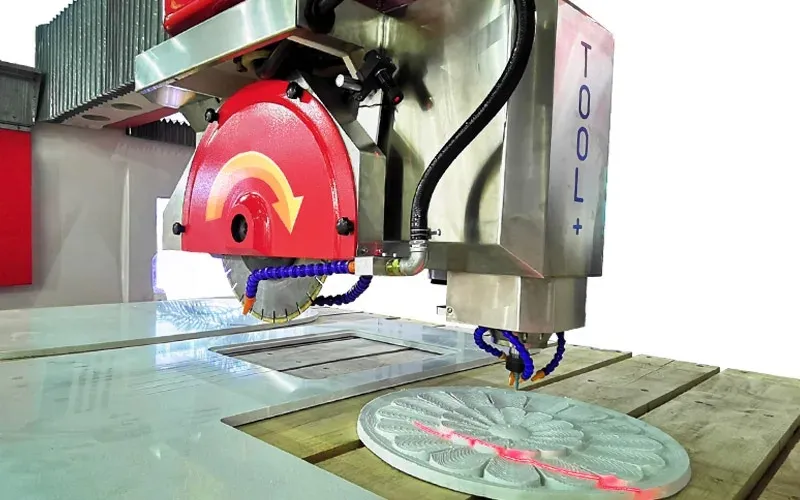

Sole Engraving Module (Optional):
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Power: 5.5 kw
Compared to mechanical spindles, this high-speed spindle enables much faster and finer engraving, curve cutting, and milling.

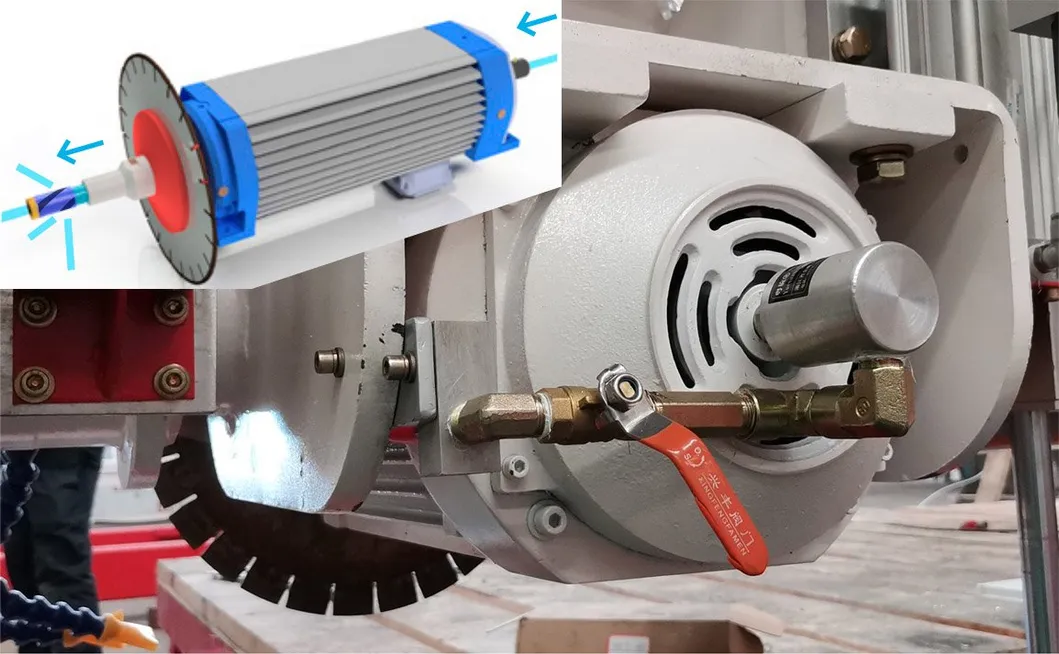

Electro-spindle:
High-quality electro-spindle controlled by an inverter (0-6000 rpm). Supports various tools like blades, core drills, or milling cutters with manual tool changes.

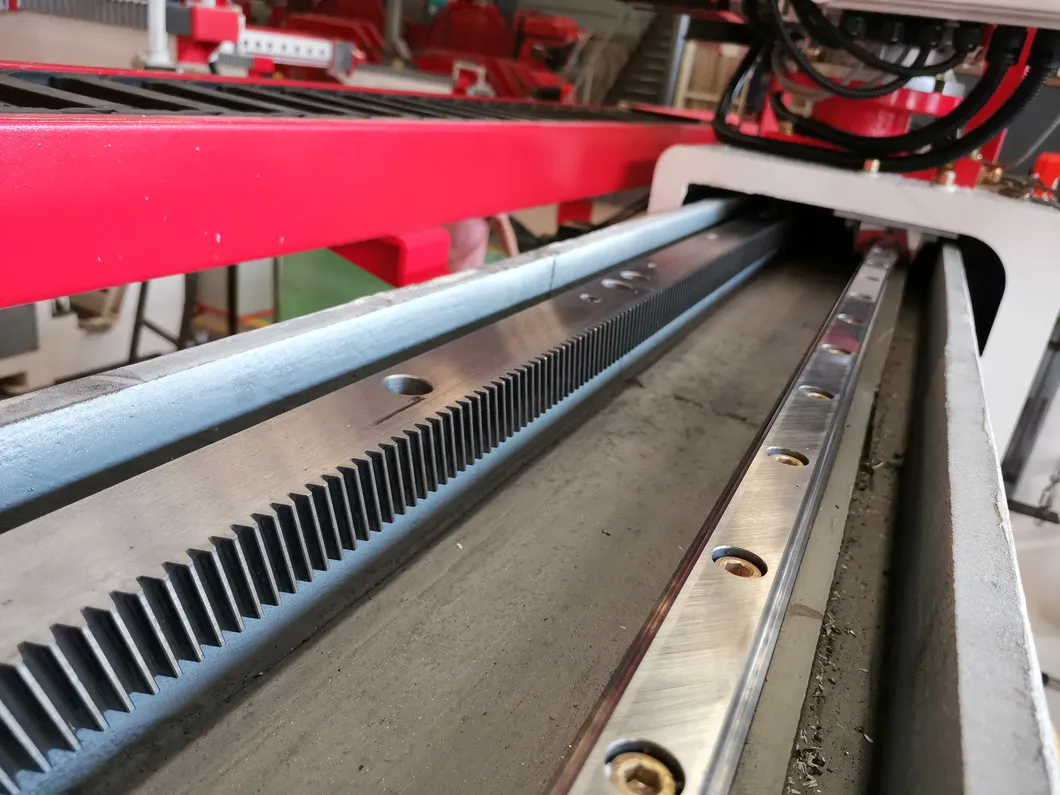

Linear Guide:
Hiwin linear guides are utilized on the crossbeam and carling for high cutting precision and long operational lifespan.

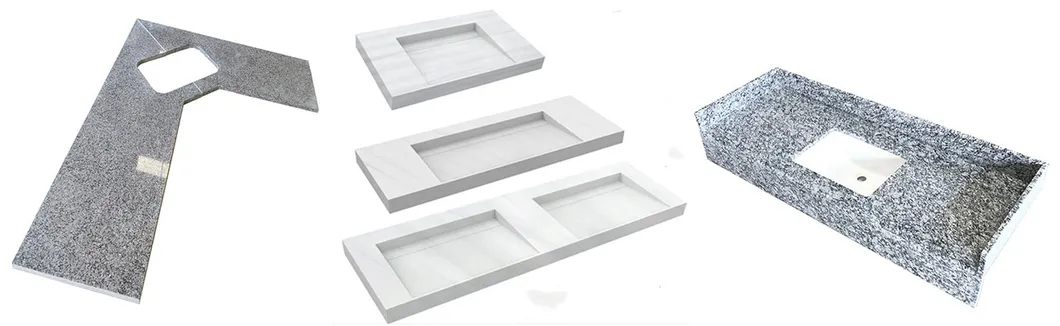

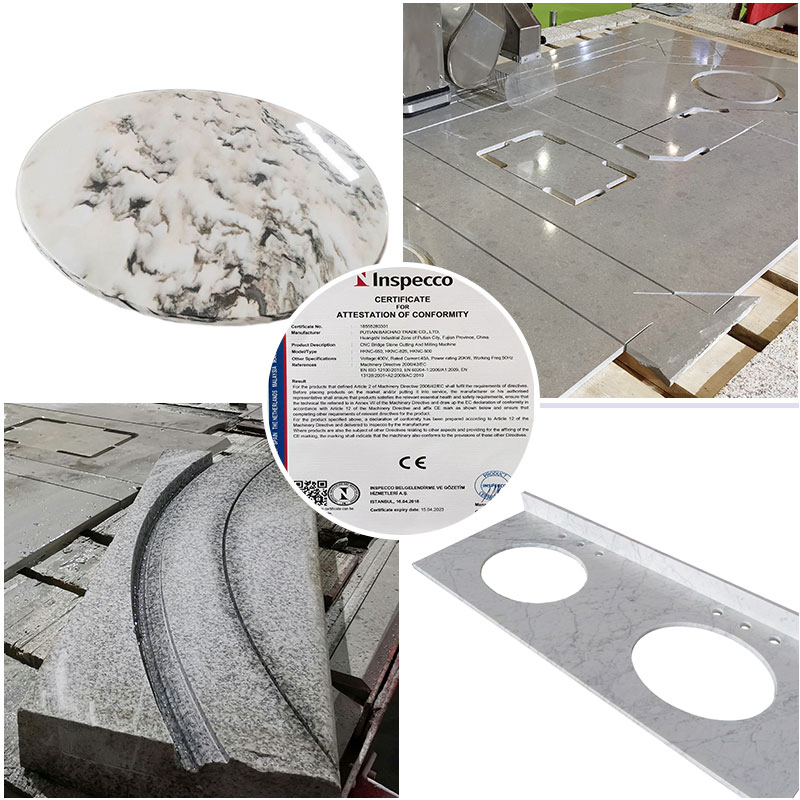

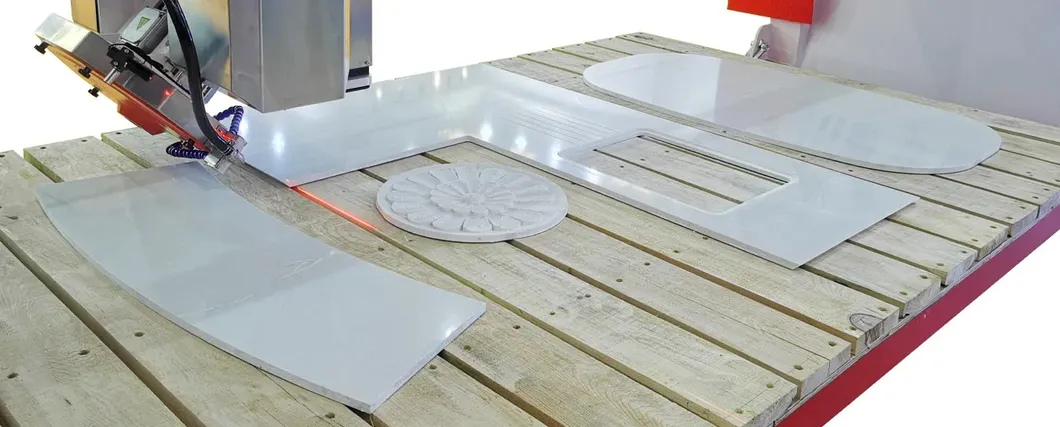

Processing & Final Products

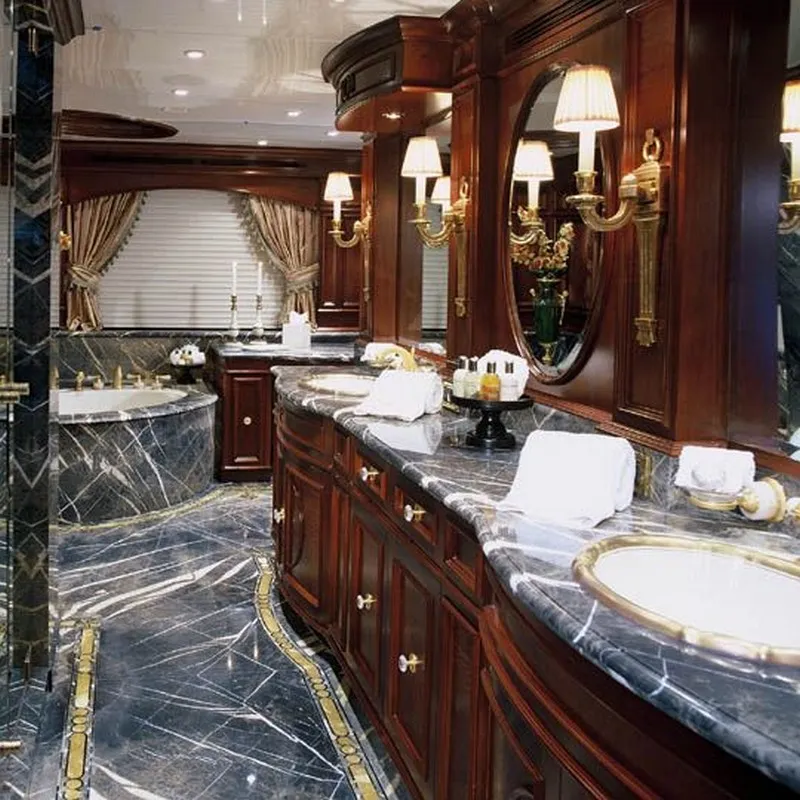

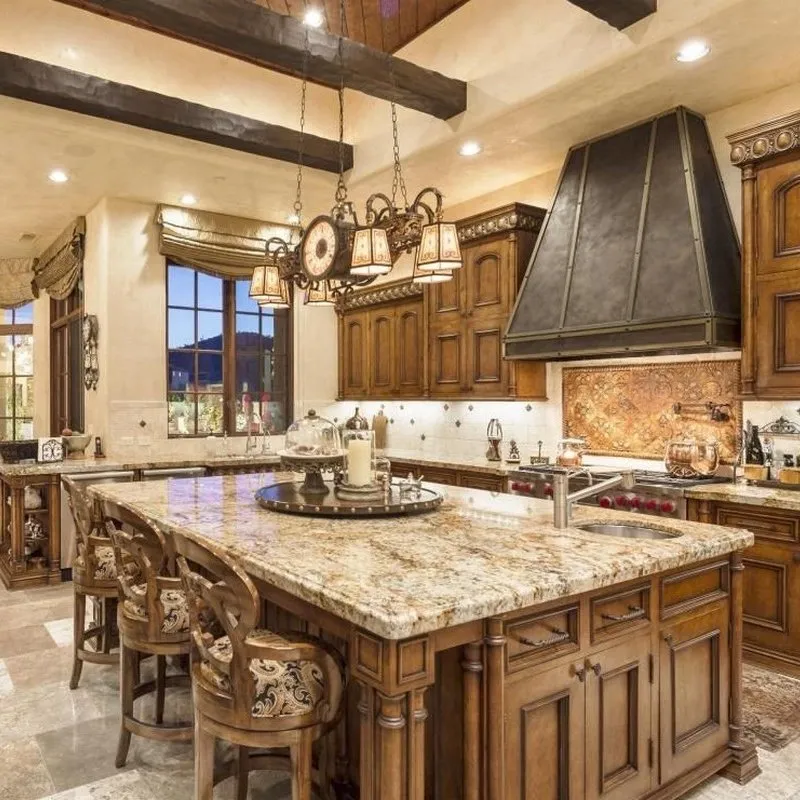

Applications
• 3D decorative wall panels
• Countertops
• Doorsteps, staircases and thresholds
• Fireplaces
• Flooring
• Funerary art/tombstone
• Street furniture
• Ventilated facades

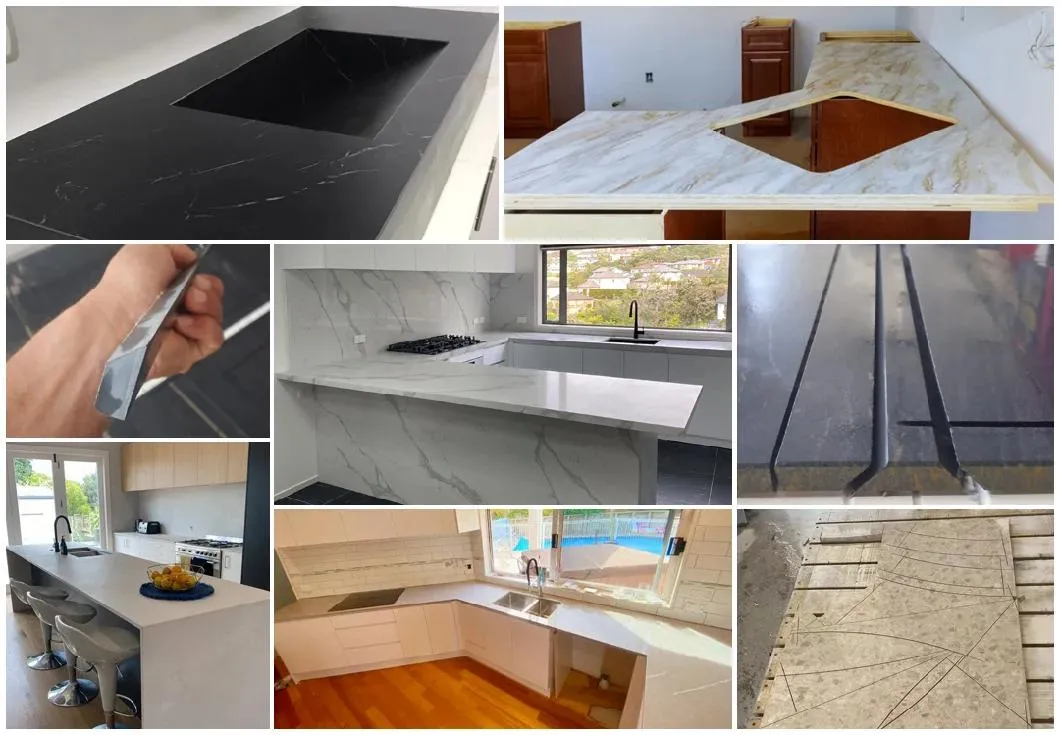

Customer Site & Relevant Products
Frequently Asked Questions
1. What materials can the BCNC-500PLUS process?
The machine is designed to process a wide variety of materials including marble, granite, ceramics, artificial stone, and quartz.
2. What are the primary functions of this machine?
It is a multifunctional CNC machine capable of bridge sawing, slab cutting, milling, drilling, carving, and complex 3D surface processing.
3. Is the control system easy to use for beginners?
Yes, it features the Italian ESA CNC control system with a user-friendly touch screen interface, making complex settings visible and easy to manage.
4. How does the photographing camera help in production?
The camera allows for real-time slab positioning and typesetting on the screen, which helps optimize the cutting layout, save time, and significantly reduce material waste.
5. Does the machine support automatic chamfering?
Yes, the cutter head can rotate 360 degrees and tilt 90 degrees, allowing it to perform automatic chamfering and cutting at any specified angle.
6. How can I transfer my design files to the machine?
You can easily upload your CAD/CAM files through the built-in USB port or via a WIFI connection for seamless integration with your design software.
