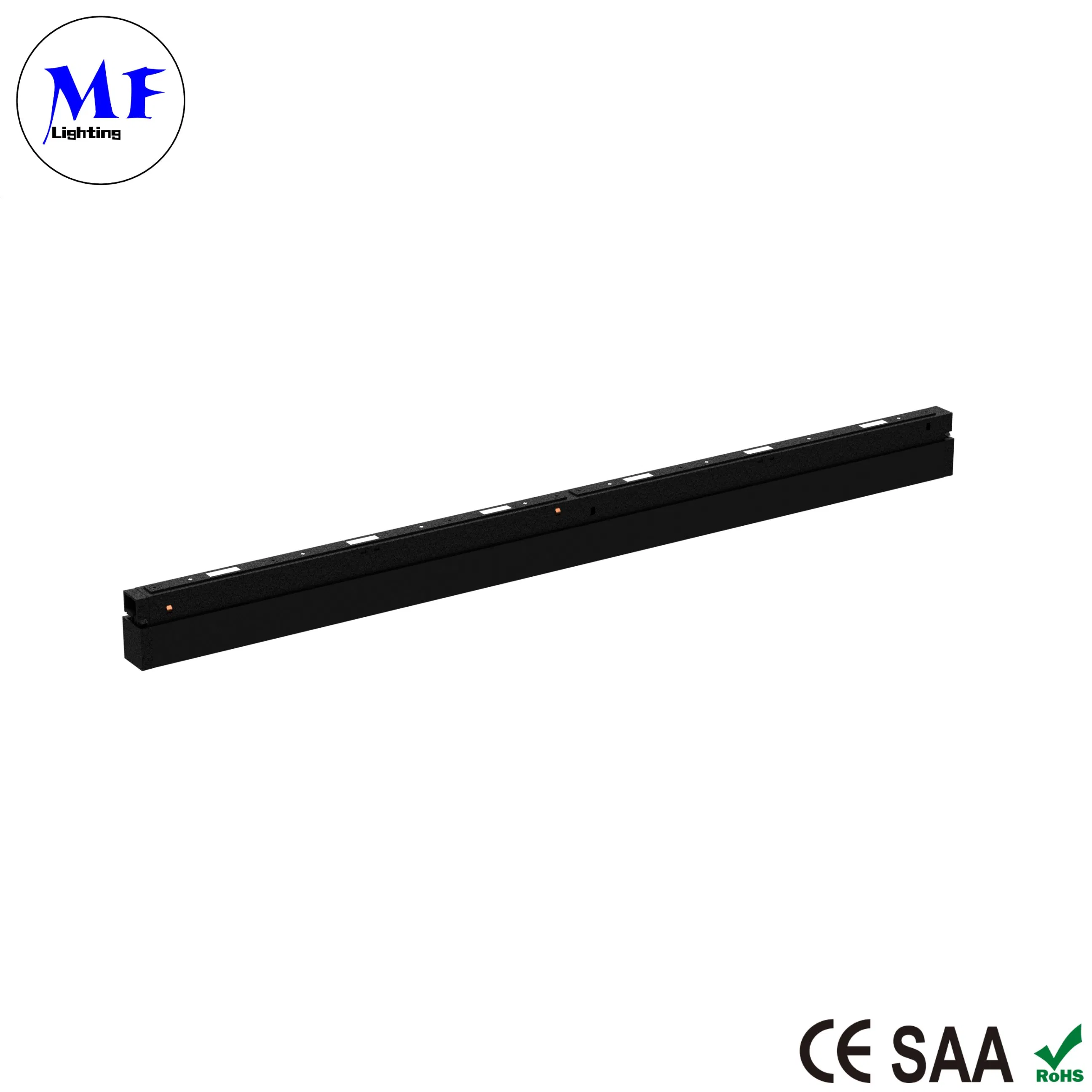

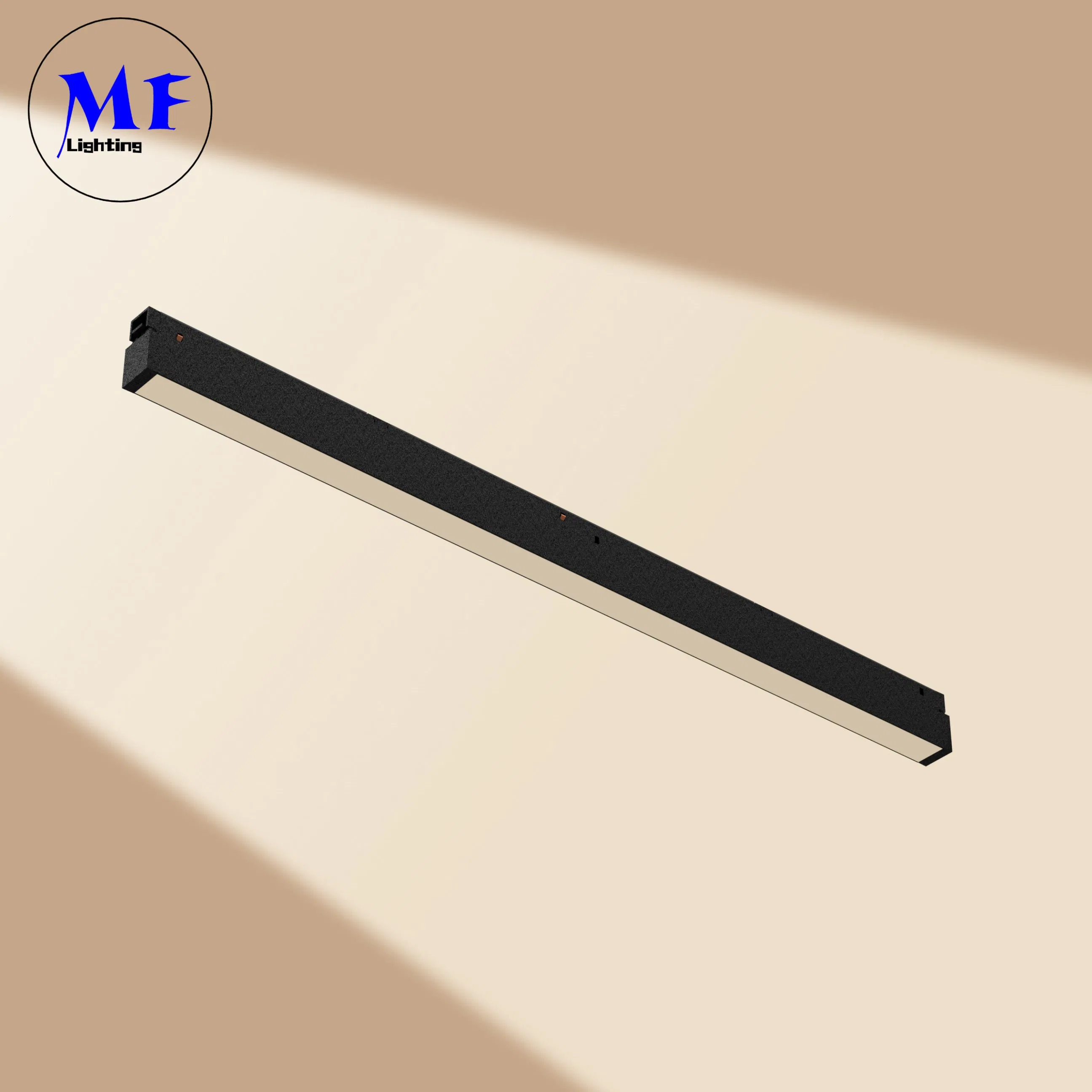

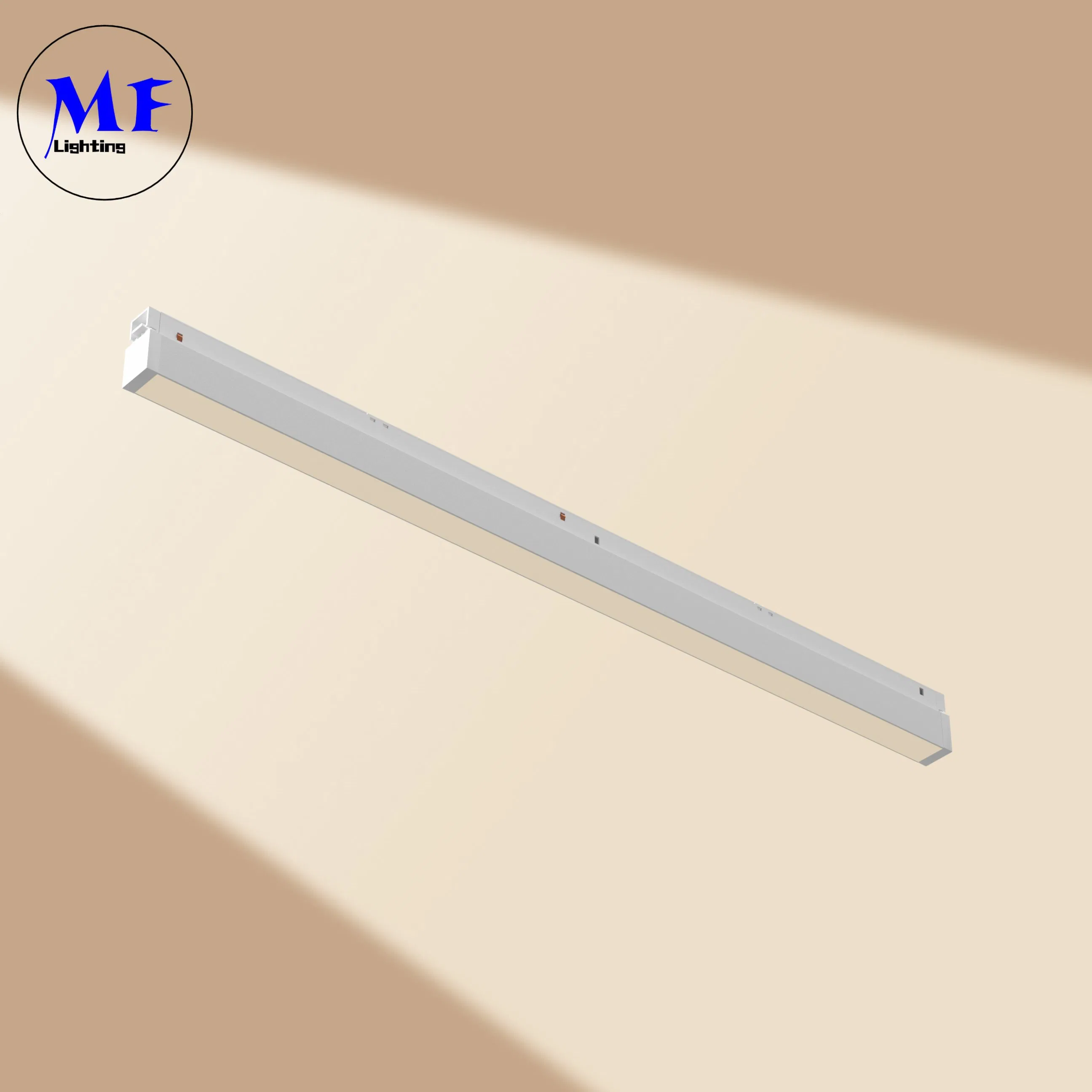

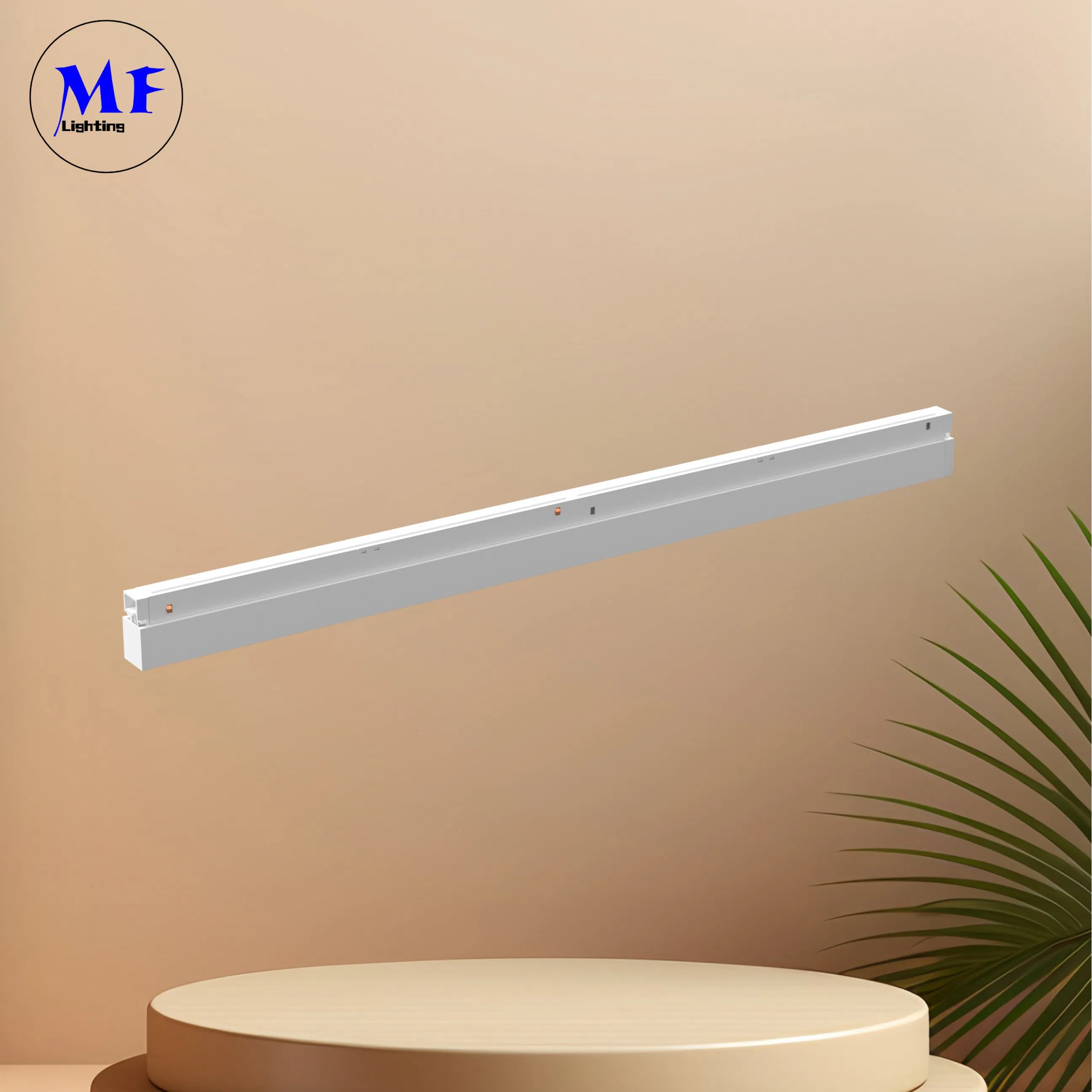

Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
1 / 4
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control
Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control

Factory Price 20W Dali Dimmable CCT Adjustable Surface Mounted LED Magnetic Linear Track Flood Light with Smart Control

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
MF-SMLL6020
IP Rating
IP20
Certification
CCC, CE, FCC, RoHS, SAA
Input Voltage
DC48V/24V 310mA
CRI
Ra>90
Beam Angle
110°
LED Brand
OS-RAM LED SMD
CCT & Flux
3000K 1034lm/4000K 1066lm
Dimming
No Dim/ Dali Dim /0-10V
Product Color
White/Black
Warranty
2 years
Product Class
Class III
P

Product Description

LED Magnetic Linear Track Flood Light

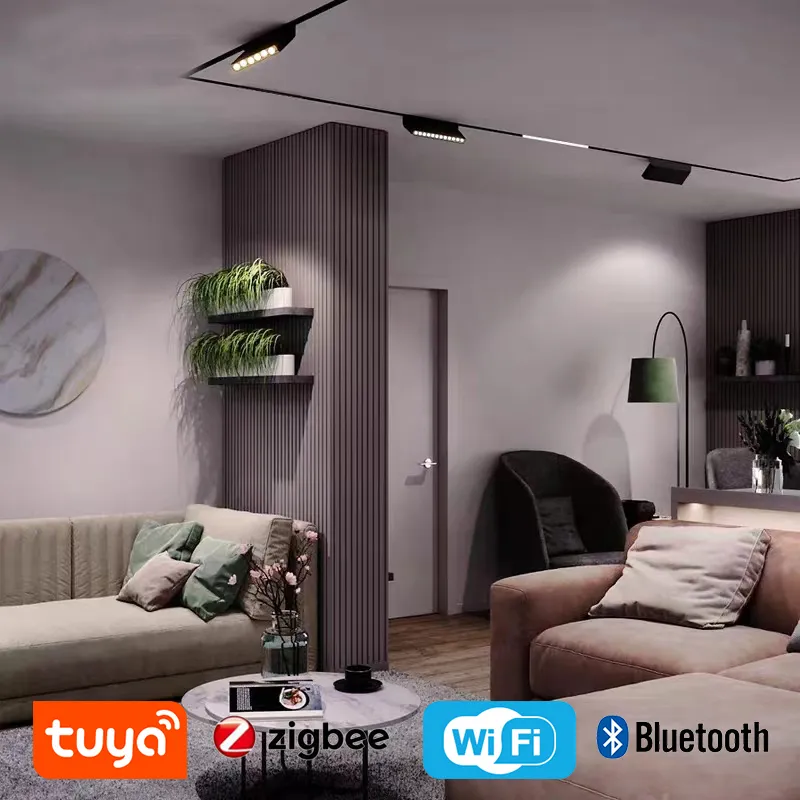

Magnetic Lamp Detail

Magnetic lamp is a track-type quick-swap light that uses a magnet to quickly absorb characteristics. The system consists of the magnetic track and modular lamps.

The track supports three installation modes: surface mounted, recessed, and suspended. Modular options include flood linear lamps, anti-glare spotlights, hanging lamps, and wall washers. It is an ideal choice for offices, showrooms, hotels, villas, and clubs.

Technical Parameters

Wattage20W
InputDC48V/DC24 310mA
Color Temperature3000K/4000K/5000K/6000K/3000-6000K(Tunable)
CRIRa>90
Beam Angle110°
LED BrandOS-RAM LED SMD
DimmingNo Dim/ DALI Dim /0-10V
Protection RateIP20

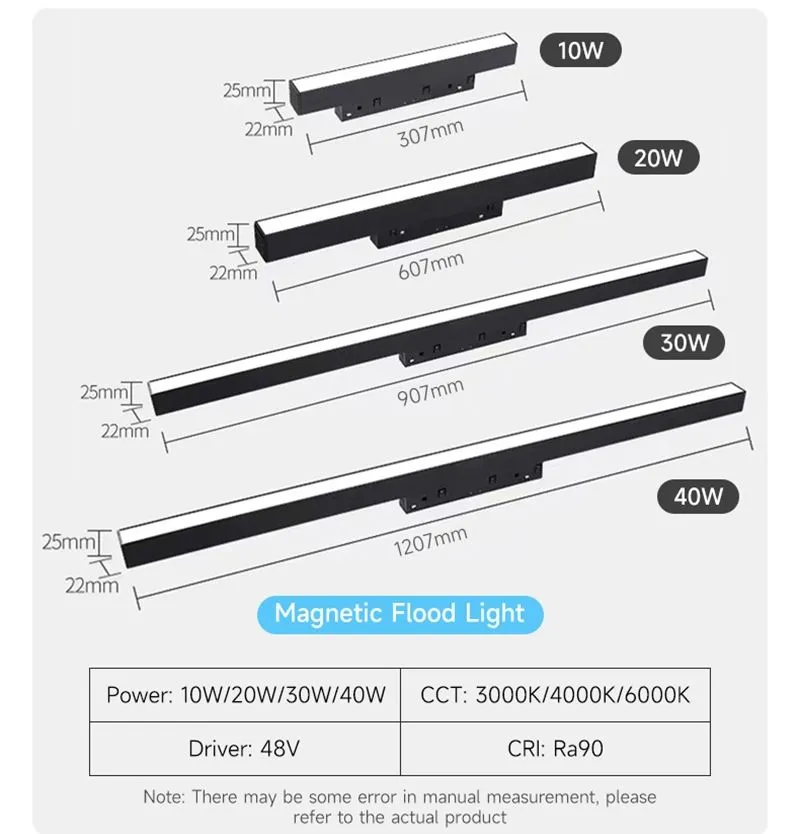

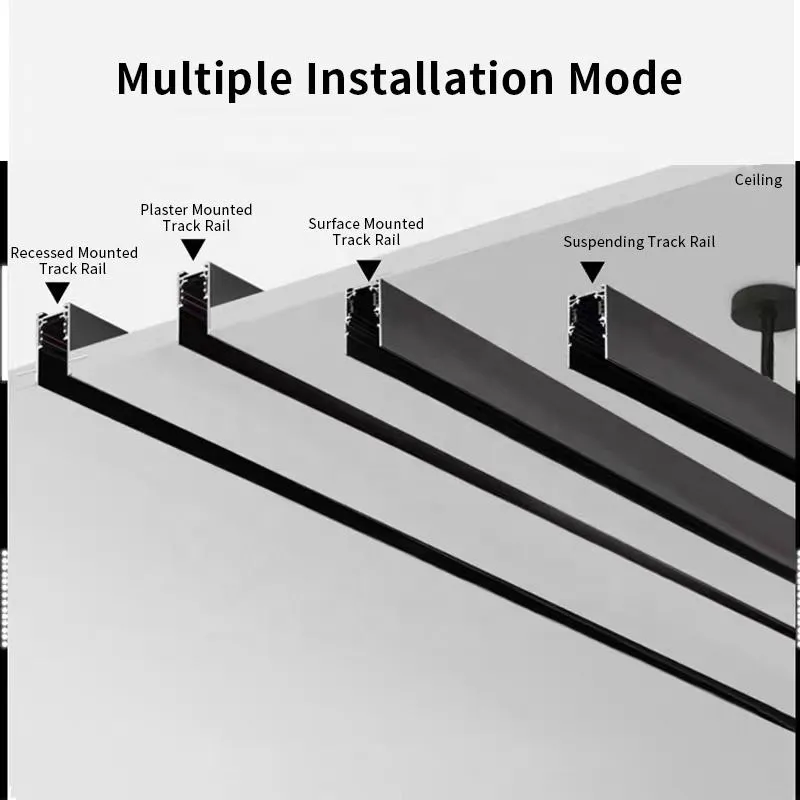

Product view 1 Product view 2
F

Key Features

1. Anti-glare design, comfortable for eyes
2. Exquisite structure, high-grade appearance
3. Low voltage operation for electric shock safety
4. Magnet adsorption for random lighting combinations
5. Double safety structure ensures durability
6. Selected top quality materials for long lifetime

Test Data

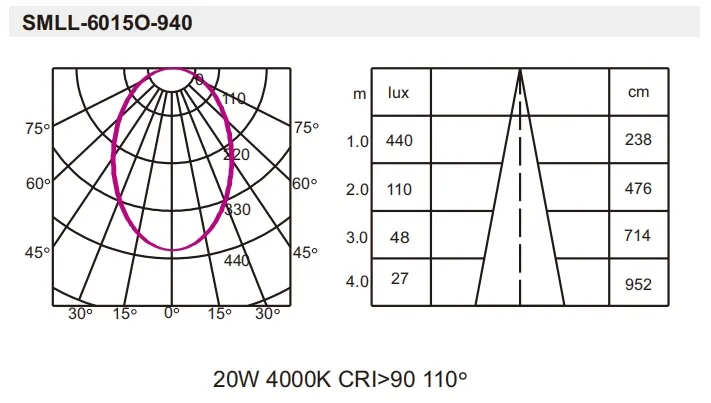

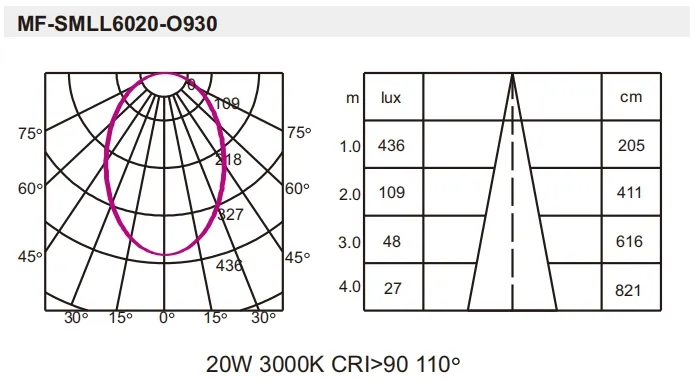

Test Chart 1 Test Chart 2
S

Installation Instructions

  1. Before installing the lamp, follow instructions to install the track.
  2. Hold both sides of the lamp clasp and place it in the track.
  3. Secure the buckles, push into the track, and release to fasten.
  4. Turn on power for testing.

Note: Always use both hands to hold the safety clasps when pulling out the lamp.

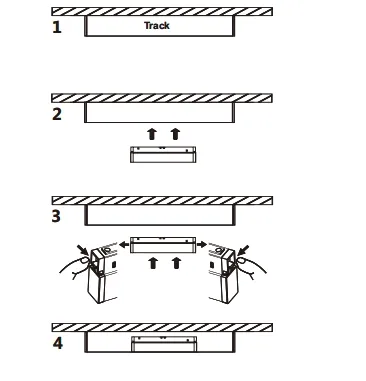

Installation Diagram
A

Applications

Commercial Displays: Highlighting products in shops, exhibitions, and galleries.

Home Decor: Directional lighting for living rooms, studies, and kitchens.

Accent Lighting: Precise illumination for dining tables or artworks.

Office Spaces: Creating comfortable working environments and improving efficiency.

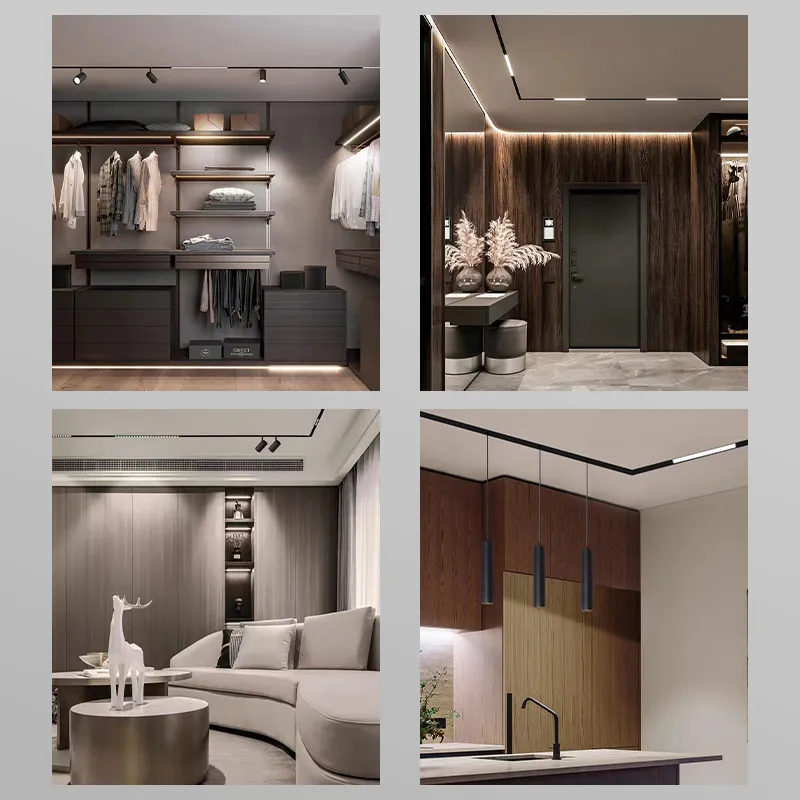

Application Scenario
L

Selection & Logistics

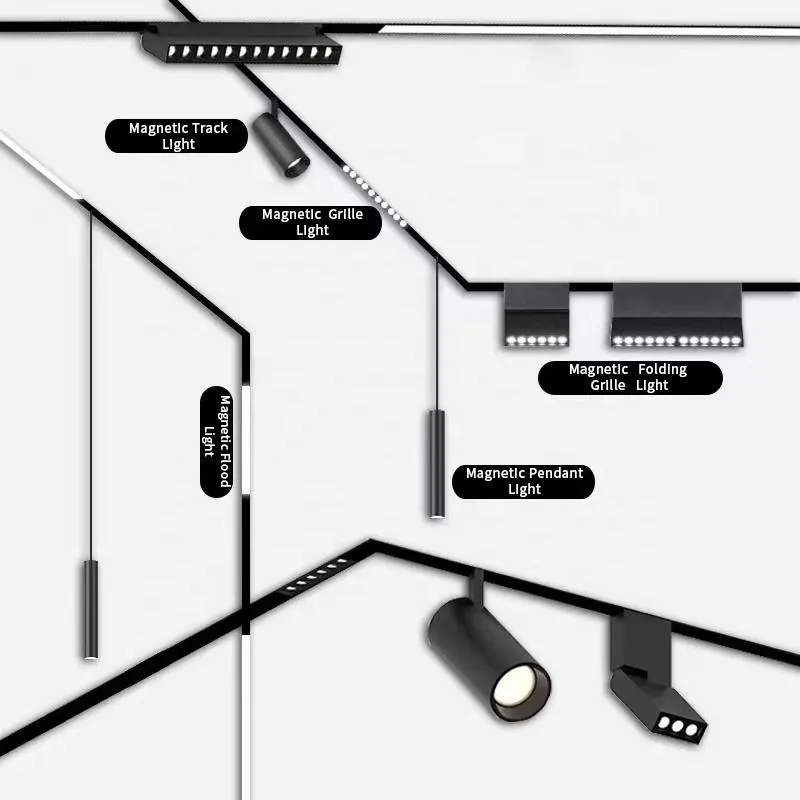

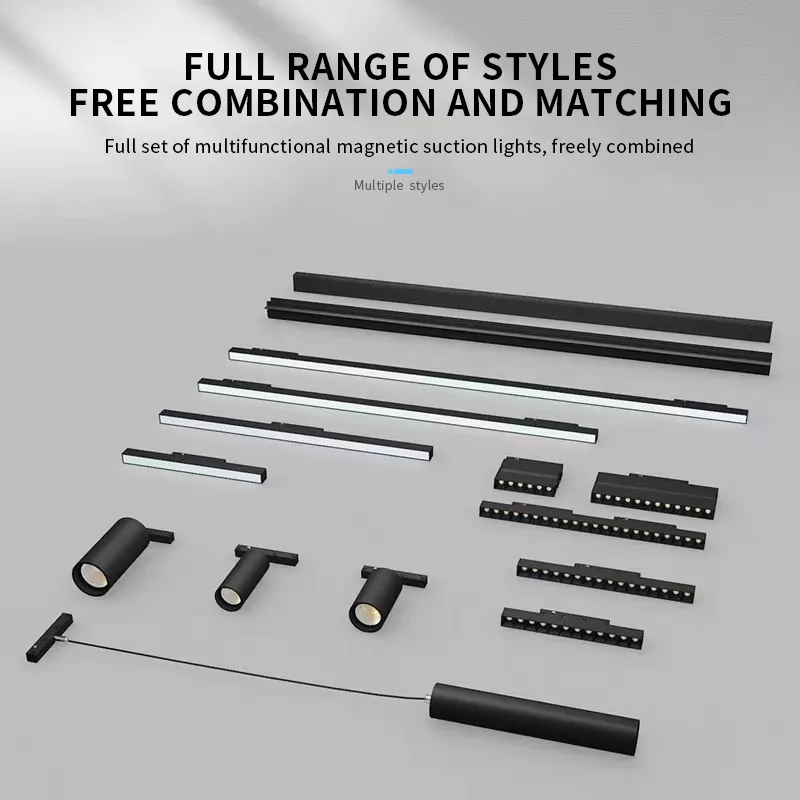

Series item 1 Series item 2

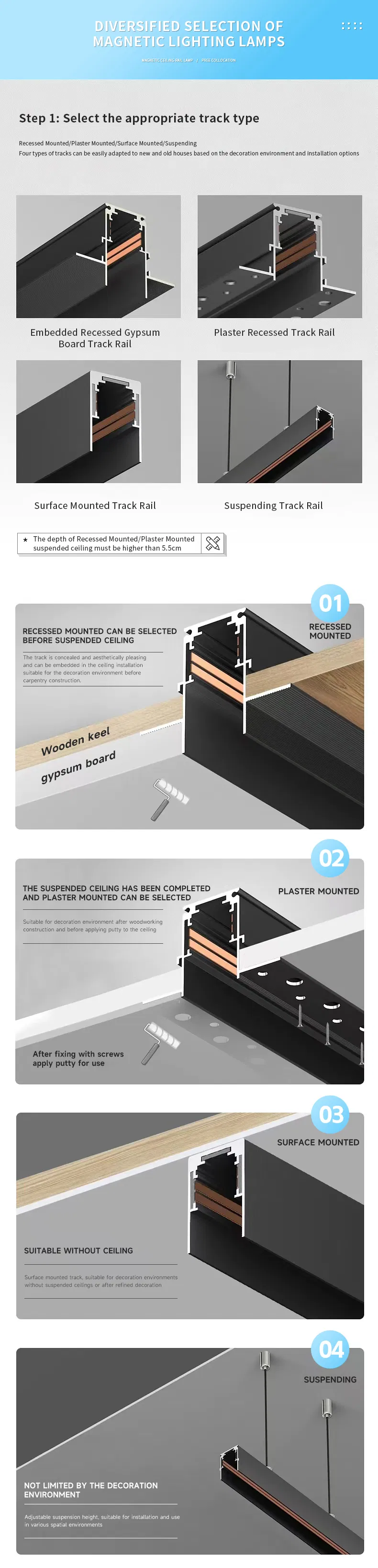

Selection Table

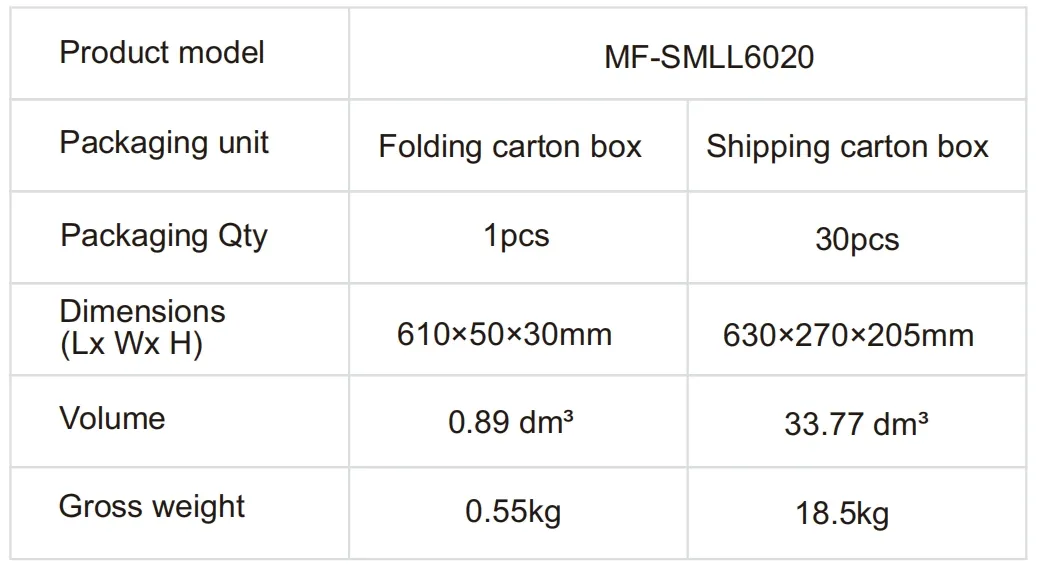

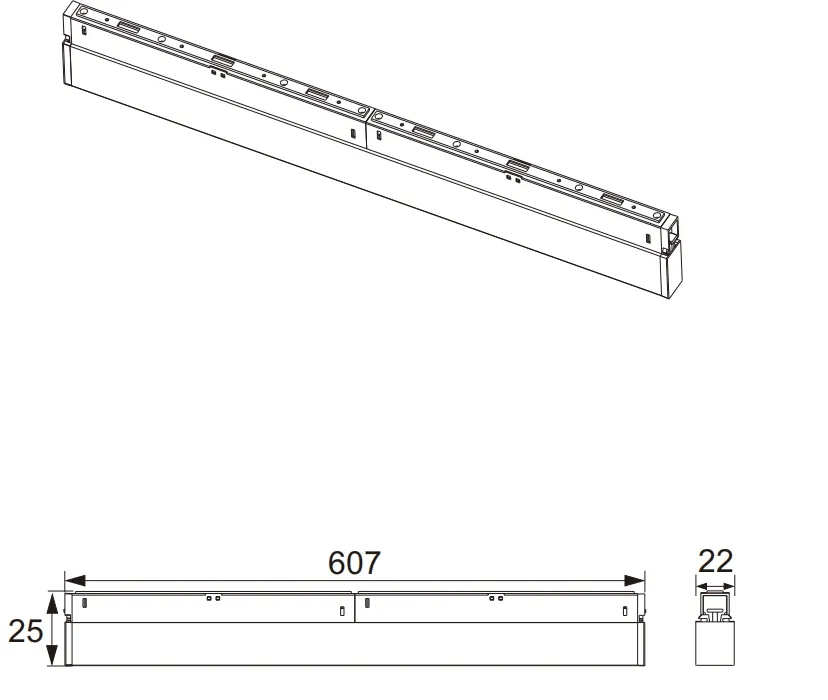

Logistical Data Dimension Info
Packaging
?

Frequently Asked Questions

Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience in LED lighting solutions.
What are your main products?
Our main products include LED Triproof lights, High Bay lights, Flood lights, Explosion Proof lights, and specialized LED underwater and garden lighting.
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options and shipping terms?
We accept T/T, Western Union, and Paypal. Terms are usually 50% advance and 50% balance. Shipping terms include EXW, FOB, CIF, CNF, and DDP.
What is the expected delivery time?
Delivery takes about 5-7 working days for samples and 20-30 working days for mass production, depending on the order volume.
Why should we choose your products?
We offer OEM/ODM services, have an in-house design team, provide high-quality products at reasonable prices, and have no strict MOQ request for standard items.
