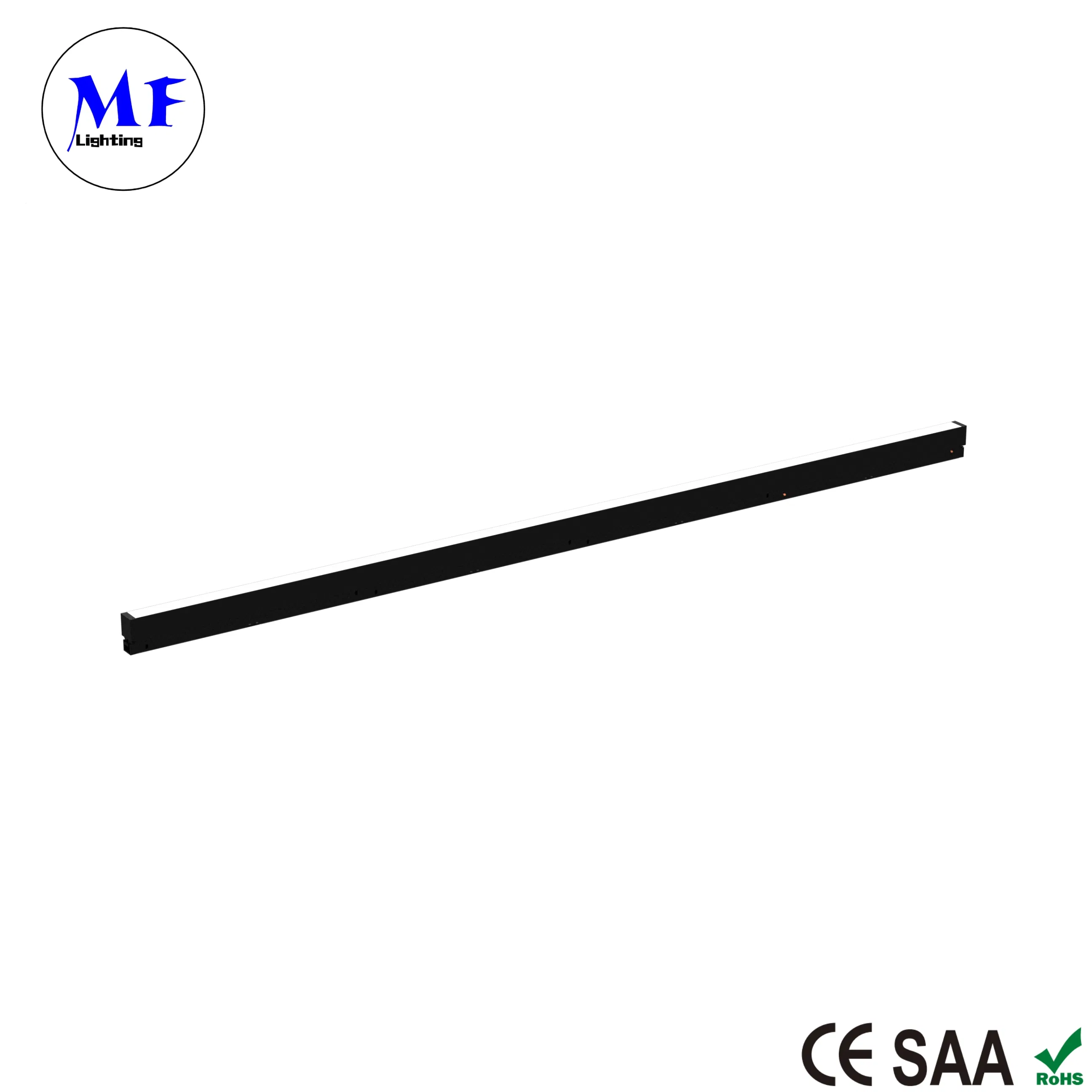

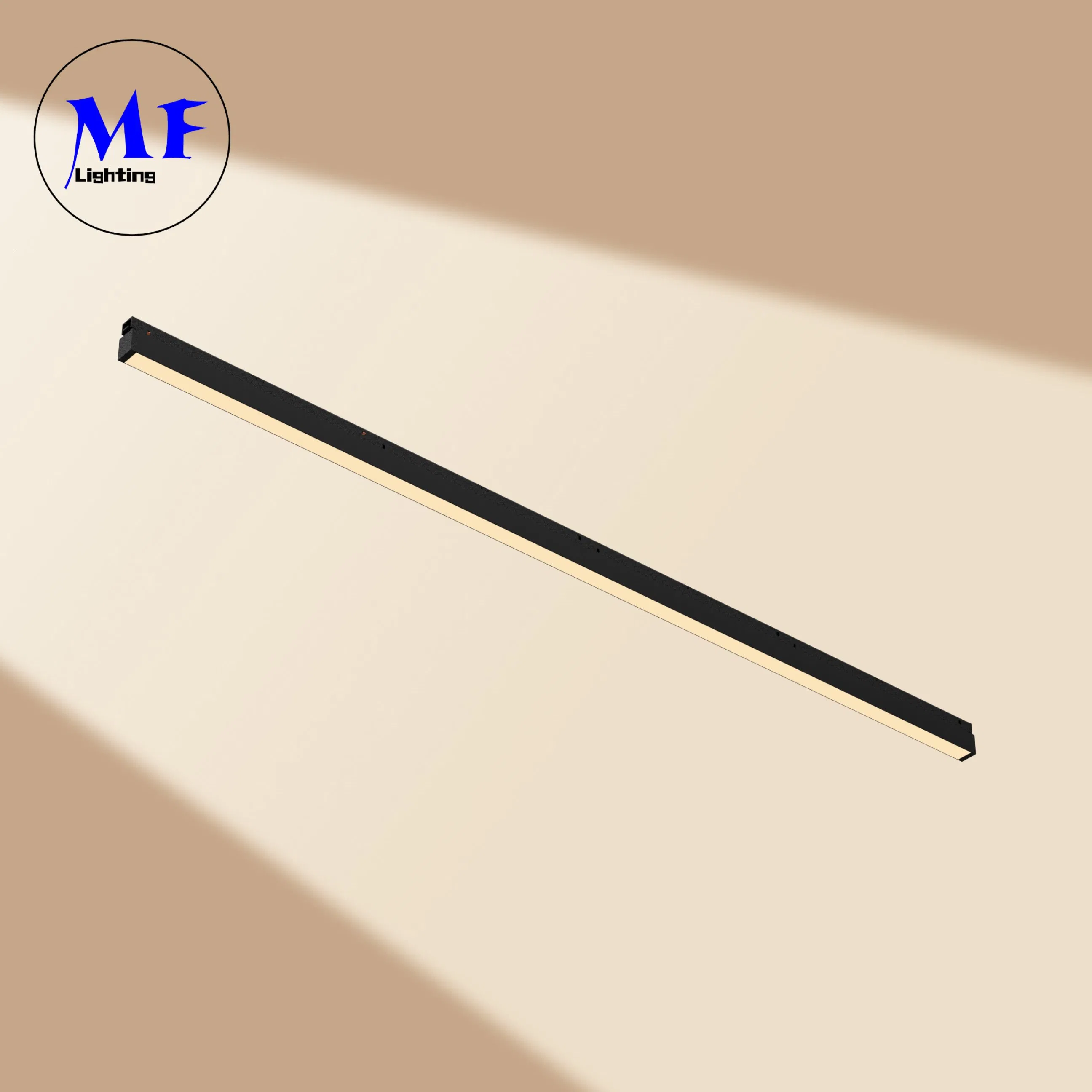

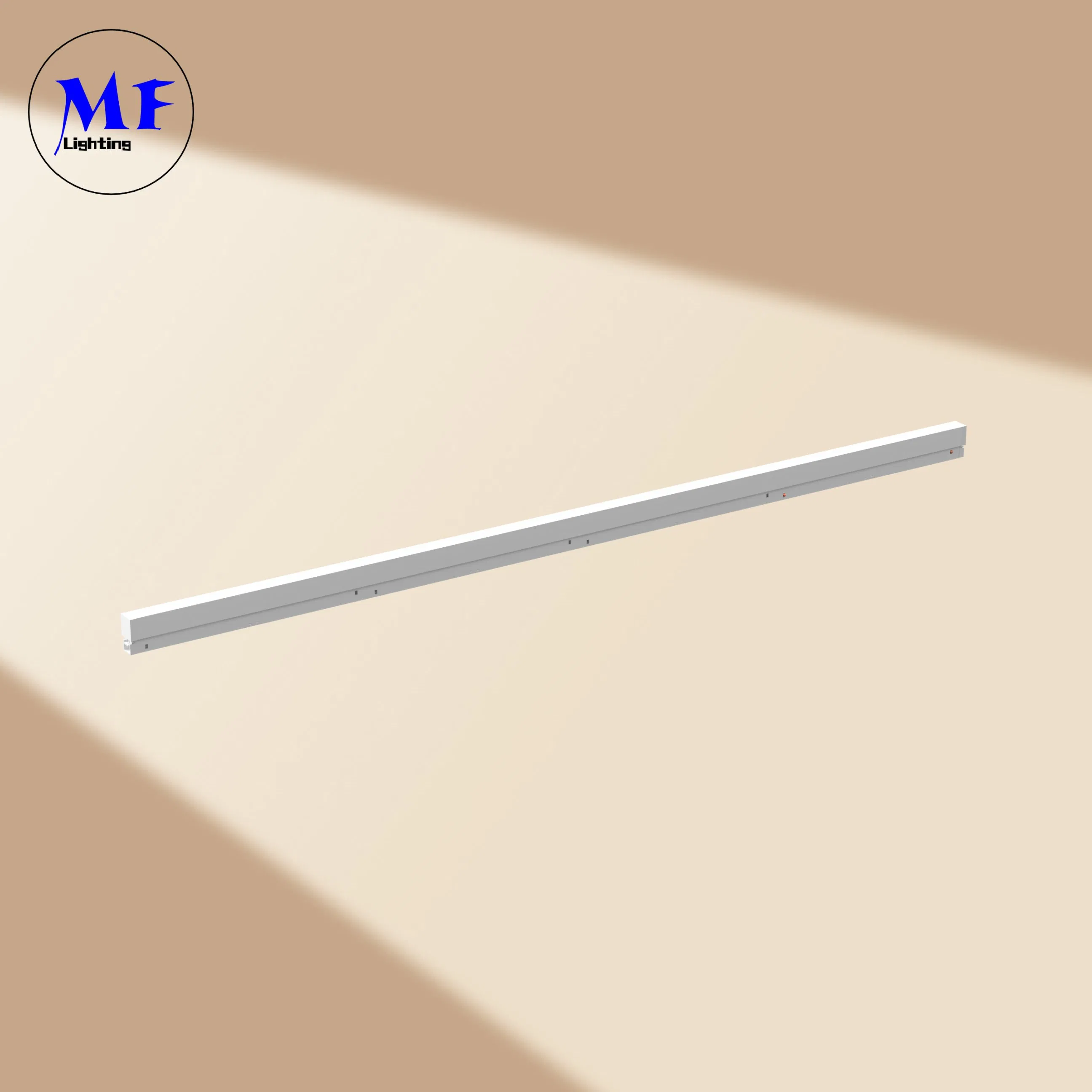

Factory Price 40W Dali Dimmable CCT Adjustable Surface Mounted Magnetic Linear Track Flood Light with Smart Control

1 / 4

Factory Price 40W Dali Dimmable CCT Adjustable Surface Mounted Magnetic Linear Track Flood Light with Smart Control

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

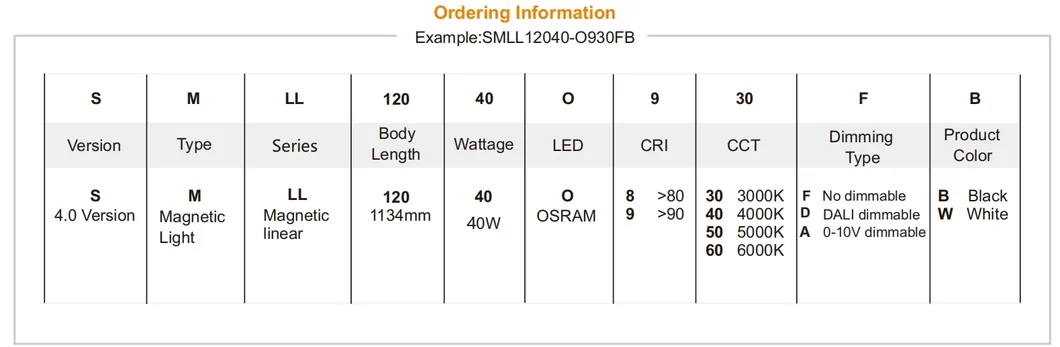

Model NO.	MF-SMLL12040
IP Rating	IP20
Certification	CCC, CE, FCC, RoHS, SAA
Input Voltage	DC48V/DC24 150mA
Color Rendering Index	Ra > 90

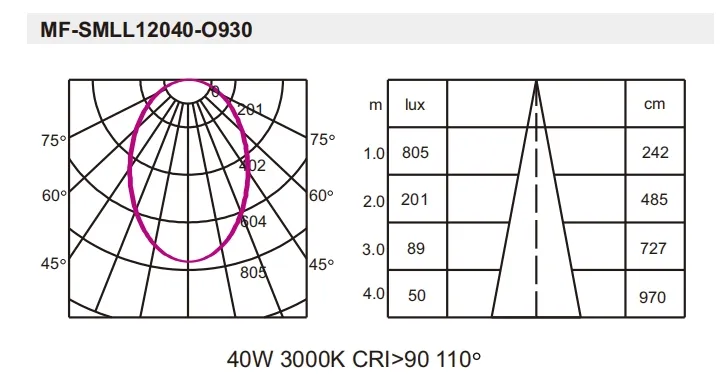

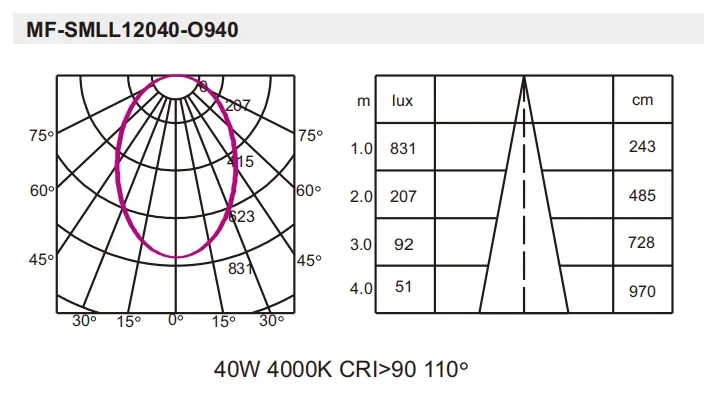

Beam Angle	110°
LED Brand	OS-RAM LED SMD
CCT & Luminous Flux	3000K 2569lm / 4000K 2655lm
Dimming	No Dim / Dali Dim / 0-10V
Warranty	2 Years

Product Overview

Magnetic lamps are track-type quick-swap lighting systems that utilize magnets for rapid absorption and secure installation. The utility model is composed of two primary parts: the magnetic track and the lamp module.

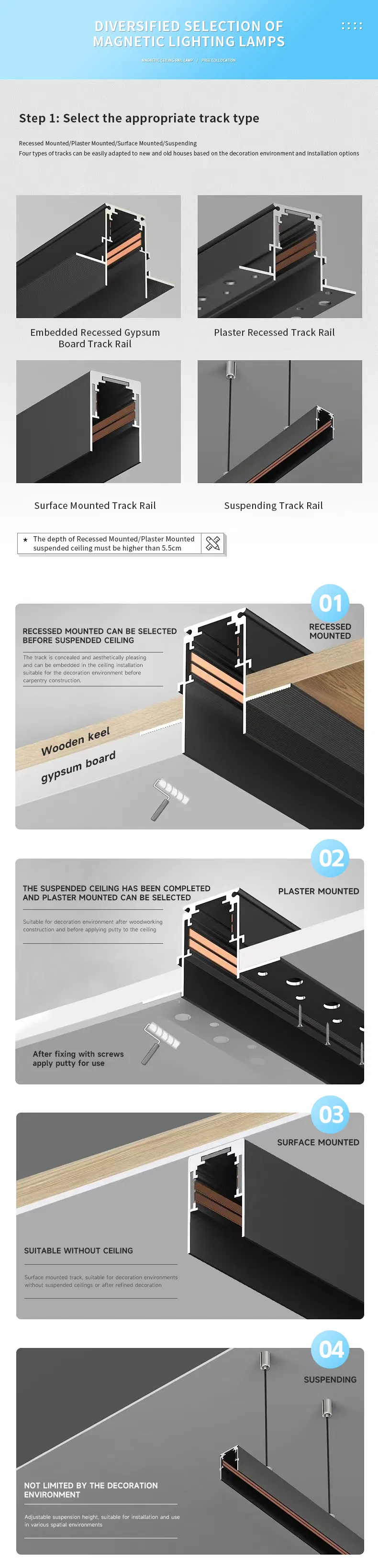

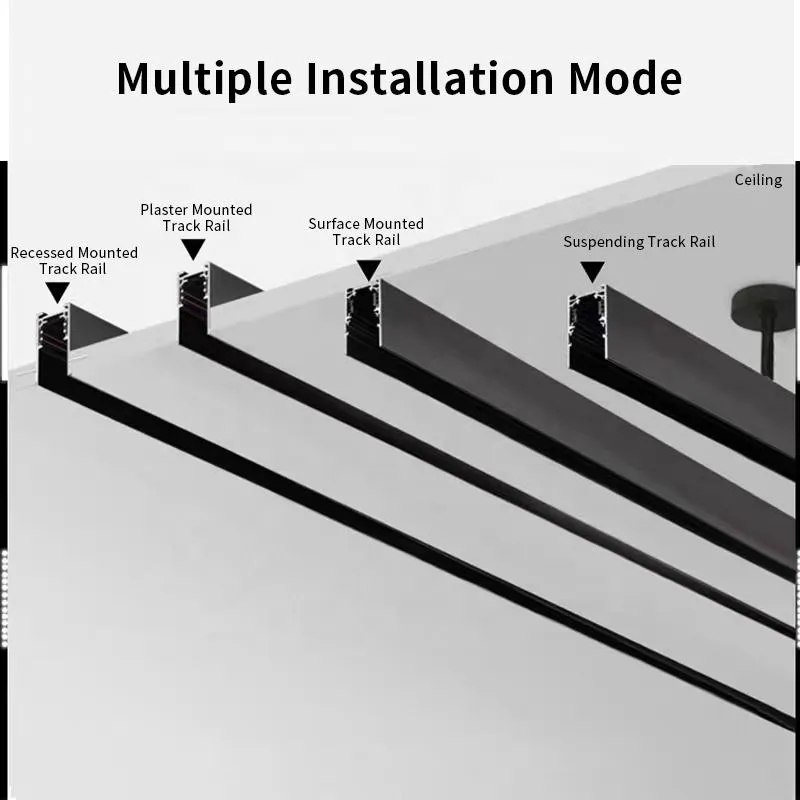

The track supports three installation modes: surface mounted, recessed, and suspended. The system offers various modular lamps including flood linear lamps, anti-glare accent linear spotlights, hanging lamps, and wall washers.

Technical Parameters

Parameter	Details
Wattage	40W
CCT Options	3000K / 4000K / 5000K / 6000K / Tunable (3000-6000K)
Protection Rate	IP20
Operation Temperature	-20ºC to 50ºC
Product Class	Class III

Key Features

Anti-glare design, comfortable for eyes

Exquisite structure with high-grade appearance

Low voltage operation for electric shock safety

Magnet adsorption for random lighting combinations

Double safety structure ensures durability

Selected top quality materials for long lifetime

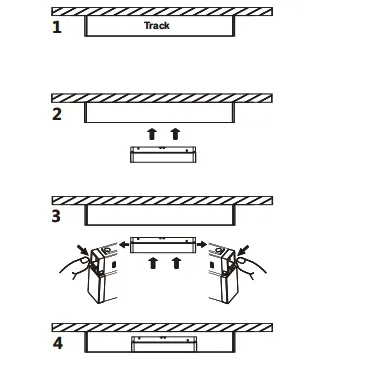

Installation Instructions

Step 1: Install the track following the standard guidelines.

Step 2: Hold both sides of the lamp clasp and align with the track.

Step 3: Secure the buckles and push the fitting into the track until fastened.

Step 4: Power up the system and test functionality.

Note: When removing the lamp, ensure both hands hold the safety clasps on both sides.

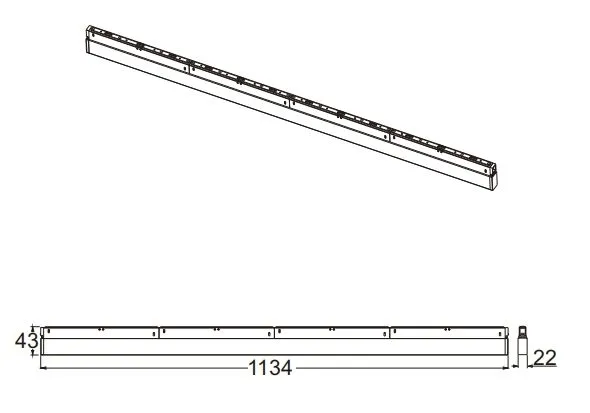

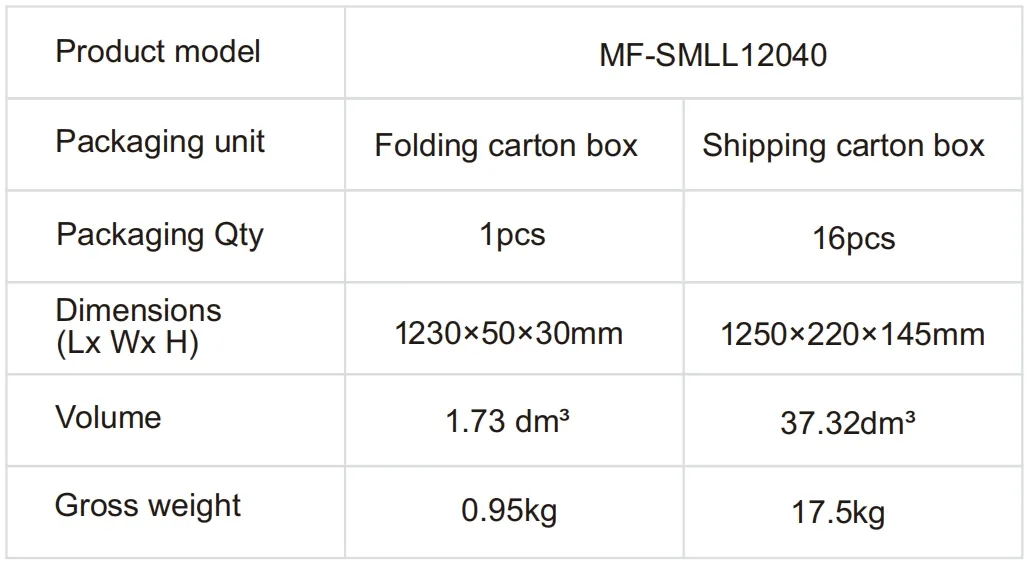

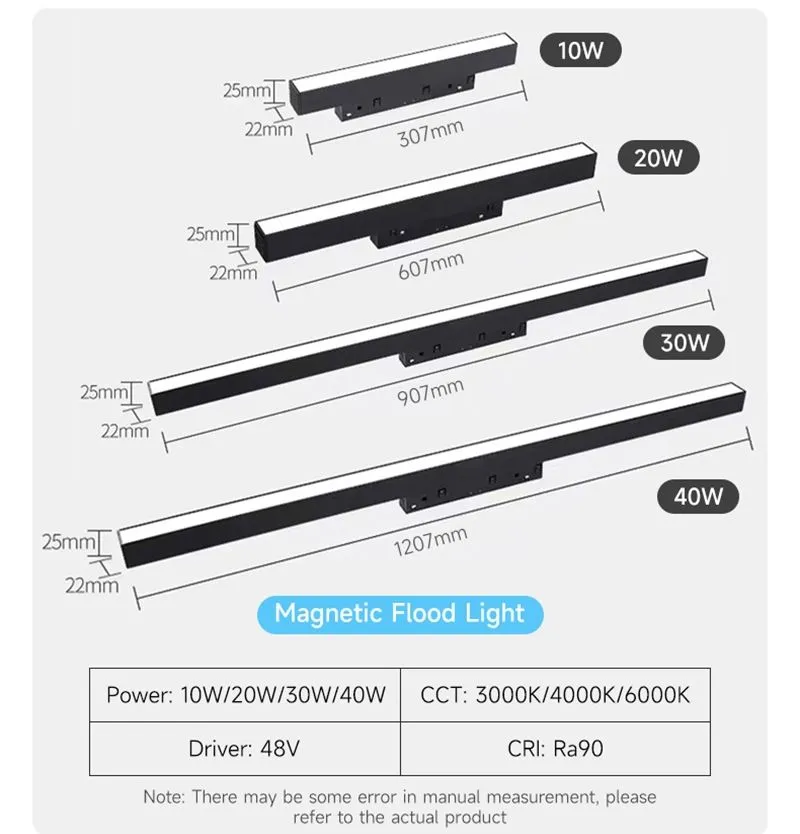

Dimensions & Logistics

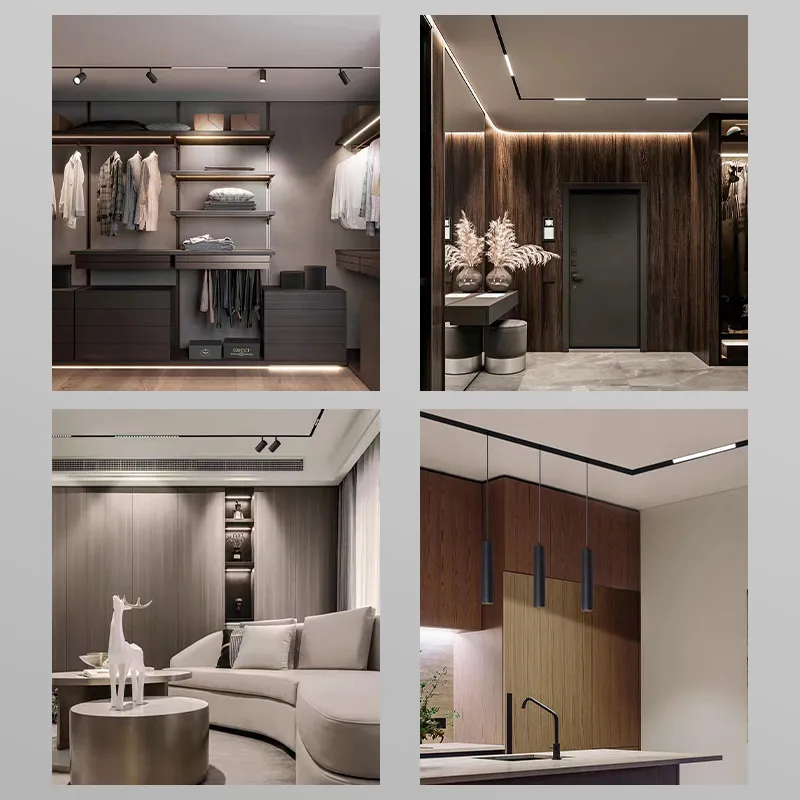

Applications

Commercial Displays: Ideal for shops, exhibitions, and galleries to highlight products.

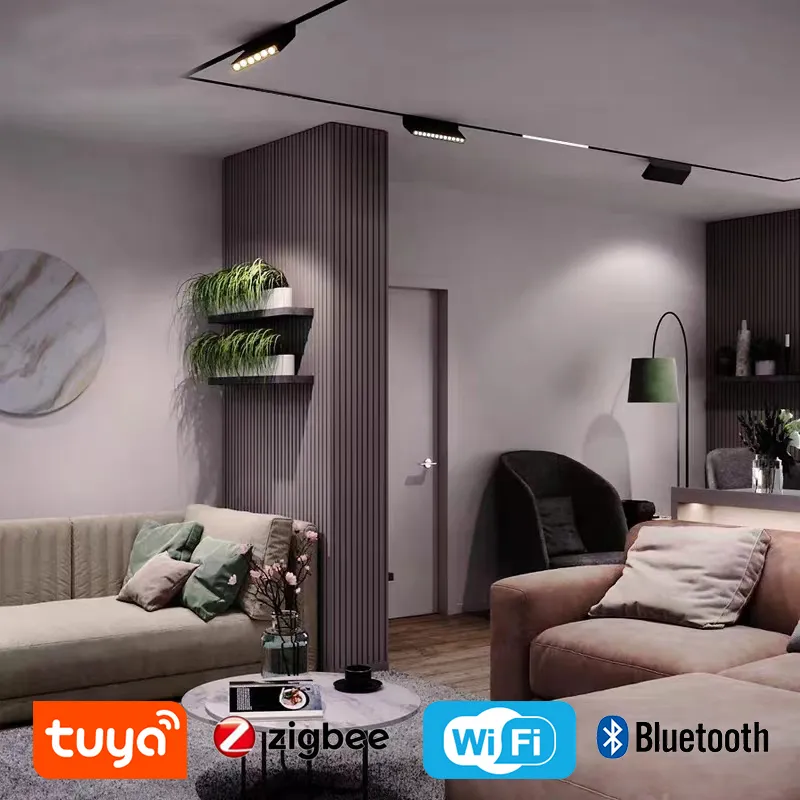

Home Decor: Provides directional lighting for living rooms, studies, and kitchens.
Accent Lighting: Perfect for dining tables, workstations, or artworks.
Office Spaces: Enhances overall illumination and creates a comfortable working environment.

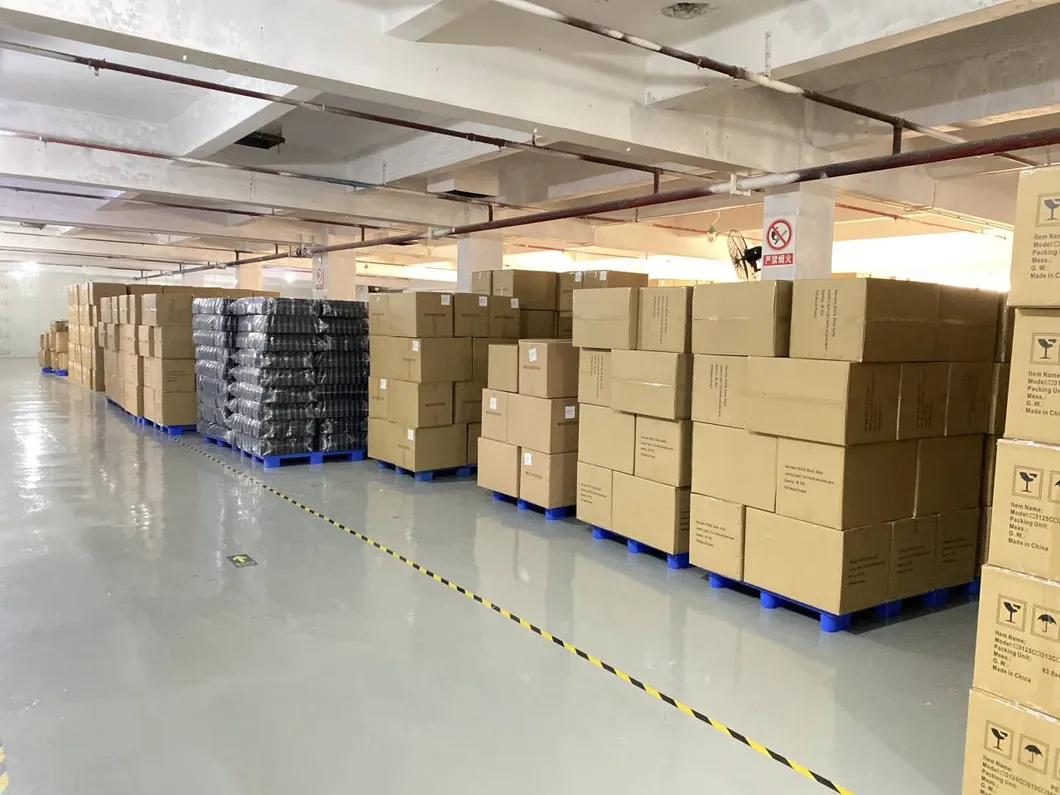

Packaging & Selection

Frequently Asked Questions

What are your main lighting products?

We specialize in LED Tri-proof lights, High Bay lights, Flood lights, Down lights, and specialized underwater/garden lighting solutions.

Do you offer customized models (OEM/ODM)?

Yes, we provide full OEM/ODM services. We have our own design team and offer free customization for orders exceeding 1000 pieces.

What is the typical delivery time for orders?

Sample orders take approximately 5-7 working days. Mass production typically requires 20-30 working days depending on the total quantity.

What are the available payment and shipping terms?

We accept T/T, PayPal, and Western Union. Shipping terms include EXW, FOB, CIF, CNF, and DDP options.

How are the magnetic track lights packaged for safety?

Each unit is packed in an individual color box and then secured in a high-strength master carton to ensure safe transit.

Is there a minimum order quantity (MOQ)?

We generally have no MOQ request for standard products, making it easier for projects of all sizes to access high-quality lighting.
