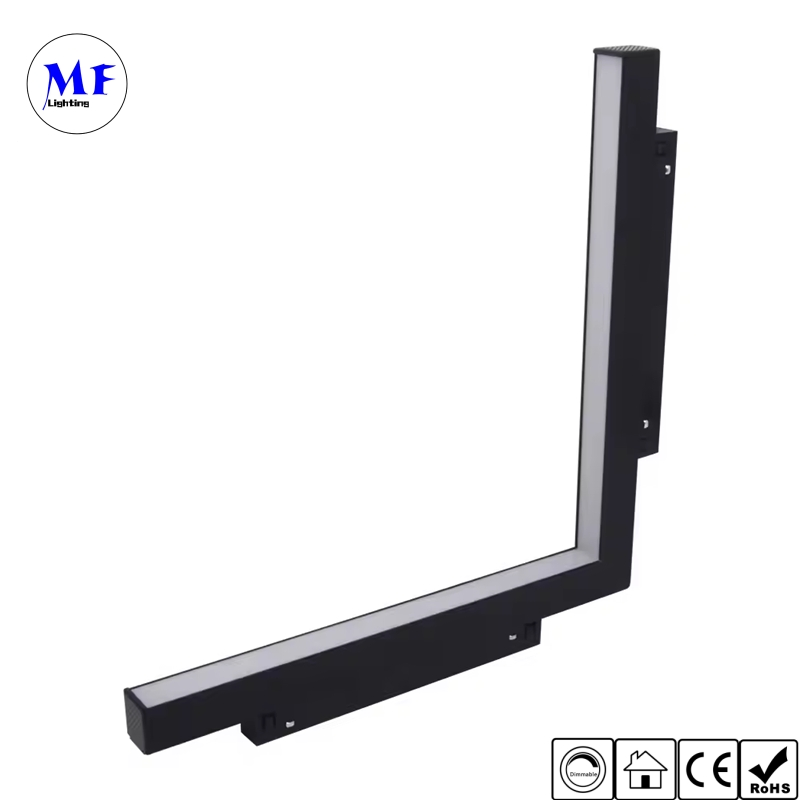

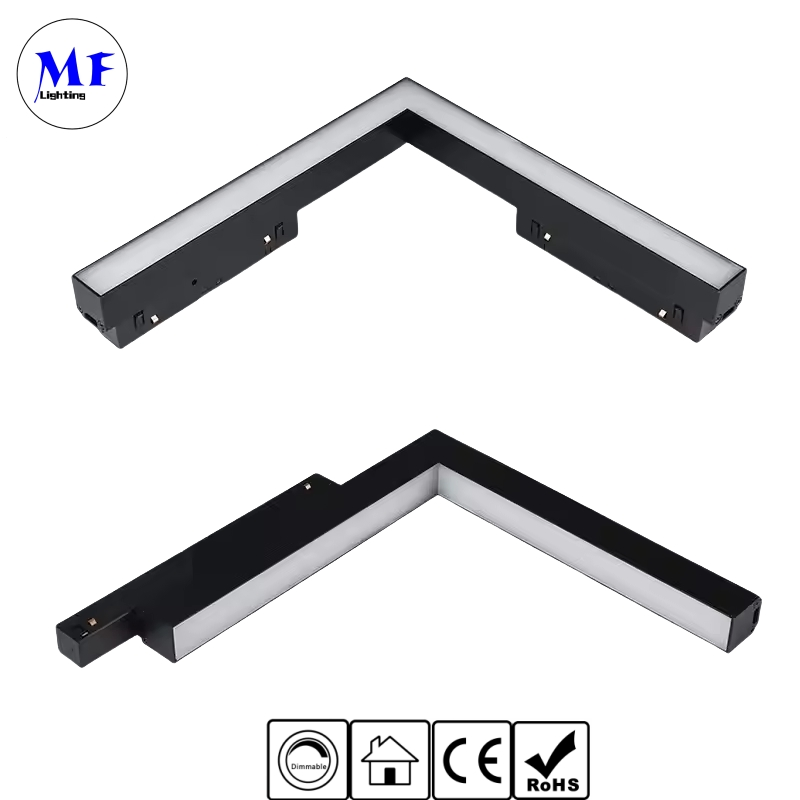

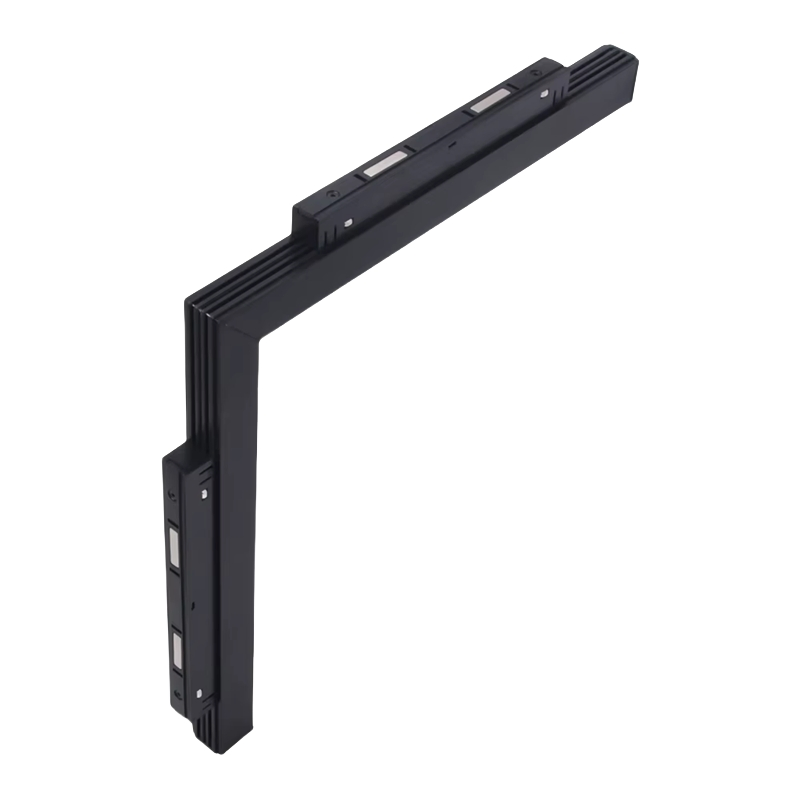

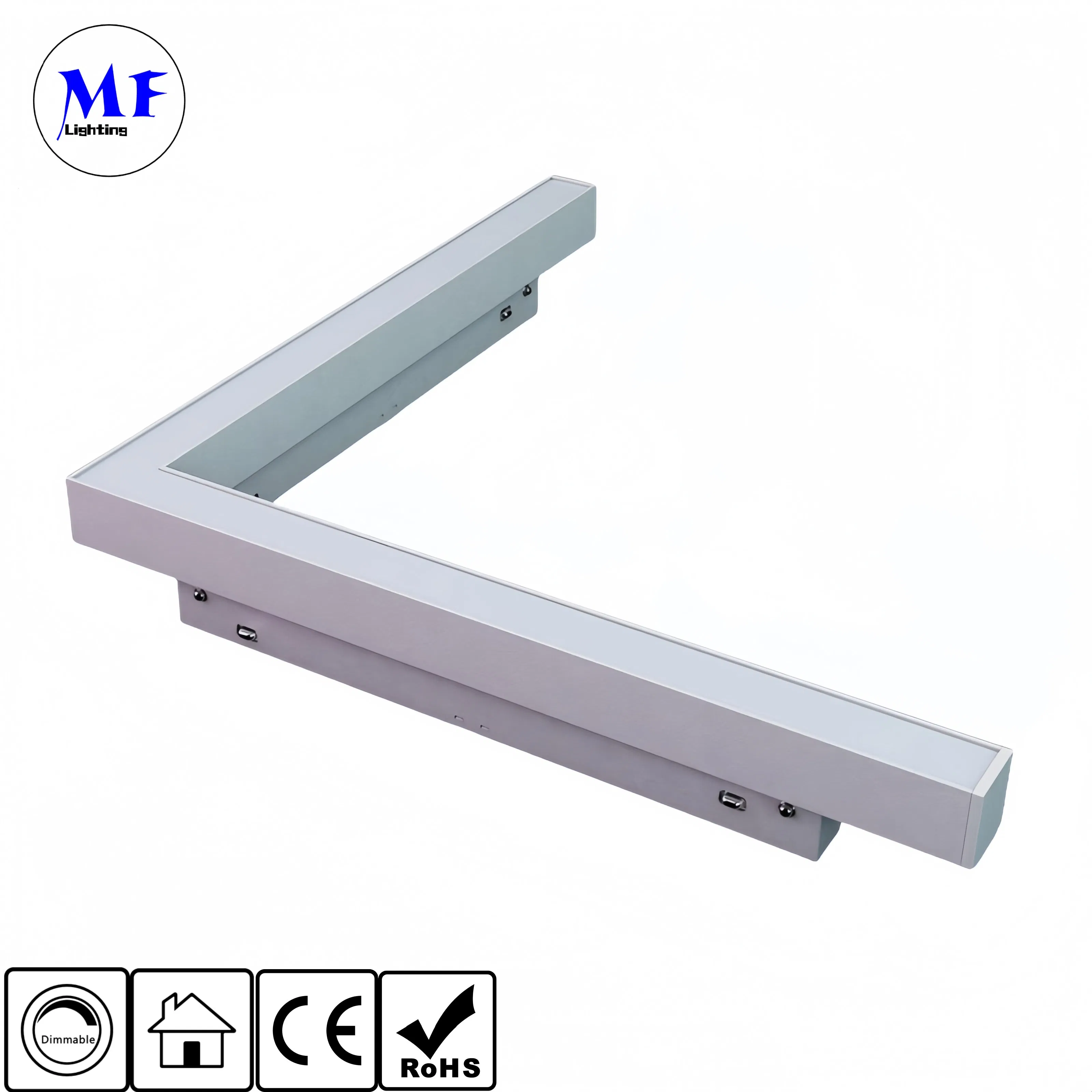

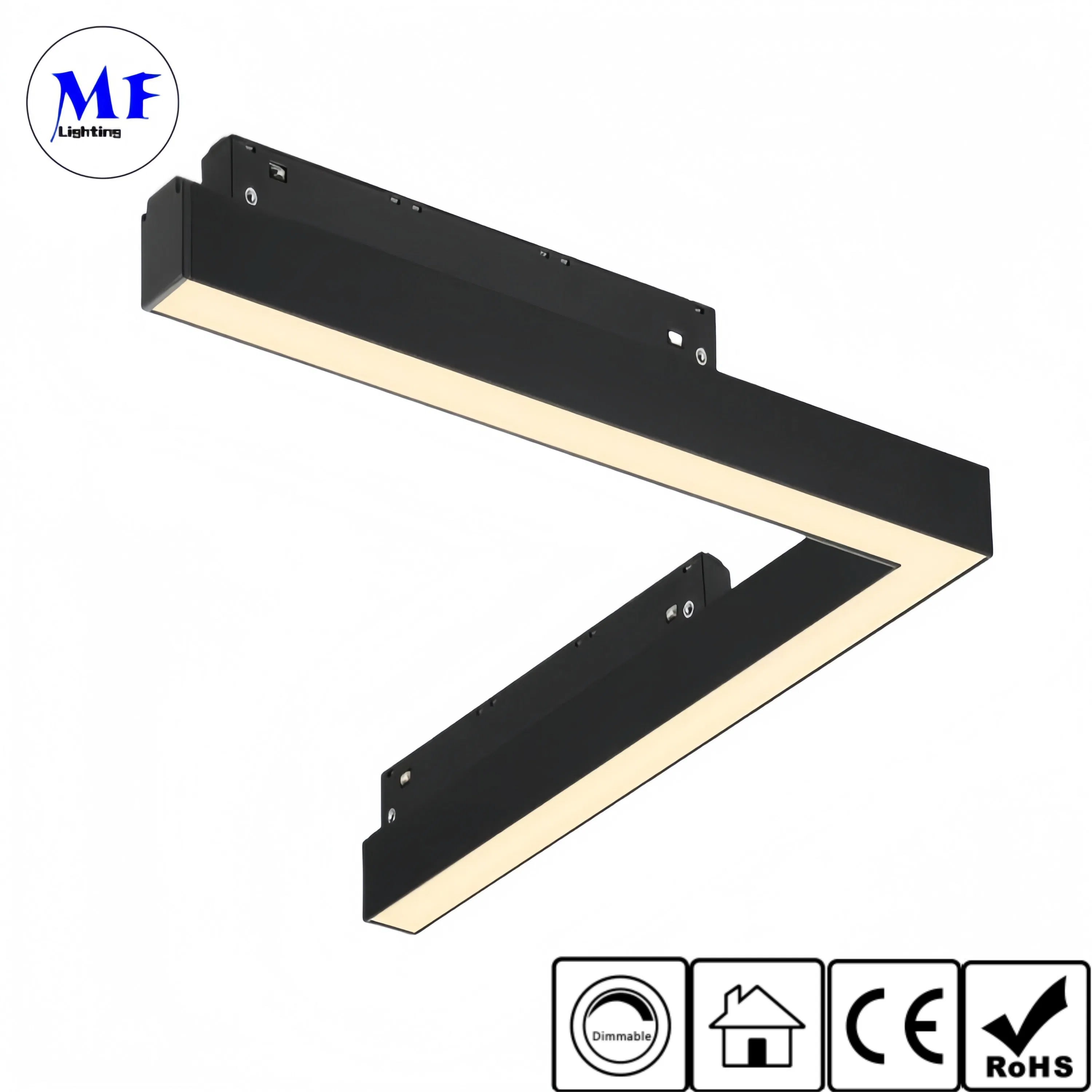

40W 0-10V Dimmable DC48V/24V Anti-glare Surface Mounted LED Magnetic Linear Flood Light

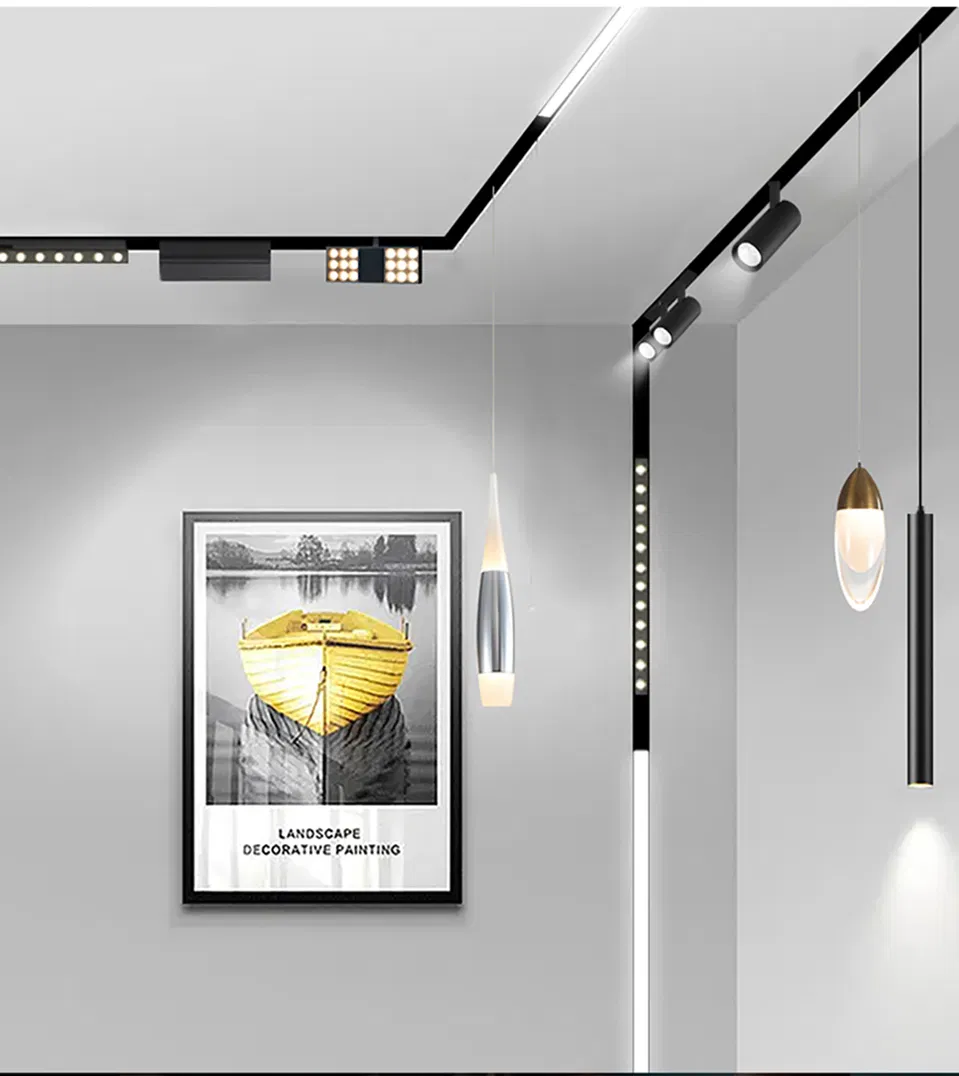

Magnetic lamp is a track-type quick-swap light that uses a magnet to quickly absorb characteristics. The utility model is composed of two parts: magnetic track and the lamp.

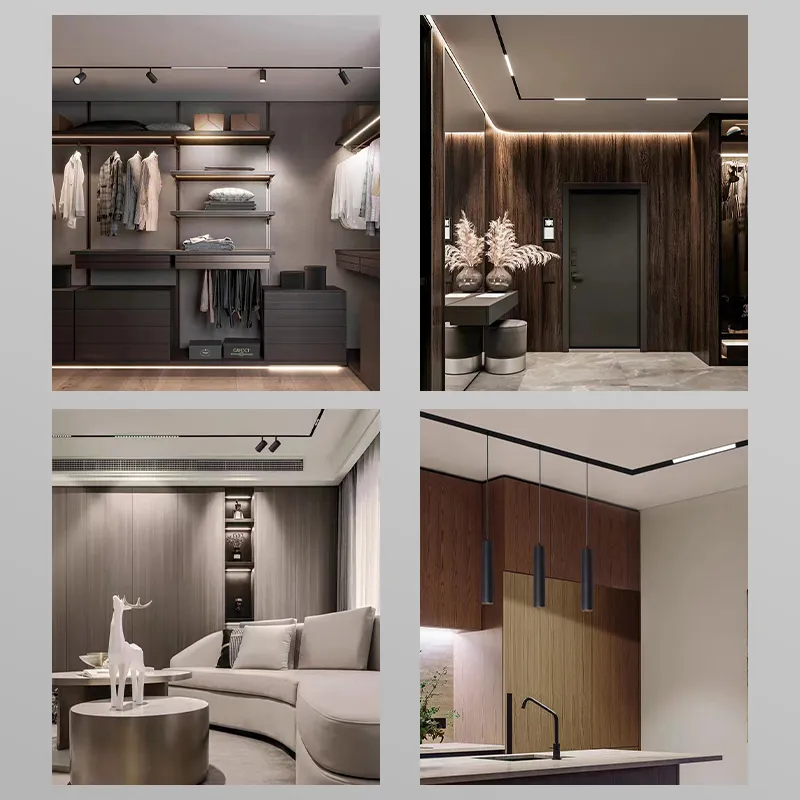

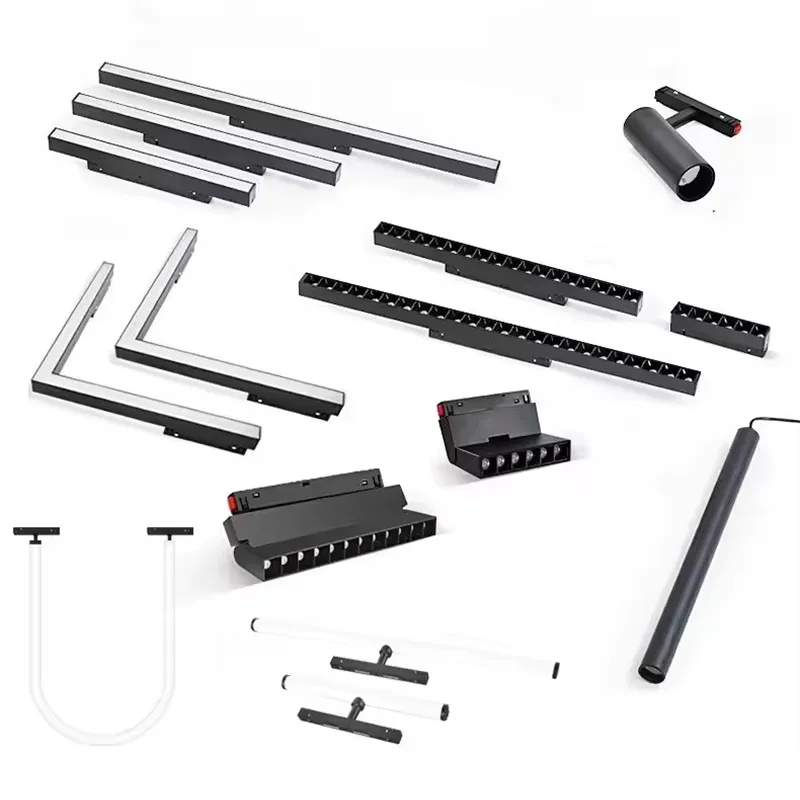

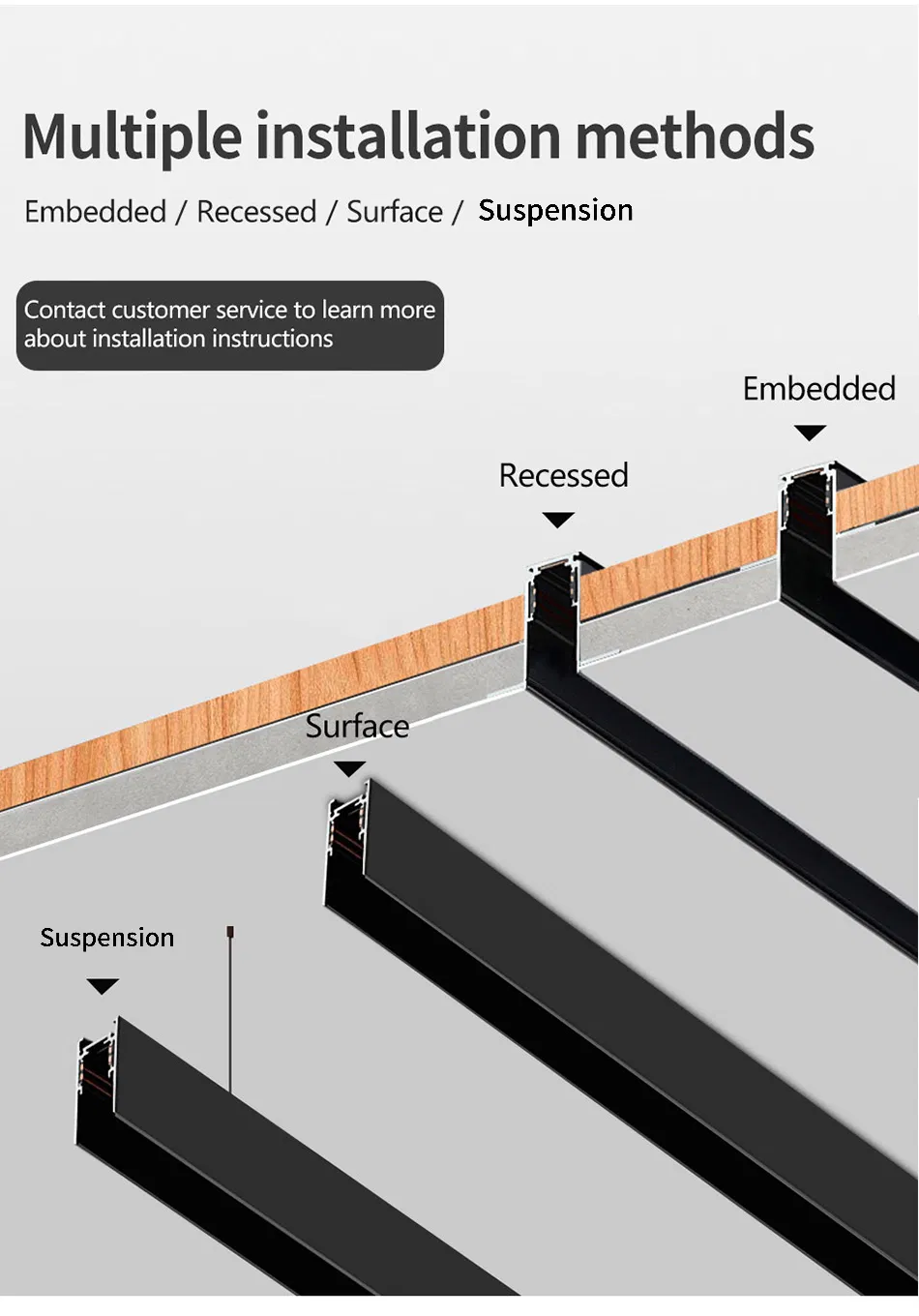

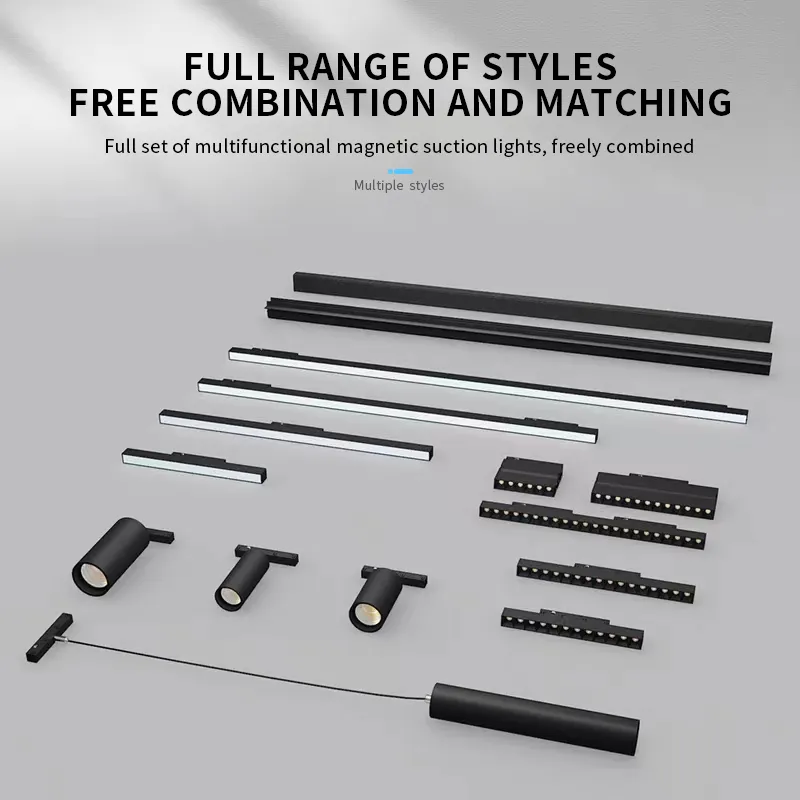

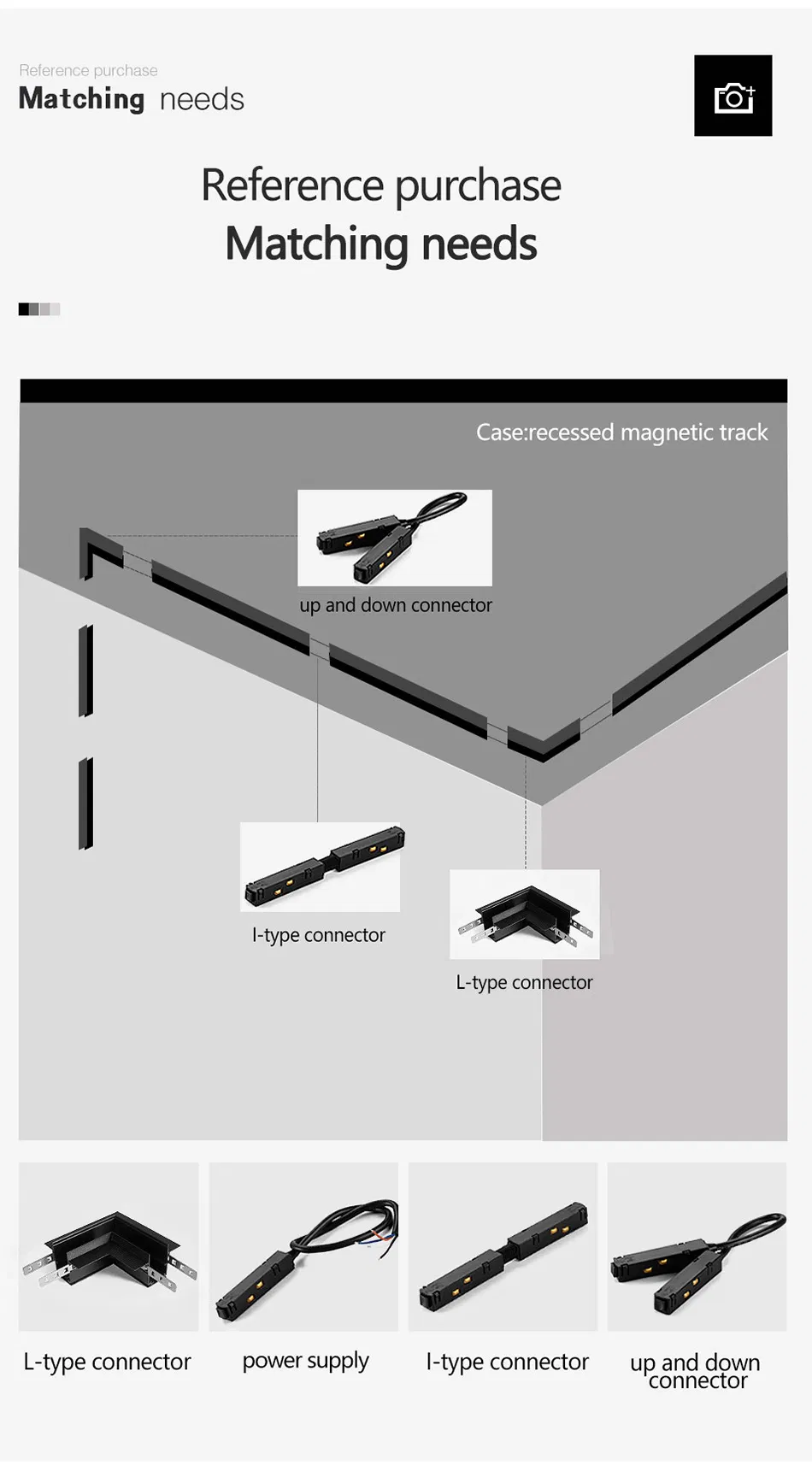

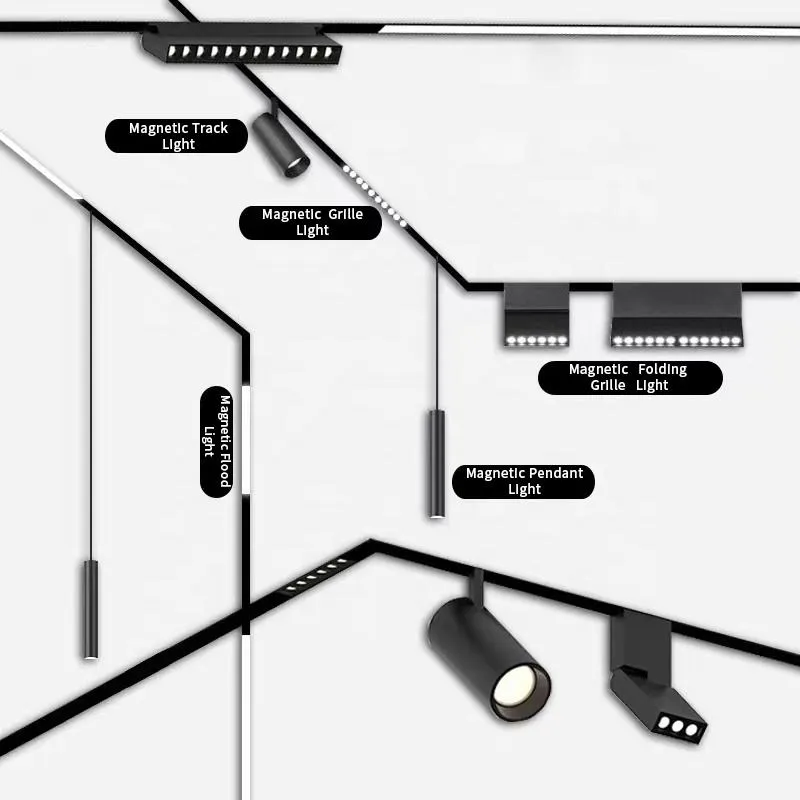

The track has three installation modes: surface mounted, recessed and suspended. The lamp consists of various modular units such as flood linear lamps, anti-glare accent spotlights, and wall washers. They provide excellent anti-glare effects and can be combined to meet various architectural lighting needs.
| Wattage | 40W |
| Input | DC48V/DC24 310mA |
| Color Temperature | 3000K/4000K/5000K/6000K/Tunable |
| Luminous Flux | 3000K 2800lm / 4000K 3000lm |
| Dimming | No Dim / DALI Dim / 0-10V |
| Product Color | White / Black |
| Operation Temp | -20ºC to 50ºC |

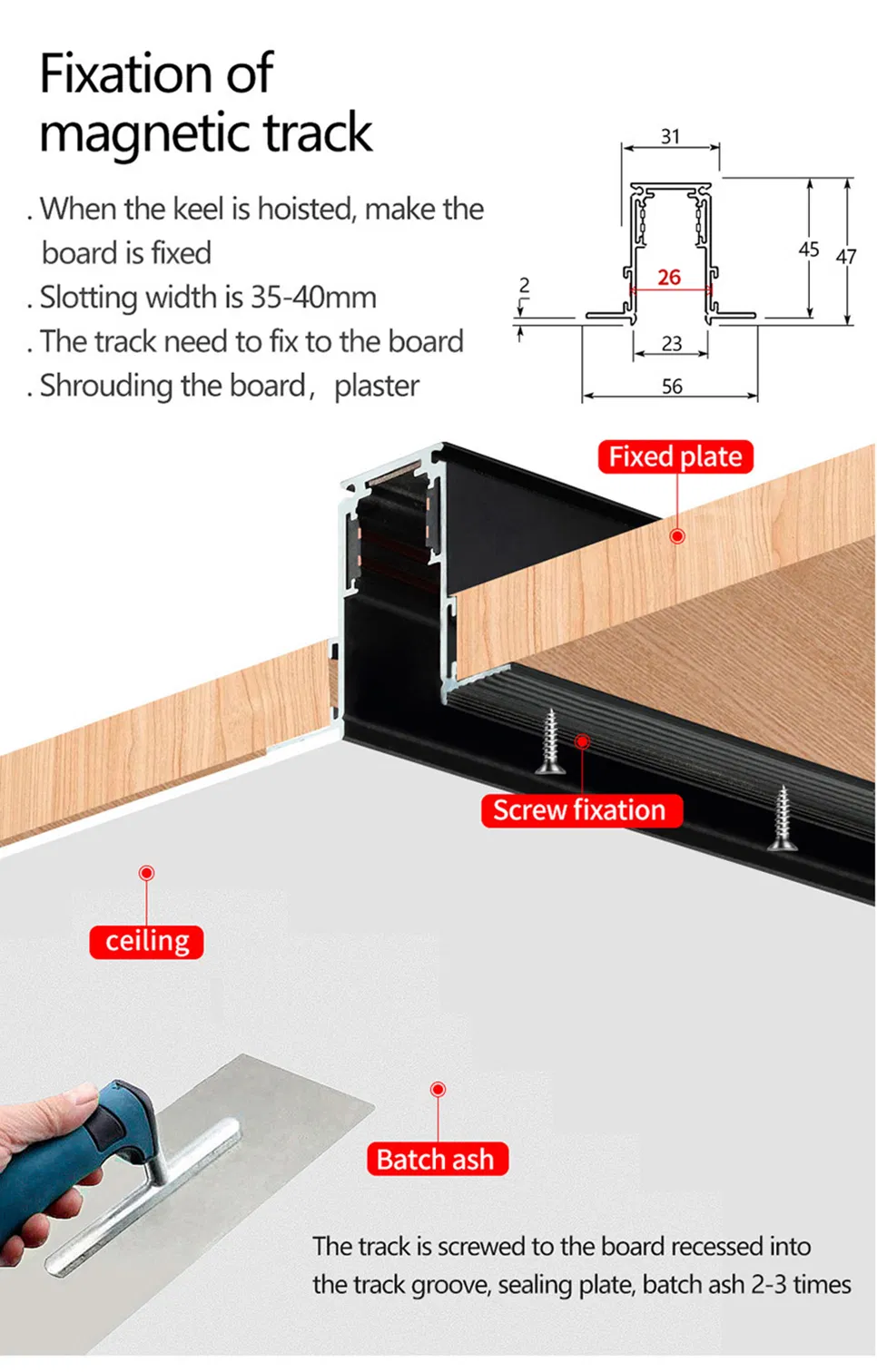

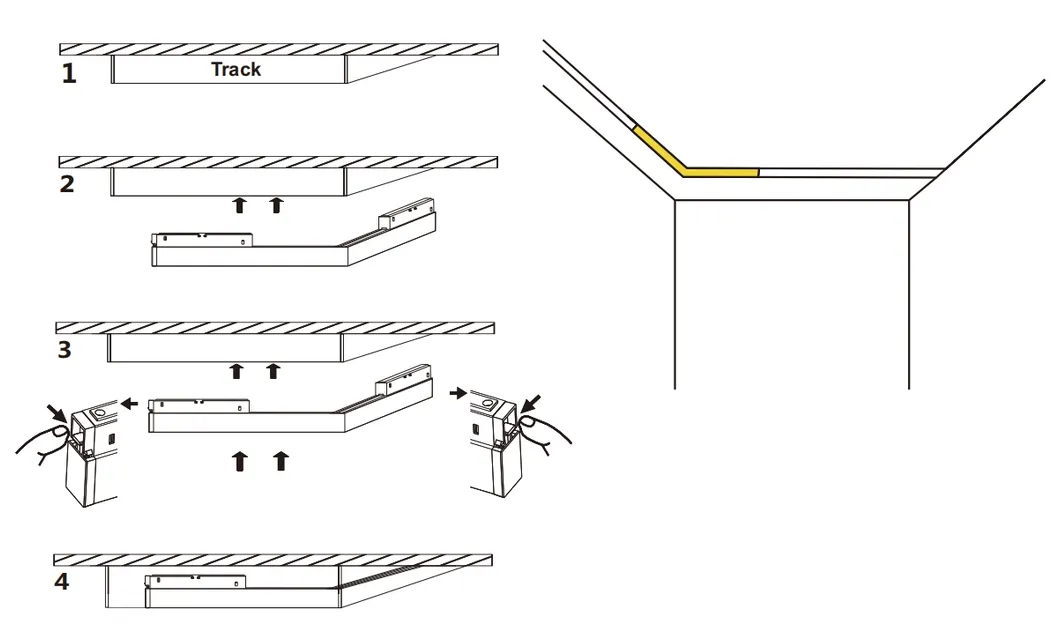

1. Before installing the lamp, follow the instructions to install the track.
2. Hold both sides of the lamp clasp with both hands and put it in the track.
3. Secure the buckle at both sides, push the fitting into the track, and loose the buckle to fasten.
4. Turn on the switch and power up the test.
