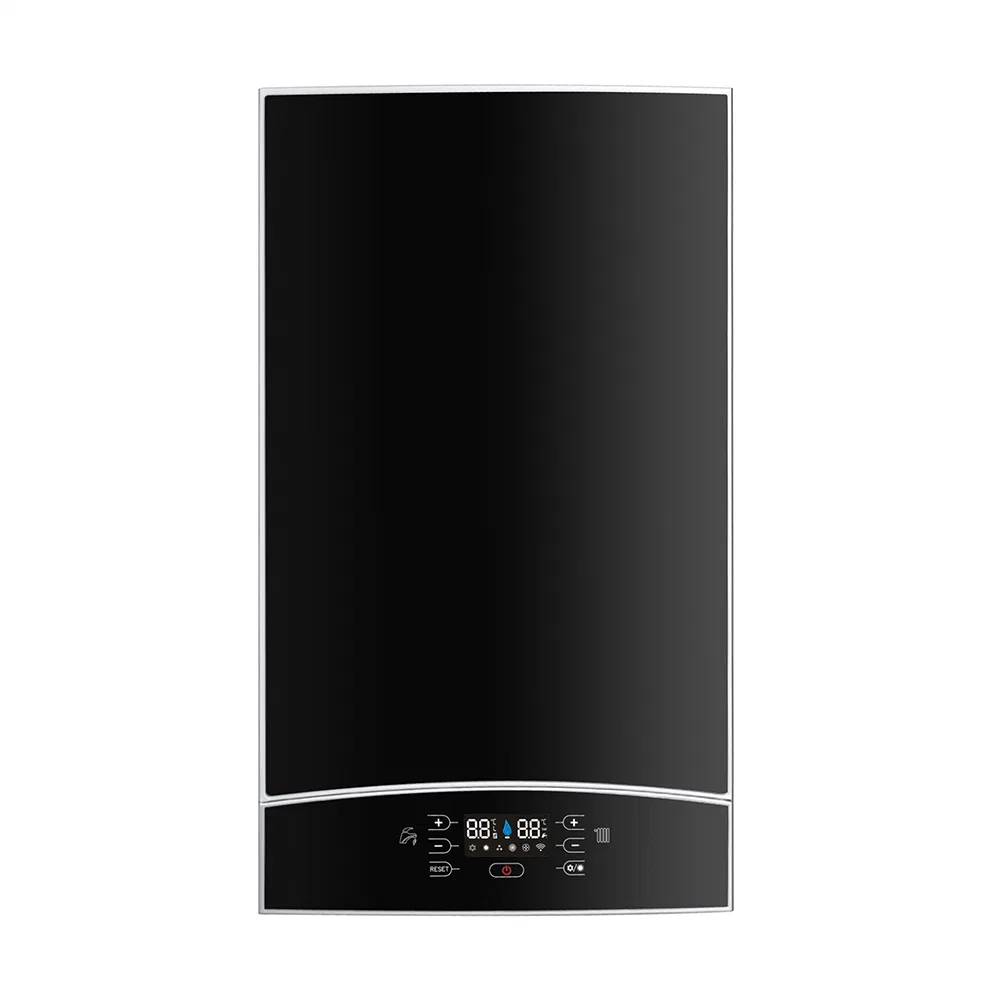

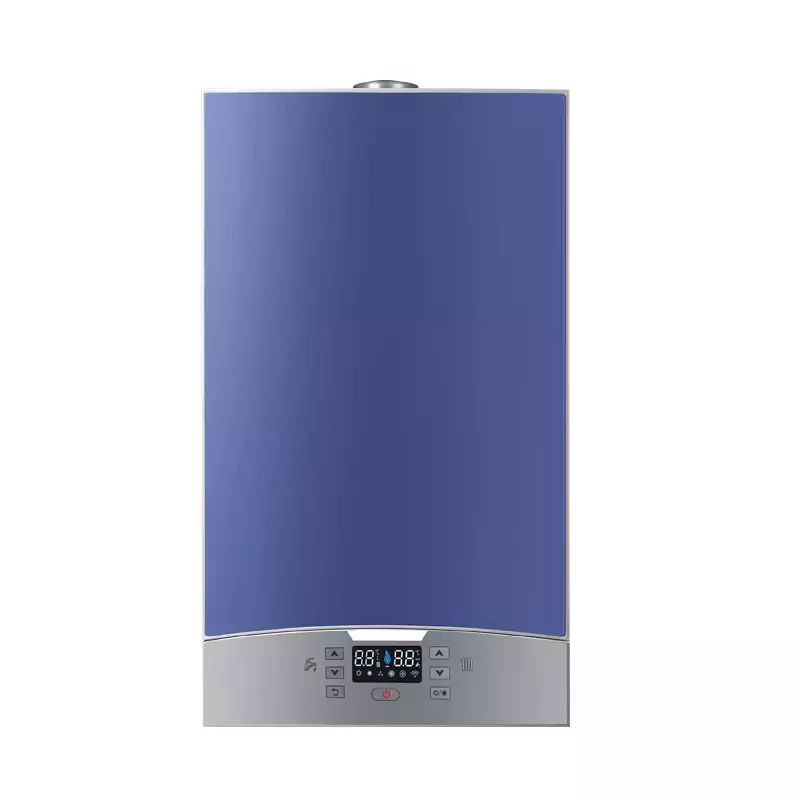

45kw High Power System Wall Hung Gas Boiler with Coil Water Tank for Villa Heating

1 / 5

45kw High Power System Wall Hung Gas Boiler with Coil Water Tank for Villa Heating

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

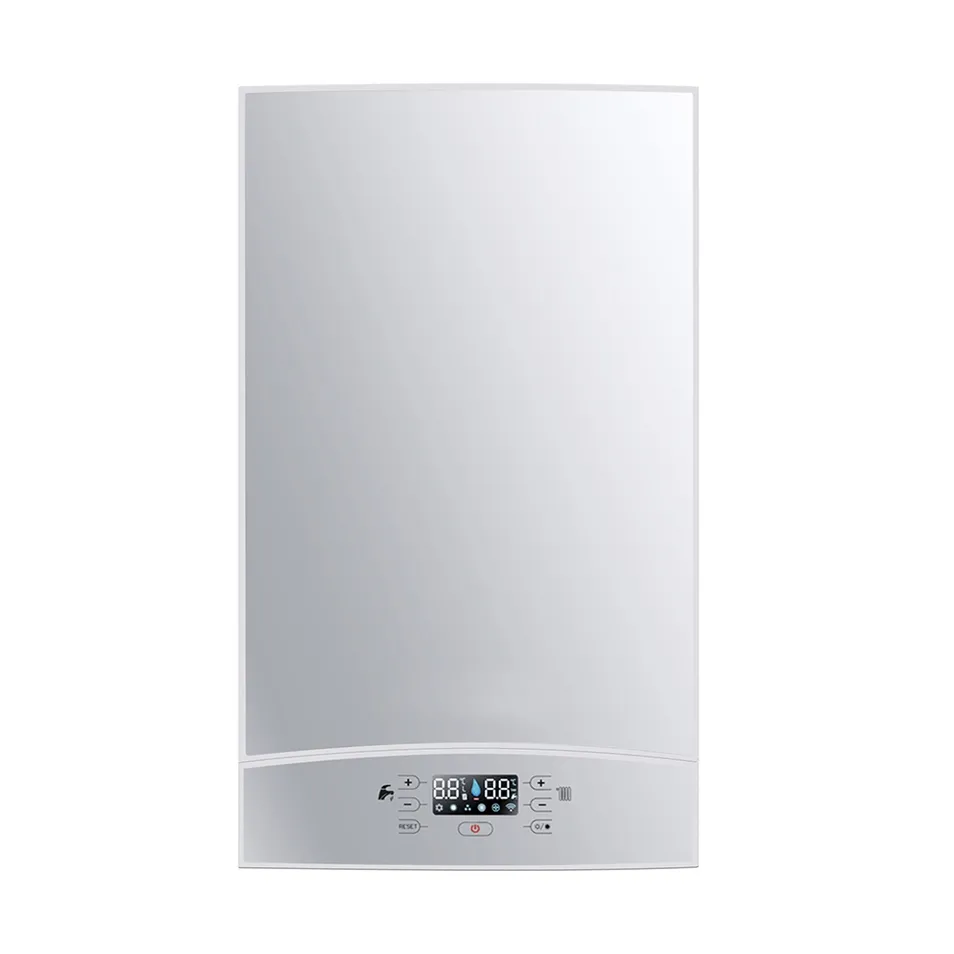

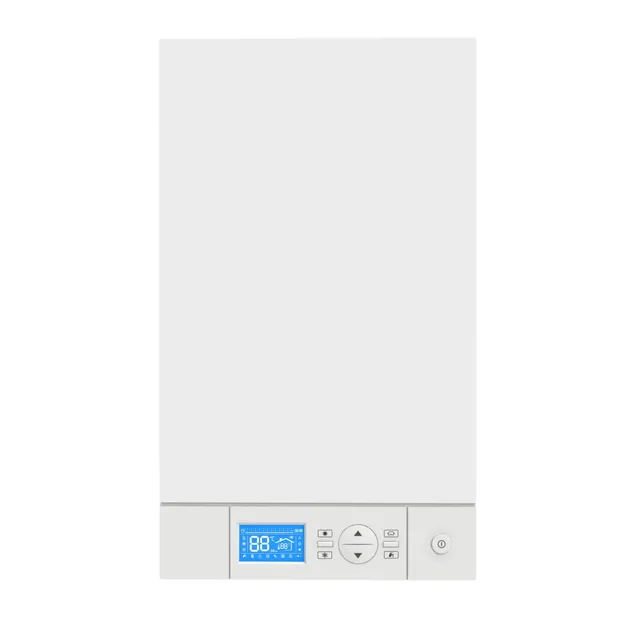

Wall Mounted Combi Non-Condensing Gas Boiler

Our wall hung combination gas boiler delivers instant hot water and efficient central heating. Ideal for homes and apartments, it eliminates the need for a water storage tank, saving space and reducing energy waste. With 92%+ thermal efficiency, this is the perfect eco-friendly gas heating solution for modern households.

Basic Specifications

Model NO.

18kw - 50kw Series

Certification

EAC, TUV, GOST, ISO9001, ROHS, CE

Heating Type

Water Heating Systems

Structure

Plate Exchanger / Bithermic

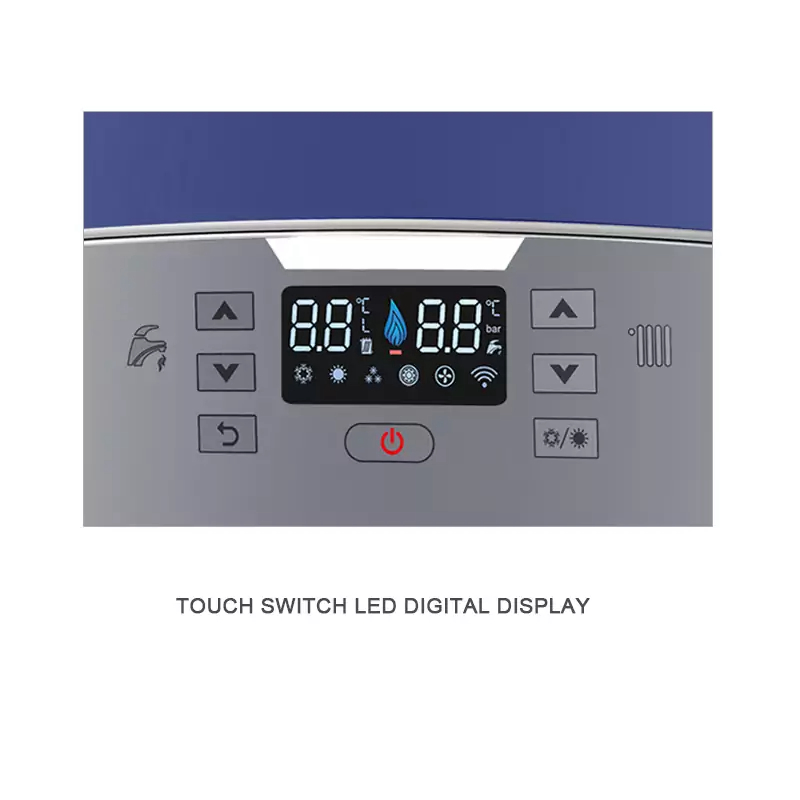

Control Mode

Knobs and Buttons

Installation

Wall-Mounted

Gas Type

Natural Gas (NG) / LPG

Heat Exchanger

Oxygen-Free Copper

Production Capacity

200,000 PCS/Year

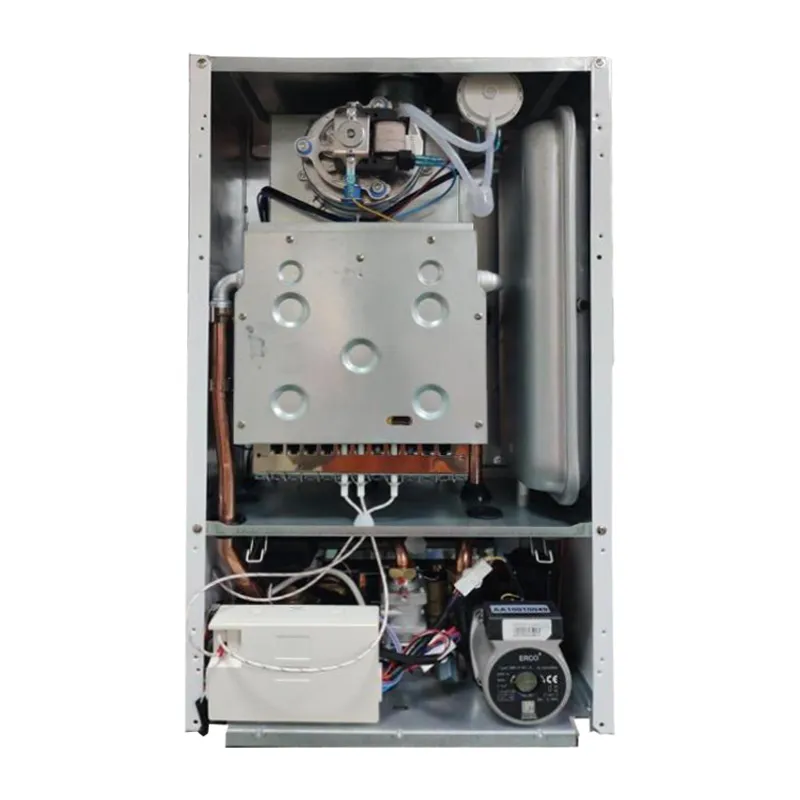

Technological Advantages

⚙️

Gas Adaptive: 300-3000pa gas pressure adaptive start.

⚡

Voltage Adaptive: 160v-280v wide voltage fluctuation support.

💧

Water Pressure Adaptive: Automatically adjusts stable temperature based on flow.

🛀

Hot Water Comfort: Advanced self-adjustment for shower stability.

🌱

Energy Saving: A-level energy efficiency for maximum gas saving.

🔇

Low Noise: Built-in fluid mechanics silencer for silent operation.

📱

Smart IoT: Mobile WIFI remote control and gas consumption monitoring.

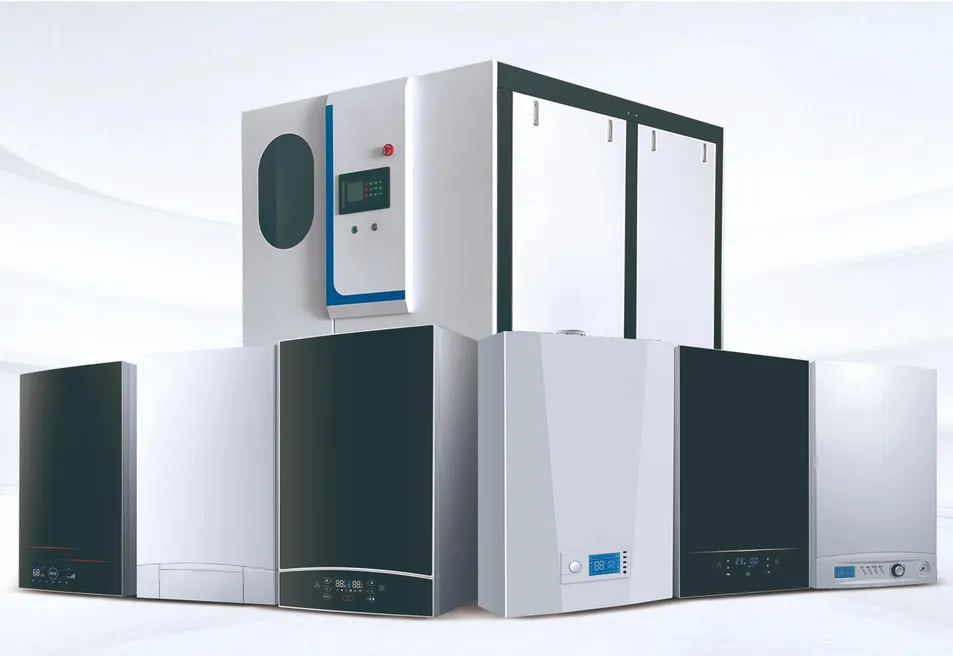

Strong R&D Capabilities

Our comprehensive product lineup includes:
• Single circuit gas boilers for heating-only.
• Dual circuit gas boilers for combined heating and DHW.
• Cascade systems for high-capacity parallel demands.

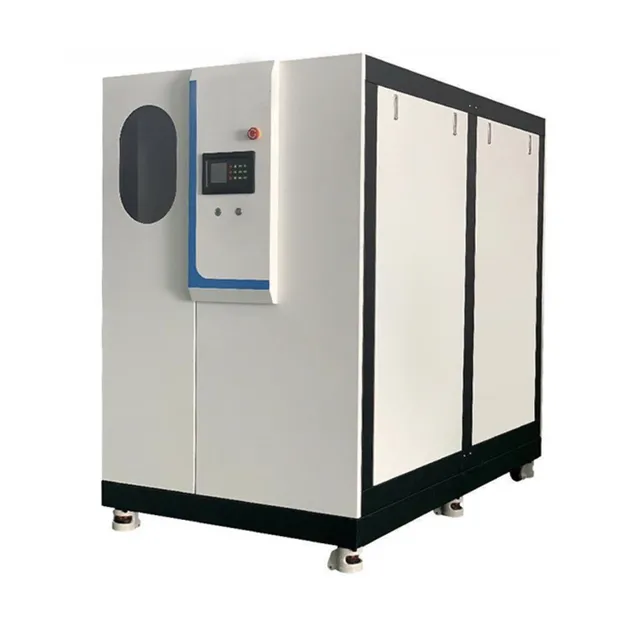

• High power wall mounted boilers up to 150kw for villas.
• Segmented and Modulated combustion technology.
• Self-developed PCB for flexible installation and maintenance.

Technical Parameters

Model	18kw	24kw	28kw	32kw	36kw	40kw	45kw
Gas Type	NG / LPG
Rated Heat Output (kw)	16.5	22	25.5	29.3	32.4	36	40.9
Thermal Efficiency	92%
Max. Water Pressure	0.3 MPa
Water Temp Range	30°C - 80°C
DHW Capacity (Δt=25℃)	8.3 kg/min	12.6 kg/min	14.6 kg/min	16.8 kg/min	18.6 kg/min	20.6 kg/min	23.2 kg/min
Heating Area (m²)	65-110	90-150	120-200	160-260	200-310	250-360	290-420

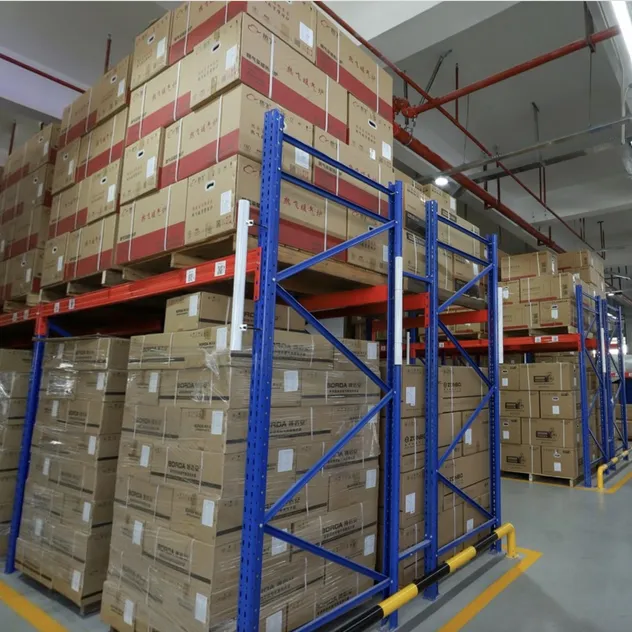

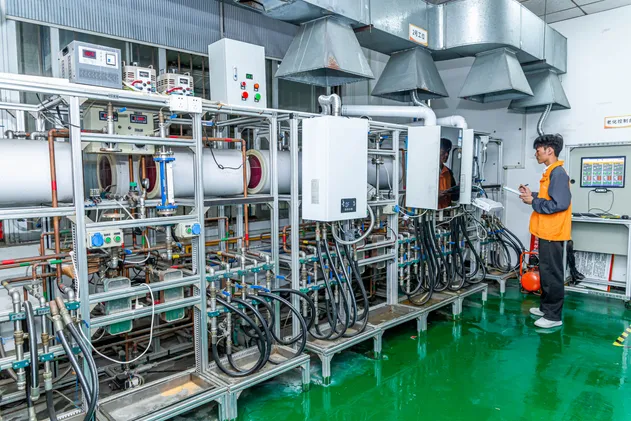

Production & Quality Control

With a 28,000+ m² factory area, we utilize state-of-the-art automated production lines and professional laboratories. Every component undergoes rigorous accelerated durability testing to ensure industry-leading reliability.

Explore More Products

Non-Condensing Gas Boilers

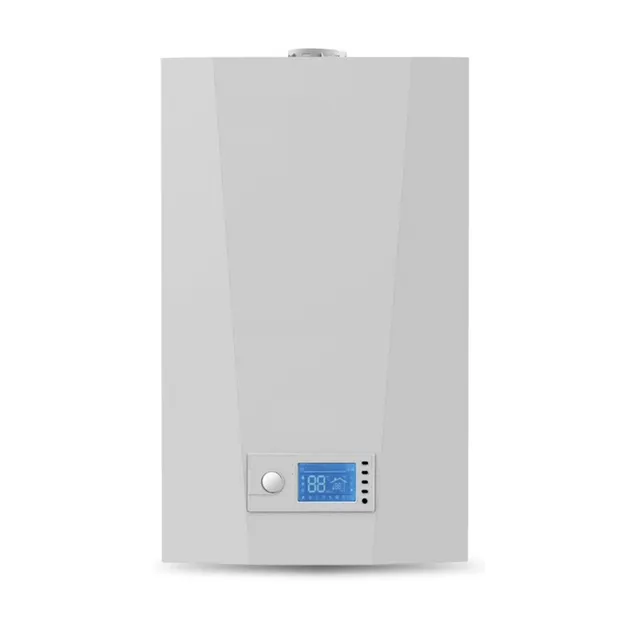

Commercial Condensing Boilers

Low Nitrogen Industrial Boilers

Packaging & Shipping

Frequently Asked Questions

What's the lead time for standard orders?

The standard lead time is approximately 30–45 days depending on the order volume and customization requirements.

What is the warranty period and after-sales support?

We provide a 1-year comprehensive warranty. Our technical team is available to provide online installation guidance and maintenance support.

What types of boilers do you specialize in?

We specialize in a wide range of heating solutions, including gas boilers, electric boilers, condensing boilers, combi boilers, and high-power modular boilers for residential and commercial use.

What is the expected lifespan of these boilers?

With proper maintenance, our boilers are designed to last 15-20 years. We use high-quality oxygen-free copper and advanced components to ensure long-term durability.

Can these boilers work with low gas pressure?

Yes, our boilers feature gas adaptive technology that allows them to start and operate safely even with gas pressures ranging from 300-3000pa.

How do I request a formal quotation?

You can contact our sales team with your specific power (kw) and quantity requirements. We will provide a detailed customized quotation within 24 hours.
