Product Description

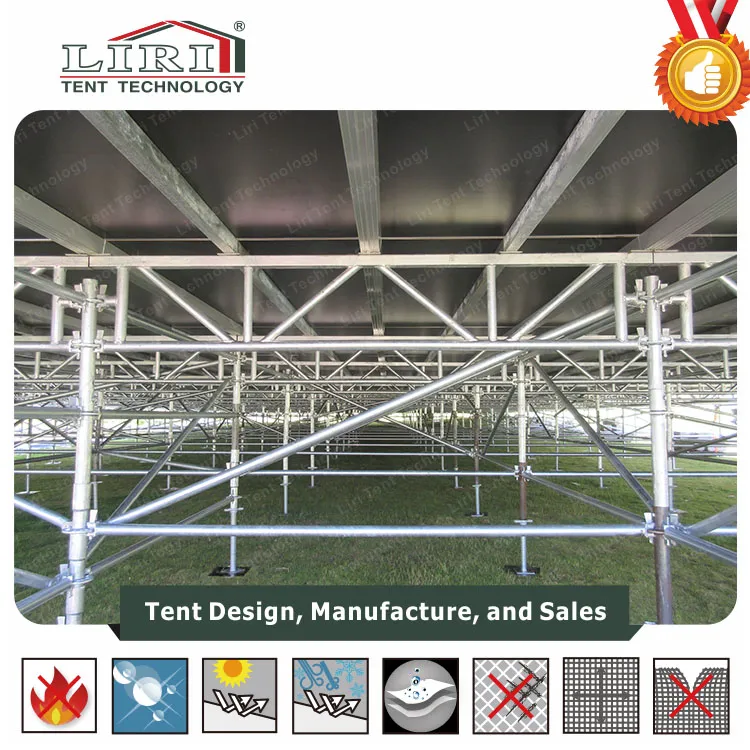

Adjustable Scaffold Wooden Flooring System for Tent Structure
1. Application
This flooring system applies to all the tents (Patented product, all rights reserved).
2. Specifications (Cassette flooring system for 5m modular)
| Height from the ground |
125mm |
| Thickness and material |
21mm Double Brown film faced plywood (anti-slip, water proof) with hard-pressed aluminum alloy frame |
| The size of card board (LxWxH) |
2440x1250x120mm |
| Weight |
70kg/pc |
| Specifications of the panel and keel |
100x50mm with Hot Galvanized Steep Pipe |
| Specifications of the main ground beam |
170x125mm hard-pressed aluminum alloy |
| Specifications of the secondary ground beam |
107x125mm hard-pressed aluminum alloy |
| Maximum loading |
350kg/m2 |
This product has obtained the National Patent, Patent No.: ZL201520411043.9
Installation Guidance
1
Fix the flooring according to the technical drawing.
2

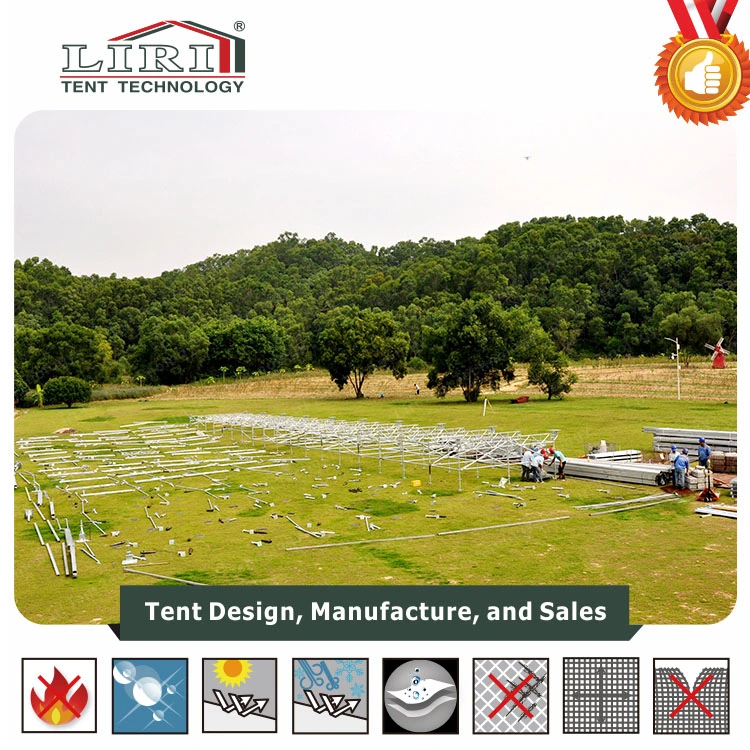

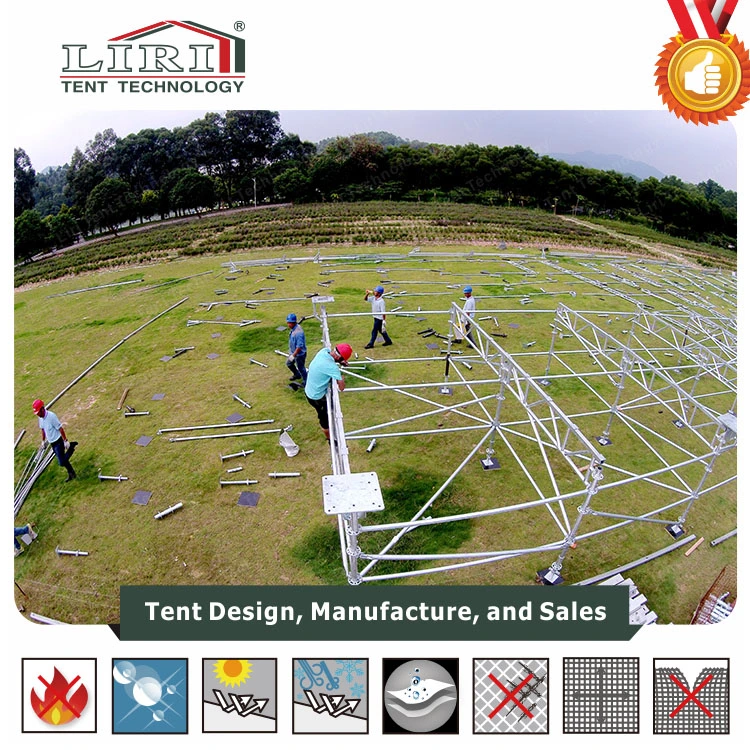

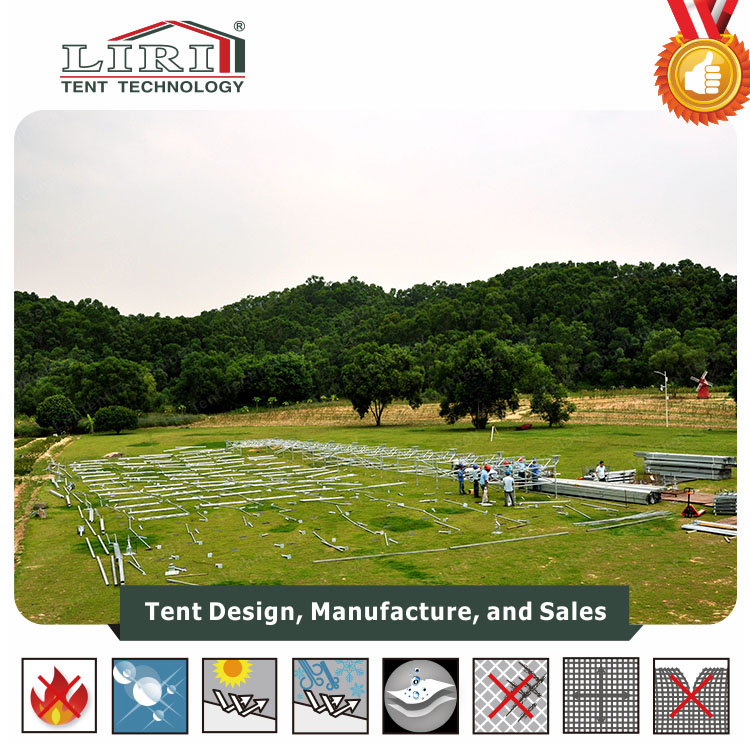

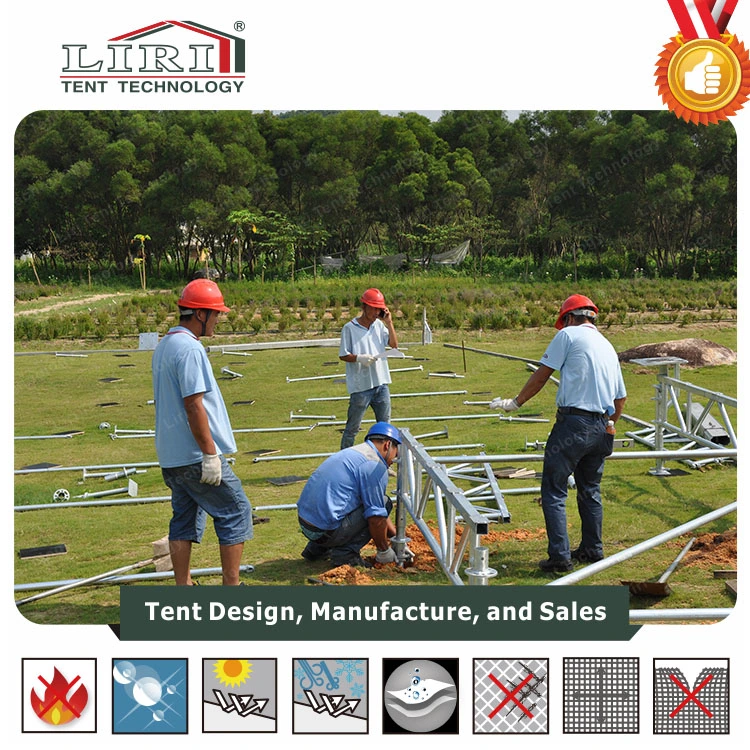

Install the sub-frame as shown.
3
Install with flooring or other auxiliary boards if the floor is uneven firstly, then install the sub-frame.
4

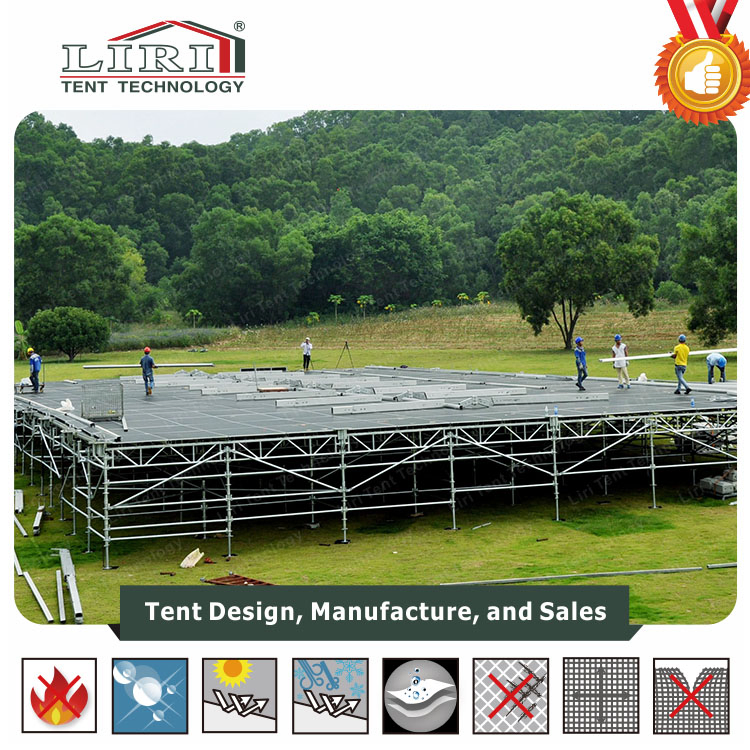

Place the boards on sub-frame.
Frequently Asked Questions
Can you print our logos on the tent?
Yes. Customized logos can be printed on the tent fabric according to your requirements.
Is that factory price?
Yes. We assure you all prices are based on factory.
Can the tent be installed repeatedly?
Our tents can be assembled and dismantled repeatedly with small transportation size. The lifespan of the aluminium framework can reach 15-20 years, and 5-8 years for PVC fabrics depending on different usage conditions.
What documents are available?
A full range of documents including structural drawings, packing list, installation manual, and relative certificates can be provided. Customs declaration is also provided for one-stop service.
Is the tent product certified?
Yes. Our tent product has passed engineering tests and gained structural engineering certificates. The PVC fabric used for roof covers and sidewalls has passed fire tests and gained flame retardant certificates.
Is the tent strong and stable enough? How about wind loading?
Yes. The main frameworks are manufactured with high impact extruded anodized aluminum (6061/T6), making the structure safe and strong enough to resist wind up to 100 km/hr.
