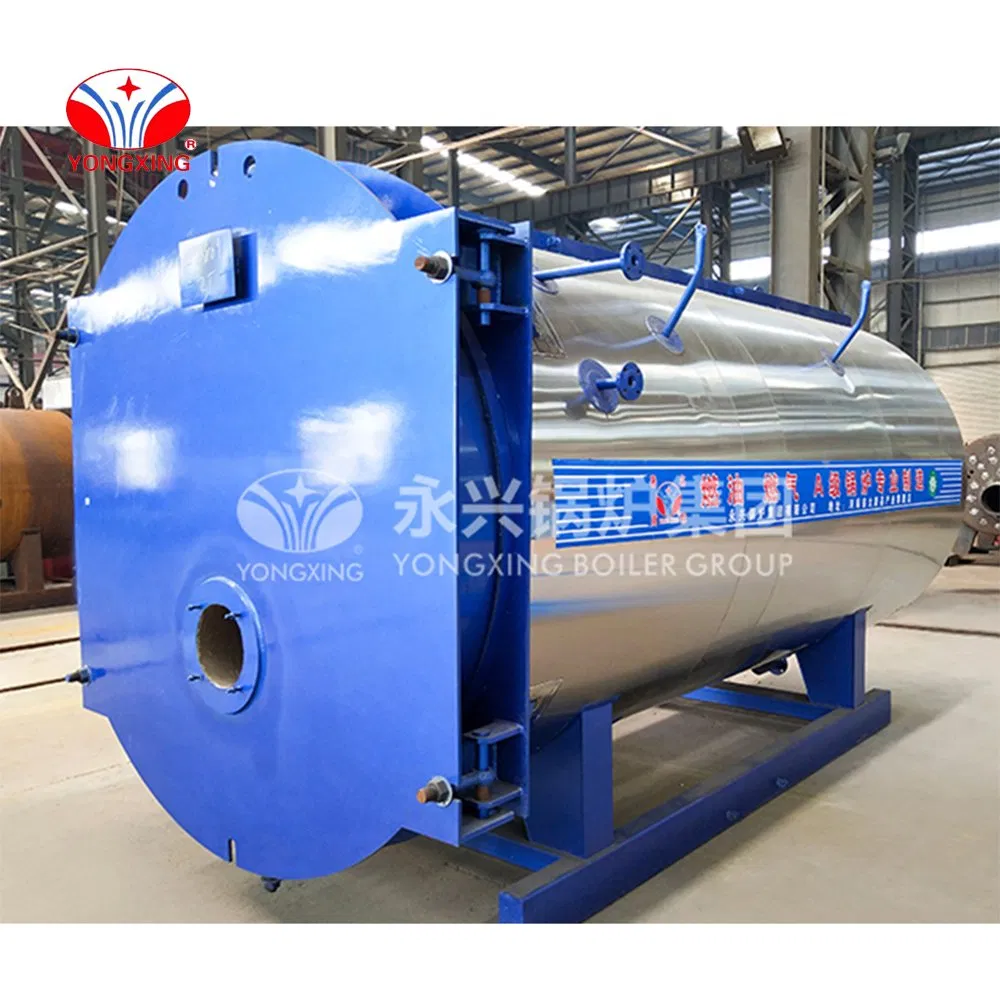

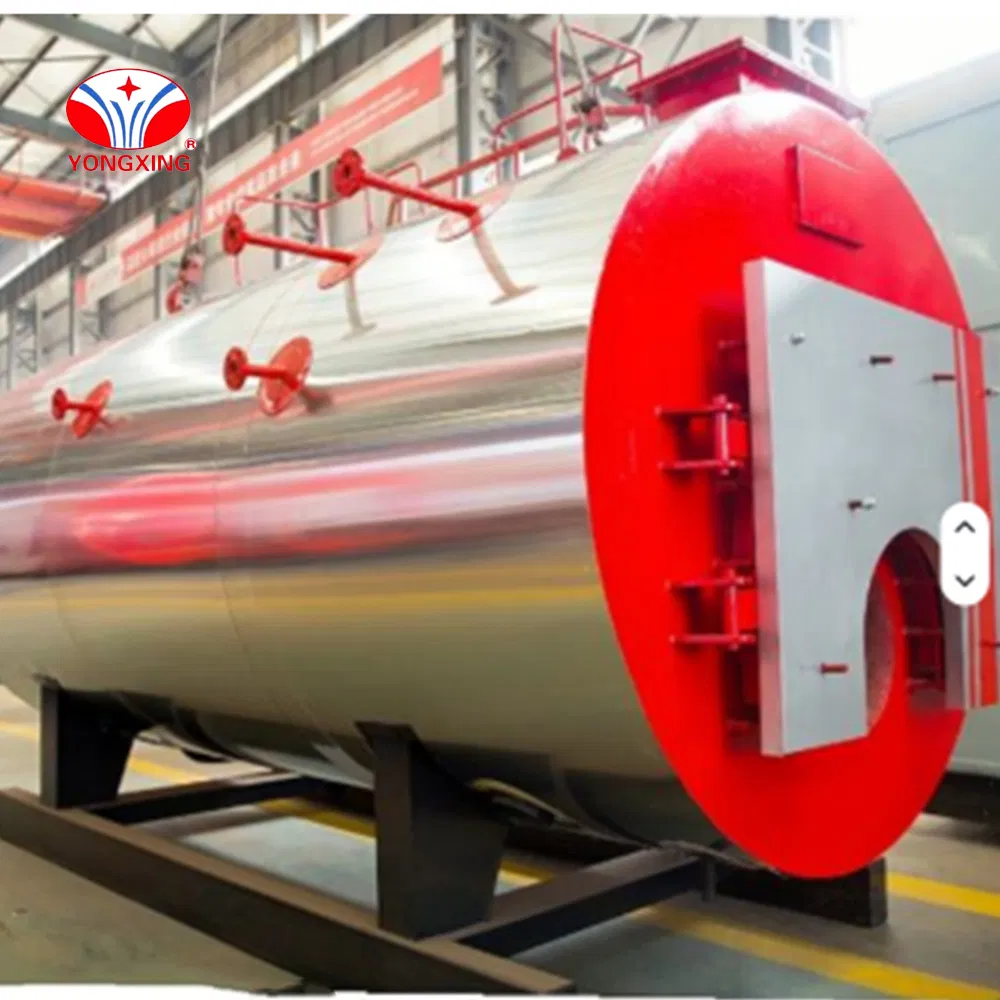

Advanced Oil and Gas Fired Boiler with Smart Control System

Customization:	Available
Function:	Water Boiler, Steam Boilers
Fuel:	Gas-Fired

Overview & Basic Info

Model NO.

WNS

Installation

Packaged Boiler

Structure

Fire Tube

Media

Hot Water / Steam

Water Circulation

Natural Circulation

Drum Placement

Horizontal Boiler

Pressure

Low Pressure

Thermal Efficiency

92%-95%

Ton of Steam

0.5-30t/H

Designed Fuel

Natural Gas / Diesel

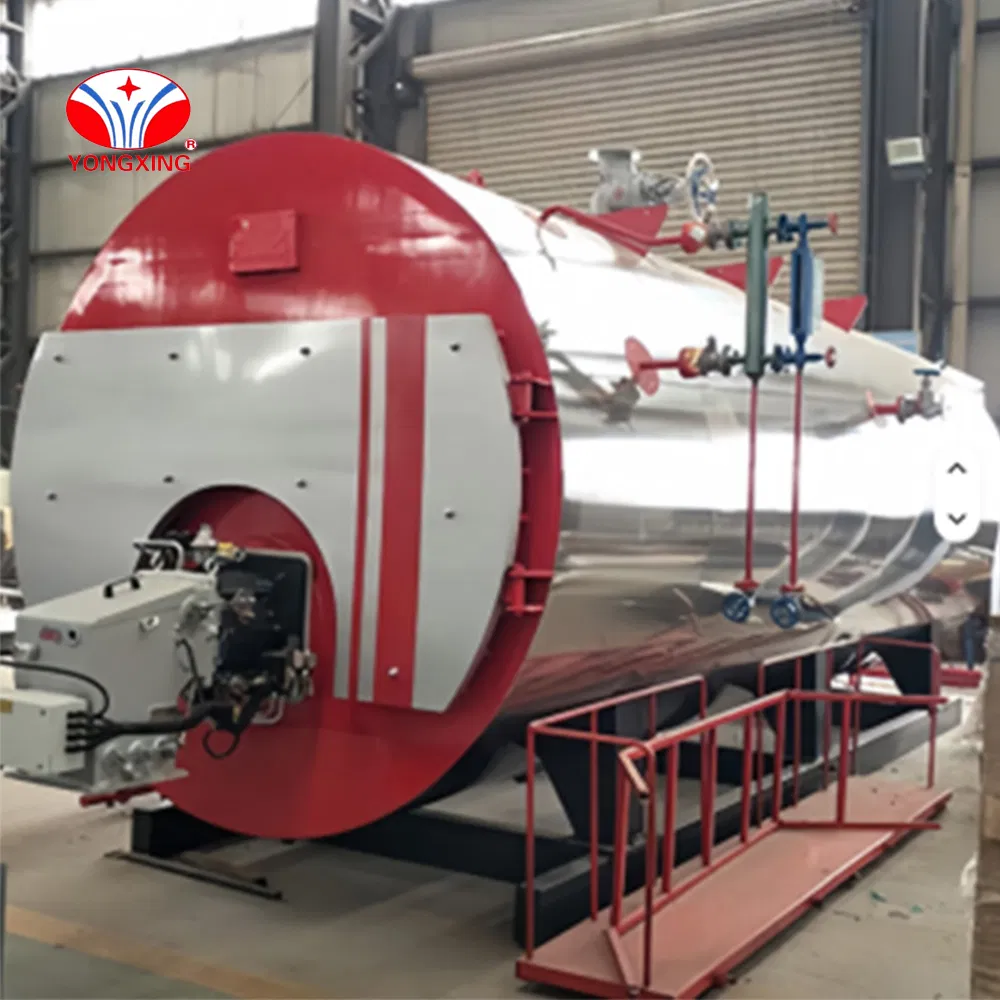

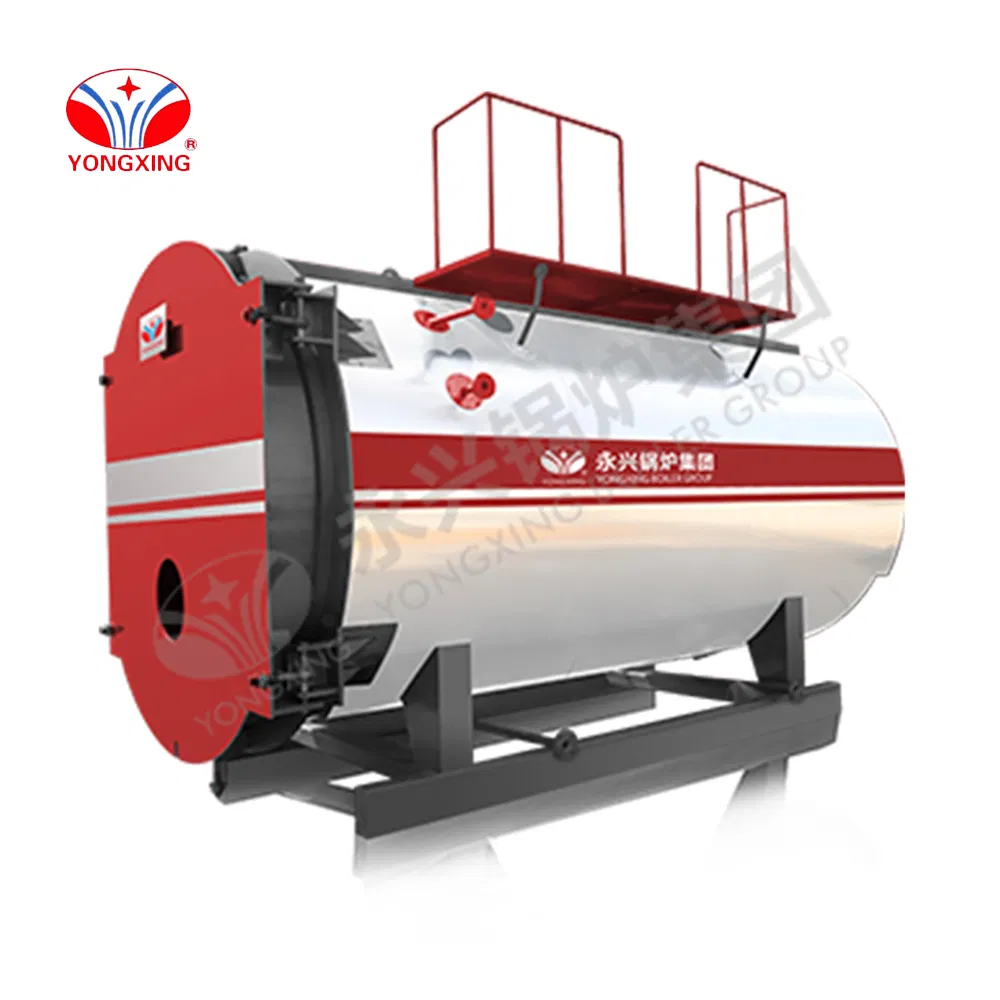

WNS ultra-low NOx gas-fired boiler

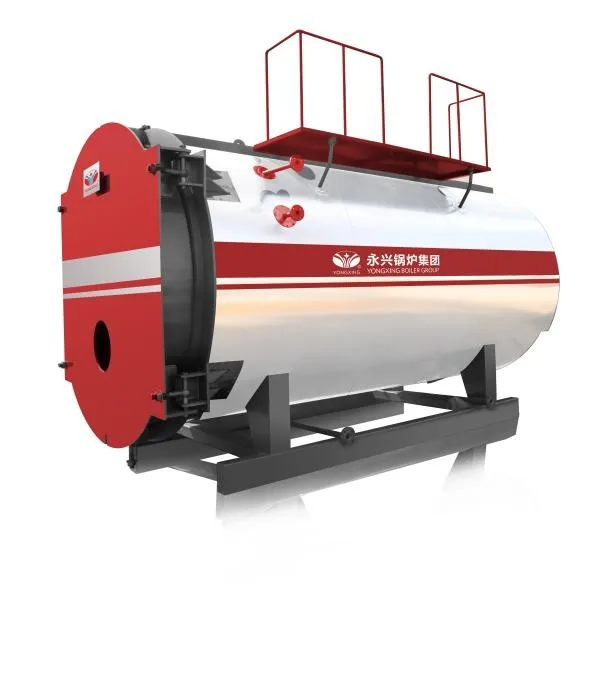

The WNS-type ultra-low nitrogen gas-fired boiler is a shell-type three-pass wet-back gas-fired boiler produced with advanced technology. It consists of the boiler body, connecting flue, deaeration pump, deaerator, burner, steam-water system, instruments, and economizer.

Key Feature: Low nitrogen emission (below 30mg/m³), meeting strict environmental requirements while maintaining a compact and reliable structure.

Functions and Advantages

1. High-Efficiency Heat Energy Conversion: Adopting a three-pass structure combined with threaded smoke tubes and corrugated furnace liners, the thermal efficiency can reach over 92%.

2. Ultra-Low Nitrogen Oxide Emission: Flue gas recirculation (FGR) and staged combustion control NOx below 30mg/m³.

3. Full-Automatic Intelligent Control: Equipped with PLC intelligent control system, supporting one-key start-stop and automatic adjustment.

4. Multiple Safety Protections: Overpressure, overtemperature, and water shortage protection ensure safe industrial operation.

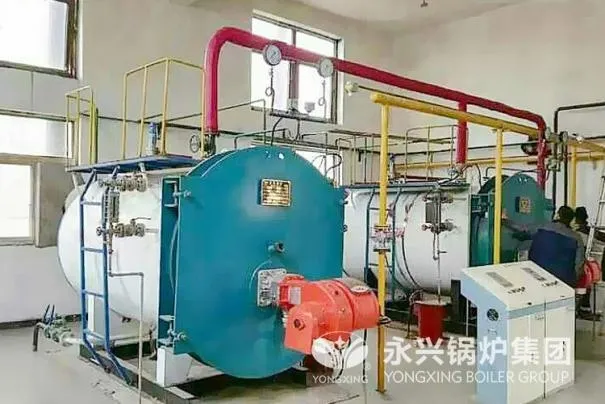

Industrial Applications

This boiler serves diverse industries including Food Processing, Textile Printing, Chemical Industry, Pharmaceutical, Central Heating in Industrial Parks, and Building Heating for residential or commercial complexes.

Technical Parameters

Model	Steam Capacity (t/h)	Pressure (Mpa)	Temp (℃)	Efficiency (%)	Gas Cons. (m³/h)	Transport Size (mm)	Weight (ton)
WNS0.5	0.5	1.0-1.6	184-204	>98%	35.7	300015001810	3.5
WNS1	1	1.0-1.6	184-204	>98%	70.1	345019302370	5.5
WNS2	2	1.0-1.6	184-204	>98%	140.3	393023802701	8
WNS4	4	1.0-1.6	184-204	>98%	283.4	468024352870	11.6
WNS10	10	1.25-2.5	194-226	>98%	707.8	700031103745	26.8
WNS20	20	1.25-2.5	194-226	>98%	1415.8	820036504100	45.5

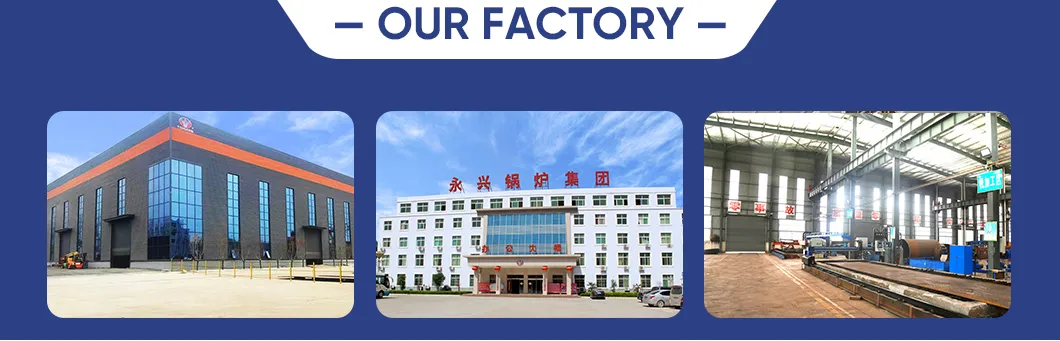

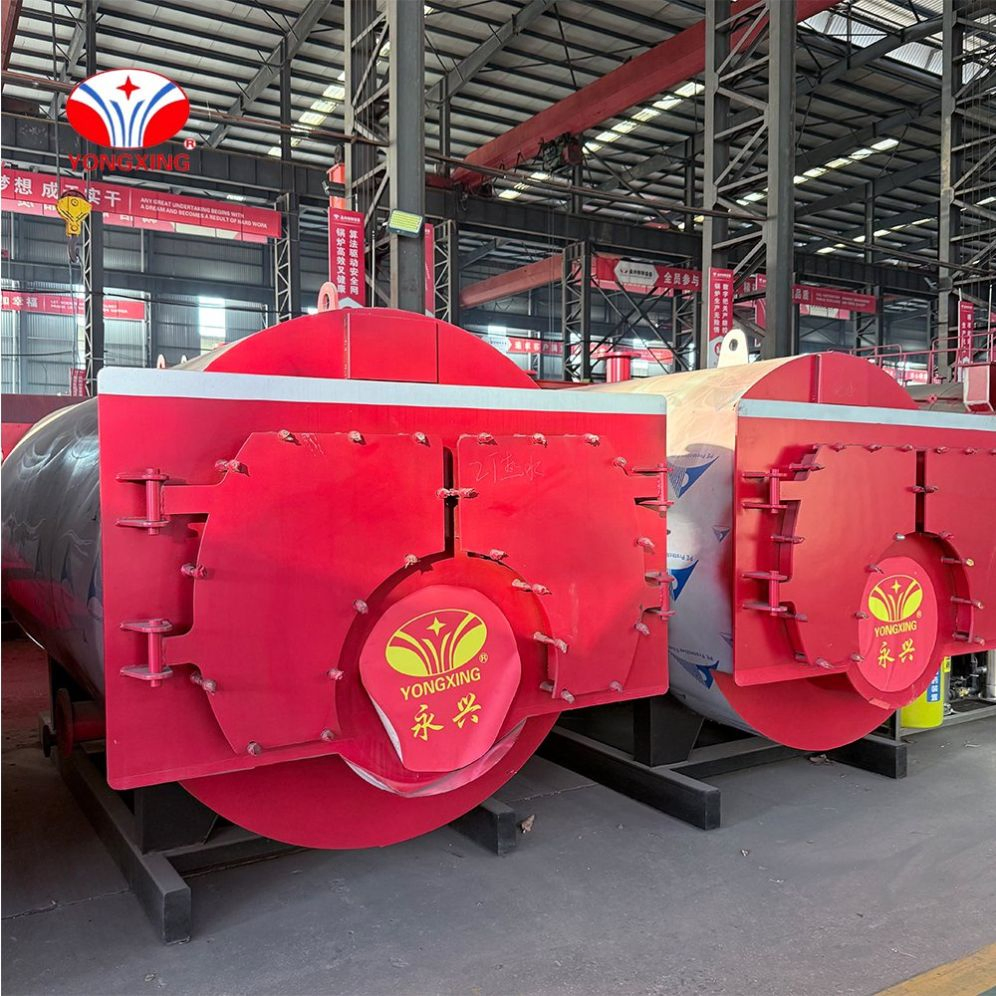

Production & Facilities

Company Profile

Founded in the early 1980s, the enterprise is a designated manufacturer for Grade A boilers and Category A1, A2 pressure vessels. The production covers 8 categories and 23 series with over 238 models. With nearly 30 years of development, products are recognized globally for reliable quality, safety, and performance.

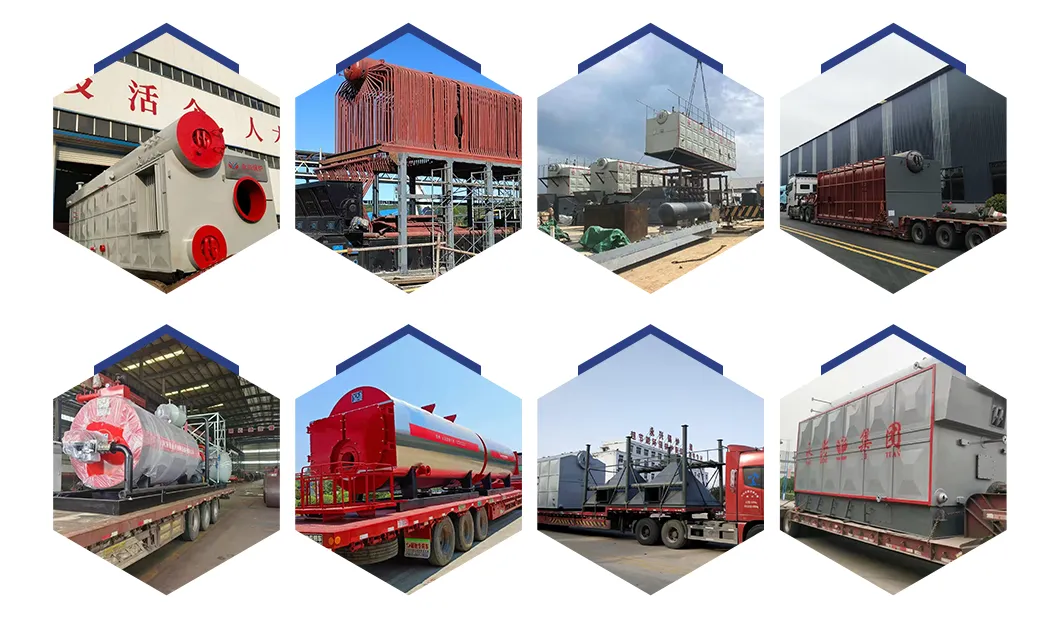

Quality Control & Logistics

Frequently Asked Questions

What are the primary boiler products available?

We specialize in industrial boiler series, including steam boilers, hot water boilers, and heat-conducting oil boilers, designed for industries like chemical, textile, and food processing.

Do the boilers comply with international safety standards?

Yes, all products follow national and industry standards such as ISO9001 and CE certification, ensuring safety and reliability for global operation.

How high is the thermal efficiency of the WNS gas boiler?

The WNS series features a high-efficiency design with a three-pass structure and corrugated furnace liners, achieving a thermal efficiency of 92% to 95%, and up to 98% in some configurations.

What maintenance is required for daily operation?

It is important to regularly check water levels, pressure, and temperature; clean internal scale and ash; and maintain the fuel supply system according to the provided operation manual.

Can you provide solutions for foreign trade and export?

We offer full support for export orders, including CE/ASME certification documents, logistics booking (FOB/CIF terms), and customs declaration services.

Is the control system fully automated?

Yes, our boilers are equipped with PLC intelligent control systems that support one-key start-stop, automatic load adjustment, and real-time fault diagnosis.
