| Model NO. | PFSLD-300-28-5818-P |
| Max. Capacity | >200L |
| Structure | Compact Type |
| Pressure | Pressurized |
| Interior Material | Stainless Steel |
| Collector Components | Glass Vacuum Tube |
| Composition | Tank Insulation |
| Certification | CE, ISO9001, CCC, Epr |
| Outer Tank | Color Galvanized Steel |
| Inner Tank | Stainless Steel 304 |
| Insulation | 50mm Polyurethane Foam |
| Frame | Galvanized Steel, Stainless Steel, Aluminum Alloy |
| Backup Source | Gas Boiler, Electricity |
| Package Size | 2.30cm * 0.90cm * 0.80cm |
Our pump-free household solar water heater features an open water tank for heat storage and a closed coil for heat exchange. Utilizing 20-second rapid heat exchange technology, hot water is available quickly while maintaining fresh water quality.

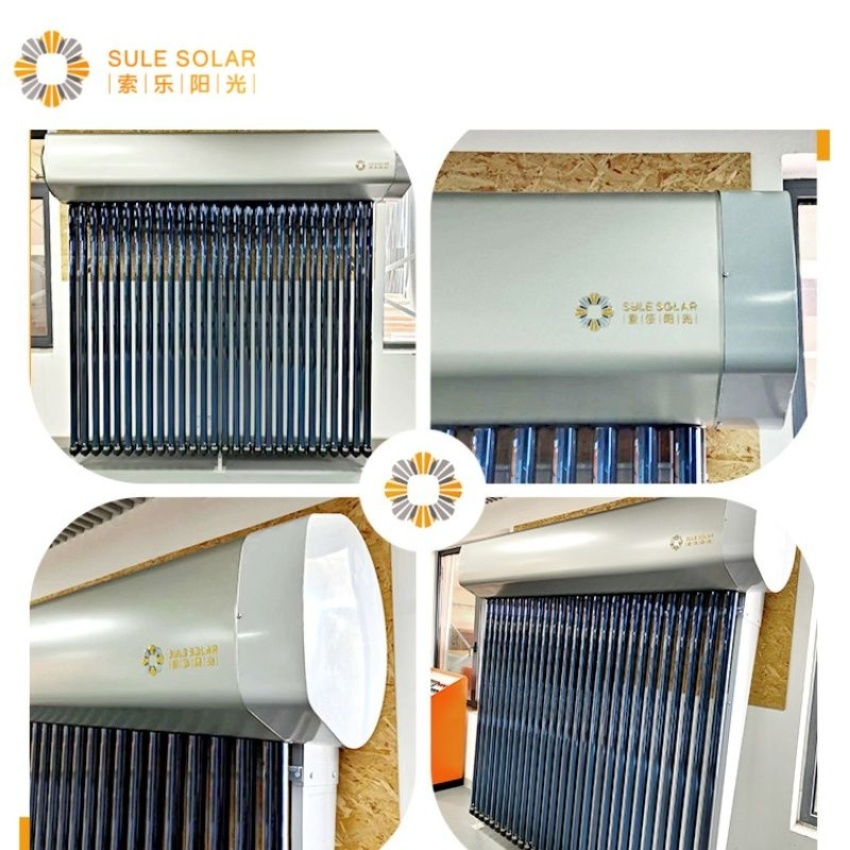

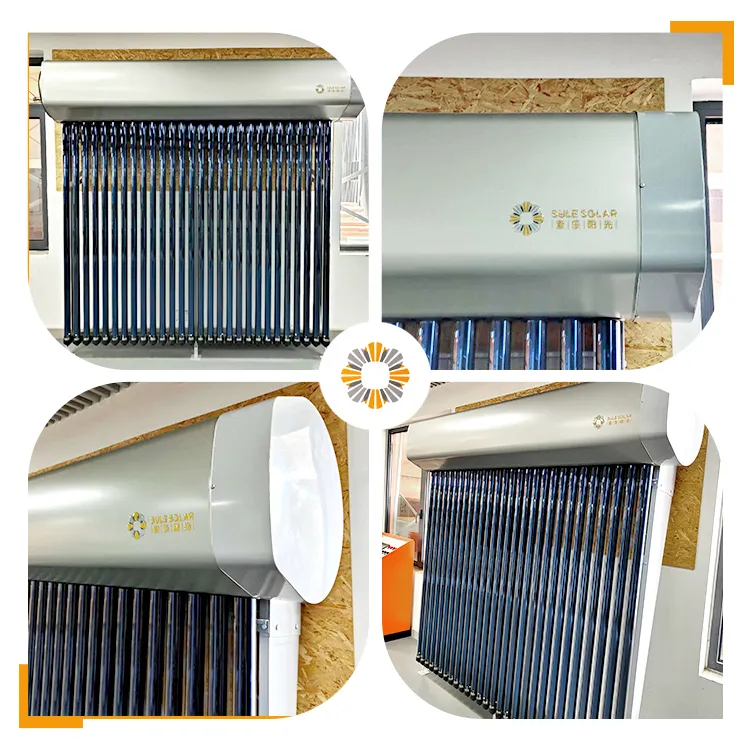

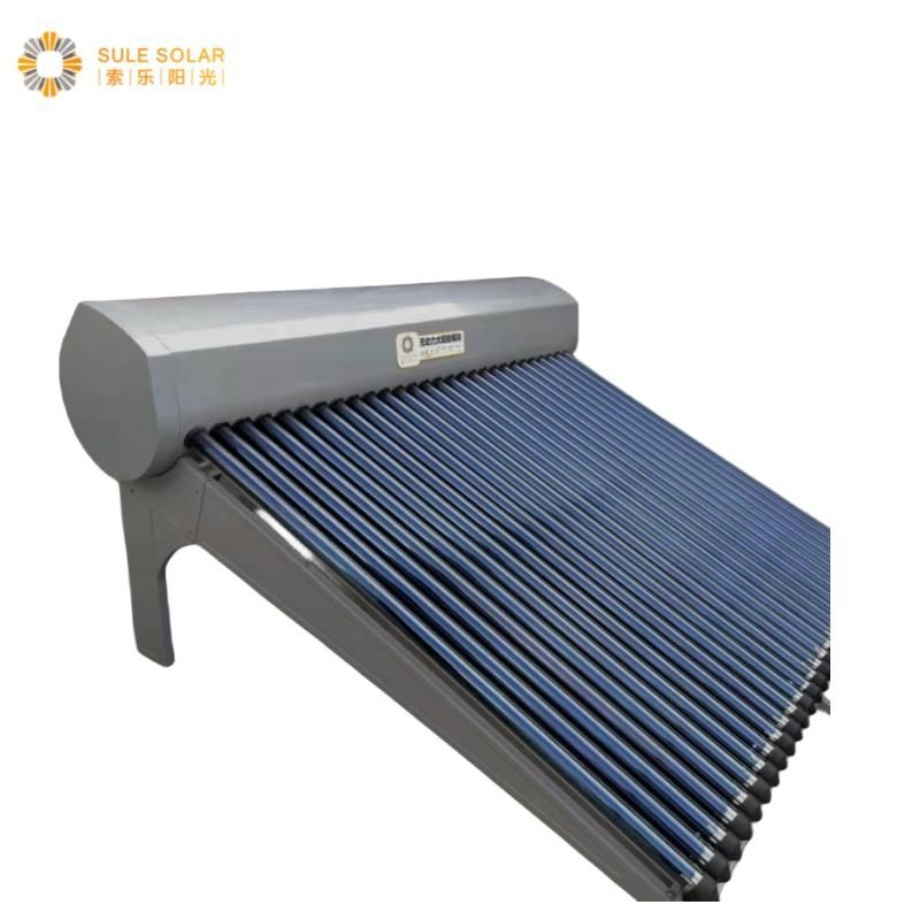

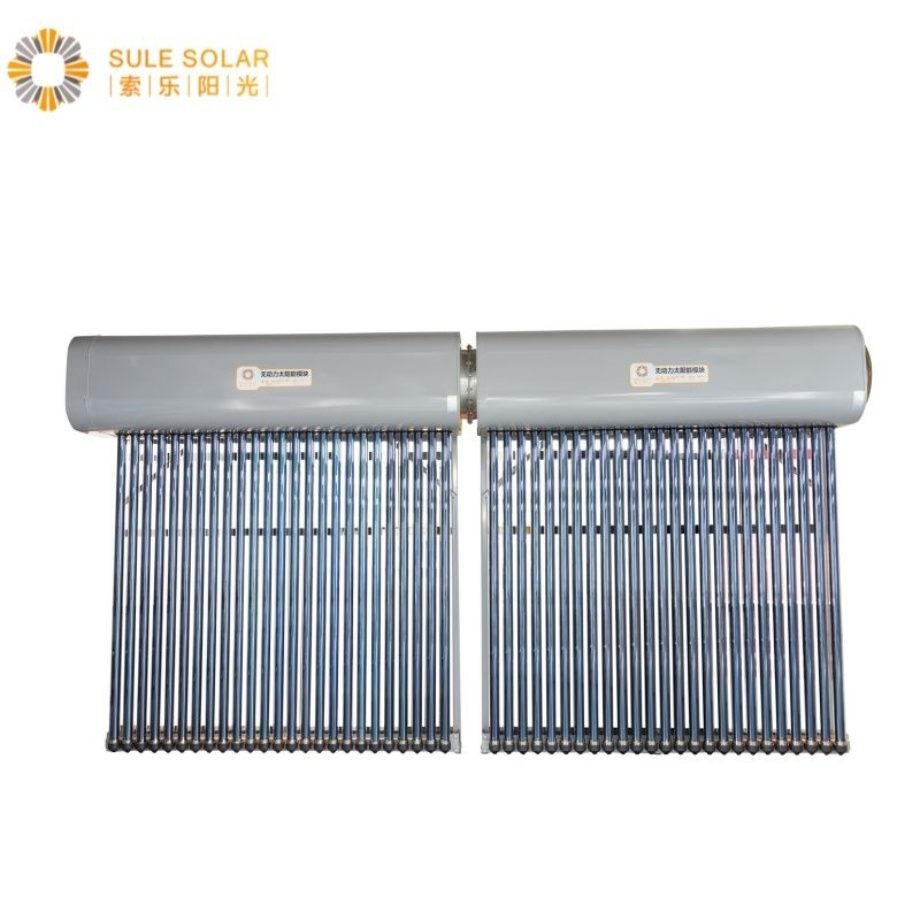

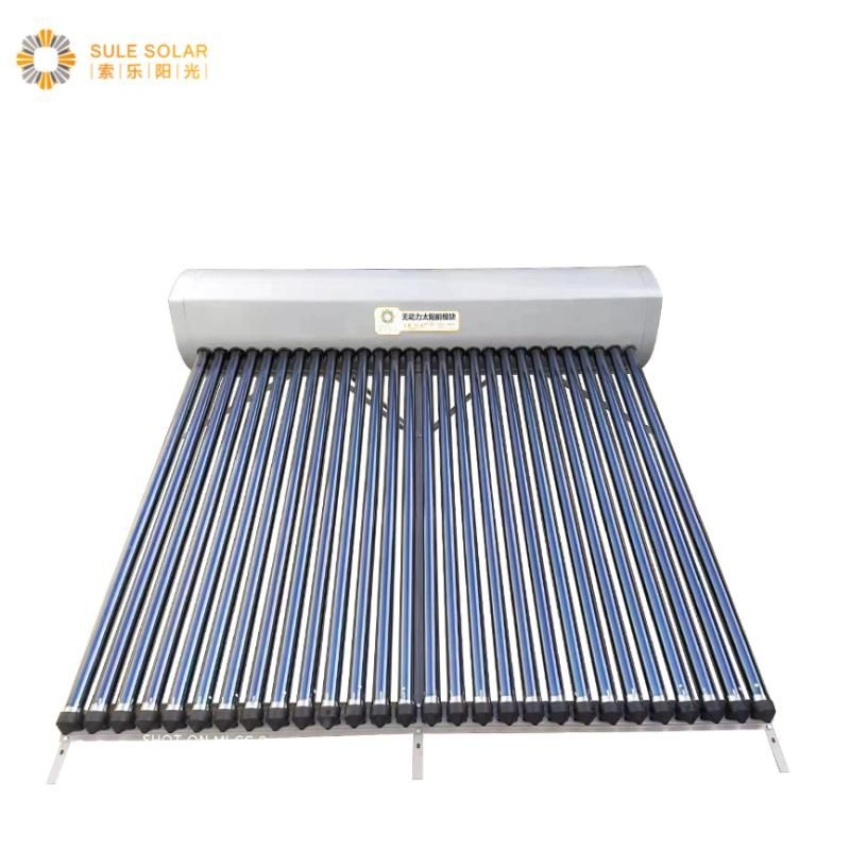

| Product Name | 300L Vacuum Tube Solar Water Heater |

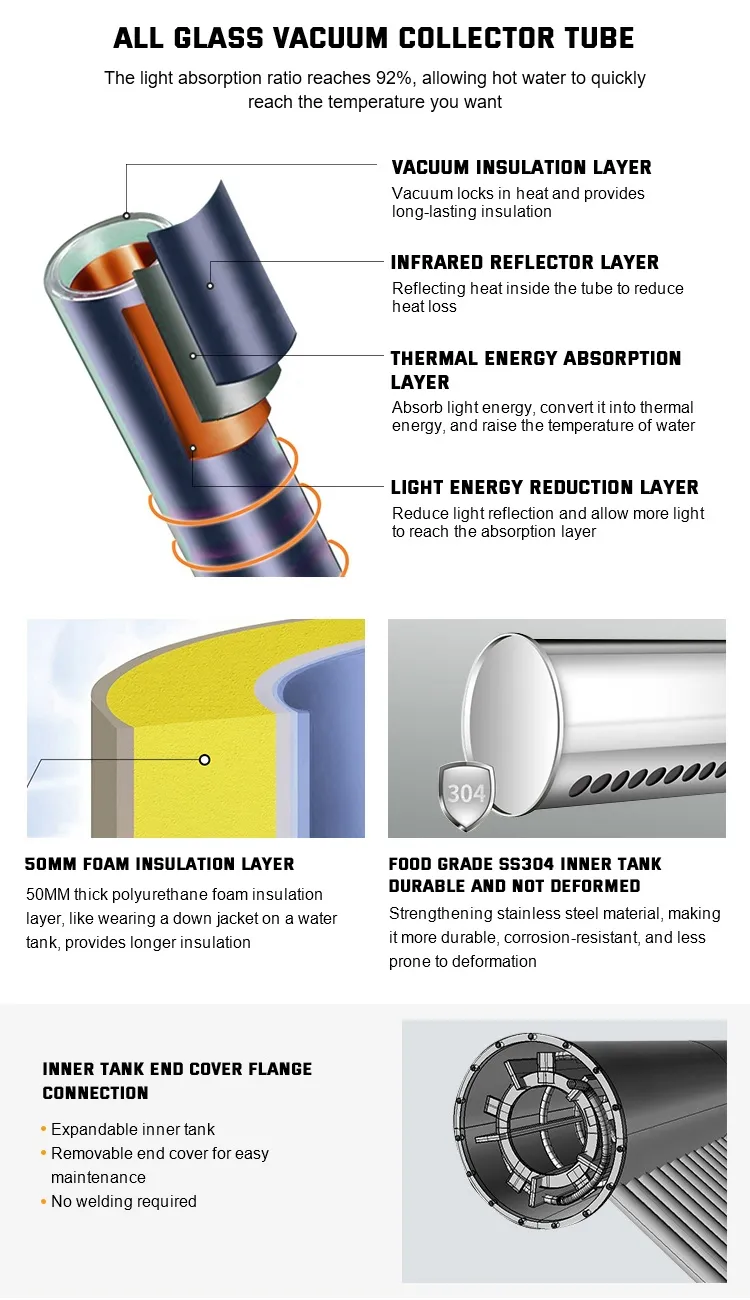

| Collector Tube Size | Φ58mm outer diameter * 1800mm length |
| Inner Tank Material | 0.5mm SUS304 Stainless Steel |
| Insulation Material | 50mm Polyurethane Foam |
| Number of Tubes | 28 sticks |
| Total Water Capacity | 300L |
| Min. Outdoor Temperature | -40ºC |
| Electric Heating (Option) | 1500W, 220V/110V |

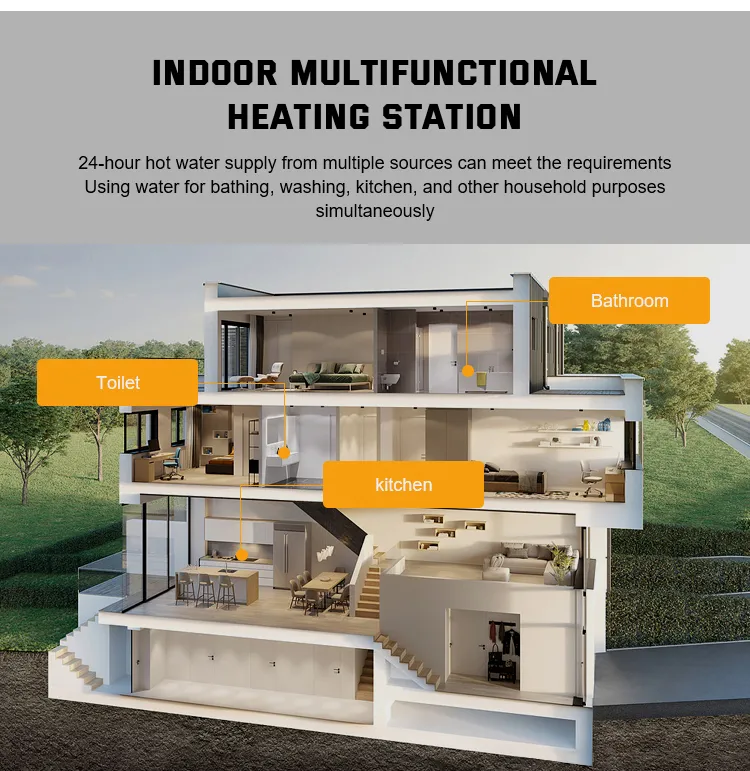

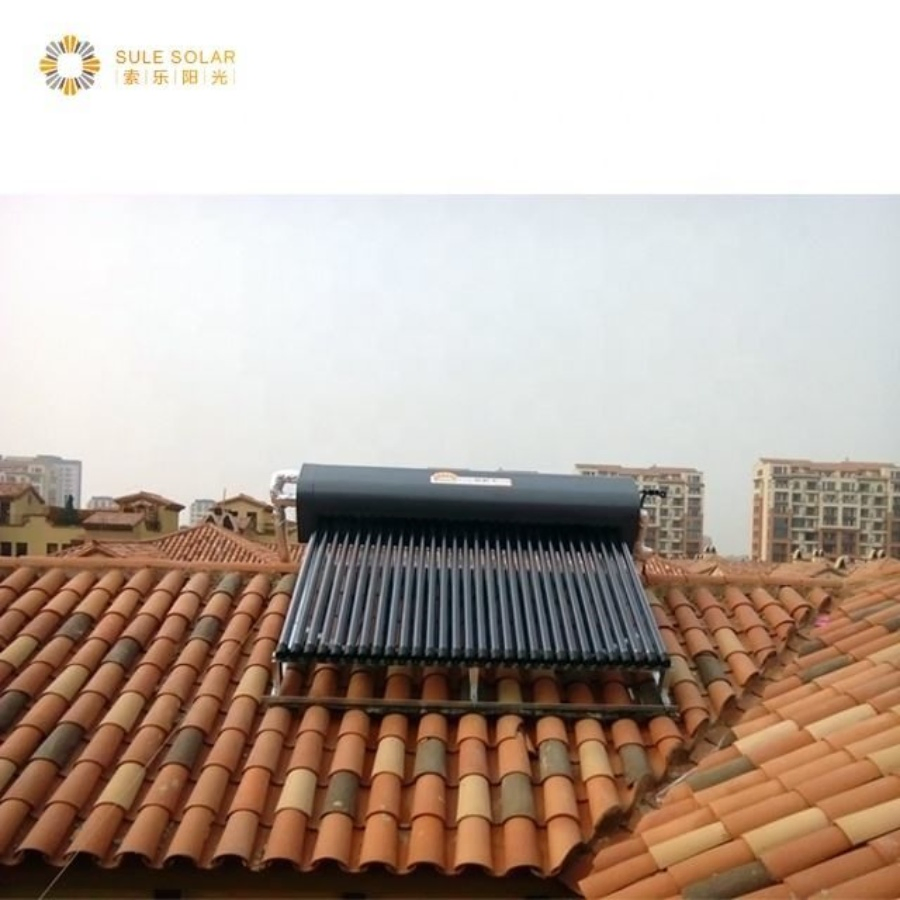

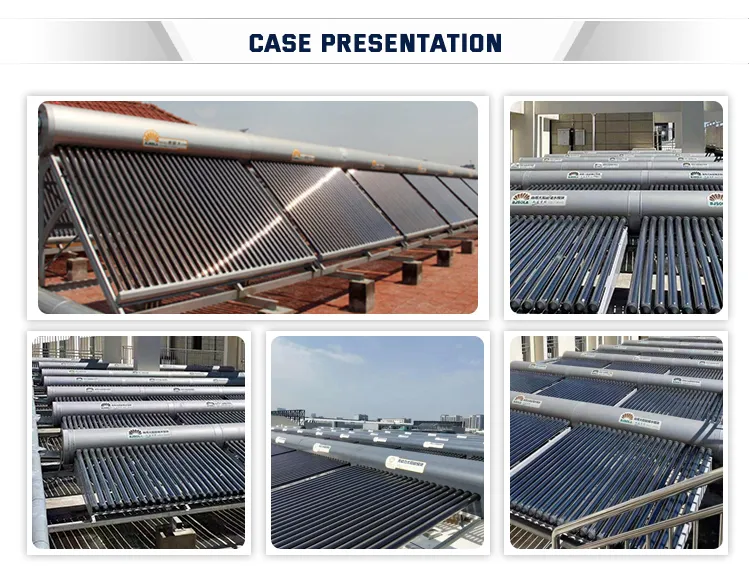

Our pump-free centralized heat collection system is zero-energy consumption, maximizing roof solar resources. It can be smoothly integrated with conventional heat sources like gas boilers or electric heaters to ensure 24-hour hot water availability.
