| Model NO. | PFSLD-300/28-5818-P |
| Max. Capacity | >200L |
| Structure | Compact Type |
| Pressure | Pressurized |
| Interior Material | Stainless Steel |
| Collector Components | Glass Vacuum Tube |
| Composition | Tank Insulation |
| Certification | CE, ISO9001, CCC, Epr |
| Outer Tank | Color Galvanized Steel |
| Inner Tank | Stainless Steel 304 |
| Insulation | 50mm Polyurethane Foam |
| Frame | Galvanized Steel, Stainless Steel, Aluminum Alloy |
| Power Source | Solar |
| Backup Source | Gas Boiler, Electricity |
| HS Code | 8419120000 |

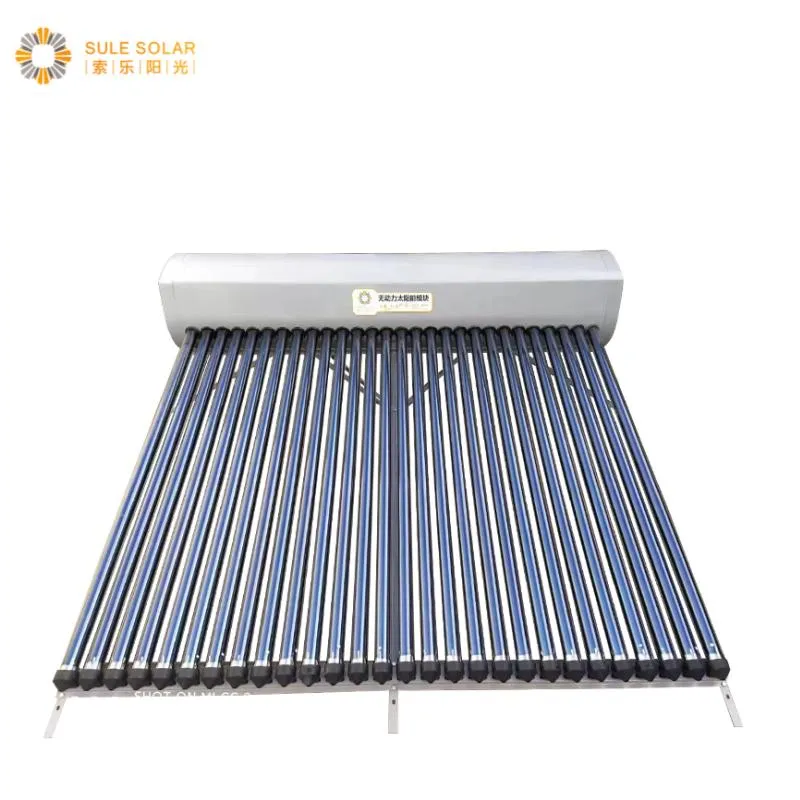

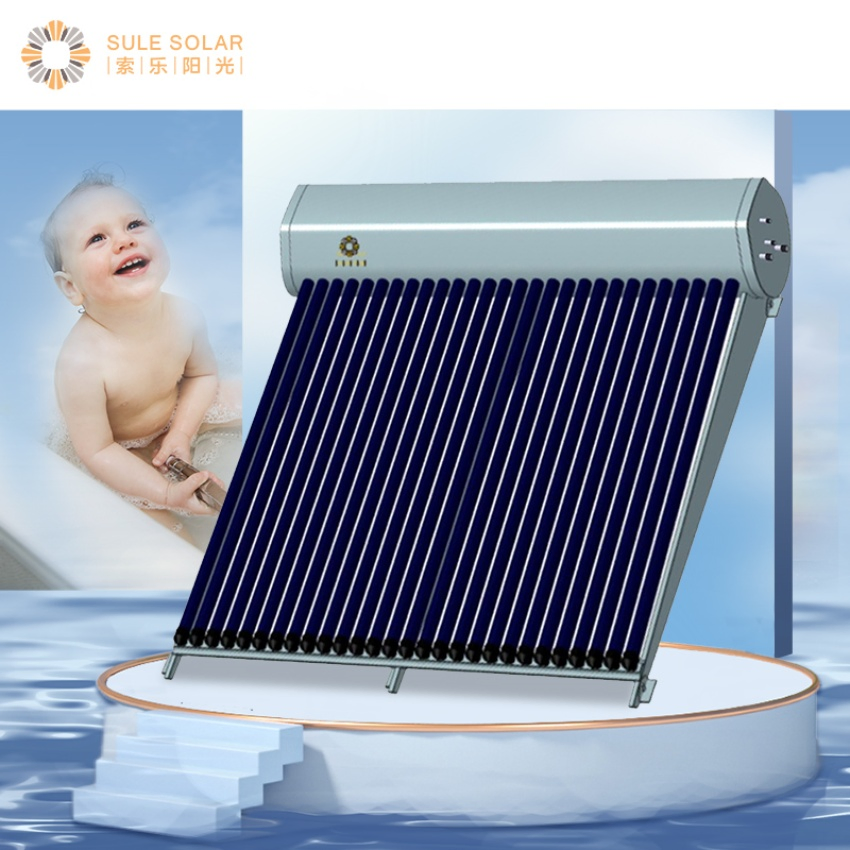

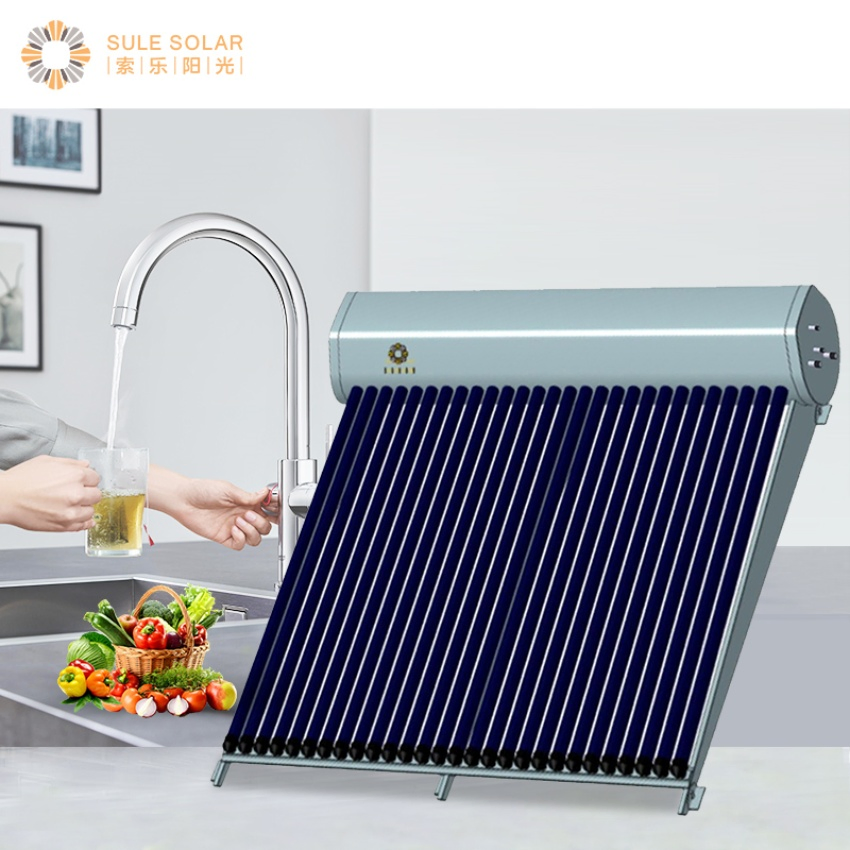

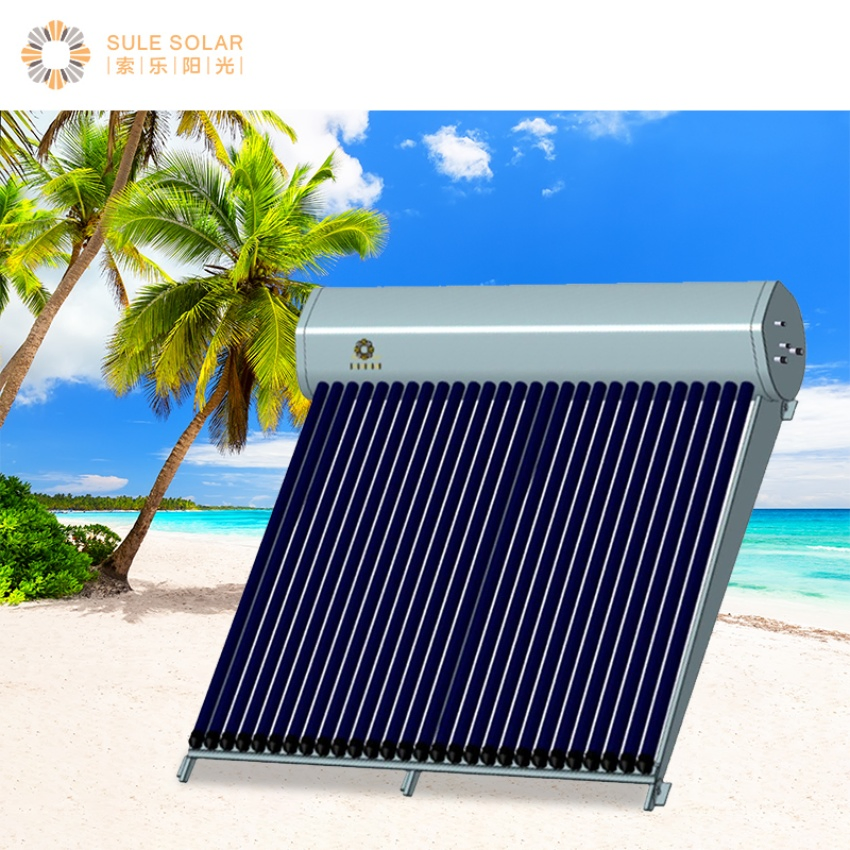

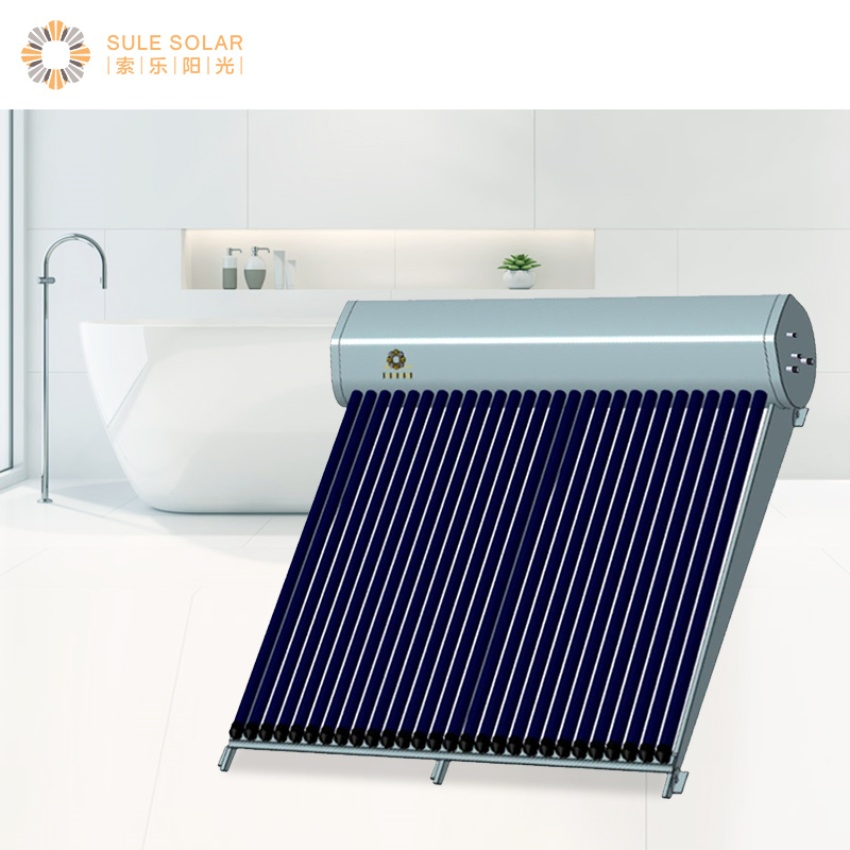

Solar heating vacuum tube hot water heater for home appliance

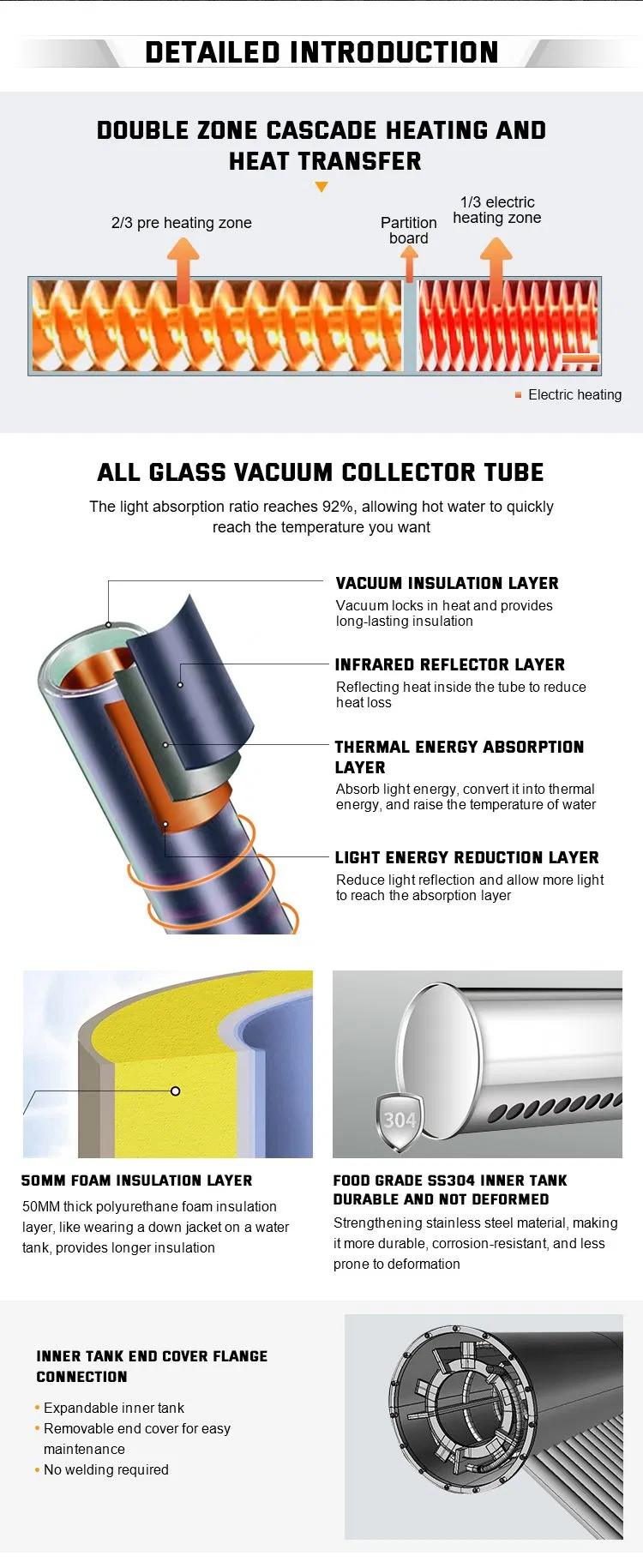

Our pump-free household solar water heater features an open water tank for heat storage and a closed coil for heat exchange. Utilizing advanced 20-second rapid heat exchange technology, hot water is quickly ready for use while maintaining fresh water quality. The hot water pressure is derived from municipal cold water pressure, ensuring a stable temperature without sudden fluctuations.
| Product Name | 300L Vacuum tube solar water heater |
| Collector Tube Size | Φ58mm outer diameter * 1800mm length |
| Inner Tank Material | 0.5mm SUS304 stainless steel |
| Heat Exchanger | 304 stainless steel, Φ25-32mm |
| Number of Tubes | 28 sticks |
| Aperture Area | 4.2m² |
| Total Water Capacity | 300L |

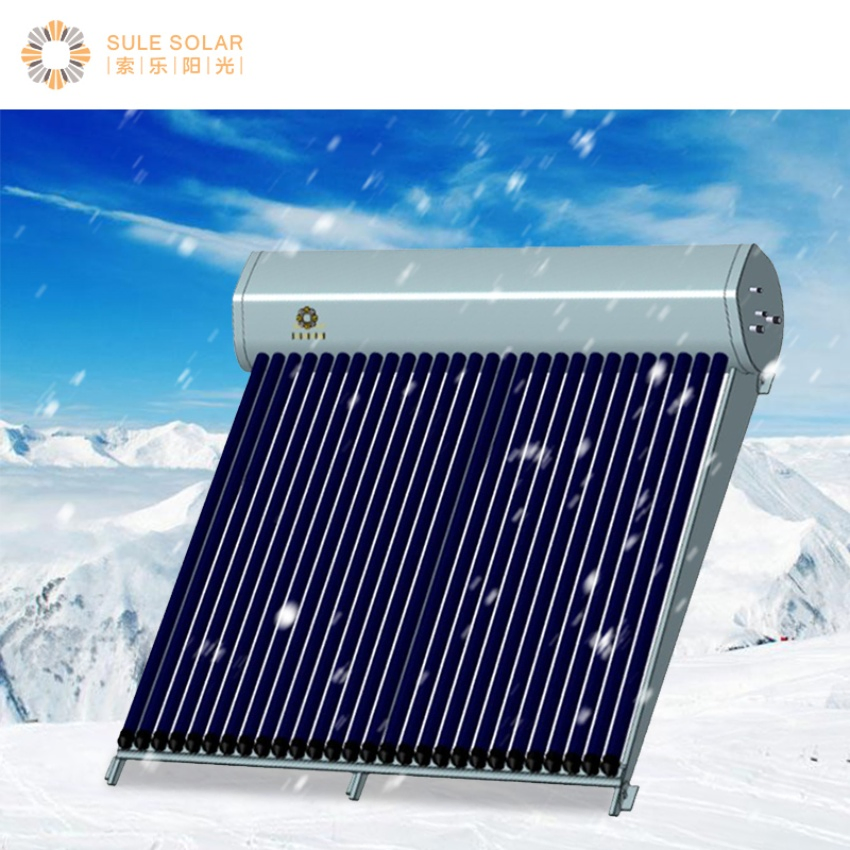

| Min. Temperature | -40ºC |
| Electric Heating | Option (1500W, 220V/110V) |
