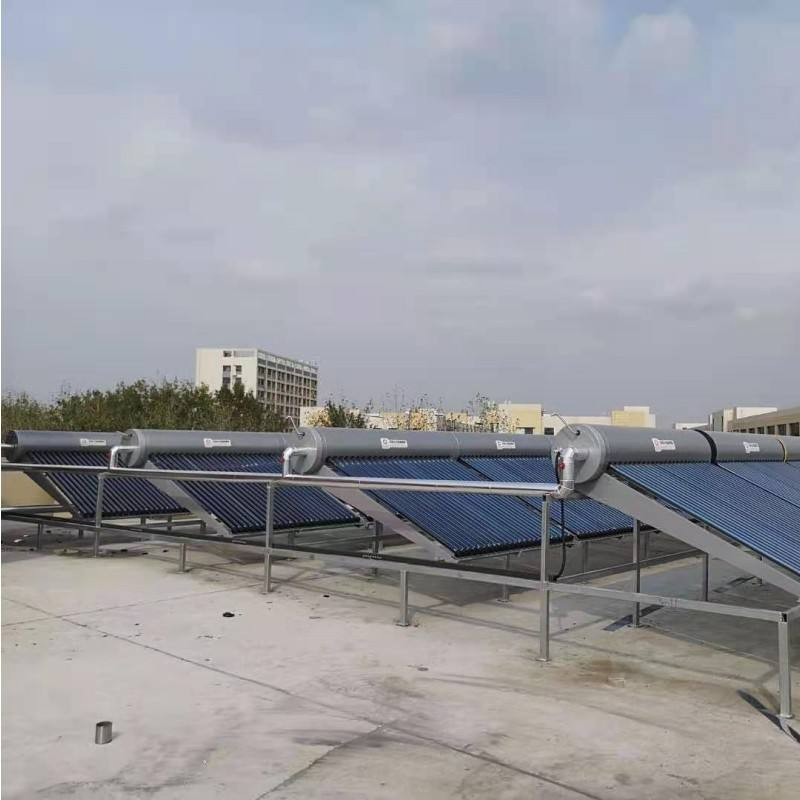

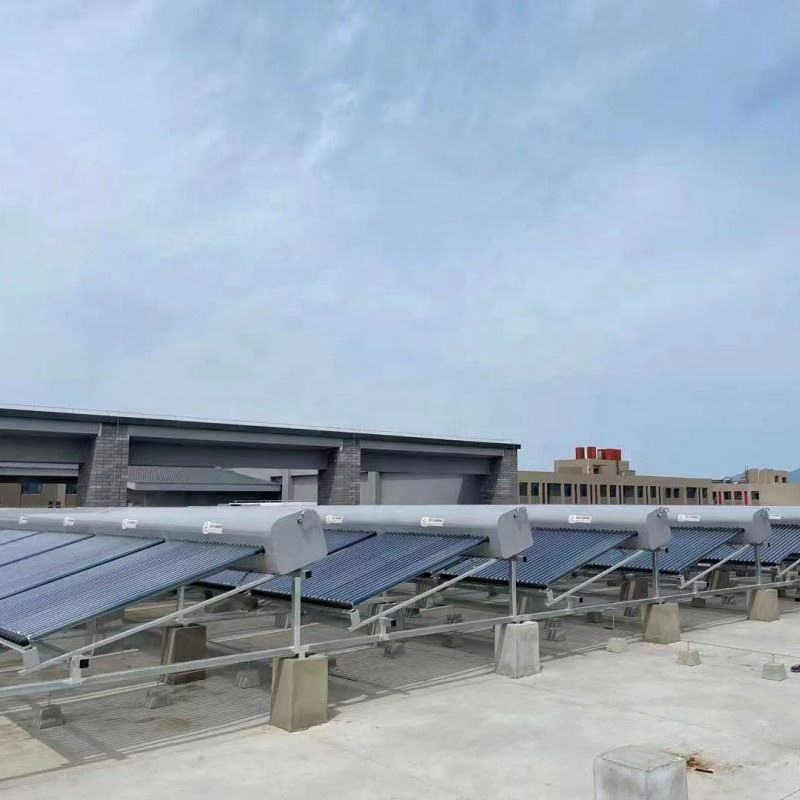

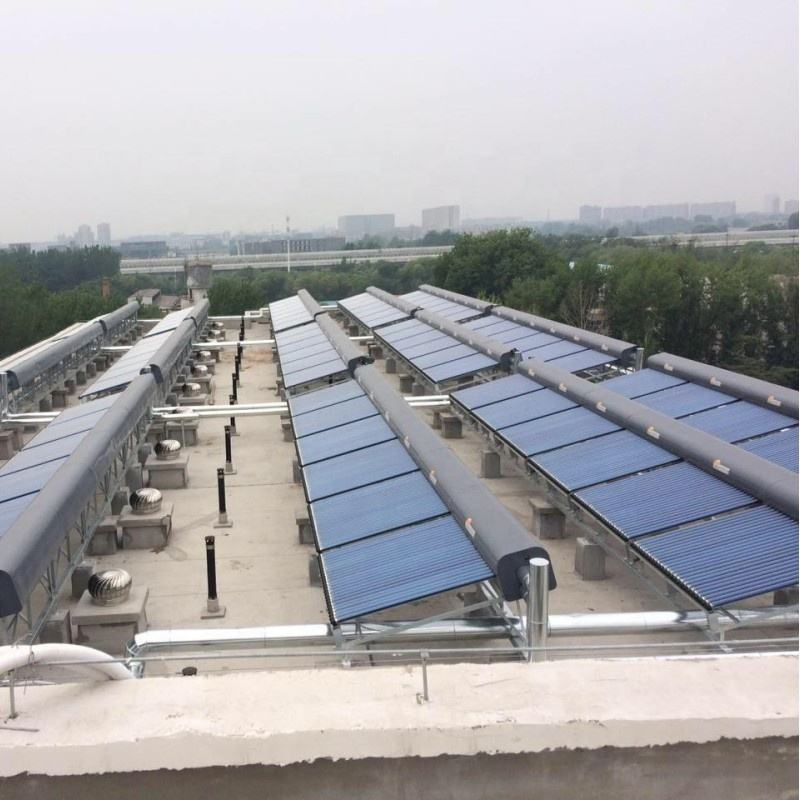

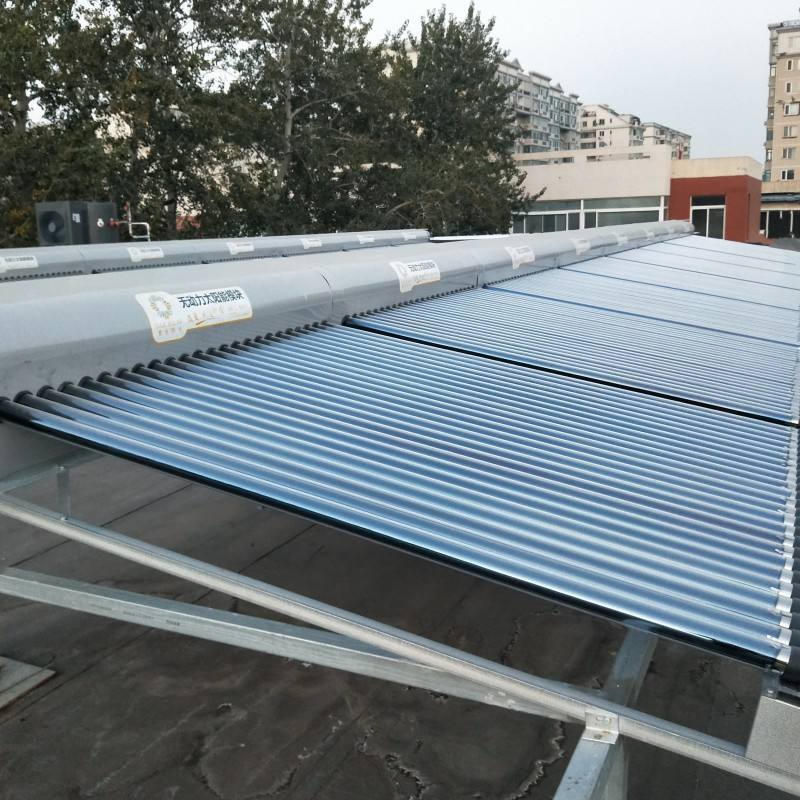

Advanced Commercial Heating Hot Water Compact Solar Water Heater System
| Model NO. | PFSLY-300-25-5818-P | Max. Capacity | >200L |
|---|---|---|---|
| Structure | Compact Type | Pressure | Pressurized |
| Interior Material | Stainless Steel | Collector Components | Glass Vacuum Tube |
| Composition | Tank Insulation | Certification | CE, ISO9001, CCC |
| Outer Tank | Color Galvanized Steel | Inner Tank | Stainless Steel 304 |
| Heat Exchange | Stainless Steel 316L | Insulation | 50mm Polyurethane Foam |

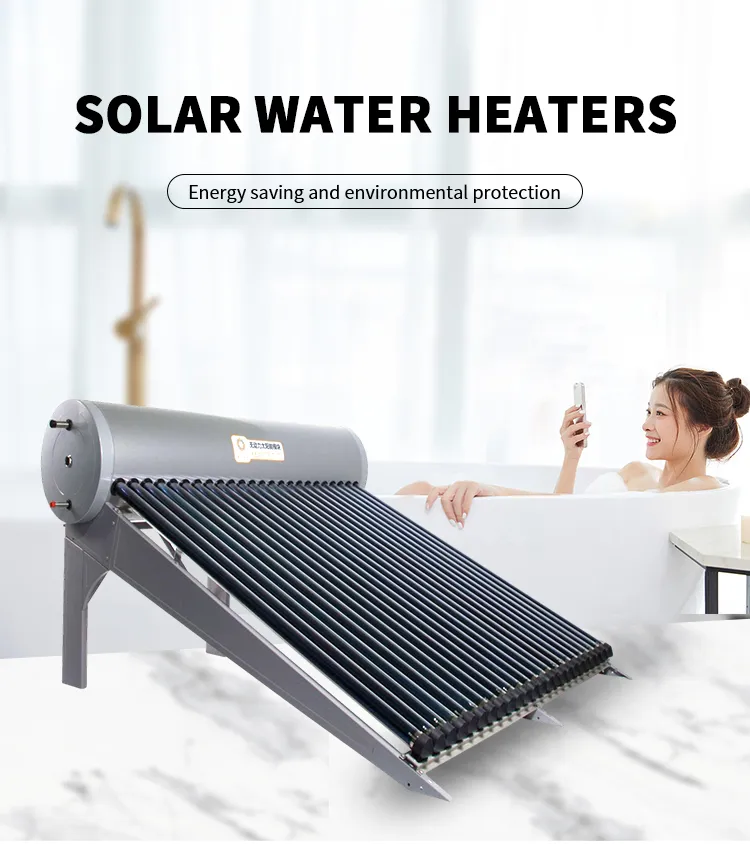

| Product name | Vacuum tube type solar water heater |
| Model | PFSLFY-300/25-5818-P |
| System Type | Open tank pressurized solar water heater |
| Collector Tube | All glass solar vacuum tubes |
| Absorbent Coating | Interference coating |
| Tube Dimensions | Φ58mm x 1800mm |
| Tank Material | SUS304 stainless steel (Inner) / Color galvanized steel (Outer) |
| Insulation | 50mm polyurethane foam |
| Collecting Area | 3.6 m2 |
| Electric Heating | 220v/110v, 1500W (Option) |
Adopts RHEs reverse heat exchange technology. Pressurized water does not need a booster pump, ensuring fresh water quality without secondary pollution.
Cold water flows through the stainless steel bellows and quickly turns into hot water. The water quality is fresh, containing no nitrite or Legionella.

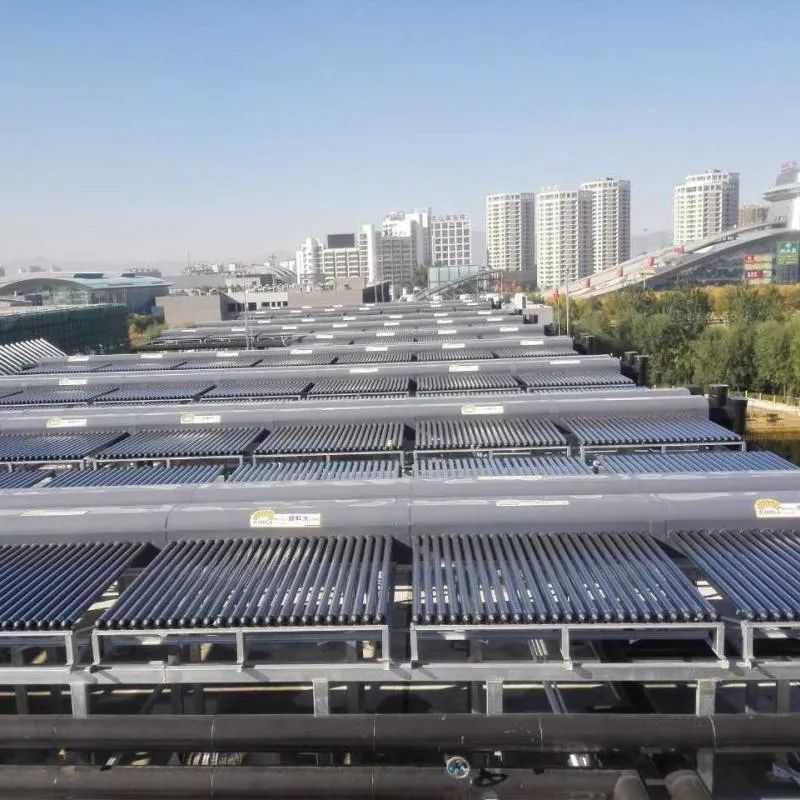

The modular design allows the water tank to be expanded for places with large water consumption and multiple water points.
Features high absorption and low reflection. The coating stores thermal energy efficiently while maintaining low emissivity.
Pressure comes from the municipal cold water supply, matching the cold water pressure perfectly for easy temperature adjustment.
The collector uses heat medium water without scaling. The corrugated pipe floating heat exchange is designed to resist scale buildup.

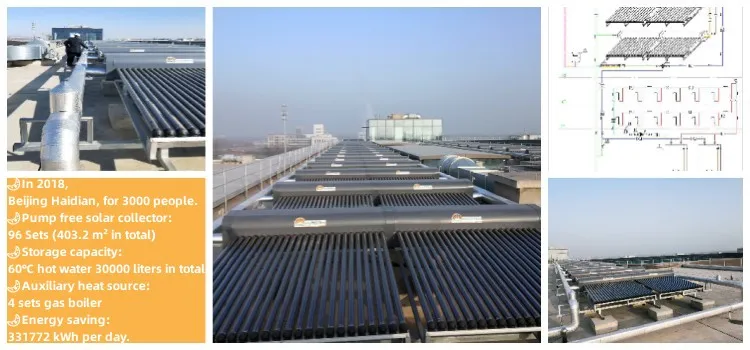

One-stop service for customized solar hot water heating systems based on project requirements.
