Advanced Solar Water Heating Systems for Residential and Commercial Use

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info.
Model NO.
PFSLP-240-4.0/0
Max. Capacity
>200L
Structure
Compact Type
Pressure
Pressurized
Interior Material
Stainless Steel
Collector
Flat-plate
Certification
CE, ISO9001, CCC
Inner Tank
Stainless Steel 304
Heat Exchange
316L Stainless Steel
Insulation
Polyurethane Foam
☀️ Product Description

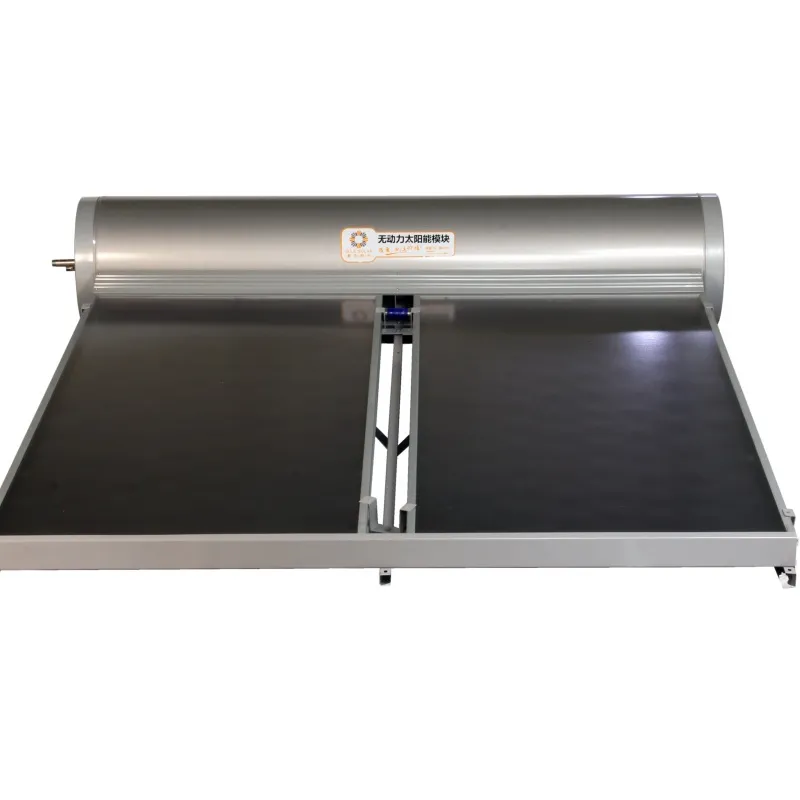

Advanced Solar Water Heating System
Eco-friendly Clean Energy Hot Water System: High-efficiency pump-free solar water heater designed for home use and commercial applications like schools, hospitals, hotels, and apartments.
Our solar water heater utilizes an open water tank for heat storage and a closed coil for heat exchange. With 20-second rapid heat exchange technology, hot water is provided quickly while maintaining fresh water quality. The system uses municipal water pressure directly, ensuring consistent flow and comfortable water temperature adjustment without sudden fluctuations.
🔄
Coil Heat Exchange RHEs reverse heat exchange technology ensures pressurized fresh water without secondary pollution or the need for extra pumps.
⏱️
20s Rapid Exchange Cold water turns to hot water in just 20 seconds. Low temperature difference and fresh quality suitable for kitchen use.
🧱
Modular Design Expandable water tank design allows for scaling based on high water consumption requirements.
💎
Blue Titanium Coating Super blue titanium coated collector plates feature high absorption and low reflection for maximum energy storage.
🚿
Constant Pressure Uses municipal cold water pressure for a surging, sufficient volume and premium user experience.
🔌
Hybrid Compatible Easily combines with electric heaters, gas boilers, or air source heat pumps as a pre-heating solution.
⚙️ Product Parameters
Parameter Item Technical Specifications
Product name240L Flat Panel Solar Water Heater
TypesPressurized
CollectorAntifreeze Flat Plate Collector
Absorber surfaceWhole board blue film
Core runnerCopper pipe
Collector Specifications1000*2000*80mm (2 pieces)
Inner tank material0.5mm SUS304 stainless steel
Outer tank material0.4mm color galvanized steel plate
Insulation50mm flame retardant polyurethane foam
Heat exchanger Material304 stainless steel, 0.3mm thickness
Aperture area4.0 m²
Water tank capacity240L
Product SizeL: 2355mm, W: 2678mm
Min. temperature0ºC and -20 ºC models available
🏢 Commercial Projects

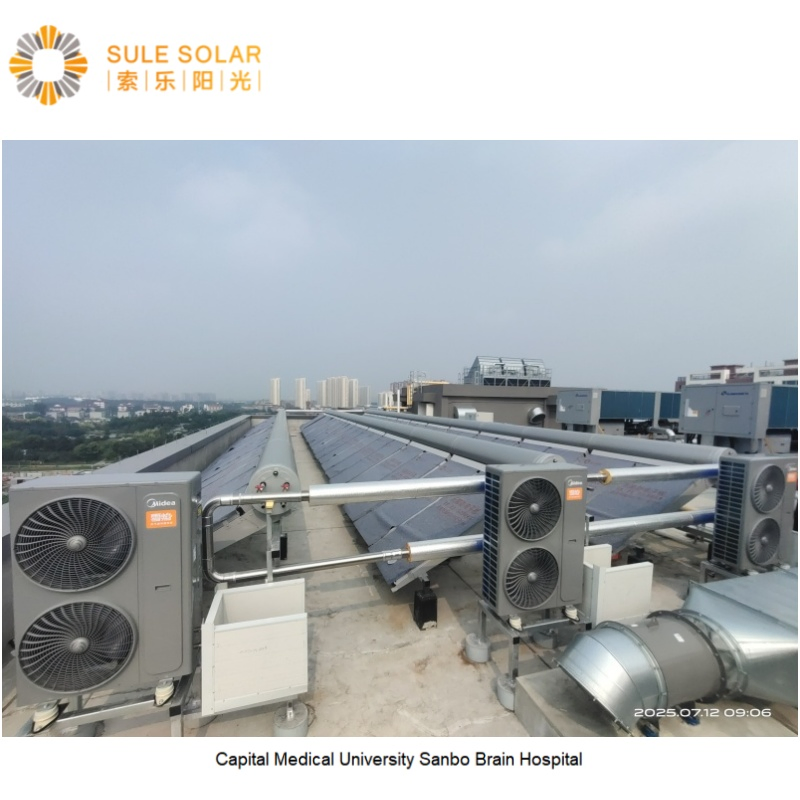

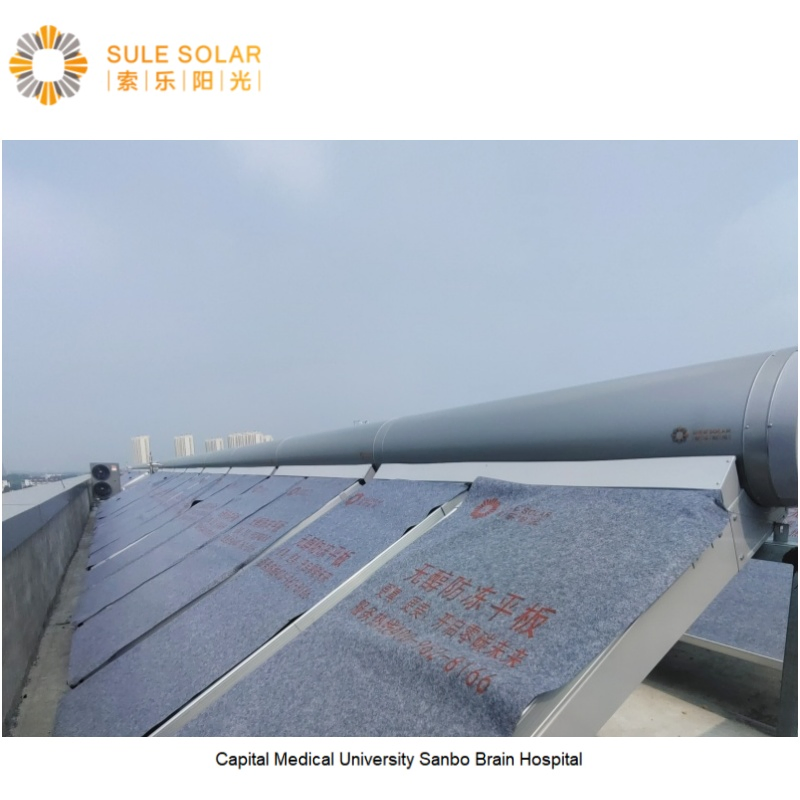

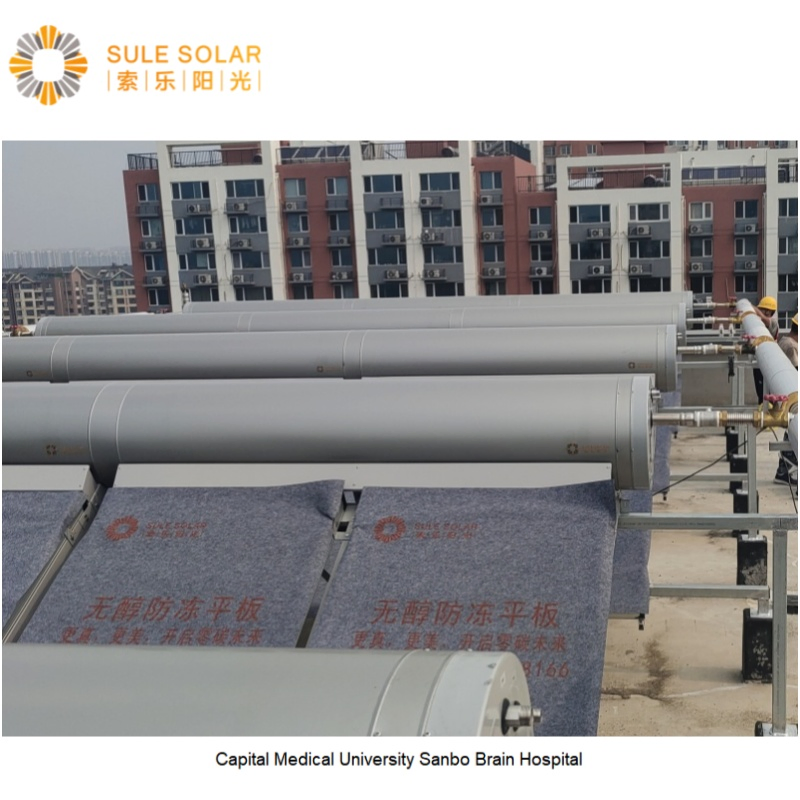

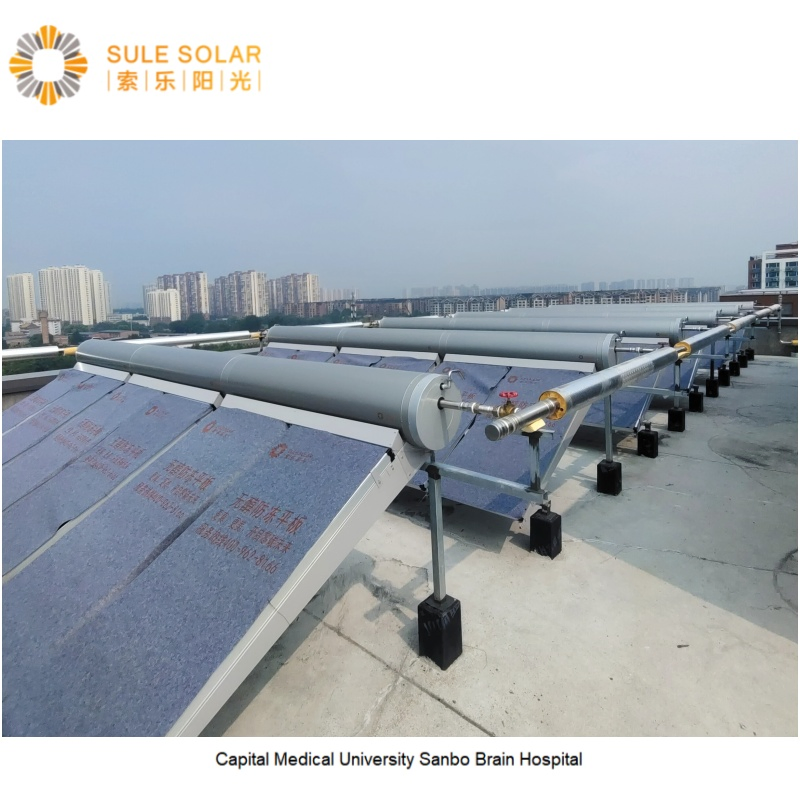

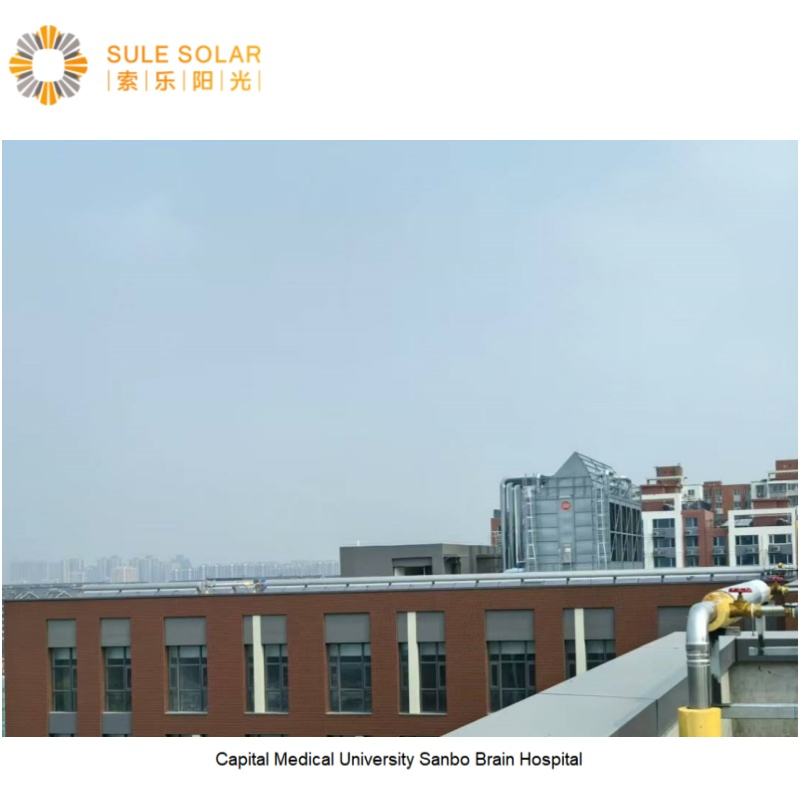

Project 1: Hospital Facility
Collector: 96 Sets (403.2 m²)Storage: 120,900 Liters
Aux Source: Gas boilerEnergy Saving: 331,772 kWh/day

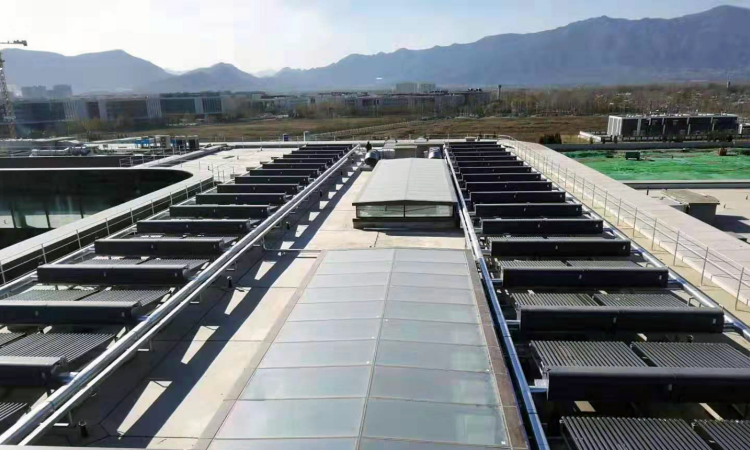

Hospital Project
Project 2: University Campus
Collector: 1057 Sets (44,394 m²)Storage: 32,000 Liters
Aux Source: 8 sets gas boilerEnergy Saving: 476,575 kWh/day

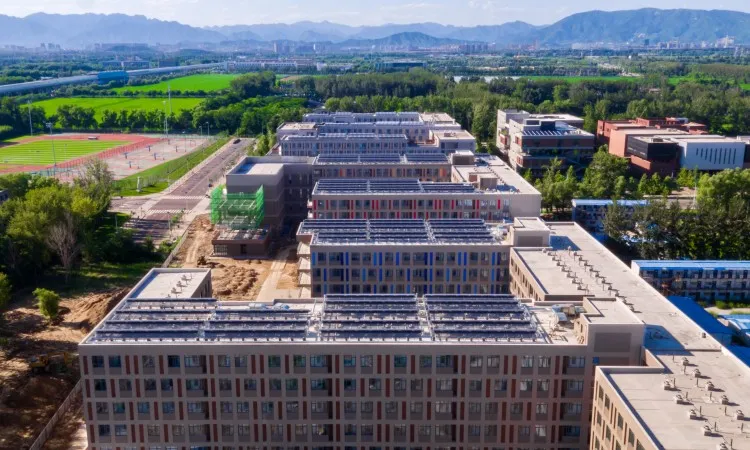

University Project
Project 3: Dormitory Systems
Collector: 600 Sets (2520 m²)Storage: 45,000 Liters
Aux Source: 32 sets gas boilerEnergy Saving: 270,520 kWh/day

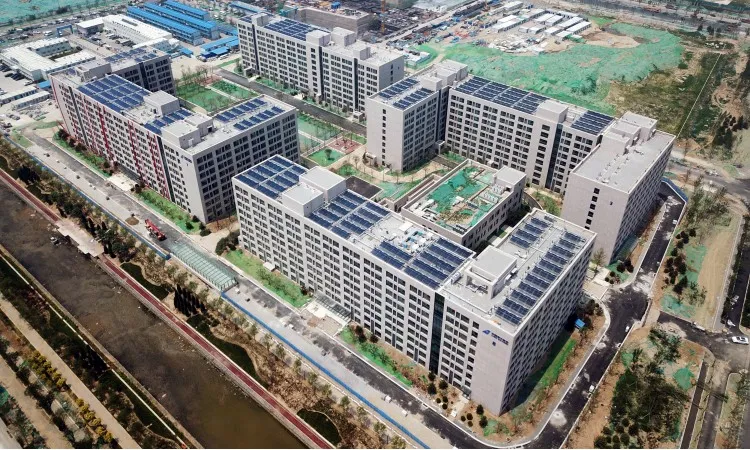

Airport Dormitory Project
Project 4: International Schools
Collector: 101 Sets (404 m²)Storage: 24,240 Liters
Aux Source: Electric heaterEnergy Saving: 45,086 kWh/day

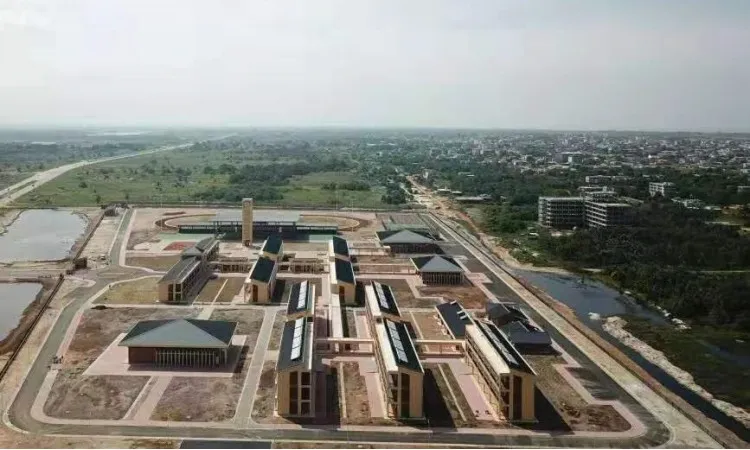

School Project

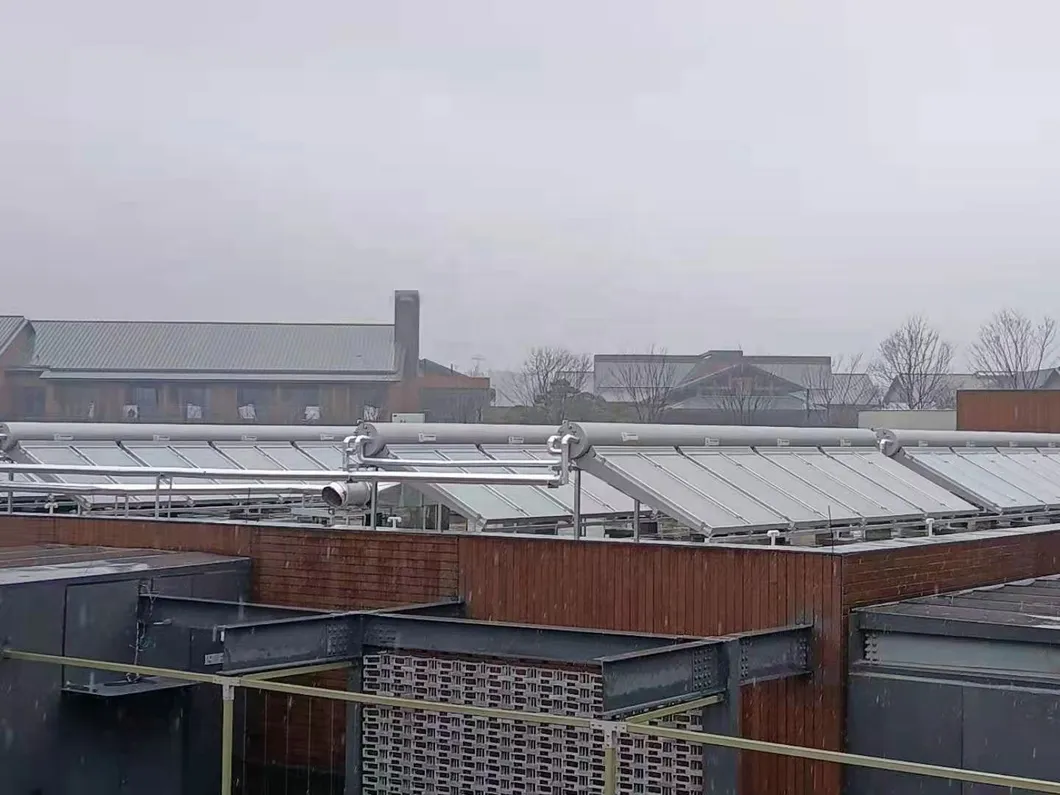

Hotel Project

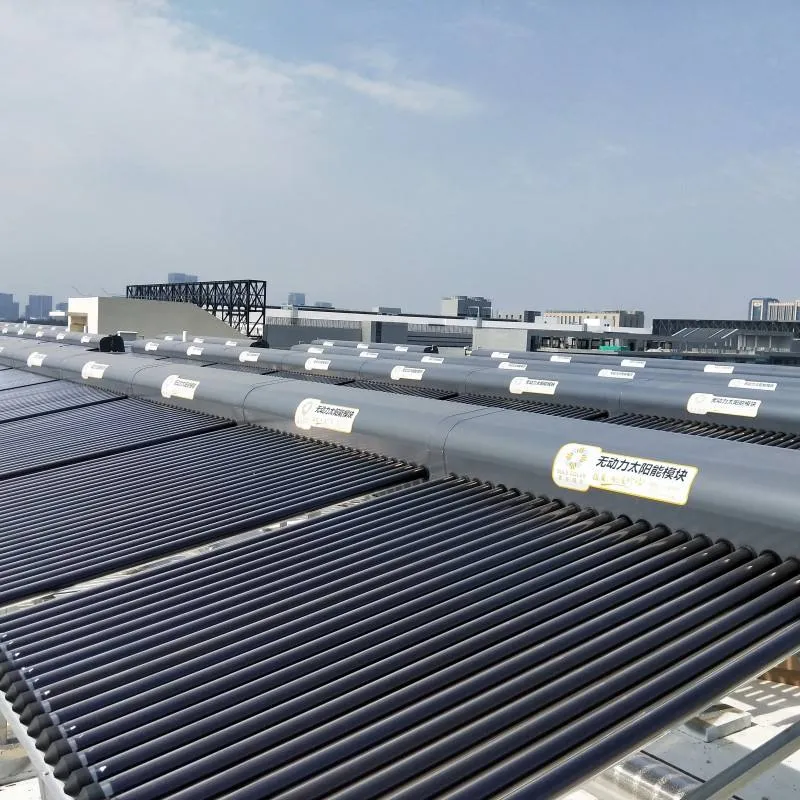

Company Project

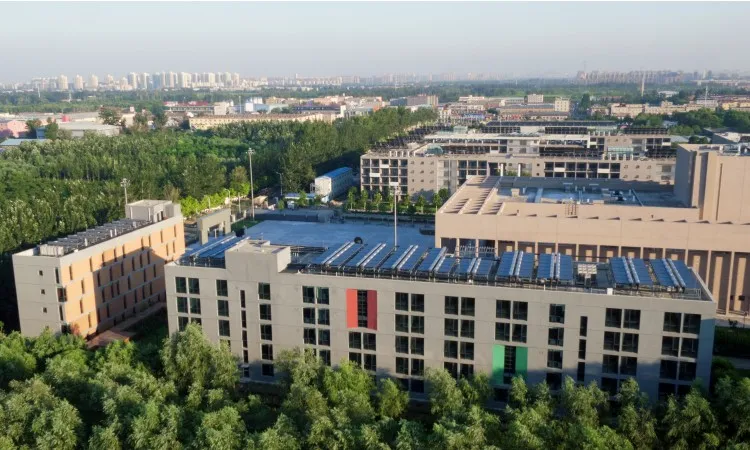

Academy Project
🏢 Factory & Facilities
Facility 1
Facility 2
Facility 3
Frequently Asked Questions
What can you buy from us?
You can purchase Solar Water Heaters, Solar water systems, and Solar collectors.
What is your Delivery Time?
For LCL or sample orders, delivery takes 3-7 days. For full container orders, it takes 10-15 days.
What is your warranty policy?
We provide a 3-year warranty after the delivery date.
Do you accept OEM orders?
Yes, we provide OEM services based on your specific requirements.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is 1 set.
How do you guarantee product quality?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment.
