Advanced Manufacturing Welding Small Vibration Wel - Tailored Solutions From China

Customization:	Available
Cooling Way:	Air Cooling
Control:	Automatic

Overview

Model NO.:customization

Style:Table-Szie Equipment

Type:Friction Stir Welding

Package Size:350.00cm * 260.00cm * 310.00cm

Gross Weight:7000.000kg

Origin:China

Product Description

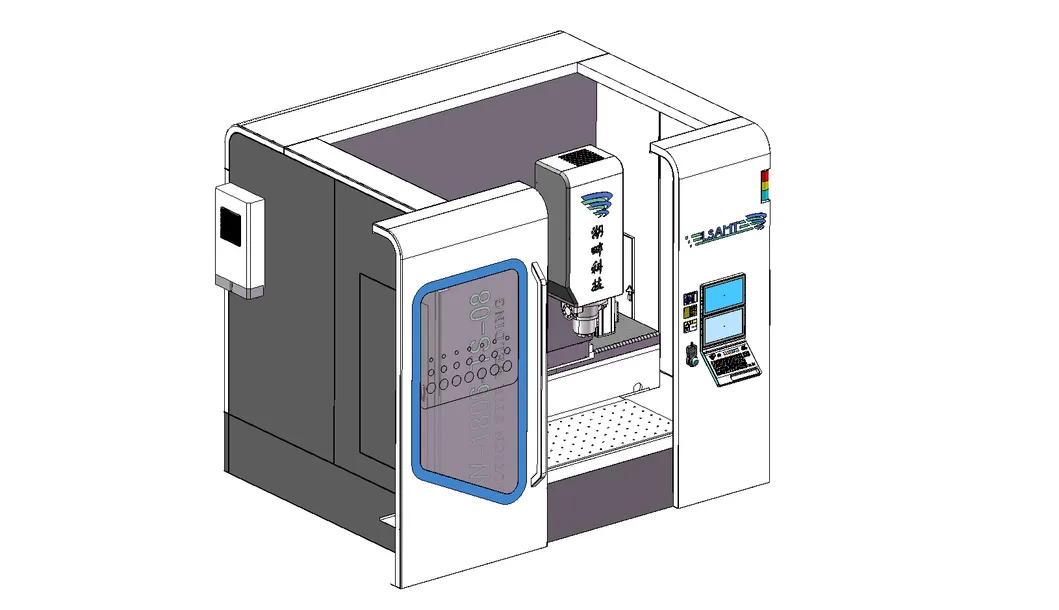

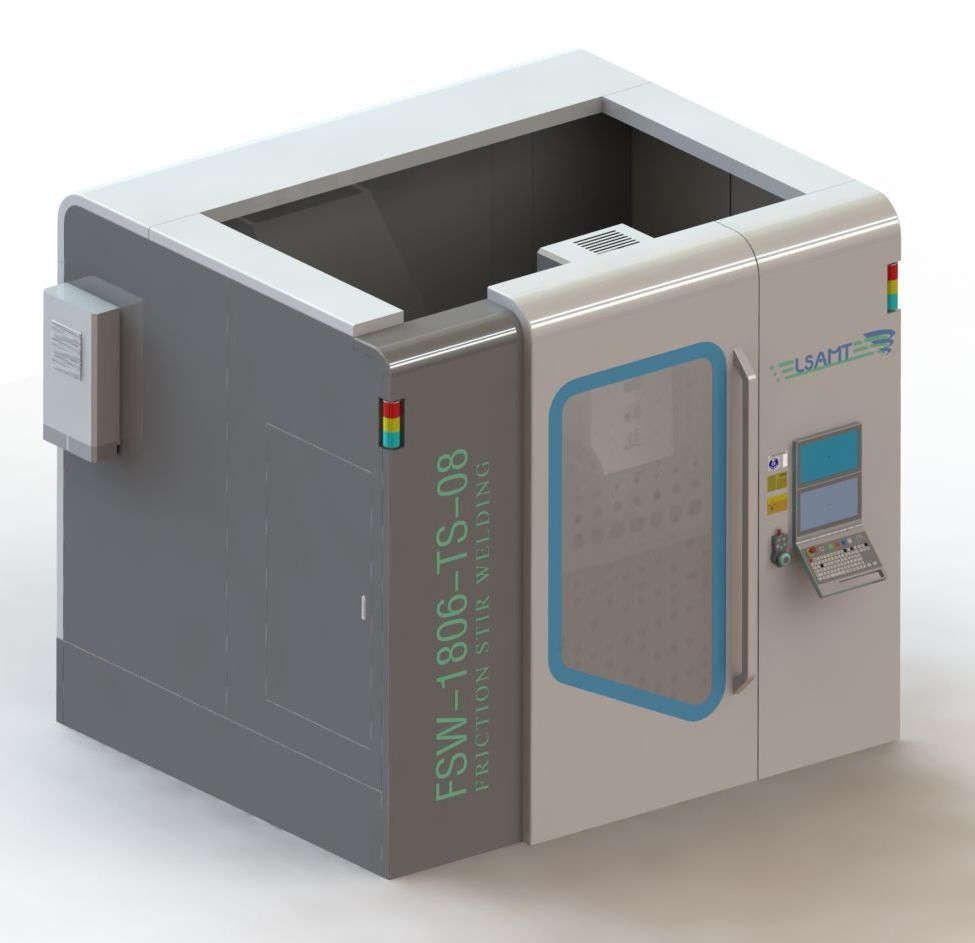

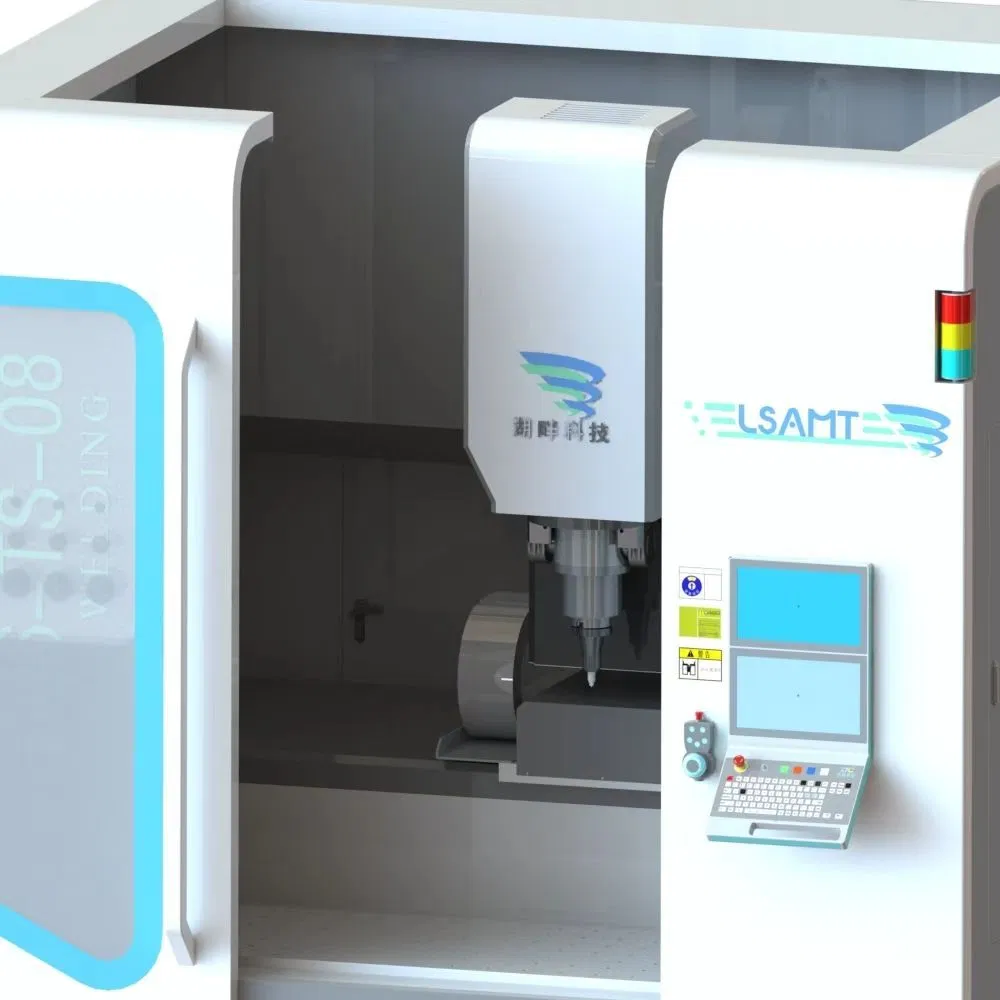

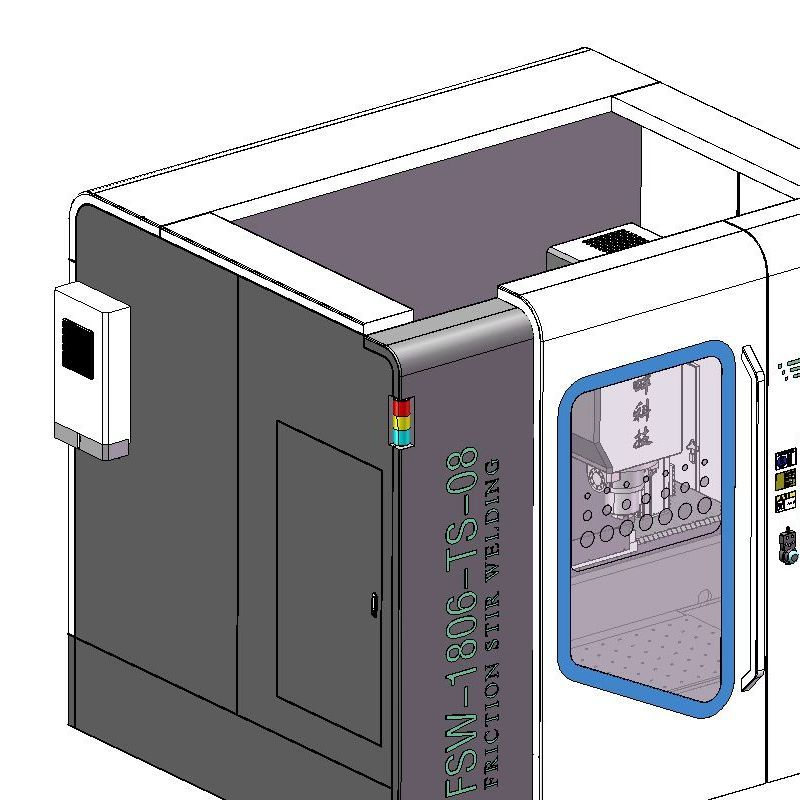

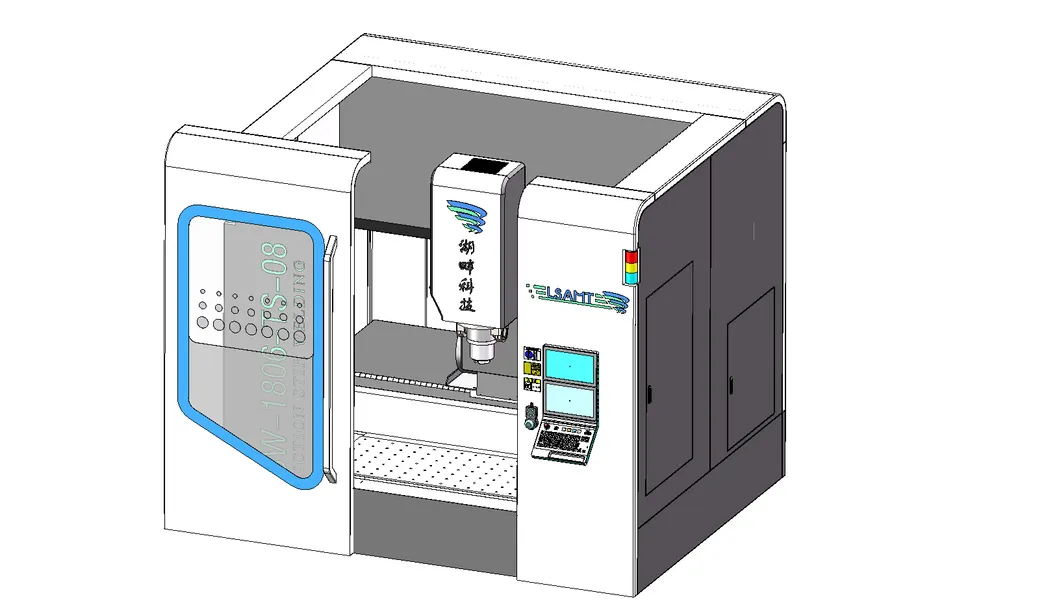

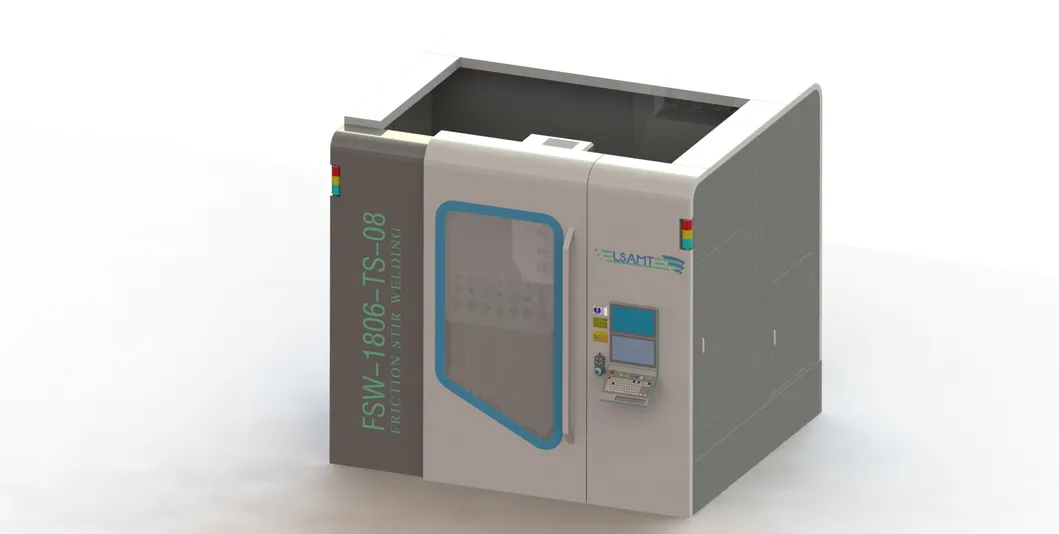

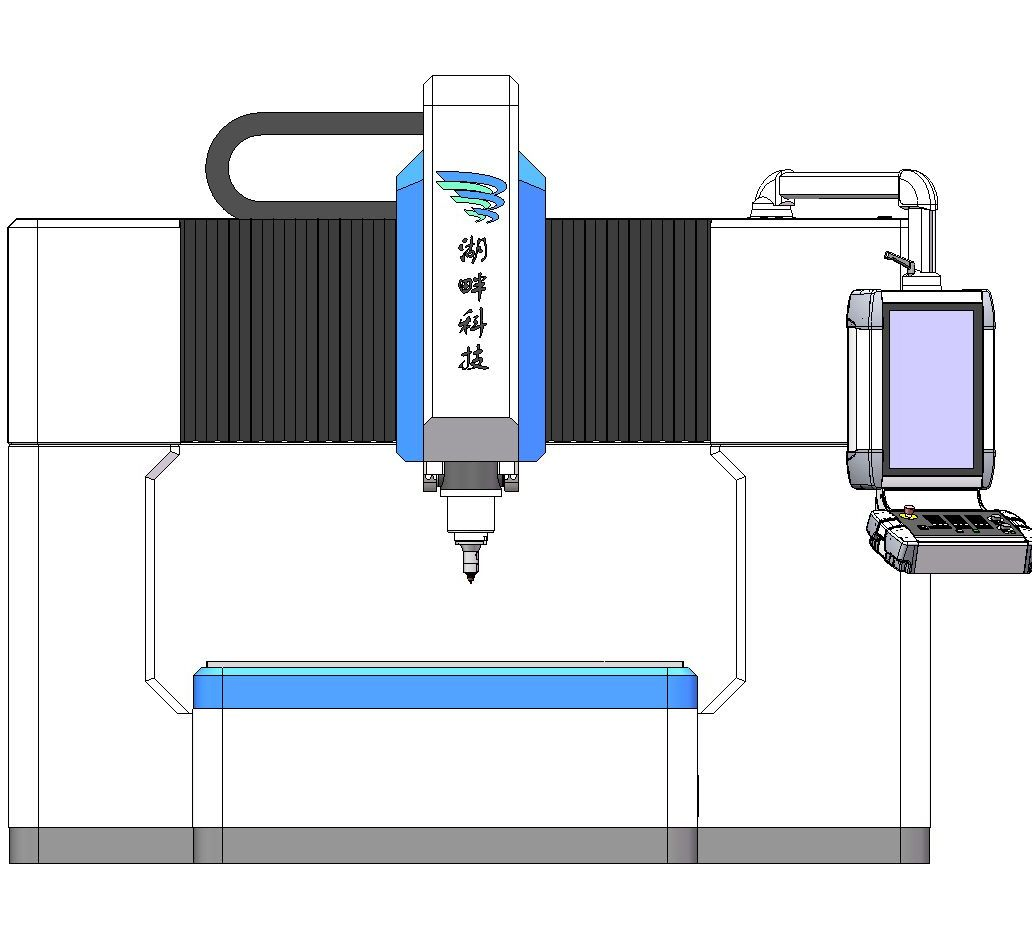

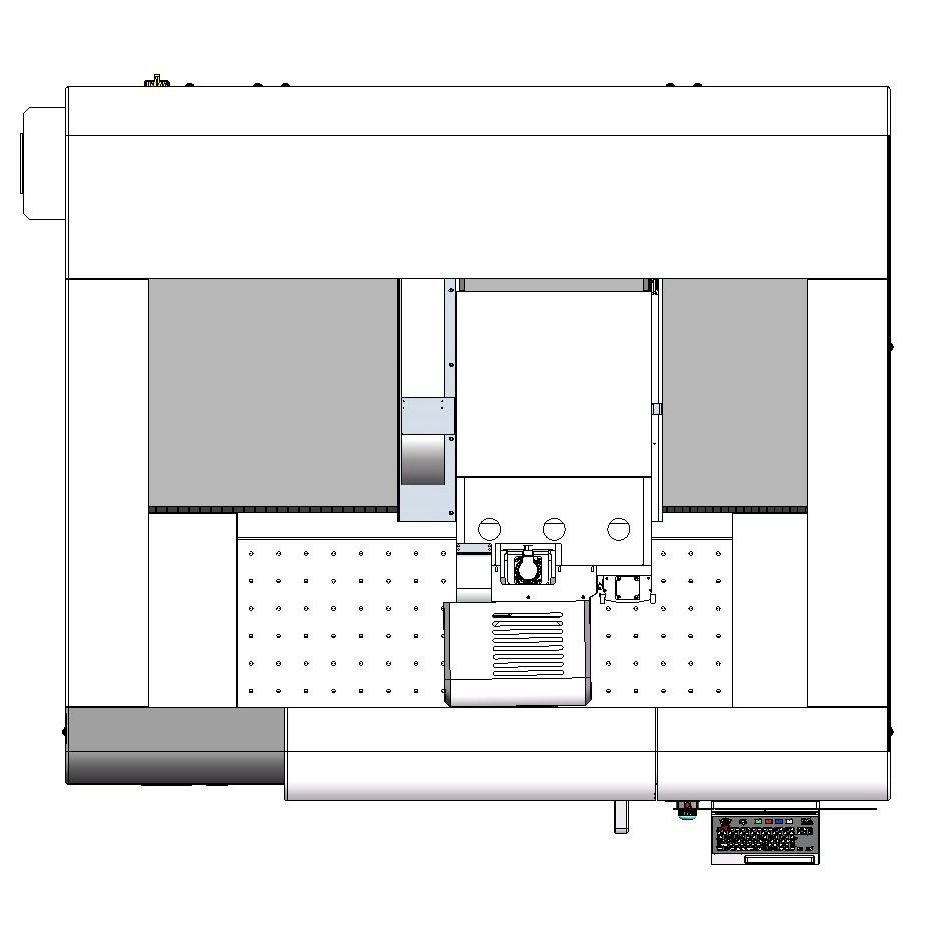

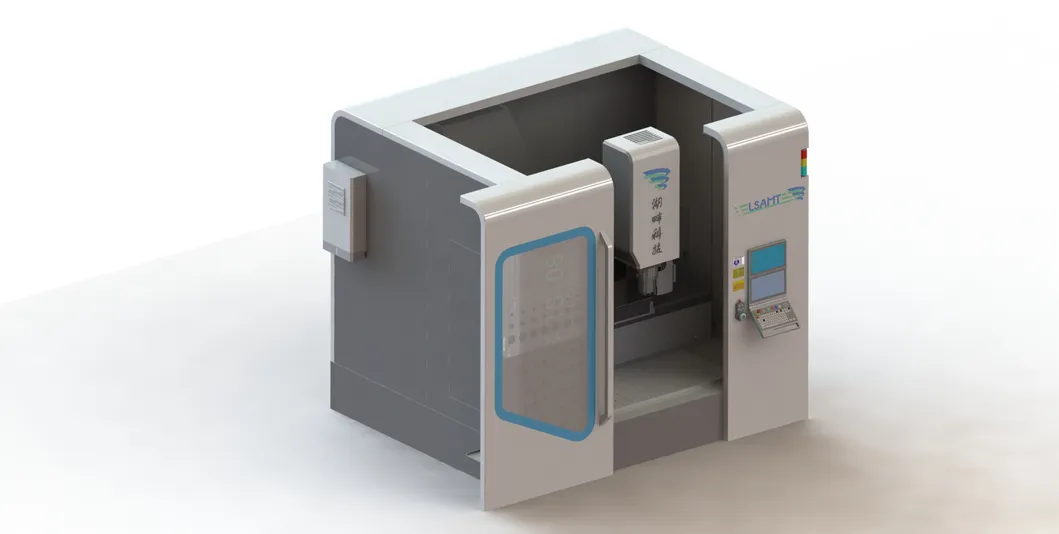

Step into the future of precision welding with our desktop friction stir welding equipment, meticulously crafted to meet the unique welding requirements of high-precision and small-sized workpieces. This state-of-the-art welding solution seamlessly integrates cutting-edge technology with unparalleled reliability. Utilizing the innovative solid-phase connection technology inherent in friction stir welding, the apparatus harnesses the thermal energy generated by the high-speed rotation of the stirring head and the friction against the workpiece. This ingenious mechanism enables the welding of materials in a thermoplastic state without necessitating additional filling materials or protective gases.

◈ Key Features

Precision Redefined: High-precision motion control designed to execute intricate welding trajectories flawlessly.
Efficiency and Quality: High-speed stirring head revolutionizes efficiency while enhancing weld integrity.
Versatile Modes: Dual operation modes (manual/automatic) and dual control modes (constant displacement/pressure).
Intuitive Interface: Human-centric operation interface prioritizing simplicity and user-friendliness.
Dependable Durability: Robust lubrication system to extend equipment longevity and ensure stable performance.
Unmatched Compatibility: High-strength castings prepared for integration with automated loading systems.

Technical Parameters

Equipment Item		Specifications
Nominal welding thickness (Aluminum 6xxx)		1 ~ 8 mm
Installation Space	Worktable Length	1800mm
Installation Space	Worktable Width	600mm
Working Travel	X-axis / Y-axis	1600mm / 500mm
	Z-axis	300mm
	B-axis / C-axis	±5º / ±360º
Spindle Speed	Maximum No-load	3500 rpm
Power	Spindle Power	13 KW
Control System	CPU / Mode	CNC + Touch Screen / Constant Pressure
Overall Dimensions	Length (X)	3000 mm
	Width (Y)	2600 mm
	Height (Z)	2800 mm

Application Fields

1. Electronic Manufacturing: Assembly of electronic components, small circuit boards, and modules with high precision.

2. Automotive Parts: Precise welding of small aluminum and magnesium alloy components for engines and transmissions.

3. Research Institutions: Exploration of new material welding processes and joint performance analysis.

Frequently Asked Questions

What are the standard trade terms for equipment orders?

We typically operate under Ex-work factory, FOB, or CIF terms depending on the customer's requirements.

How long is the quality guarantee period?

We provide a comprehensive two-year quality warranty for our friction stir welding equipment.

What kind of turn-key services do you provide?

We offer full-service solutions including equipment design, jig manufacturing, system debugging, and welding process optimization based on your blueprints.

What is the typical delivery time for FSW equipment?

Standard machines are usually delivered within 60-75 days after deposit. Customized solutions vary based on complexity.

How is the equipment packed for international shipment?

All goods are securely installed in fumigated crates that meet international customs and maritime safety requirements.

How are shipping damages and missing parts handled?

We ensure safety via our agents; any shipping damage is compensated or repaired. Missing components are dispatched via DHL within one week.
