Basic Specifications
Material Status
Granule, Bulk
Drying Medium
Superheated Steam, Air
Operation Pressure
Atmospheric Pressure
Purpose
Medicine, Chemicals, Food

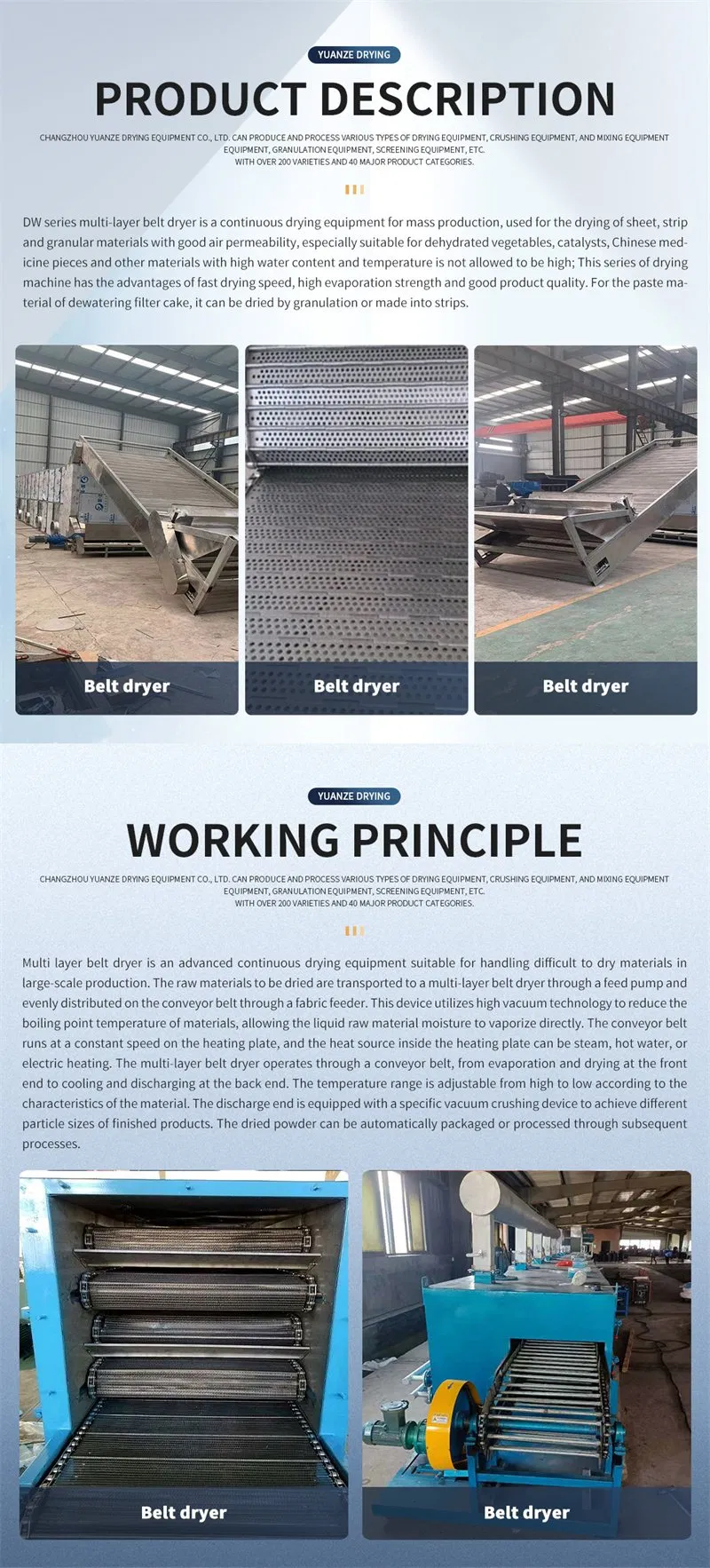

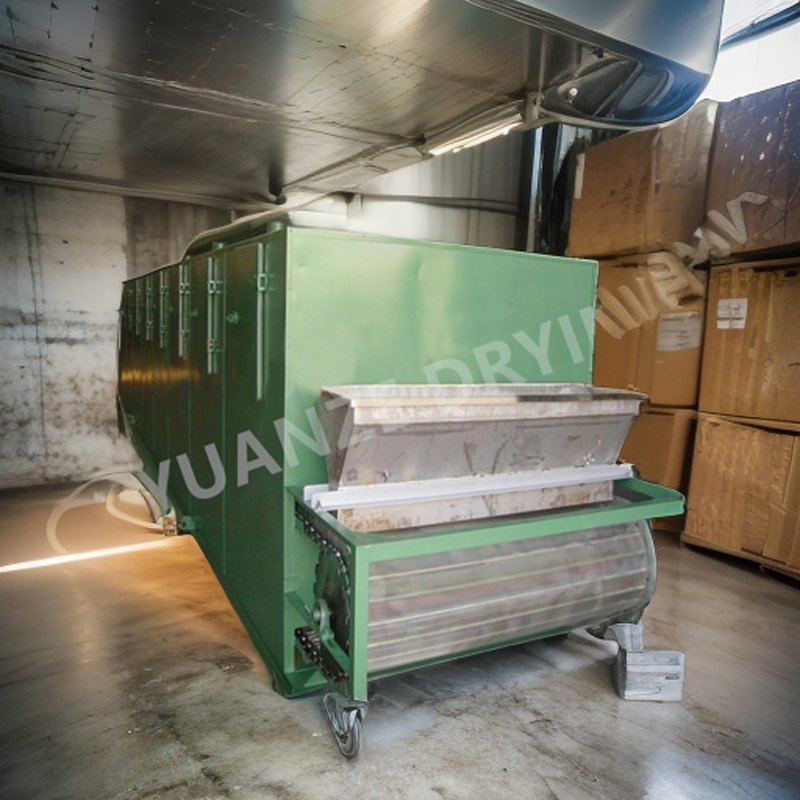

Product Description
Belt dryer is a continuous drying equipment for batch production. It is used for drying sheet, strip and granular materials with good air permeability, for dehydrated vegetables, catalysts, Chinese herbal pieces, such as high water content, but the material temperature does not allow high materials especially suitable; This series of dryer has the advantages of fast drying speed, high evaporation intensity and good product quality. For the paste material of dehydrated filter cake, it can be dried after granulating or making strip.
Working Principle
The material is evenly spread on the mesh belt by the feeder, the mesh belt adopts 12-60 mesh stainless steel mesh. It is moved in the drier by the driving device. The drier is composed of several units, each unit hot air circulates independently, part of the tail gas is discharged by a special dehumidifying fan, and the exhaust gas is controlled by a regulating valve, heat and dry and remove moisture.
The net belt moves slowly, the running speed can be adjusted freely according to the material temperature, the finished product after drying falls into the feeder continuously. The up and down cycle unit can be flexibly equipped according to the user's needs, and the number of units can be selected according to the needs.

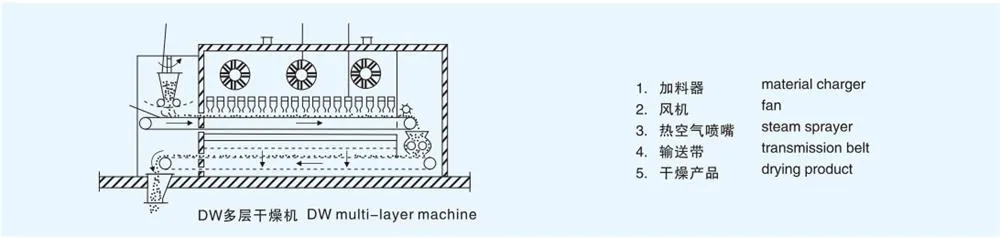

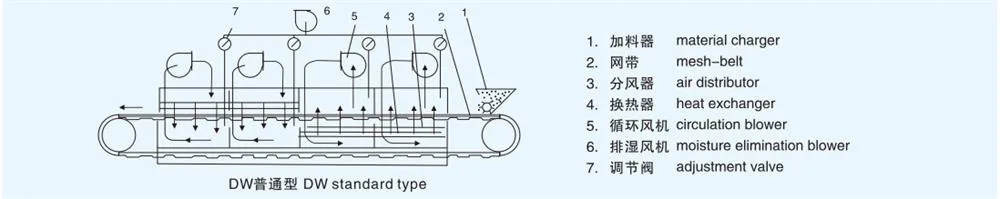

Structural Diagram
Scope of Application
It is suitable for drying sheet, strip and granular materials with good air permeability, especially for dehydrated vegetables and Chinese herbal pieces with high moisture content and high temperature. This series of dryer has the advantages of fast drying speed, high evaporation intensity and good product quality.
Key Features
- Gentle handling: Vibration and impact are slight, keeping particles intact.
- Versatile: Suitable for drying, baking, burning, or curing operations.
- Easy Maintenance: Robust structure with easy internal access for long-term operation.
- Flexible Control: Adjustable air volume, heating temperature, and feeding speed.
- Energy Efficient: Most air is recycled to maximize thermal efficiency.
- Uniform Distribution: Unique air distribution device ensures consistent product quality.

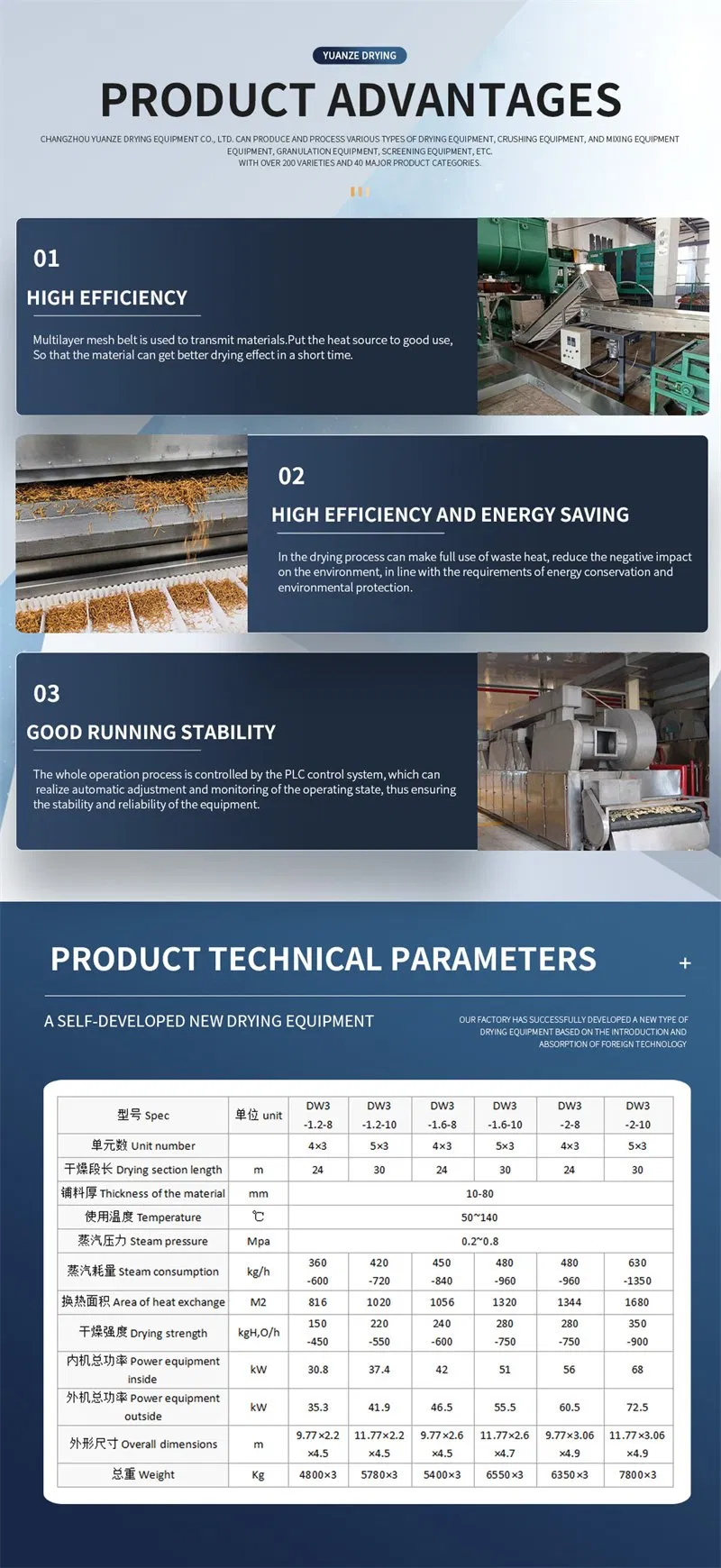

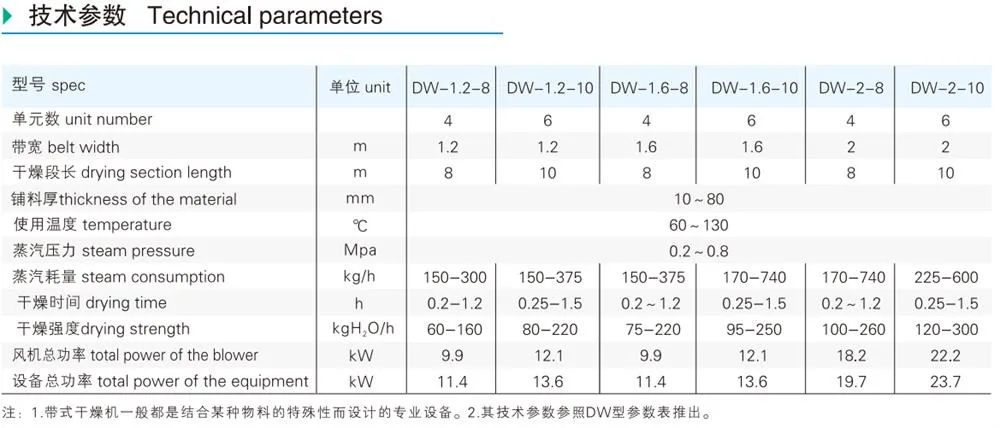

Technical Parameters

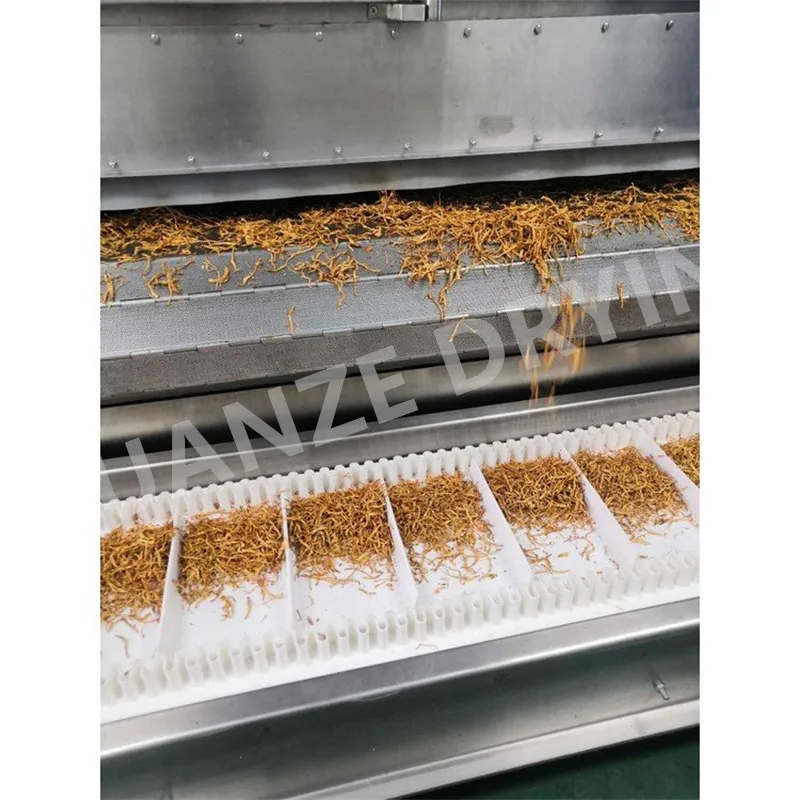

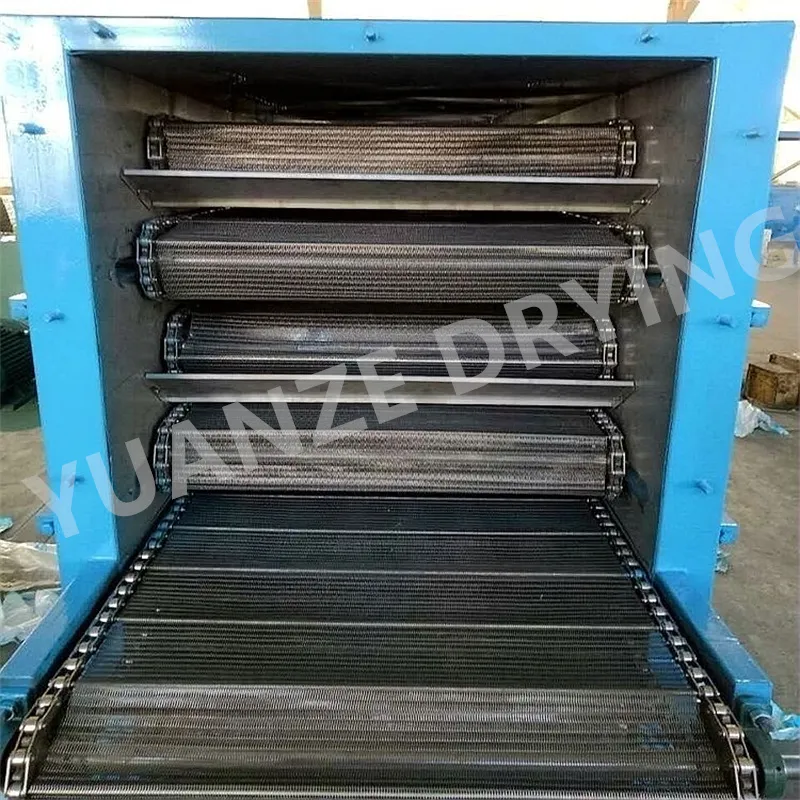

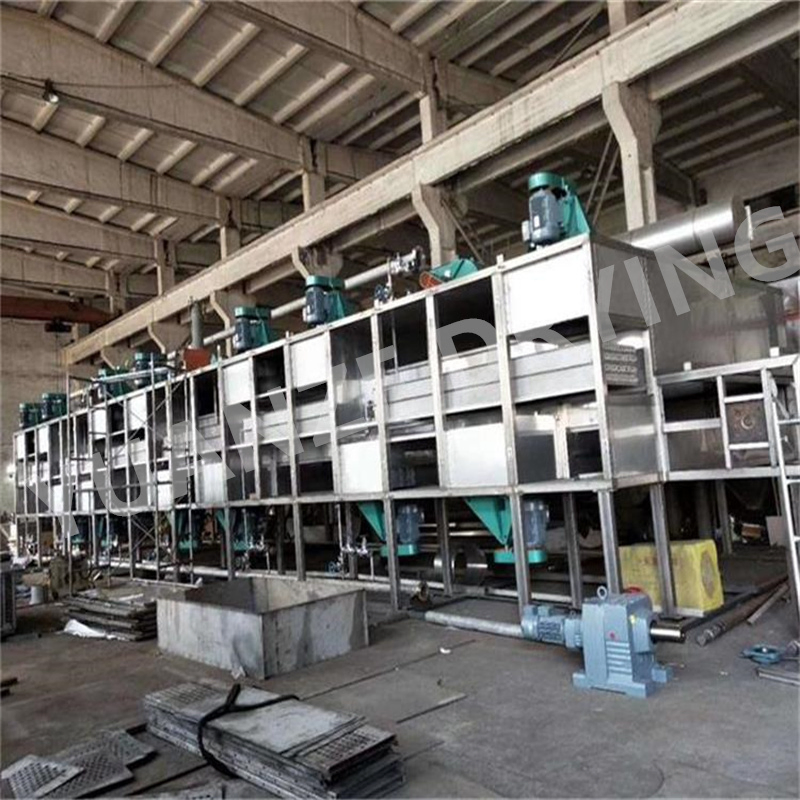

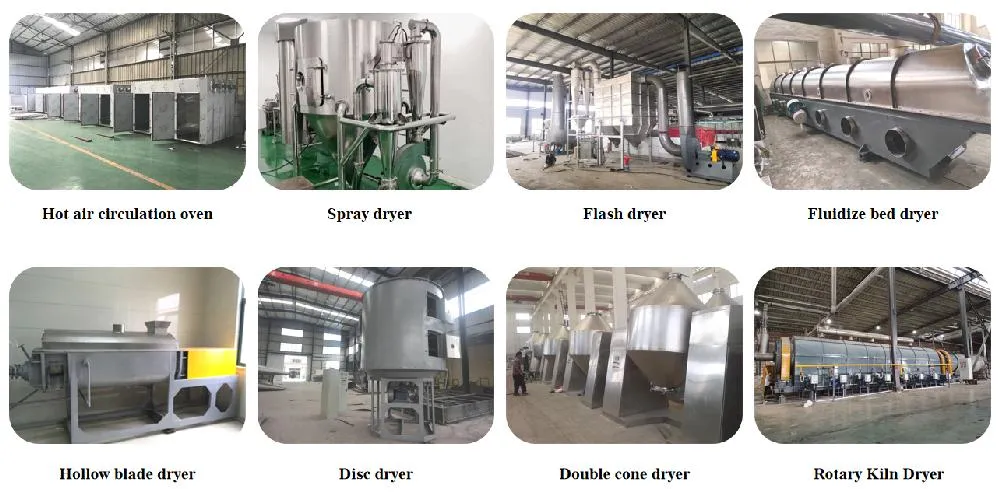

Product Presentation
Our Professional Services
Pre-sale Service: Face-to-face technical consultations to understand specific requirements.
Sales Service: Debugging equipment according to technical data and providing operator training.
After-sales Support: Installation, commissioning, maintenance, and technical training services.
Quality Assurance: Strict implementation of ISO9001 standards, providing reliable and safe equipment with a one-year warranty.
We look forward to long-term cooperation with partners around the world to establish mutually beneficial and win-win cooperation.
Frequently Asked Questions
How can I visit your facility?
You can fly to nearby international airports or take a high-speed train to the local station. We provide pickup services for our clients to ensure a smooth visit for technical exchanges and inspection.
What is the typical delivery time for the equipment?
The delivery time ranges from 10 to 60 days, depending on the machine type, transportation mode, and the availability of specific parts.
What does the quality warranty cover?
The equipment is guaranteed to be new and unused for 12 months. During this period, free maintenance and replacement of spare parts are provided for any quality-related issues.
What support is available after the warranty period?
We offer immediate technical advice and solutions. We also guarantee a long-term supply of high-quality wearing parts to ensure your equipment continues to operate efficiently.
Is the equipment suitable for heat-sensitive materials?
Yes, the belt dryer is especially suitable for materials where the temperature must be controlled precisely, such as dehydrated vegetables and herbal pieces, ensuring high product quality without thermal damage.
Can the drying effect be customized?
Absolutely. You can adjust the air volume, heating temperature, feeding speed, and material residence time to achieve the optimum drying effect for your specific material.
