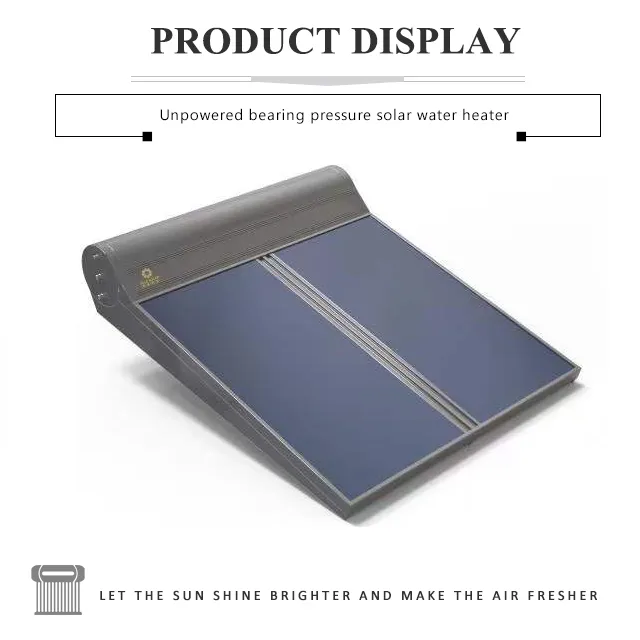

Commercial Flat Plate Collector Solar Water Heater System
Adopts RHEs reverse heat exchange technology. The open water tank stores heat energy, while the closed heat exchanger exchanges heat to provide fresh hot water. Pressurized water flows naturally without needing a booster pump, ensuring fresh water quality without secondary pollution.
Cold water flows through the stainless steel bellows heat exchanger for just 20 seconds to turn into hot water. The water quality remains fresh, free from nitrite and Legionella, and is resistant to scaling, making it suitable for kitchen use.
Features a modular design where the water tank can be expanded. This is ideal for commercial locations with large water consumption and multiple distribution points.
The coating features high absorption and low reflection. It efficiently stores thermal energy inside the absorber while maintaining low emissivity and reducing pollution.
| Parameter | Specification Details |
|---|---|
| Product name | 215L Flat Plate Solar Water Heater |
| Type | Pump-free Compact Pressurized |
| Model 1 (Non-freeze) | PFSLP-215/4.0/0ºC |
| Model 2 (Antifreeze) | PFSLP-215/4.0/-20ºC |
| Collector Surface | Whole board blue film |
| Core Runner | Copper pipe |
| Collector Specs | 1000*2000*80mm (2 pieces) |
| Frame Material | 6063-T5 aluminum alloy |
| Inner Tank | 0.5mm SUS304 stainless steel |
| Insulation | 50mm flame retardant polyurethane foam |
| Heat Exchanger | 316L stainless steel, 0.3mm thickness |
| Water Tank Capacity | 220L |
| Product Weight | 130kg (350kg when full) |
1. Fresh and Drinkable Quality: Hot water quality remains as clean as the incoming cold water supply.
2. Constant Water Pressure: Surging pressure and sufficient volume by matching municipal cold water pressure.
3. Maintenance Free: Heat medium water avoids scaling in the collector; corrugated pipes prevent scale in the exchanger.
4. Energy Integration: Can be combined with electric heaters, gas heaters, or air source heat pumps.

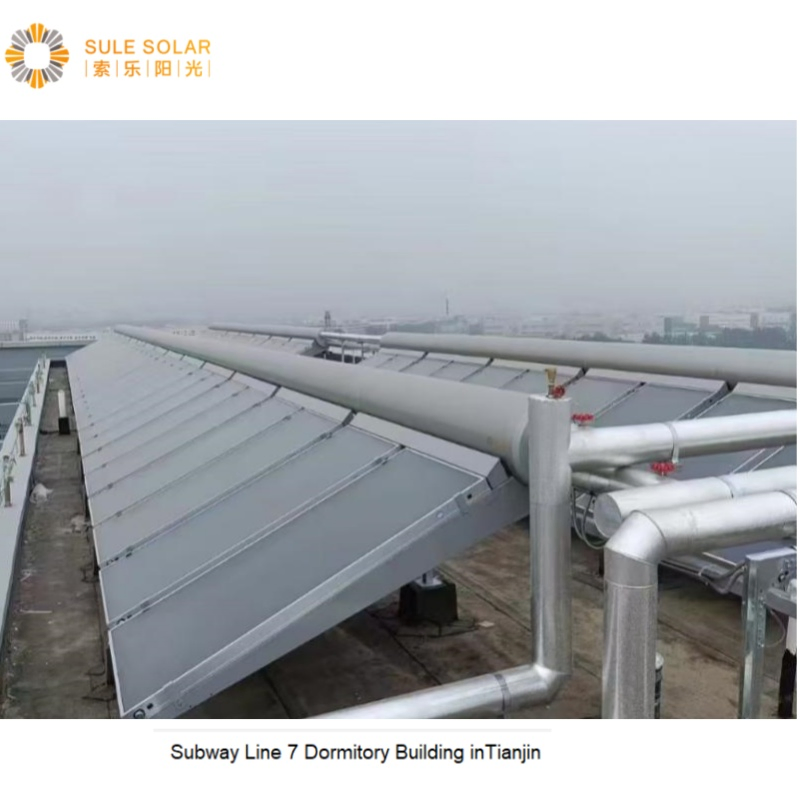

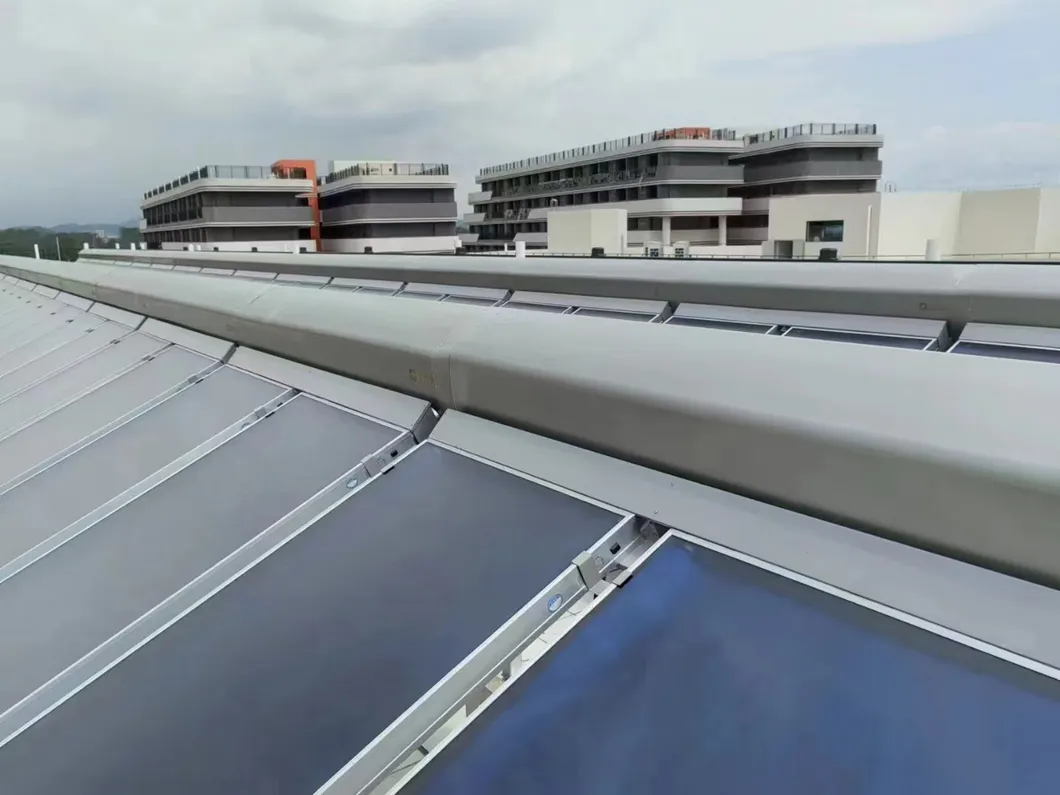

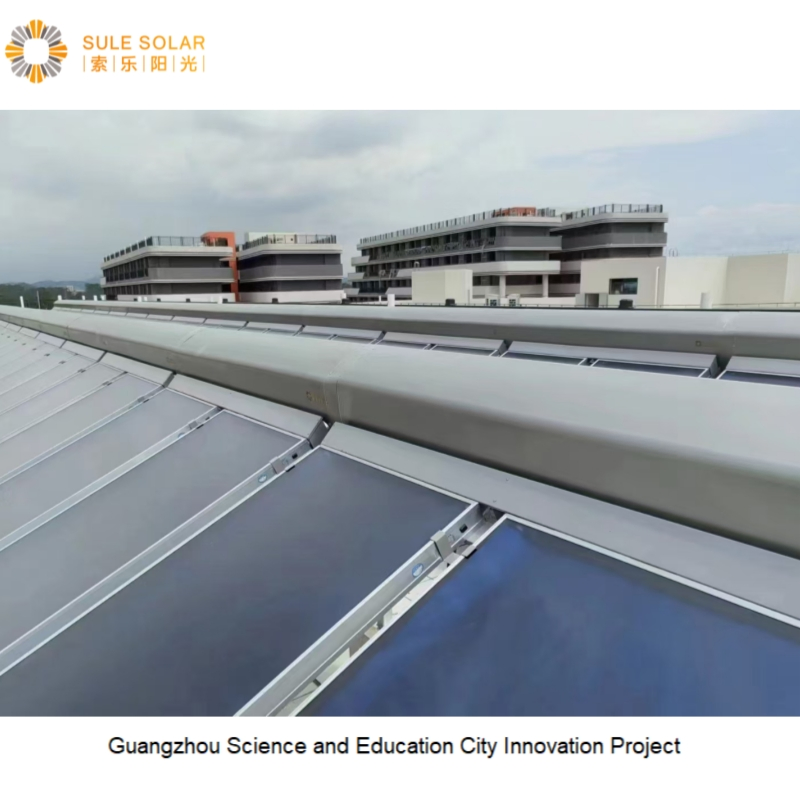

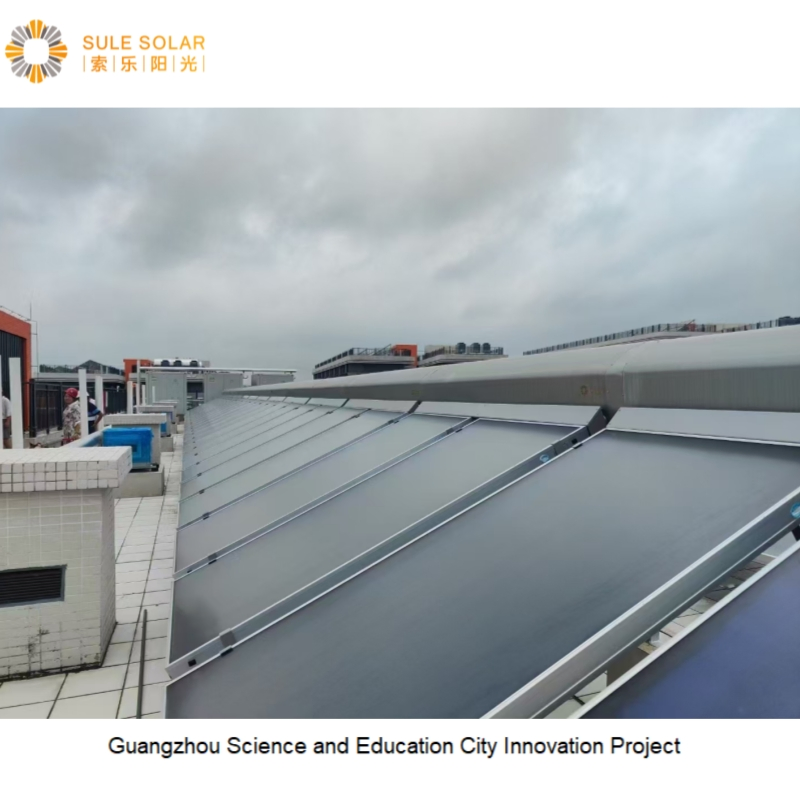

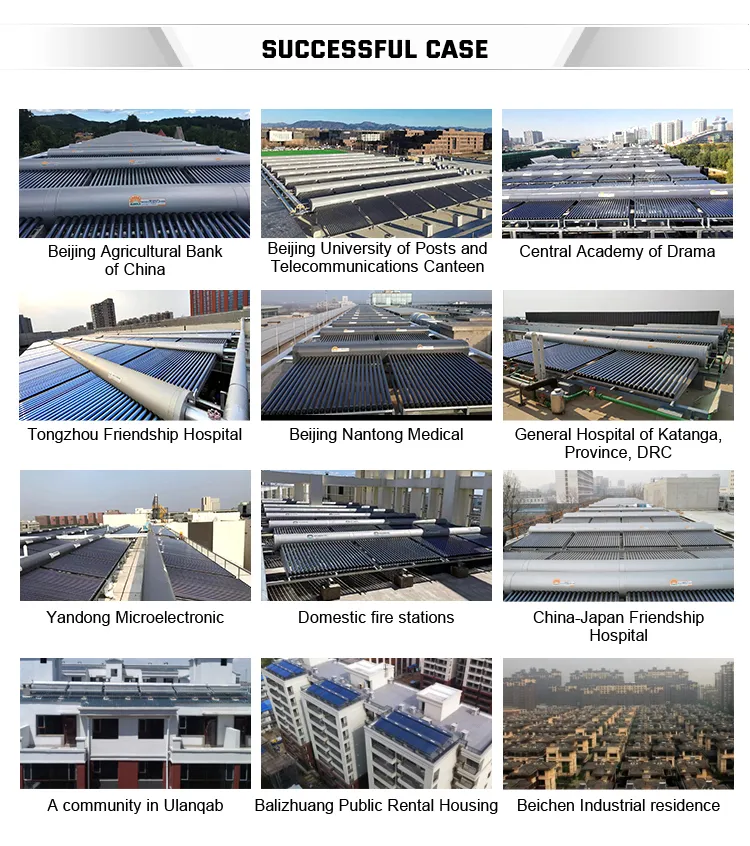

With over 22 years in the solar thermal industry, our team has accumulated extensive experience in household, industrial, and commercial solar heating systems. We hold multiple national invention patents and utility model certificates, along with ISO9001, ISO14001, and CE certifications. Our projects span across various international regions including Africa, Southeast Asia, and major infrastructure hubs.
