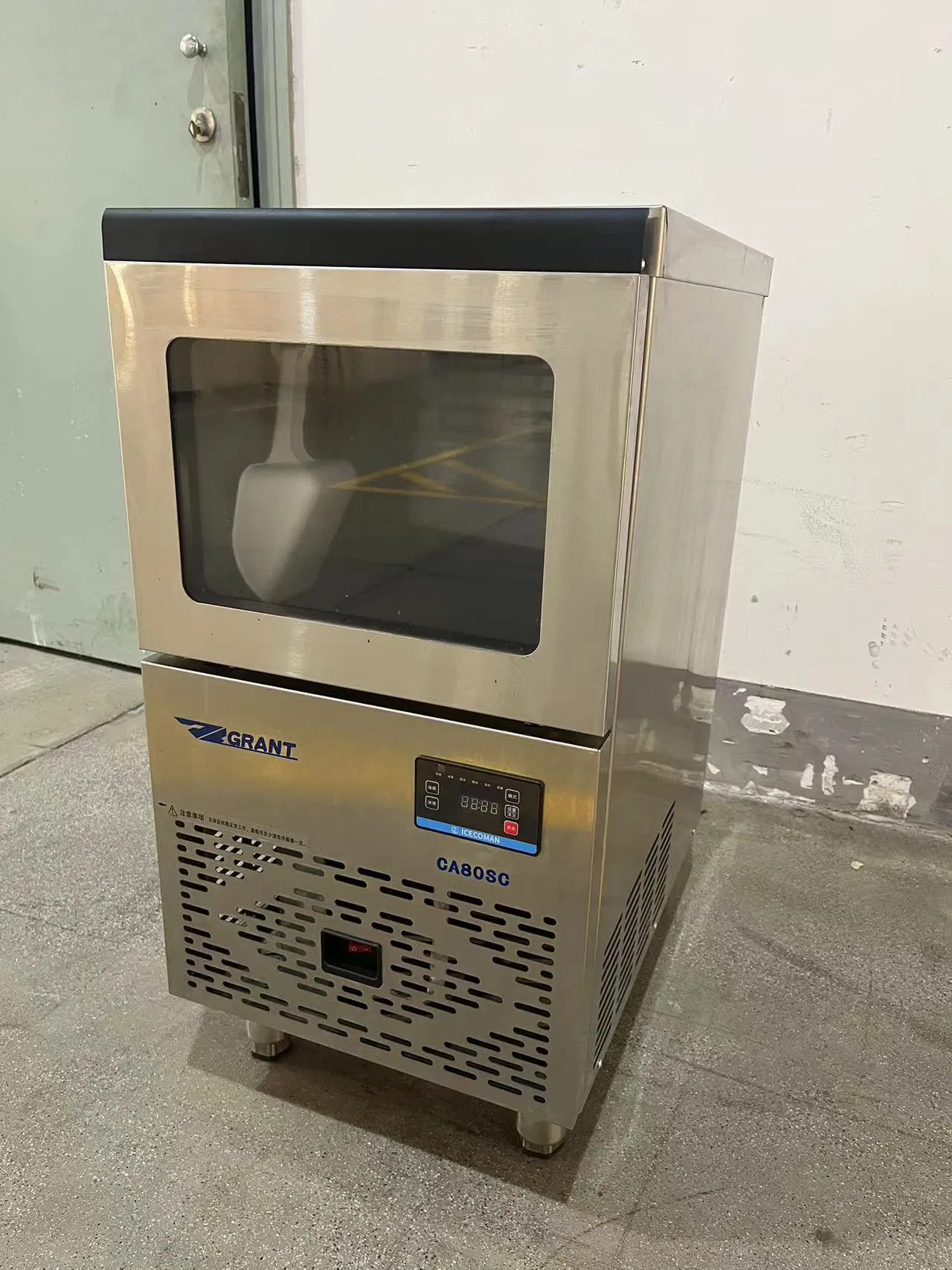

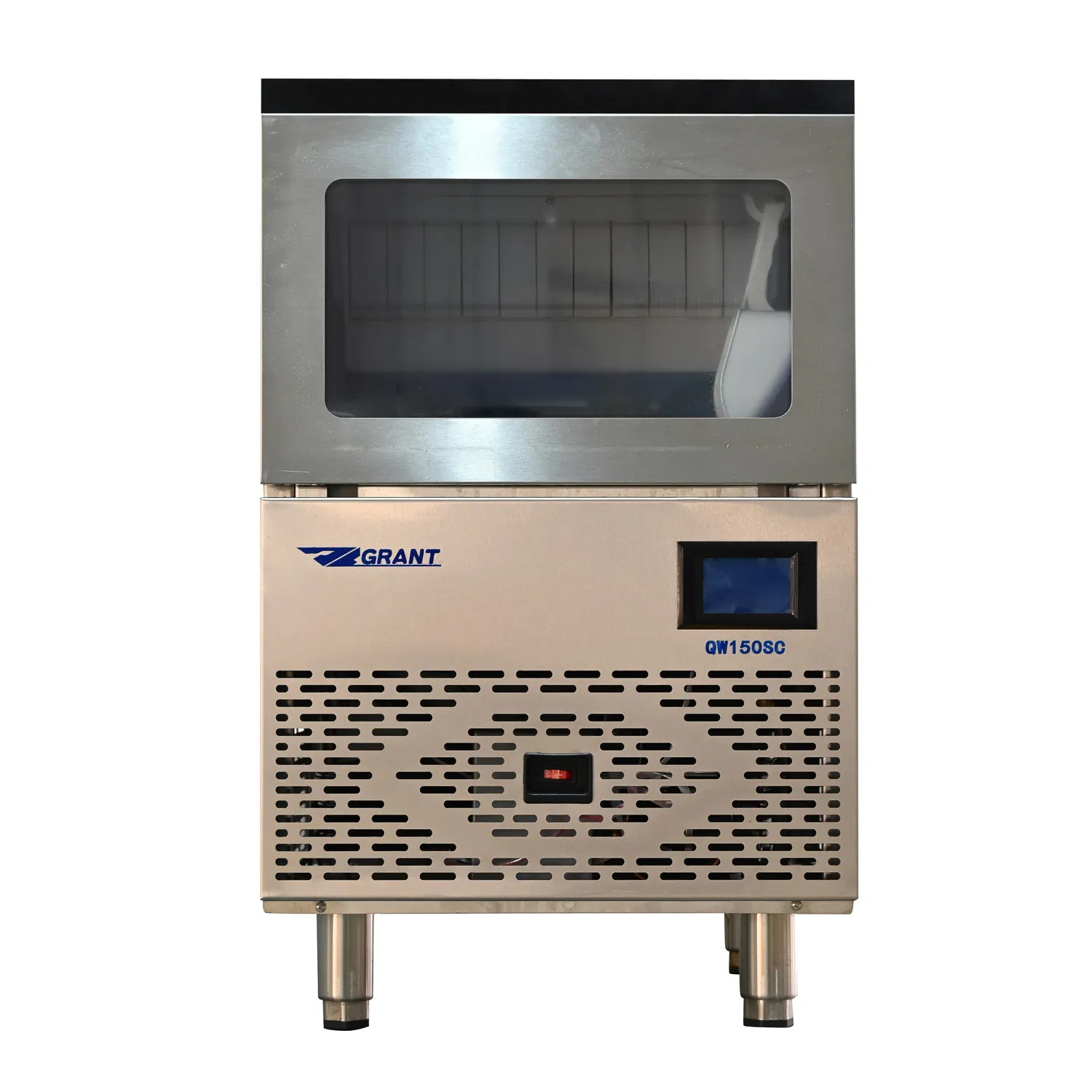

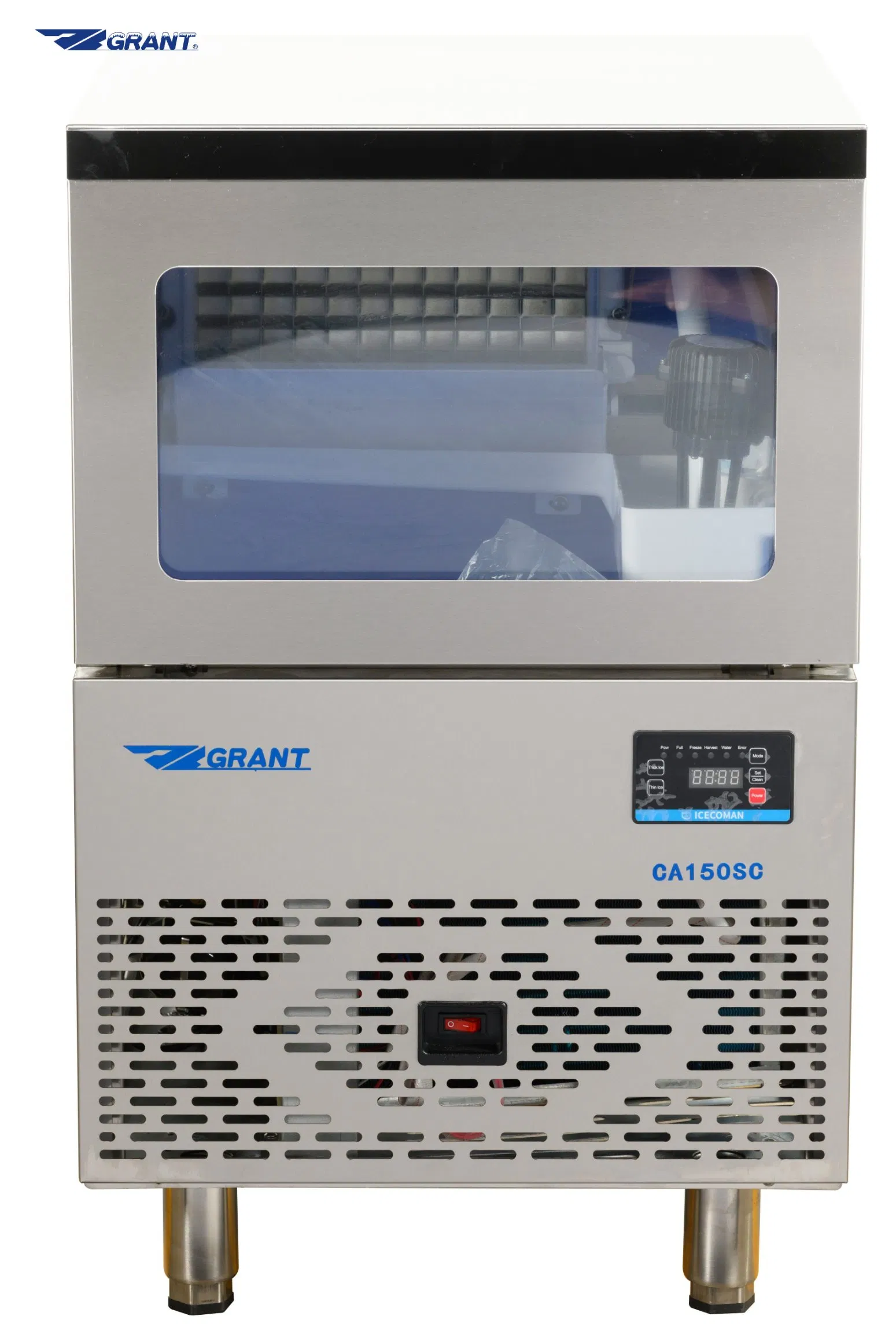

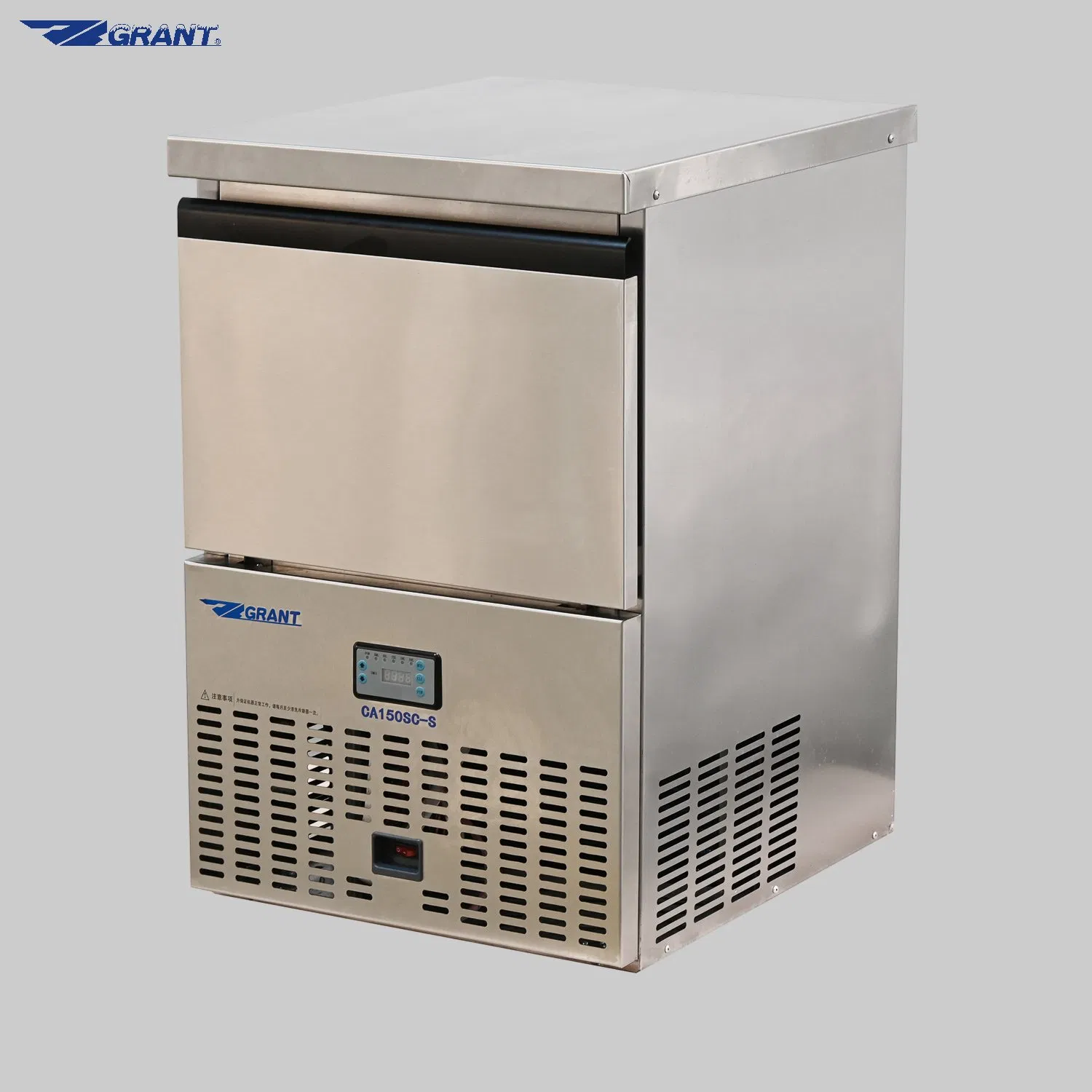

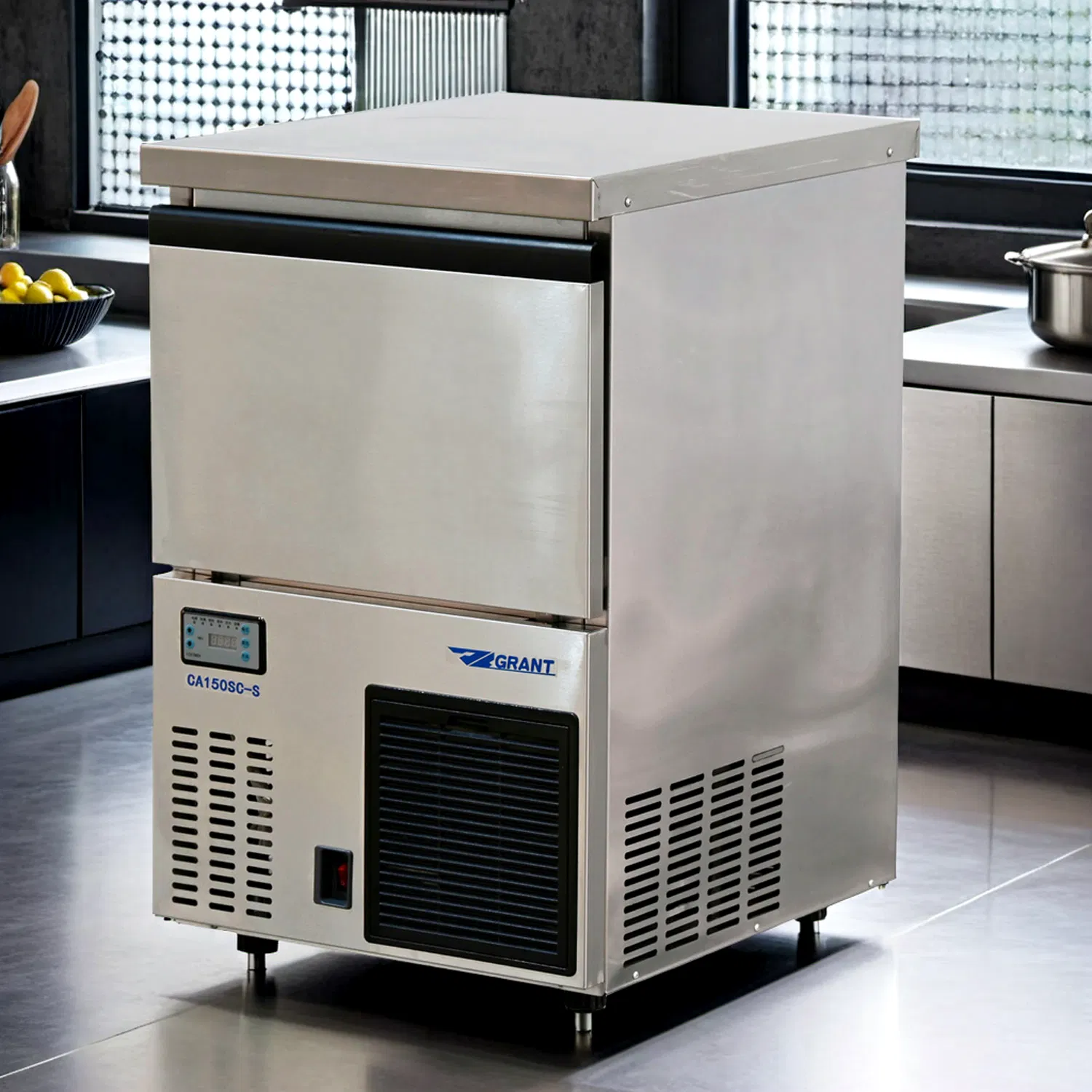

Commercial Ice Maker with Stainless Steel Solid Cube Ice Generating Machine

1 / 5

Commercial Ice Maker with Stainless Steel Solid Cube Ice Generating Machine

Customization:	Available
After-sales Service:	Long Time
Warranty:	One Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.

CA150SC-S, CW500M-S

Ice Making

Spraying

Cooling Way

Air Cooled or Water Cooled

Automation

Unit Structure

Integral

Ice Temperature

0℃~-5℃

Ice Shape

Solid Cube Ice

Material

Stainless Steel

Ice Size

30mm*30mm*30mm

Ice Capacity

68kg, 230kg

Ice Storage Bin

20kg, 100kg

Compressor Brand

Secop/Embraco/Copeland

❄️

Solid Cube Ice Technology

Key Production Features

During production, water is sprayed from bottom to top into the ice chamber at a frigid -25ºC. This advanced spraying process ensures the creation of pure, transparent ice cubes with an impurity removal rate nearing 100%.

Our unique de-icing method utilizes high-temperature hot air flow to increase the ice plate temperature, allowing the solid cubes to drop effortlessly into the storage bin.

Technical Specification Data

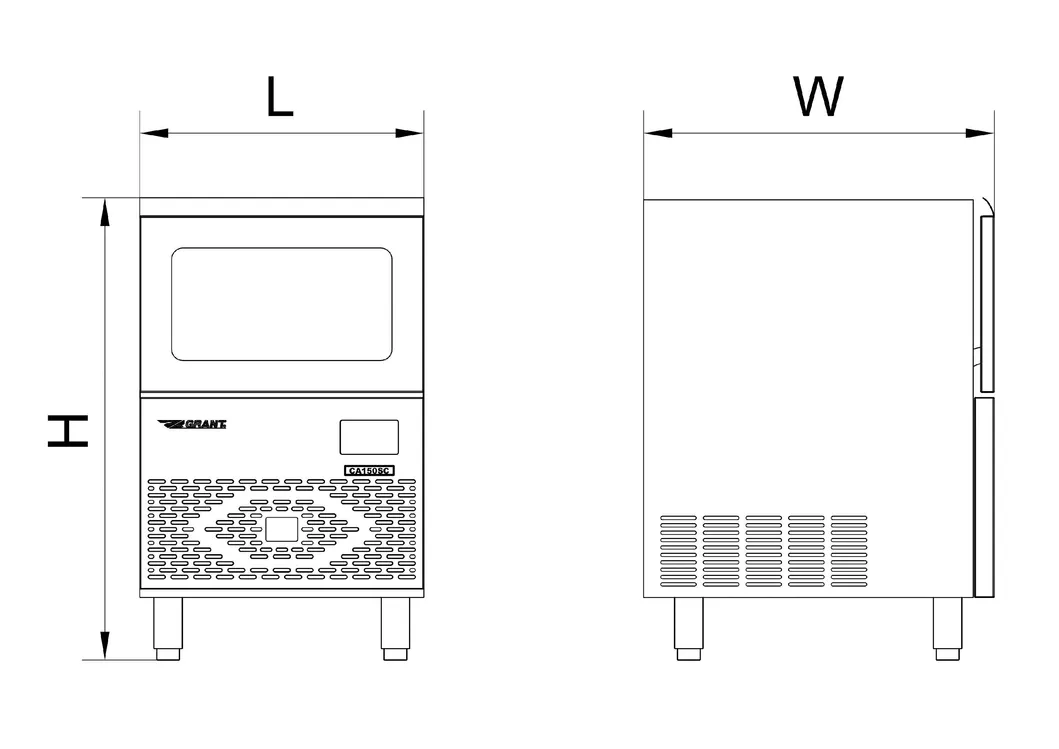

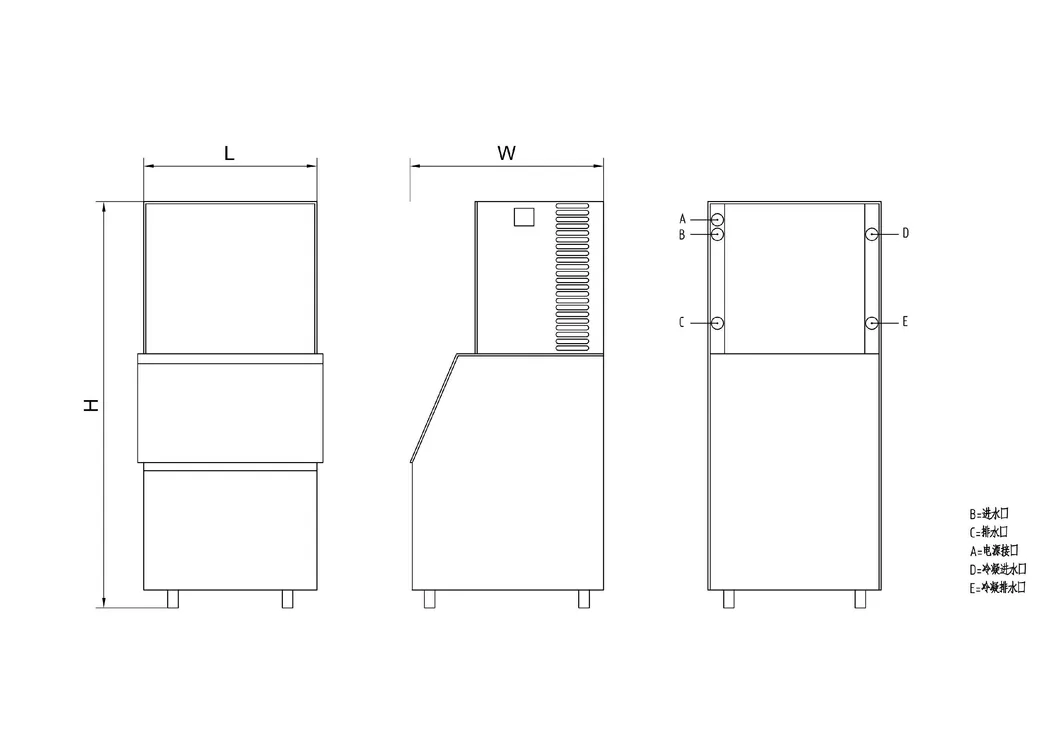

Name	Model	Ice Capacity/24hrs(kg)	Ice Storage(kg)	Dimensions(mm) LWH	Cooled Method	Power/Voltage

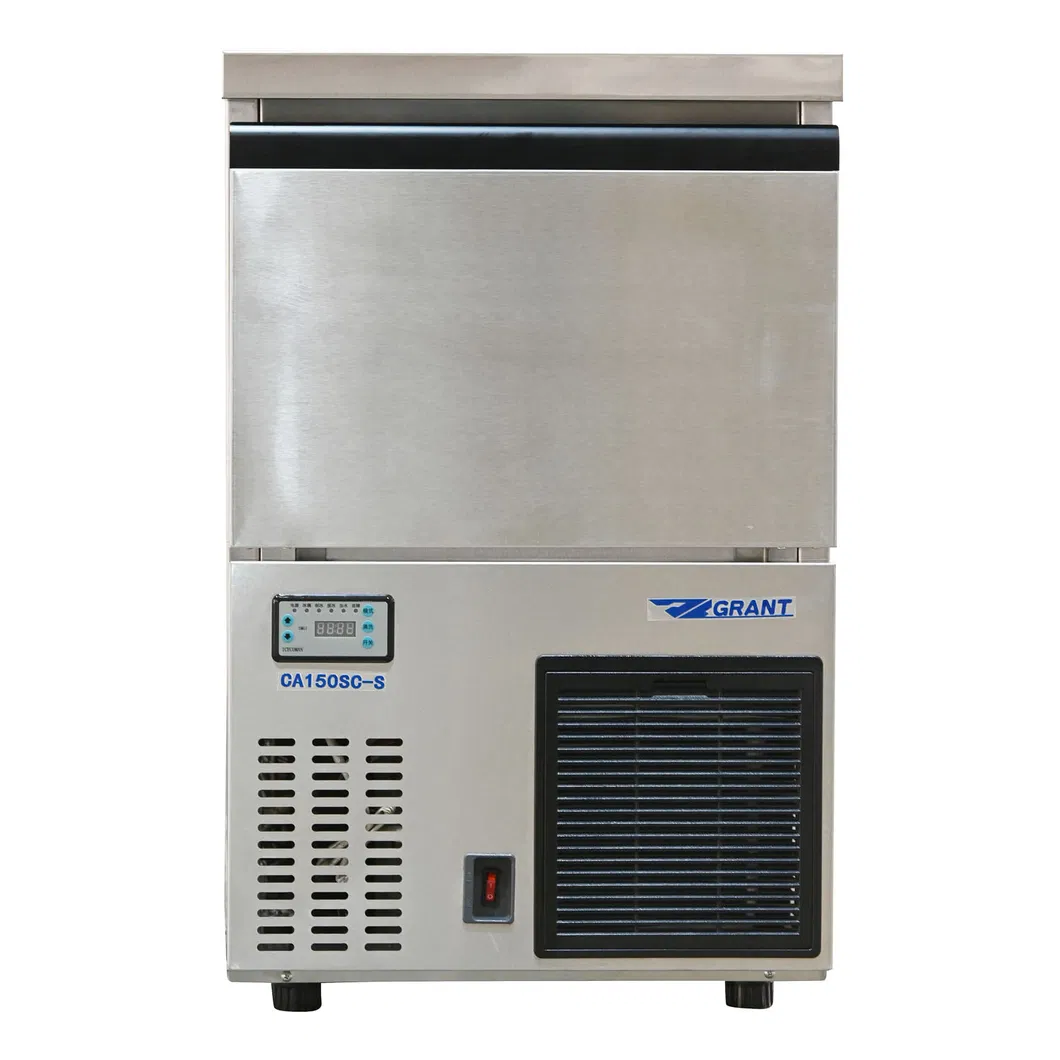

Solid Cube Ice	CA150SC-S / CW150SC-S	68	20	500600800	Air/Water Cooled	590W / 220-240V

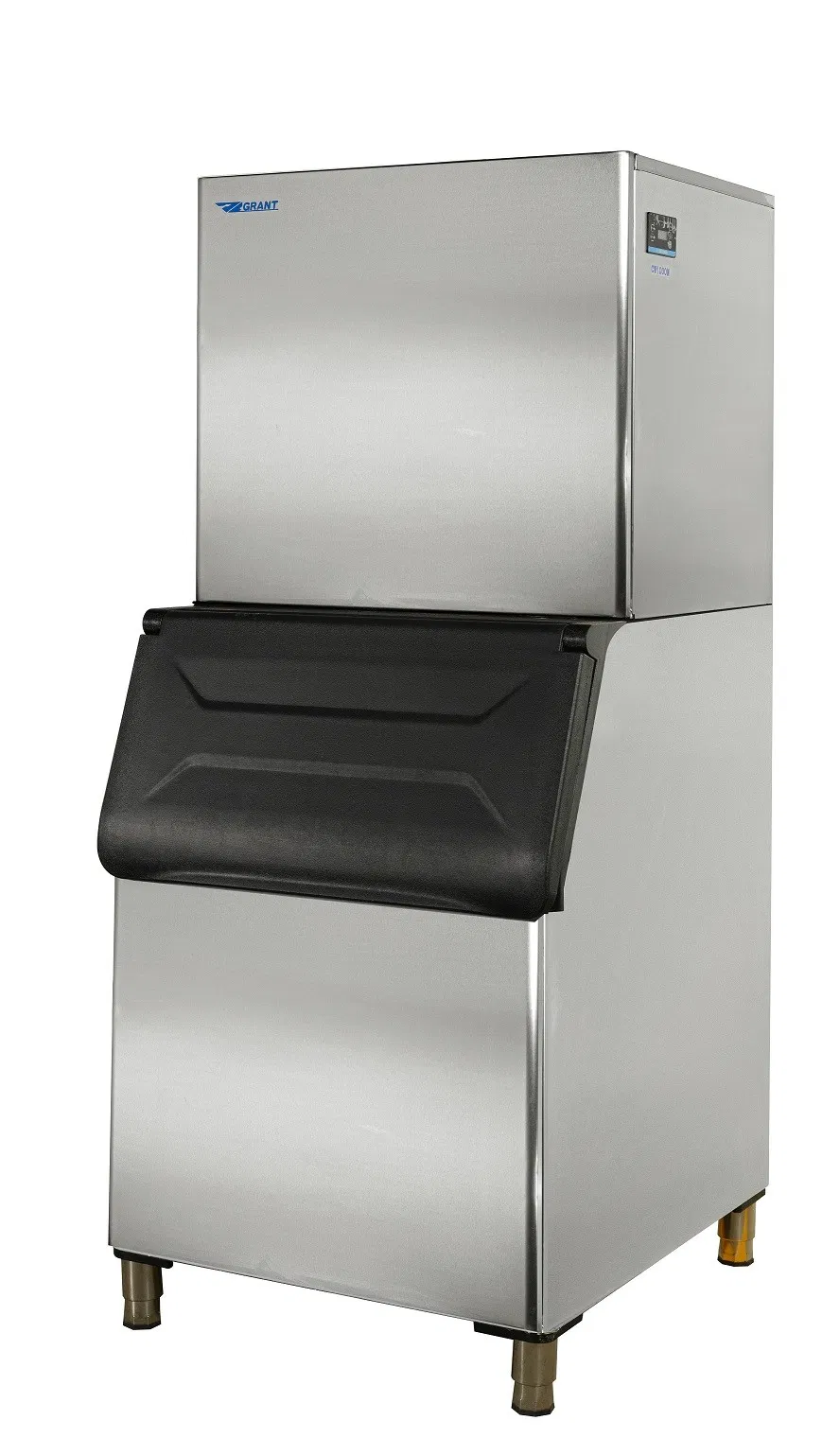

Solid Cube Ice	CW500M-S	230	100	5608501900	Water Cooled	1465W / 220-240V

Standard Working Conditions:
Ambient temperature: 10°C | Water temperature: 10°C
Power Supply Options: 220V/50HZ/1PH, 380V/50HZ/3PH, 220V60HZ/3PH

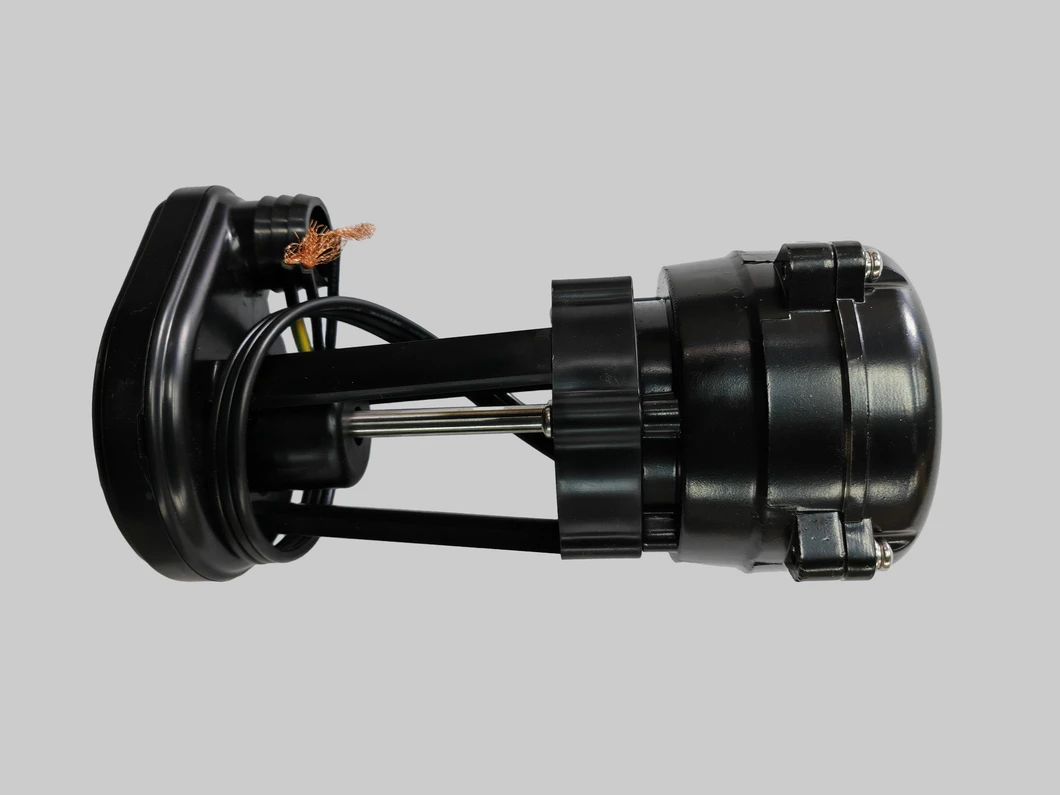

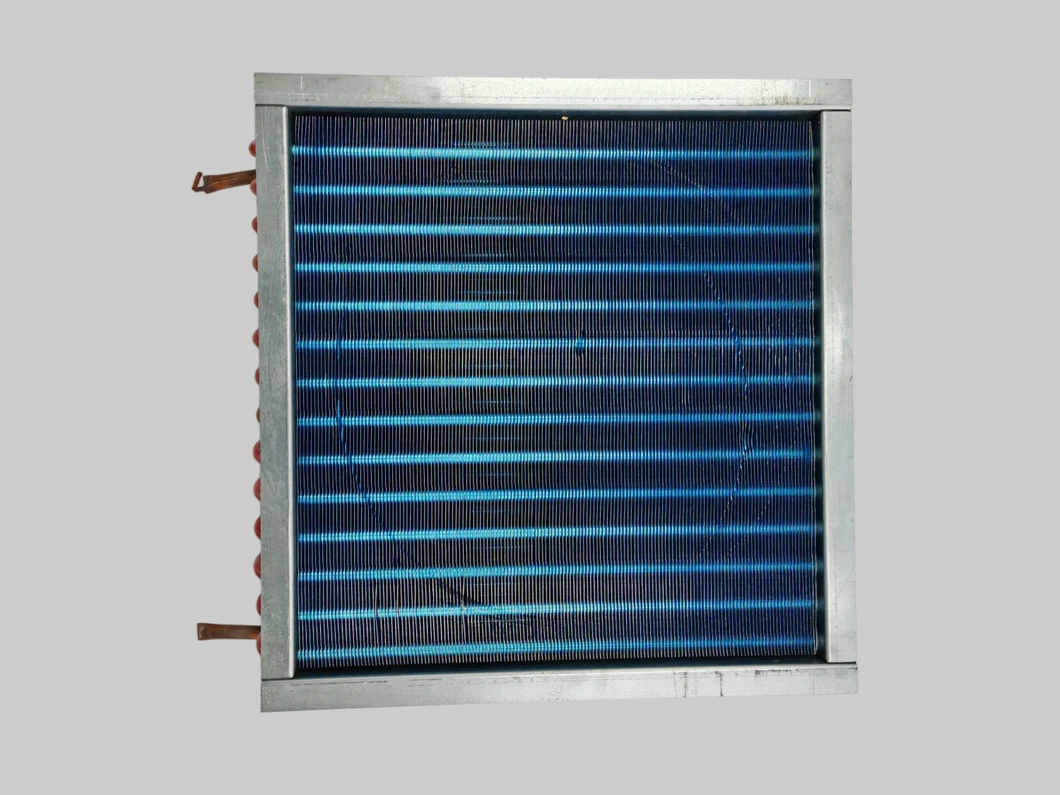

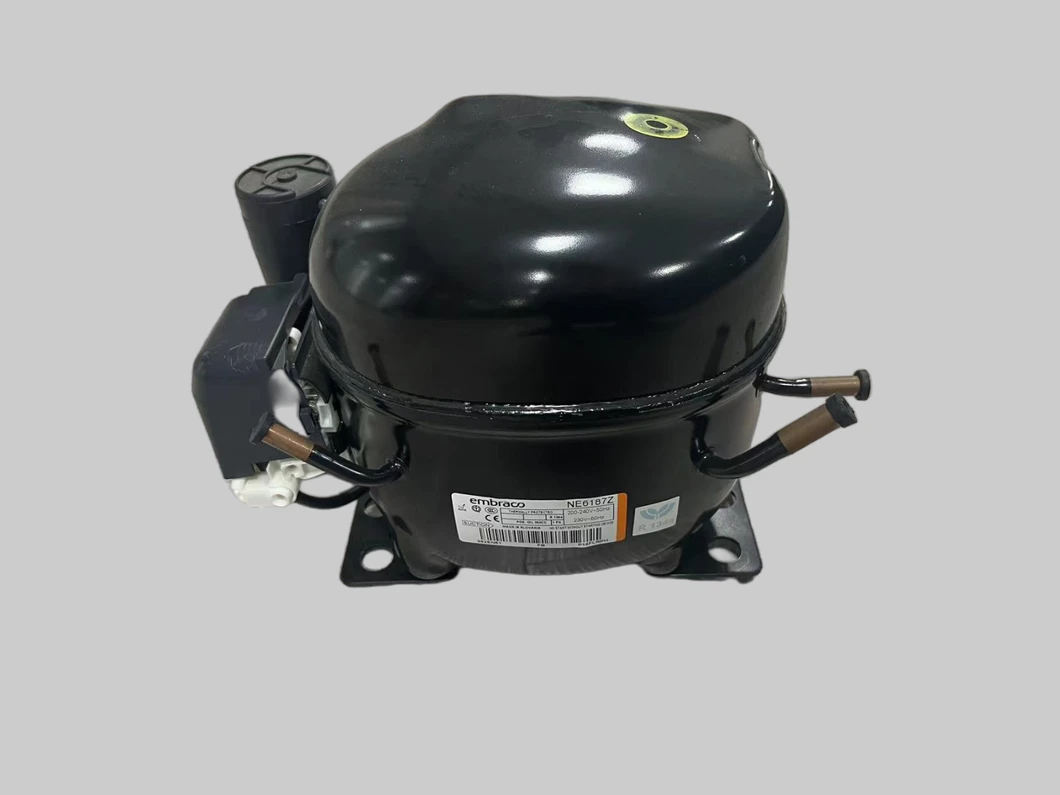

Main Component Overview

Warranty & Packaging

Warranty: The entire machine is backed by a comprehensive one-year warranty.
Packing System: Securely packaged in either a wooden crate or heavy-duty carton for maximum protection during handling.

❓

Frequently Asked Questions

Q1: What is the typical delivery time? A: The standard delivery time is approximately 2 weeks.

Q2: Can the ice maker be customized? A: Yes, we offer professional customization services tailored to specific customer requirements.

Q3: What payment methods do you support? A: Our standard payment terms are 30% T/T as an advance deposit and 70% T/T before shipment.

Q4: How do I handle installation and commissioning? A: Customers can easily install the equipment using the provided manuals, online instructions, and live video conference support.

Q5: What makes the "Solid Cube Ice" different? A: The spraying process at -25ºC creates crystal-clear ice with nearly 100% impurity removal, perfect for high-end bars and Japanese cuisine.

Q6: What cooling methods are available? A: Depending on the model, we offer both Air-Cooled and Water-Cooled options to suit different environment requirements.
