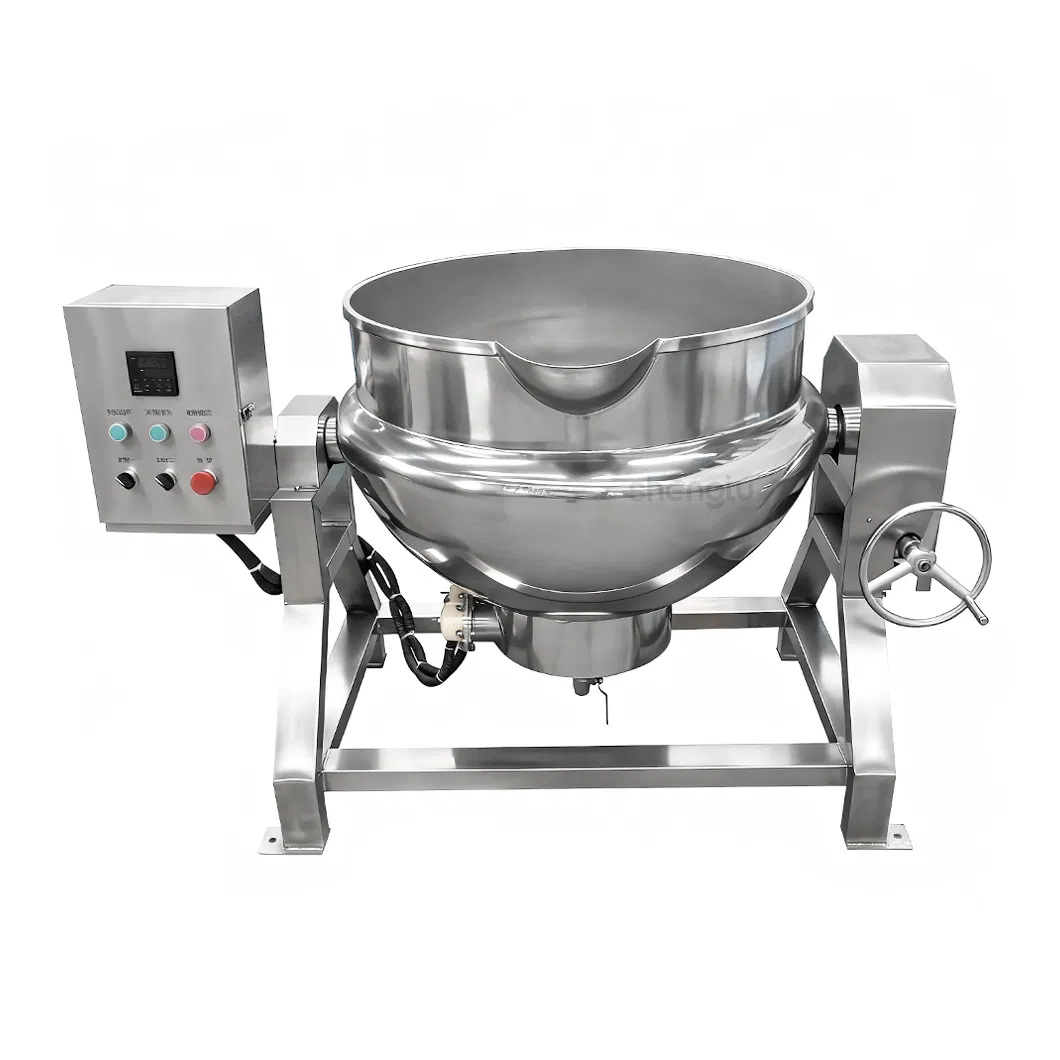

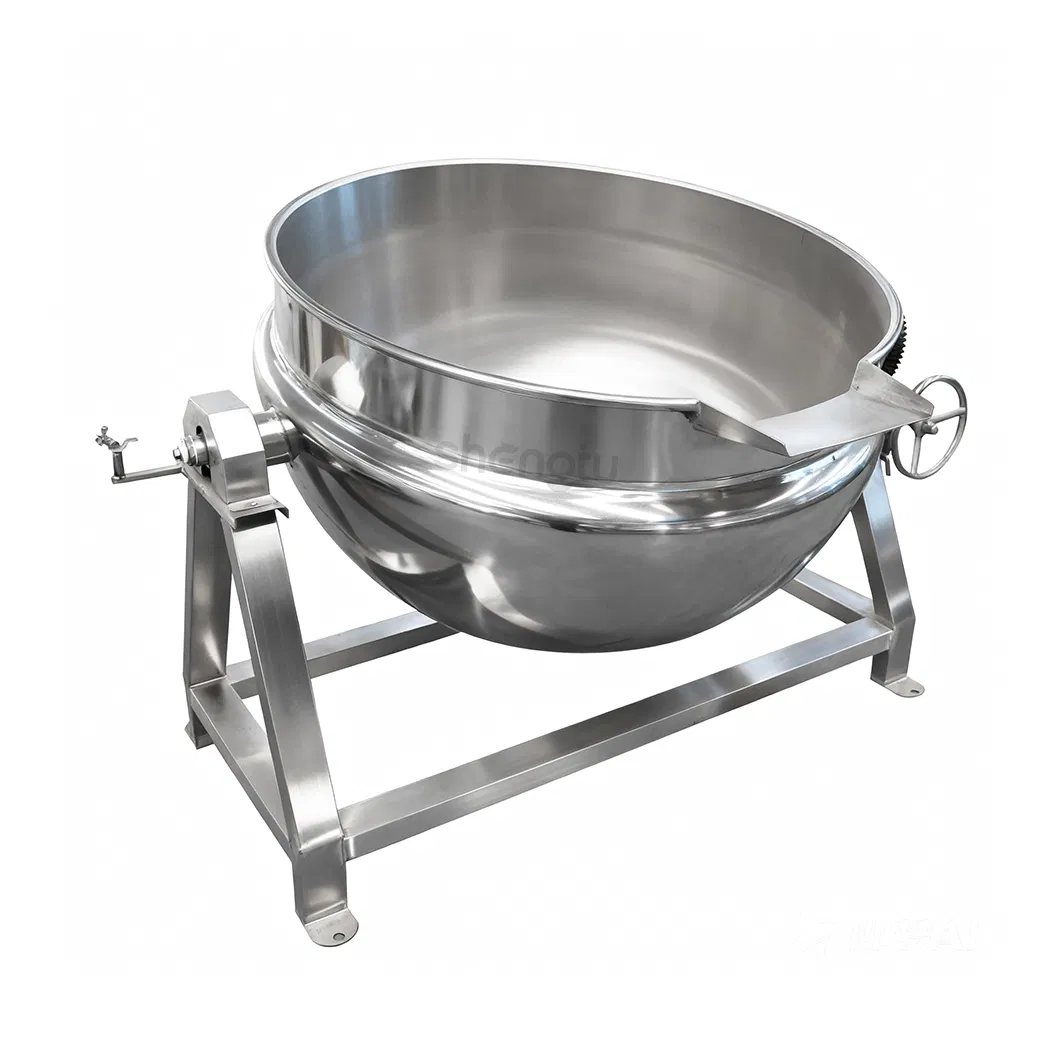

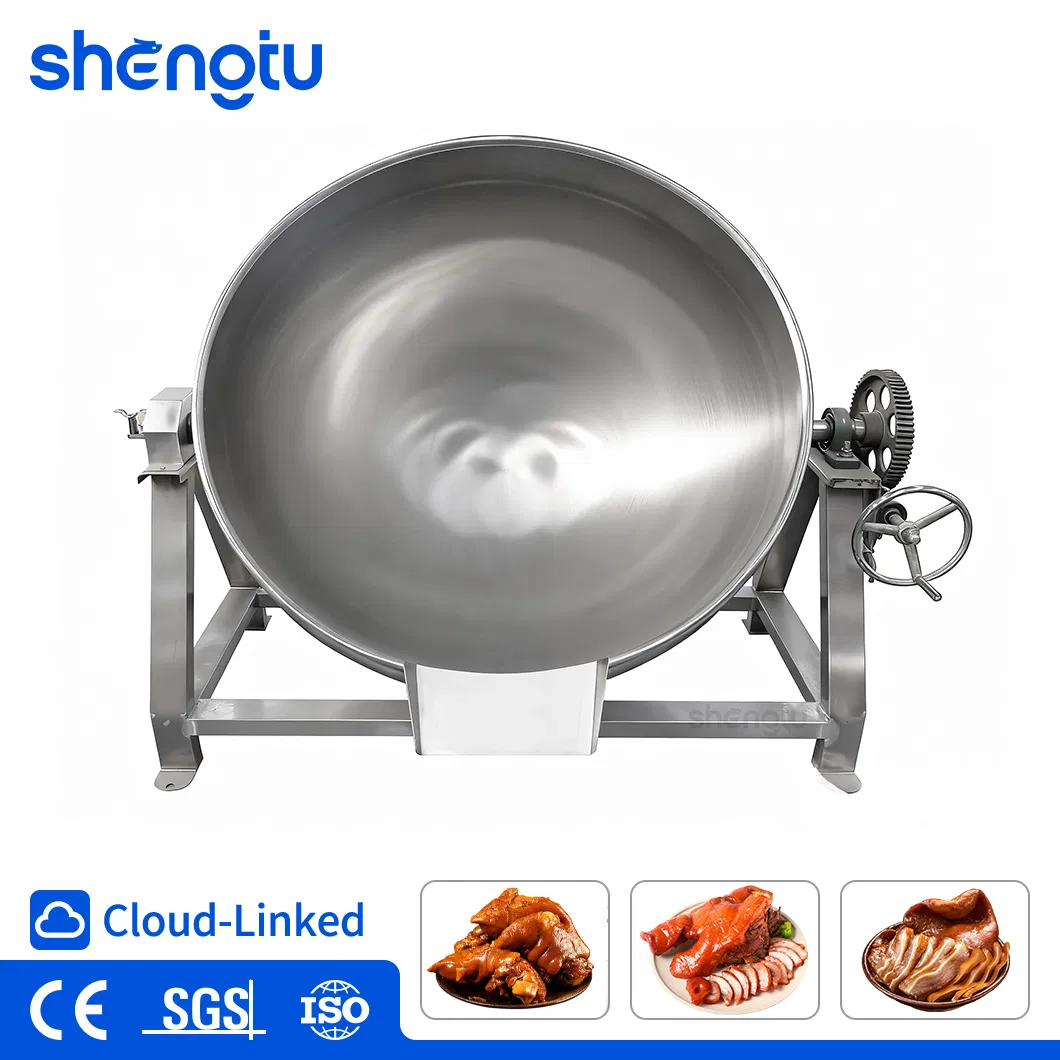

Continuous Jacketed Cooking Kettle System for Jam Making with CIP System

📋

Basic Specifications

Model NO.EP01-31

TypeSteam Jacketed Kettle

UsageBiscuit, Pizza, Meat, Duck, Beef, Chicken, Dried Tofu

Power SourceElectric / Steam / Gas

Voltage380V

Control SystemPLC System

MaterialFood Grade Stainless Steel

Capacity100L - 1000L

💡

Product Description

Industrial automatic Gas Steam Jacketed Cooking Kettle with mixer electric Electromagnetic Planetary Cooking Pot for Sauce, Jam, Soup, Paste, Vegetable, and Meat Processing.

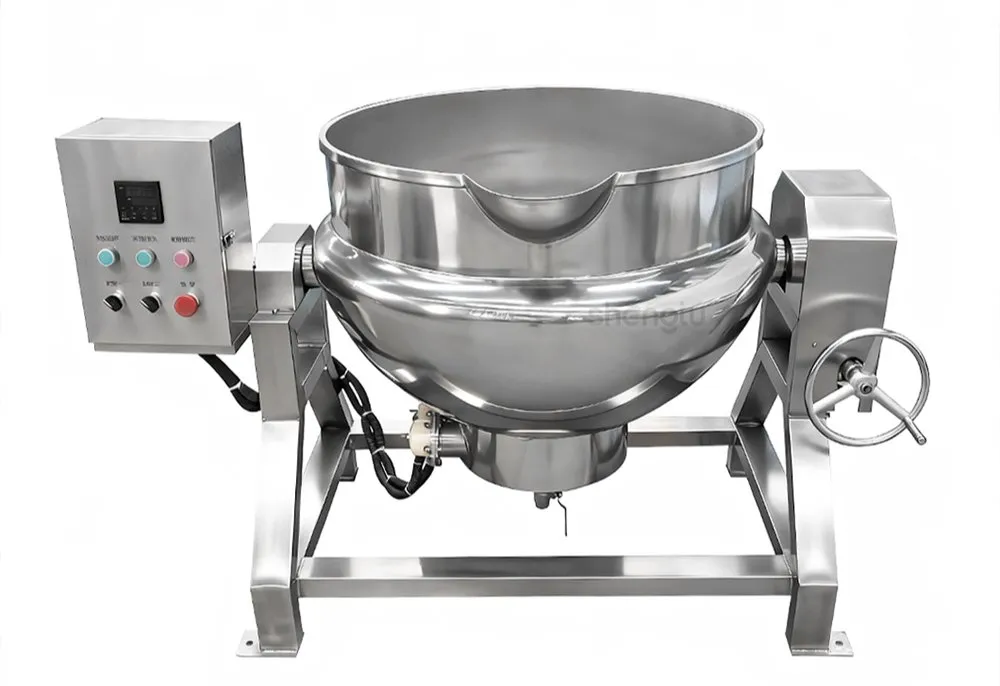

The jacketed kettle features a large heating surface area, high thermal efficiency, uniform heating, short boiling time for liquid materials, and easy temperature control. Constructed entirely from heat-resistant and corrosion-resistant SUS304 stainless steel, it offers production capacities from 100 to 1000 kg/h.

📊

Technical Specifications

Model	Inner Diameter	Depth	Dimensions (mm)	Heating Method	Power	Structure
100L	700mm	500mm	11009651050	1. Steam heating 2. Electric thermal oil 3. Gas heating 4. Electromagnetic	18KW	1. Fixed 2. Tilting
300L	900mm	600mm	130011651150		24KW
500L	1100mm	700mm	150013651250		36KW
800L	1400mm	850mm	180016651400		60KW	Fixed
1000L	1600mm	950mm	200018651500		60KW	Fixed

🌟

Key Features

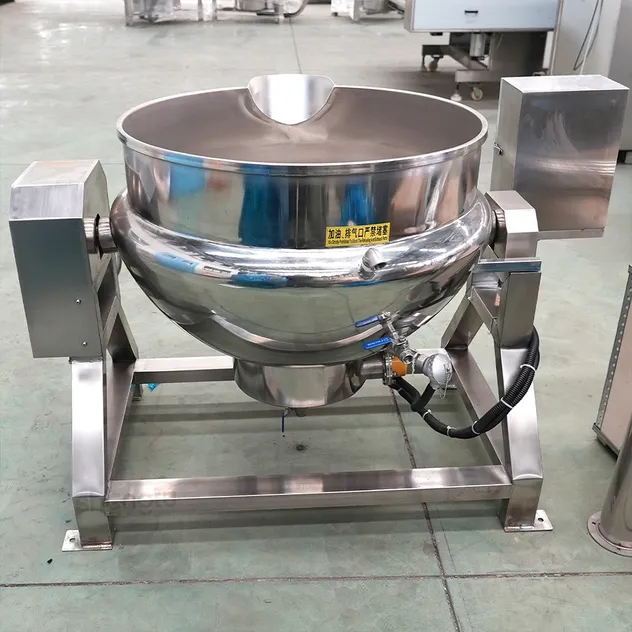

1. Stainless Steel Construction

Food-grade stainless steel ensures reliability, durability, and easy cleaning for hygienic processing.

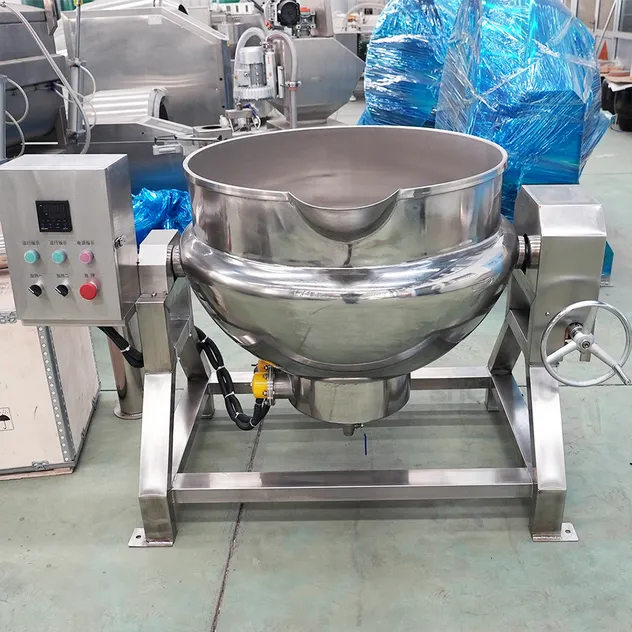

2. Uniform Mixing

Non-integer rotation ratio achieves both rotational and self-rotational motion, eliminating mixing dead zones.

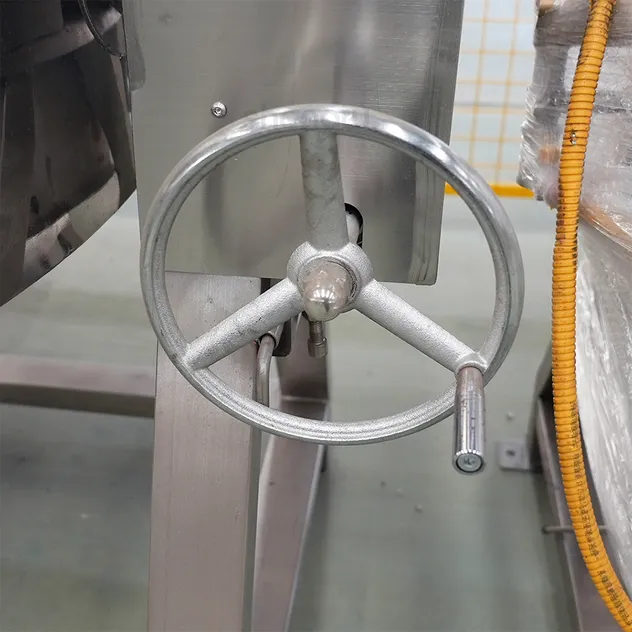

3. Smart PLC Control

One-touch operation with variable-speed drive power delivers fully automatic and precise mixing control.

4. One-Piece Pot Body

Formed through single-piece stamping. High-fit stirring blades minimize contact with pot walls to prevent scorching.

🛠️

After Sales Service

Response within 1 hour: Swift initial response for all technical inquiries.

Global Engineer Network: Deployment within 72 hours if on-site support is required.

2-Year Warranty: Comprehensive protection and lifelong technical consultation privileges.

🤝

Cooperation Cases

❓

Frequently Asked Questions

What support does the after-sales service include?

Our system includes 24/7 Remote Tech Support via instant video, worldwide local service with 86 outlets, and a production stoppage guarantee with backup machines.

What trial methods are available before purchase?

We offer sample machine shipping for week-long trials, complimentary factory trial production with your materials, and live workshop tours via video.

How are production delays due to breakdowns addressed?

We provide intervention within 2 hours of notification and a free spare machine dispatched via DHL if downtime exceeds 24 hours.

What compensation is offered for service delays?

We offer $50 per hour compensation for response delays exceeding 2 hours, and waived maintenance fees for technician arrival delays over 24 hours.

Can the kettle be customized for specific factory layouts?

Yes, we provide customization for size, material (SUS316 available), heating method, and full production line integration to fit your facility requirements.

What is the typical lead time for a standard 500L unit?

The standard delivery time is 45-60 days, depending on the customization requirements and current production schedule.
