Customization: Available
After-sales Service: Support
Usage: Bread
Send Inquiry

Product Description

Overview - Basic Information
Model NO.
Dough Proofer
Power Source
Electric
Timing Device
With Timing Device
Type
Dough Proofer
Material
SUS304 Stainless Steel
Product Name
Kenxin Proofer
Model Type
Automatic Cradle-Type Dough Proofer
Temperature Range
35-40℃ (Adjustable)
Production Capacity
5000sets/Year
Origin
China
Product Description

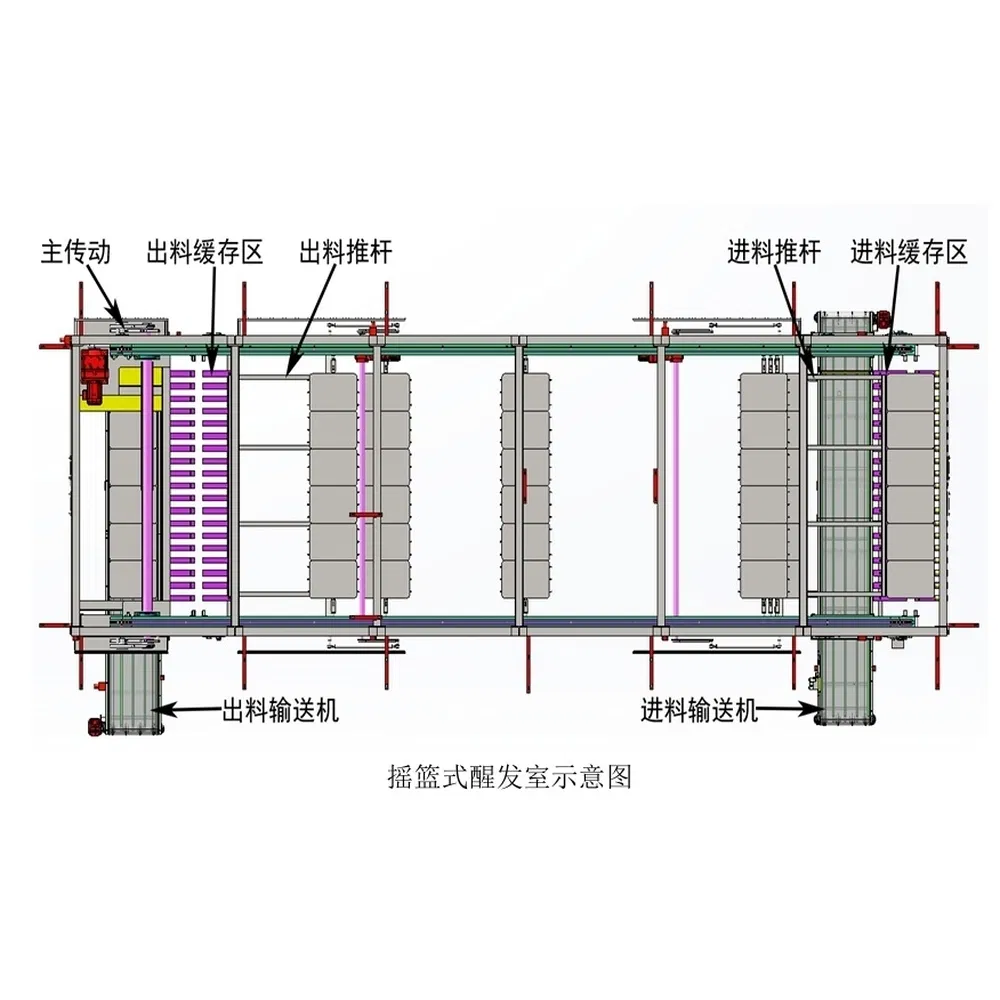

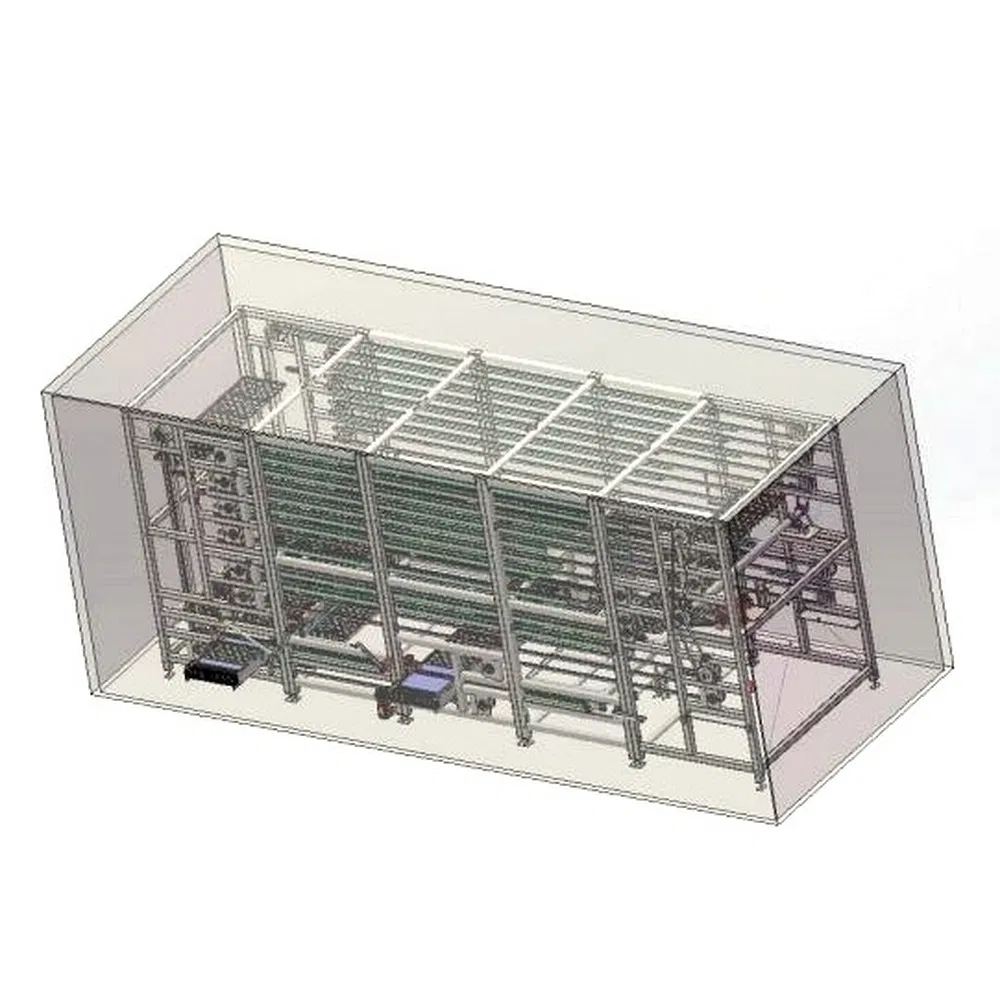

Automatic Cradle-Style Continuous Proofing System

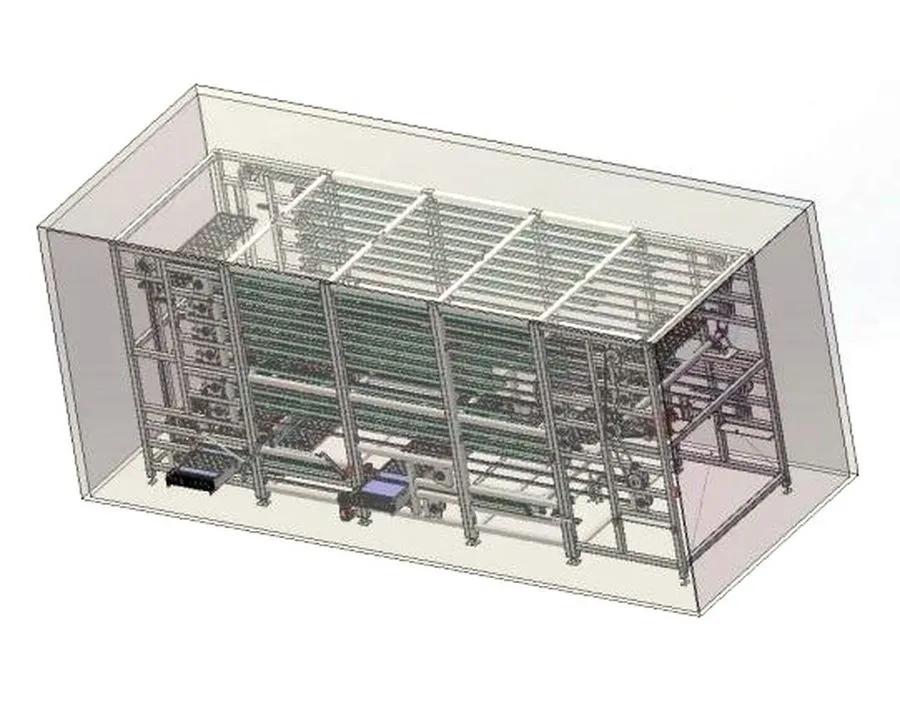

Dough Proofer Internal

INDUSTRIAL DOUGH PROOFER

Revolutionize your bakery production with our state-of-the-art Industrial Automatic Dough Proofer, engineered for commercial bakeries, bread factories, and large-scale food production facilities.

This advanced cradle-type proofing system delivers consistent, uniform fermentation results while maximizing efficiency and product quality.

Automatic Cradle-Type Proofing

Innovative rocking mechanism with silicone anti-slip surfaces ensures gentle, uniform dough fermentation. Prevents deformation and air pockets.

Precision Climate Control

Advanced temperature (±1ºC) and humidity (±2%RH) accuracy with dry steam humidification. Intelligent air circulation guarantees a uniform environment.

Industrial Design

Complete SUS304 stainless steel construction with SEW gearmotor drive system. Automated loading/unloading maximizes efficiency.

Technical Parameters
Dough Proofer Specification
Model TypeAutomatic Cradle-Type Dough Proofer
MaterialSUS304 Stainless Steel
Surface FinishMatte Finish, Reinforced Frame Structure
Insulation Panel100mm Thick Polyurethane Foam
Temperature Range35-40ºC (Adjustable)
Temperature Accuracy±1ºC (Display-Based)
Humidity Accuracy±2%RH (Display-Based)
Heating SystemExternal Steam Source + Heat Exchanger
Humidification SystemDry Steam Humidifier (External Steam Source)
Drive MotorSEW Gear Reduction Motor
Transmission SystemMulti-Layer Balanced Chain Drive
Operation ModeFully Automatic Continuous Circulation
Load MonitoringOnline Load Sensor With Dynamic Detection
WaterproofingArc-Designed Seams With Waterproof Treatment
Detailed System Analysis

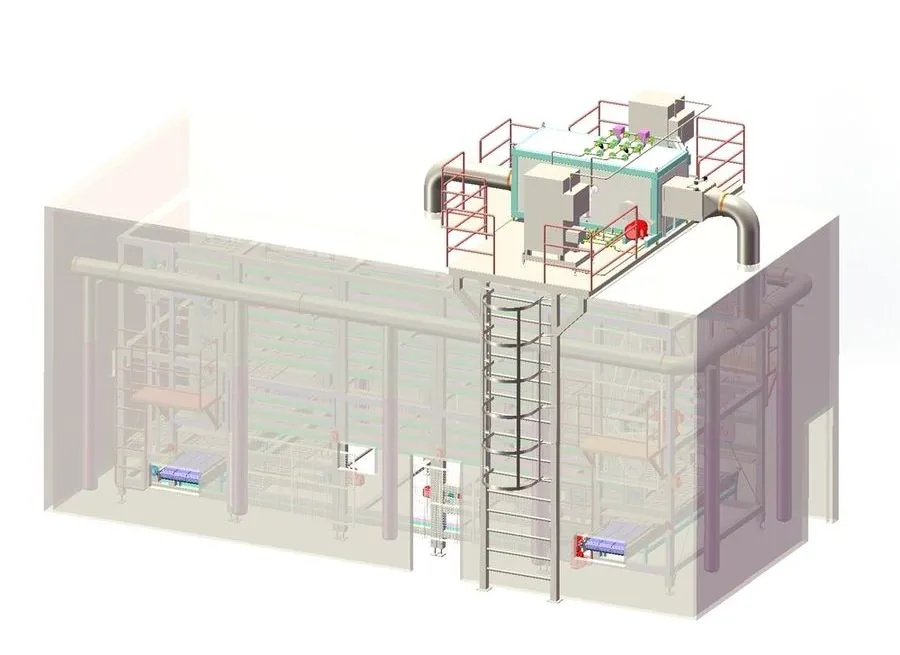

Fault Prevention System
INTELLIGENT FAULT PREVENTION SYSTEM

Real-time load sensors with dynamic monitoring prevent jamming failures instantly. The automatic lubrication mechanism maintains the drive system during production. Independent tensioning structure with spring-loaded detection ensures continuous, trouble-free operation.

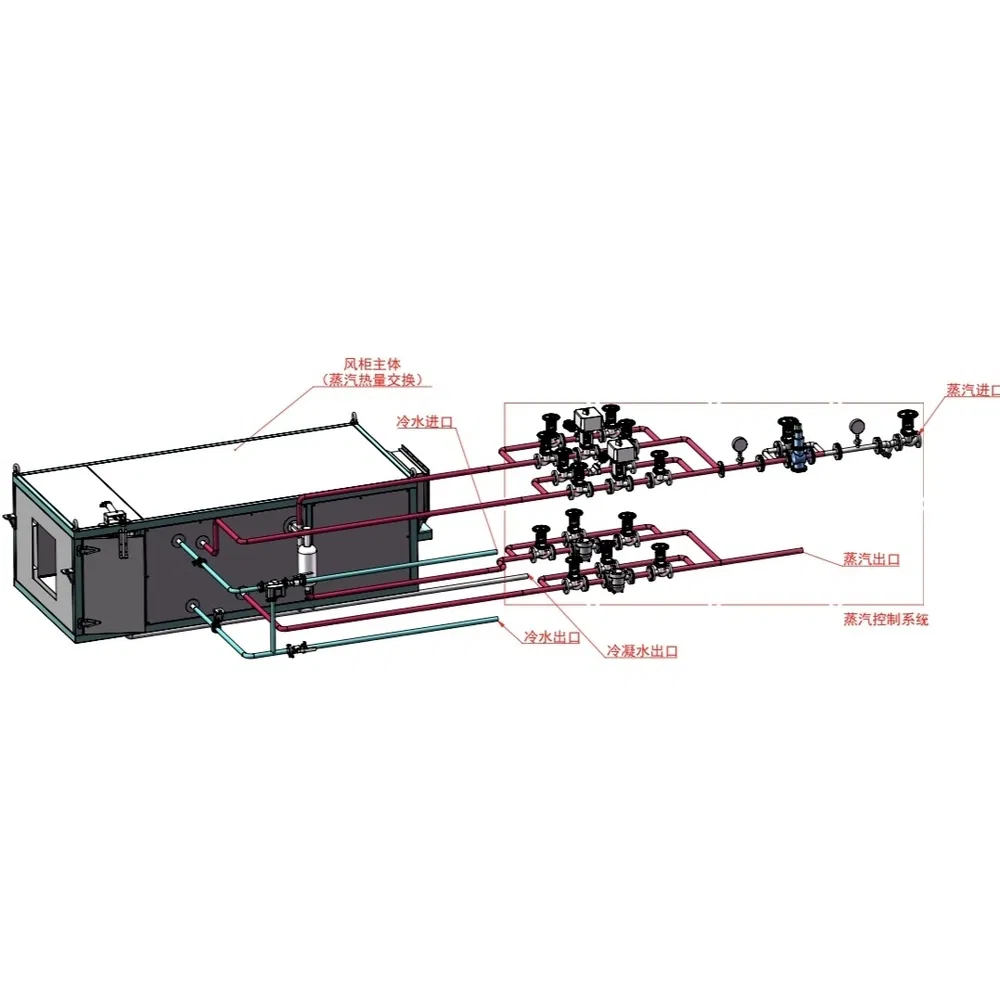

ADVANCED COMBINATION AIR HANDLING UNIT

Multi-stage processing: initial filtration removes dust, steam heat exchanger maintains optimal temperature, dry steam humidifier achieves precise moisture control. Condensate drainage and mixing chamber deliver perfectly conditioned air circulation.
Air Handling Unit
Monitoring System
SMART REMOTE MONITORING & DATA MANAGEMENT

Expandable mobile and PC-based online monitoring with automatic temperature-humidity data logging. Export production records for quality control and traceability. Real-time system alerts ensure consistent proofing conditions throughout operations.
System Detail 1
System Detail 2
System Detail 3
System Detail 4
System Detail 5
System Detail 6
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturing factory specializing in industrial bakeware and proofing systems based in China.
What materials are used in your products?
Our products are constructed from high-quality, food-grade aluminum, alusteel, and SUS304 stainless steel.
Can I customize the product's size?
Yes, we support full customization. You can provide your detailed requirements, and we will engineer the solution to fit your specific factory layout.
Do you support LOGO and appearance customization?
Yes, we provide on-demand customization including LOGO placement, specific color finishes, and overall dimensional adjustments.
How can I obtain an accurate quotation?
Please send your specific demand information and product requirements, and our technical team will customize a solution and provide a detailed price quote.
Is technical support available for installation?
Yes, we provide comprehensive technical guidance and support for our industrial continuous proofing systems to ensure smooth operation.
