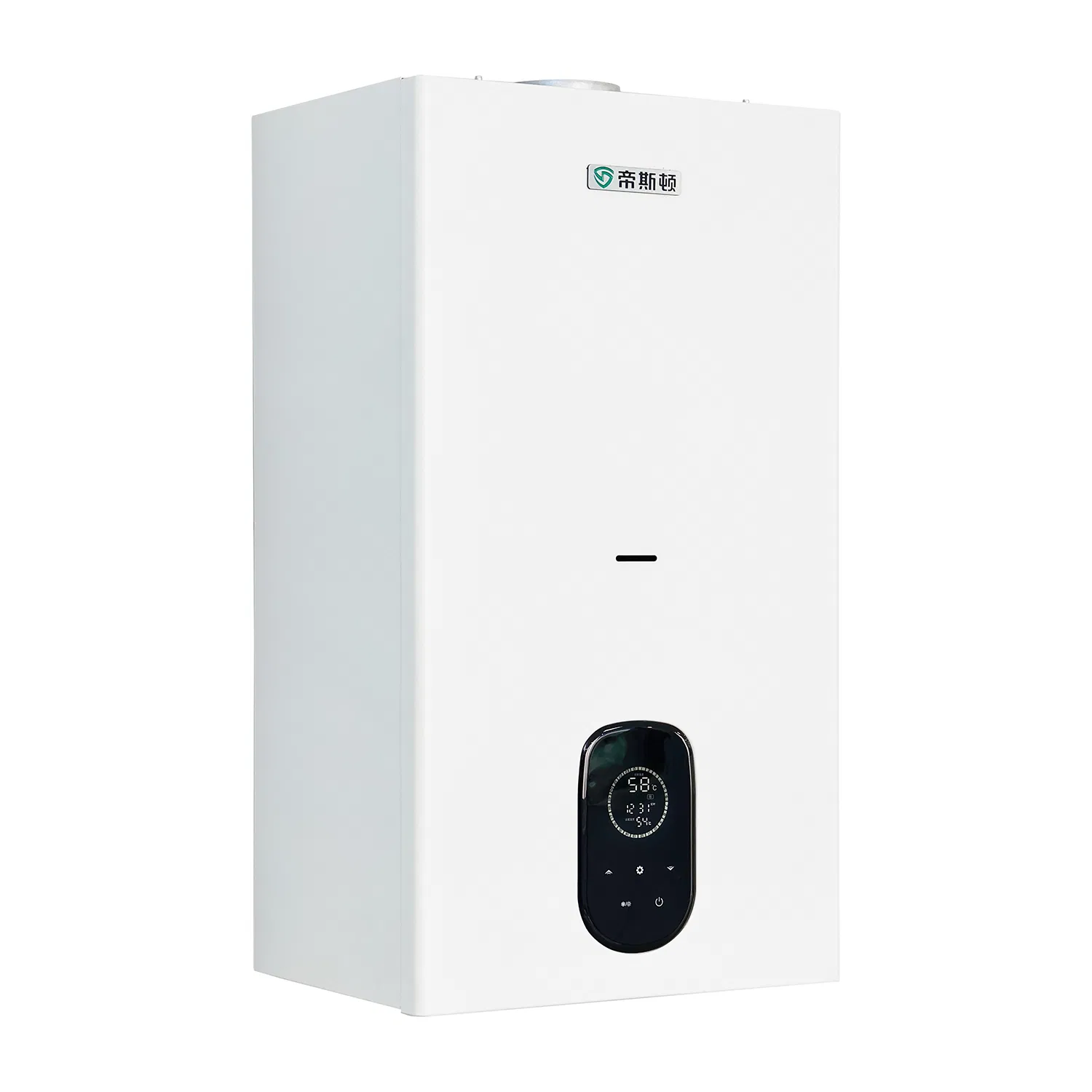

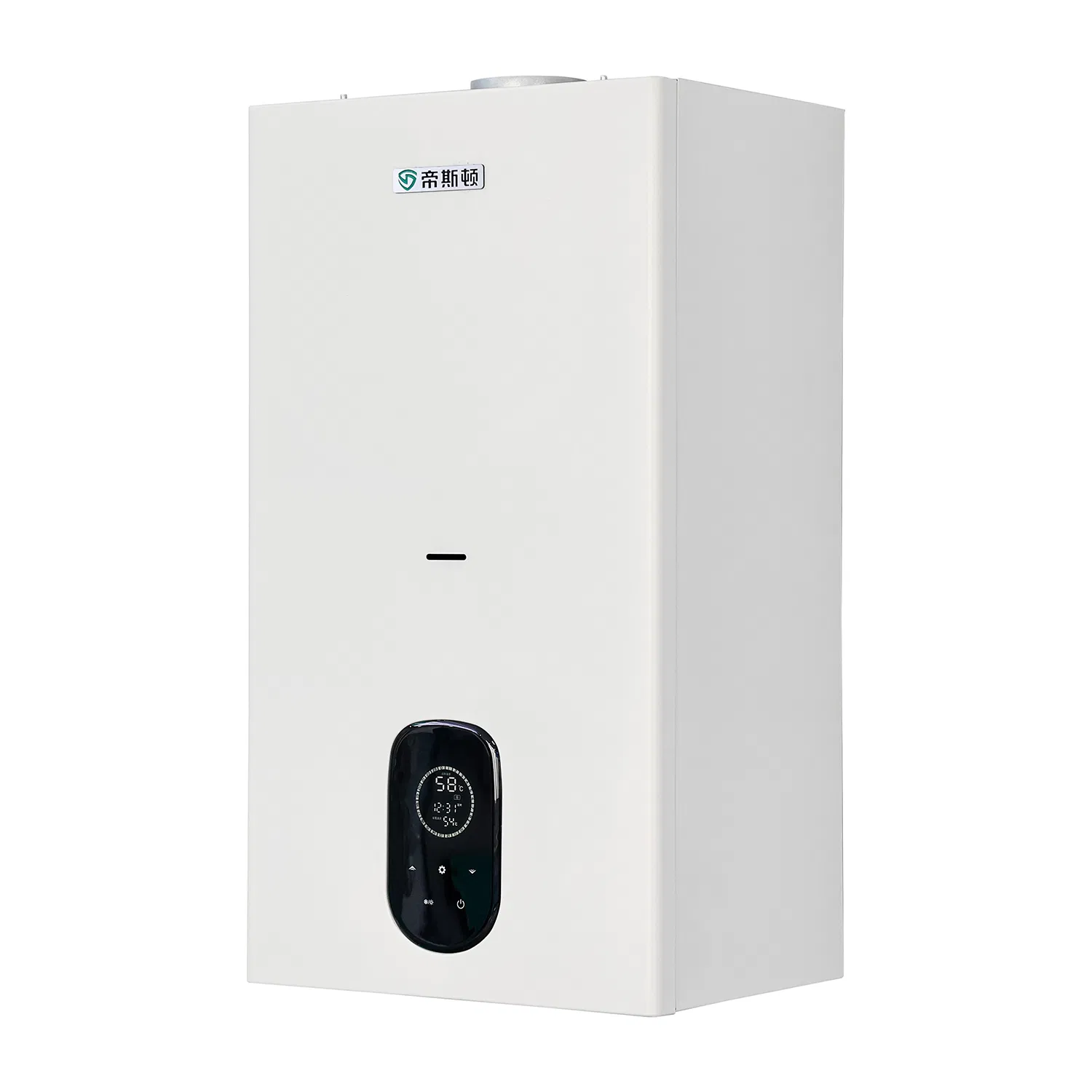

Eco-Friendly Gas Heating Solution with High Thermal Efficiency Rating

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
L1P20-WS/A2/A3
Type
Forced Exhaust
Energy Grade
One
Interior Material
Copper
Installation
Indoor Wall-Mounted
Usage
Bathroom, Kitchen, Industrial, Home
Fuel
Gas-Fired
Thermal Efficiency
>90 %
Expansion Tank
6L / 0.1MPa
DHW Pressure
0.03 - 0.7MPa
Product Introduction
Gas Heating Solution

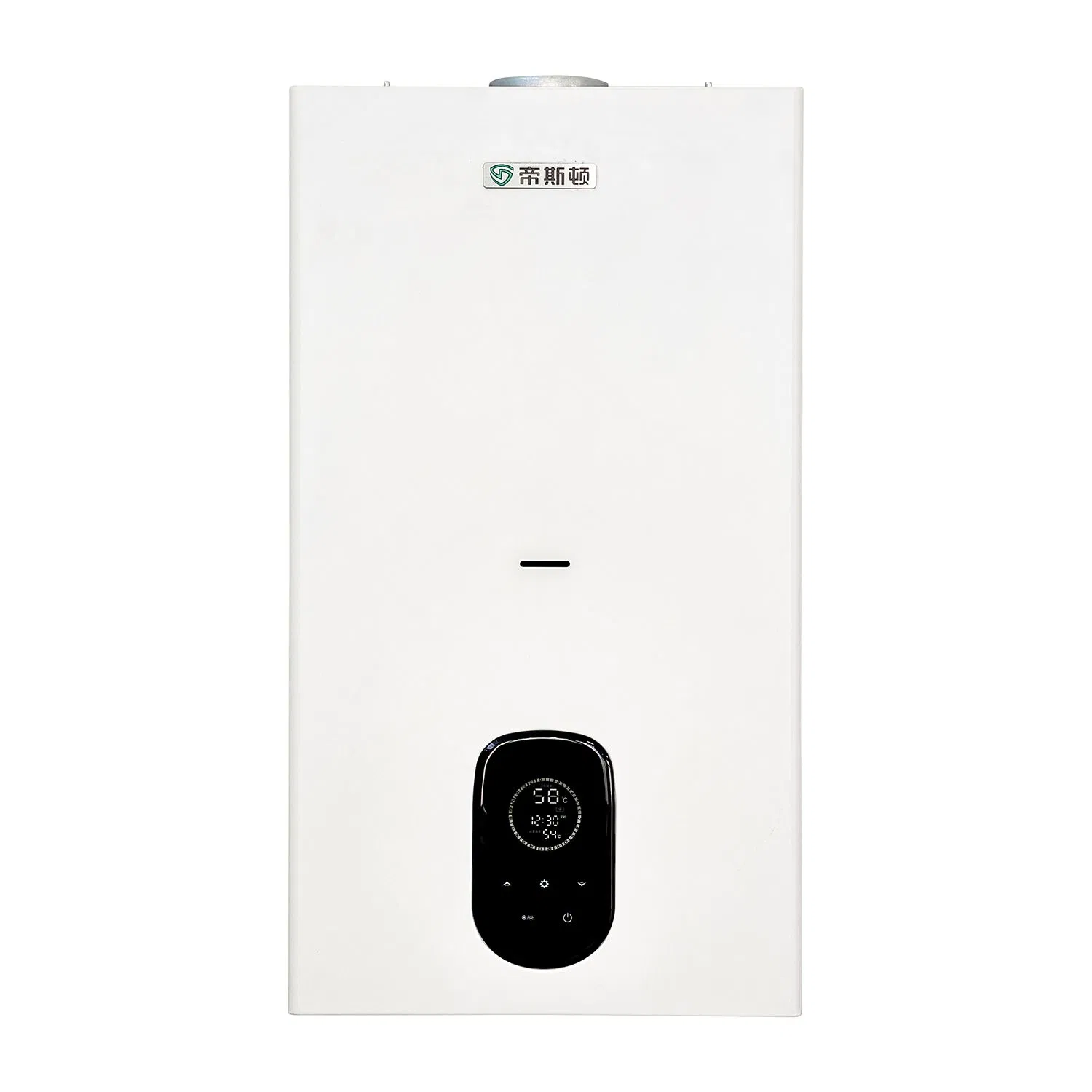

Product Design

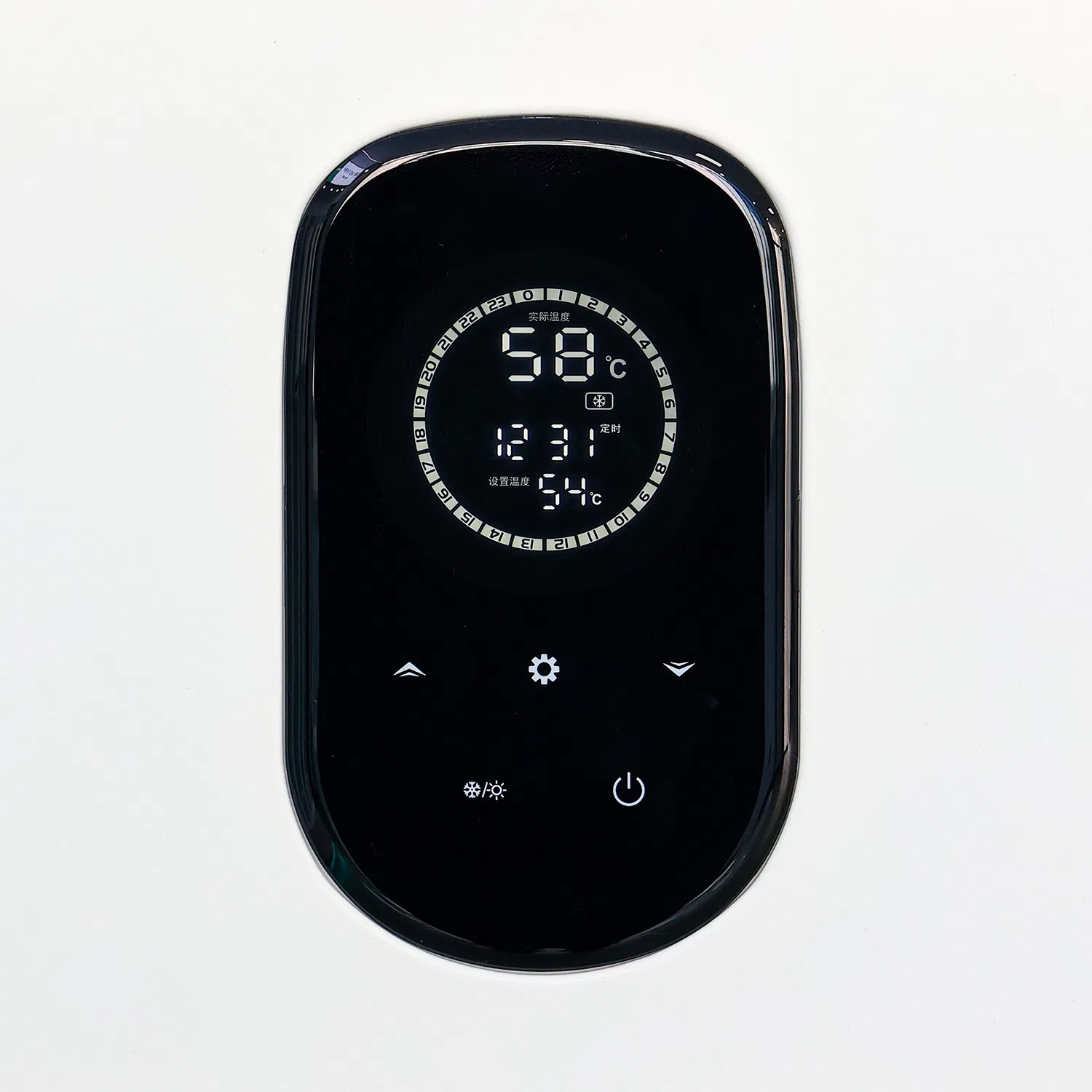

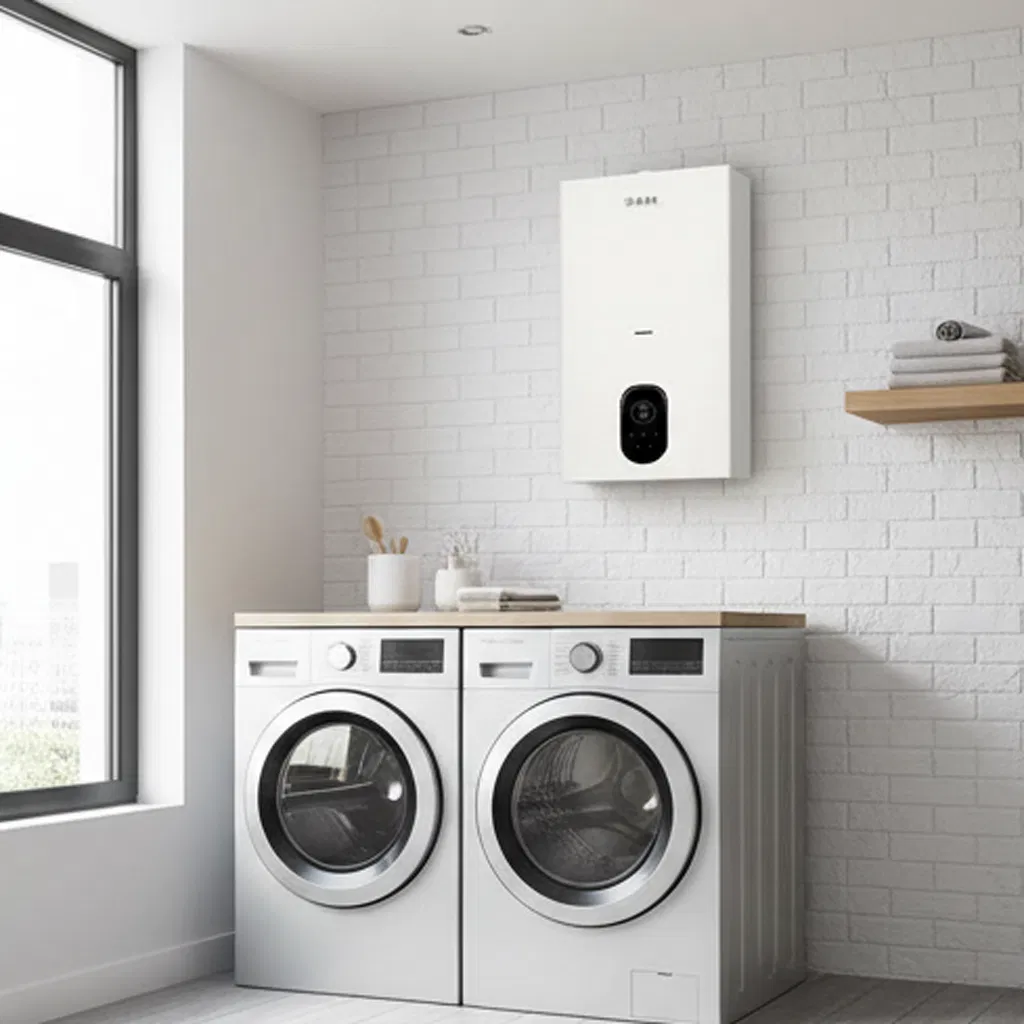

The WSA3-type gas heating hot water stove features a sleek, minimalist rectangular design with a smooth matte white finish, crafted to integrate unobtrusively into residential spaces. Its wall-mounted structure saves floor space, while the clean, vertical profile maintains a modern aesthetic. The unit features an intuitive black oval control zone with a digital display showing temperature and settings.
Functions & Advantages
Functionality
Advantages
Key Features:
  • Dual-purpose: Central heating and on-demand hot water.
  • DC inverter fan for silent and energy-saving operation.
  • High thermal efficiency with synchronous dynamic adjustment.
  • Safety features: Flame failure protection, overheat shut-off, and pressure regulation.
  • Adaptive system for flue length and air volume compensation.
Technical Specifications
Specifications Unit 20kW 24kW 28kW 32kW
Max Heat LoadkW20.024.028.032.0
Max Heat OutputkW17.821.425.028.5
Gas Consumption (NG)m³/h2.222.643.083.46
Effective Heating Area<100<150<200<250
Hot Water Rate (Δt=25K)kg/min10.012.014.016.0
Rated PowerW120120130165
Professional Production & Certification

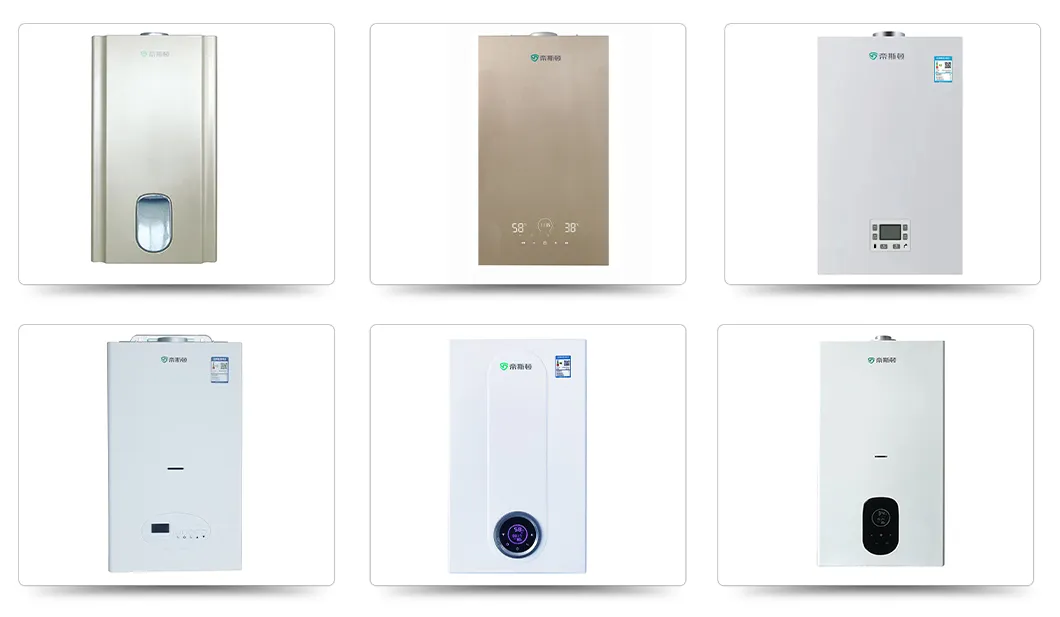

Main Product

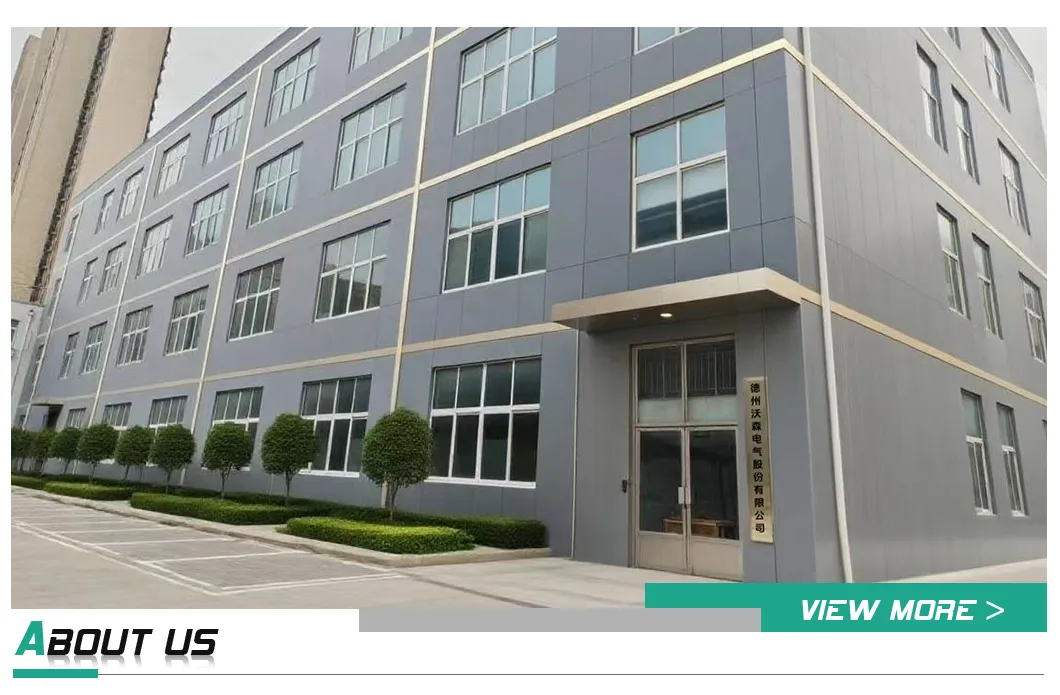

Factory Overview

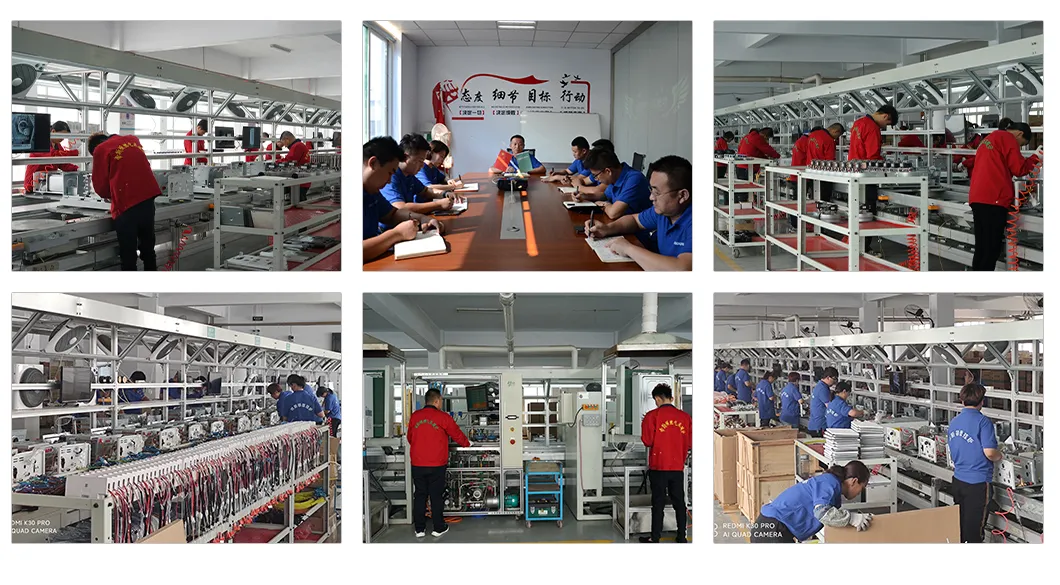

Production Line
Certificates
Exhibition
Packaging
Frequently Asked Questions
How do I choose the right power for my home?
For 80-150m², 24KW is ideal for heating and hot water. For villas over 150m², choose 28KW or above. In colder regions or homes with multiple bathrooms, consider increasing power by 20-30%.
Can it provide heating and hot water at the same time?
The system prioritizes hot water. Heating will temporarily pause when the hot water faucet is opened and resume automatically once the faucet is closed.
Is the energy efficiency rating significant?
Yes, first-class efficiency units (condensing boilers) can reach over 107% thermal efficiency, saving 15-20% on gas costs compared to ordinary boilers.
Can I install this in an old house without pre-installed pipes?
Yes. You can use an open-air radiator system which doesn't require damaging walls or existing decoration, making it perfect for renovations.
How do I prevent the unit from freezing in winter?
Keep the power and gas on to use the built-in anti-freezing mode. If away for long periods, drain the water from the machine and pipes to prevent damage.
Does the boiler consume a lot of electricity?
No. The main components (fan and pump) only use 100-200W and only run when needed. The monthly consumption is comparable to a standard refrigerator.
