Q1 Efficient Energy Consumption Heating Solution for Sustainable Living

Customization:	Available
Capacity:	8L
Gas Type:	Natural Gas

Overview & Basic Info

Model NO.WS/Q1

TypeForced Exhaust

Energy GradeOne

Interior MaterialCopper

InstallationWall-Mounted

UsageBathroom, Kitchen, Home

CertificationISO9001, CCC

FuelGas-Fired

Expansion Tank8L

Temperature Range30-80℃

Product Introduction

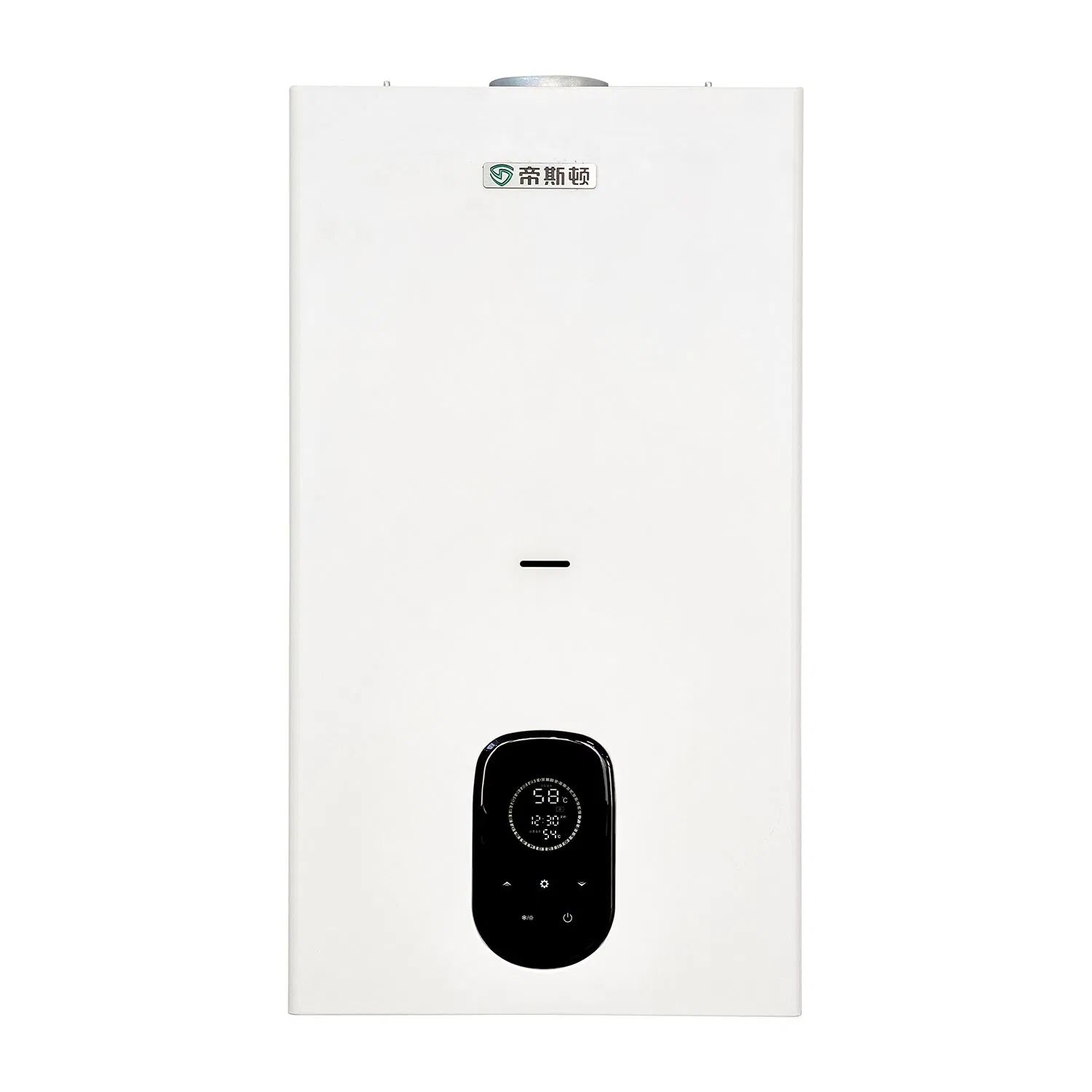

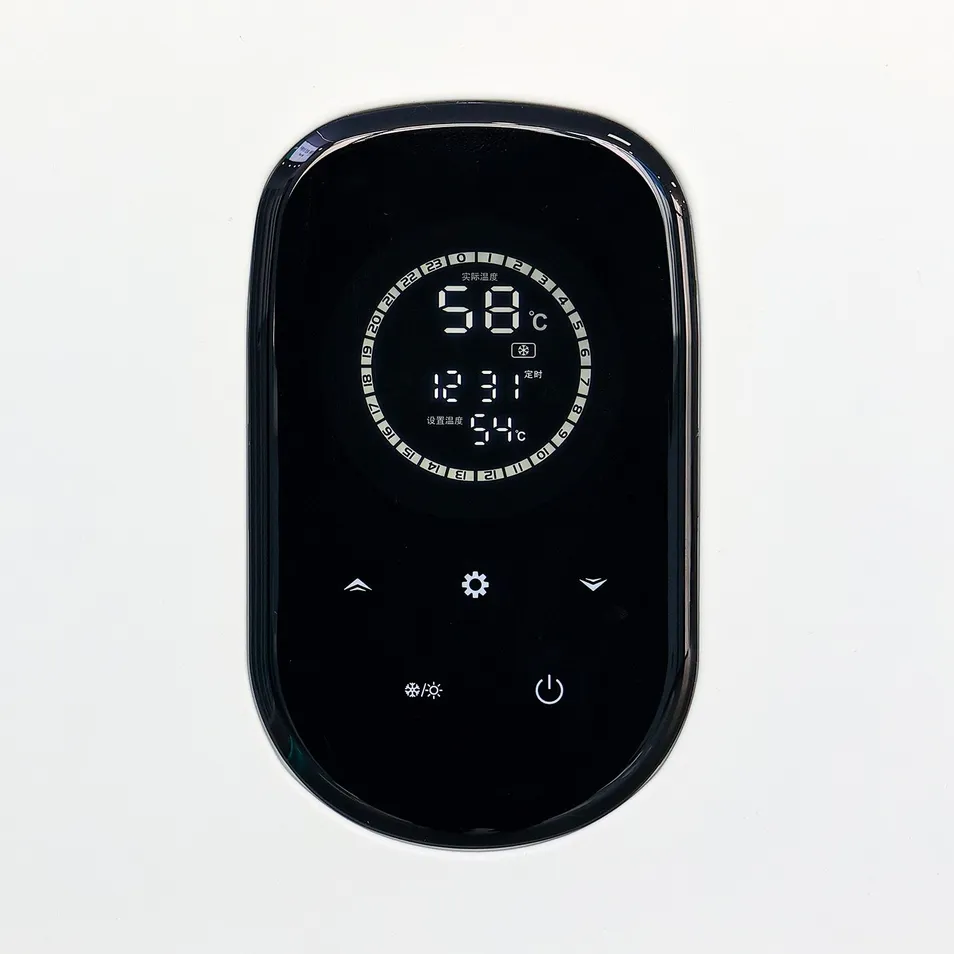

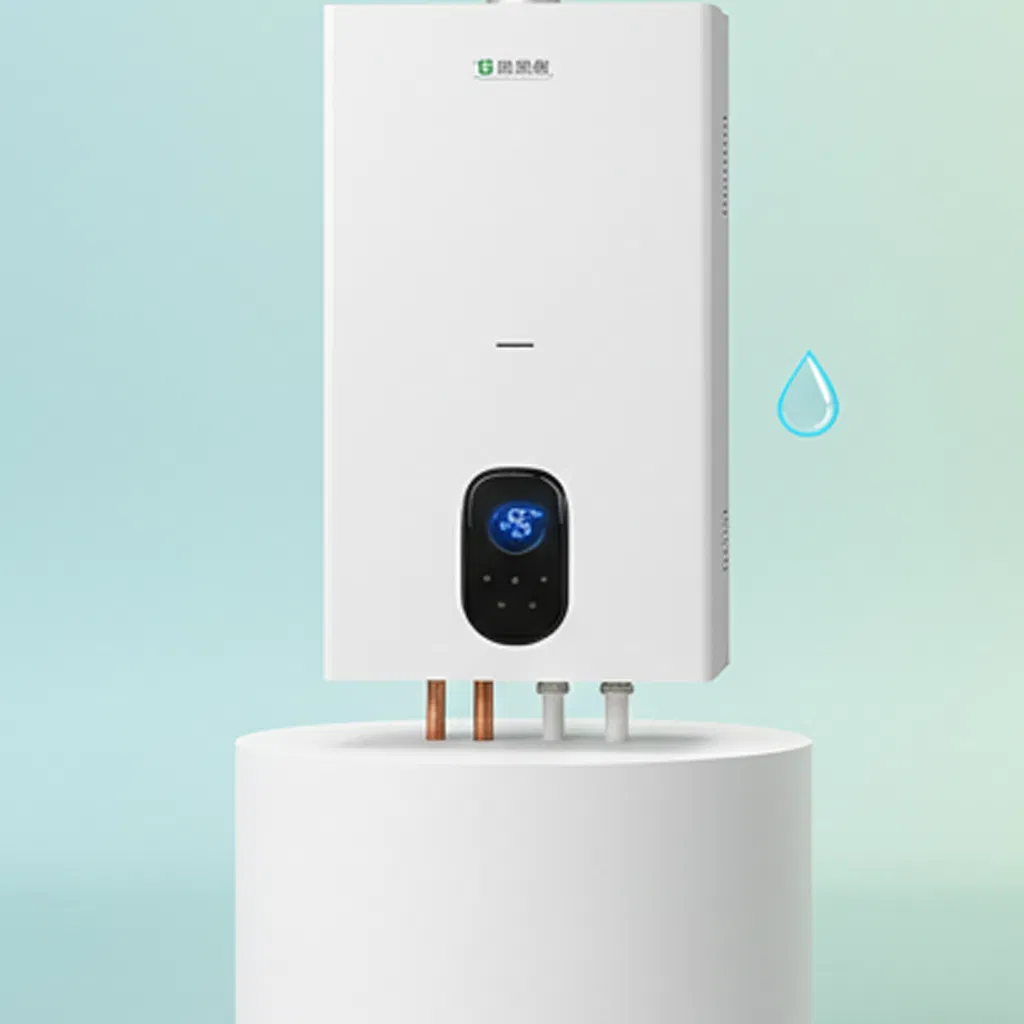

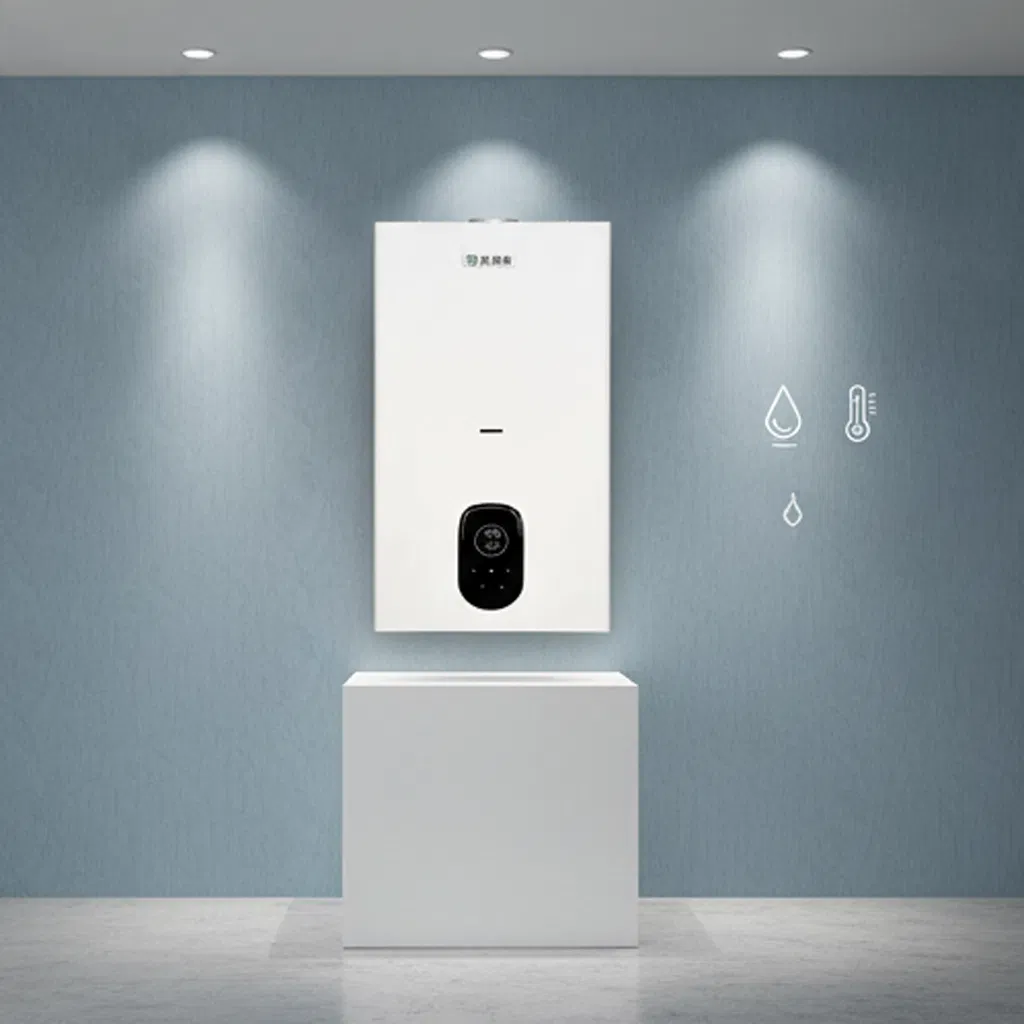

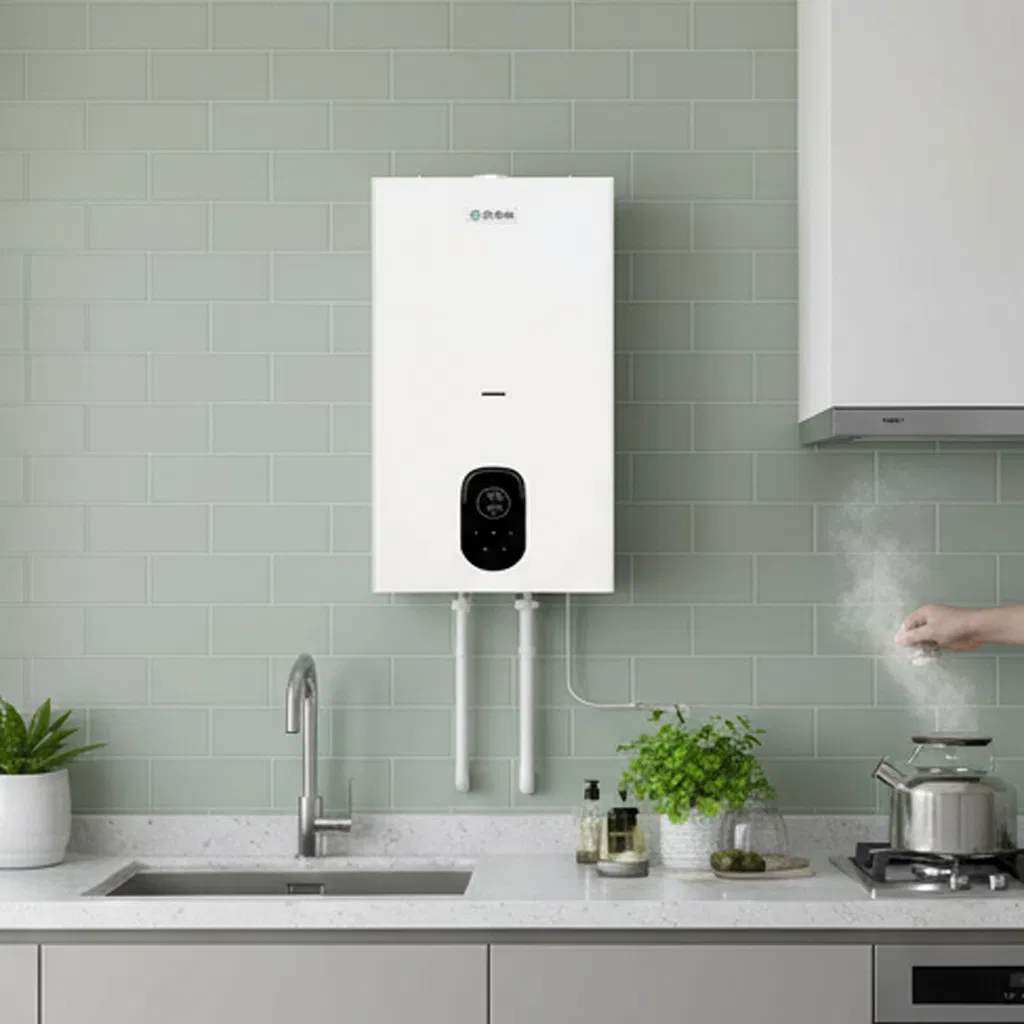

The WSA3 gas heating hot water stove sports a sleek, minimalist rectangular design, finished in smooth matte white. Wall-mounted to save floor space, it features a modern vertical profile. A digital display for temperature and time, combined with intuitive buttons, offers a polished, contemporary look that balances function with high-end aesthetics.

This dual-purpose stove offers central home heating and on-demand hot water. Safety features include flame failure protection, overheat shut-off, and pressure regulation, ensuring reliable performance in residential environments. It eliminates the need for separate hot water tanks, cutting costs and saving space.

Technical Specifications

Specifications	LL1GBQ20	LL1GBQ24	LL1GBQ28	LL1GBQ36
Rated Heat Load (kW)	20	24	28	36
Gas Type	Natural Gas (12T)
Expansion Tank Volume	8L
Heatsink Temp Range	30-80℃
Domestic Hot Water Range	30-60℃
Net Weight (kg)	35	36	38	40
Dimensions (mm)	740×410×305			740×410×325

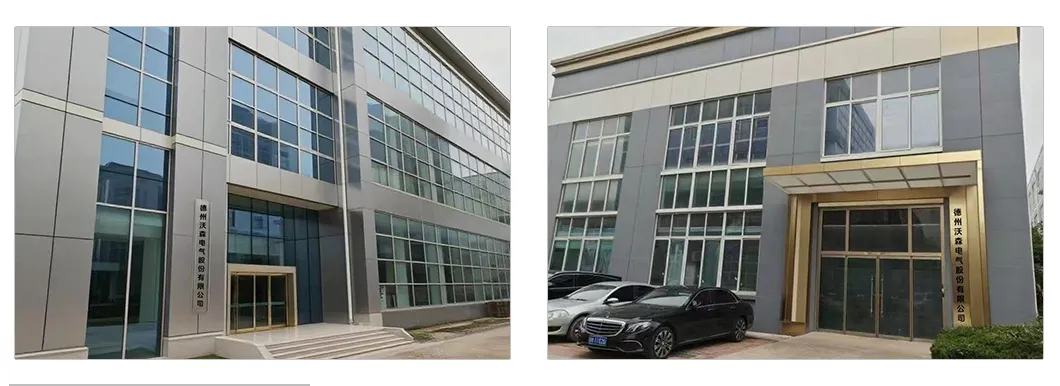

Manufacturing & Quality

As a high-tech joint-stock enterprise, we integrate R&D, production, and service of thermal energy equipment. Since 2011, we have focused on technological innovation to provide energy-saving and environmentally friendly heating products, including gas heating furnaces and air source heat pumps.

Global Standards & Logistics

Frequently Asked Questions

How do I choose the right power for my home?

For residential buildings of 80-150m², 24KW is sufficient. For larger villas over 150m², 28KW or above is recommended. In colder regions or homes with multiple bathrooms, consider increasing power by 20-30%.

Can it provide heating and hot water at the same time?

The system prioritizes hot water. Heating will temporarily pause when the hot water faucet is opened and automatically resume once the faucet is closed.

Is a condensing boiler worth the extra cost?

Yes. Condensing boilers (first-class energy efficiency) have thermal efficiency over 107% and can save 15-20% on gas compared to standard models, covering the price difference quickly through energy savings.

Can it be installed in an old house without pre-installed pipes?

Absolutely. You can choose an open-air radiator system which does not require breaking walls and has a short construction period.

How do I prevent the boiler from freezing in winter?

Keep the power and gas on and activate the anti-freezing mode. If away for a long time, it is recommended to drain the water from the pipes and machine to avoid ice damage.

Does the wall-mounted boiler consume a lot of electricity?

No, electricity consumption is very low. The main components (fan and pump) use only 100-200W and only run when the heating system is active, similar to a standard refrigerator.
