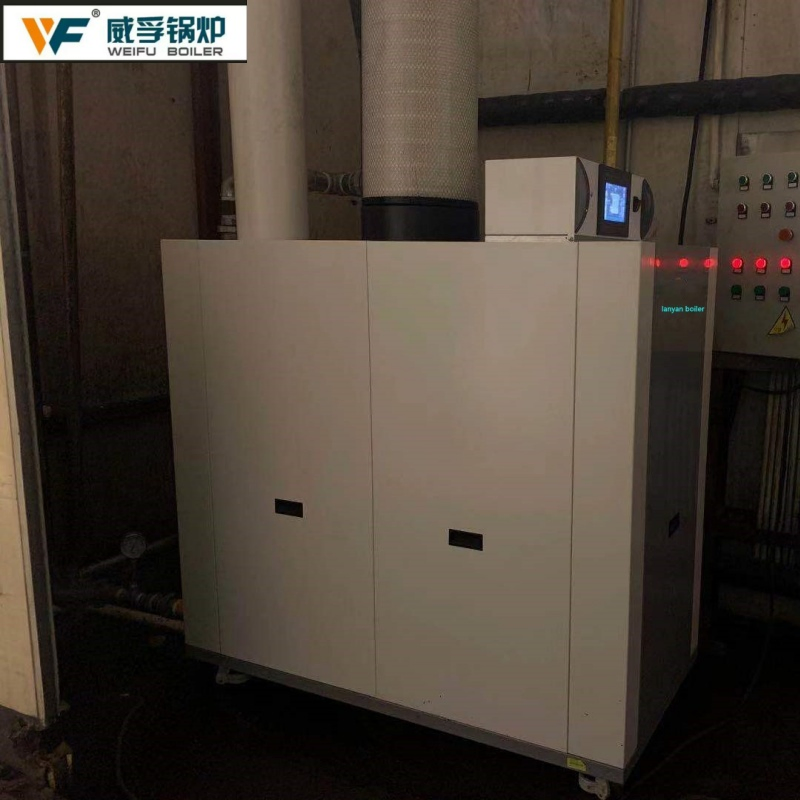

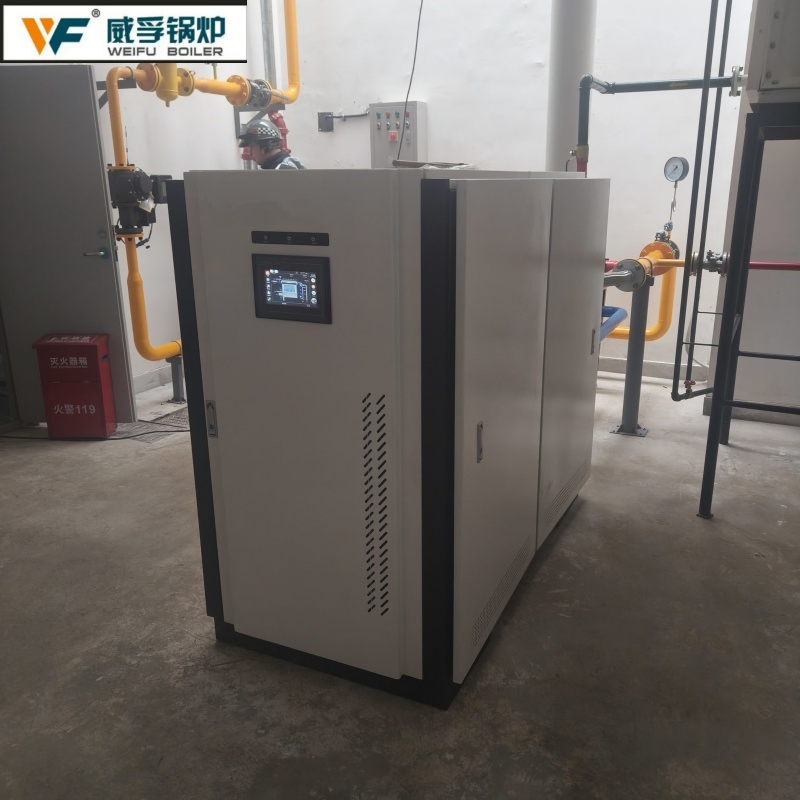

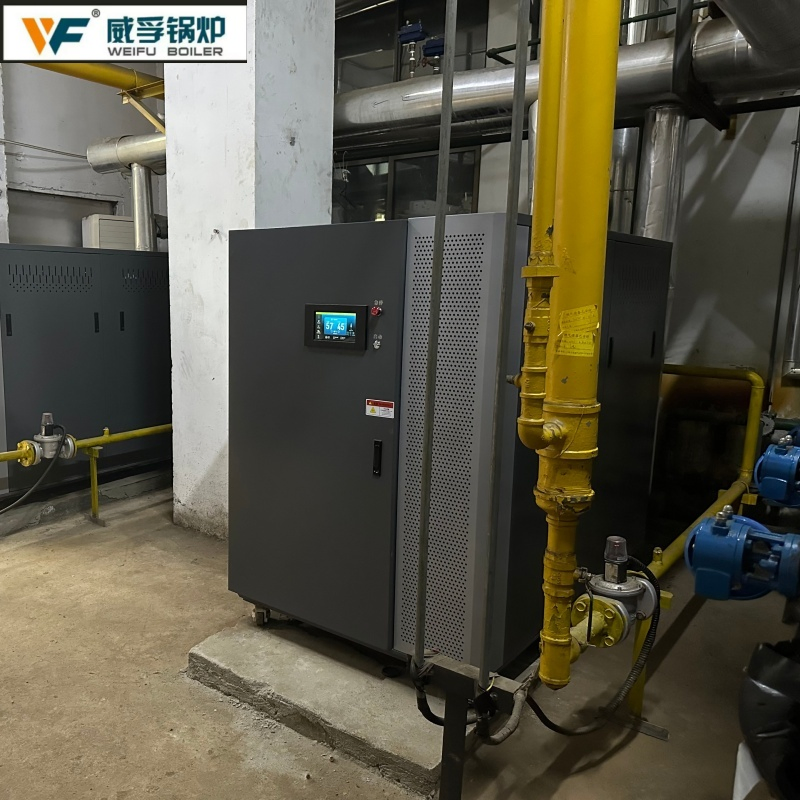

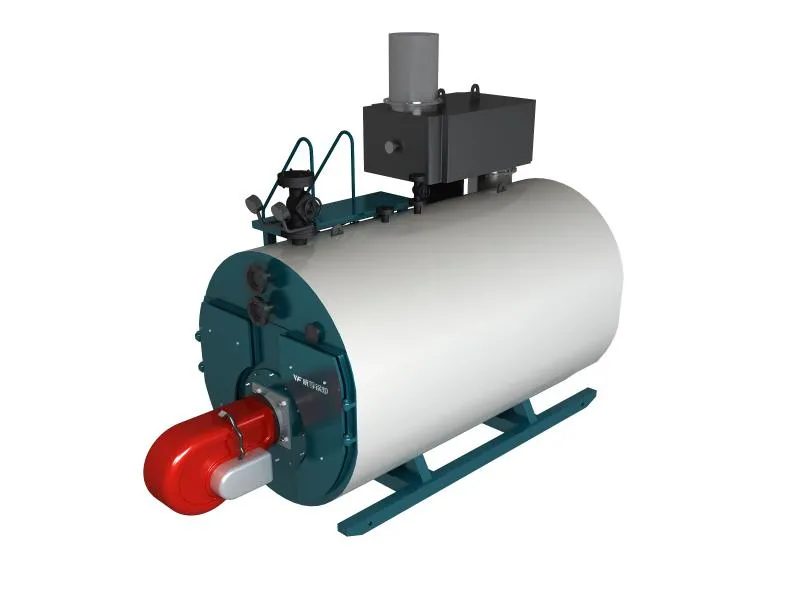

One machine for multiple purposes: Ingeniously designed with versatility at its core, our state-of-the-art vacuum boiler boasts dual hot water outputs. Revel in the luxury of two hot water streams with distinctive temperatures delivered concurrently. Whether you choose a dual-circuit or single-circuit system, each circuit operates autonomously.
High thermal efficiency: Experience unmatched heat transfer within an impeccably sealed vacuum chamber. Constructed from premium imported stainless steel, our heat exchanger epitomizes efficiency and energy savings.
Absolute safety: Operational excellence is the backbone of safety. This boiler is perpetually maintained under a stable negative pressure to mitigate explosion risks, featuring precise temperature sensors, safety valves, and overheat protection.
Intelligent control: Advanced digital control with an intuitive LCD interface. Effortlessly set temperatures and supervise furnace parameters in real-time, benefiting from automatic logging of combustion times and faults.
Registration procedures: Designed for seamless integration, this boiler's negative pressure operation eradicates expansion or explosion risks, granting exemption from rigorous supervision and cumbersome registration procedures.
Energy saving: Maximum energy efficiency with a cleverly minimized heat medium water volume. The vacuum chamber delivers unrivaled heat exchange, providing set-temperature warm water within ten minutes.
Long life: Crafted from superior stainless steel for rapid heat transfer and exceptional corrosion resistance. The vacuum state prevents scaling, significantly extending service life.
Imported low-nitrogen burner: Clean and quiet combustion with meticulously minimized emissions, aligning with rigorous environmental standards.
| Modal (Gas Vacuum Boiler) | Unit | ZKW0.35 | ZKW0.58 | ZKW0.7 | ZKW1.05 | ZKW1.4 | |
|---|---|---|---|---|---|---|---|
| Rated thermal power | KW | 350 | 580 | 700 | 1050 | 1400 | |
| Rated heat output | Kcal/h | 300,000 | 500,000 | 600,000 | 900,000 | 1,200,000 | |
| Thermal efficiency | % | 94% ~ 96% | |||||
| Working pressure | Mpa | -0.085 | |||||
| Fuel Consumption | Diesel | kg/h | 32.5 | 53.7 | 64.5 | 95.6 | 137.6 |
| Natural gas | Nm³/h | 38.4 | 64.5 | 77.1 | 114.5 | 152.9 | |

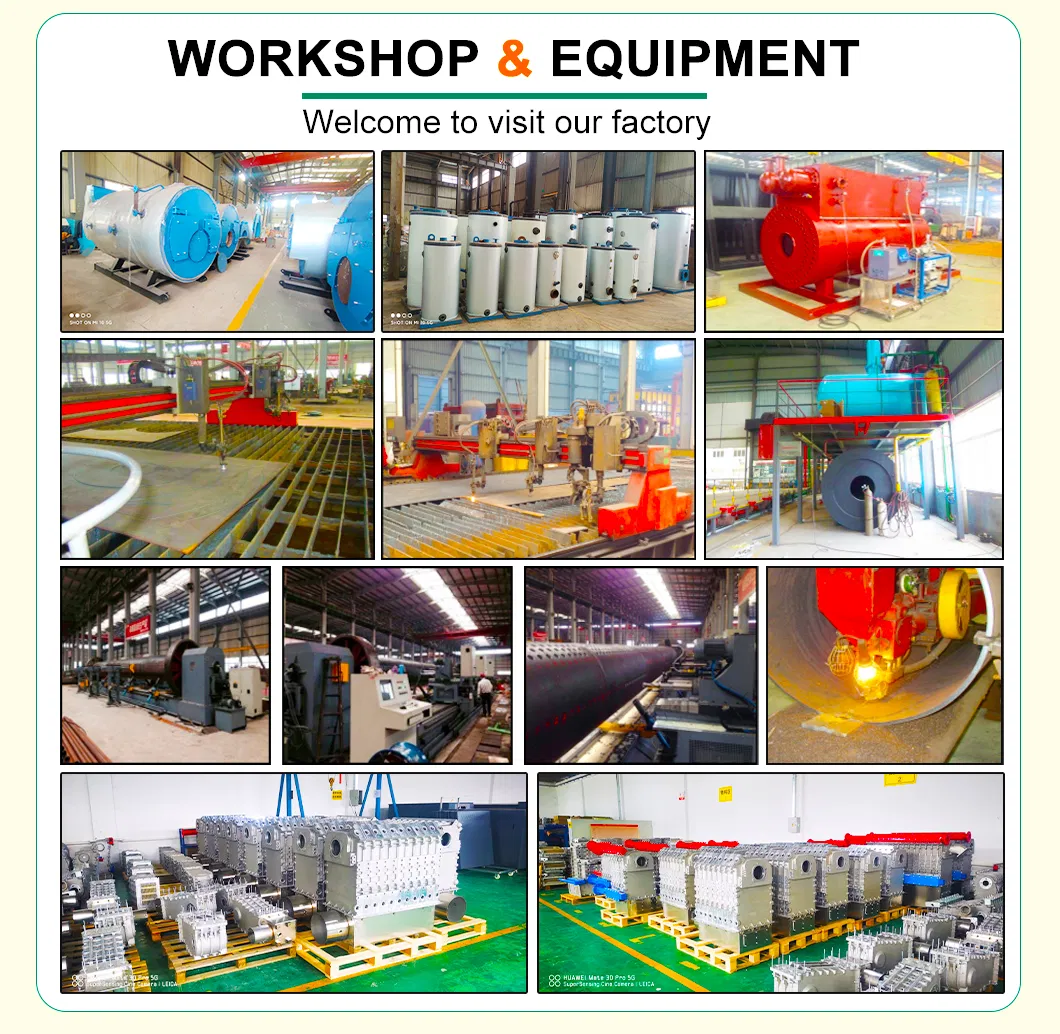

Our facility includes 20,000 square meters of cutting-edge factory space. We masterfully design and produce advanced gas, oil, and electric hot water boilers, steam boilers, and organic carrier boilers, supported by state-of-the-art manufacturing and testing equipment.
Our team consists of over 200 dedicated professionals, including 40 expert technicians. We specialize in vertical and horizontal configurations, utilizing clean combustion technology to pave the way for a sustainable future.
