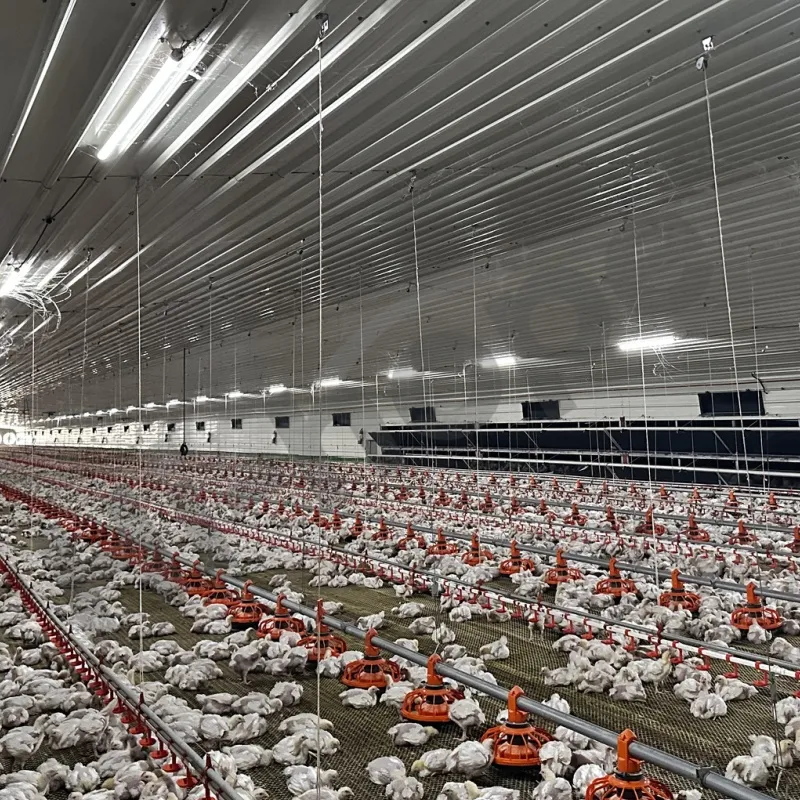

Hot Climate Broiler Equipment With Energy Efficient Design And Deep Litter Structure
Our team is a professional integrated manufacturer and designer of the modern broiler farm. We are committed to providing the most advanced technology and highest quality products for broiler farms both domestically and internationally.

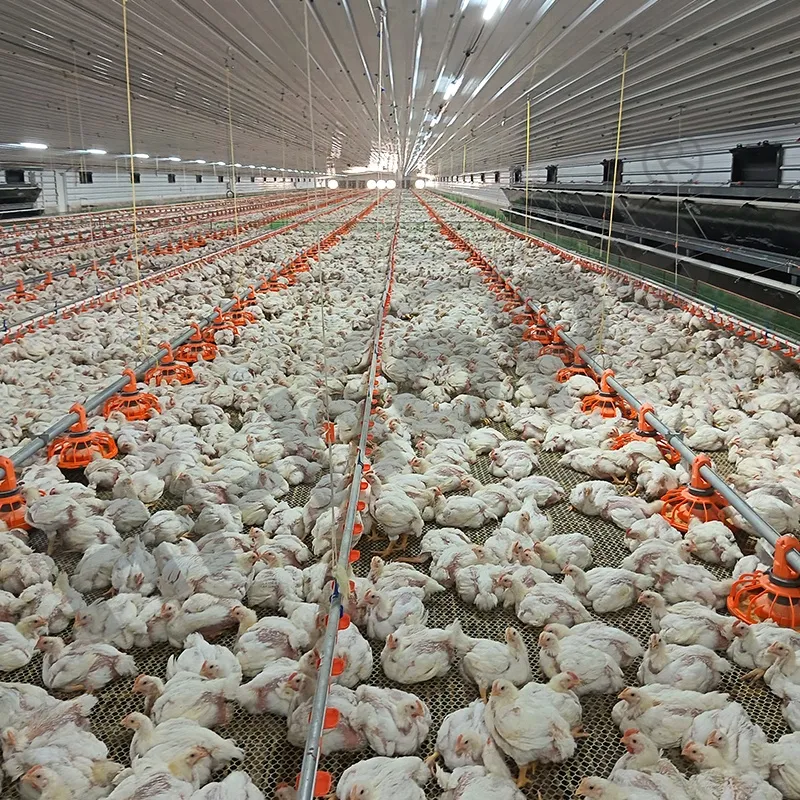

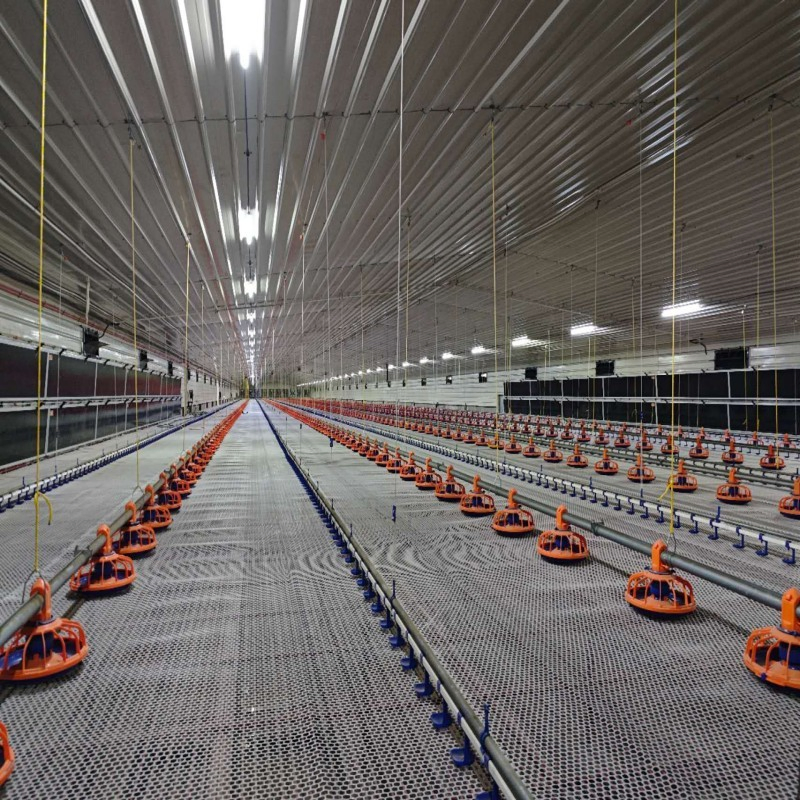

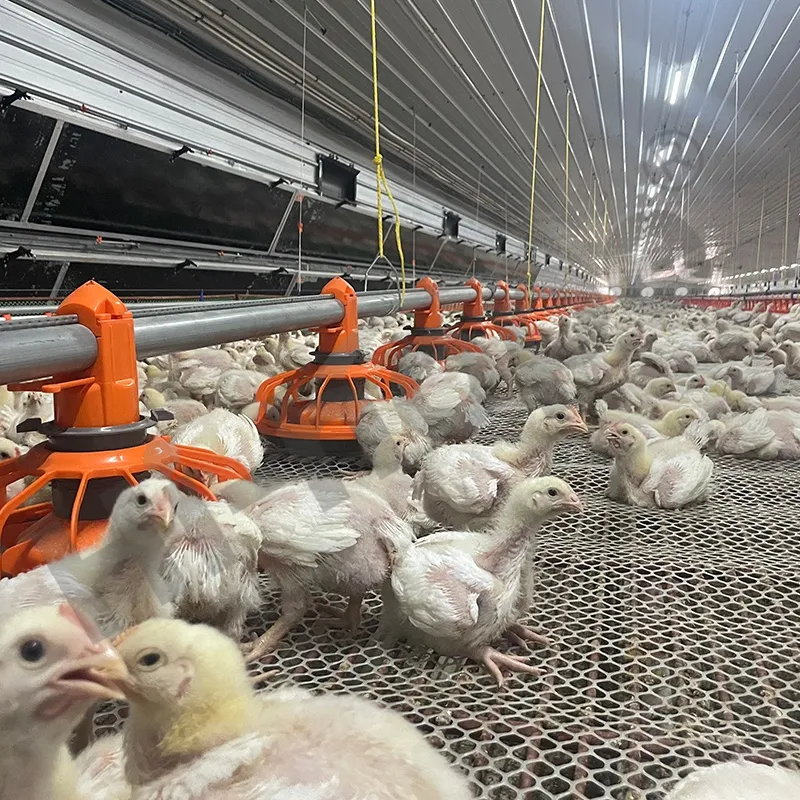

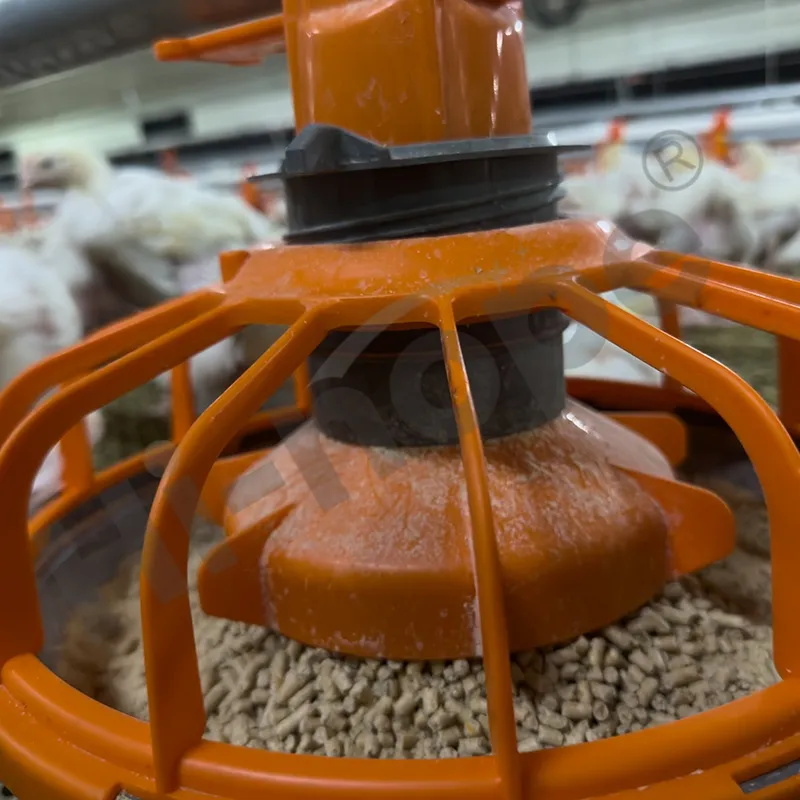

Includes the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed deliver Auger, Suspension system and other necessary parts. We select the most stable and quality drive motor to ensure the whole line stable and efficient working automatically. Feeder could be used from day one to moved out, designed with maximum feed bearing capacity to supply more birds. The design aims to achieve the best FCR for chicken growth.

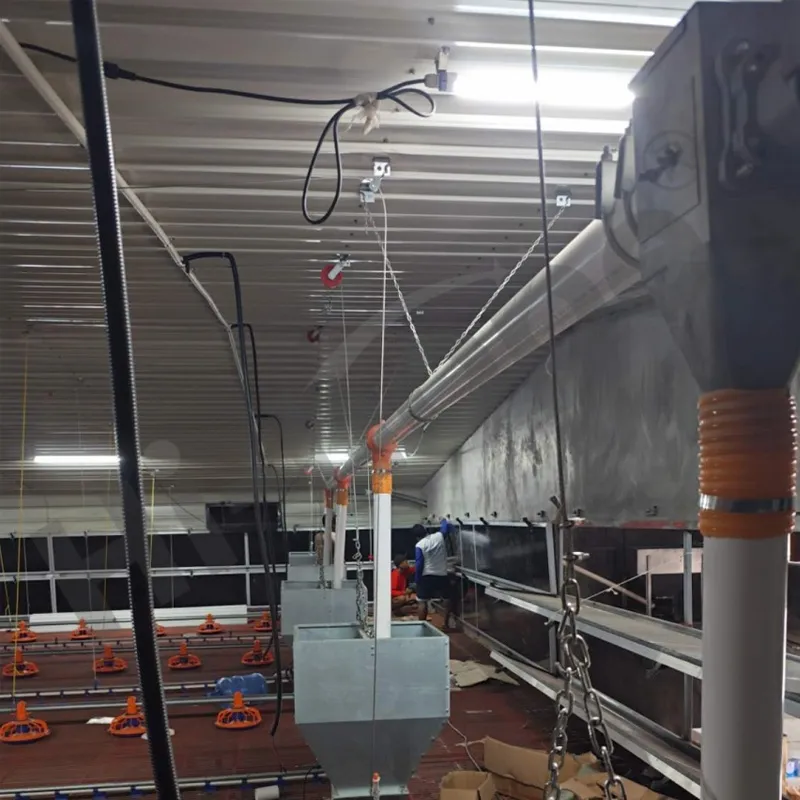

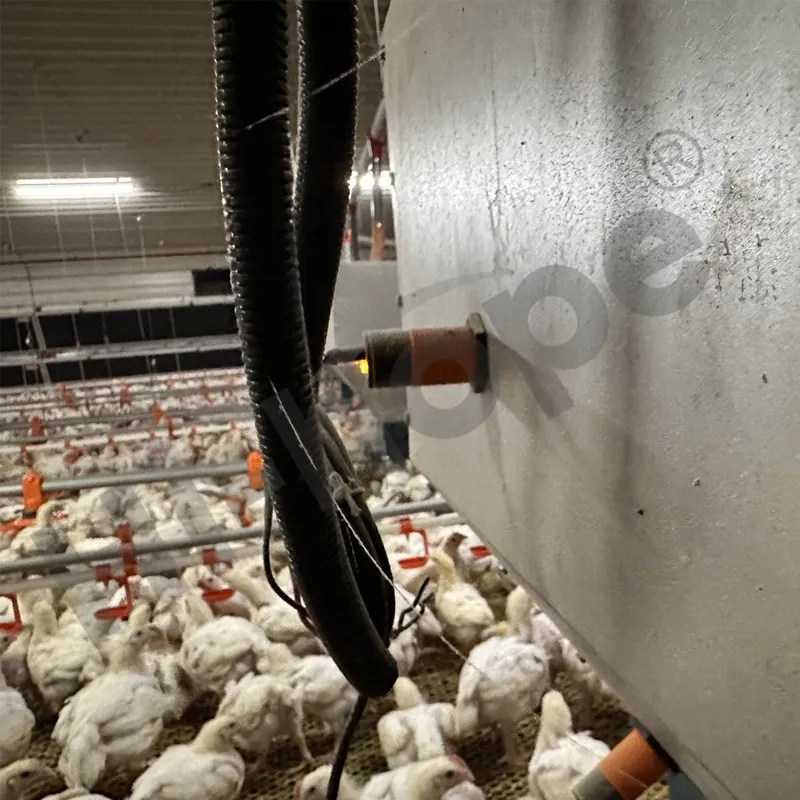

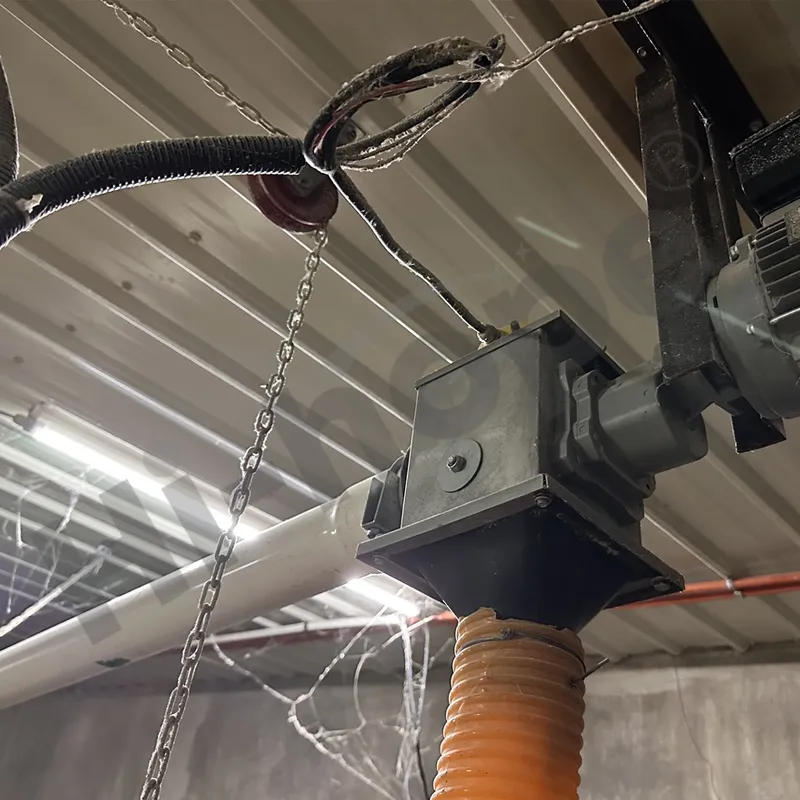

Includes the feed silo, flexible feed delivery auger, PVC feed delivery pipe, drive motor and other necessary parts. Benefits include simple operation, high quality, and efficiency.
| Feed Fill System | 75mm | 90mm |
|---|---|---|
| Max Delivery Length | 60m | 40m |
| Gear Motor | 1.1HP/1.5HP, 50/60HZ | 1.1HP/1.5HP, 50/60HZ |
| Delivery Capacity | 1400KGS/H | 2500KGS/H |

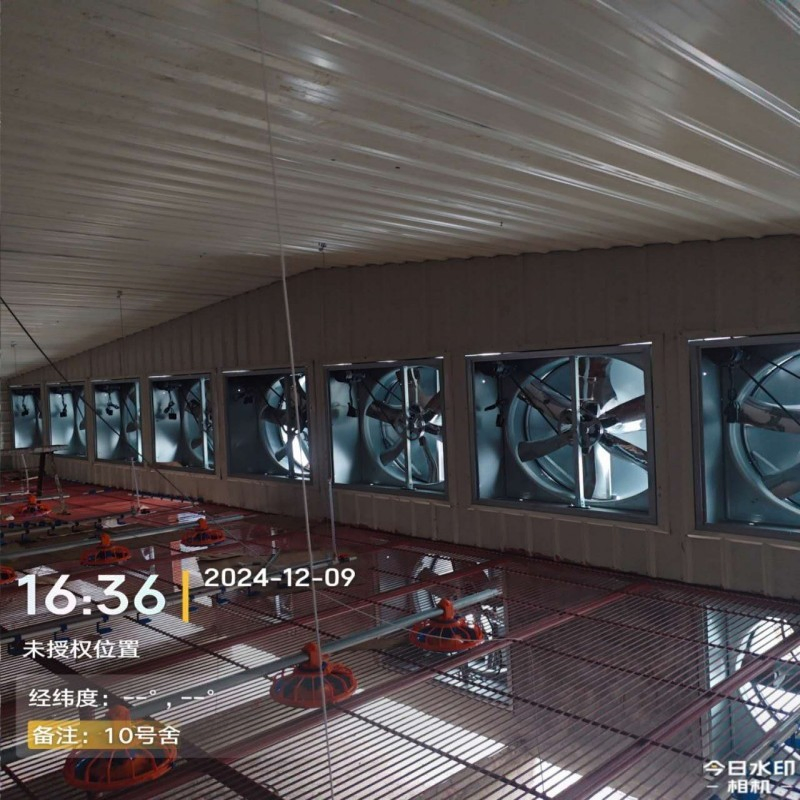

Includes tunnel fans, air inlets, cooling pads, and tunnel doors.

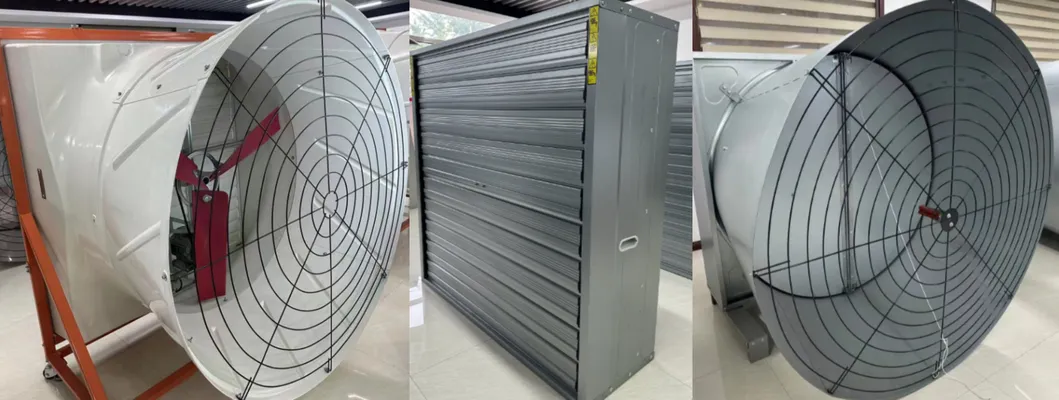

1. Tunnel Fans Performance
| Fan Model | Static Pressure (Pa) | Air Flow (M³/H) | Voltage | Phases |
|---|---|---|---|---|
| 54in Fiberglass Cone Fan | 0 / 12.5 / 25 | 55000 / 53100 / 50800 | 220v-380v | 1 or 3 |
| 50in Galvanized Cone Fan | 0 / 12.5 / 25 | 49530 / 40194 / 37236 | 220v-380v | 1 or 3 |

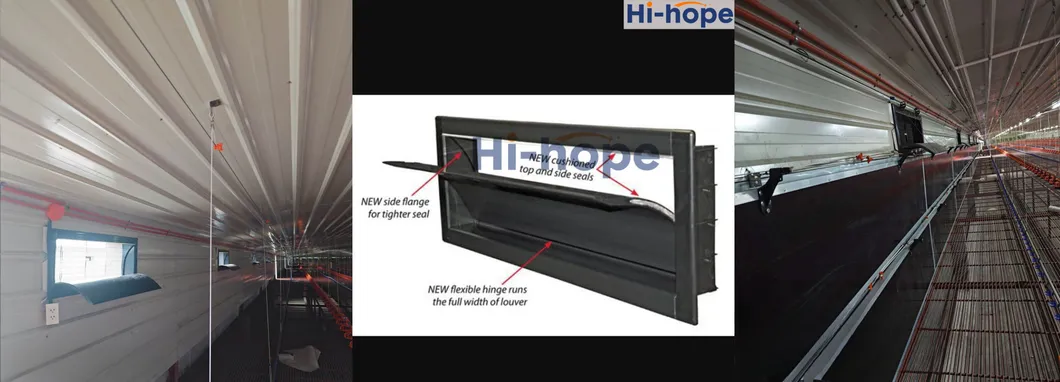

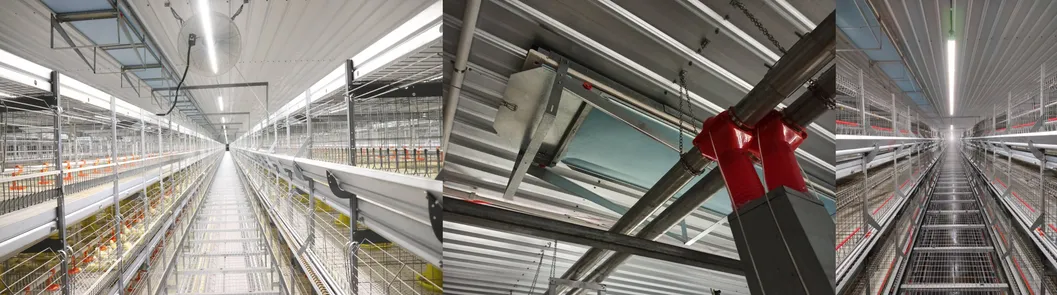

2. Air Inlets
| Static Pressure (Pa) | Air Flow (M³/H) | Size (mm) | Application |
|---|---|---|---|
| 12 | 4050 | 1100*330 | Curved Inlet (Tropical) |
| 25 | 1980 | 1100*330 | Curved Inlet (Tropical) |

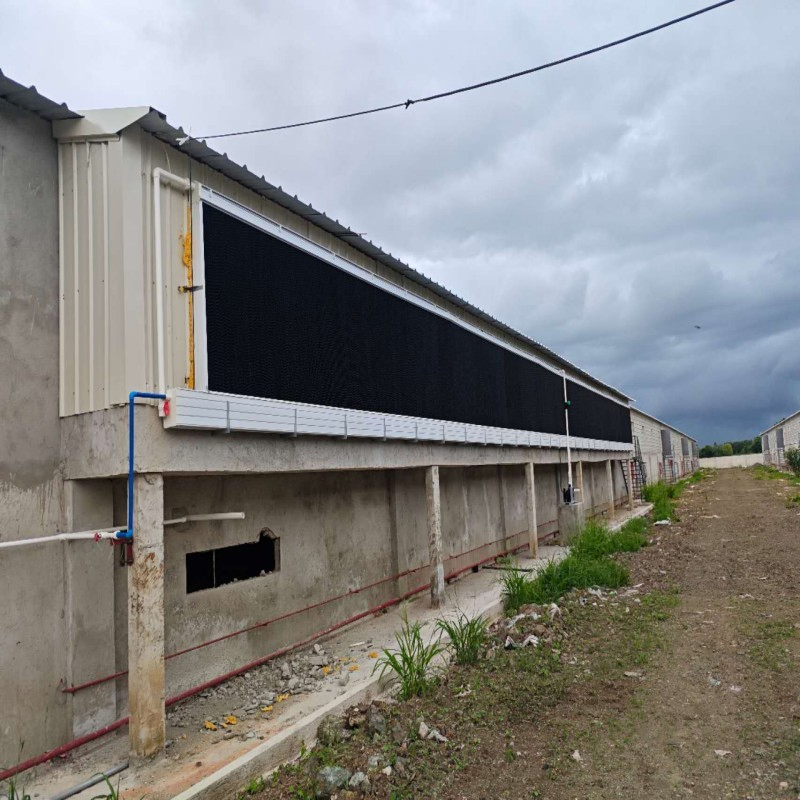

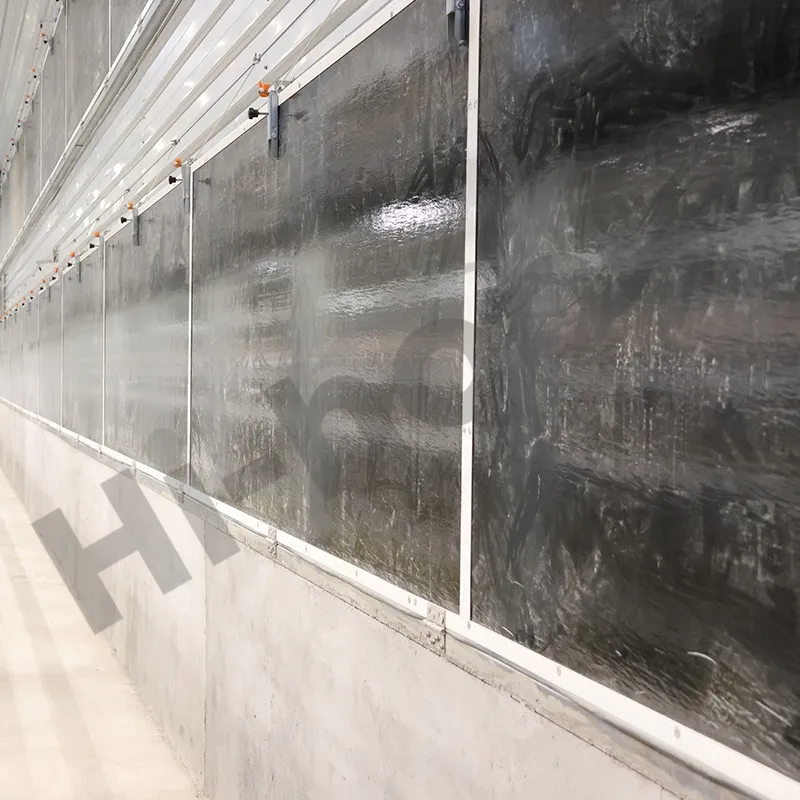

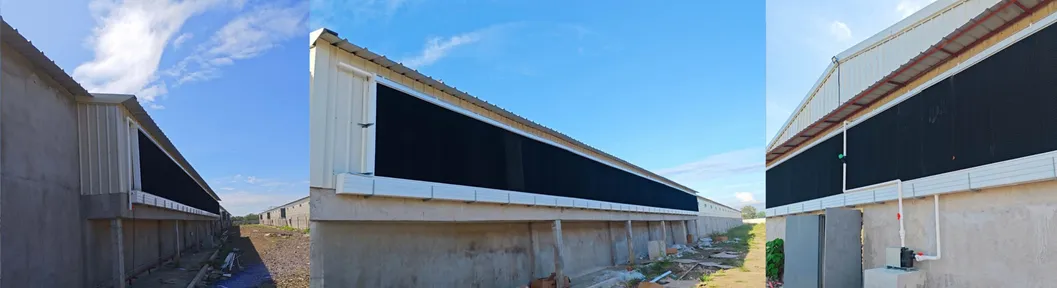

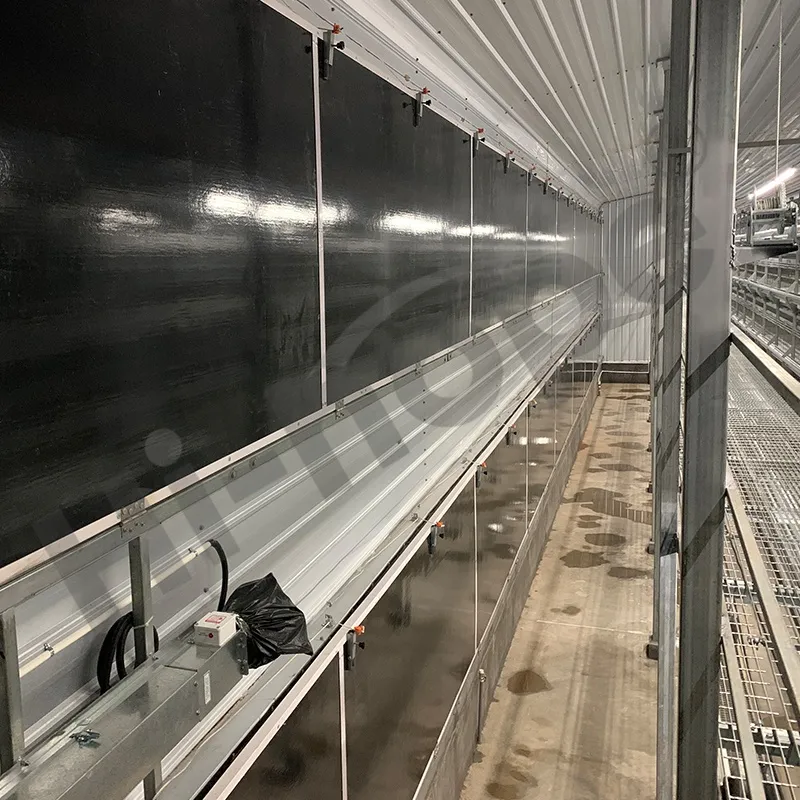

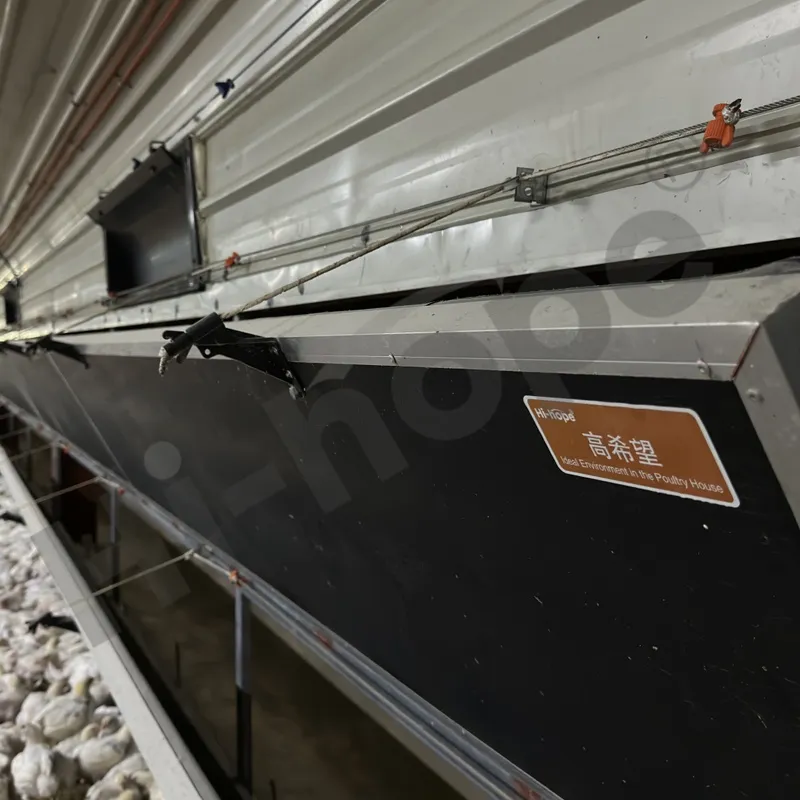

3. Evaporative Cooling & Tunnel Doors

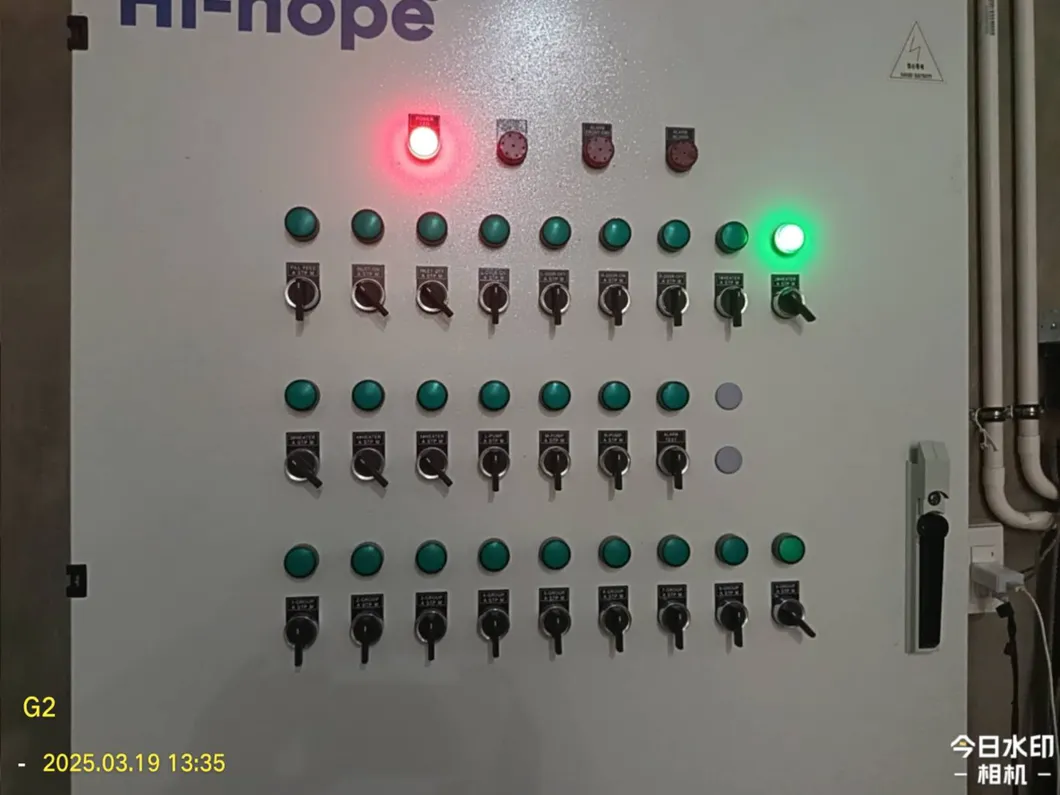

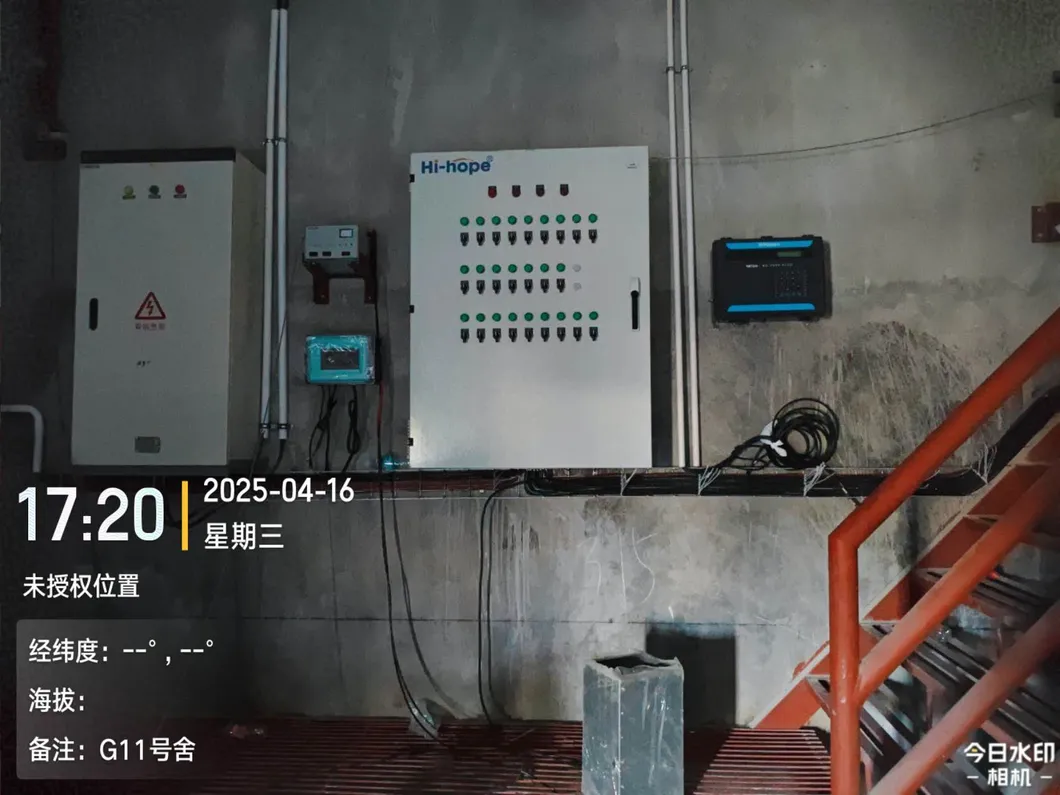

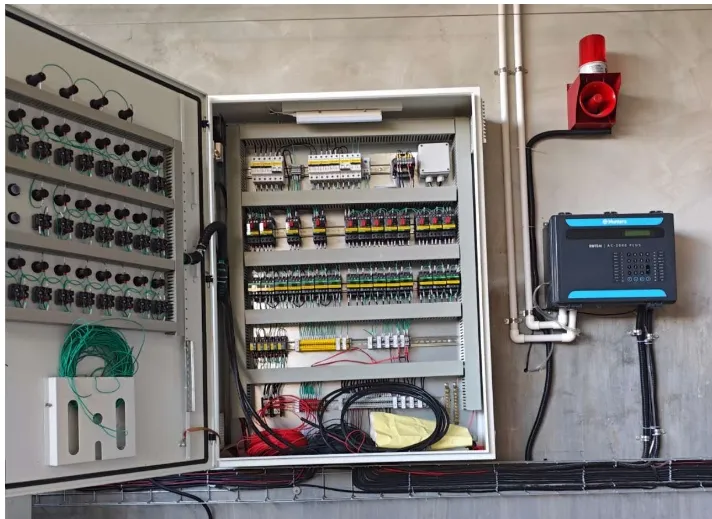

Consists of computerized controllers, temperature sensors, humidity sensors, negative pressure sensors, and alarm systems. The controller regulates conditions automatically based on preset parameters. We use world-class electronic components from brands like Schneider, Siemens, and ABB to ensure farm safety.

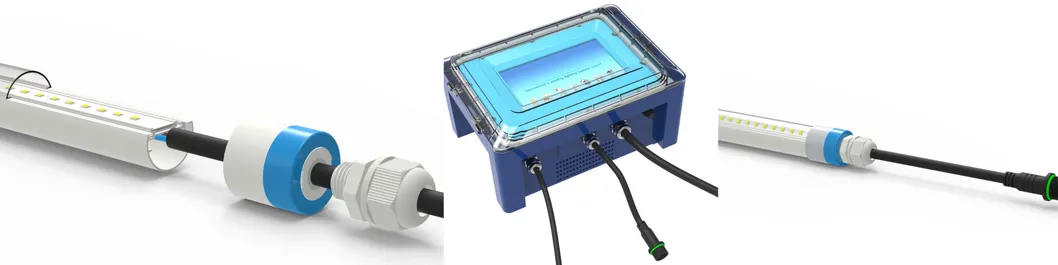

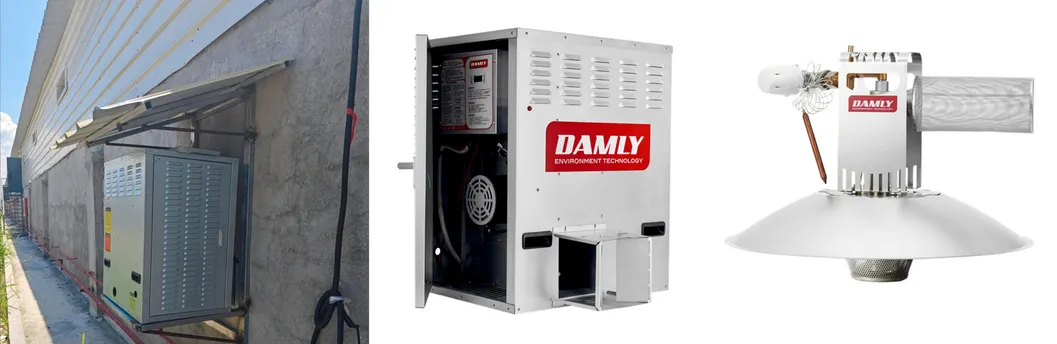

Advanced dimmable lighting systems and space heaters/brooders ensure the optimal environment for various growth stages.
All products are packed with export standard packages, suitable for long-distance ocean transportation to ensure safe delivery.
We have an experienced after-sales team with over 20 years of expertise. We provide quick responses within 24 hours to address any technical questions or feedback from our customers.
