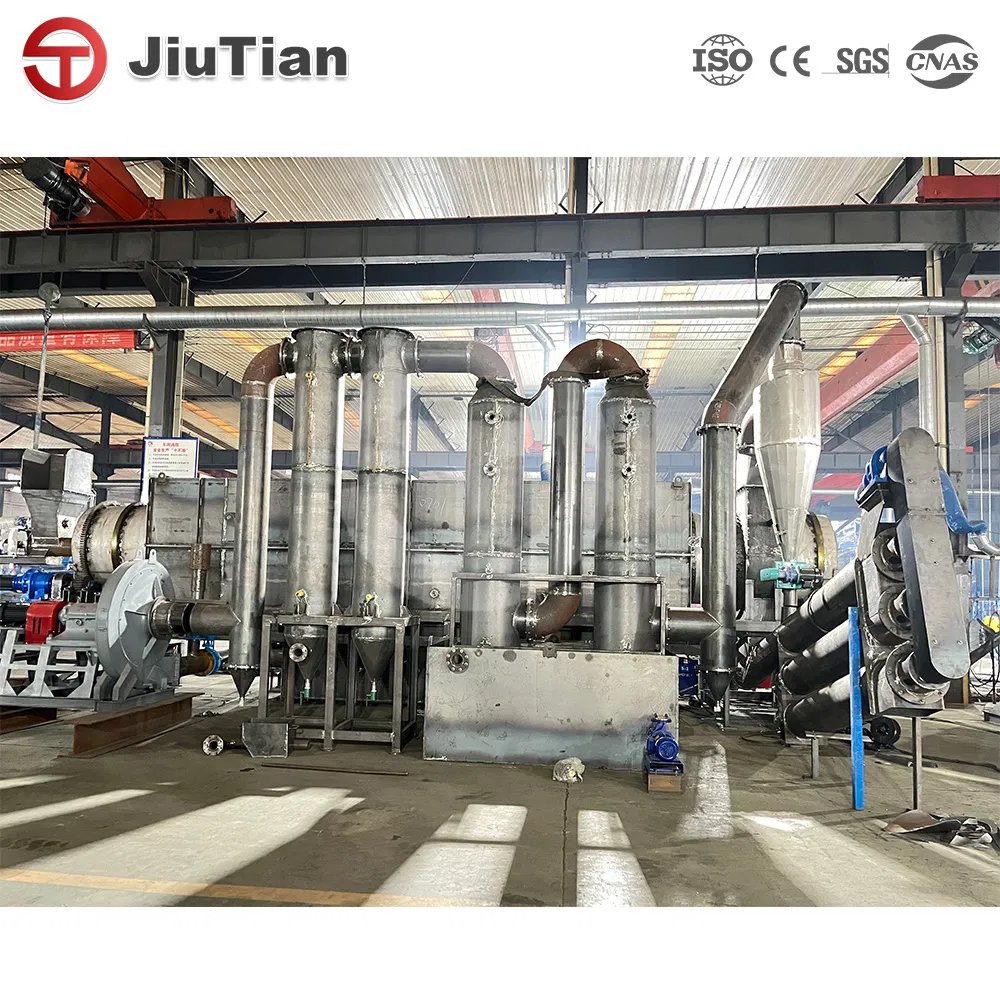

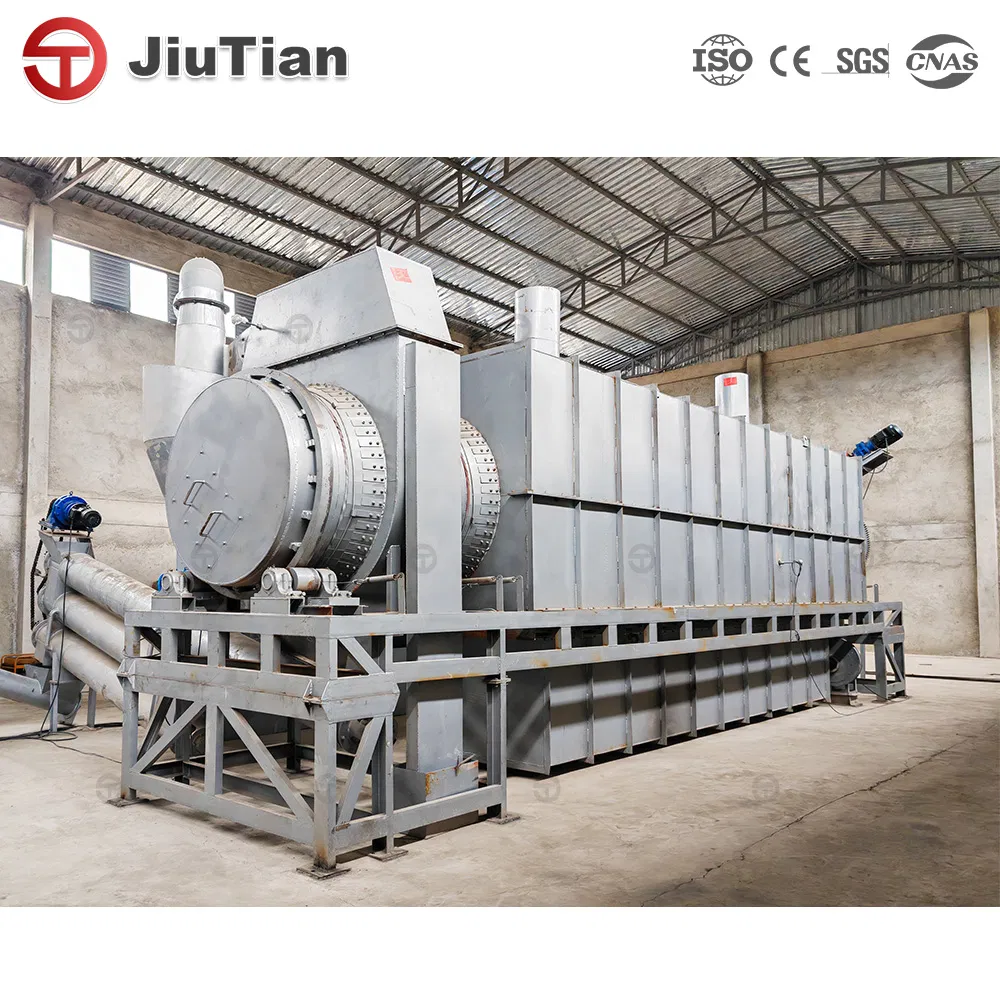

Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
1 / 5
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues
Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues

Energy-Efficient Industrial Carbonization Equipment for Mixed Agricultural Residues

Customization: Available
After-sales Service: Installation, Commissioning, Technical Training
Warranty: 1 Year
Send Inquiry

Product Description

1

Basic Specifications

Model NO.
JT
Smokeless or Not
Yes
Name
Straw Charcoal Making Machine
Usage
Biomass Carbonization
Raw Material
Straw, Nut Shell, Fruit Shell, etc
Capacity(Kg/H)
300-4500
Diameter(mm)
800-3600
The Drum Length(M)
10-12
Drum Speed(Rpm)
1.5-3.0
Power(Kw)
40-230
Voltage
380V
Type
Stainless Steel Heating Equipment
Color
Customizable
Installation
Provided
Certification
CE, ISO, CNAS
Origin
Henan, China
Industrial Carbonization Equipment Separator
2

Product Description

Straw Charcoal Making Machine is a highly efficient, energy-saving and environmentally friendly charcoal making equipment, mainly used to convert straw and other biomass raw materials into high-quality biochar. This machinery is committed to enhancing productivity, profitability, and safety for industrial operations.

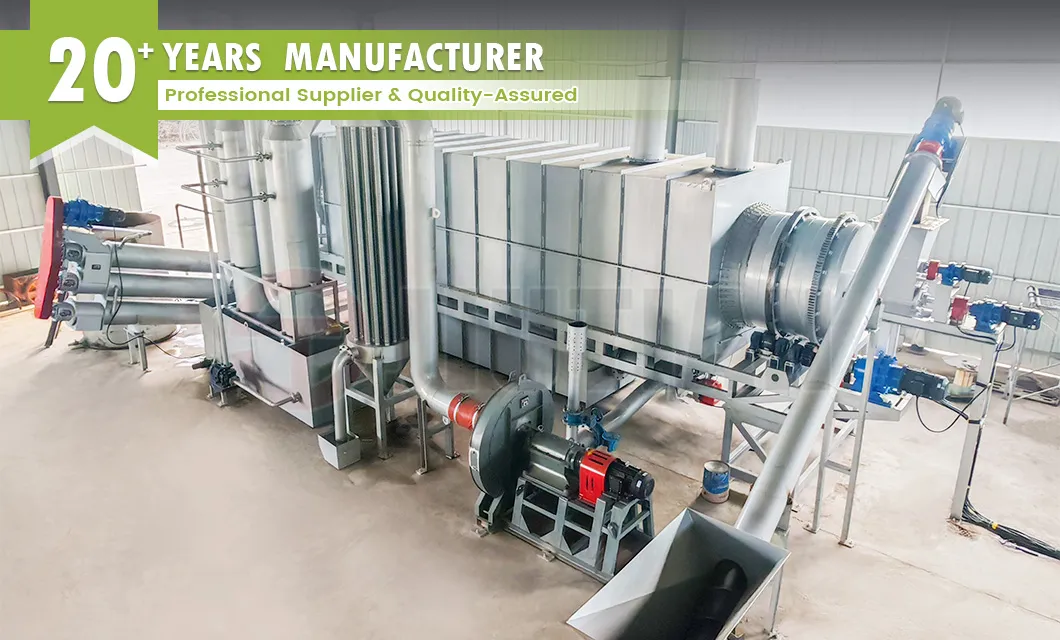

Equipment Overview Charcoal Production
This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell, peanut shell, rice husk, cotton stalk, straw, etc.
3

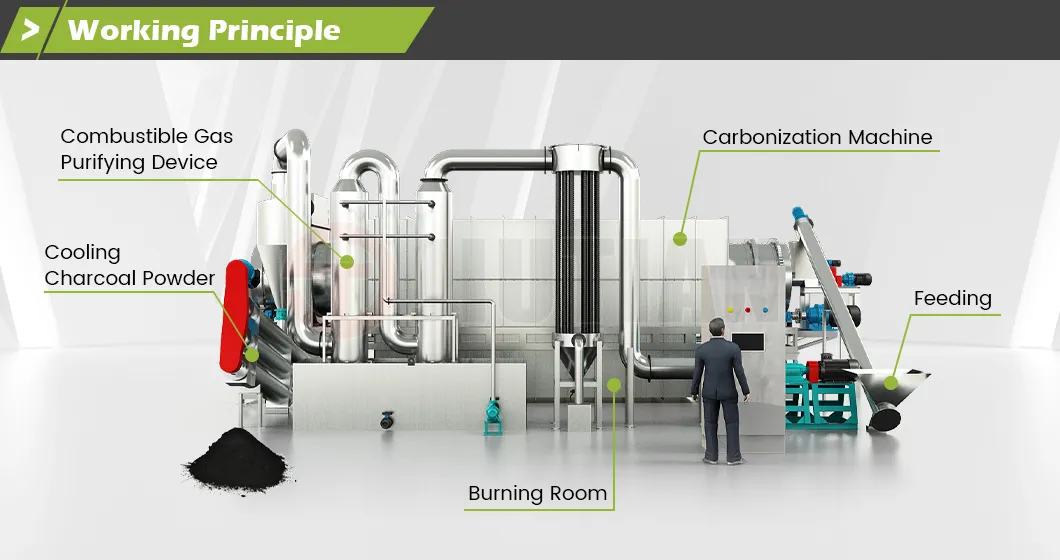

Working Principle

The working principle is to burn the material in a gasification furnace to produce flue gas. After purification and filtering out wood tar smoke and other impurities, the gas is transmitted to the carbonization machine for combustion. In an oxygen-deficient environment at 800 degrees, the material converts to high-quality charcoal. The generated flue gas is recycled back to the system, achieving smokeless and continuous environmental effects.
Working Process
4

Key Features & Advantages

✓
Strong material adaptability: Biomass with moisture content < 20% and particle size < 30 mm can be easily carbonized.
✓
High carbonization rate: Products are suitable for fuel, agricultural carbon, metallurgy, and activated carbon.
✓
Depth control: Residual volatile matter of charcoal products is 10-25%, which can be controlled on demand.
✓
Safe & Durable: Built with high-grade materials and patented processes to ensure long service life and stable operation.
Divider
5

Technical Parameters

Model Inner Layer (mm) Outer Layer (mm) Drum Length (m) Capacity (kg/h) Dimension (m)
JTTJ1410/2800140010300-50010.0*2.1*2.8
JTTJ1610/21000160010500-70010.0*2.3*3.0
JTTJ1810/21200180010700-100010.0*2.6*3.2
JTTJ2010/214002000101100-130010.0*2.9*3.9
JTTJ2312/216002300121500-200012.0*3.2*4.2
JTTJ2512/218002500122200-250012.0*3.5*4.5
JTTJ2912/222002900122700-300012.0*3.9*4.9
JTTJ3212/225003200123300-380012.0*4.2*5.3
JTTJ3612/229003600124000-450012.0*4.6*5.8

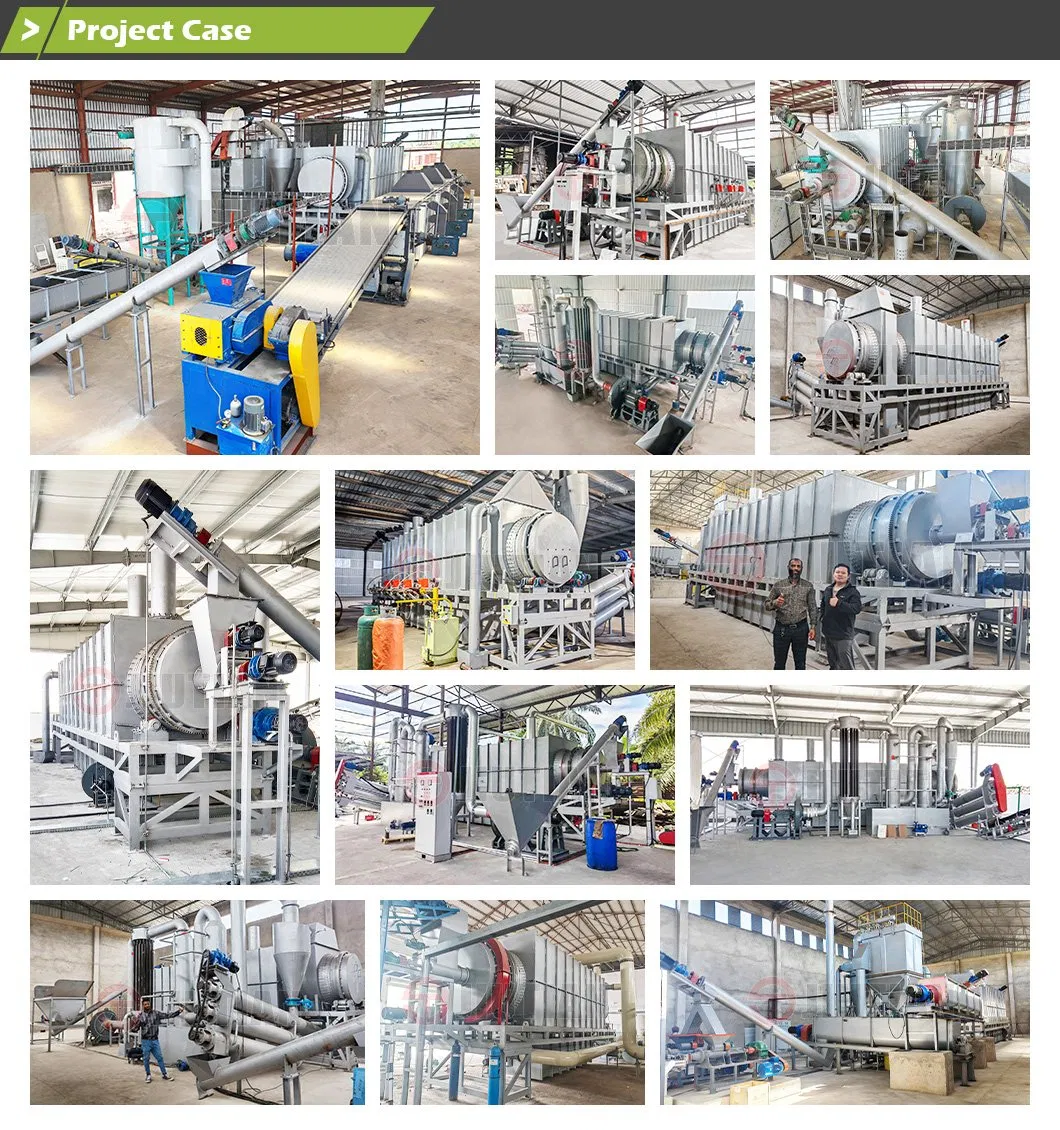

Detail View 1 Detail View 2 Factory Operation

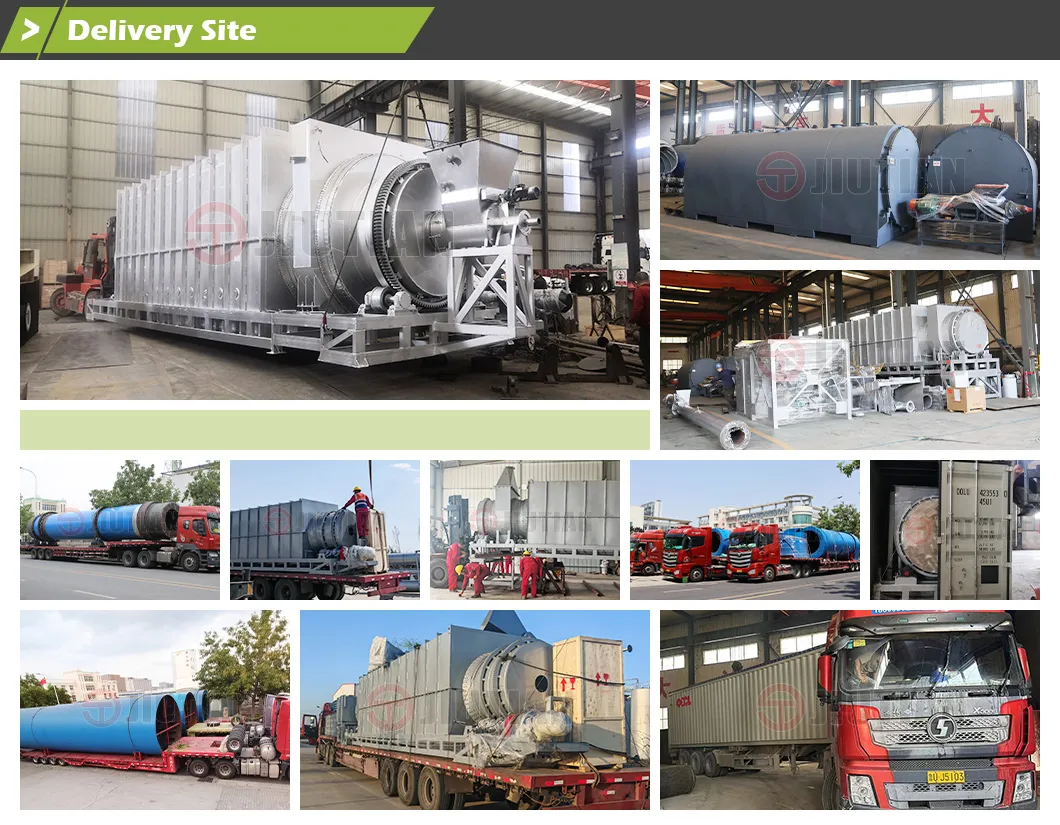

Production Site Shipping Packaging Bottom Divider

Frequently Asked Questions

What raw materials can be used with this machine?
The machine is suitable for various biomass materials including straw, sawdust, wood chips, bagasse, coffee grounds, coconut shells, rice husks, and cotton stalks.
Is the carbonization process environmentally friendly?
Yes. It features a flue gas purification system that filters out wood tar and impurities. The gas is recycled for combustion, ensuring a smokeless and continuous operation.
What are the requirements for raw material moisture and size?
For optimal carbonization, the biomass should have a moisture content of less than 20% and a particle size of less than 30 mm.
How long is the quality guarantee period?
We provide a comprehensive quality guarantee for one year from the date of purchase.
Do you provide technical support and layout planning?
Yes, our professional technical team provides detailed production layouts, 3D animations, and full installation technology support.
Can the quality of the final charcoal be adjusted?
Yes, the carbonization depth is controllable. The residual volatile matter of charcoal products can be adjusted between 10-25% based on your specific needs.
