Basic Specifications
Usage
Commercial Broiler Production
Equipment Type
Hot Blast Stove
Prevention Type
Broiler Farm Equipment
Certification
ISO9001:2008, CE
Structure
Galvanized Steel

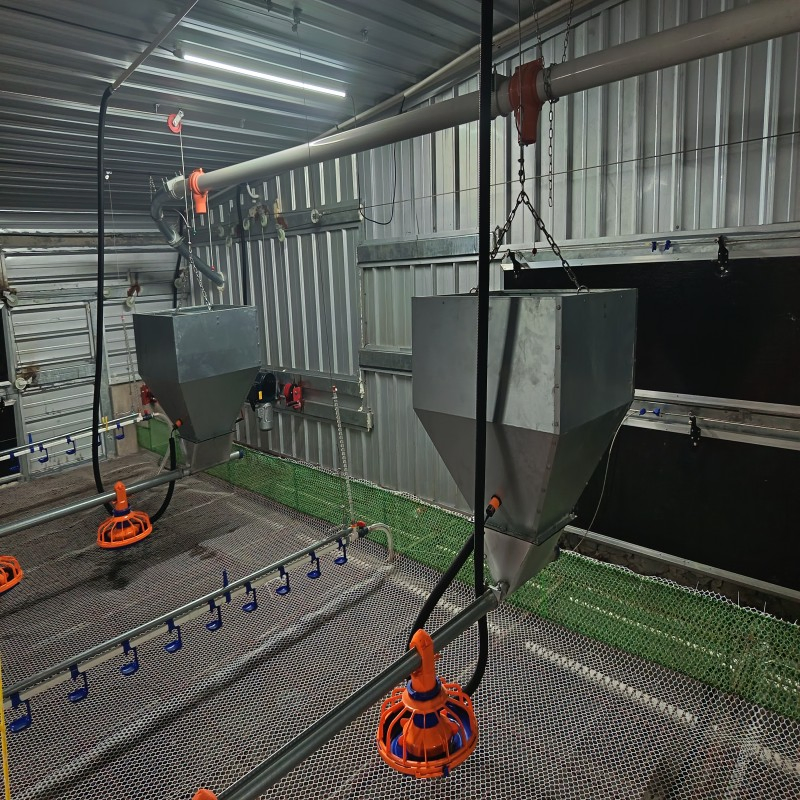

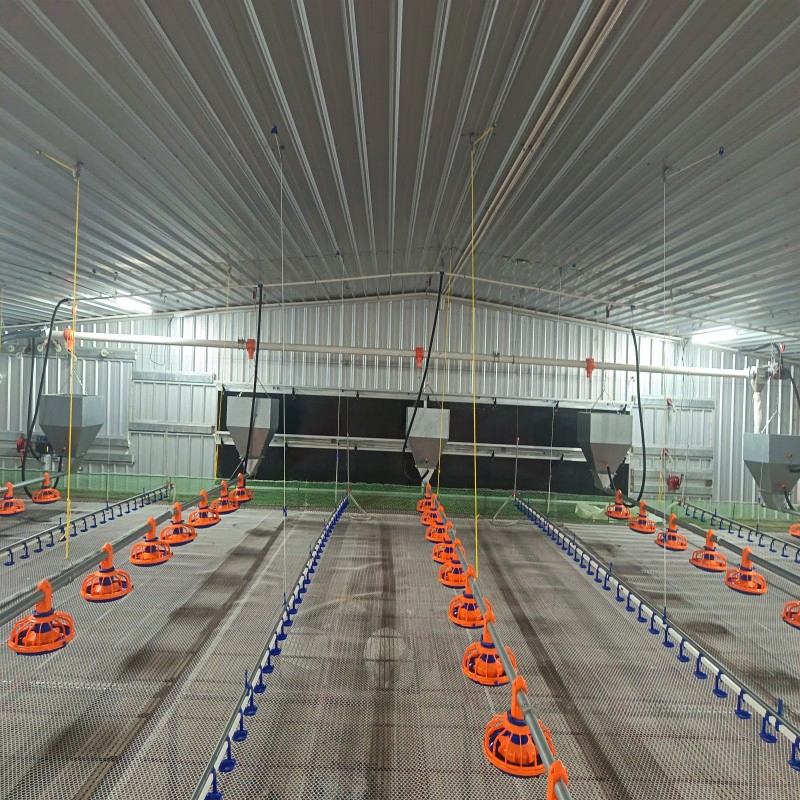

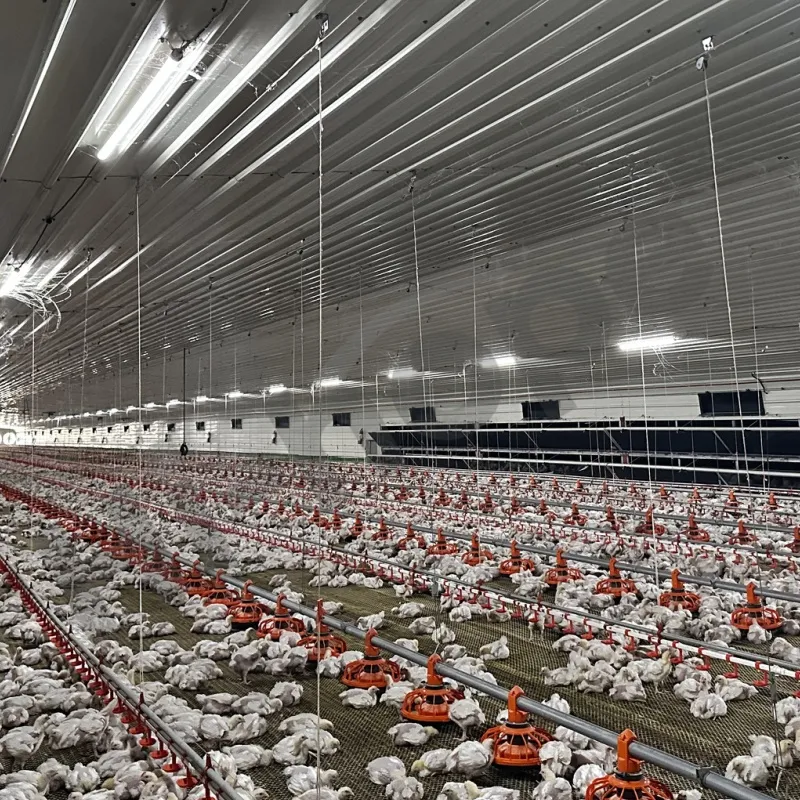

Energy-Efficient Feeding and Drinking Equipment
This professional integrated modern broiler farm design provides advanced technology and high-quality products for broiler farms globally. The system is engineered for longevity and anti-waste performance in various climate conditions.

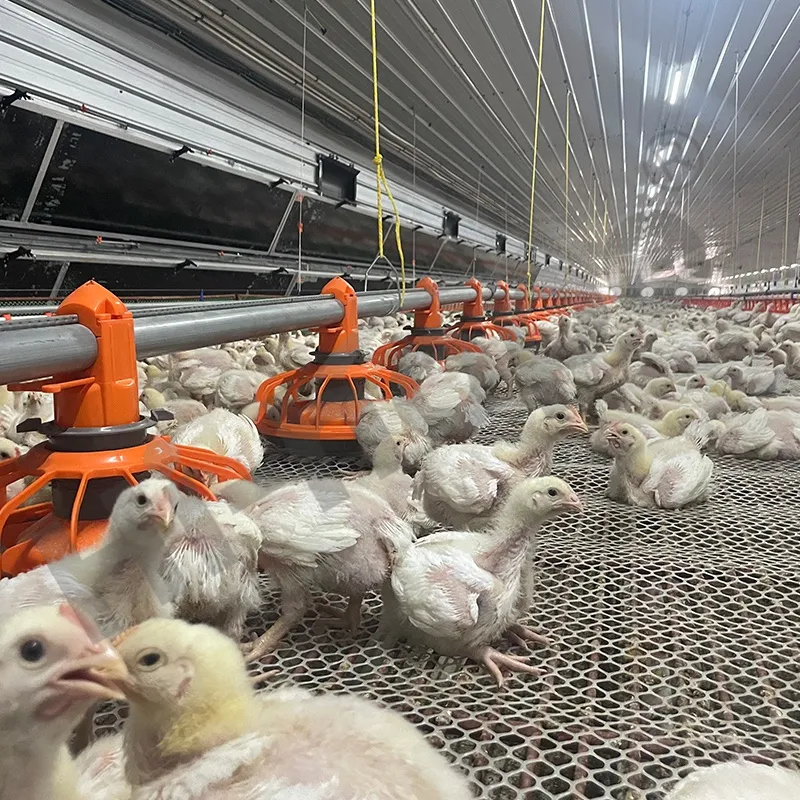

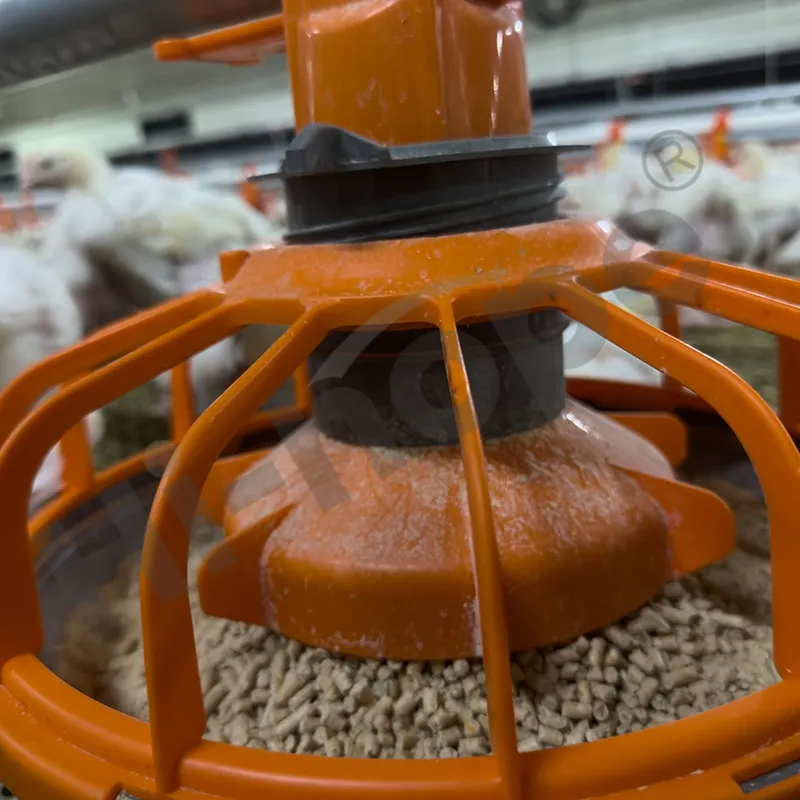

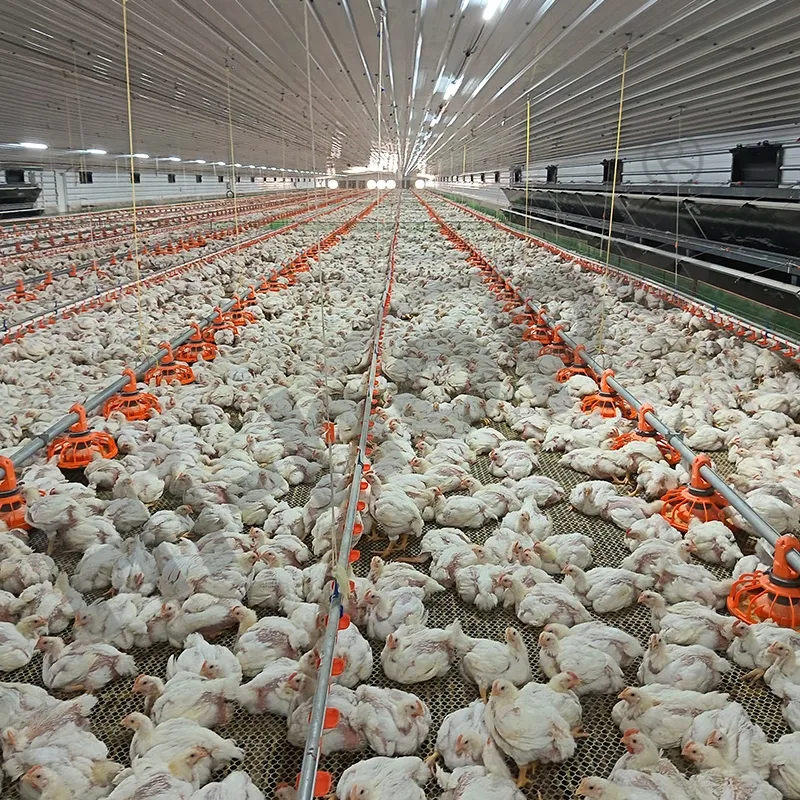

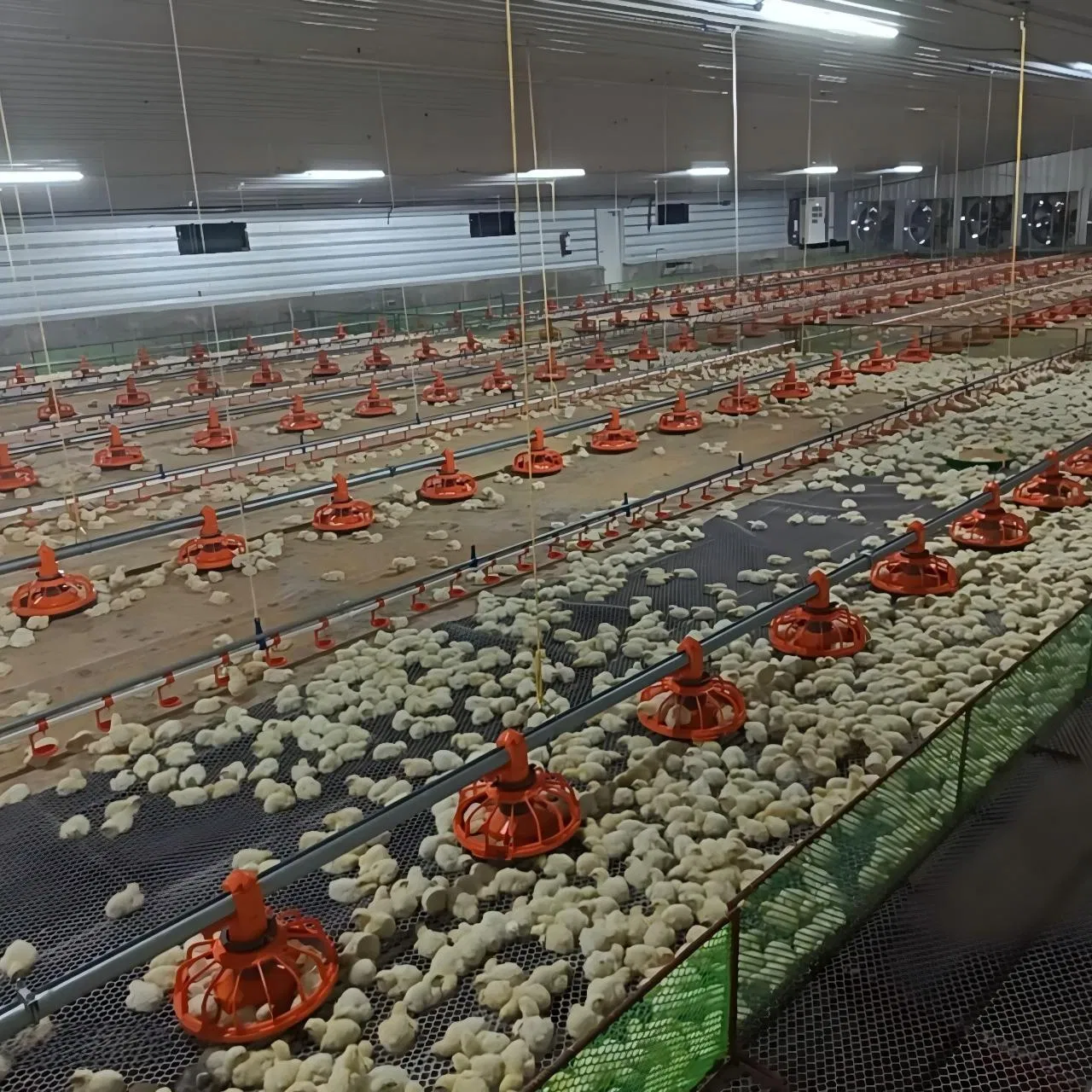

Broiler Pan Feeding Line

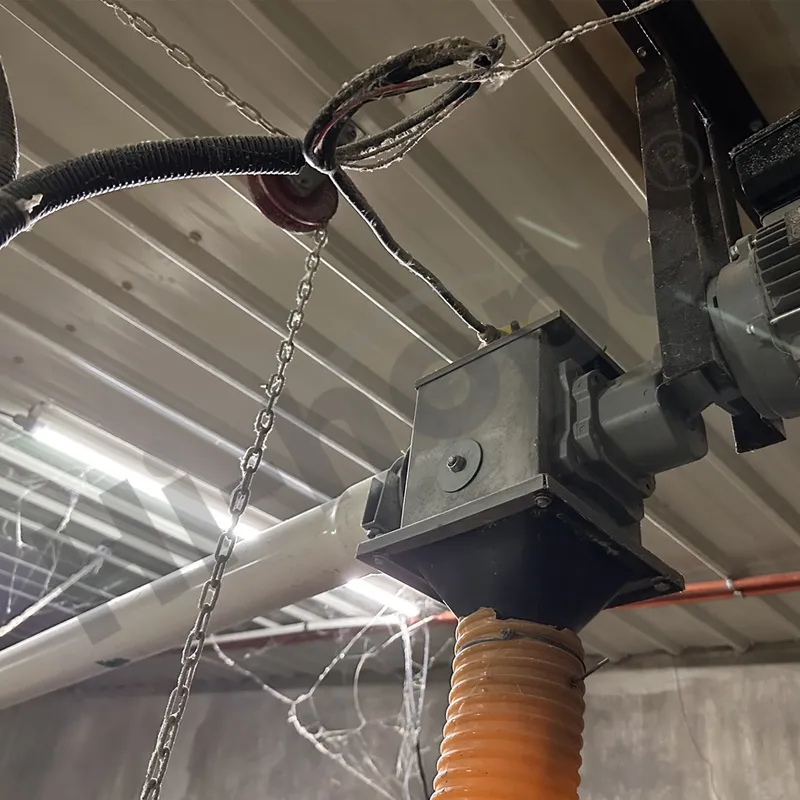

Includes Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed deliver Auger, and Suspension system. The stable drive motor ensures the whole line works automatically and efficiently. The feeder is designed for use from day one until the birds are moved out, maximizing feed bearing capacity to supply more birds and achieve the best FCR.

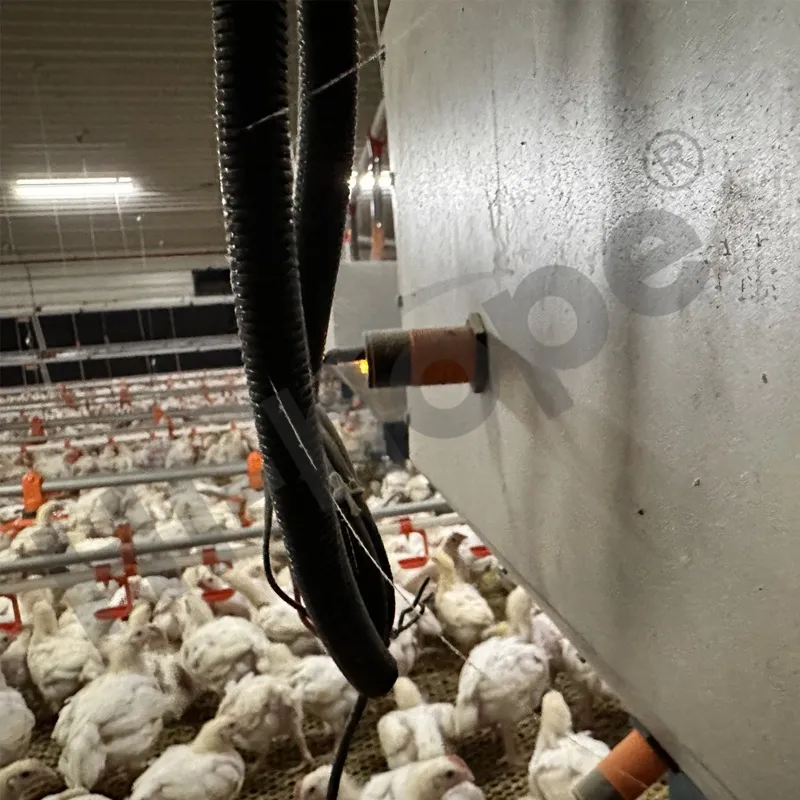

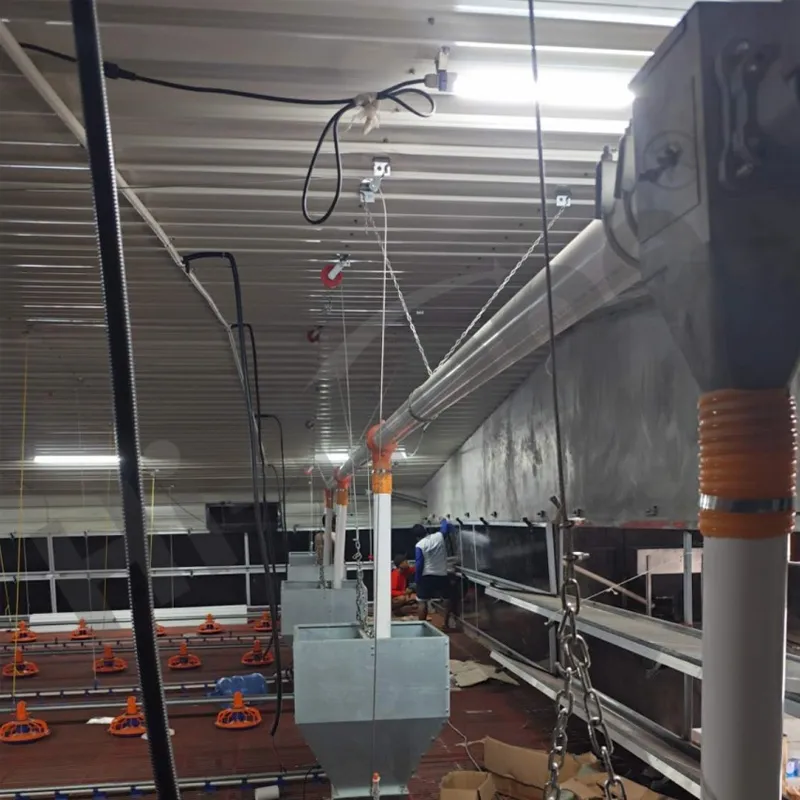

Feed Storage and Fill System
| System Specification |
75mm System |
90mm System |
| Max Delivery Length |
60m |
40m |
| Gear Motor |
1.1HP/1.5HP, 50/60HZ |
1.1HP/1.5HP, 50/60HZ |
| Delivery Capacity |
1400 KGS/H |
2500 KGS/H |

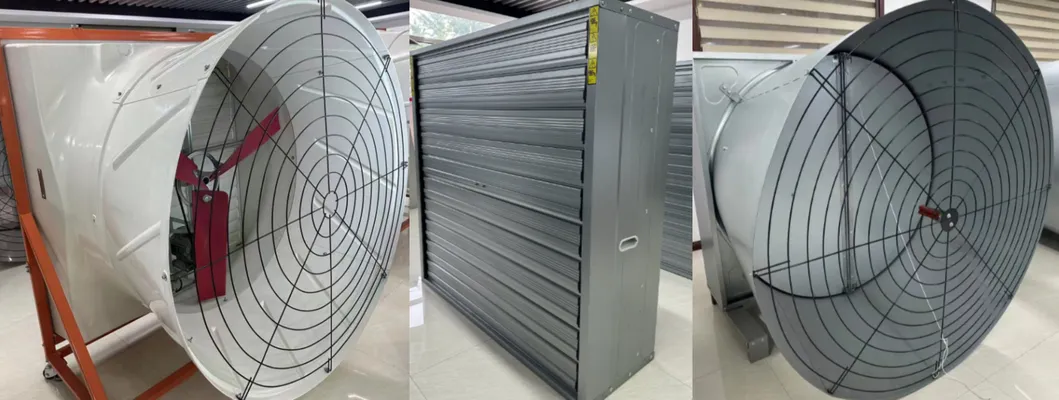

Climate Control System
Includes tunnel fans, air inlets, cooling pads, and tunnel doors to manage the house environment effectively.
| Fan Model |
Static Pressure (Pa) |
Air Flow (M³/H) |
Voltage (V) |
Phases |
| 54in Fiberglass Cone Fan |
0 / 12.5 / 25 |
55000 / 53100 / 50800 |
220v-380v |
1 or 3 |
| 50in Galvanized Cone Fan |
0 / 12.5 / 25 |
49530 / 40194 / 37236 |
220v-380v |
1 or 3 |

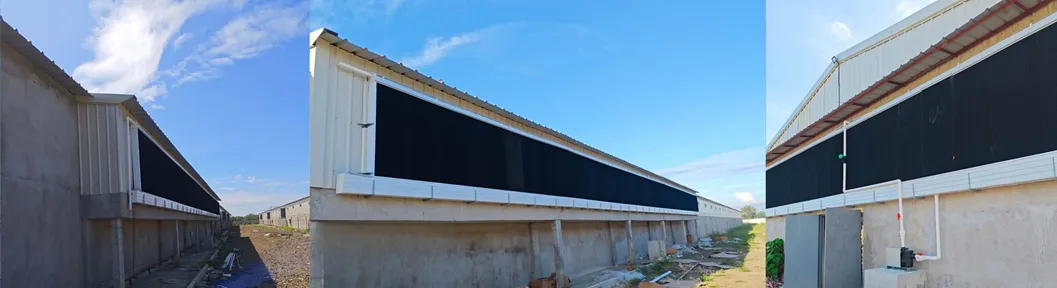

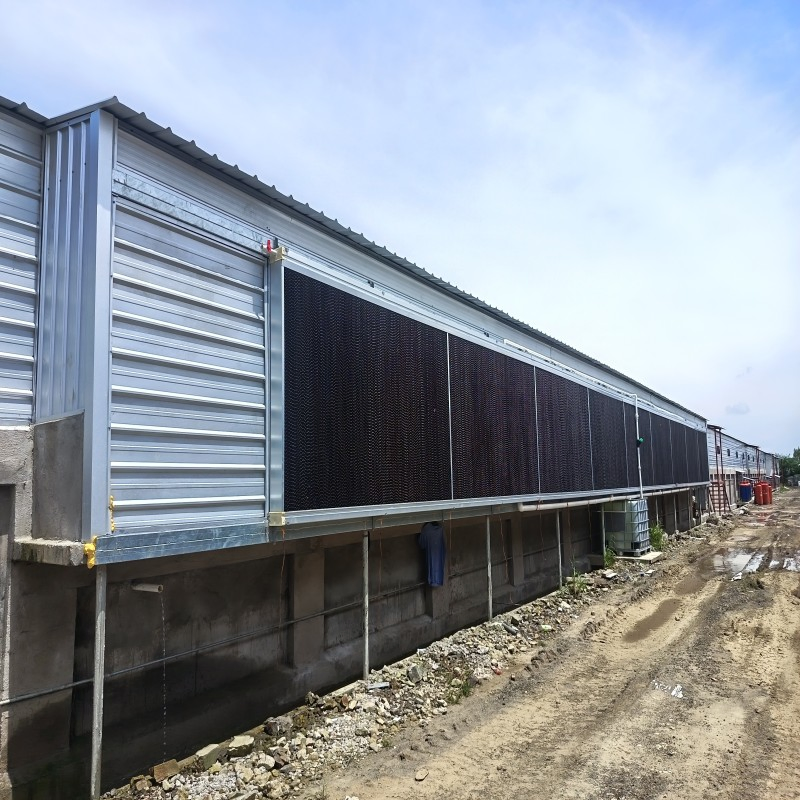

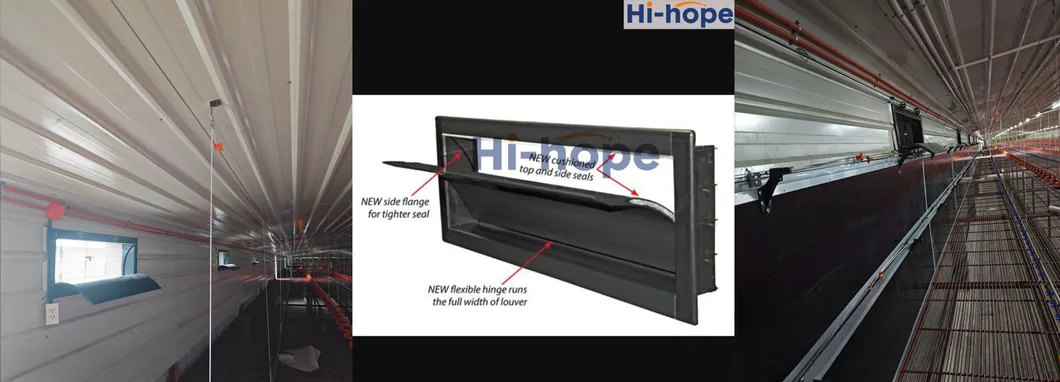

Evaporative Cooling and Air Inlet
Tunnel Door System Features:
- Special panel material for superior insulation.
- Modular design for maximum flexibility.
- Prevents cold stress by mixing fresh air properly.
- Eliminates dead zones at side and end walls.
- Automatic control of opening size based on bird age.

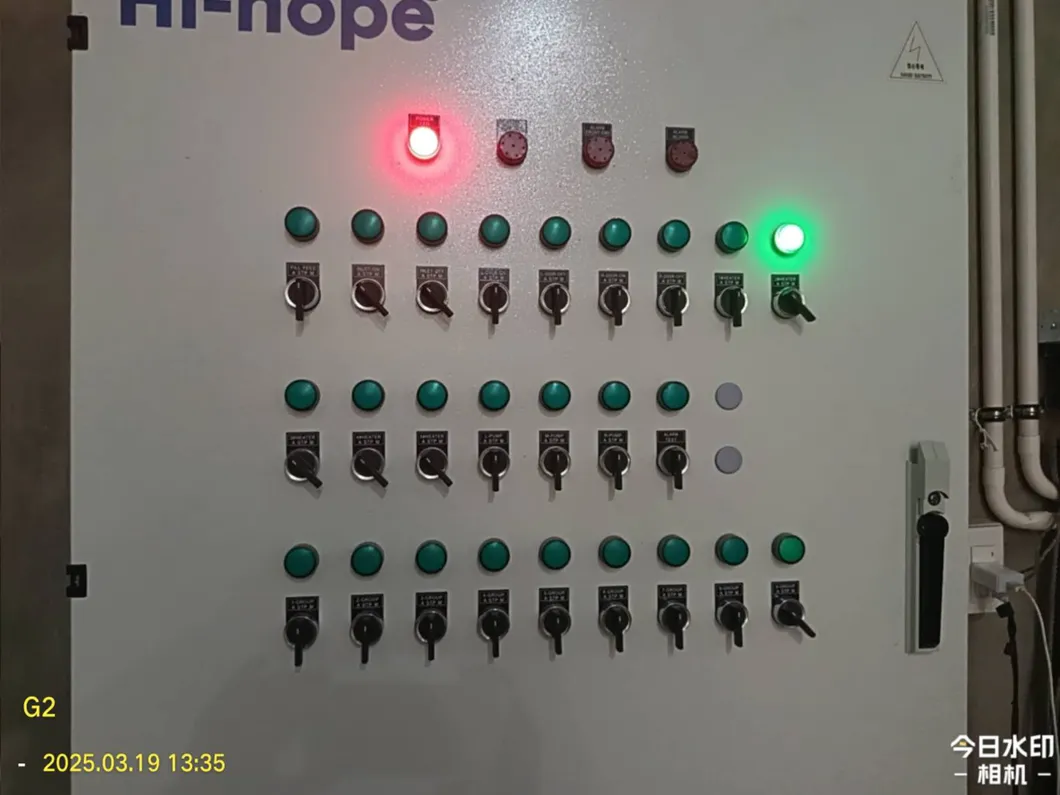

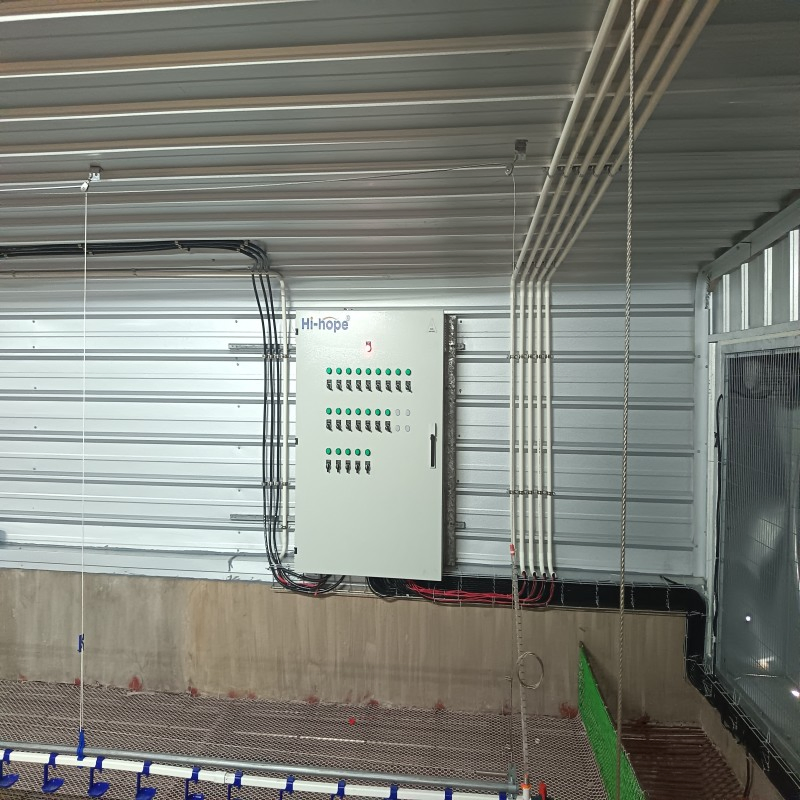

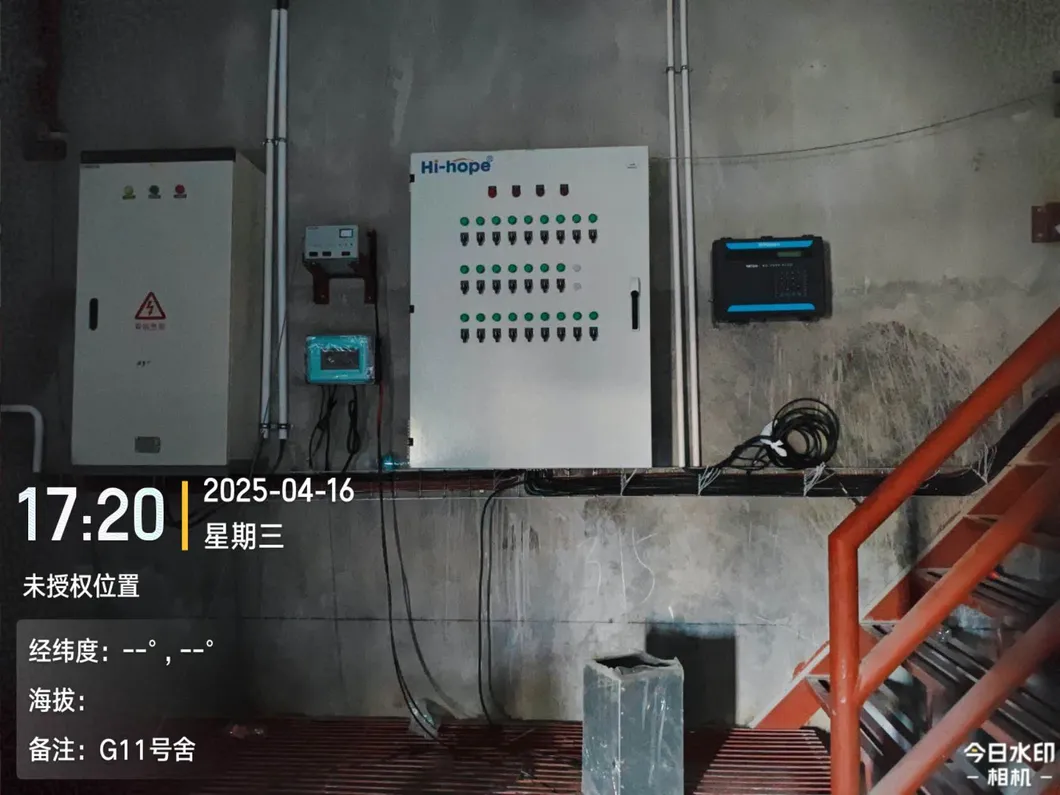

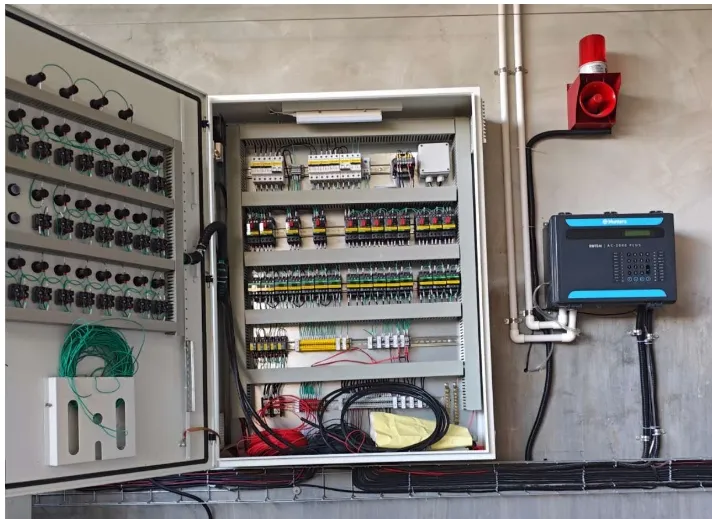

Intelligent Control & Lighting
The ventilation system utilizes computerized controllers with temperature, humidity, and negative pressure sensors to regulate environmental conditions automatically. High-quality electronic components ensure safety.

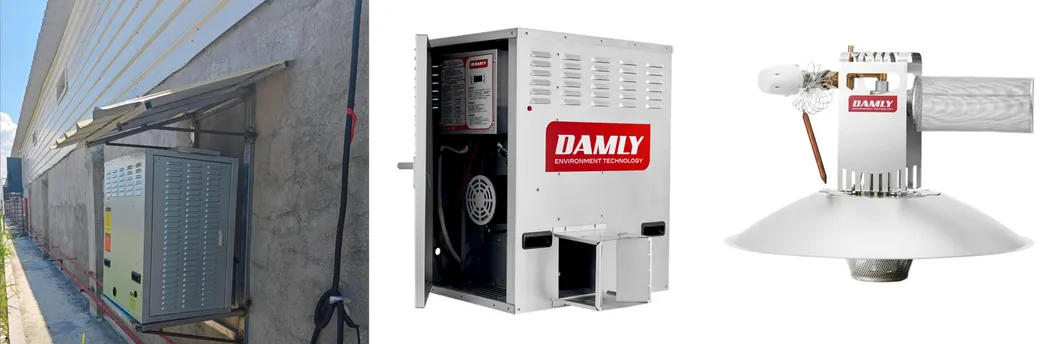

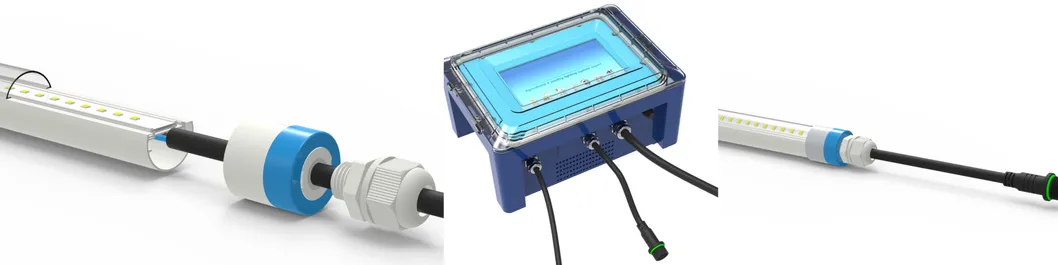

Heating & Lighting Systems
Quality Standards & Support
All products are packed with export standard packaging suitable for long-distance ocean transportation. We provide a quick response within 24 hours to address any technical questions or feedback.
Frequently Asked Questions
1. What is a broiler floor rearing system?
It's a poultry farming method where broilers are raised on litter-covered floors, supported by automated feeding, drinking, and climate control systems without the use of cages.
2. How many broilers can be raised in one house?
This depends on house size and target weight. Generally: <2kg birds allow 32kg/sqm; 2-2.5kg birds allow 37kg/sqm; >2.5kg birds allow up to 42kg/sqm.
3. What are the advantages of floor rearing?
Key benefits include improved animal welfare, reduced bird stress, easier system maintenance, and lower labor costs through high automation.
4. Is climate control necessary for broilers?
Yes, broilers are extremely sensitive to temperature and humidity. Automated climate control is essential for optimal growth and health.
5. Can the system be fully automated?
Absolutely. Modern systems integrate intelligent controllers that manage feeding, lighting, and ventilation automatically for maximum efficiency.
6. What support is provided for installation?
We offer comprehensive installation guidance, technical training, and responsive after-sales service to ensure smooth operations.
