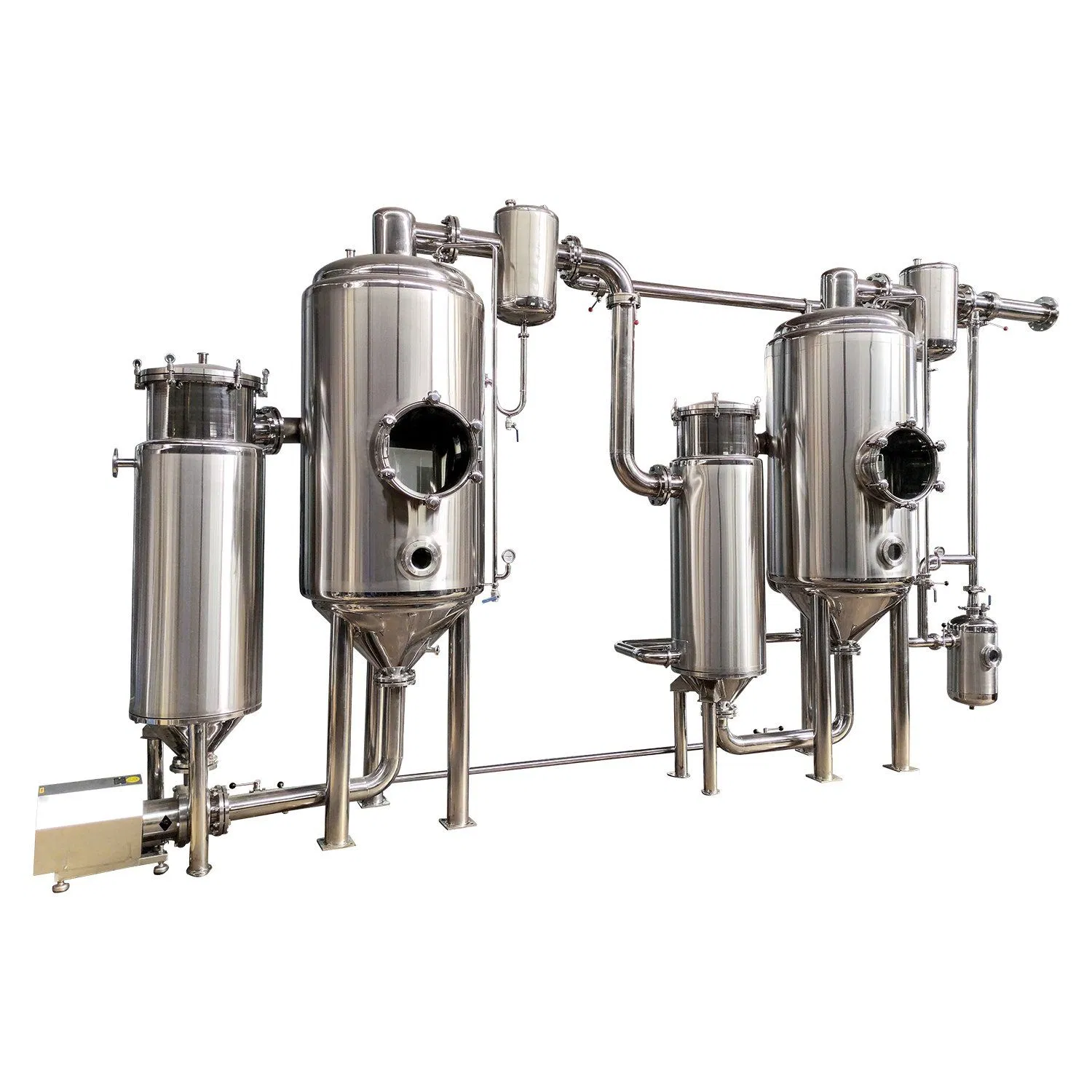

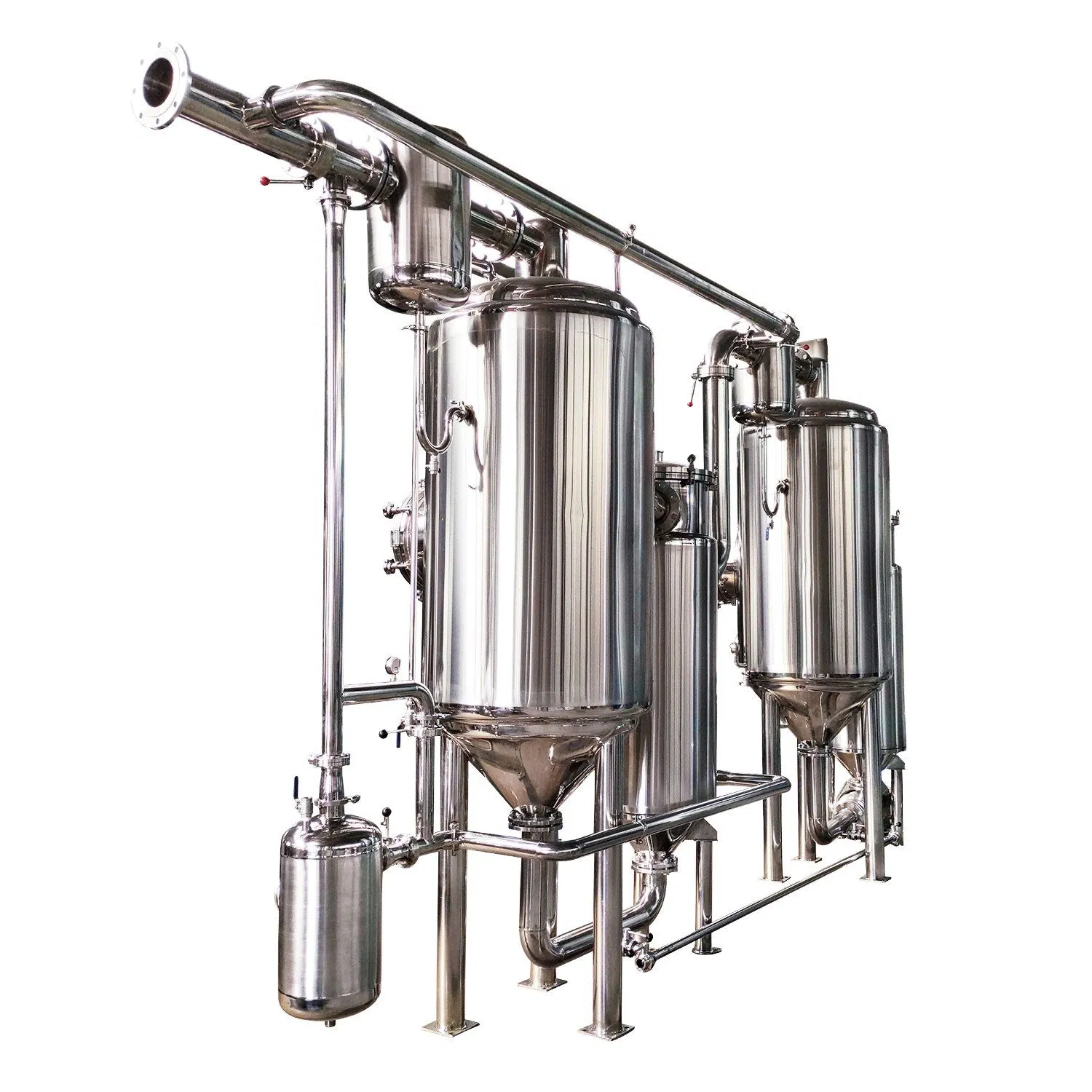

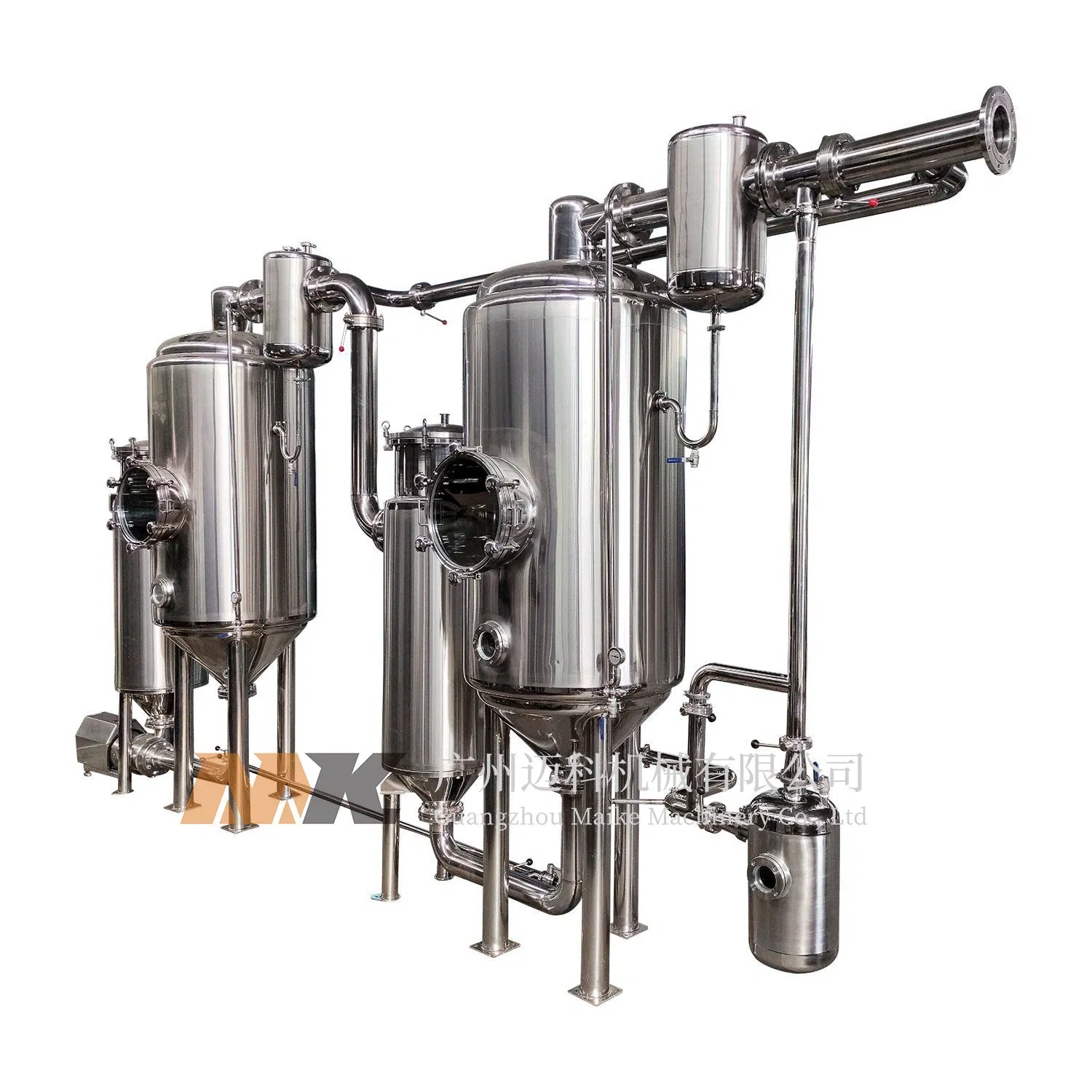

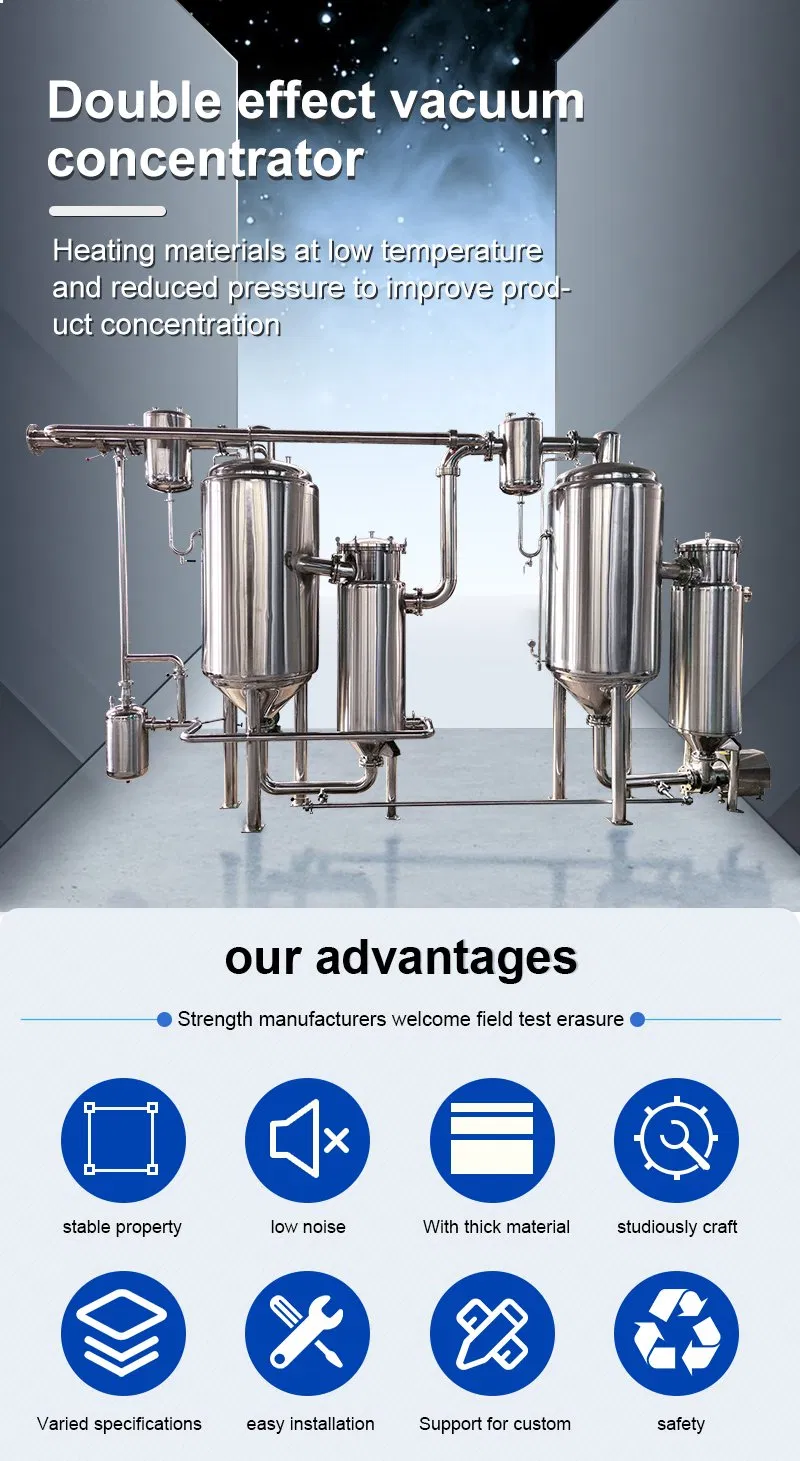

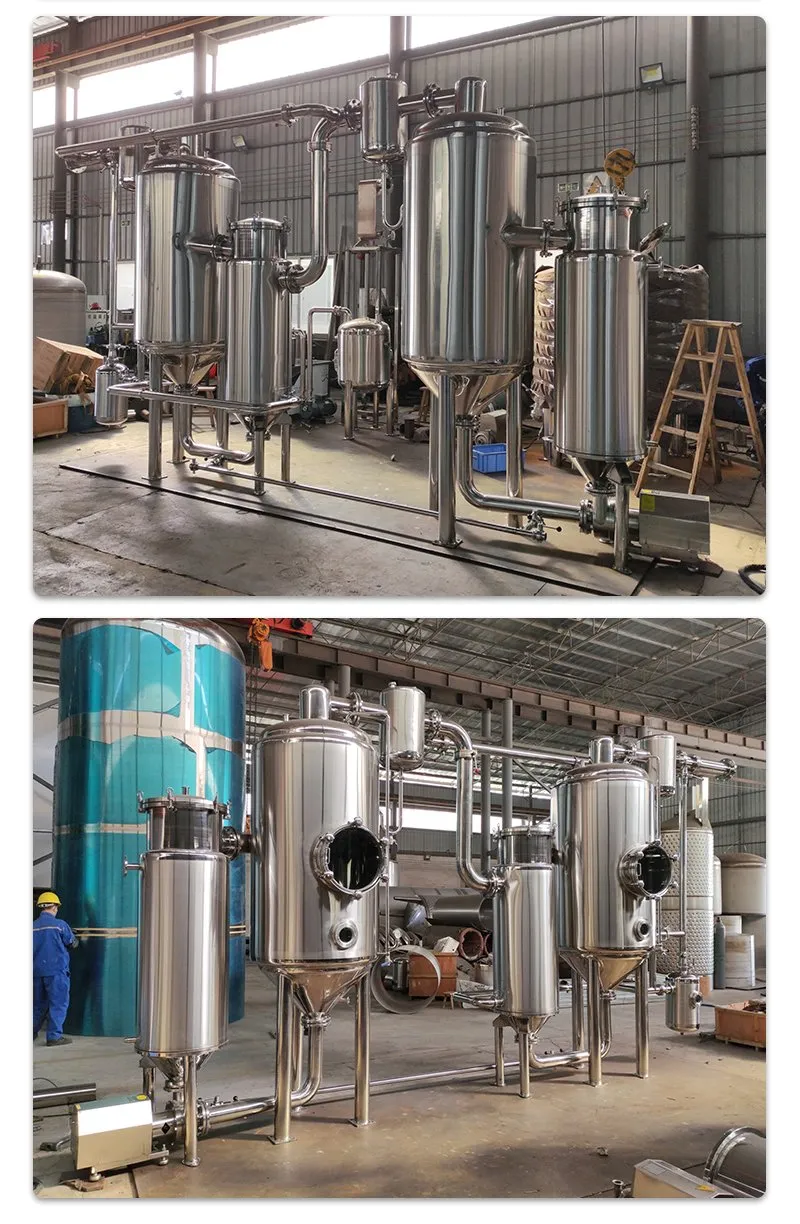

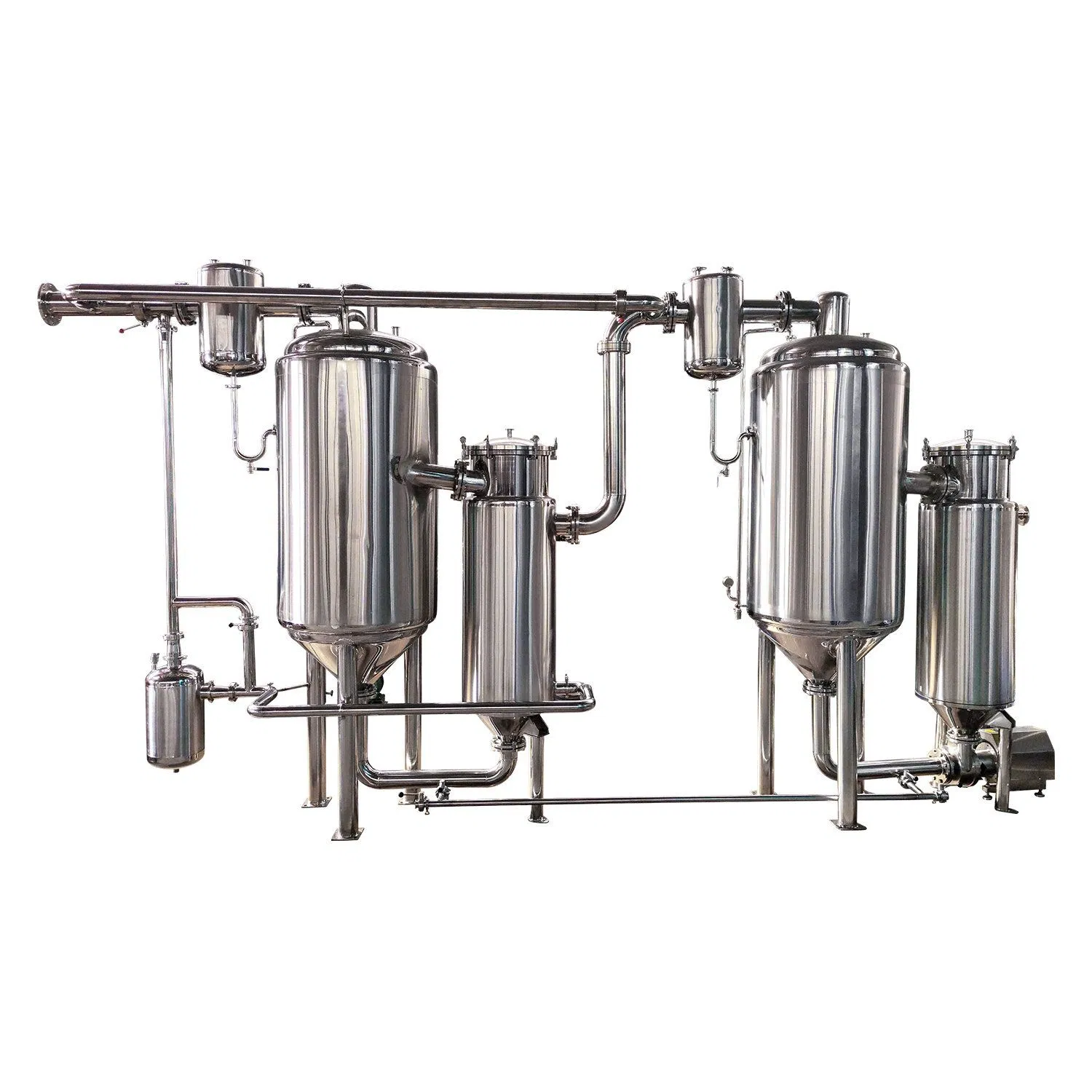

Vacuum concentration is a process of heating materials under reduced pressure, causing rapid evaporation and vaporization of water, and continuously eliminating the secondary steam generated by vaporization. This allows the concentration of the product to be continuously increased until it reaches specific requirements. The Double effect vacuum thickener is ideally suited for concentration, distillation, and recovery of organic solvents in pharmaceutical, food, and chemical industries.
| Type | MK-SJN-500 | MK-SJN-1000 | MK-SJN-1500 | MK-SJN-2000 | MK-SJN-3000 |
|---|---|---|---|---|---|
| Evaporation (kg/h) | 600 | 1200 | 1700 | 2100 | 3100 |
| Steam Pressure (MPa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Steam Consumption (kg/h) | 250 | 500 | 750 | 1000 | 1500 |
| 1st Effect Temp (°C) | 80~90 | 80~90 | 80~90 | 80~90 | 80~90 |
| 2nd Effect Temp (°C) | 55~70 | 55~70 | 55~70 | 55~70 | 55~70 |
| 1st Effect Vacuum (MPa) | -0.06 | -0.06 | -0.06 | -0.06 | -0.06 |
| 2nd Effect Vacuum (MPa) | -0.08 | -0.08 | -0.08 | -0.08 | -0.08 |
| Water Consumption (t/h) | 6 | 12 | 15 | 18 | 20 |
