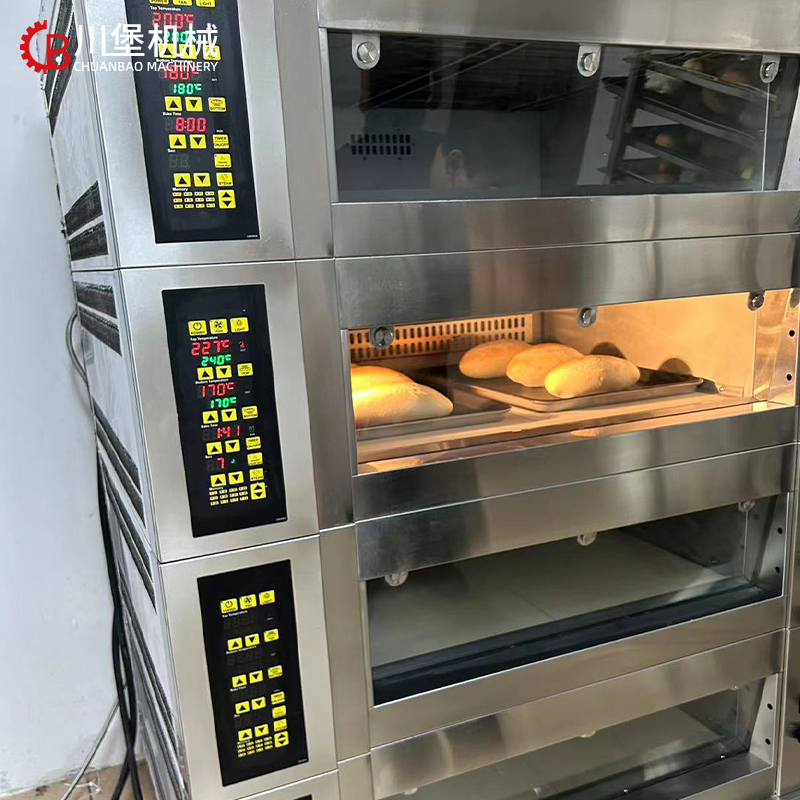

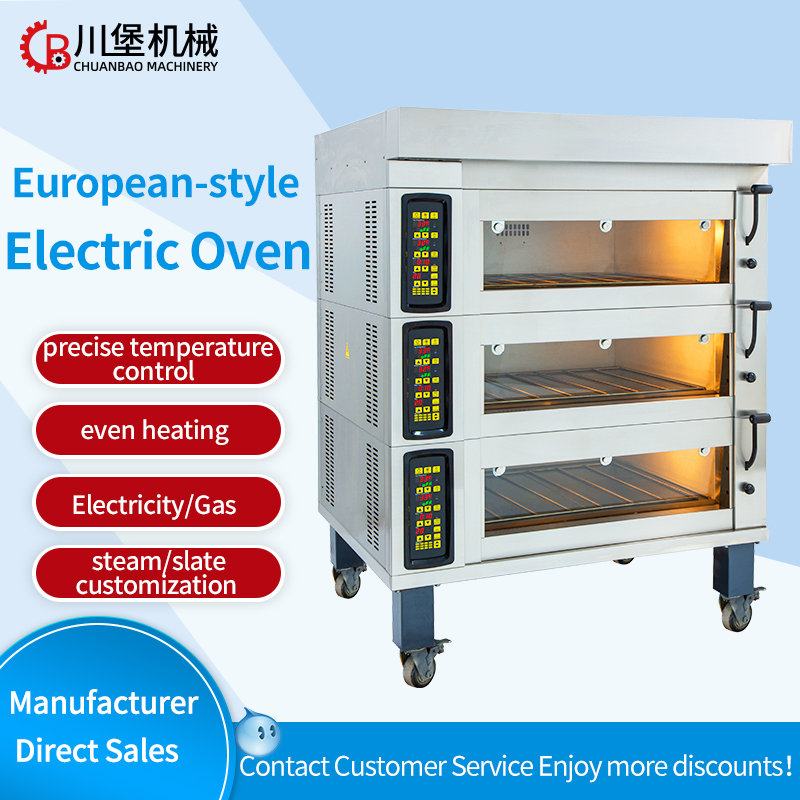

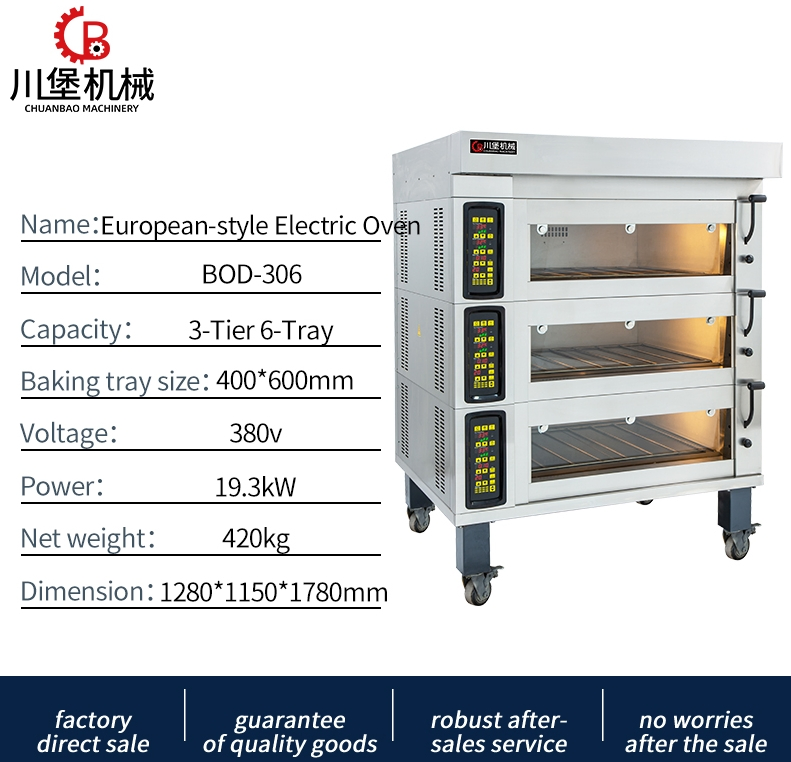

European-Style Intelligent Commercial Baking Oven with Smart Features

Customization: Available
After-sales Service: One-Year Warranty
Warranty: One-Year Warranty

Product Description

Basic Specifications

Model NO.BOR-306
UsageBiscuit, Cake, Pizza, Bread
Power SourceElectric
Timing DeviceEquipped
Voltage380V
DesignEuropean Style
Capacity3 Layers / 6 Trays
Tray Size400*600mm
Dimensions1280*1150*1780mm
OriginChina

Product Introduction

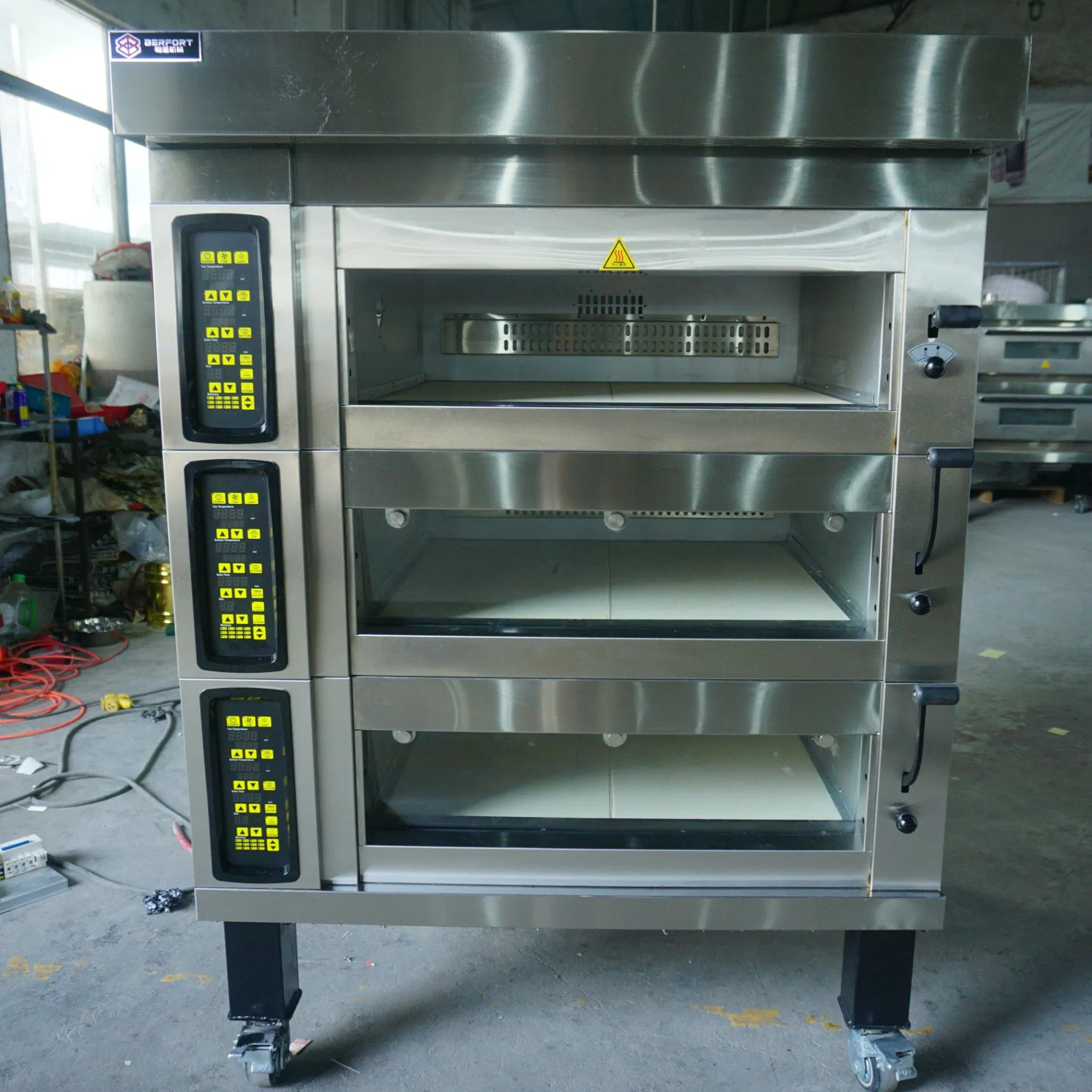

Baking Oven Main

The European-style three-tiered six-pan oven is a high-performance device specifically engineered for professional commercial baking operations.

Multi-layer Capacity Three layers of space, each holding two pans, allowing simultaneous baking of six pans, ideal for large-scale production.
Efficient Heating Features U-shaped corrugated heating tubes for uniform heat distribution and perfect baking results.
Independent Control Each deck supports independent temperature control via a microcomputer digital system with SCR module assistance.
Durable Construction Made of high-grade stainless steel (interior and exterior) for longevity and easy maintenance.
Versatile Range Suitable for bread, baguettes, Western pastries, biscuits, mooncakes, burgers, and roasted meats.

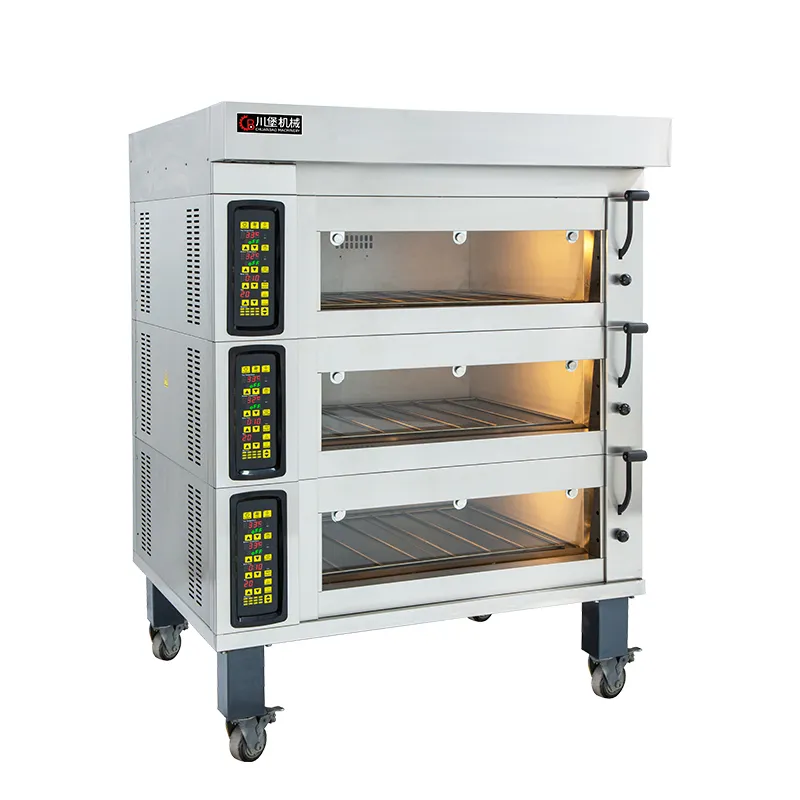

Oven Feature 1
Oven Feature 2
Oven Feature 3

Model Comparison

Model Capacity Dimensions Tray Size V & P Temp Range Weight
BOD-204 2-deck 4-pan 1280*1150*1500mm 400*600mm 380V / 13kW 0~300°C 280kg

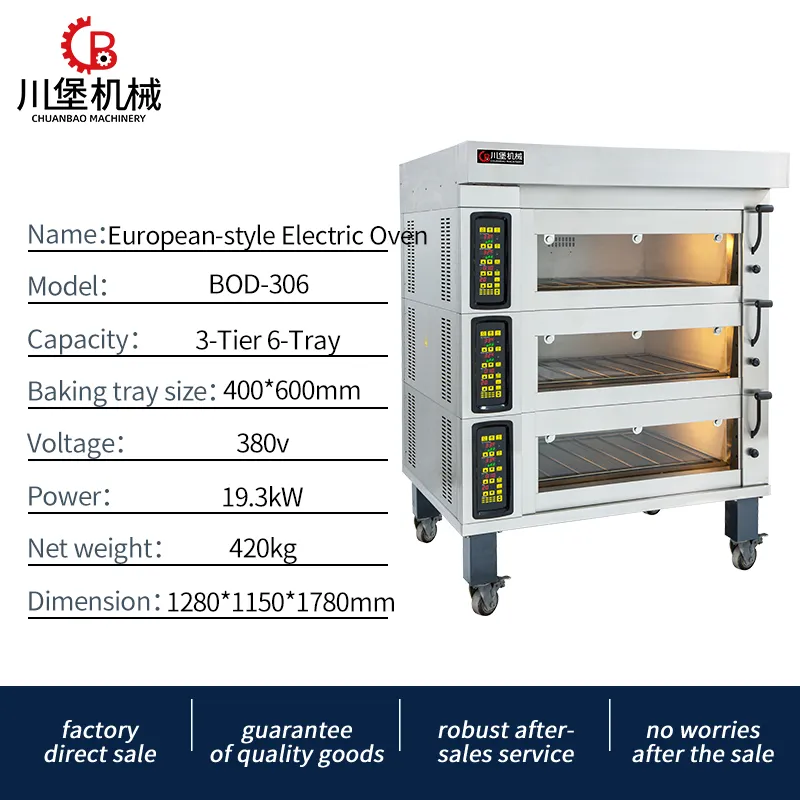

BOD-306 3-deck 6-pan 1280*1150*1500mm 400*600mm 380V / 19.3kW 0~300°C 420kg
BOD-309 3-deck 9-pan 1700*1150*1780mm 400*600mm 380V / 26.5kW 0~300°C 540kg

Operation Instructions

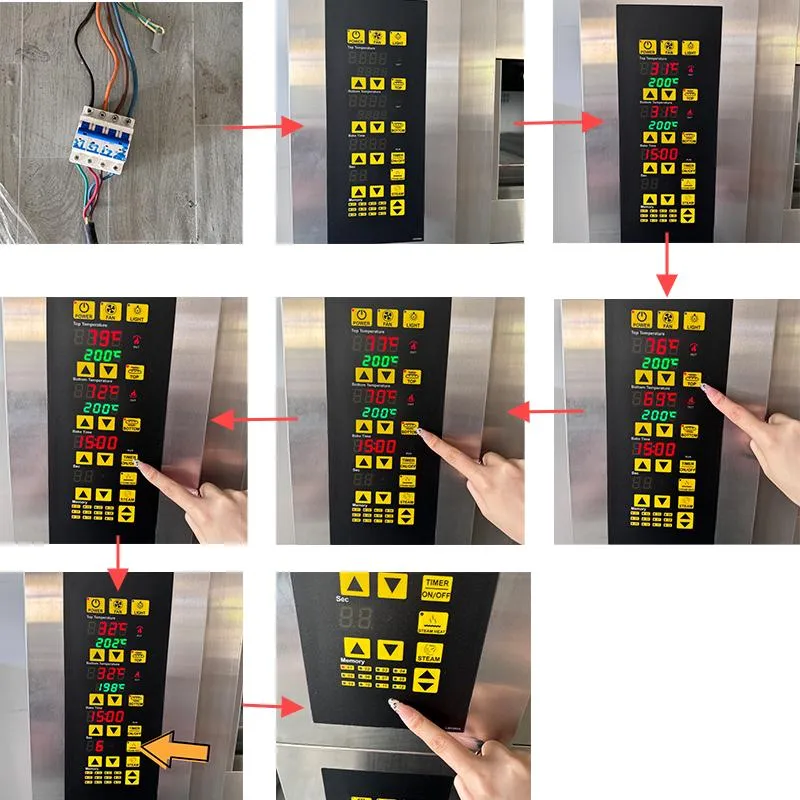

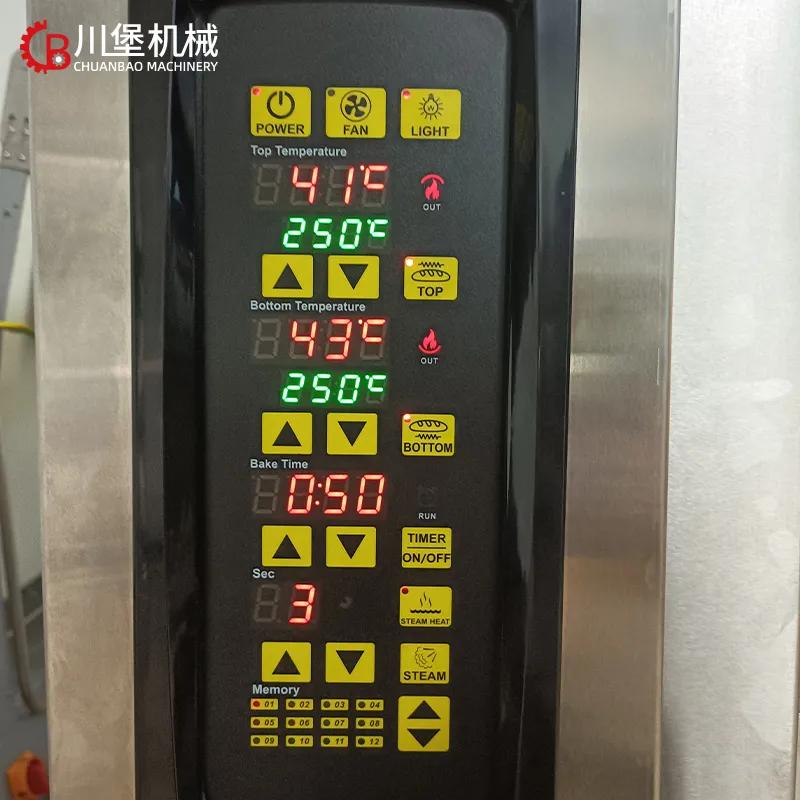

Operation Panel
  1. Power Connection: Connect to the 380V power source. (Ensure correct wiring to protect the motor).
  2. Standby Mode: When the switch is off, the power button will flash a red dot indicating electricity is active.
  3. Settings: Turn on the machine to set baking temperature and timing on the digital interface.
  4. Temperature Control: Adjust top and bottom heating elements independently. Green numbers show set temperature; red shows current actual temperature.
  5. Baking Time: Set the duration using the arrow keys (e.g., 15 minutes).
  6. Steam Settings: (Custom feature) Inject steam by pressing the button once the set injection temperature is reached.
  7. Memory Functions: Includes 12 memory modes for quick access to pre-set baking recipes.
NOTE: The machine will start preheating. Once the red indicator matches your set temperature, load the food and start the timer. A beep will alert you when finished.

Product Details & Factory Gallery

Detail 1

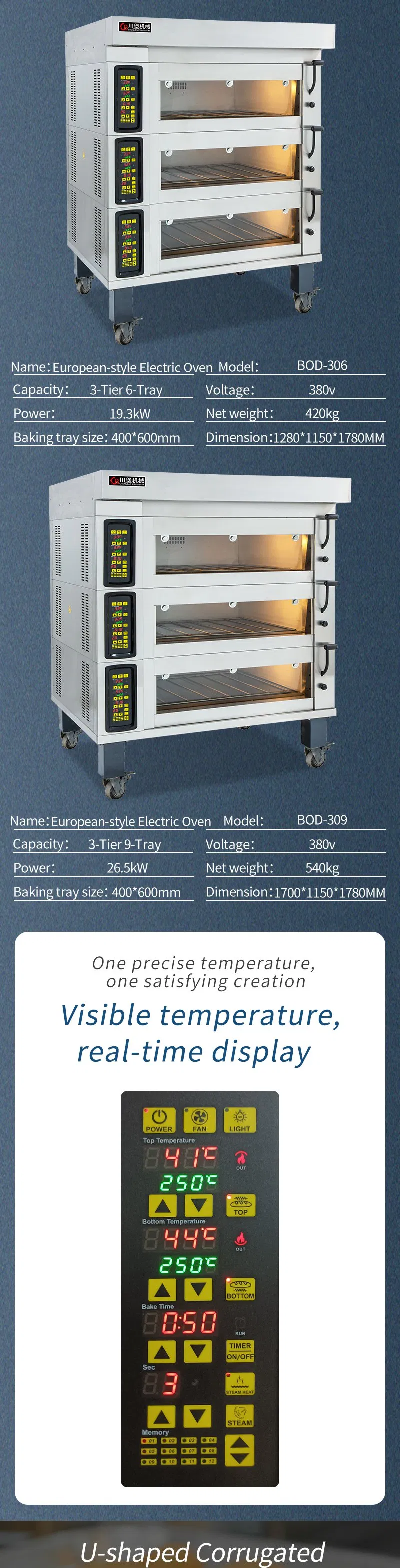

Detail 2
Detail 3

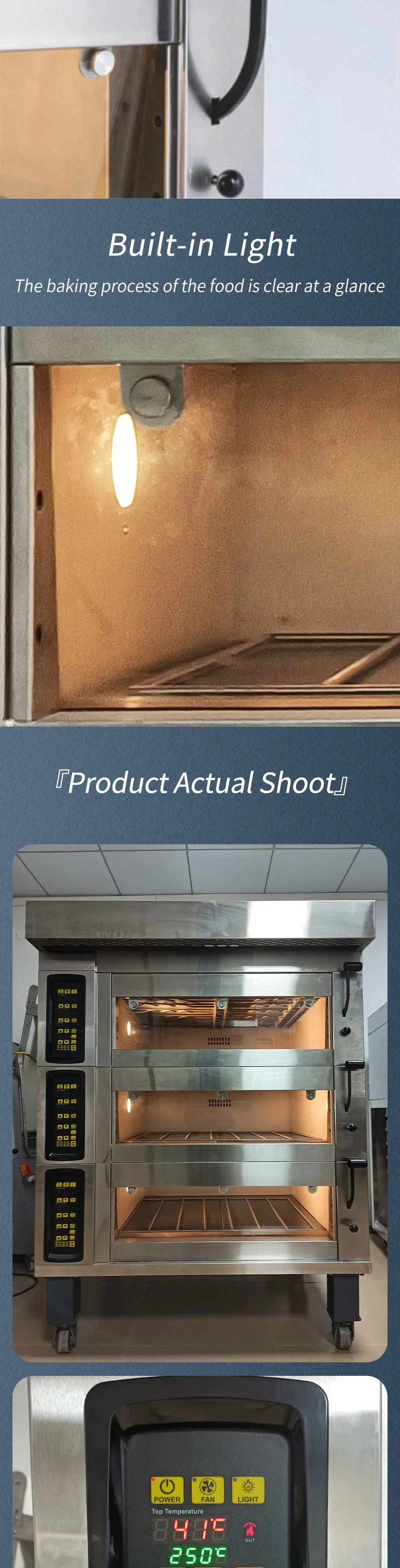

Detail 4

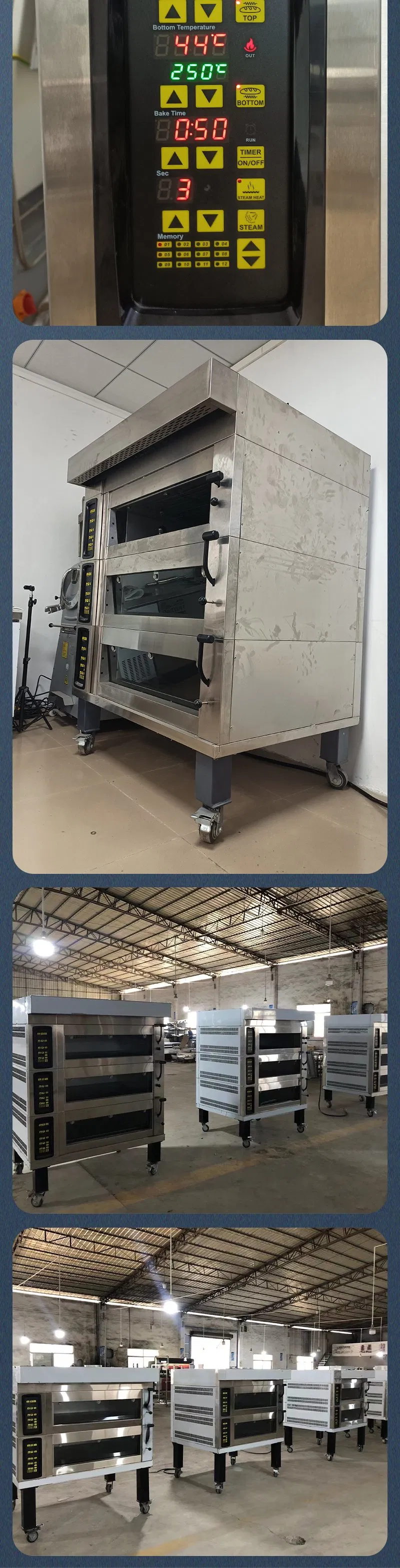

Detail 5

Our professional showroom and production facilities are designed to ensure the highest quality standards. We encourage customers to experience the machinery hands-on to witness the performance and ease of use.

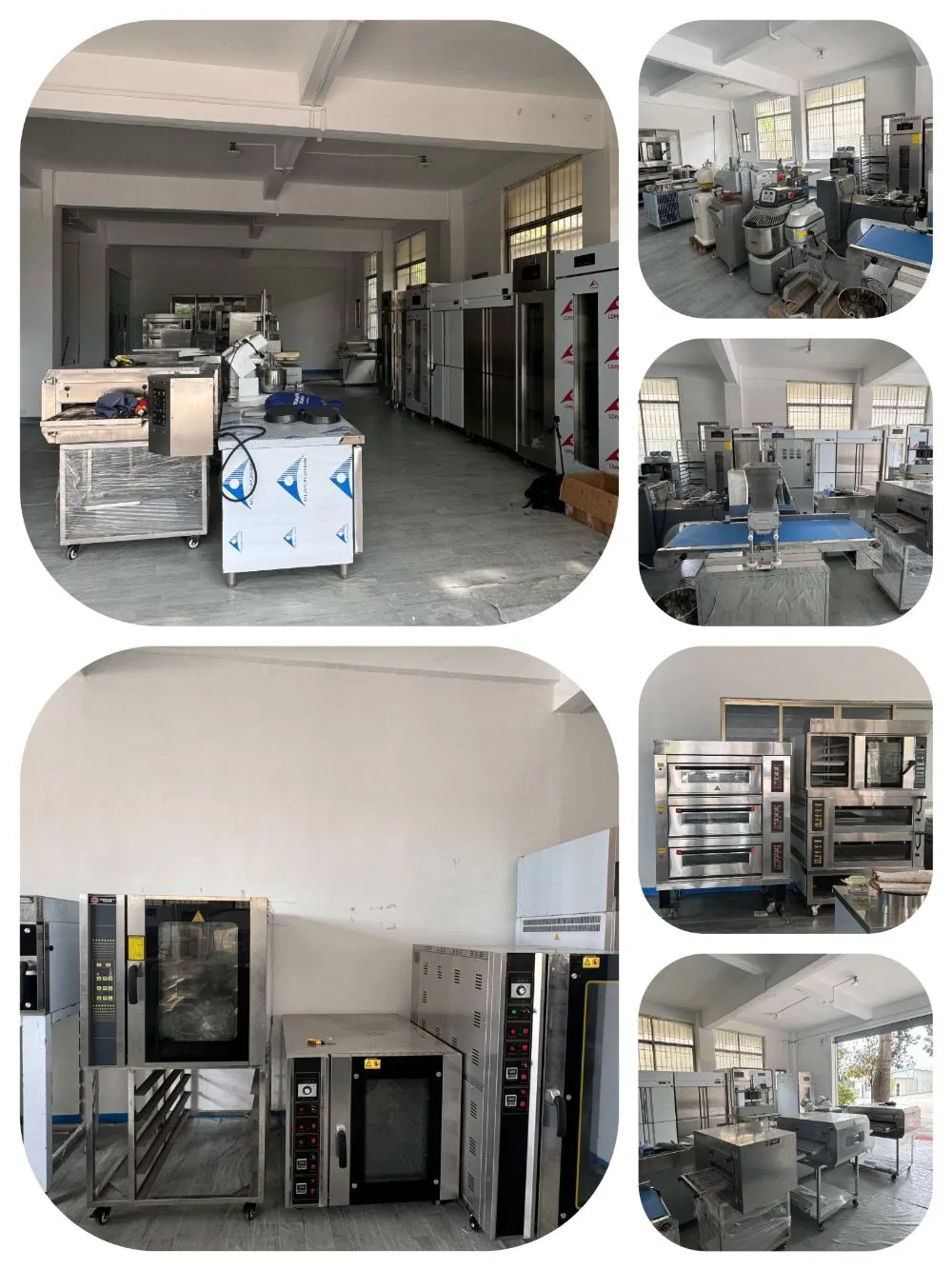

Showroom
Showroom View
Factory Floor
Production
Snapshot 1
Snapshot 2

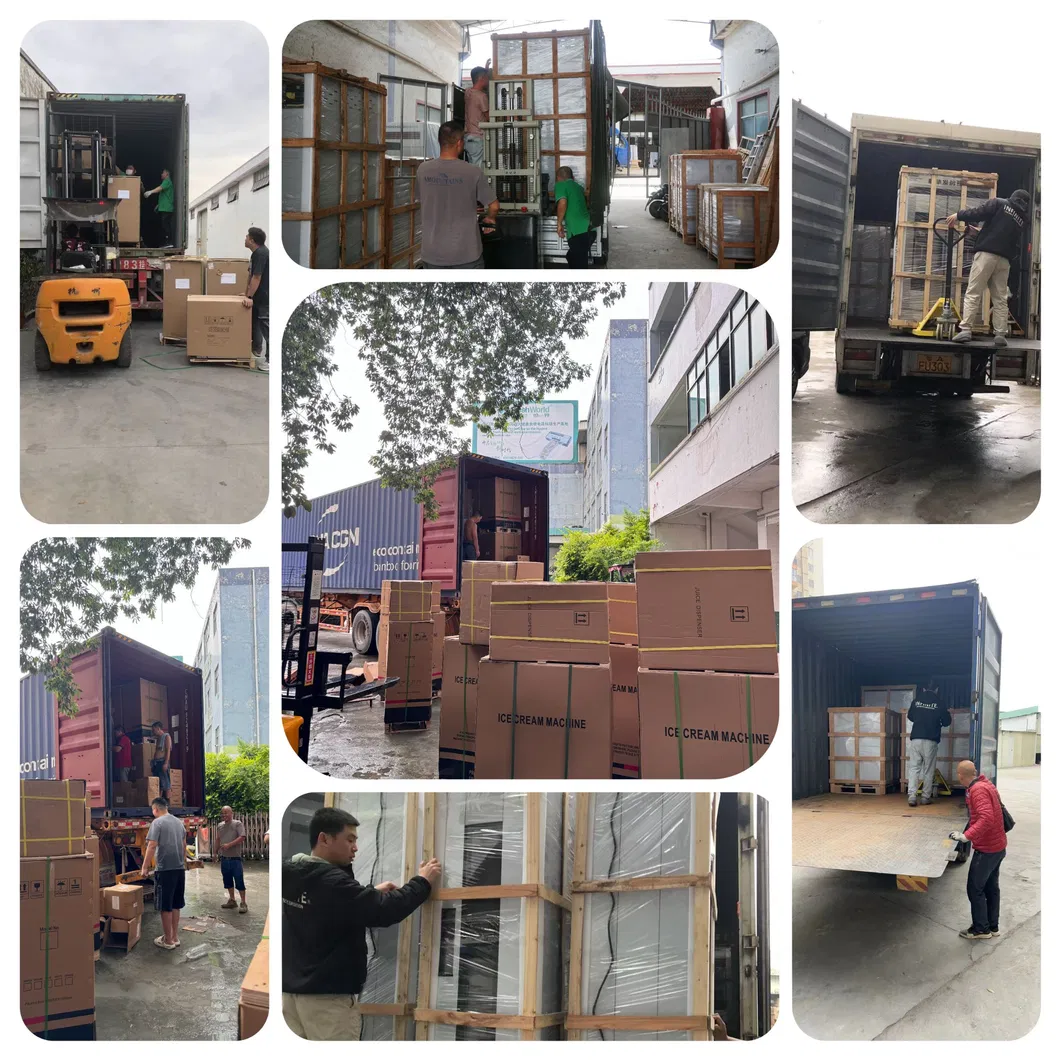

Shipping Area

Manufacturing Excellence

With a decade of experience, we specialize in high-end baking equipment including rotary ovens, pizza ovens, dough mixers, and proofing cabinets. Our products are backed by a comprehensive sales and after-sales network, ensuring global reliability.

Certification Quality Service

Frequently Asked Questions

What types of products can be baked in this oven?
It is highly versatile and suitable for custard pies, mooncakes, burgers, toast, baguettes, various breads, pastries, biscuits, and even meats and grains.
Can I control the temperature of each deck separately?
Yes, each layer is equipped with a microcomputer digital independent control system, allowing you to set different temperatures for each deck based on your requirements.
Is the steam function included as standard?
The steam function is an optional professional feature. Please request this during the customization phase as it requires specific installation.
How many baking pans can the BOR-306 model hold?
The BOR-306 is a three-deck model that can hold a total of six baking pans (two per deck), each measuring 400*600mm.
What material is used for the oven construction?
Both the interior and exterior of the oven are constructed from high-quality stainless steel, ensuring durability, heat resistance, and easy cleaning.
Do you support OEM and after-sales service?
Yes, we provide professional OEM manufacturing and maintain a prompt after-sales service network to support our global clients.
