Product Description

Product Introduction

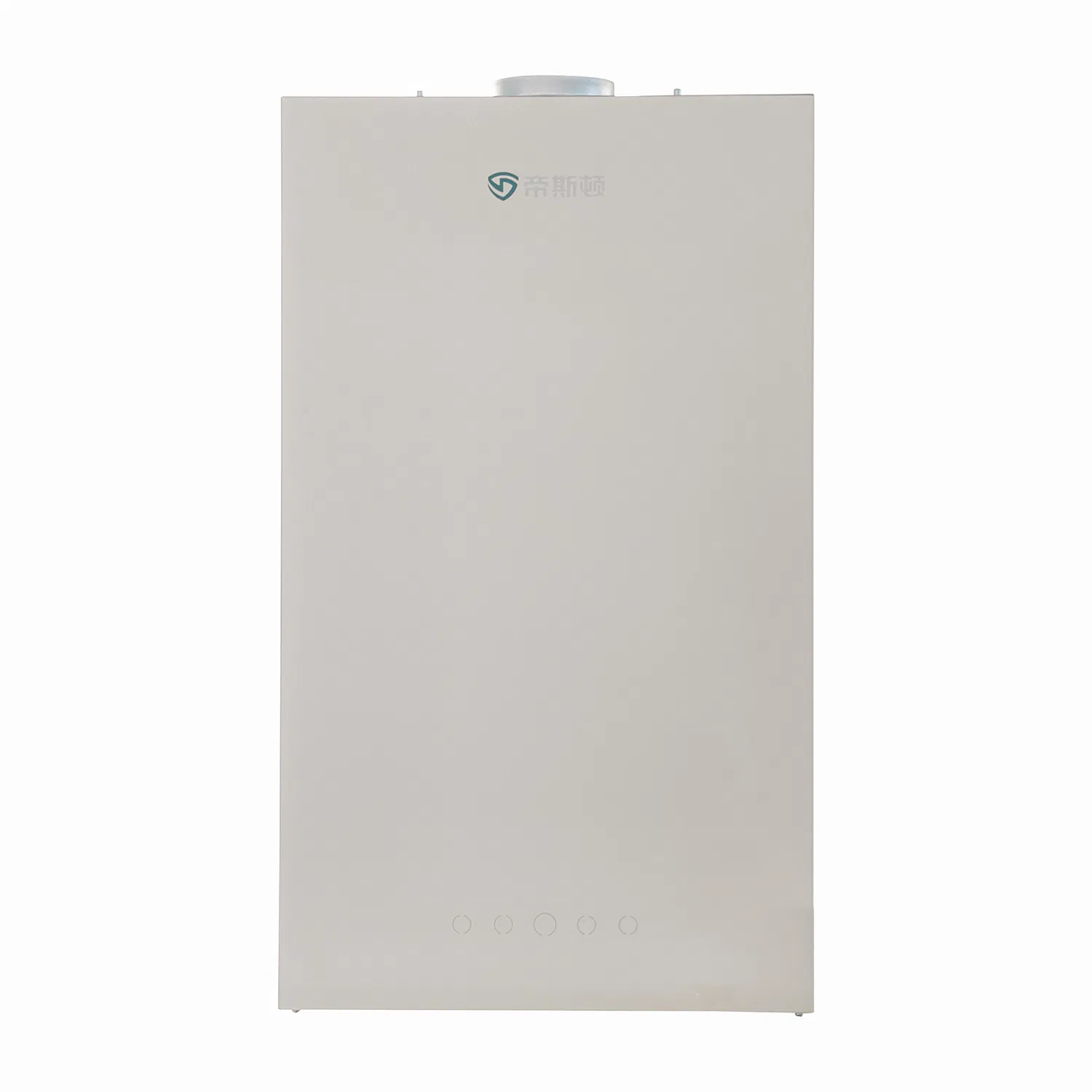

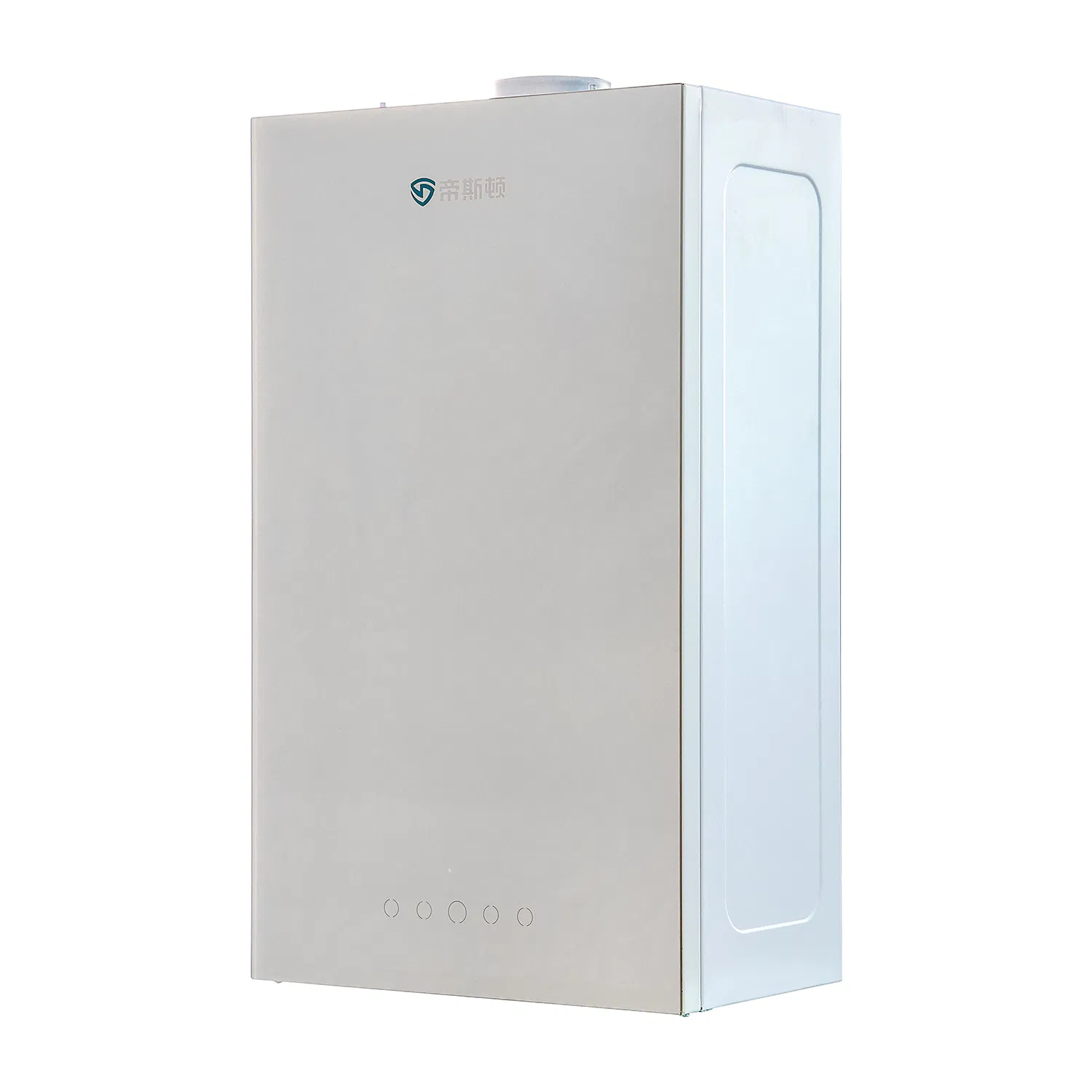

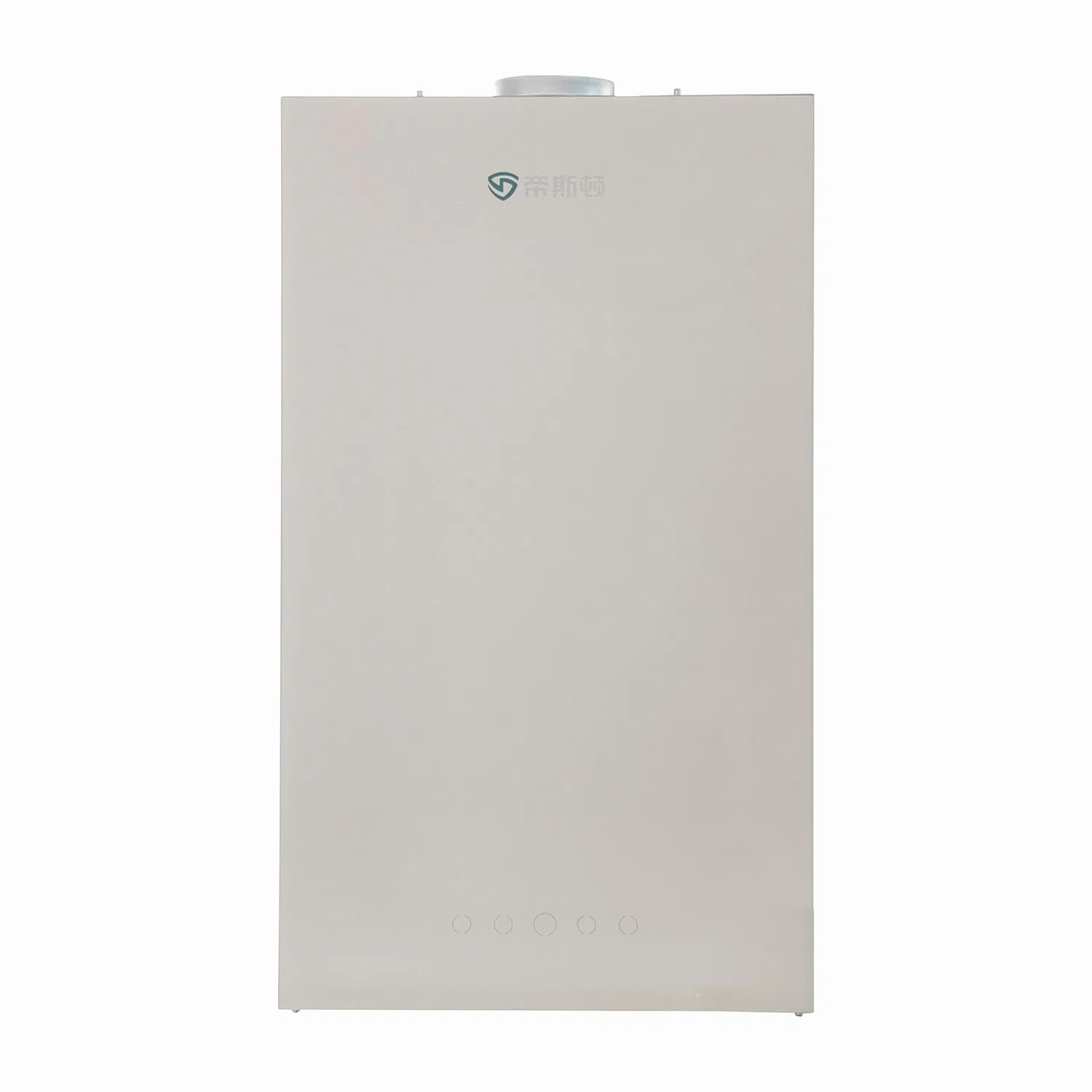

The WSQ2 Gas Heating Hot Water Stove showcases a sophisticated, contemporary design that merges elegance with practicality. Its main body features a large, frosted glass panel in a soft, muted beige tone, which adds a high-end, minimalist aesthetic while resisting fingerprints and scratches—ideal for long-term use in busy households.

The lower section integrates a sleek, integrated digital control area: a bright LED display shows the current water temperature, while the touch-sensitive buttons create an intuitive interface. The compact, wall-mounted structure ensures it occupies minimal space, fitting effortlessly into both modern and classic interior styles.

Basic Specifications

Model NO.	Q2
Type	Forced Exhaust
Energy Grade	One (High Efficiency)
Interior Material	Copper
Installation	Indoor Wall-Mounted
Fuel	Gas-Fired
Heating Range	30-80℃
Power Supply	220V~50Hz

🚀 Dual Functionality

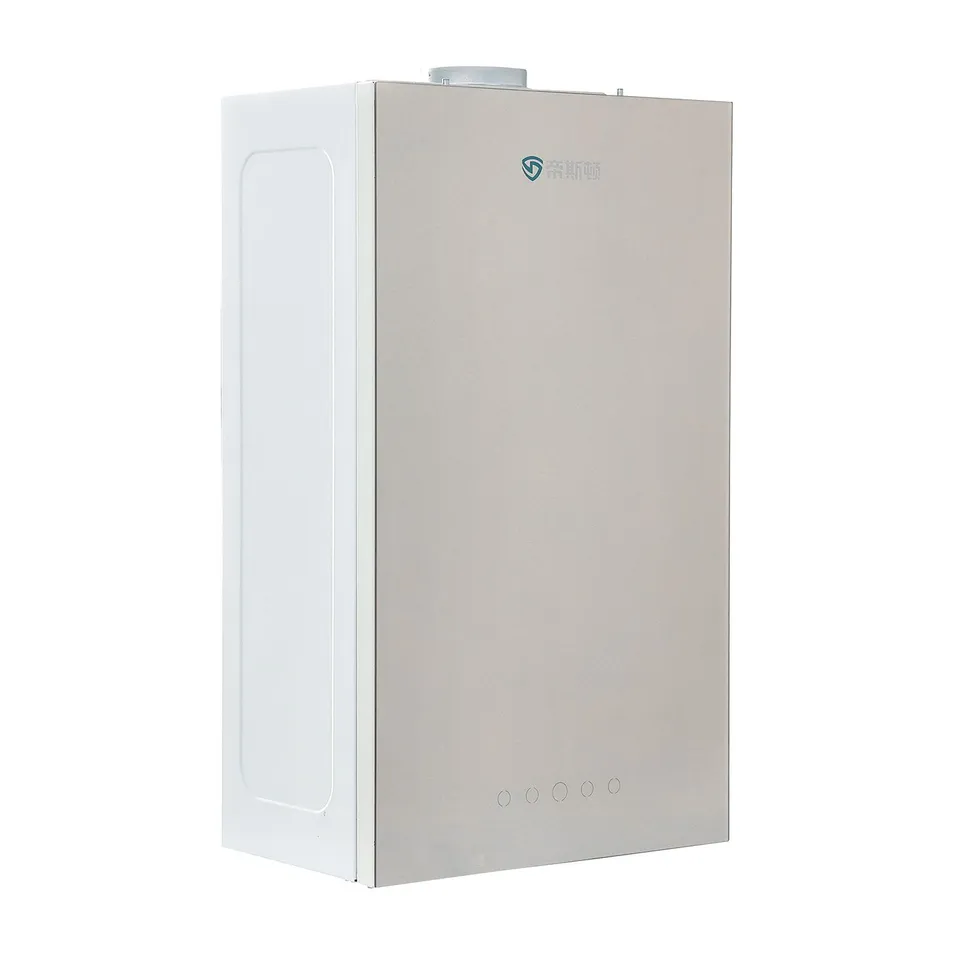

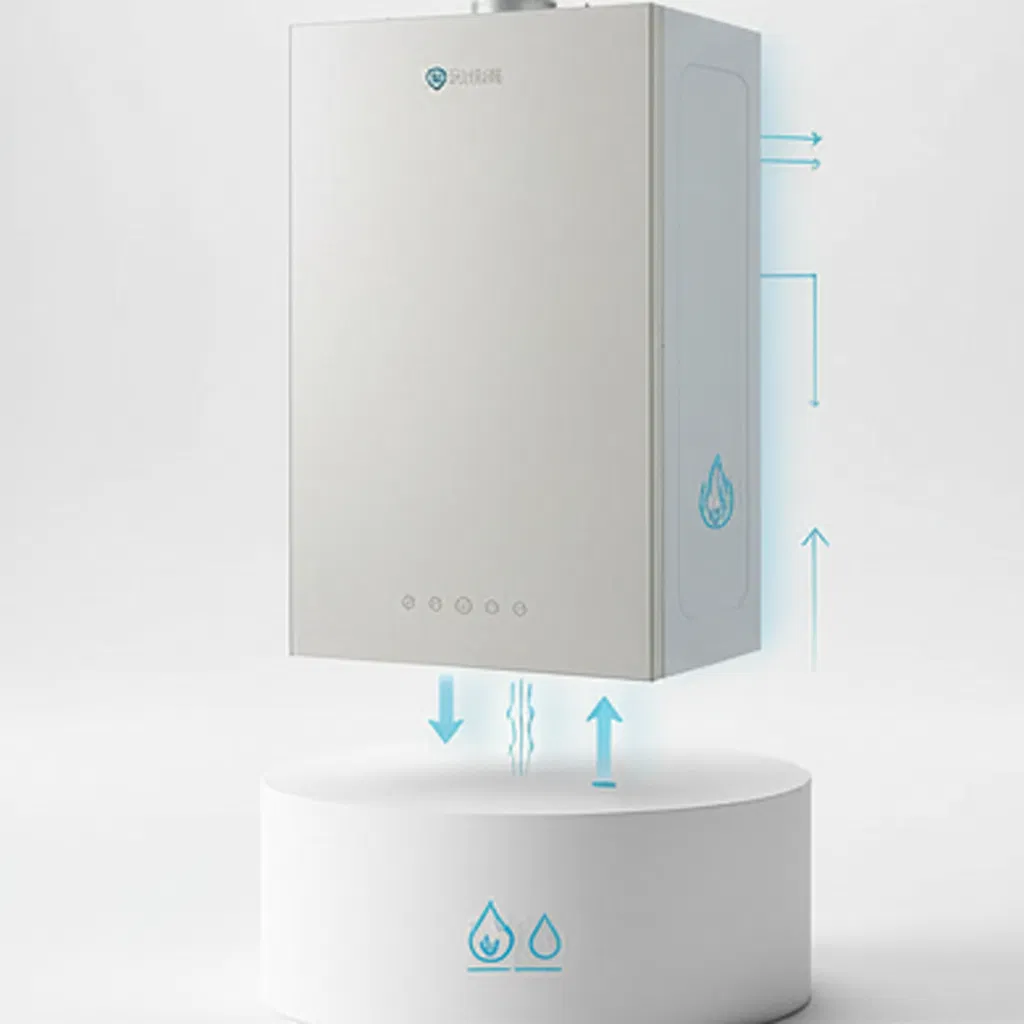

Delivers versatile central heating (radiators or underfloor) and domestic hot water. Features precise temperature control (35–60°C) using a gas proportional valve to eliminate fluctuations.

🍃 Energy Efficient

Boasts up to 107% thermal efficiency for condensing models. DC variable-frequency fans ensure full fuel utilization, reducing operating costs by 18–25%.

🛡️ Durable Build

Equipped with a sealed oxygen-free copper heat exchanger that enhances heat transfer while resisting corrosion for a longer lifespan.

Core Features

Intelligent Control: LED display with touch buttons for simple, stylish operation.
Silent Operation: DC inverter fan significantly reduces noise and power consumption.
Quick Response: High power regulation ratio for bathrooms, providing rapid temperature control.
Adaptive System: Automatically adjusts air volume and speed based on flue length.
Safety Certified: Mandatory national 3C certification for reliable household safety.

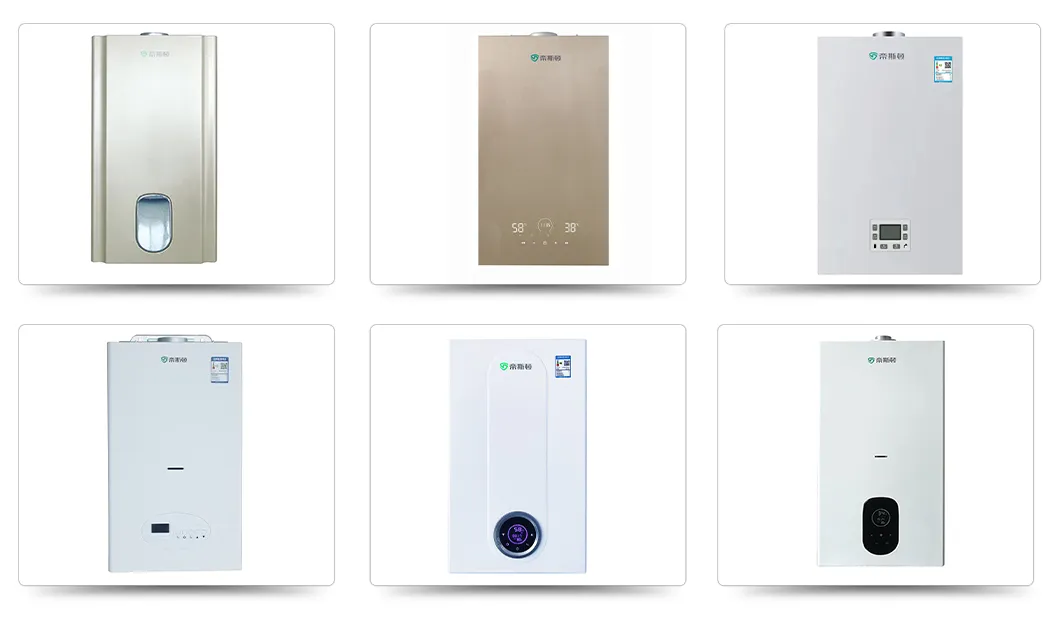

Main Product Gallery

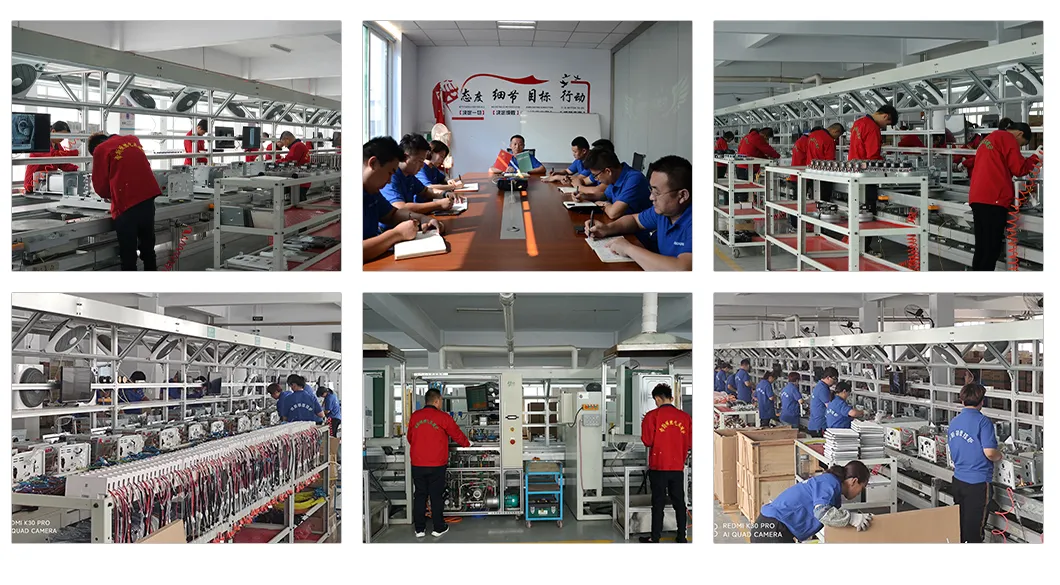

Manufacturing Excellence

Located in a national industrial park, our facility is a high-tech enterprise integrating R&D, production, sales, and service of thermal energy equipment. Since 2011, we have pursued technological innovation to provide safe, energy-saving, and environmentally friendly heating products.

Global Standards & Presence

Technical Specifications

Model	20KW	24KW	28KW	36KW
Rated Heat Load (kW)	20	24	28	36
Hot Water Capacity (Δt=25℃)	10.5 kg/min	12.8 kg/min	15 kg/min	19 kg/min
Water Pressure Range	0.03 - 0.7 MPa
Temp Adjustment (Heating)	30 - 80℃
Protection Rating	IPX4 / Class I

Frequently Asked Questions

How do I choose the right power for my home?

For residential buildings of 80-150m², 24KW is ideal for one kitchen and two bathrooms. For villas or units larger than 150m², choose 28KW or above. In colder regions or homes with multiple bathrooms, consider increasing power by 20-30%.

Can it provide heating and hot water simultaneously?

The system prioritizes hot water. When the hot water faucet is opened, heating is temporarily suspended and resumes automatically once the faucet is closed.

What is the advantage of first-class energy efficiency?

First-class efficiency models are typically condensing boilers with thermal efficiency over 107%. They can save 15-20% on gas costs compared to standard non-condensing boilers.

Can I install this in an old house without pre-installed pipes?

Yes. For renovated or older homes, you can install an open-air radiator system which doesn't require damaging walls and has a short construction period.

How does the anti-freezing mode work in winter?

When away for a short time, keep the power and gas on; the machine will automatically maintain a low temperature to prevent freezing. For long absences, it is recommended to drain the water from the system.

Does the boiler consume a lot of electricity?

No. The main components (fan and pump) use only 100-200W and only run when heating is active. Monthly power consumption is similar to a household refrigerator.
