Basic Info & Specifications
Name

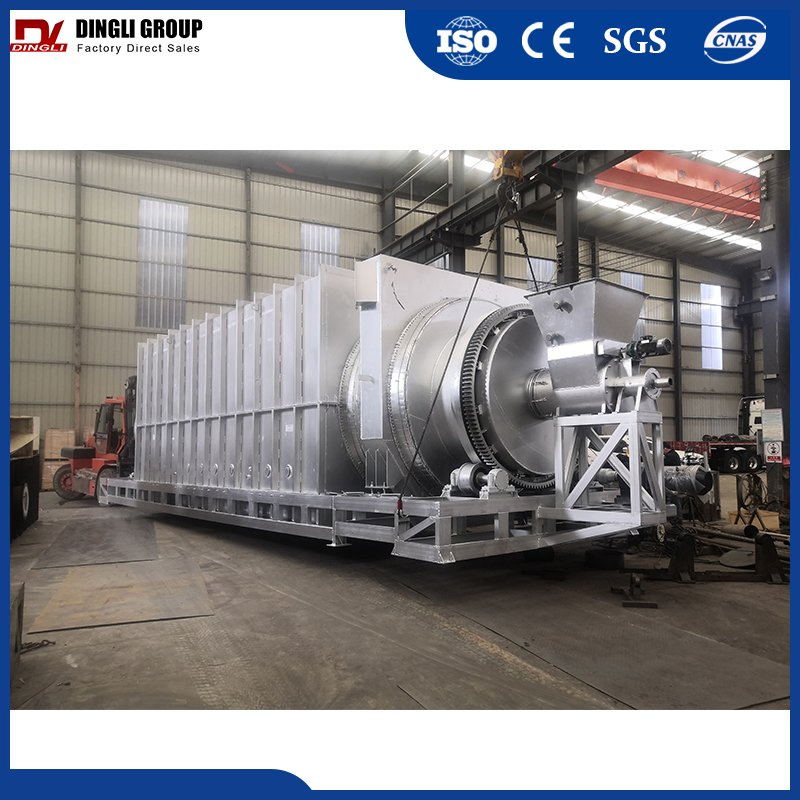

Biomass Charcoal Machine
Raw Material
Nut Shell, Fruit Shell, etc
Package Size
1000cm * 220cm * 350cm
Biomass pyrolysis machines are specialized equipment designed to convert biomass materials into various useful products through the process of pyrolysis. They offer a promising solution for converting waste biomass into valuable products. By considering feedstock flexibility, product quality and yield, energy efficiency, and environmental impact, users can select the most suitable machine for their specific needs.

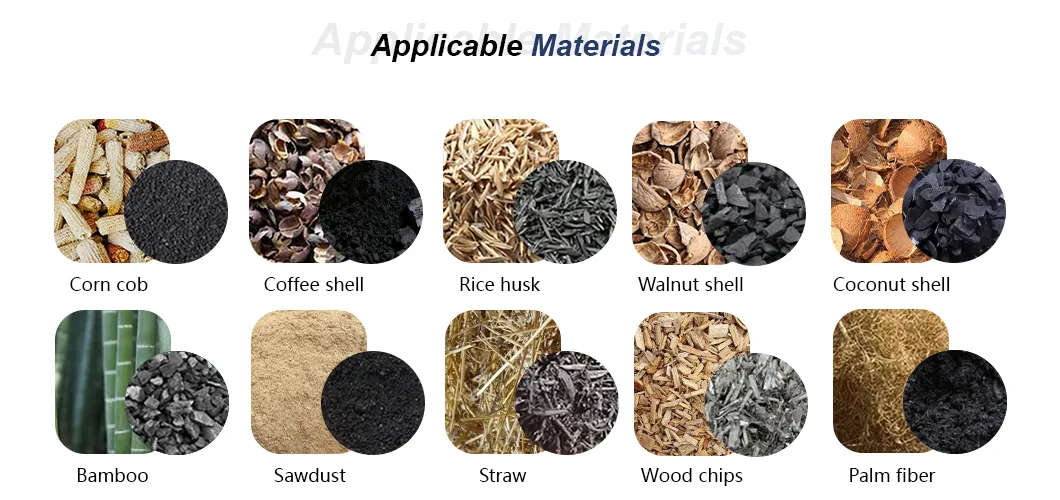

This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell, peanut shell, rice husk, cotton stalk, straw, etc.

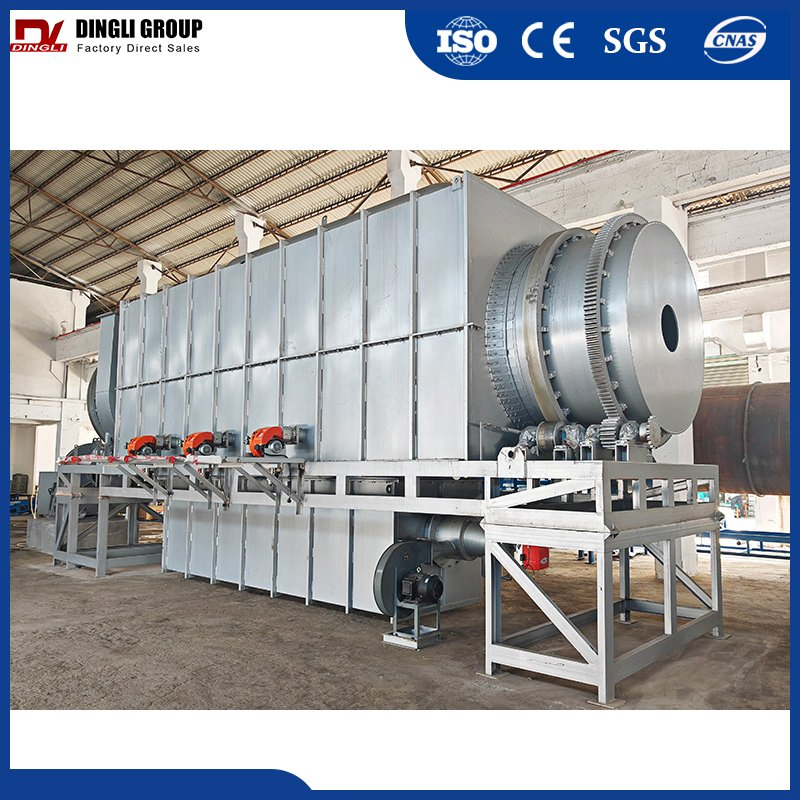

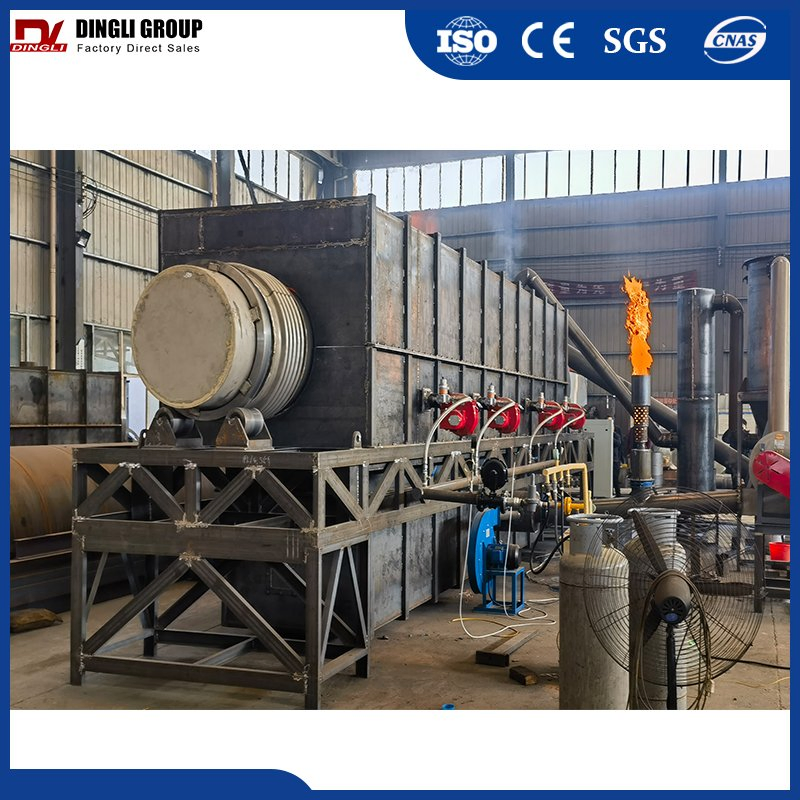

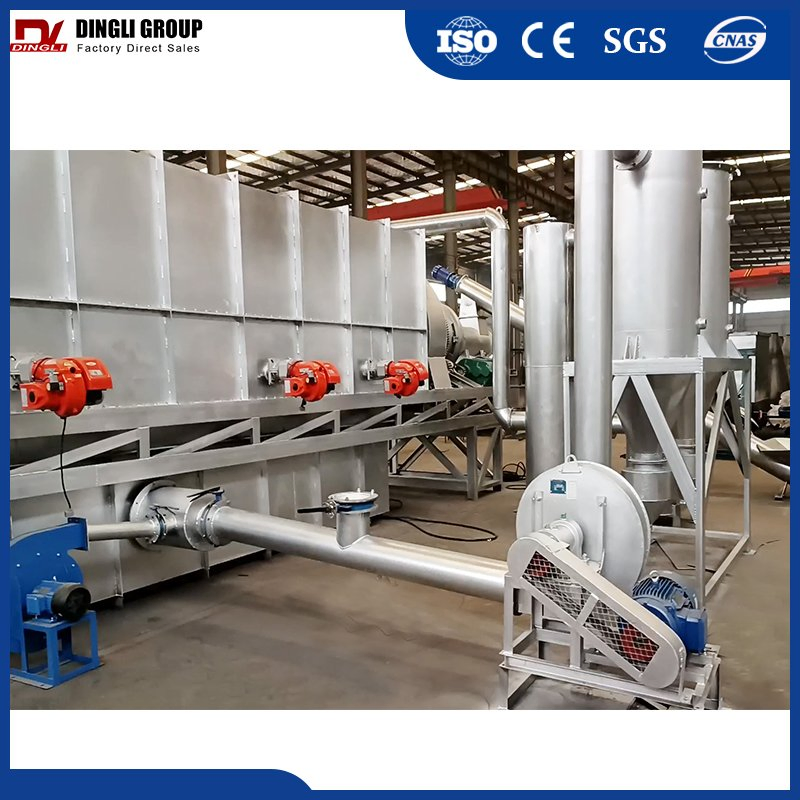

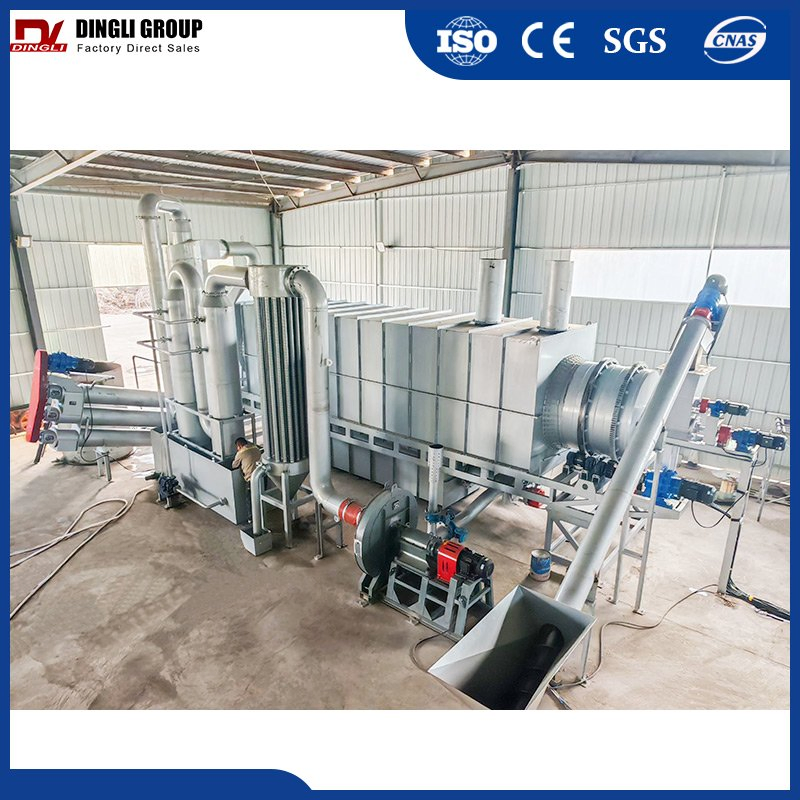

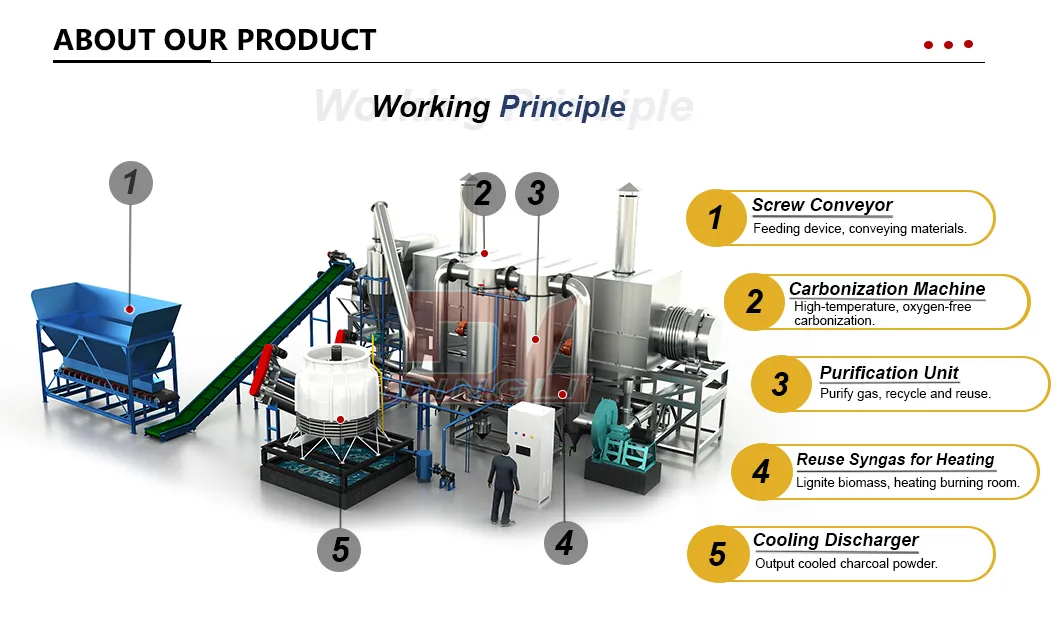

The biomass pyrolysis carbonization machine uses high-temperature pyrolysis technology to make biomass materials undergo thermochemical reactions under oxygen-free or oxygen-deficient conditions to produce carbon black, wood vinegar and combustible gas.
The process utilizes autologous flue gas combustion in a circulation method to achieve energy saving. After purification treatment, the production environment remains free of flue gas emissions, reaching standard environmental protection requirements.
✓
Strong material adaptability: Biomass with moisture content < 20% and particle size < 30 mm can be easily carbonized.
✓
High-quality output: High carbonization rate. Products can be used as fuel carbon, agricultural carbon, metallurgical carbon, or activated carbon.
✓
Precise control: Residual volatile matter in charcoal (10-25%) can be controlled on demand.
✓
Safety & Durability: Stable operation with a long service life, using high-quality materials and patented technology design.
T
Product Technical Parameters
| Model |
Diameter(mm) |
Drum Length(m) |
Capacity(kg/h) |
Speed(rpm) |
Dimension(m) |
| DLTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| DLTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| DLTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| DLTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| DLTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| DLTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| DLTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| DLTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| DLTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |
C
Certifications & Factory
?
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The MOQ for our biomass charcoal machine is 1 set.
Are there different models for different prices?
Yes, we offer various models tailored to different raw materials and production capacity requirements.
Which global regions do you serve?
We export to more than 30 countries, including regions in Europe, Africa, the Middle East, Asia, and North/South America.
How long is the quality guarantee?
We provide a one-year quality guarantee for our equipment.
Do you provide technical support?
Yes, we provide full technical support and installation technology guidance.
What raw materials can be processed?
The machine can process sawdust, wood chips, bamboo, coconut shells, rice husks, straw, and various other agricultural wastes.
