High Efficiency Hot Water Heater off Grid Solar Power System for House

Basic Specifications

Certification

ISO, CE

Application

Home, Commercial

Specification

Normal, 5TUBES-50TUBES

Circulation Type

Direct / Open Loop

Heat Preservation

72 hours

Inner Tank Material

SUS304 or SUS316

Outer Tank Material

Stainless Steel

Bracket Material

Stainless Steel, Aluminum

HS Code

8419120000

Production Capacity

5000 per Month

Product Overview

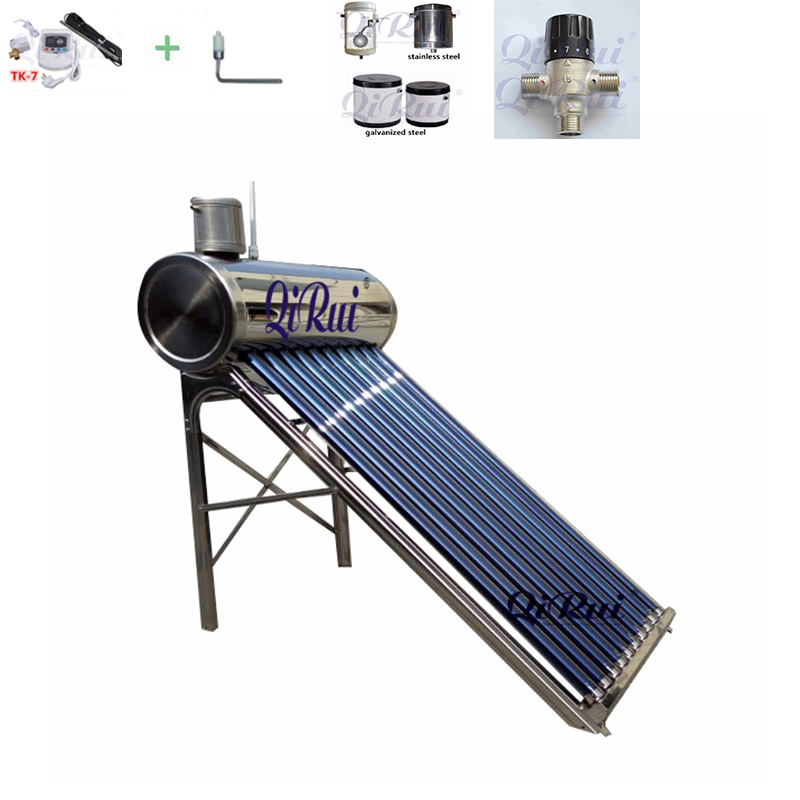

All Stainless Steel Solar Boiler

Available sizes: 50L, 60L, 80L, 100L, 120L, 140L, 150L, 160L, 180L, 200L, 240L, 250L, 300L, 360L, 400L, 450L, 500 Liter. High efficiency non-pressure solar water heater system designed for maximum thermal performance.

Quick Guidance: 1% free spare parts included.
Logistics: Efficient delivery within 12 days after deposit.
Payment: Flexible terms including T/T, L/C, and Western Union.
Compliance: Certified by Europe Solar Keymark EN12976, CE, CCC, ISO9001, ISO14001, and ISO45001.

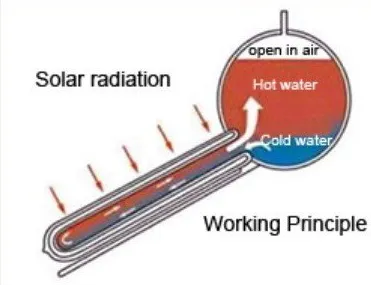

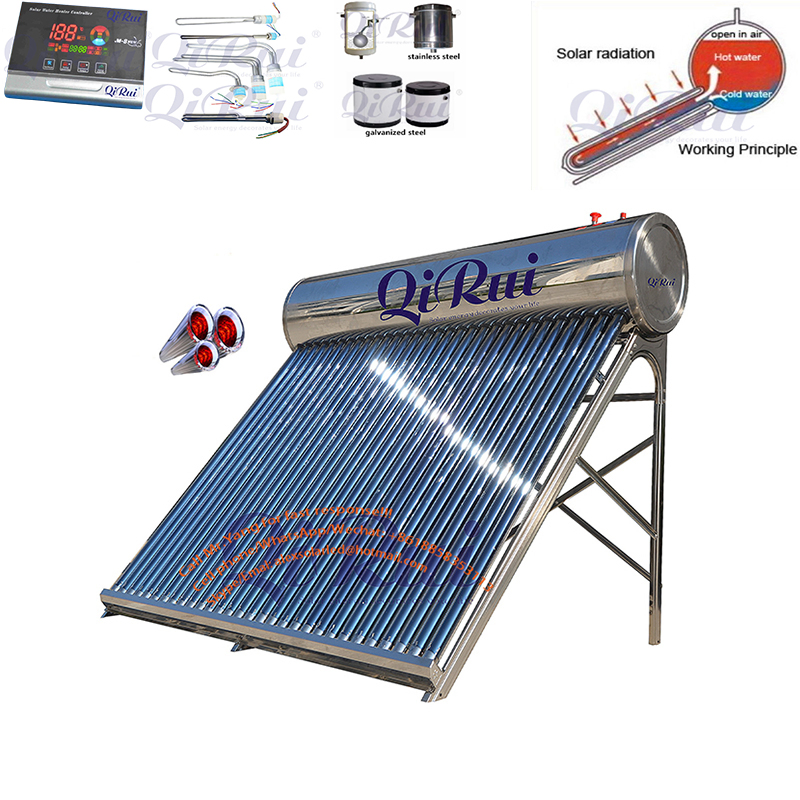

Working Principle: Through a thermo-siphon effect (in which hot water rises), hot water circulates between the collectors and the water tank while there is sun and is stored in an insulated tank for later use.

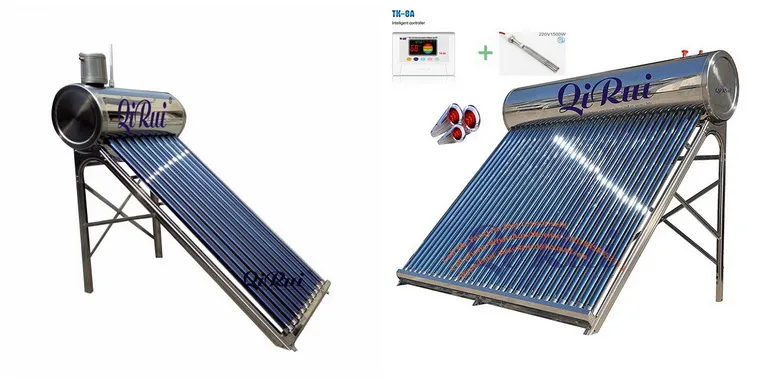

Detailed Photos

Technical Parameters

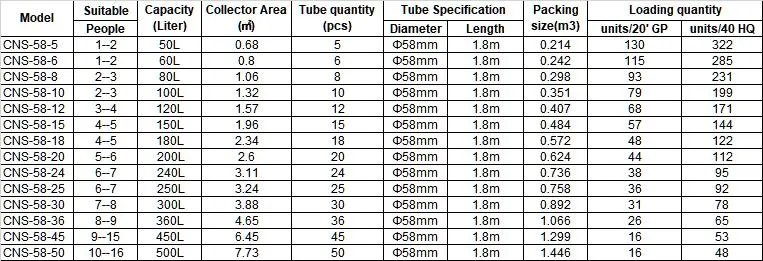

Compact Non-Pressure Solar Water Heater Technical Data
Capacity	From 6 tubes/60L to 50 tubes/500L
Outer Tank Material	0.4mm Galvanized Steel / SUS304 Stainless Steel / SUS304-BA
Inner Tank Material	0.4mm / 0.5mm / 0.6mm SUS304-2B or SUS316 Stainless Steel
Insulating Layer	50-60mm High-density Polyurethane Foamed
Tank Diameter (Outer/Inner)	420/310mm, 460/360mm, 470/360mm, 480/360mm
Electric Heater (Optional)	1500W/2500W/3000W; 220V/110V
Solar Collector Tube	3.3 Borosilicate Glass with AL/AL-ALN/ALN or CU/SS-ALN/ALN
Bracket Options	1.2mm Stainless steel / 1.6mm Aluminum alloy / 1.5mm Galvanized steel
Max Pressure	0.06 Mpa

Installation Instructions

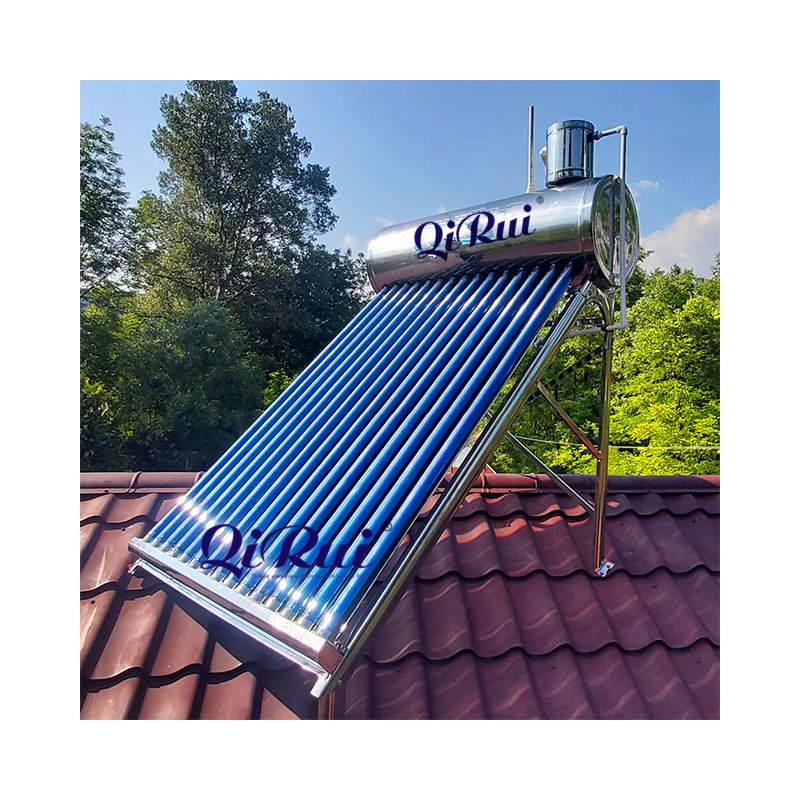

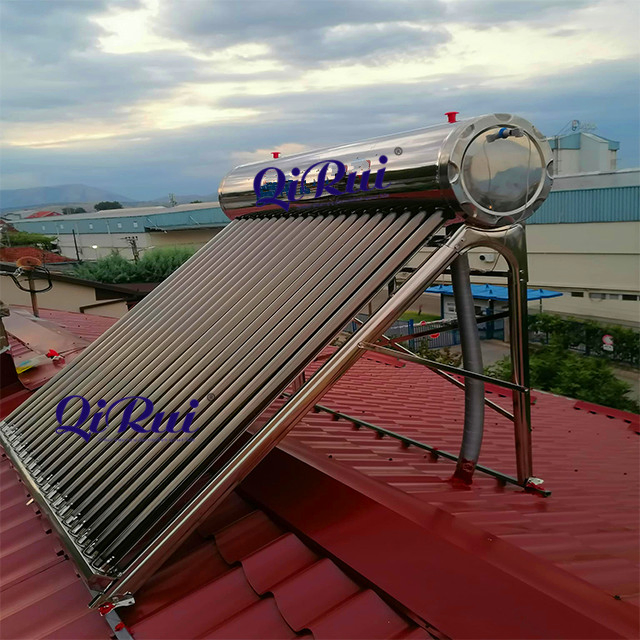

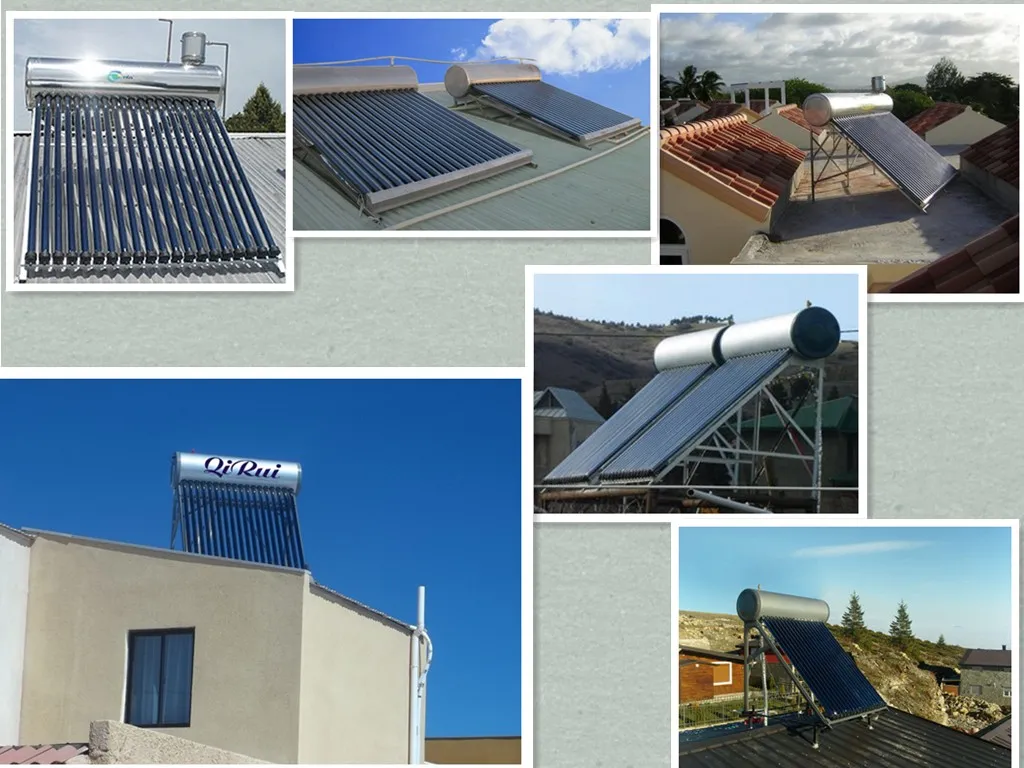

Suitable for both Flat Roof and Pitched Roof applications.

Our Professional Services

Fast delivery: 40ft containers delivered in as little as 7 days.
Experienced sales assistance for quick confirmation of all technical queries.
Customized designs tailored for different global markets.
Mixed container loading assistance for efficient logistics.
Comprehensive installation guides and training materials.

Frequently Asked Questions

1. Is solar water heating a viable alternative to gas or electricity?

Solar is a supplement that can provide 60%-70% of a household's hot water needs annually. The system can be automated to guarantee hot water regardless of sunlight levels using gas or electric backups.

2. How long will it take to recoup my investment?

Depending on location and usage, the full cost of purchase can often be recouped within 4-5 years through reduced energy bills.

3. Can solar collectors be used in cold conditions?

Yes, these collectors can operate in temperatures as low as -30°C, though performance is reduced in extreme conditions. Good output is still achieved in mild sub-zero weather.

4. Will water be heated on a cloudy day?

Yes. While output is reduced on overcast days, the collector still provides heating. Automated backups ensure you don't run out of hot water during heavy rain.

5. What happens if one of the tubes is broken?

Solar tubes are strong but easily replaced if broken. The system can continue to operate with several broken tubes at reduced efficiency until they are replaced.

6. How do I protect the system during subzero temperatures?

A controller with a low-temperature setting can periodically circulate water to prevent freezing. In extremely cold regions, a closed-loop system using a glycol/water mix is recommended.
