High-Performance Desktop Friction Welding Solutions - Customized for Your Needs

Customization:	Available
Cooling Way:	Air Cooling
Control:	Automatic

Send Inquiry

Product Description

Overview & Basic Info

Style:Gantry-Type Equipment

Type:Friction Stir Welding

Package Size:1000.00cm * 500.00cm * 500.00cm

Gross Weight:20000.000kg

Origin:China

Specification:Customized

Product Description

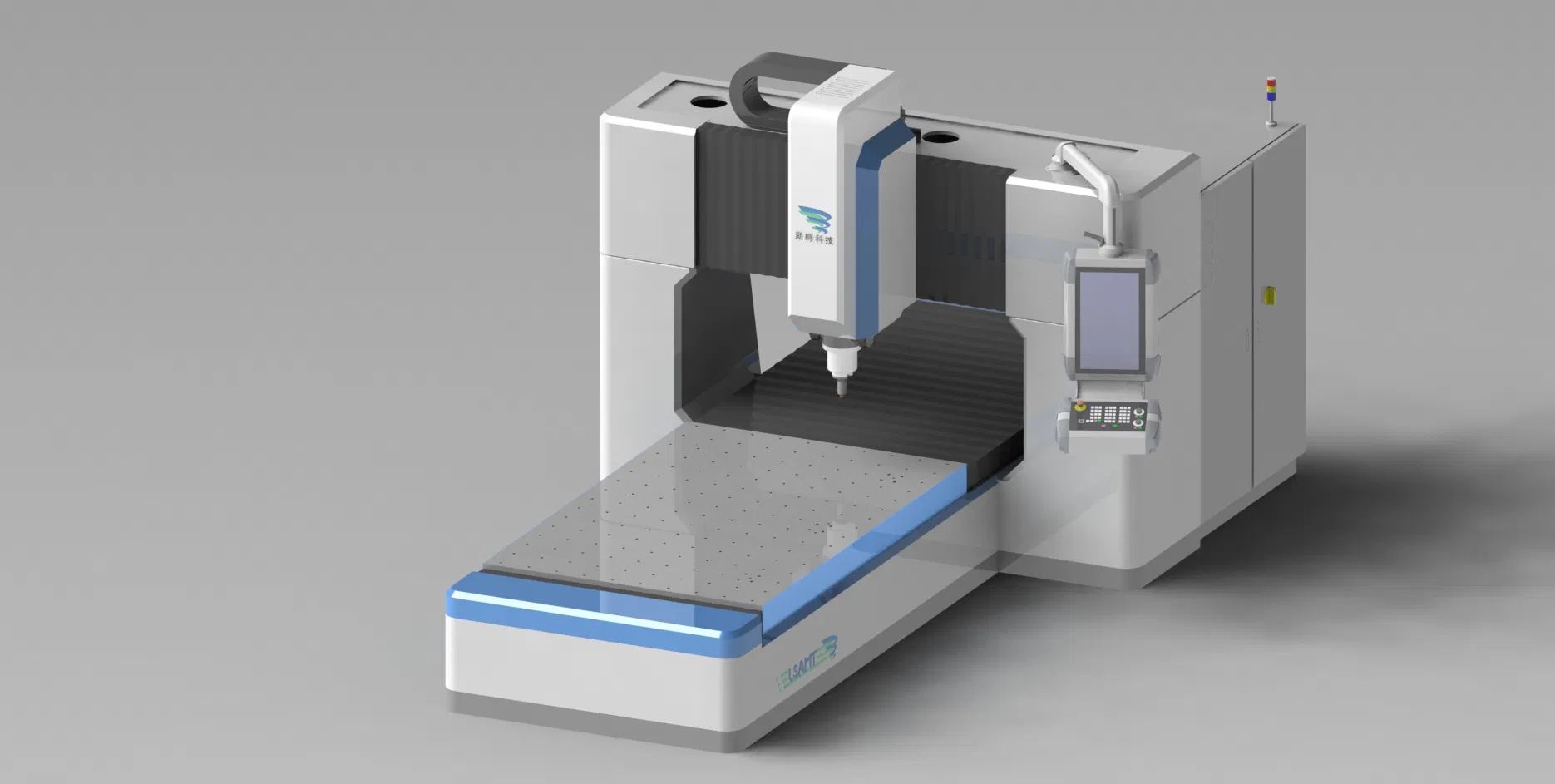

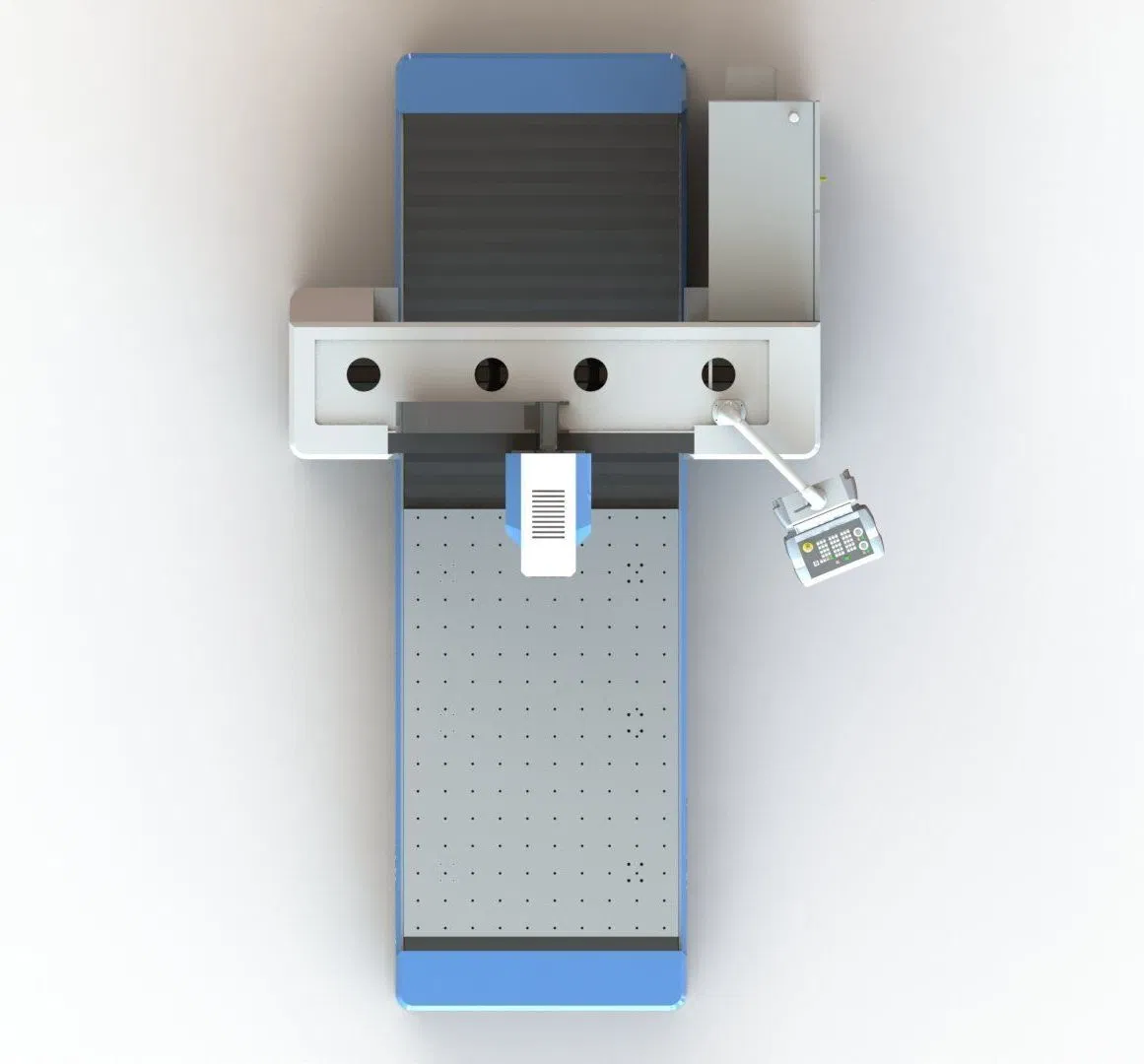

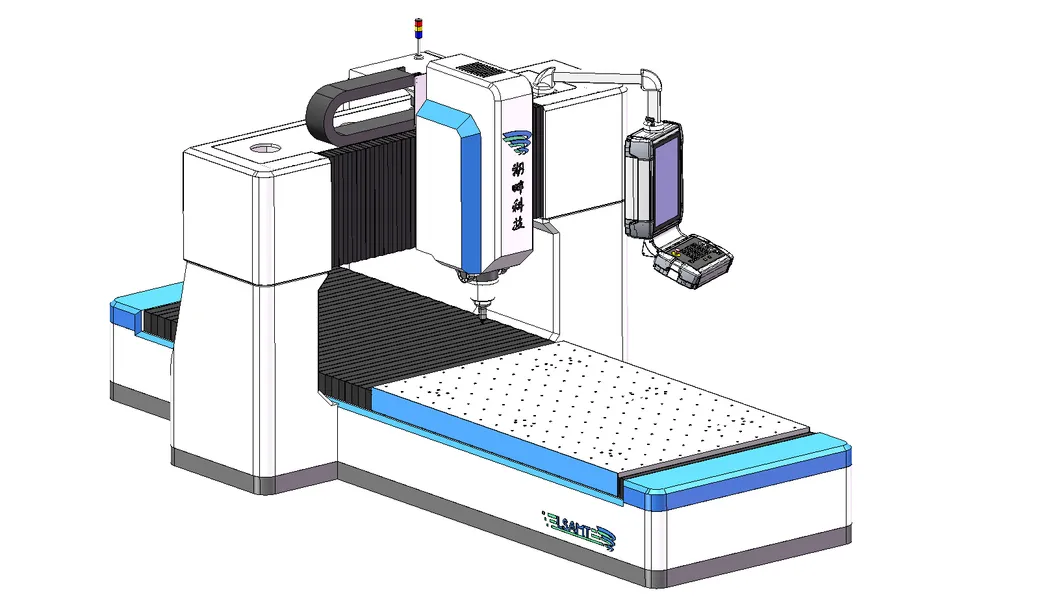

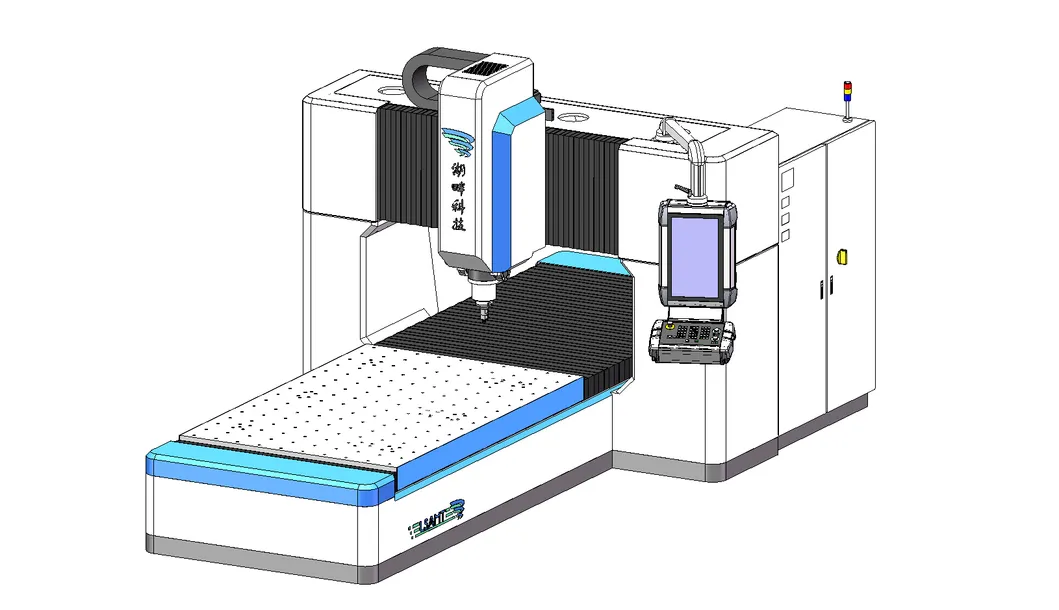

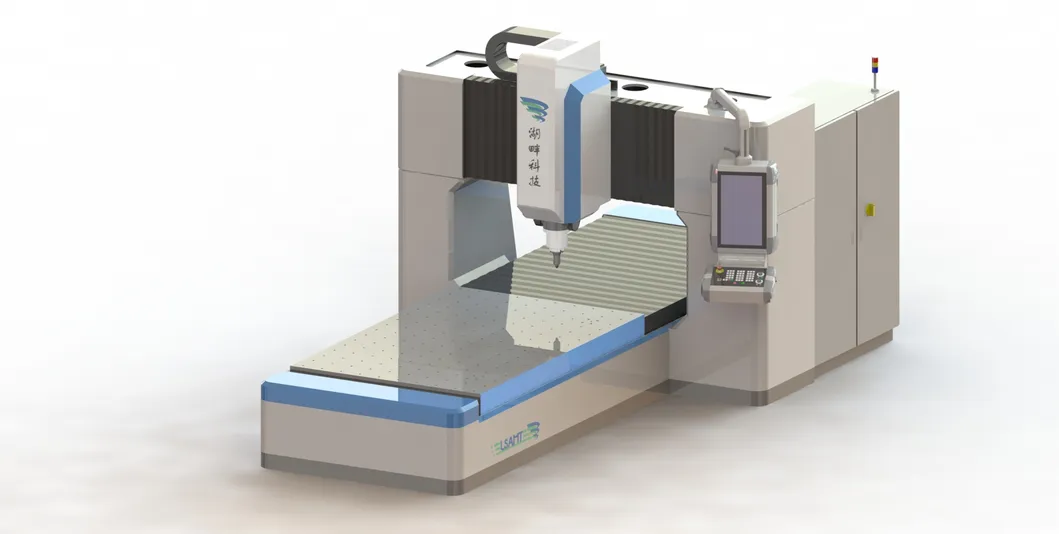

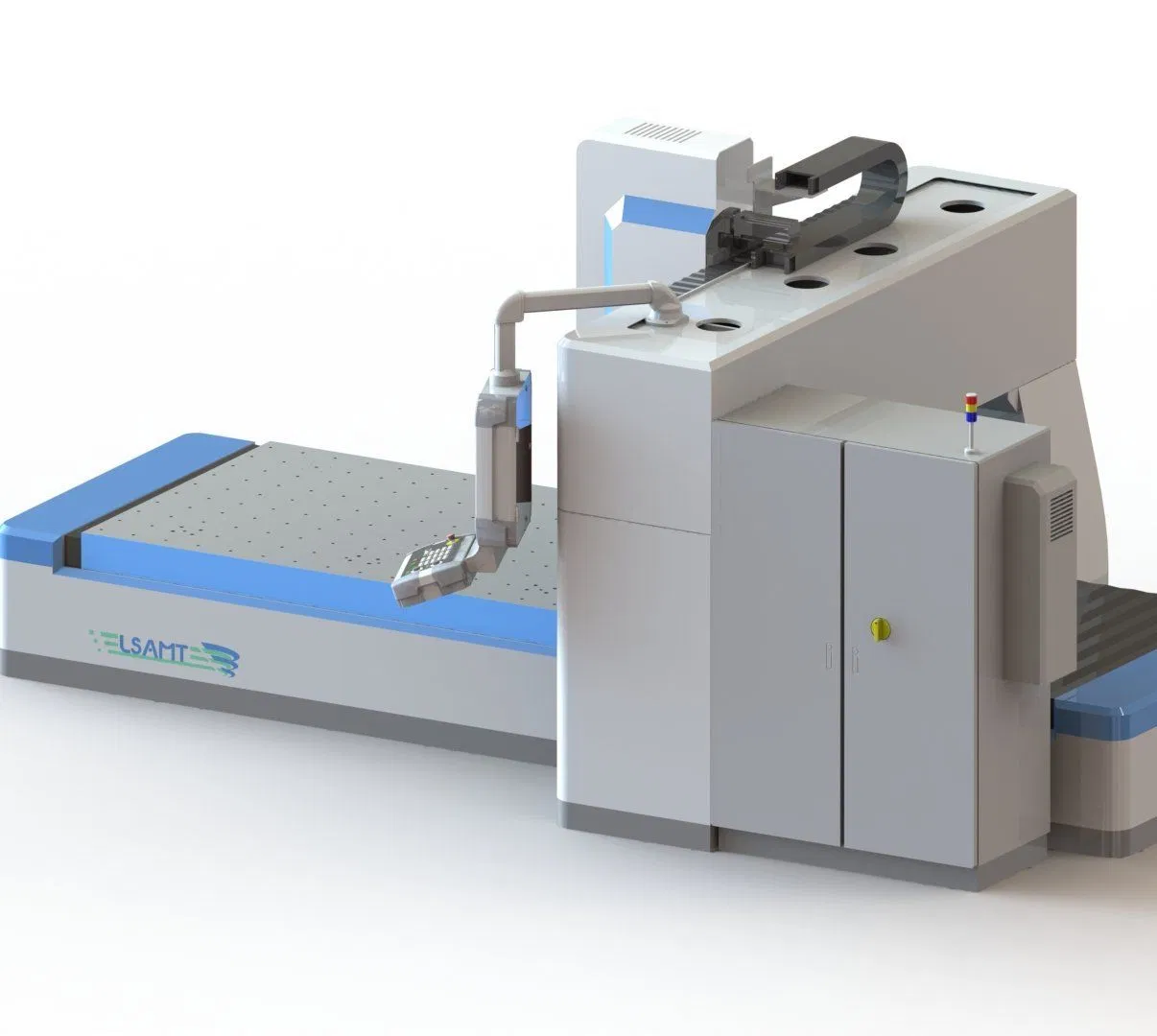

Introducing our state-of-the-art static gantry stirring friction welding equipment, a masterpiece of engineering brilliance, offering unparalleled stability, efficiency, precision, and exceptional welding performance. Utilizing the groundbreaking solid-phase connection technology of friction stir welding, it ingeniously applies the heat from high-speed rotational motion of the stirring head and the frictional interaction with the workpiece. This facilitates welding in a thermoplastic state, making the process remarkably green and eco-conscious.

Key Features

Precision Redefined: High-precision motion control for intricate trajectory welding tasks.

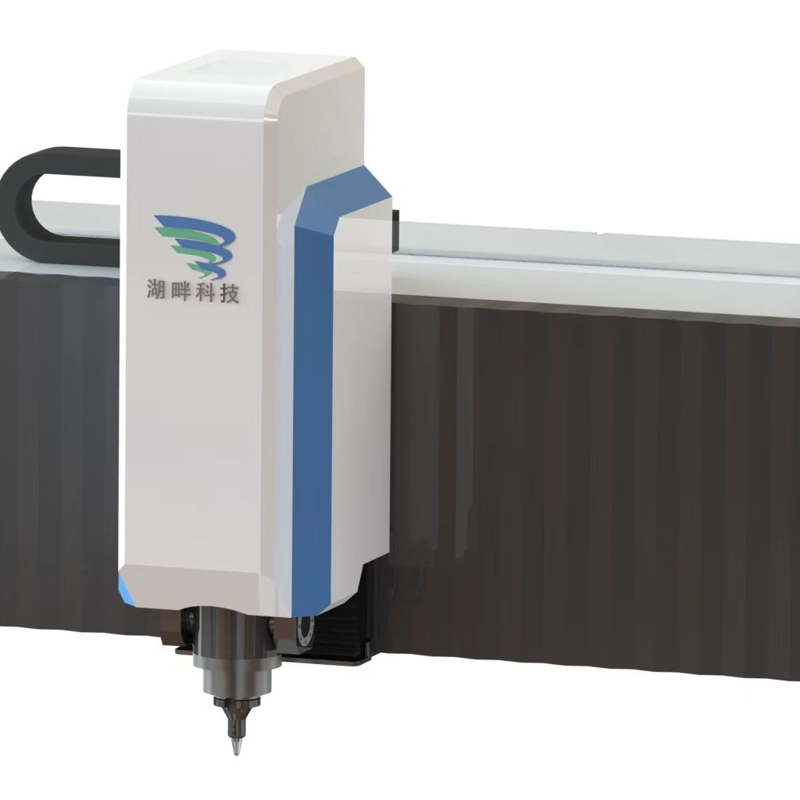

Turbocharged Efficiency: High-speed stirring head accelerates welding and ensures superior weld quality.
Versatile Welding Mastery: Dual-mode operation (manual/automatic) and constant displacement/pressure modes.
Intuitive Experience: User-centric interface designed to simplify operations and enhance productivity.
Dependable Durability: Reliable lubrication system engineered to extend equipment longevity.

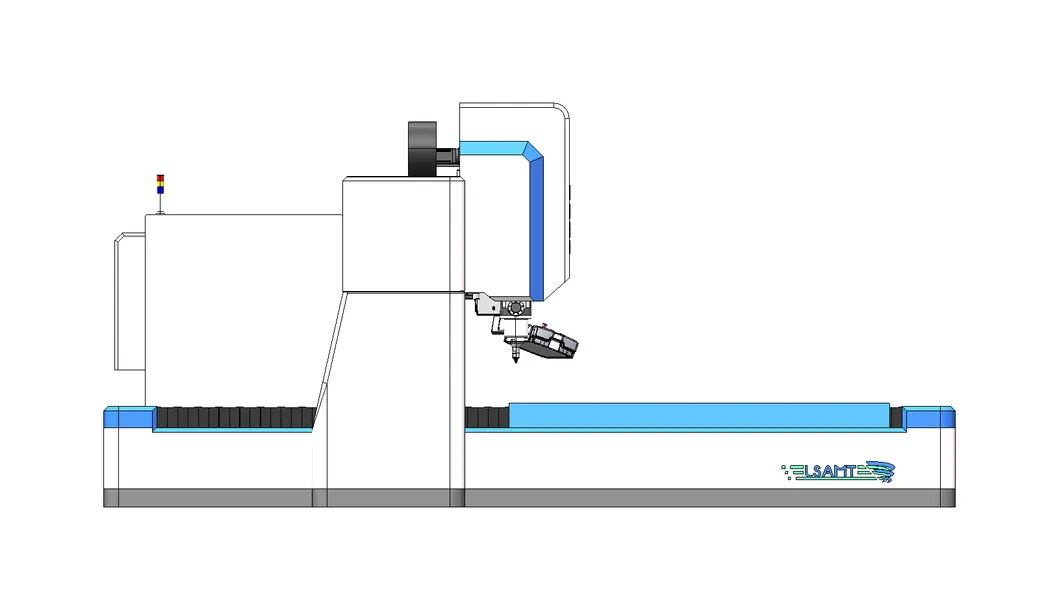

Robust Structural Integrity: Fixed beam and double column construction for high stability under axial loads.

Technical Parameters

Parameter Item		Specification Details
Equipment Description		Static gantry, 2D welding
Nominal welding thickness (6xxx Al)		1 ~ 16 mm
Worktable Size	Length	2500 mm
Worktable Size	Width	1600 mm
Working Travel	X / Y Axis	2500 mm / 1500 mm
	Z Axis	300 mm
	B / C Axis	±5º / ±360º
Working Speed	X / Y / Z Axis	6000 / 6000 / 3000 mm/min
Working Speed	Spindle Speed	0 ~ 3500 rpm
Spindle Power		18 KW (Max)
Control System		CNC + Touch Screen (Constant Pressure Mode)

Application Fields & Gallery

New Energy Vehicles: Battery trays, busbars, motor housings, and cooling plates.
Energy Storage: Storage boxes and bottom plates.
Rail Transit: High-speed rail and subway sidewalls.

Frequently Asked Questions

Q1: What are the available Trade Terms? A: We offer Ex-work factory, FOB Shanghai, FOB Tianjin, and CIF terms.

Q2: How long is the equipment guarantee period? A: We provide a two-year quality warranty for our equipment.

Q3: What kind of services do you provide for FSW? A: We provide turn-key services including equipment and jig design, manufacturing, debugging, delivery, and welding processing based on your blueprints.

Q4: What is the typical delivery time for FSW equipment? A: Standard machines take 60-75 days after deposit. Customized machines depend on the complexity of the requirements.

Q5: What is the standard payment term? A: T/T or L/C at sight. A 40% deposit is required to start production, with the balance due before shipment.

Q6: How is the equipment packed for shipping? A: Goods are installed in fumigation crates that meet international customs requirements for safe transport.
