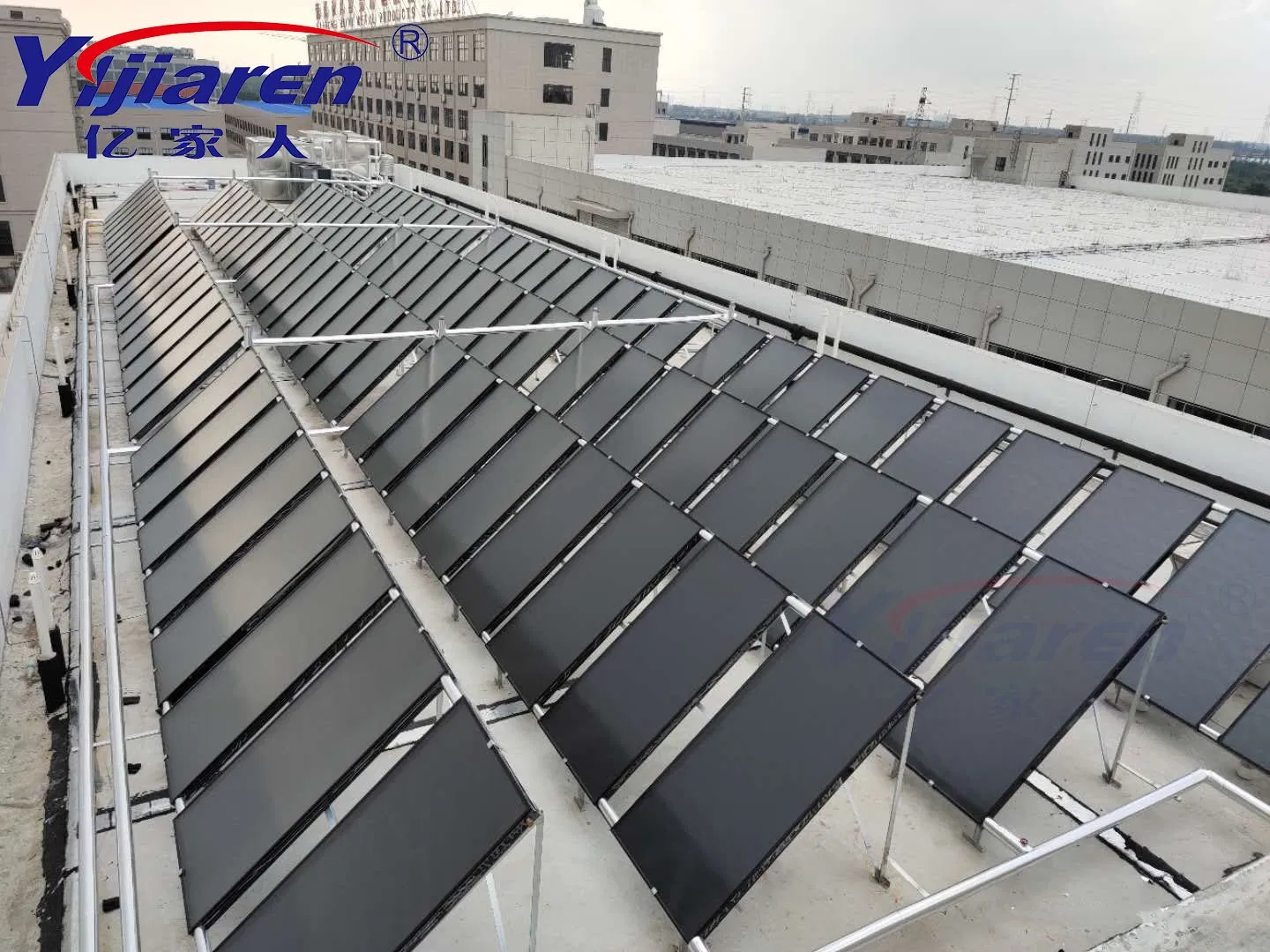

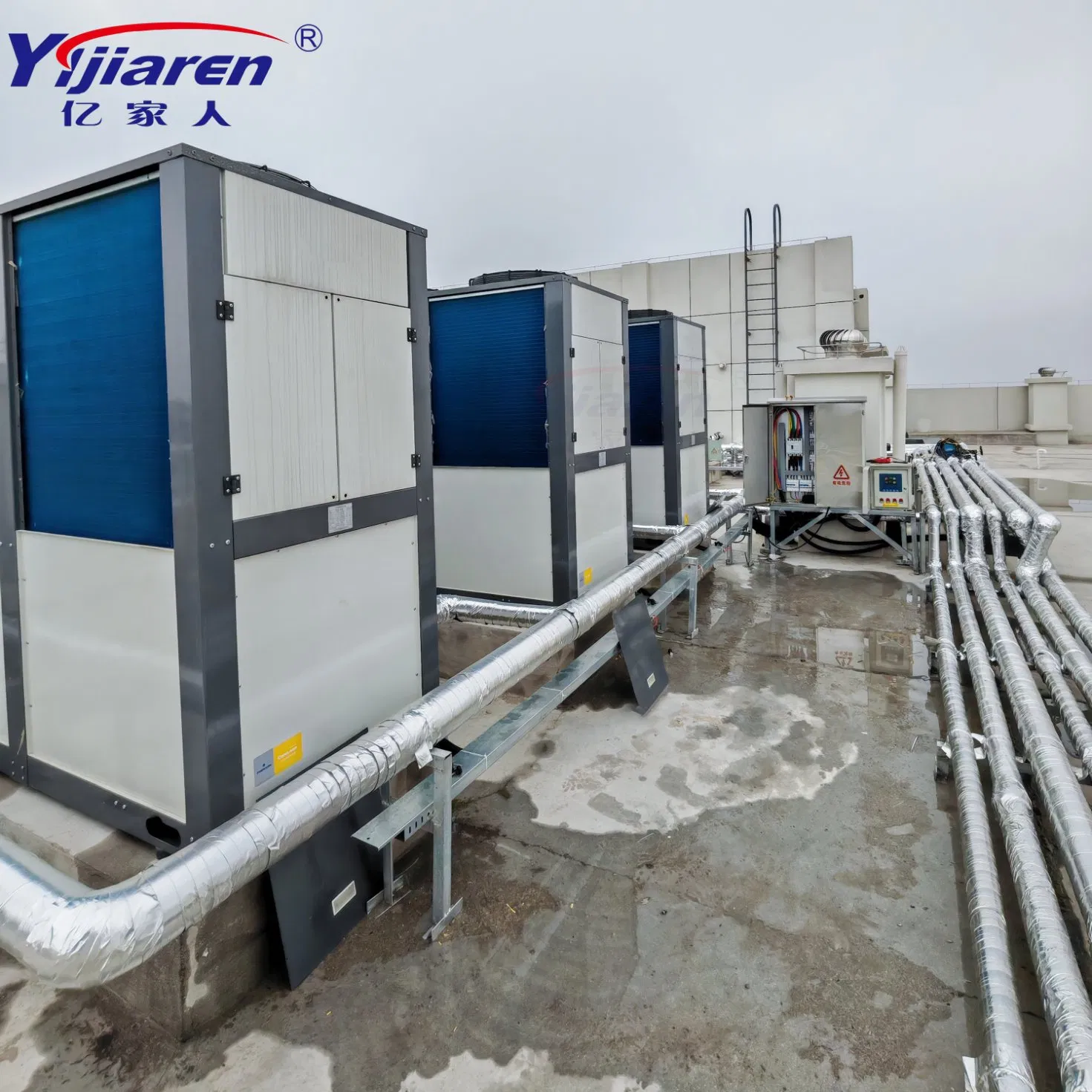

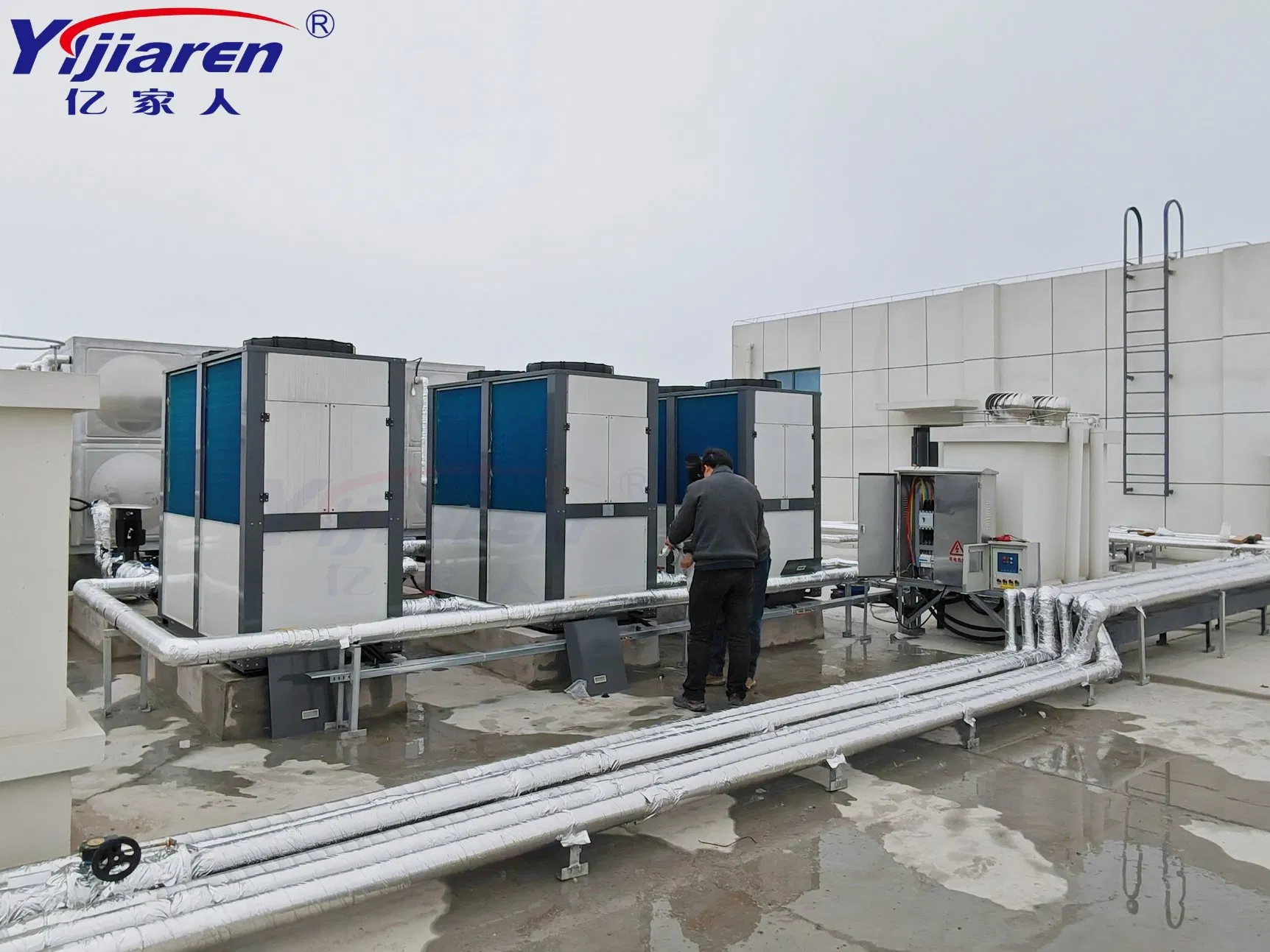

The combined heating system utilizing solar energy and air-source energy offers significant advantages in terms of energy consumption. The air-source heat pump absorbs heat from the air for heating purposes, unaffected by environmental conditions and usable throughout the year. By integrating it with solar heating systems, it compensates for the shortcomings of solar energy supply, resulting in a dual energy-saving solution.
On sunny days, solar energy heats the water. On cloudy or rainy days, the heat pump assists, saving up to 70% of electricity compared to traditional electric heaters. Water temperatures can reach up to 90 ºC, suitable for baths and industrial use.
| Feature | Description | |||
|---|---|---|---|---|
| Bracket Material | 1.5mm galvanized steel sheet spraying | |||
| Collector Type | TP2 copper pipe, aluminum heat-absorbing fins, glass wool composite insulation | |||
| Specifications (mm) | 1500*1000*80 | 2000*1000*80 | 1500*1000*80 | 2000*1000*80 |
| Quantity (pcs) | 1 | 1 | 2 | 2 |
| Model (YJR-C-) | 05HP | 10HP-A | 15HP-B | 20HP | 30HP |
|---|---|---|---|---|---|
| Heating Capacity (kw) | 22 | 36 | 60 | 80 | 116 |
| Water Production (L/h) | 472 | 773 | 1289 | 1715 | 2494 |
| Rated Power (kw) | 4.58 | 9.12 | 13.64 | 18.2 | 27.6 |
| COP | 4.8 | 3.94 | 4.39 | 4.4 | 4.21 |
| Ambient Temp Range | -10~43ºC | ||||

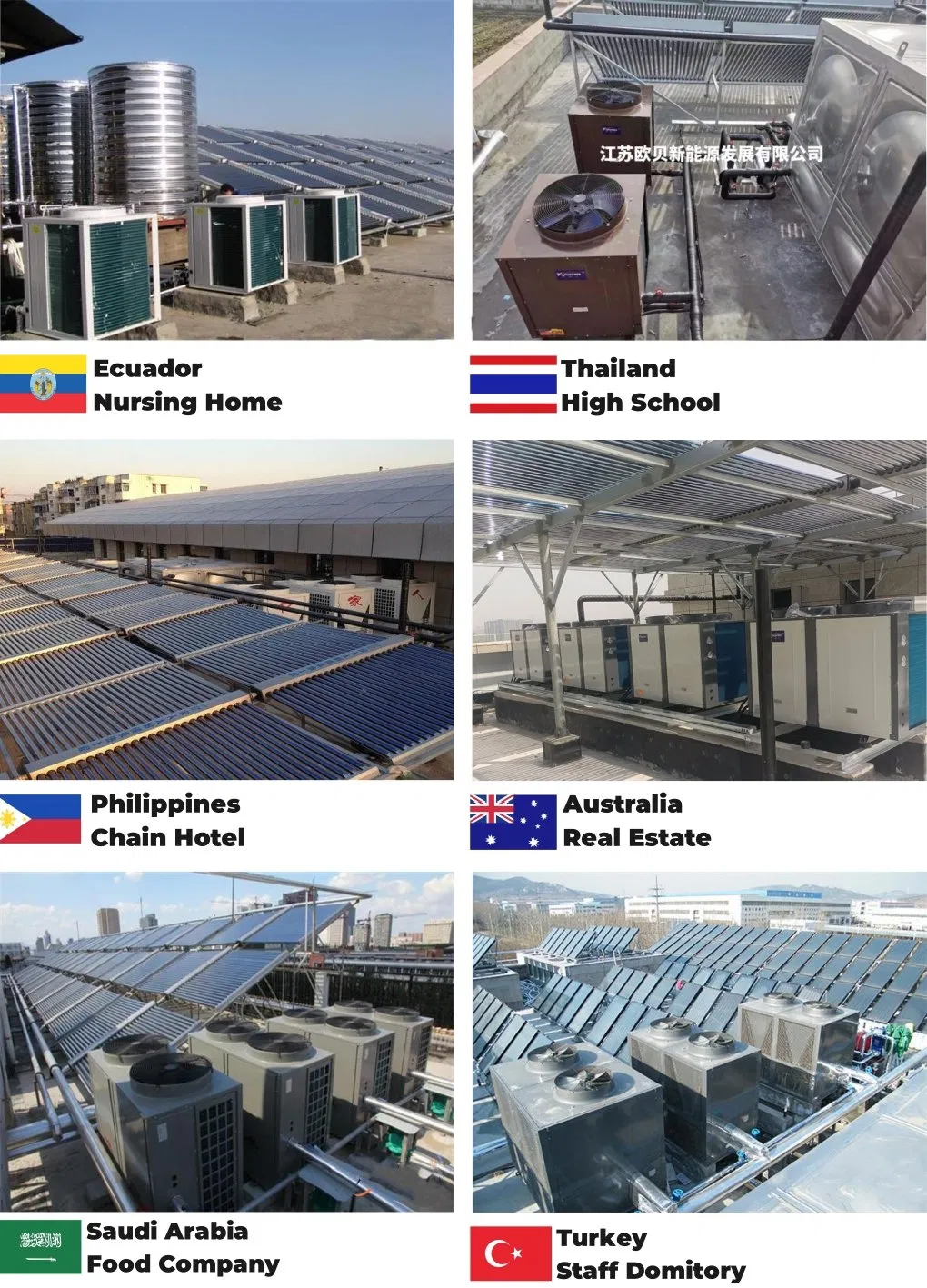

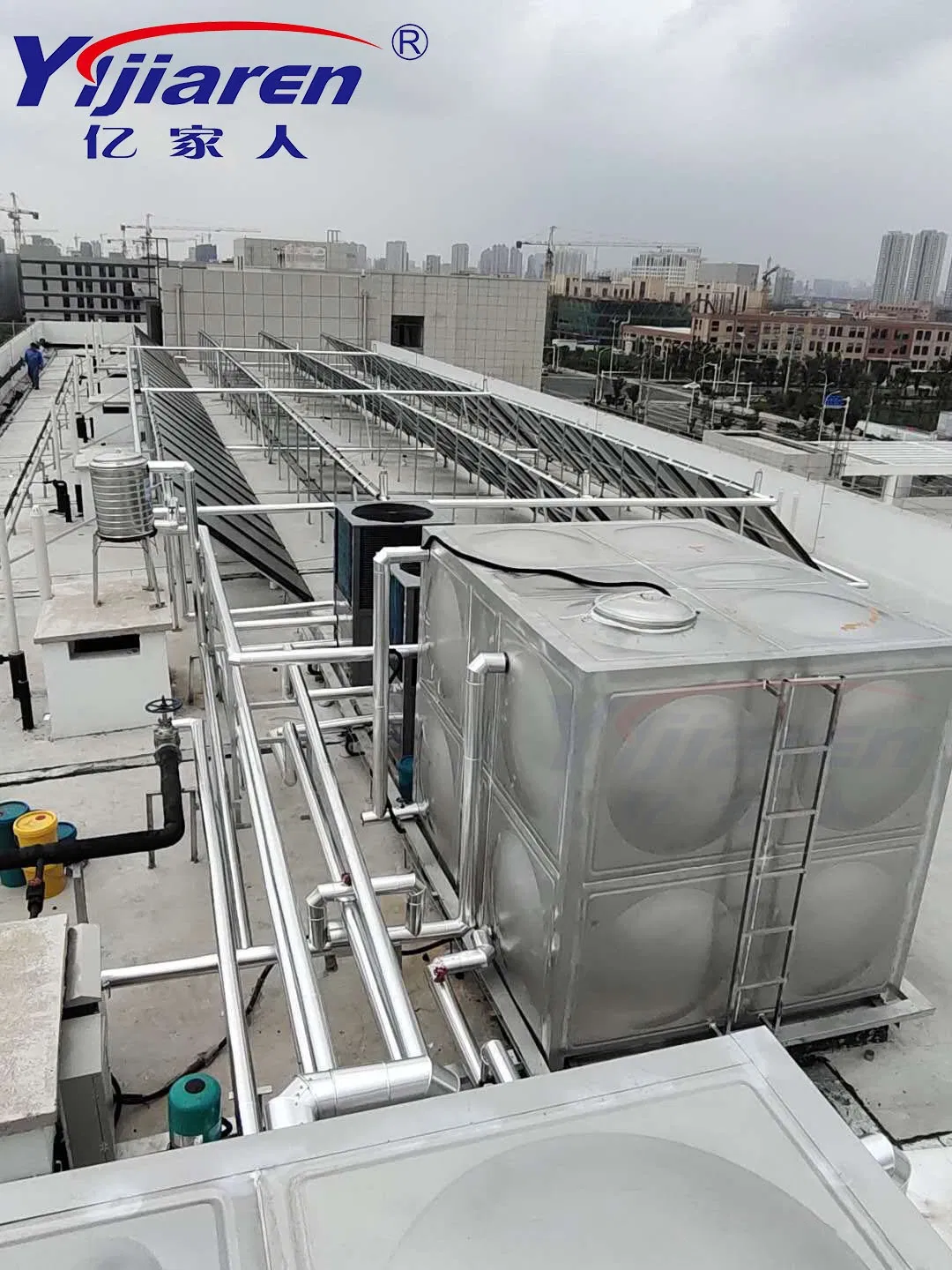

Our systems are extensively used in hotels, hospitals, schools, fitness clubs, and industrial units for hot water and floor heating solutions.
We focus on integrating hot water, floor heating, air conditioning, and fresh air systems. With ISO9001 and ISO14001 certifications, we ensure safe, intelligent, and energy-efficient designs.
