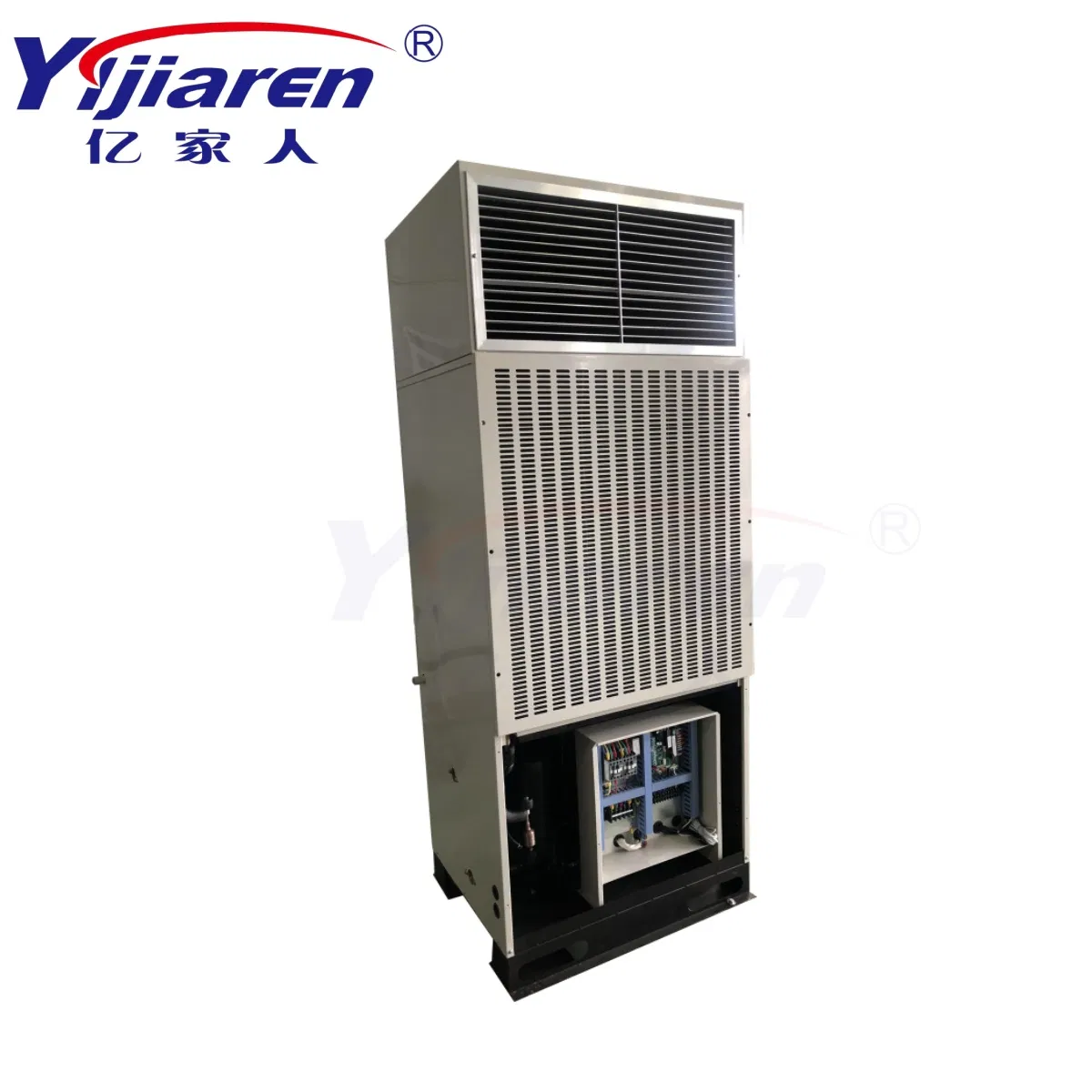

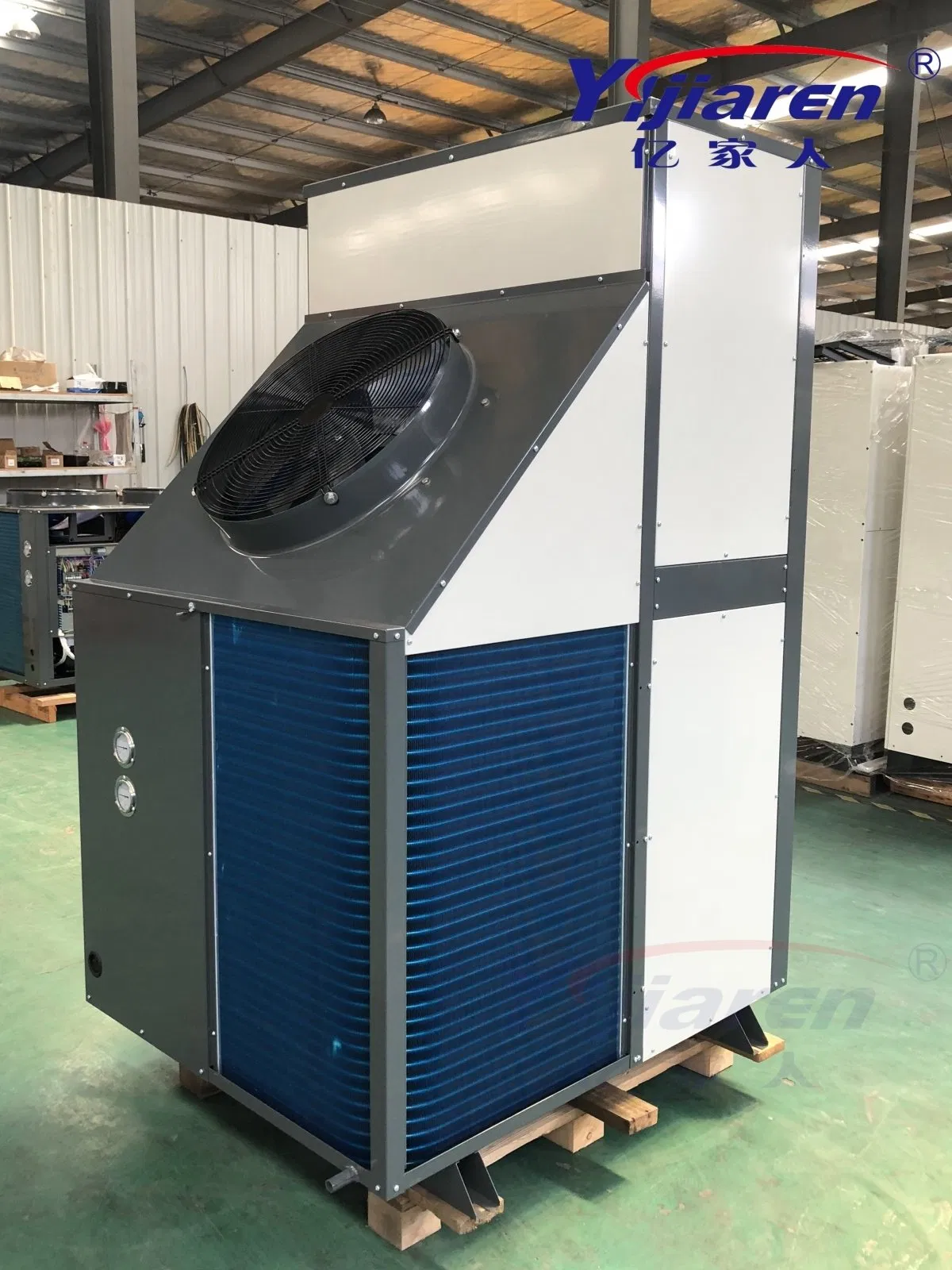

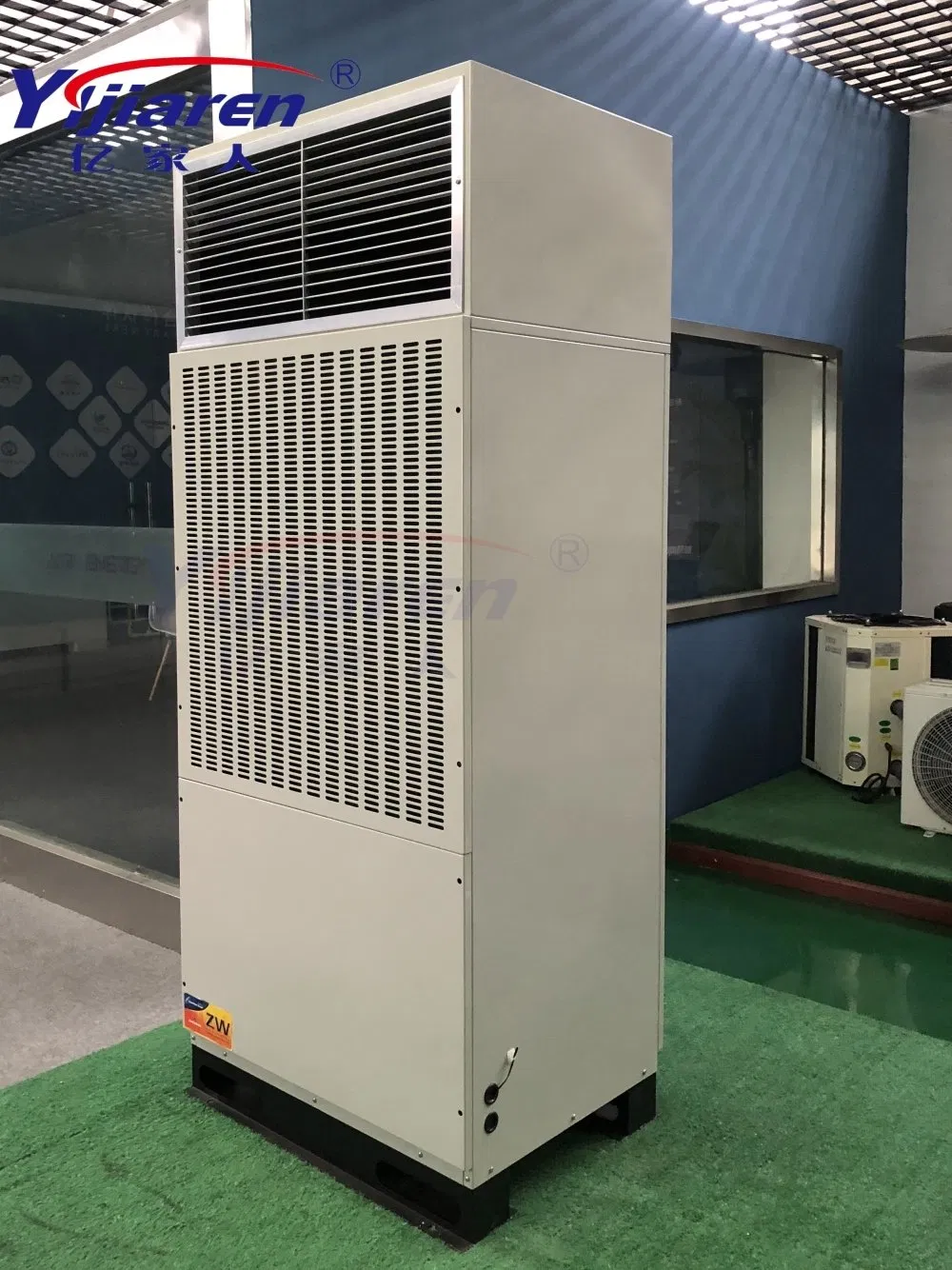

Innovative Heat Pump Solutions for Sustainable Agricultural Practices

Customization: Available
Energy Efficiency Grade: One
Heat Temperature: 50-70°C

Product Description

Experience the future of sustainable farming with our cutting-edge Agriculture Vegetable and Fruit Greenhouse Constant Temperature Controller Heat Pump. This revolutionary solution ensures optimal conditions for your produce, offering precision in temperature regulation and energy efficiency.
📋

Basic Info.

Model NO.YJR-C Series (5HP-30HP)
Work EnvironmentCommon Heat Pump
Heat SourceAir-source
Heating TypeMulti-power Heat
ApplicationGreenhouse, Sauna, Pool, Hotels, Factory, Salon
CertificationISO9001, CCC, RoHS
Power3N/380V-50Hz
Temp Setting55°C (40~60°C Adjustable)
📊

Product Parameters

Model YJR-C-05HP YJR-C-10HP-B YJR-C-15HP-B YJR-C-20HP YJR-C-30HP
Heating Capacity kw 22 40 60 80 116
Water Volume m³/h 3.77 6.86 10.32 13.71 19.95
Rated Power kw 4.58 8.85 13.64 18.2 27.6
COP / 4.8 4.52 4.39 4.4 4.21
Max Current A 9.3 18.9 33.5 39.8 54.5
Dimensions mm 850*900*1100 985*965*1960 985*965*1960 1960*965*1960 1960*965*1960

Key Advantages

  • Intelligent Control: State-of-the-art water routing system offering 7-12°C cooling and up to 60°C heating.
  • Optimized Efficiency: Condensation temperature aligns with physical requirements to maximize performance.
  • Extended Lifespan: Innovative high-pressure reduction ensures compressor functions at low load for durability.
  • Energy Saving: Utilizes direct tap water pressure; circulating pump only engages during insulation.
  • Space Saving: Produces 60°C hot water, allowing for miniaturized water tank designs.
  • Constant Comfort: Automatic cycle heating ensures water remains at target temperature continuously.
⚙️

Working Principle & Configuration

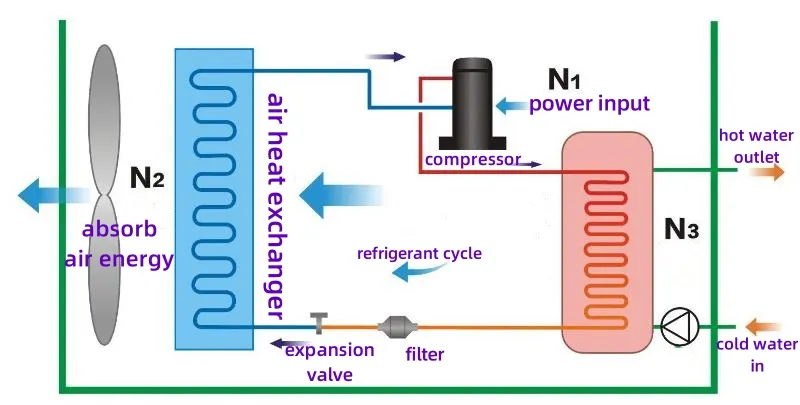

Working Principle
1. High Efficiency Scroll Compressor

Utilizes renowned scroll compressors with optimized system design, elevating heating capacity and extending service life.

2. Multi-flow Evaporator

Internally threaded copper casing and hydrophilic aluminum foil ensure rapid condensation discharge and thorough defrosting.

3. Copper Tube Heat Exchanger

Coaxial spiral design facilitates turbulent heat exchange and corrosion resistance, maximizing energy utilization.

4. Intelligent Throttling & Silent Fan

Premium expansion valves and low-speed, high-torque turbine fans minimize noise while maximizing airflow.

🏗️

Engineering Projects & Factory

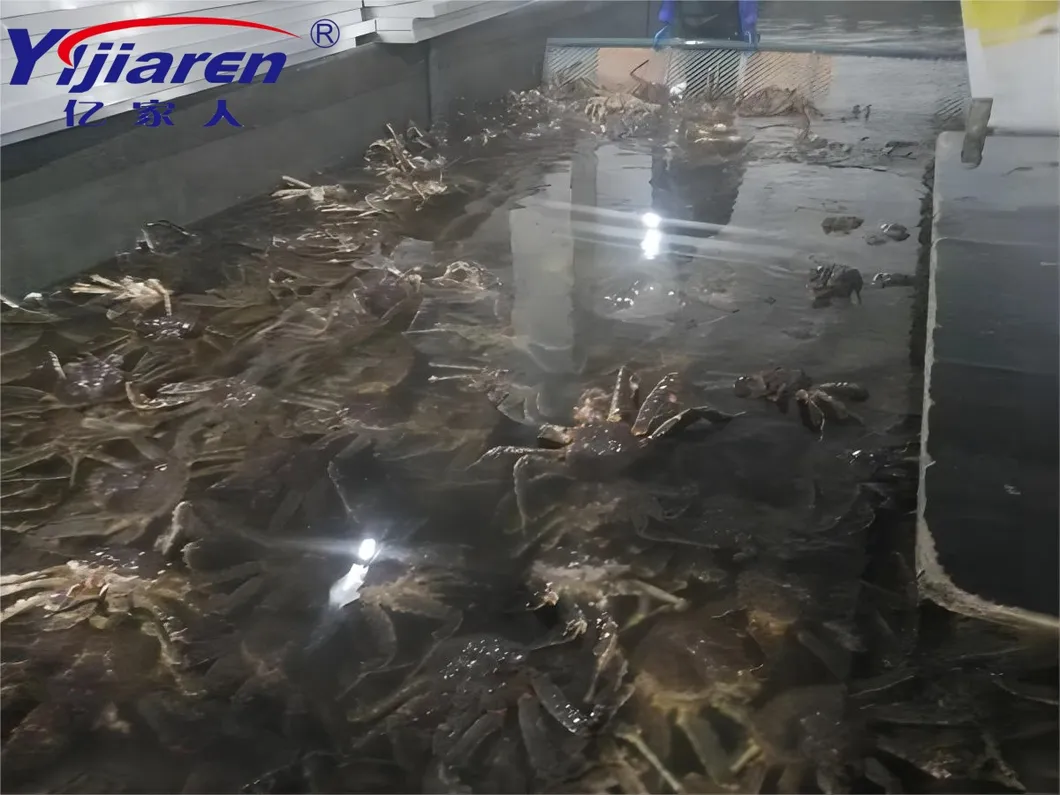

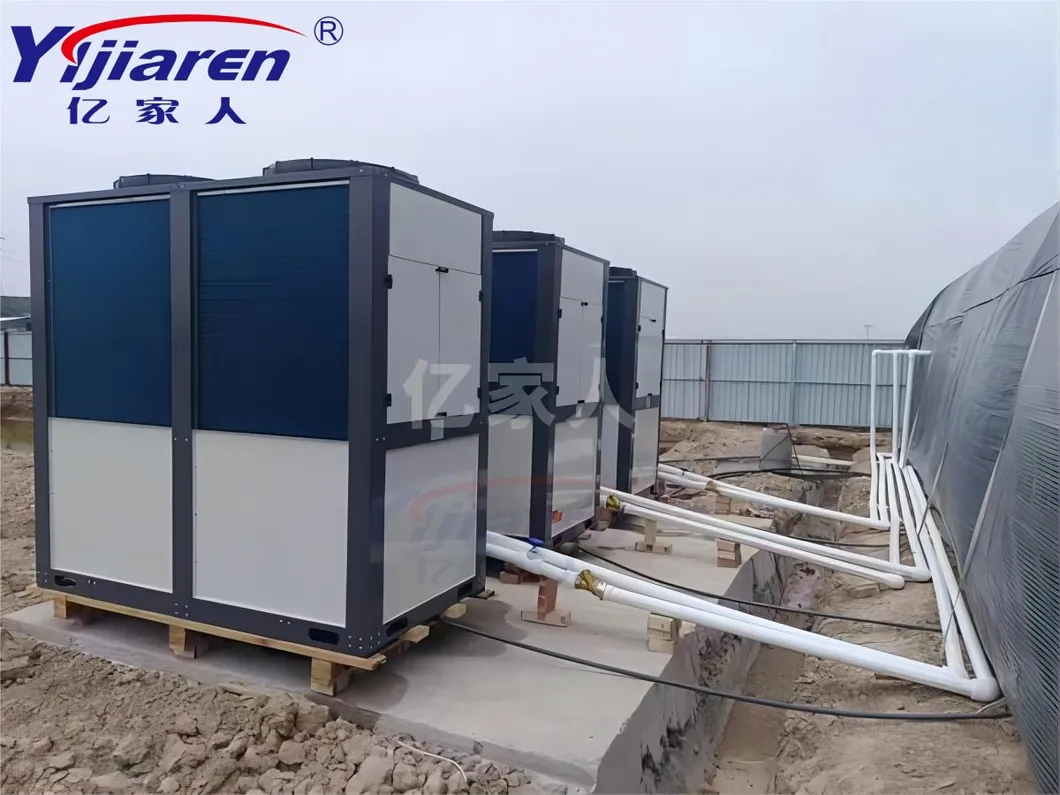

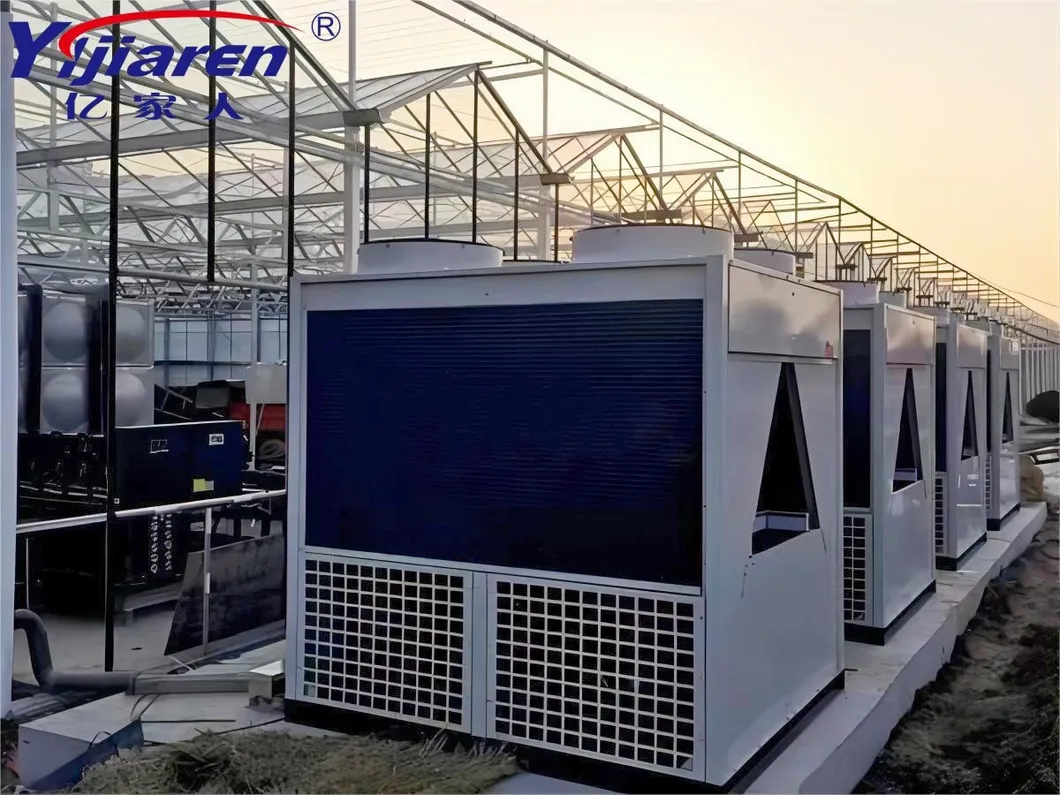

Project 1 Project 2 Project 3

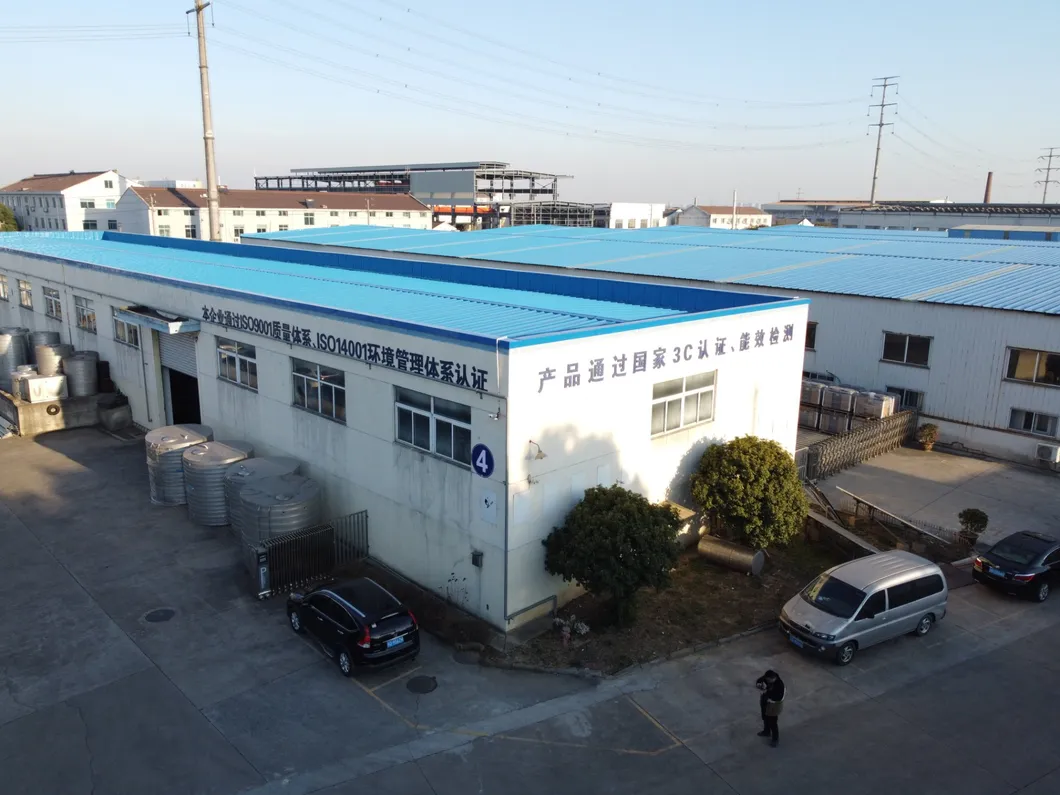

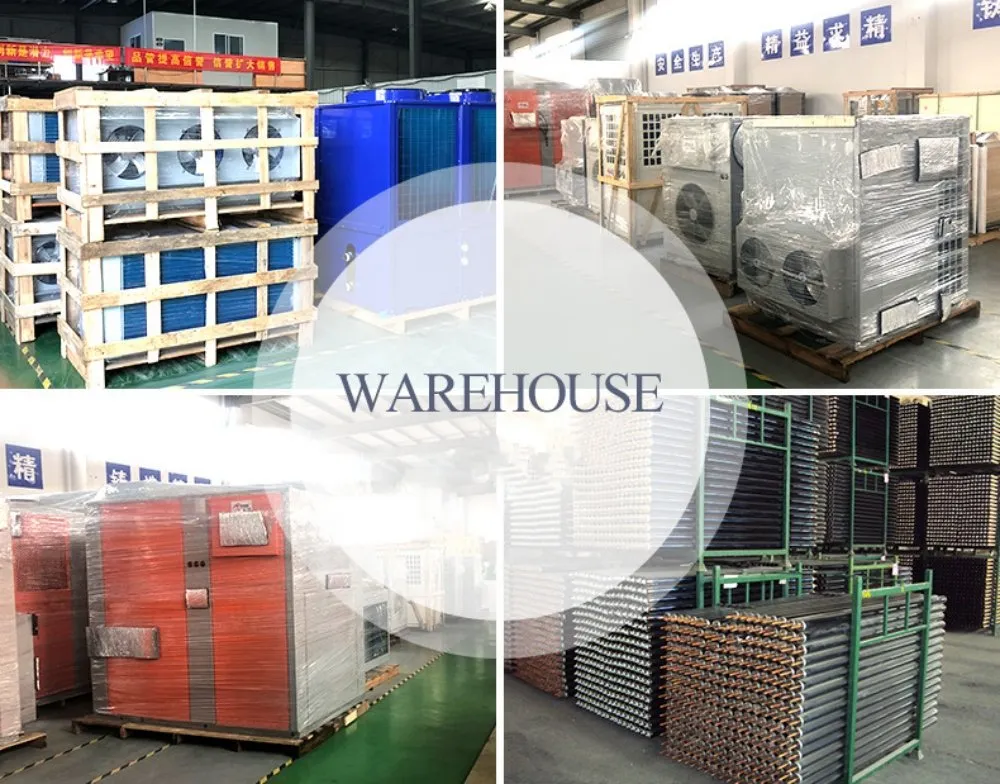

Factory Overview Production Line
🌊

Application in Aquaculture & Farming

Application Scene

Air source heat pumps are revolutionary for aquaculture, submerged titanium heat exchangers gradually increase water temperatures without direct heating. This green, low-carbon alternative provides significant electricity savings and safety compared to traditional boilers or electric rods.

📜

Certificates

Certificates Display
📦

Packaging & Shipping

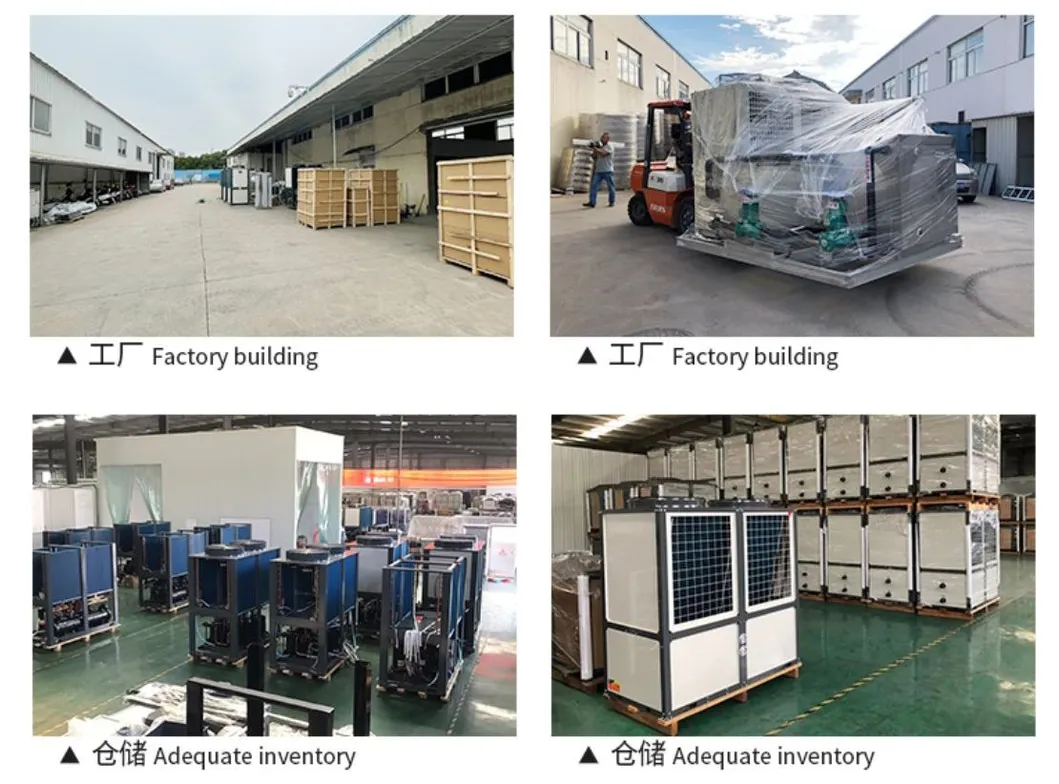

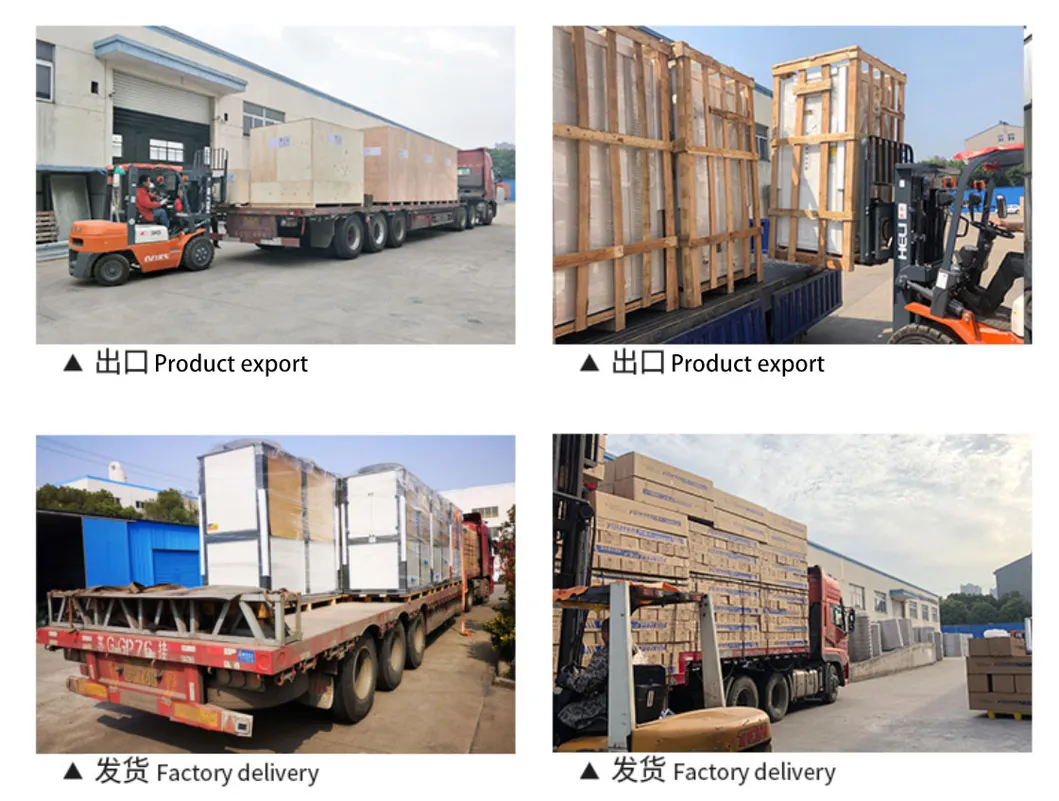

Packaging Shipping

Frequently Asked Questions

What are your main product lines?
We specialize in manufacturing, R&D, and quality control for solar water heater systems, air source heat pumps, and related components.
Do you provide OEM or ODM services?
Yes, we provide comprehensive OEM and ODM services, including logo printing and customized design options.
What is the typical lead time for production?
Generally, it is 3-7 working days for in-stock goods and 15-25 working days for items not in stock, depending on order quantity.
What kind of after-sales support do you offer?
We provide a 24-month warranty service in accordance with our established warranty policy.
Why should we choose your heat pump solutions?
With over 15 years of expertise and over 8000 successful engineering projects, we offer tailored technical consulting and efficient system designs.
