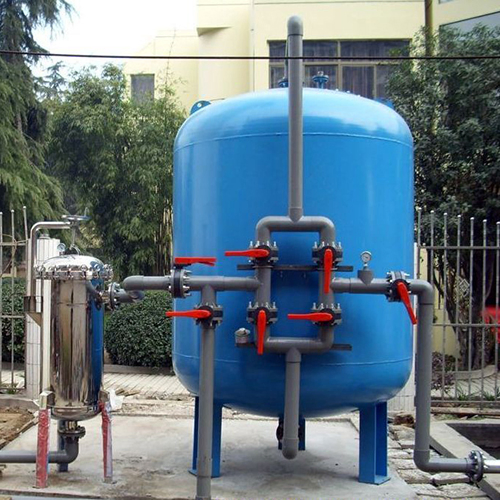

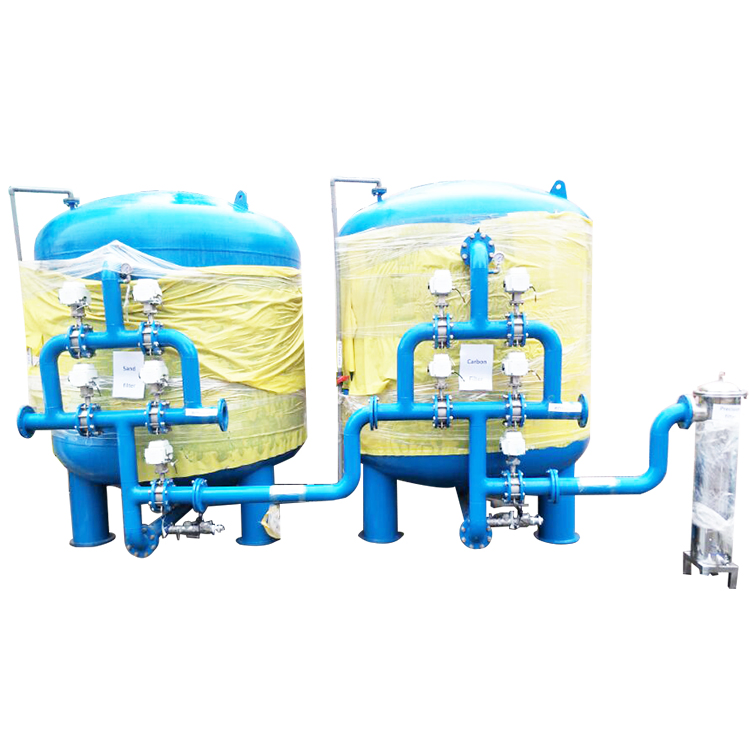

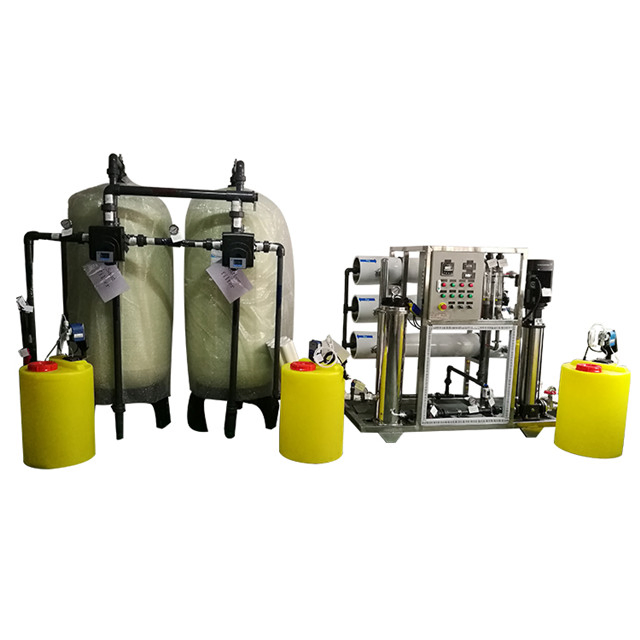

Innovative Iron Remover Filtration System for Underground Water Filtration

This filtration system is designed to effectively remove iron and manganese from ground water, ensuring a clean and potable water supply for residential or industrial needs.

• Utilizes injection followed by sand or coated greensand media filtration.
• Choice between filter sand or manganese dioxide filter media.
• Large-scale system suitable for industrial applications.

• Improves water quality and appearance by clearing iron and manganese.
• Eliminates high-maintenance treatment methods.
• Reduces metallic taste and odor in the water.
• Ensures a reliable supply of safe potable water.

• Input Iron: < 15mg/L | Output Iron: < 0.03mg/L
• Input Manganese: < 10mg/L | Output Manganese: < 0.01mg/L
• Meets global drinking water standards
• Strong antioxidant properties for efficient oxidation
• System Capacity: 10m3/hr

Groundwater often contains high levels of iron and manganese. The Manganese Sand Filter acts as a strong antioxidant, oxidizing ferrous ions to ensure purified water for consumption.

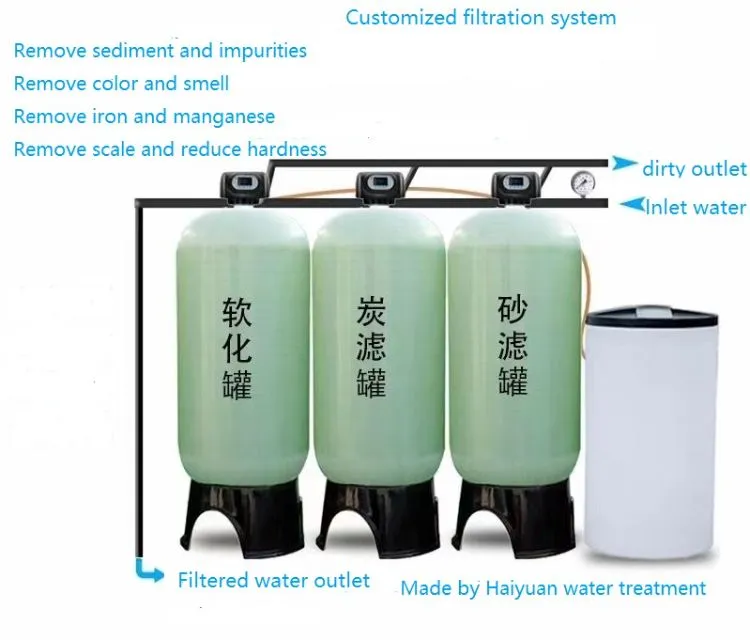

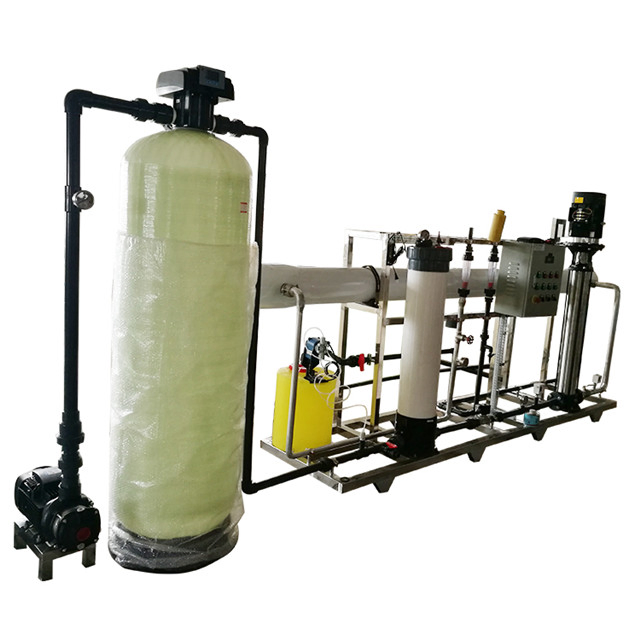

1. Source tank & Feed water pump

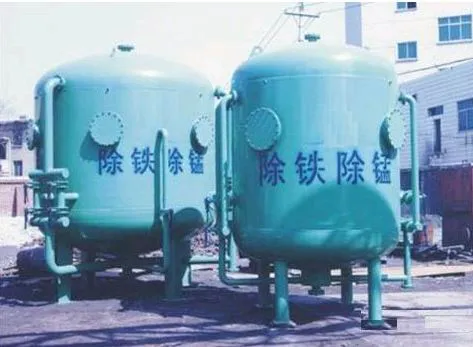

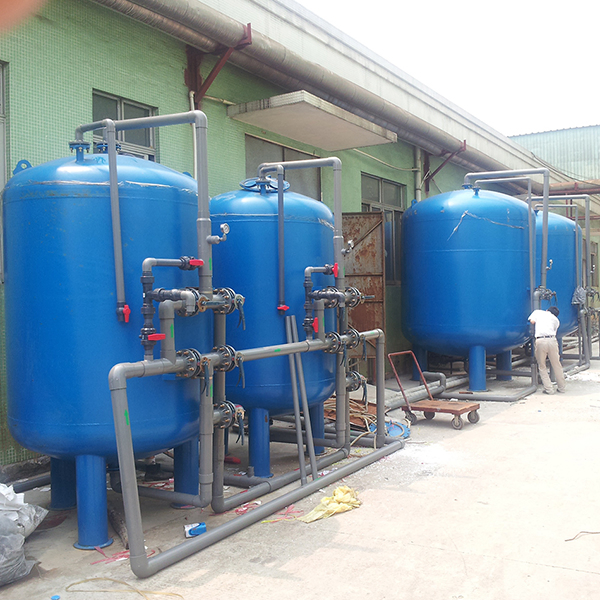

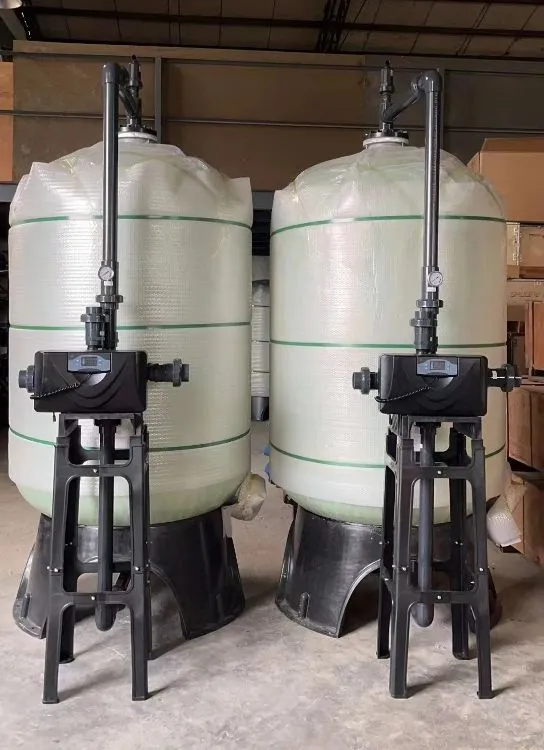

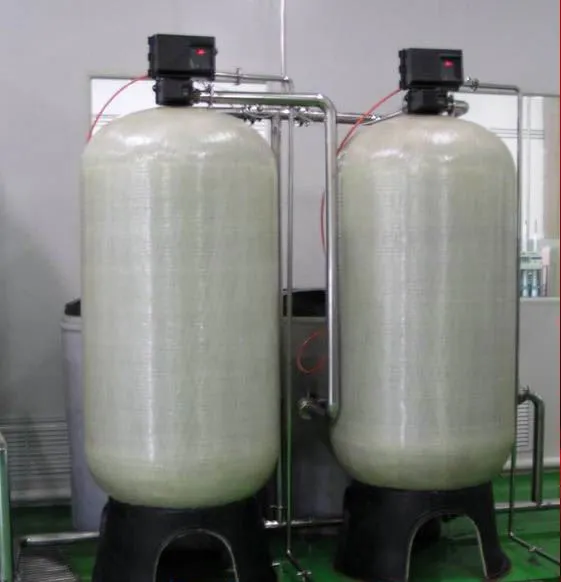

2. Iron removal filter
3. Active carbon filter & Water softener
4. Cartridge/Security/Micro filter

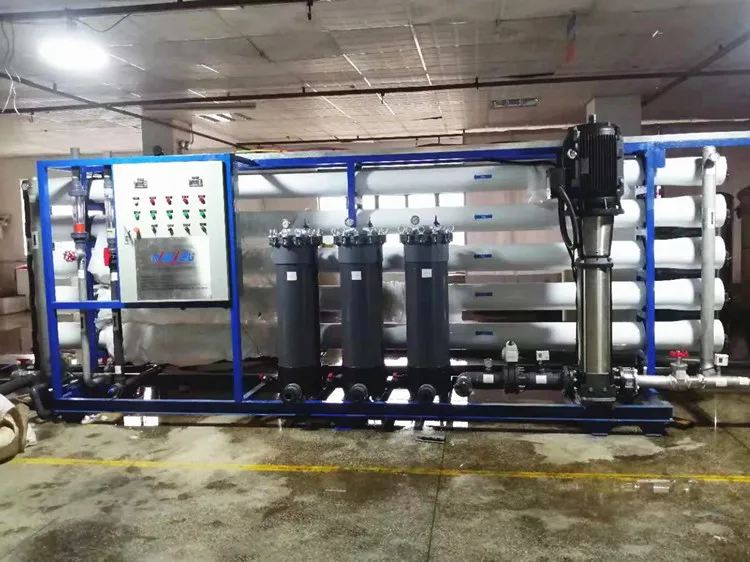

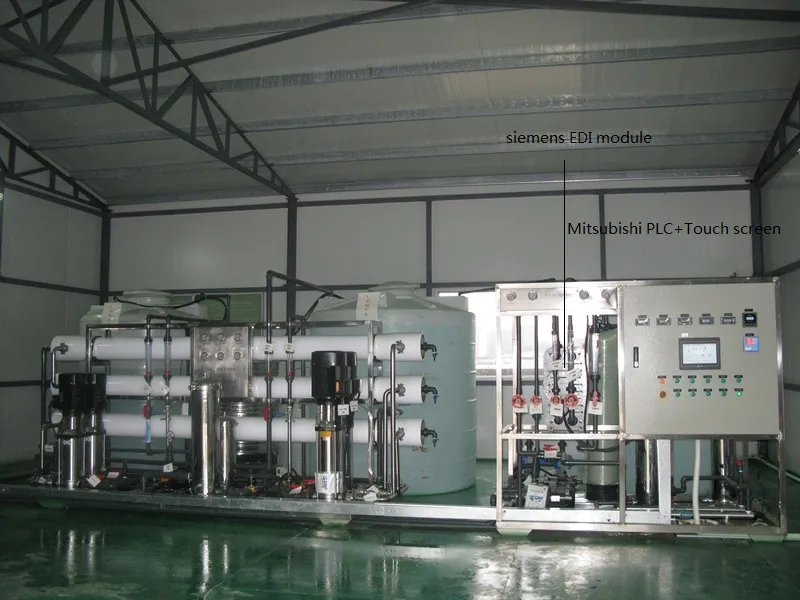

5. High-pressure pump & Reverse osmosis system
6. RO purified tank
7. Ultraviolet sterilizer

The system utilizes aeration or oxidizing agents to oxidize iron and manganese ions. As water flows through the manganese sand filter, these ions undergo biochemical and physical adsorption, causing them to precipitate. This process also utilizes ammonia removal through bacterial metabolism.

To select the most appropriate system, please provide the following:

• Required water flow rate (m3/hr or GPM)
• Application purpose (Industrial or Drinking)
• Feed water source (Borehole, Lake, etc.)
• Water Analysis Report (TDS, Iron, Manganese, TSS content)
• Power specifications (e.g., 380V/50Hz 3-phase)
