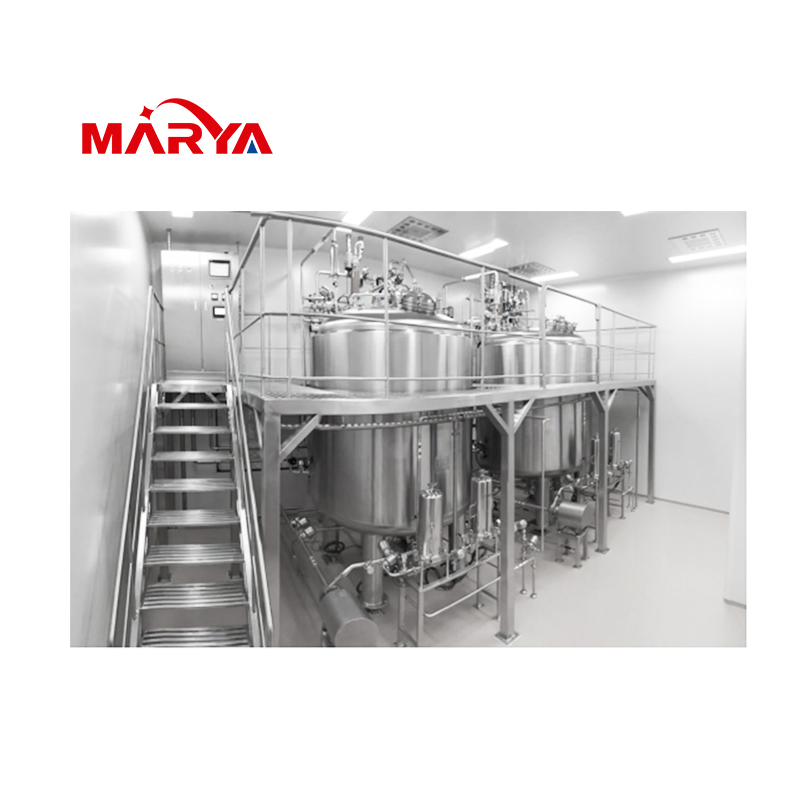

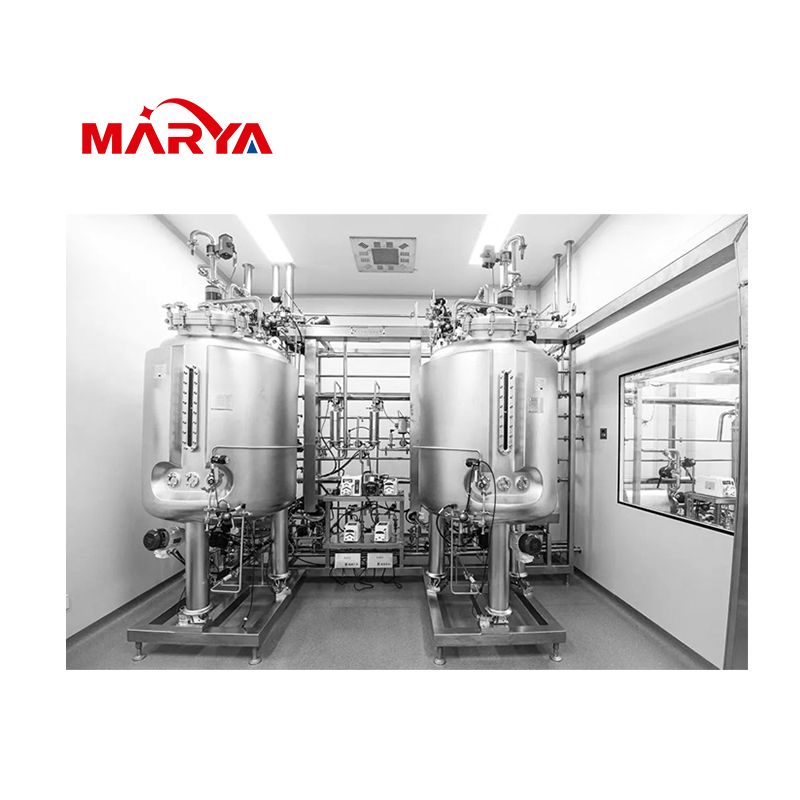

Marya Pharmaceutical Agitators and Mixing Equipment for Liquid Formulation/ Preparation

Customization: Available
Application: Chemical Industry, Clinical Diagnosis, Cosmetics Industry, Food Industry, Food Safety, Pharmaceutical Industry
Main Material: Stainless Steel

Product Description

i

Basic Information

Model NO.AB
Power SourceElectric
Warranty1 Year
Volume2~15000L
Material304, 316L, 904L, Ta2
IP GradeIP65
Modular DesignEquipped
CIP/ SIP SystemEquipped
📦

Packaging & Delivery

Package Size200.00cm * 150.00cm * 100.00cm
Gross Weight100.000kg

Product Description

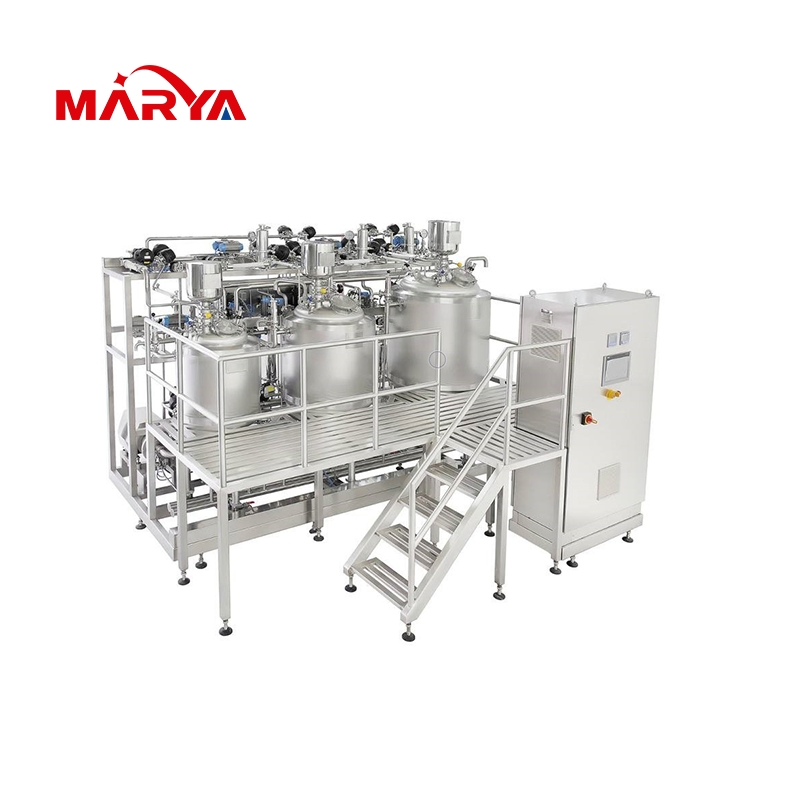

Pharmaceutical Agitators and Mixing Equipment for Liquid Formulation/ Preparation

Introduction

The formulation system is a type of pharmaceutical equipment used to mix and dispense liquids, through which adding an API to a solvent such as water for injection, and then formulating it into a pharmaceutical agent that meets the desired concentration after stirring, heating, sterilization and filtration. It is widely used in sterile or non-sterile pharmaceutical field.

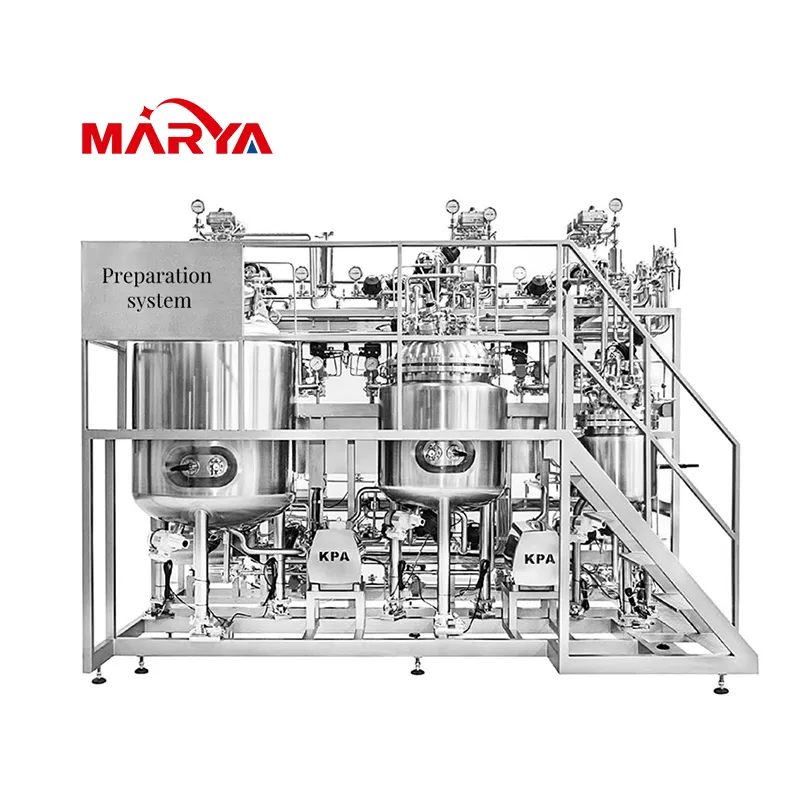

Formulation Equipment

Classifications

  • General formulation system: Used for general small molecule chemical preparation, such as aqueous injection and lyophilized powder injection.

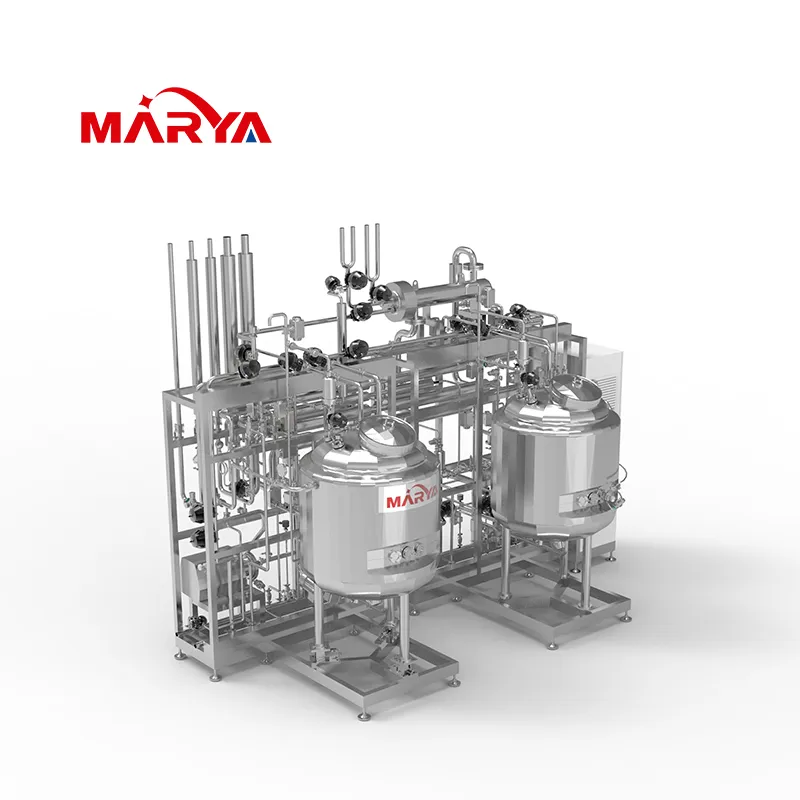

  • Complex formulation system: Used for suspensions, emulsions, liposomes, and microspheres.
  • Biological formulation system: Used for antibodies, vaccines, blood products, and culture medium production.
Biological System
Complex System
💡

Key Features

Modular design, cost-saving and worry-free

The pre-tested modular equipment provides significant savings on installation, faster delivery, and a high level of flexibility and convenience.

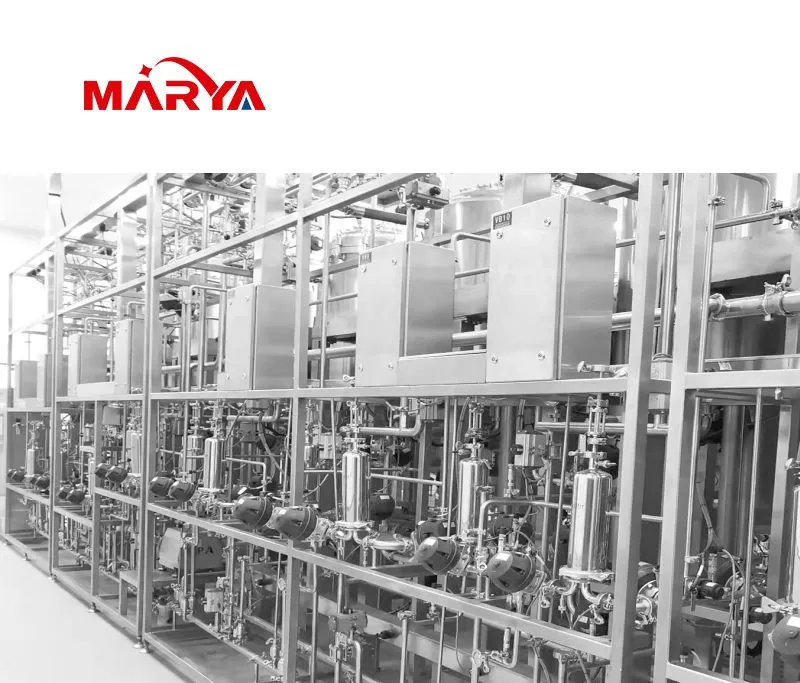

Modular Design
Fully automatic running system

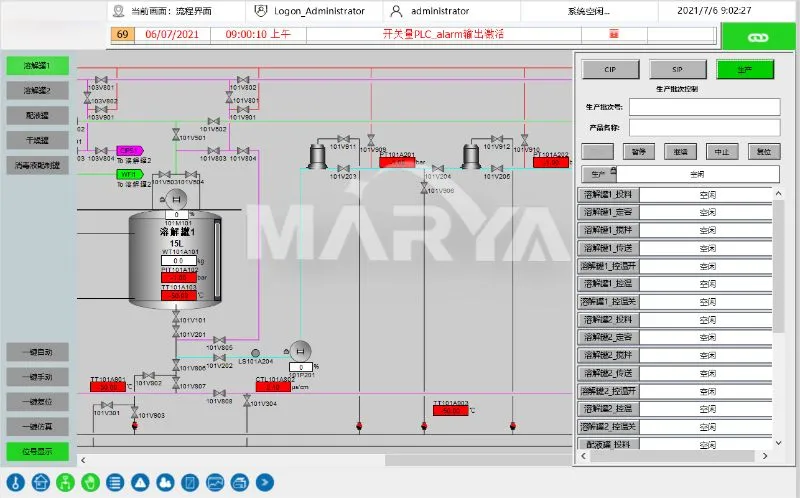

The one-button automatic control system of CIP and SIP can automatically detect the end of cleaning and sterilization, with recipe management, electronic signature, and audit tracking.

Automatic System
Visualized Monitoring & Control

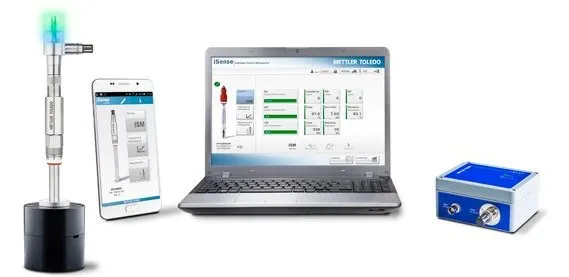

Realize controllable production with key process parameters such as temperature, dissolved oxygen, and PH. System triggers alarms if parameters deviate from set ranges.

Monitoring

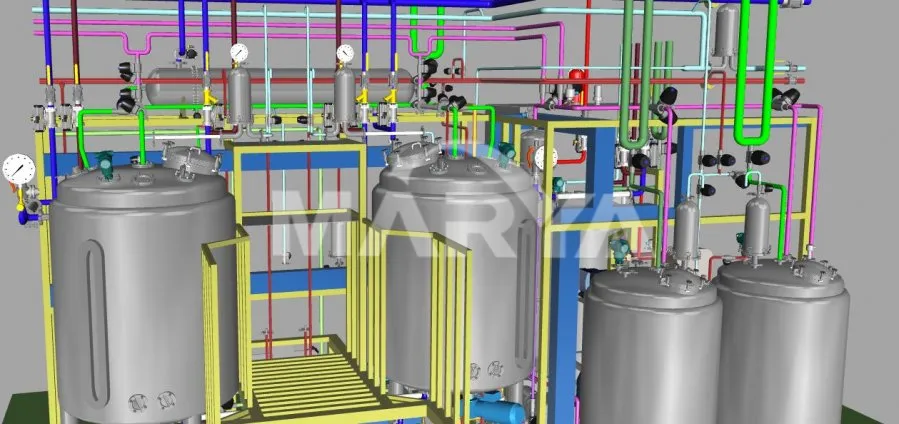

3D Simulation Design

Precise 3D design rationalizes the arrangement of pipelines, valves, and instruments to ensure user-friendly operation.

3D Design
📋

Design Parameters

ParameterSpecification
Volume2~15000L
Material304, 316L, 904L, TA2
Stirring TypeUpper mechanical / Lower magnetic
Speed Range0~450rpm
Temperature Range-10~150ºC
Pressure Range-0.01Mpa~0.06Mpa
Weighing Accuracy3‰
Power Supply380V 50Hz

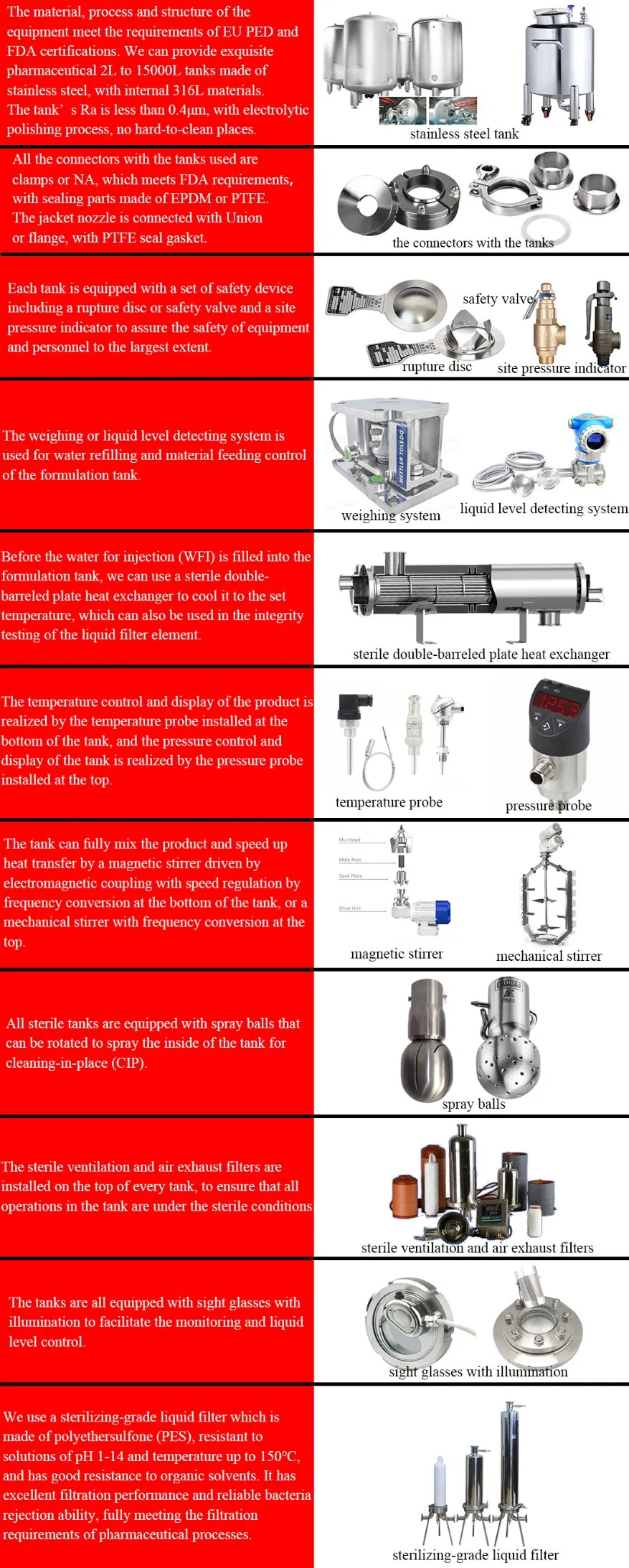

Design Details
📷

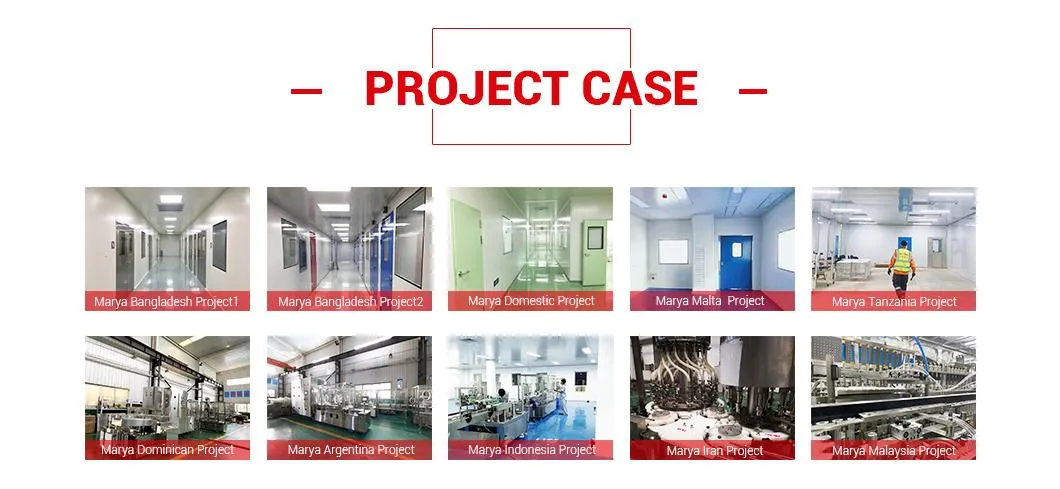

Project Showcase

Project 1
Project 2
Project 3
Project 4
Project 5
Project 6
Full Capability
?

Frequently Asked Questions

1. What is the capacity range of your mixing systems?
Our formulation systems support a wide volume range from 2L up to 15,000L to accommodate both R&D and large-scale production.
2. Which materials are used for equipment construction?
We use high-grade pharmaceutical materials including Stainless Steel 304, 316L, 904L, and Titanium (TA2) to ensure compatibility and durability.
3. Does the system include automated cleaning features?
Yes, the system is equipped with fully automatic CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems with one-button control.
4. What types of stirring mechanisms are available?
We offer both upper mechanical stirring and lower magnetic stirring options to suit different formulation requirements.
5. How accurate is the temperature and pressure control?
The system provides highly accurate monitoring with a temperature range of -10 to 150ºC and pressure control within ±0.01MPa.
6. Is the software compliant with pharmaceutical standards?
Yes, the control system includes electronic signatures, electronic records, and audit tracking to meet strict industry automation requirements.
