Comprehensive Poultry Farm Equipment for Tropical Regions with Feeding, Drinking, and Energy-Efficient Ventilation Solutions
We are a professional integrated manufacturer and designer of the modern broiler farm. We are committed to providing the most advanced technology and highest quality products for broiler farms both domestically and internationally.

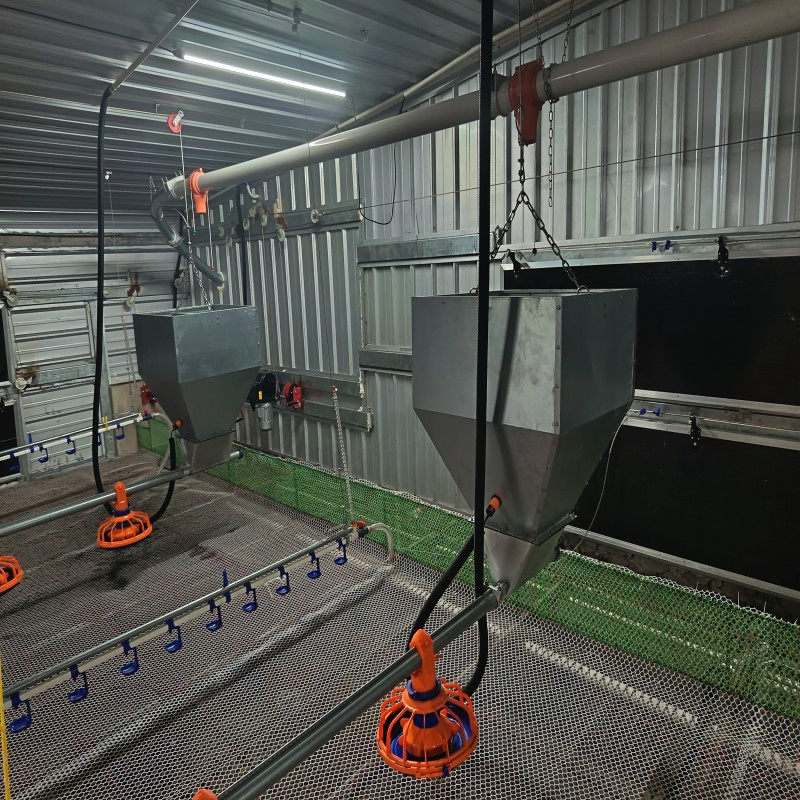

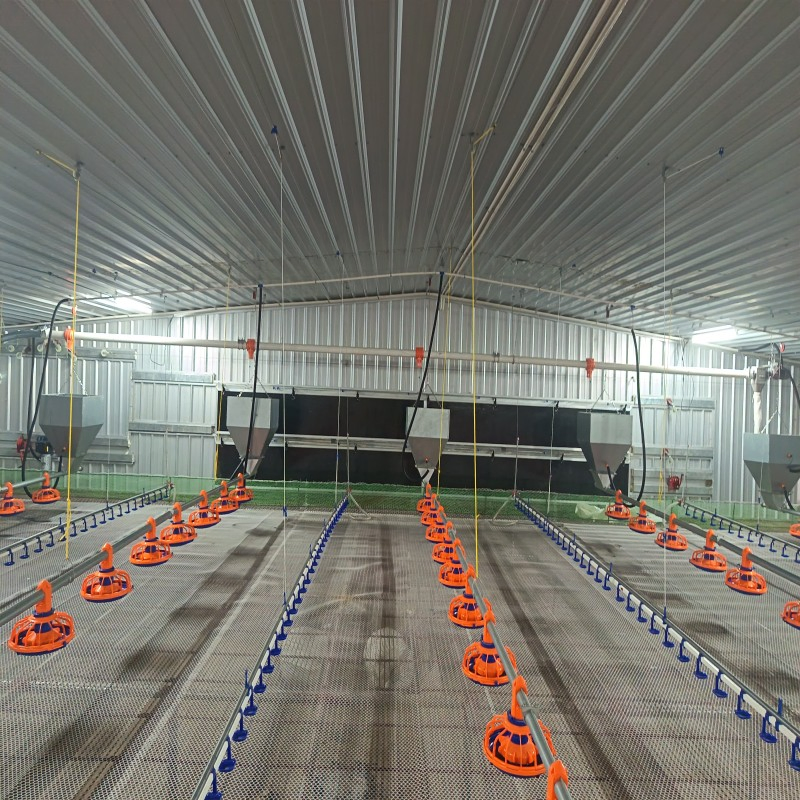

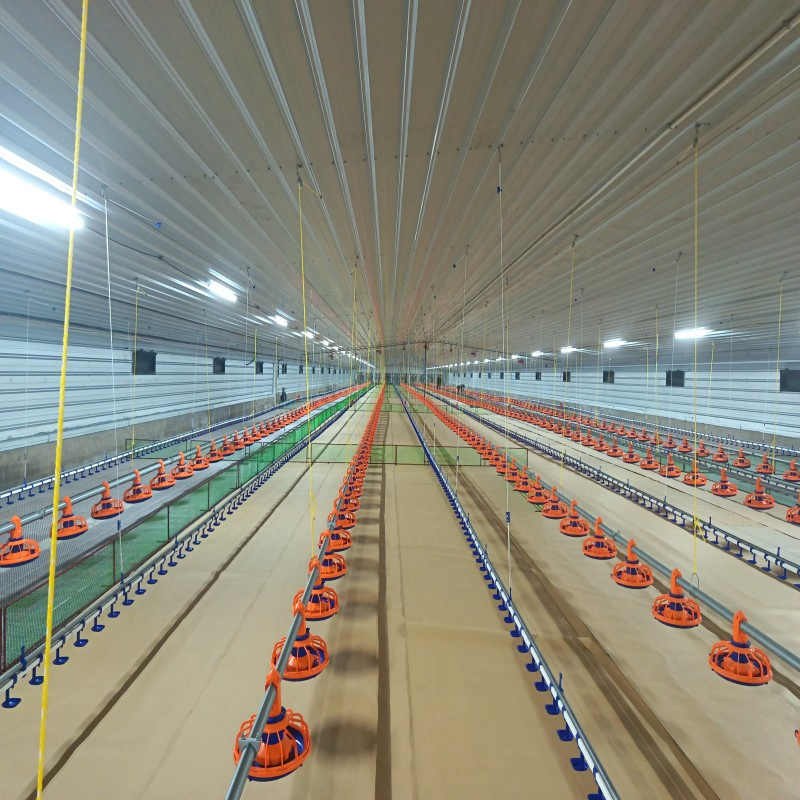

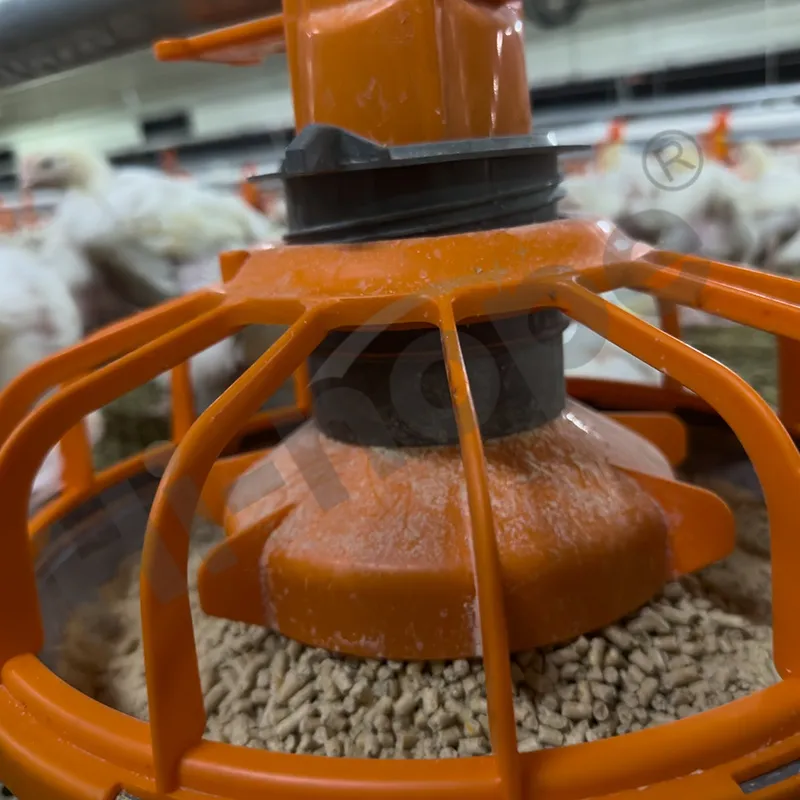

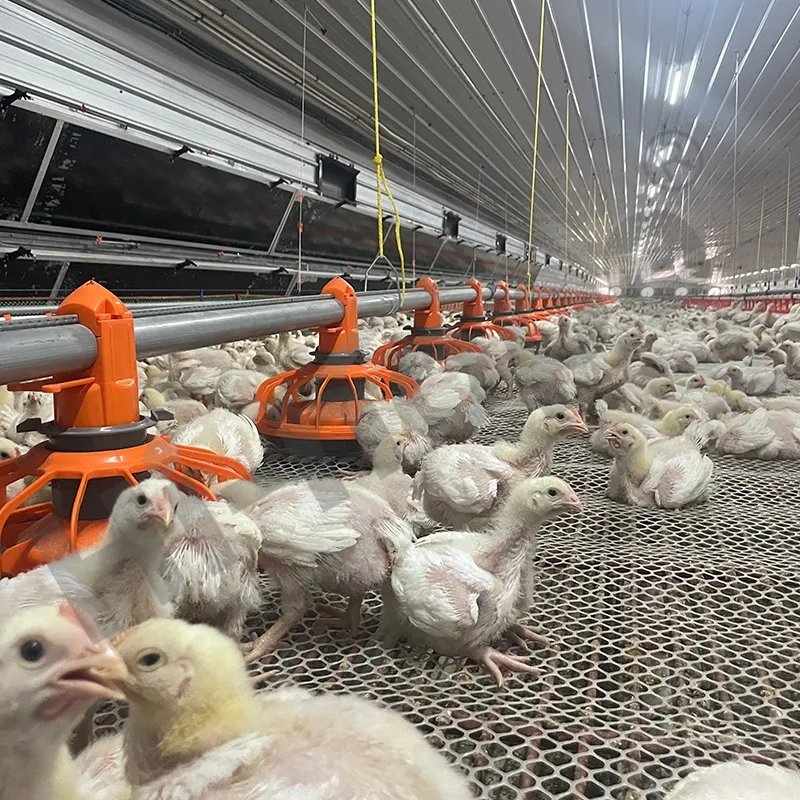

Includes the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed deliver Auger, Suspension system and other necessary parts. We select the most stable and quality drive motor to ensure the whole line stable and efficient working automatically. Feeder could be used from day one to moved out, designed with the maximum feed bearing capacity to supply more birds. The whole line design aim to get the best FCR for chicken growing.

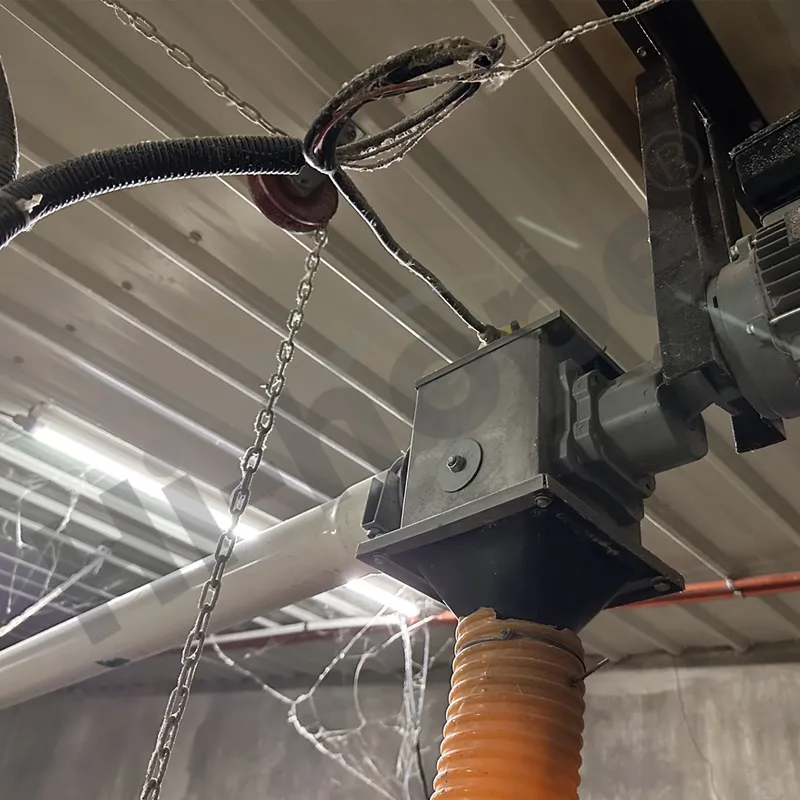

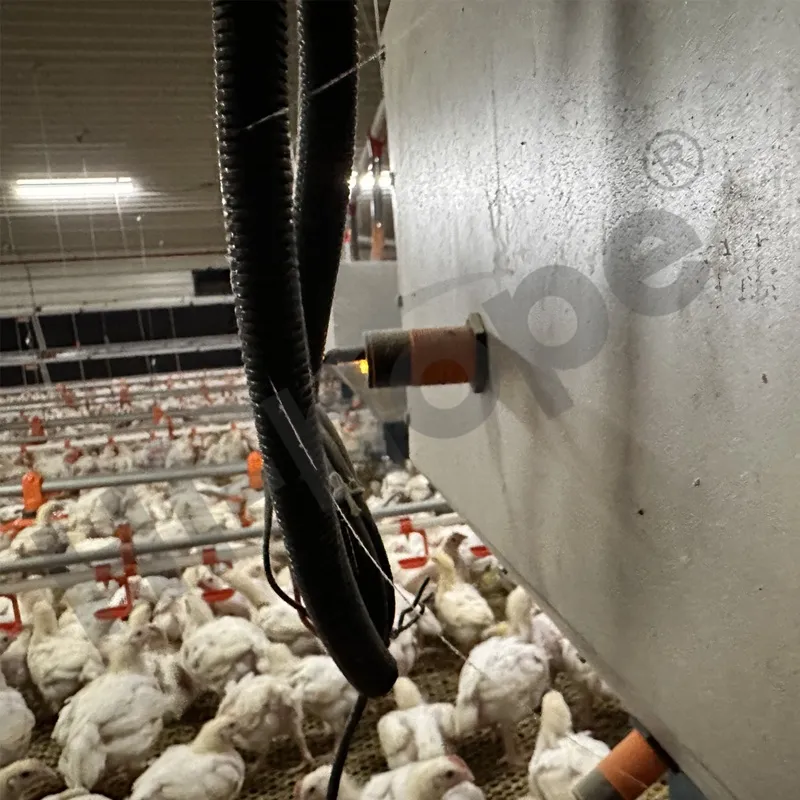

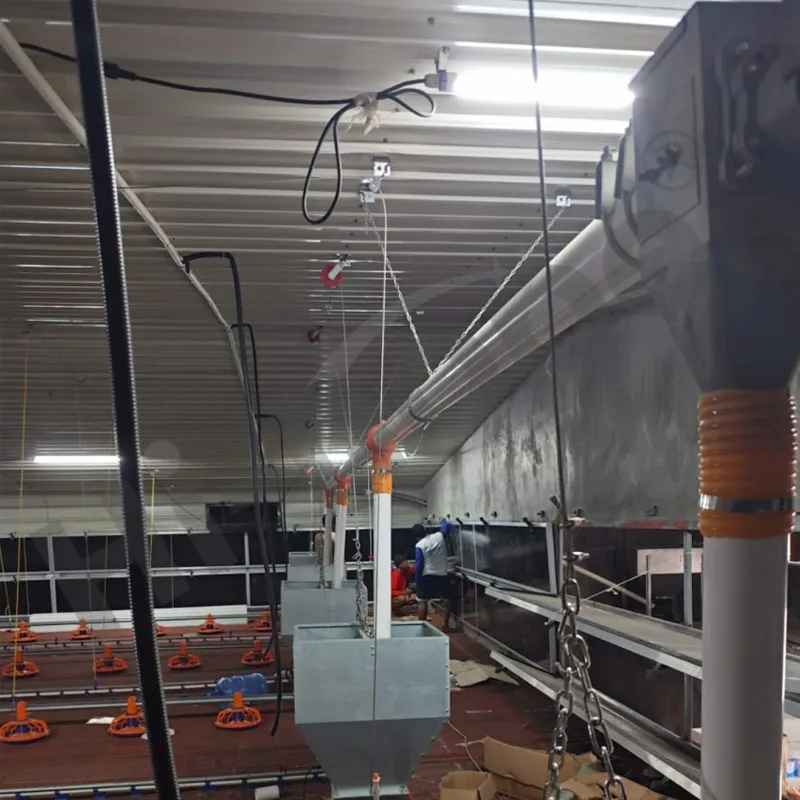

Includes the feed silo, flexible feed delivery auger, PVC feed delivery pipe, drive motor and other necessary parts. Benefit with simple operation, high quality, and efficiency.
| System Specification | 75mm | 90mm |
|---|---|---|
| Max Delivery Length | 60m | 40m |
| Gear Motor | 1.1HP/1.5HP, 50/60HZ | 1.1HP/1.5HP, 50/60HZ |
| Delivery Capacity | 1400 KGS/H | 2500 KGS/H |
Includes tunnel fans, air inlet, cooling pad & tunnel door.

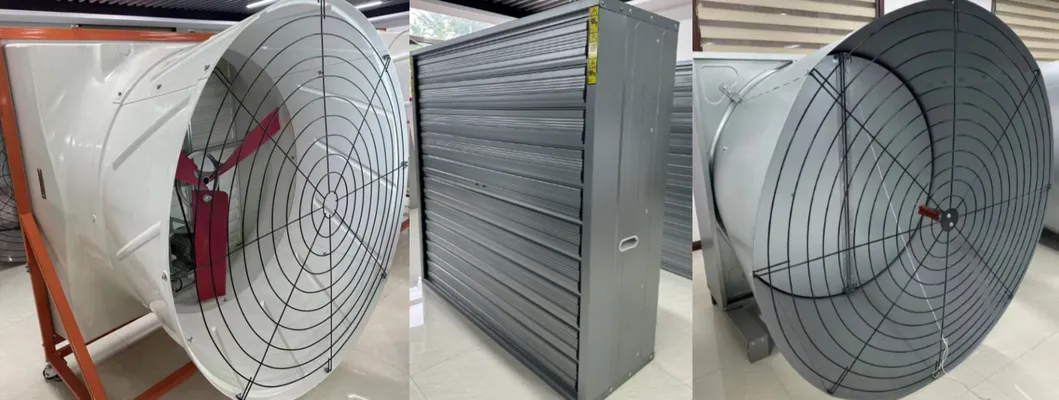

1. Tunnel Fans Performance
| Fan Model | Static Pressure (Pa) | Air Flow (M³/H) | Voltage | Frequency |
|---|---|---|---|---|
| 54in Fiberglass Cone Fan | 0 - 25 | 55000 - 50800 | 220v-380v | 50/60HZ |
| 50in Galvanized Cone Fan | 0 - 25 | 49530 - 37236 | 220v-380v | 50/60HZ |

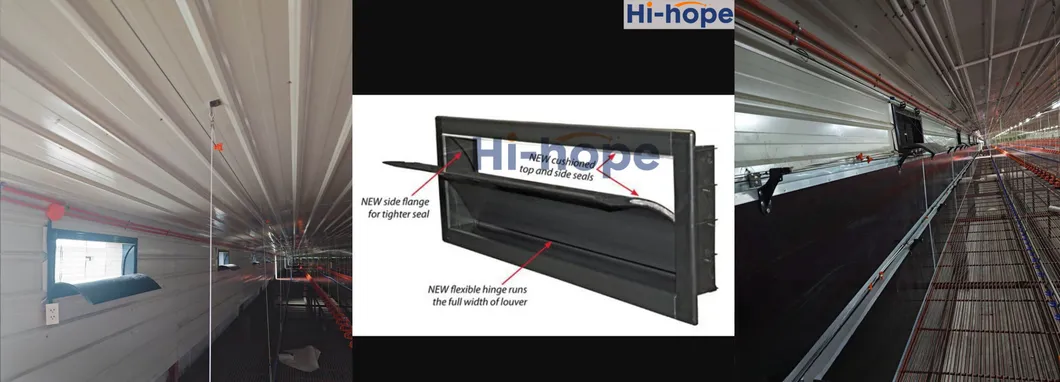

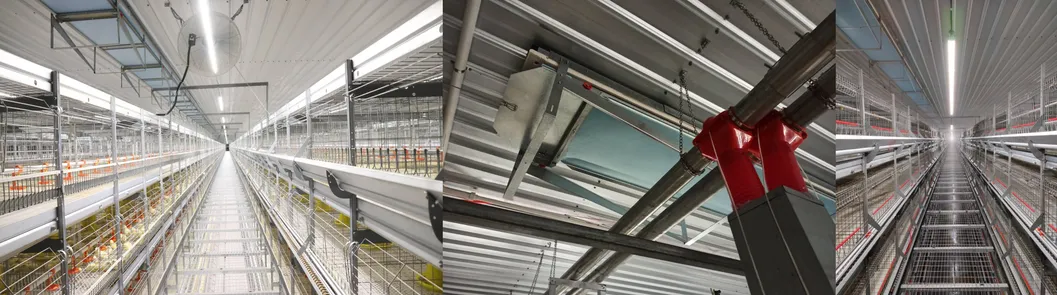

2. Air Inlet Solutions
| Type | Static Pressure (Pa) | Air Flow (M³/H) | Size (mm) |
|---|---|---|---|
| Curved (Tropical) | 12 - 25 | 4050 - 1980 | 1100*330 |

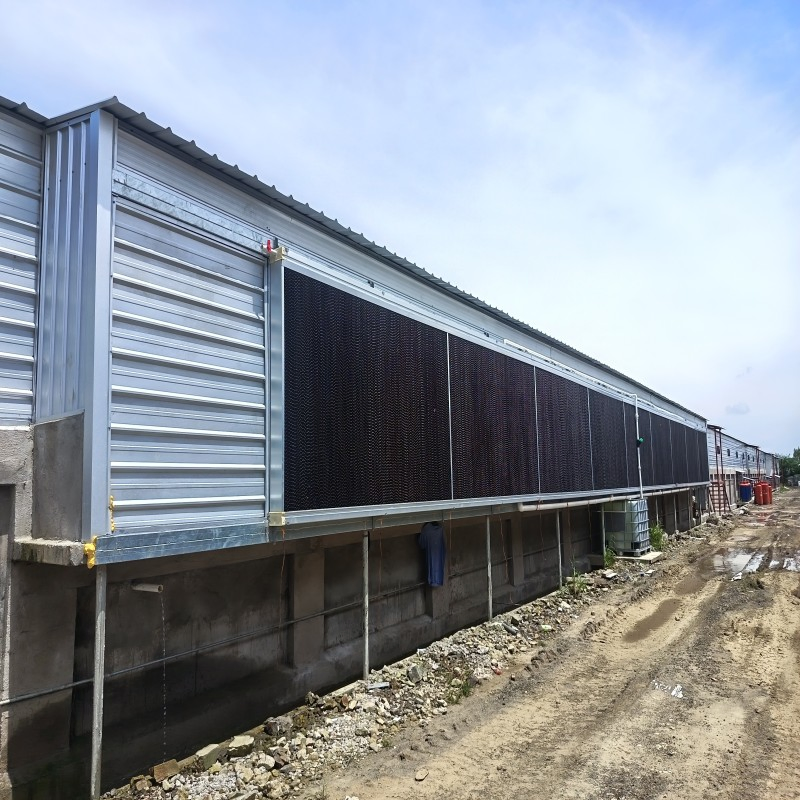

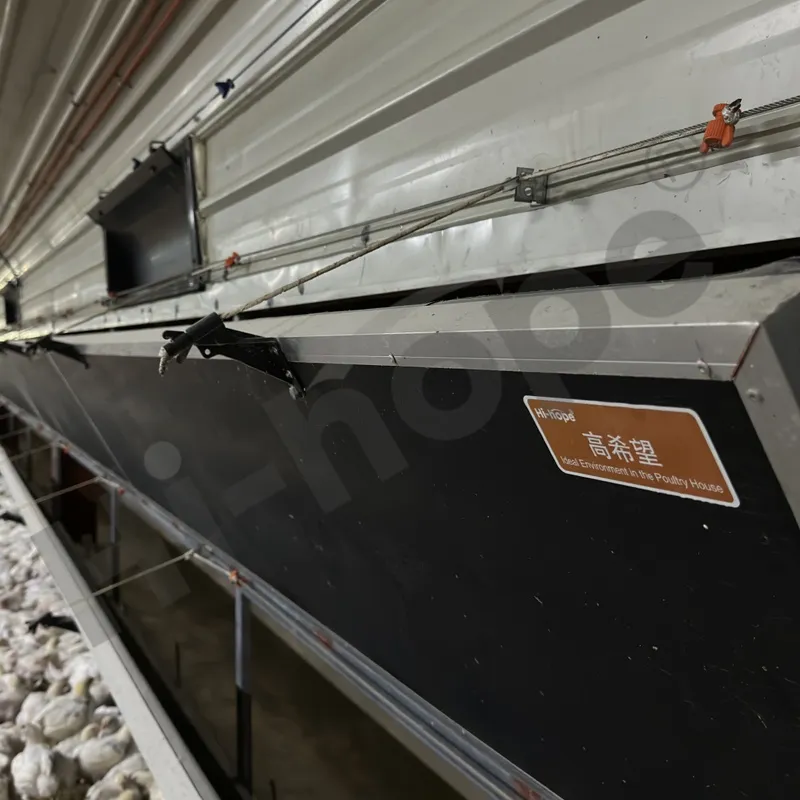

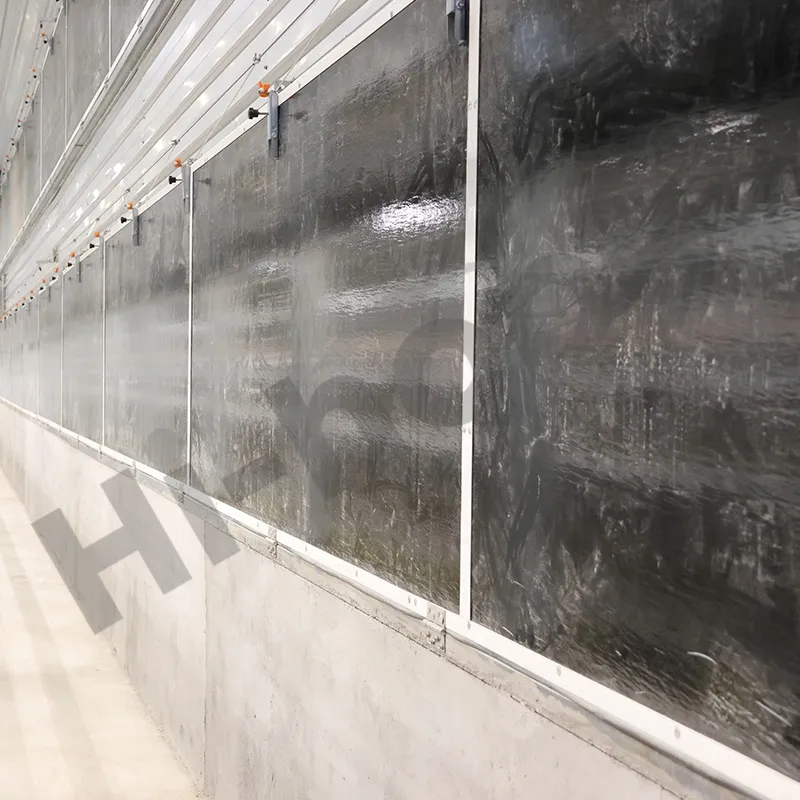

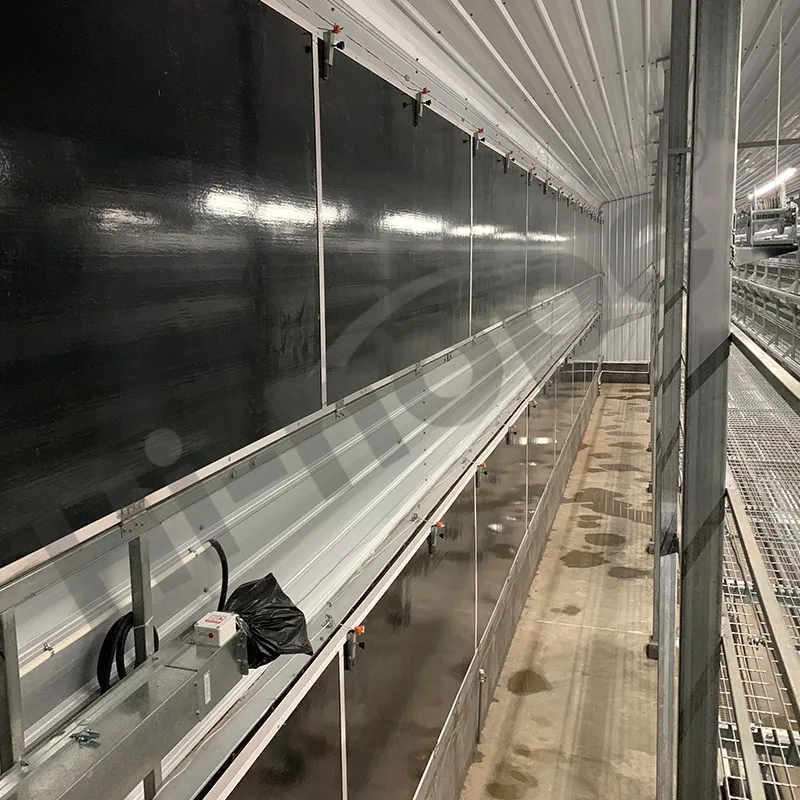

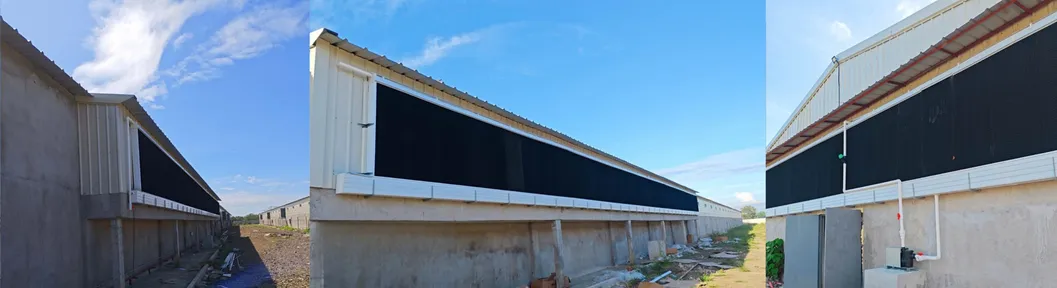

3. Evaporative Cooling & Tunnel Doors

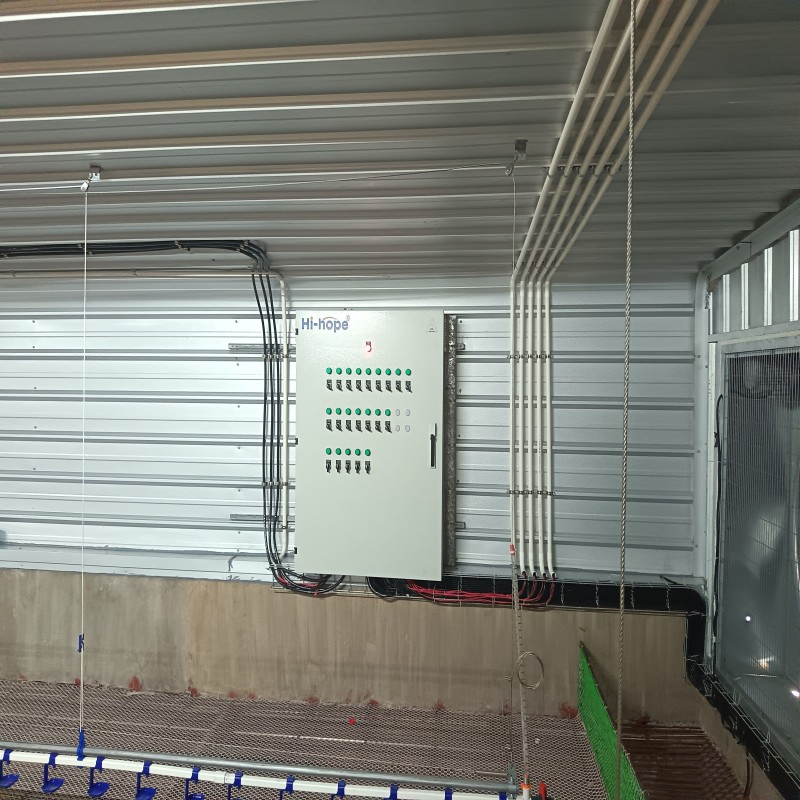

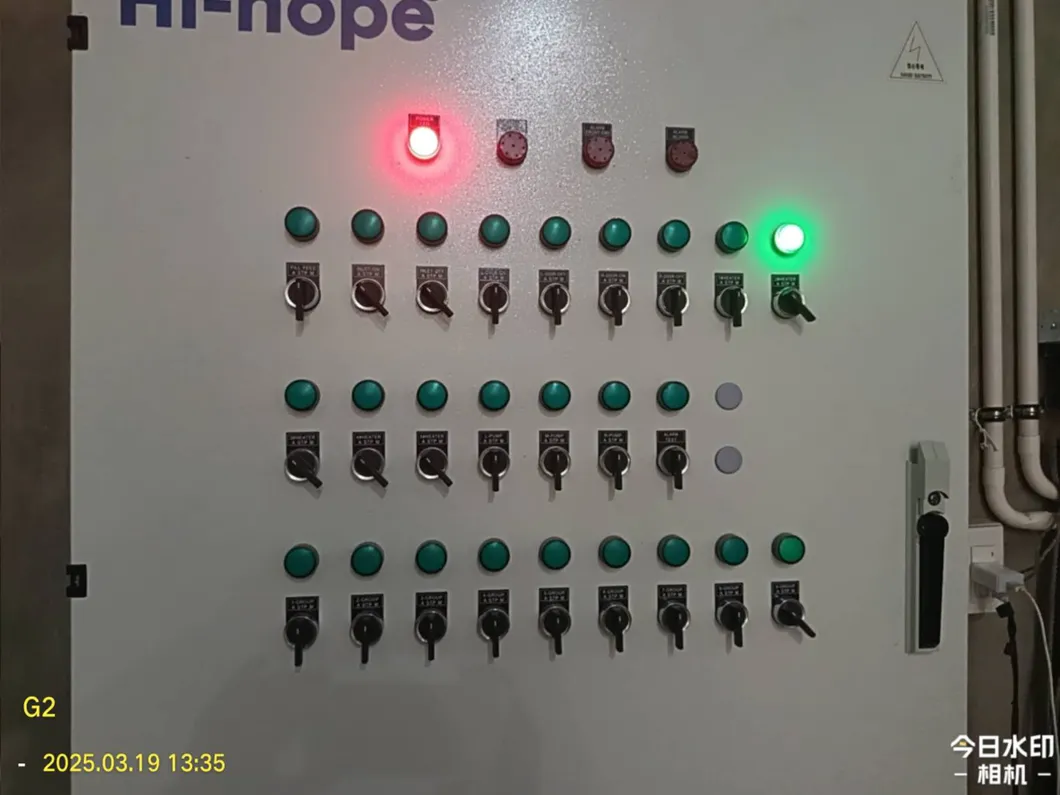

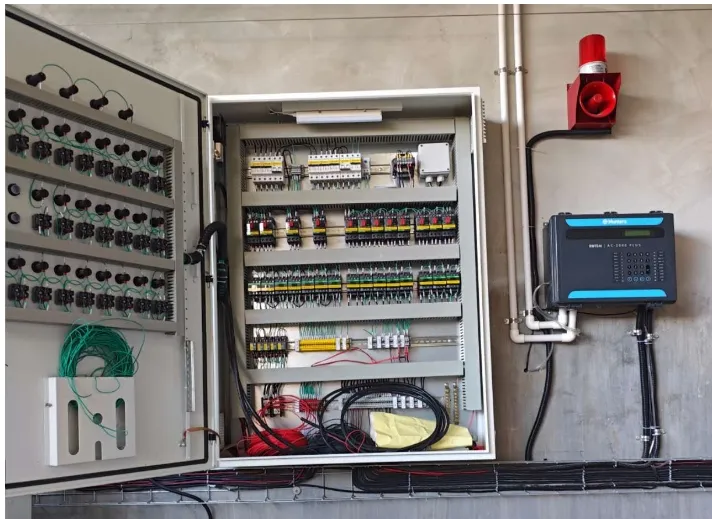

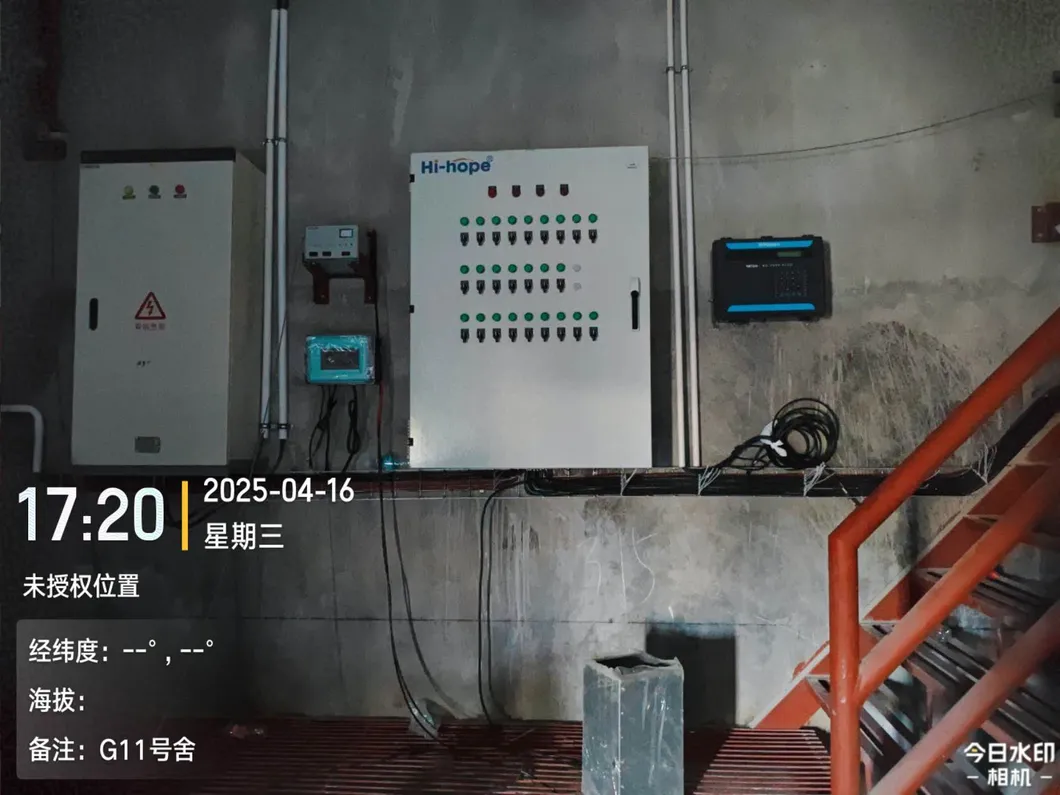

The ventilation control system consists of a computerized controller, temperature sensors, humidity sensors, negative pressure sensors, and an alarm system. The controller regulates temperature, moisture, and wind speed automatically. We utilize world-class electronic components such as Schneider, Siemens, and ABB to ensure safety.

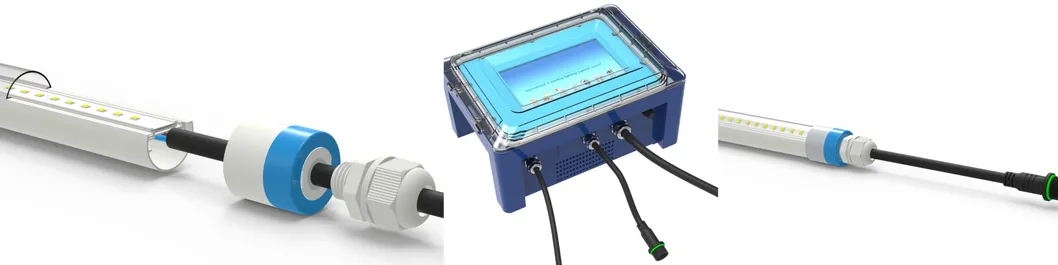

Dimmable Lighting: Specialized lighting systems tailored for poultry growth stages.

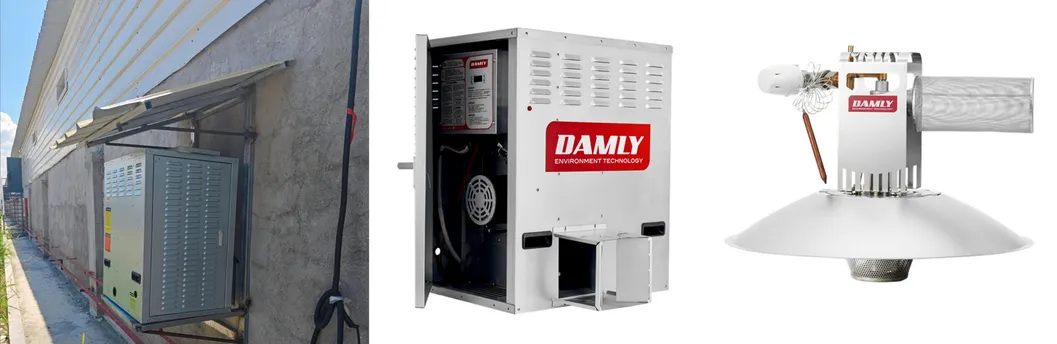

Heating: Damily Brooders and space heaters for efficient temperature management.
All products are packed according to export standards, suitable for long-distance ocean transportation to ensure equipment safety upon arrival.
We have an experienced after-sales team with 20 years of expertise. We provide a quick response within 24 hours for any customer feedback or technical issues.
