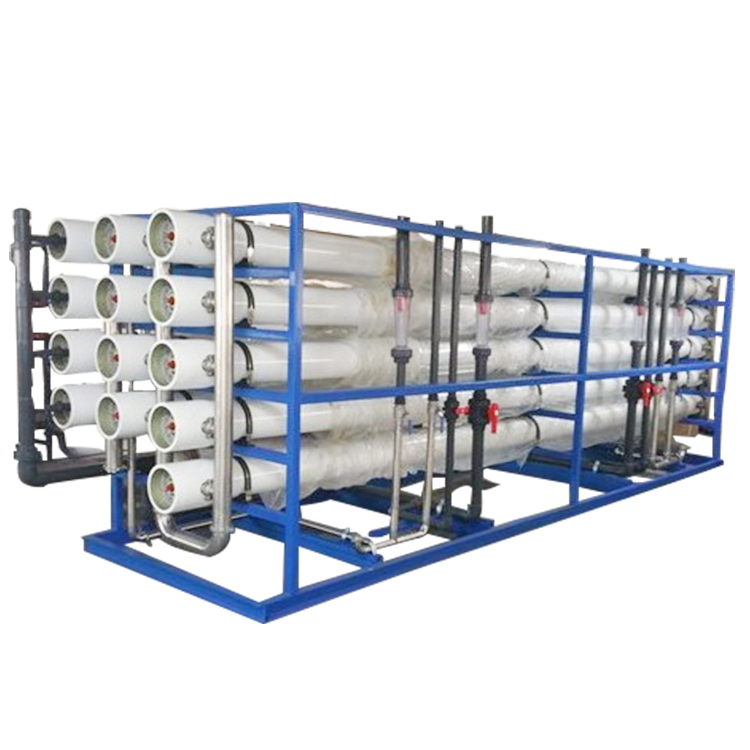

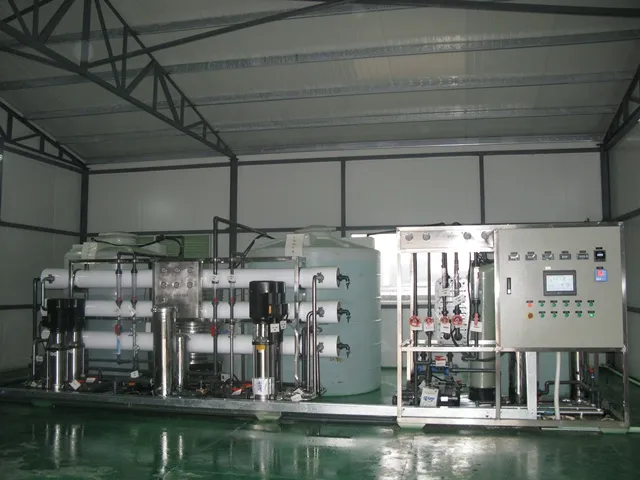

Introducing our state-of-the-art RO Water Filtration System, a leading provider of high-quality water purification solutions. This system is engineered to meet diverse industrial and residential needs, ensuring pure and safe drinking water through advanced reverse osmosis technology.
Our system effectively removes up to 99% of impurities, contaminants, and harmful substances from tap water. With a flexible design, we offer capacities ranging from 1000L/hr up to 100m3/hr to suit your specific project requirements.
| Application | Bottled/Bag Water | City Tap Water | Brackish Water | Seawater |
|---|---|---|---|---|
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| Cooking/Washing | Yes | Yes | No | No |
| Industry/Animal | Yes | Yes | No | No |

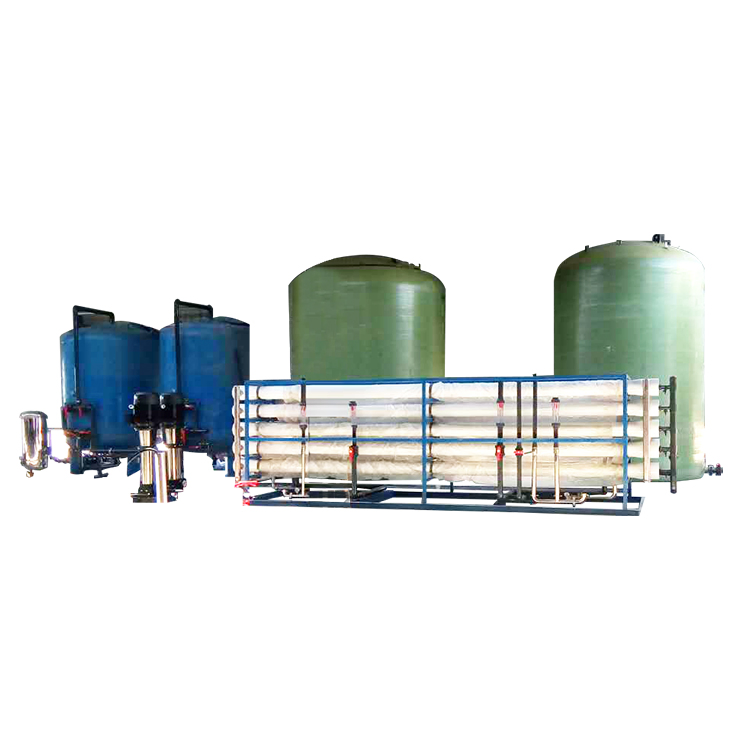

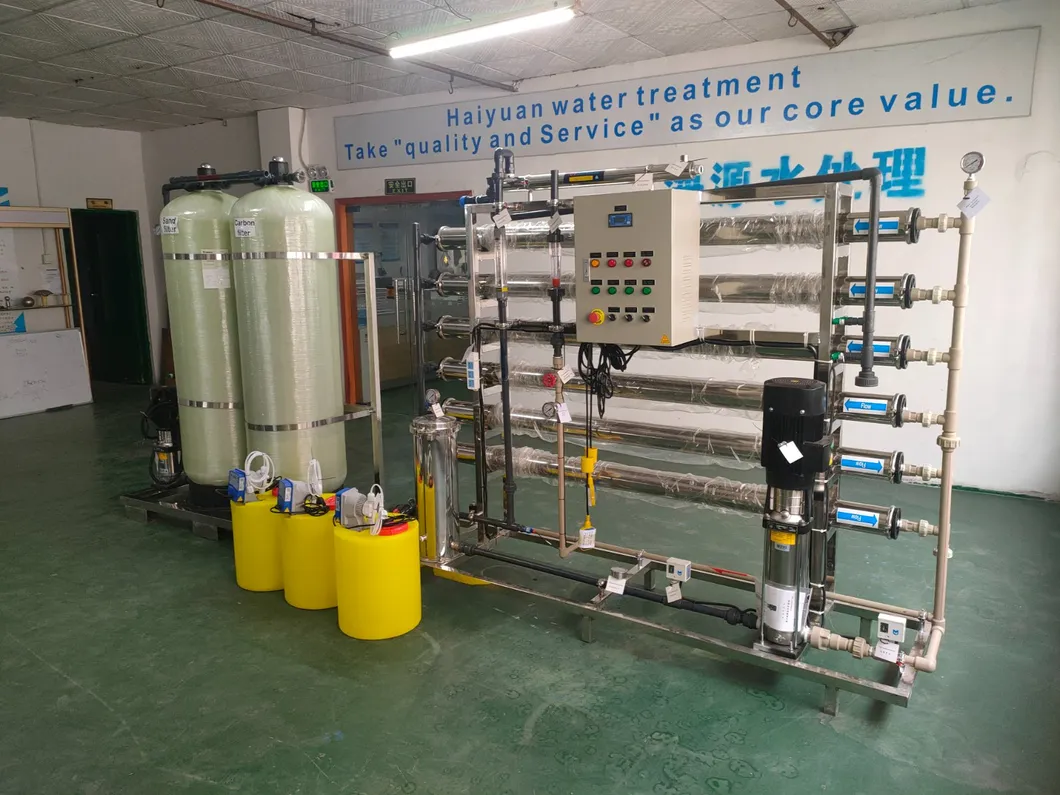

| S/N | Component | Application & Purpose |
|---|---|---|
| 1 | Raw Water Tank | Stores water and buffers pressure for stable supply. |
| 2 | Booster Pump | Provides required pressure for pretreatment filters. |
| 3 | Mechanical Filter | Quartz sand filtration for particles, colloids, and suspended solids. |
| 4 | Activated Carbon | Removes color, odor, residual chlorine, and organic substances. |
| 5 | Water Softener | Cation resin absorbs Ca2+ and Mg2+ to reduce water hardness. |
| 6 | Antiscalant Dosing | Prevents membrane blocking and prolongs RO membrane lifetime. |
| 7 | Security Filter | 5µm accuracy PP filter to protect RO membranes from large particles. |
| 8 | High Pressure Pump | Provides the working pressure required for the RO process. |
| 9 | RO System | Removes 99% of dissolved salts, heavy metals, bacteria, and viruses. |
| 10 | CIP System | Chemical cleaning system for maintaining RO membrane efficiency. |
| 11 | Sterilizing Device | UV sterilizer or Ozone generator for final disinfection. |
