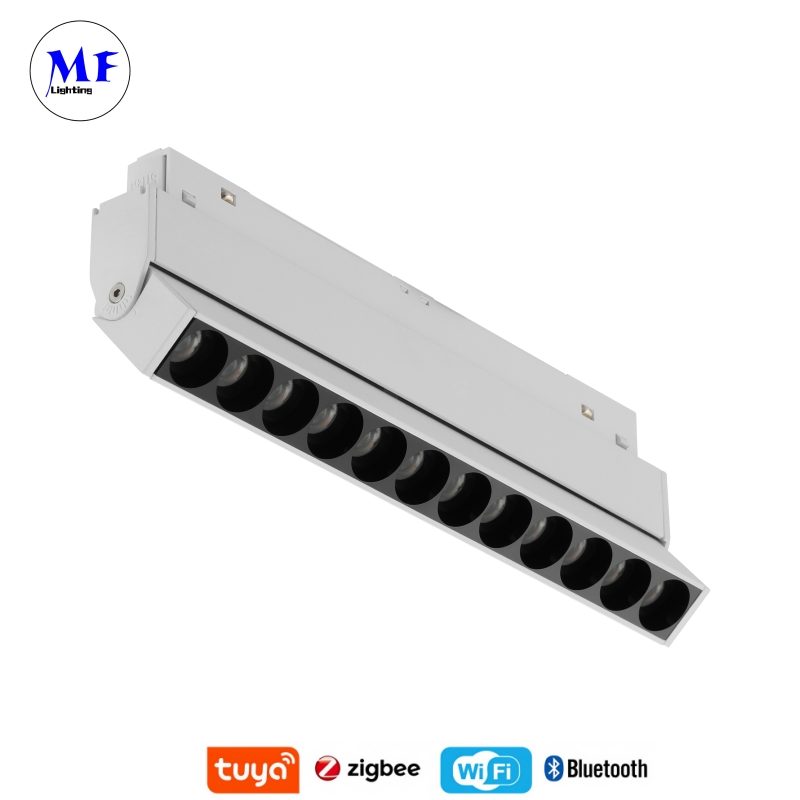

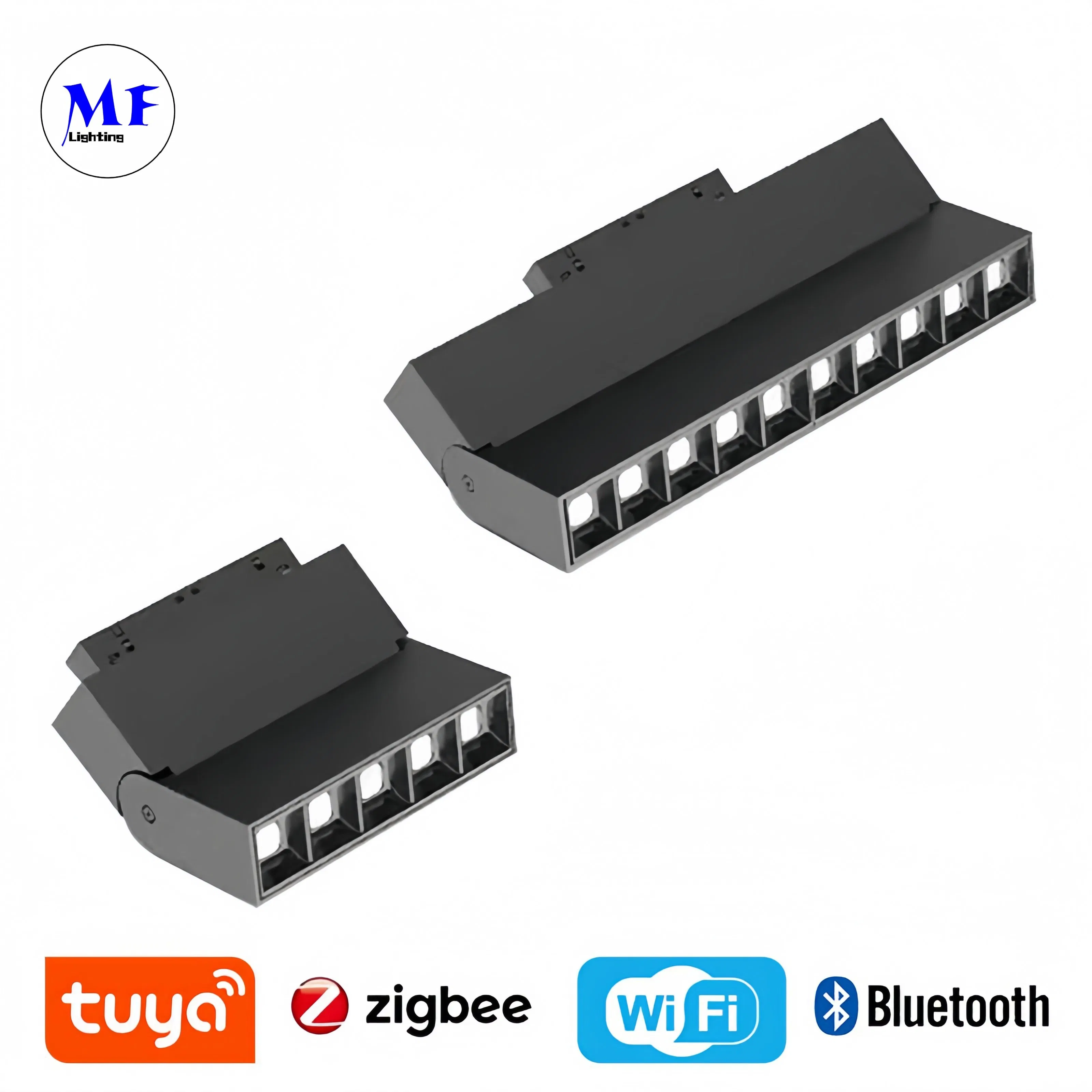

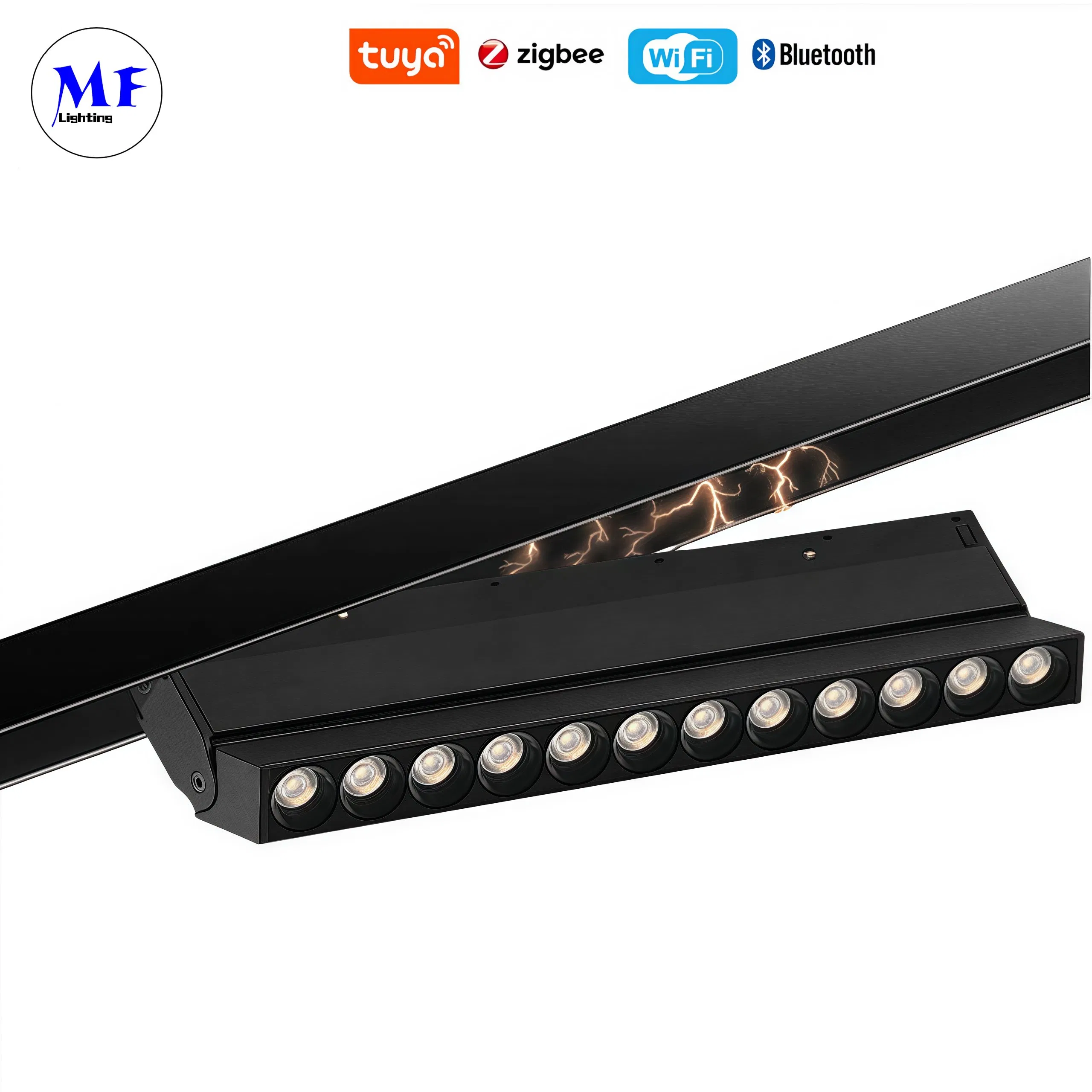

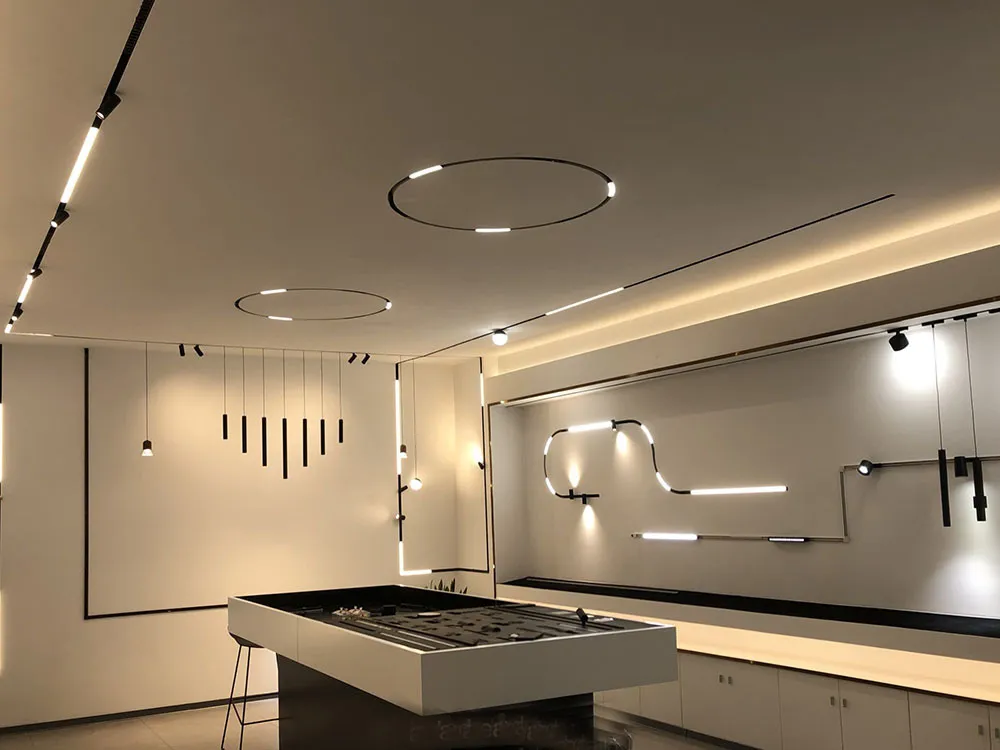

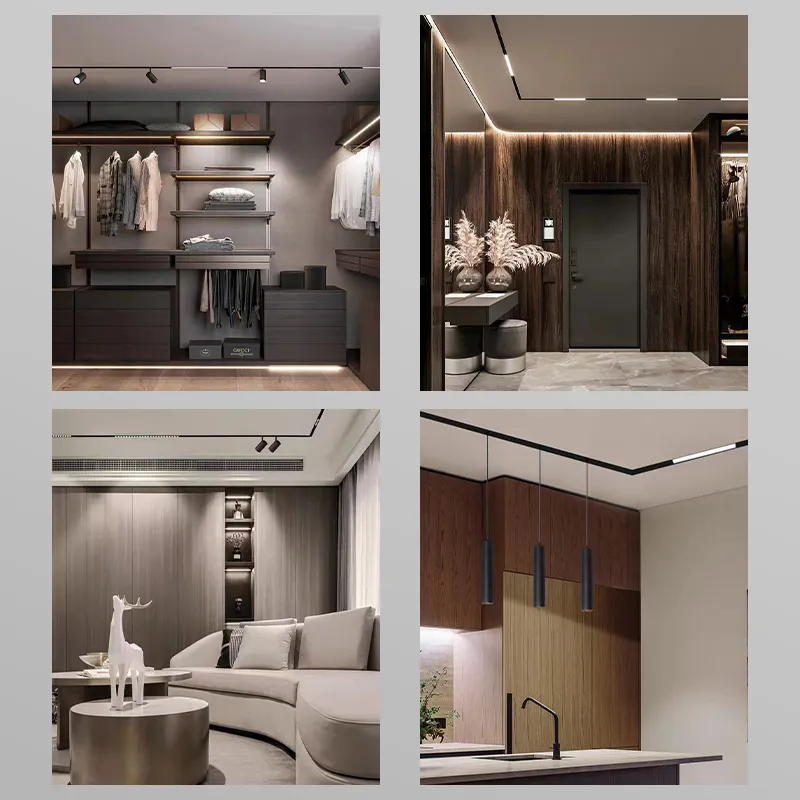

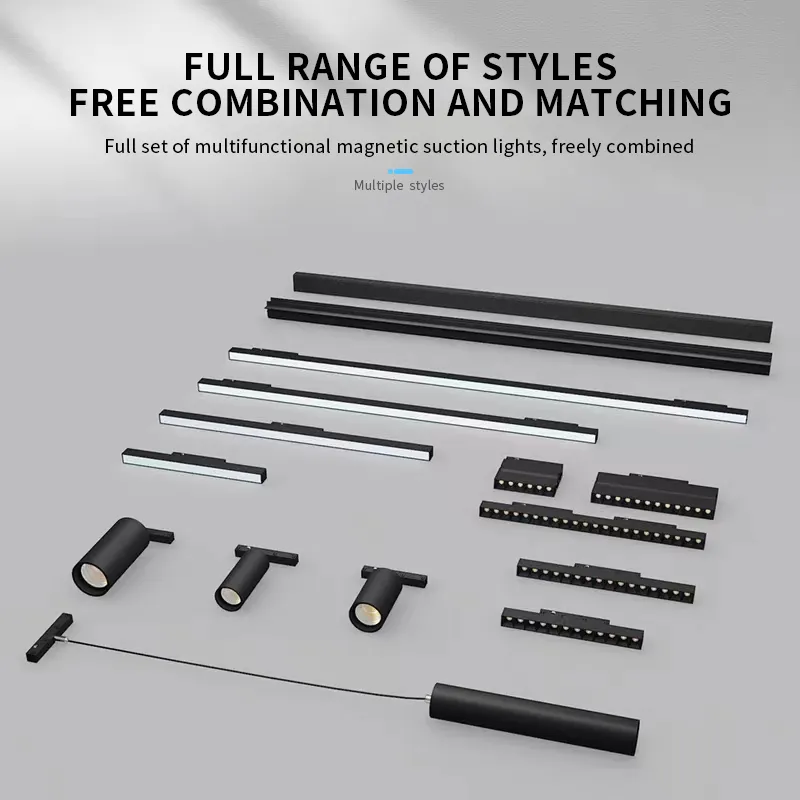

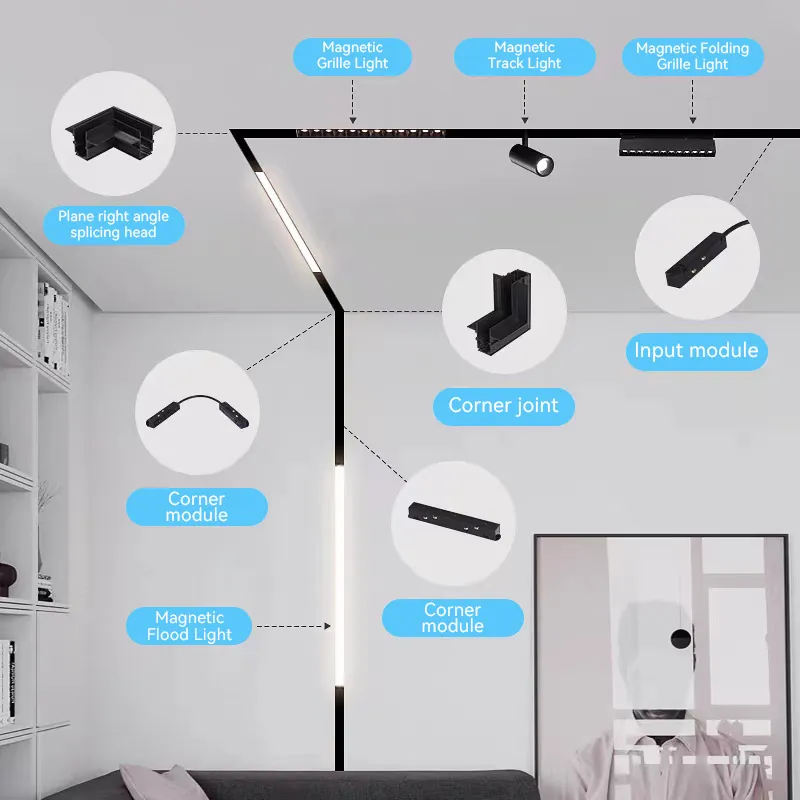

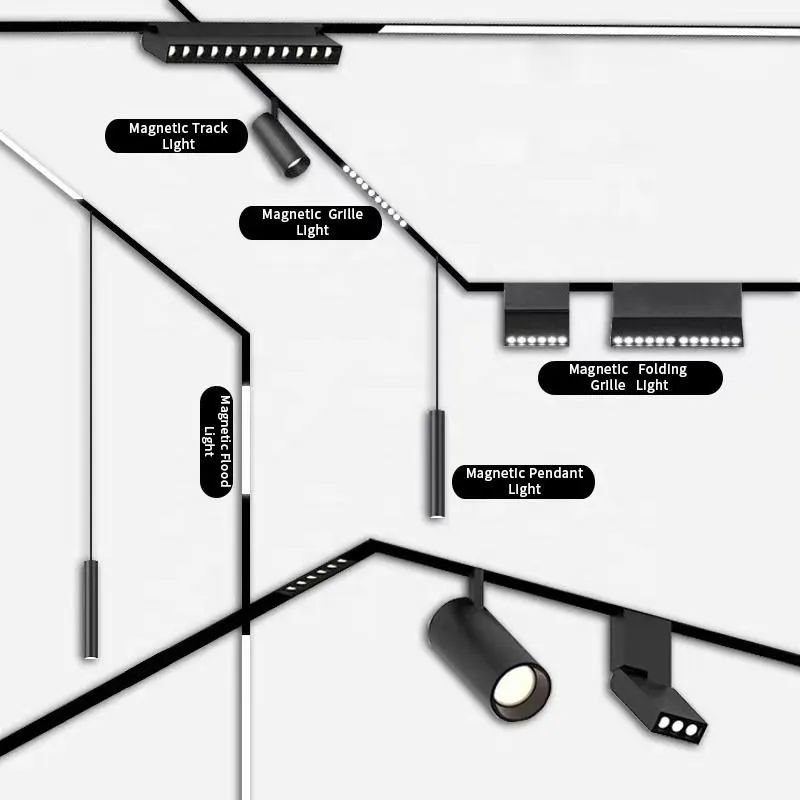

Magnetic lamp is a track-type quick-swap light that uses a magnet to quickly absorb characteristics. The system is composed of the magnetic track and various modular lamps. The track supports surface mounted, recessed, and suspended installation. The modular lamps include flood linear lights, anti-glare spotlights, hanging lamps, and wall washers, which can be combined to meet diverse lighting needs.
| Parameter | Specification |
|---|---|
| Wattage | 12X1W |
| Input | DC48V/DC24 250mA |
| Color Temperature | 3000K/4000K/5000K/6000K/Tunable |
| Color Rendering Index | Ra>90 |
| Beam Angle | 110° |
| LED Brand | OS-R LED SMD |
| Dimming | No Dim/ Dali Dim /0-10V |
| Operation Temp | -20ºC to 50ºC |

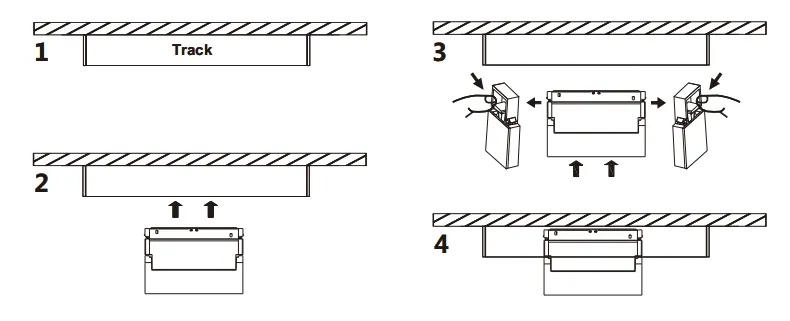

1. Track Installation: Follow instructions to install the track before the lamp.
2. Lamp Placement: Hold both sides of the lamp clasp and place it into the track.
3. Fastening: Secure the buckles on both sides, push the fitting into the track, and loose the buckle to fasten.
4. Testing: Once installed, turn on the switch and power up to test.
Note: Always hold safety clasps on both sides when pulling the lamp out.
