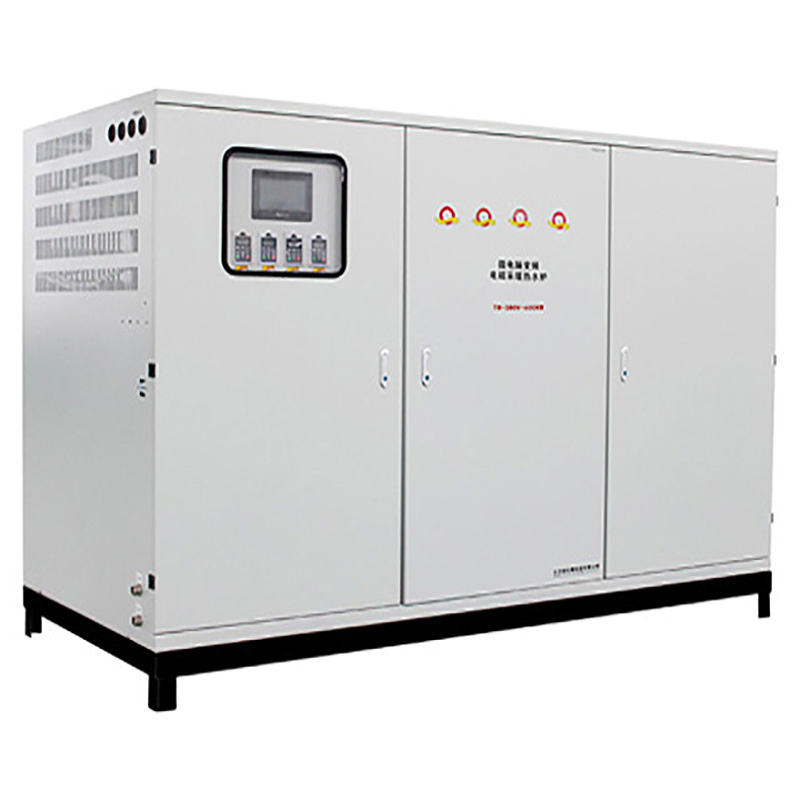

The variable frequency electromagnetic heating boiler has a thermal efficiency of up to 95%-98%, with no secondary heat transfer loss, saving 30% of the cost compared with gas-fired wall-hung boilers. It enables rapid temperature rise for large-area heating and supports zoned temperature control.
Achieves zero emissions and no pollution, fully meeting the requirements of environmental protection policies. Installation only requires connecting to the original heating pipelines, resulting in minimal renovation work. The core components are made of industrial-grade materials with a service life of over 30 years.
Features automated control for fully automatic operation. Set parameters and time, and the boiler starts/stops automatically. Includes a digital system for real-time monitoring and fault self-inspection.
Designed using specialized computer drafting software to ensure excellent water circulation. Flue tubes equipped with air turbulence strips increase heat residence time, improving operational efficiency by 5% to 10%.

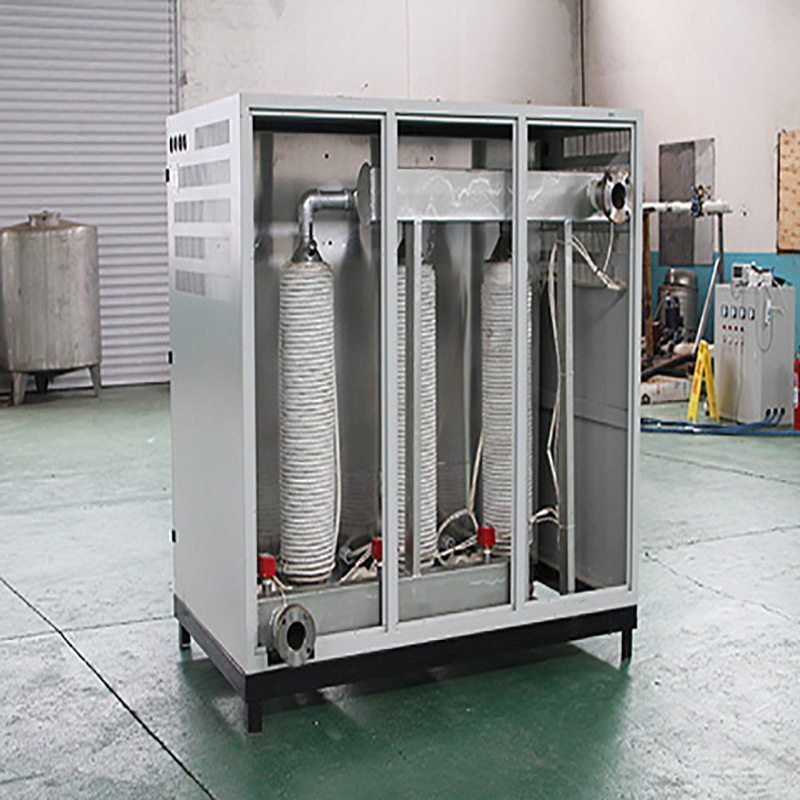

Adopts a "water-electricity separation" structure where circuits are completely isolated from water. Combined with 12 layers of protection (over-temperature, dry-burn prevention, anti-freezing).

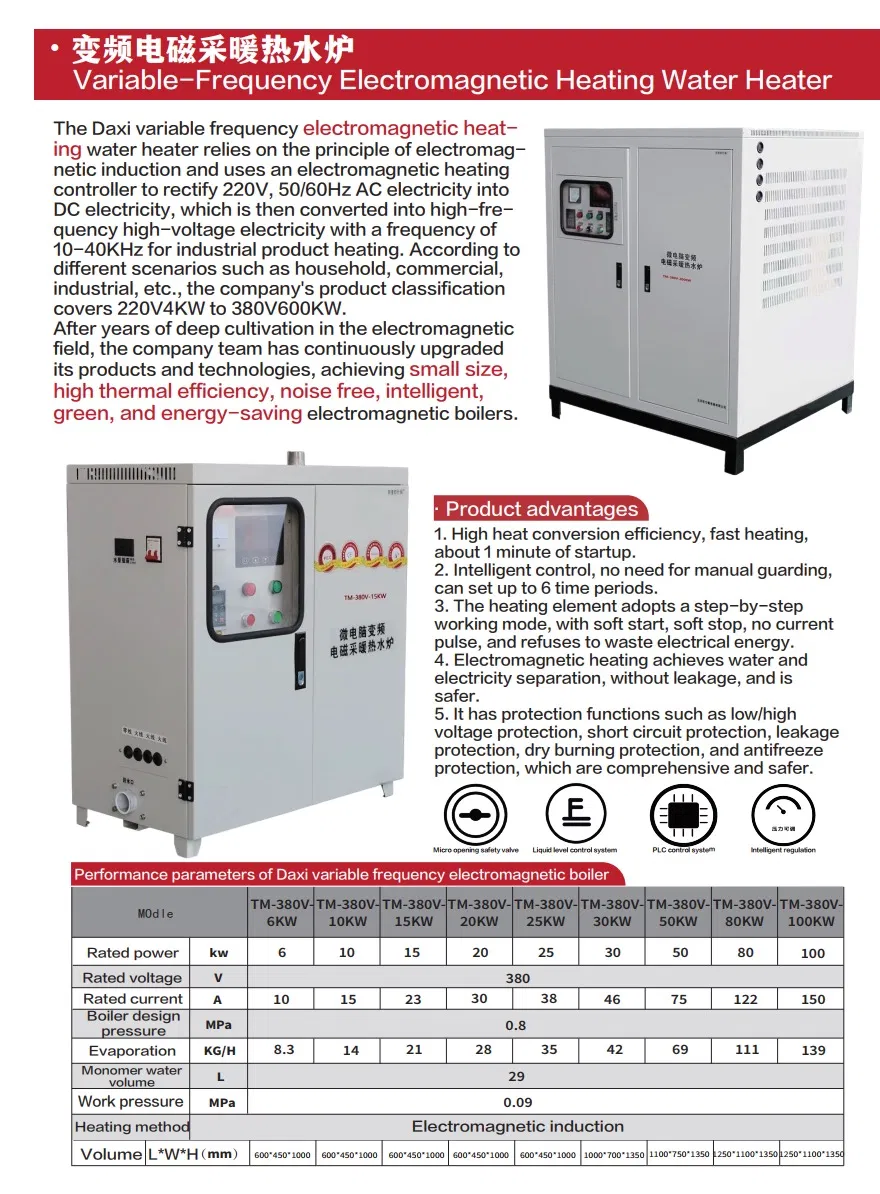

| Model | 6KW | 10KW | 15KW | 20KW | 25KW | 30KW | 50KW | 80KW | 100KW |
| Rated Power (KW) | 6 | 10 | 15 | 20 | 25 | 30 | 50 | 80 | 100 |
| Rated Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated Current (A) | 10 | 15 | 23 | 30 | 38 | 46 | 75 | 122 | 150 |
| Evaporation (KG/H) | 8.4 | 14 | 21 | 28 | 35 | 42 | 69 | 111 | 139 |
| Heating Method | Electromagnetic Induction | ||||||||
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

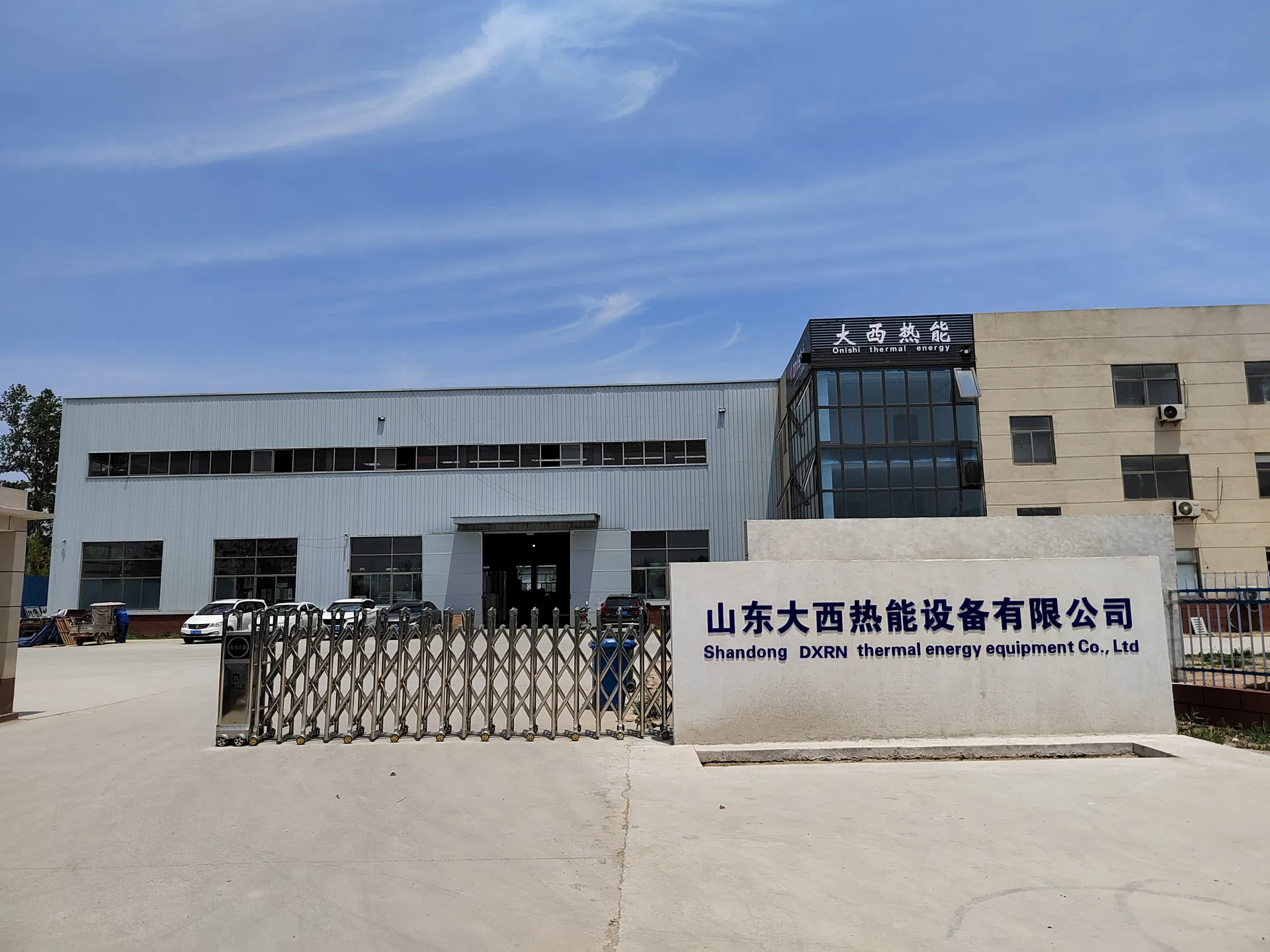

Leading Chinese manufacturer of thermal energy equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, exporting to 50+ countries. We offer reliable machinery backed by R&D innovation and strict quality control.
