Southtech Horizontal Roller Hearth Energy Saving High Efficient Double Chamber Tempered Glass Production Equipment with Vortech Convection System for Sale

Customization: Available
Certification: CE, ISO
Control System: PLC Control, Touch Screen Control, PLC + Industrial Computer

Product Description

📋

Basic Information

Model NO.
TPG-2-V series
Glass Thickness Range
3 mm - 19 mm
Heating Method
Convection & Radiant Heating
Suitable for
Low-E, Ordinary Flat, Ultra-Clear Glass
Installed Capacity
800kVA - 1500kVA
Convection Type
Vortech Convection
Structure
Horizontal
Condition
New
💎

Product Description

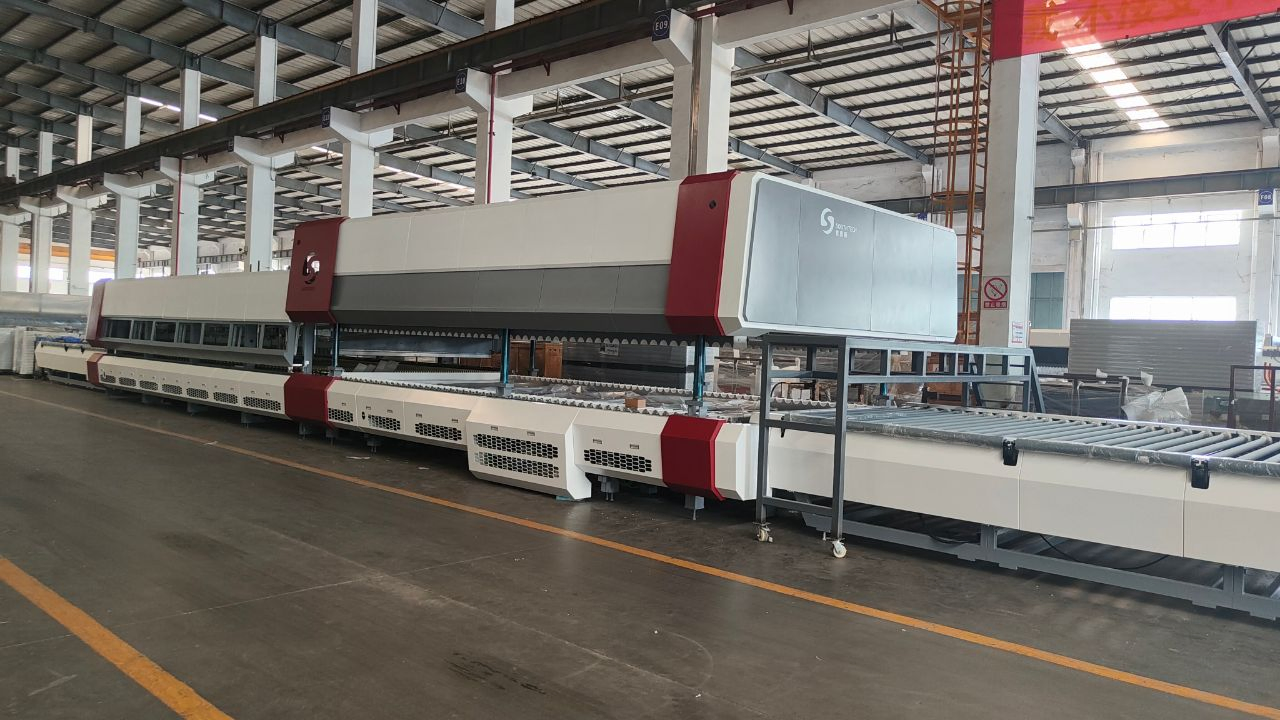

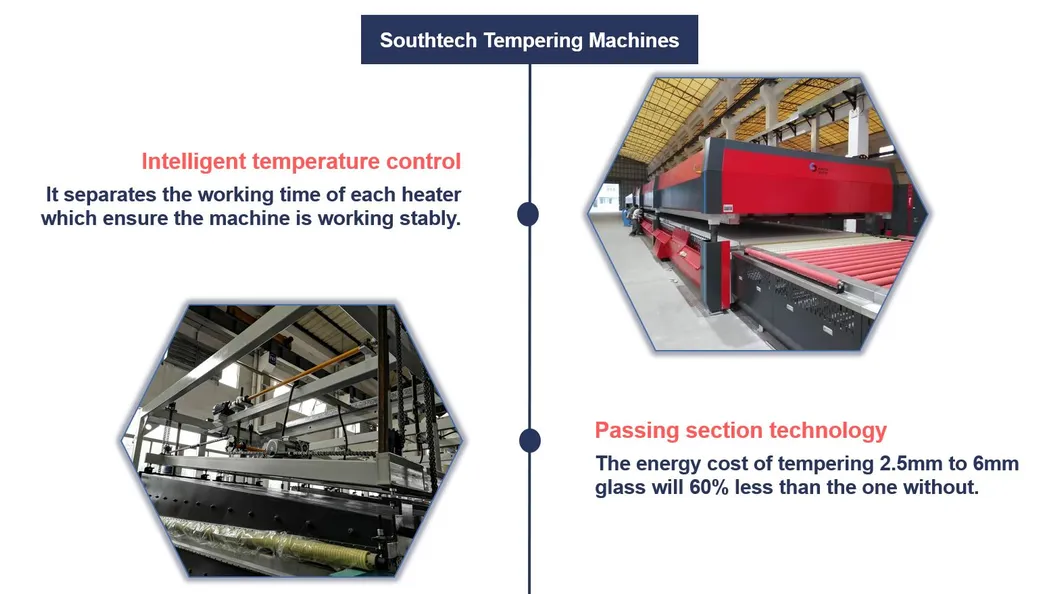

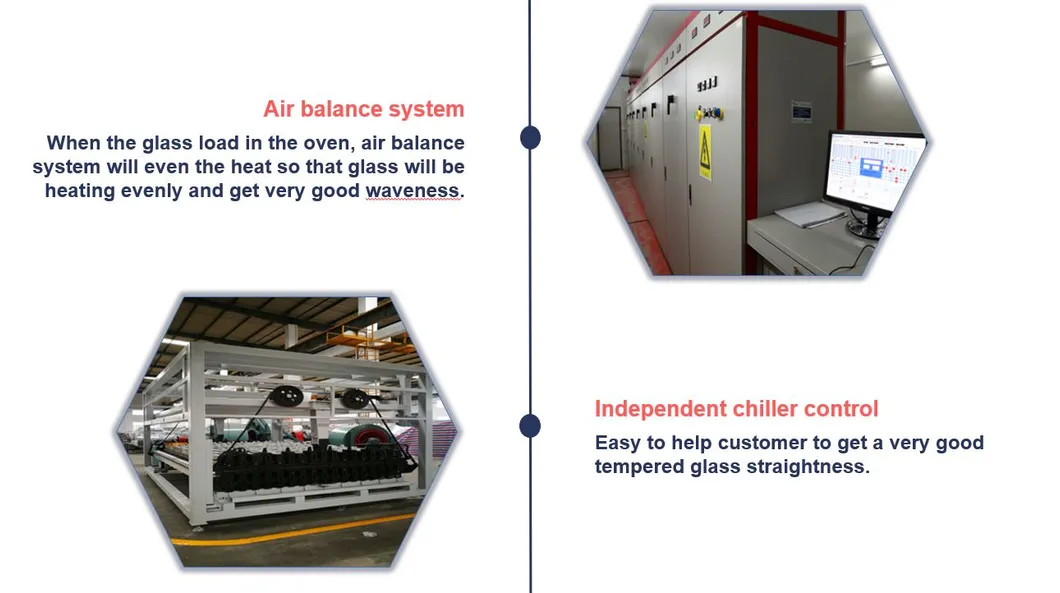

Horizontal Roller Hearth Energy Saving High Efficient Double Chamber Tempered Glass Production Equipment with Vortech Convection System

Glass Tempering Equipment

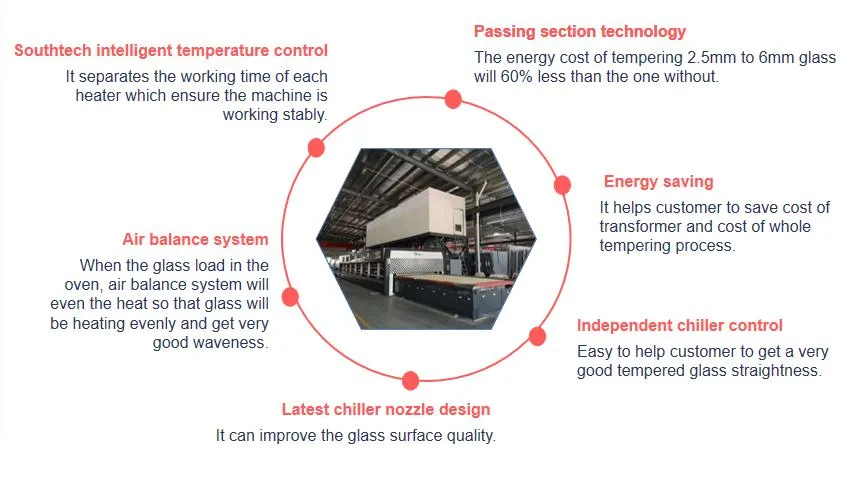

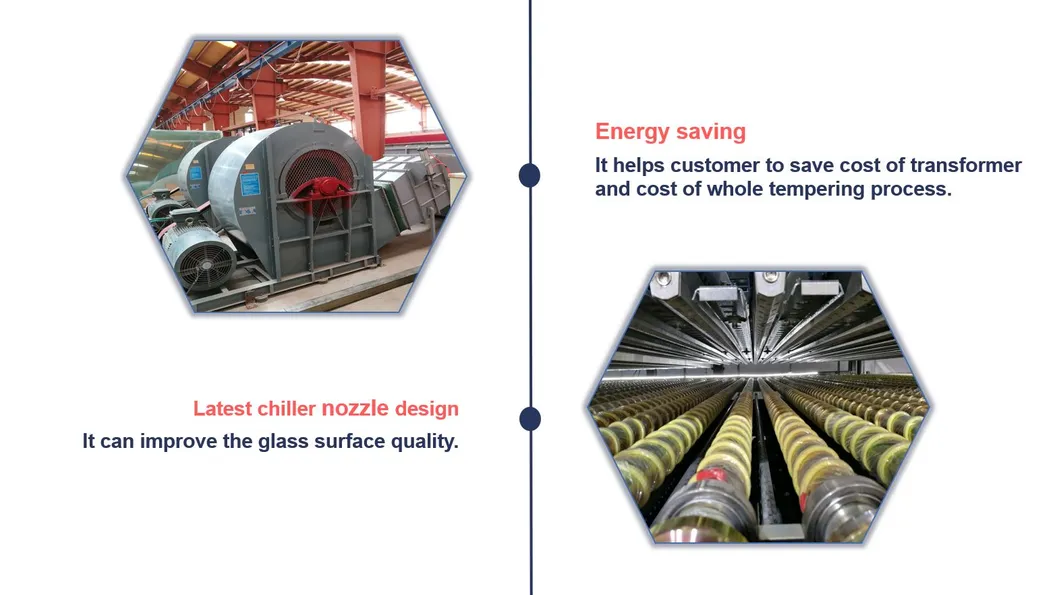

  • Energy Efficiency: Double heating sections effectively reduce heating time and blower operation, nearly doubling capacity compared to ordinary types.
  • Surface Quality: Lower temperature entry reduces adverse reactions upon glass entry, significantly improving surface quality.
  • Uniform Tempering: Double chamber design ensures uniformity across different glass areas, enhancing tempering quality and reducing breakage.
  • Versatile Application: Ideal for Low-E glass, screen printing glass, embossed glass, colored glass, and ultra-clear glass.
  • Vortech Convection: Increases heating efficiency and production capacity beyond standard machine models.
⚙️

Technical Parameters

Model Max Loading Area (mm) Min Glass Size (mm) Thickness (mm) Production (m²/h) Transformer (KVA)
TPG4012-2-V 4000 × 1250 250 × 100 2.85 - 15 120 700KVA
TPG5015-2-V 5000 × 1500 300 × 100 2.85 - 19 180 1000KVA
TPG5024-2-V 5000 × 2400 300 × 300 4 - 19 290 1100KVA
TPG6030-2-V 6000 × 3000 400 × 300 4 - 19 410 1600KVA

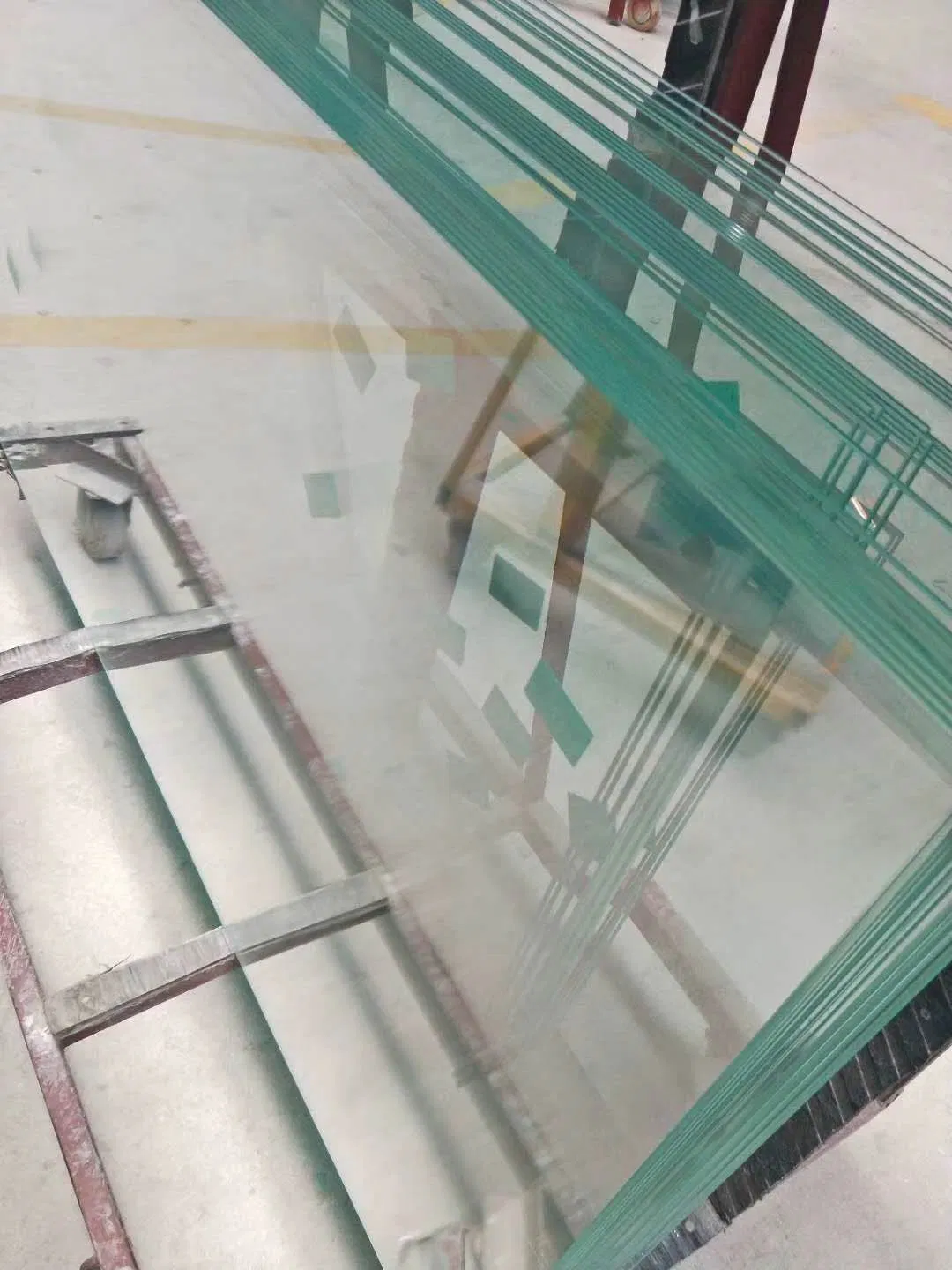

Applications: Thin flat tempered glass for high-grade domestic appliances, interior decorations, automotive, trains, ships, and architecture.

🏆

Why Choose Our Solutions

🛠️

After-Sales Service

Support Service
  • Spare Parts Support: We supply a sufficient quantity of spare parts calculated to last up to 5 years.
  • 24/7 Hotline: Round-the-clock service availability with online machine connectivity for remote diagnostics.
  • Mobile App Integration: Modern service support via our dedicated mobile application.
  • Maintenance Contracts: Yearly maintenance options are available to ensure long-term operational stability.

"We deliver customized and tailor-made machines designed to help grow your business. Performance and reliability are our core promises."

Frequently Asked Questions

What is the glass thickness range for this furnace?
The TPG-2-V series can process glass ranging from 3mm to 19mm in thickness, making it suitable for both appliance and architectural glass.
What types of glass can be processed?
The equipment is compatible with Low-E glass, ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, and colored glass.
How does the Double Chamber system save energy?
By utilizing two heating sections, the system reduces the time required for heating and running large blowers, effectively doubling capacity while optimizing energy consumption.
What is the advantage of Vortech Convection?
Vortech Convection significantly increases heating efficiency, allowing for higher production capacity compared to standard convection or radiant heating models.
What kind of after-sales support is provided?
We provide 5 years' worth of spare parts, 24-hour hotline support, remote online machine diagnostics, and optional yearly maintenance contracts.
Can the machine dimensions be customized?
Yes, we specialize in delivering customized and tailor-made machines according to your specific loading dimension requirements.
