Southtech New Generation High Efficient Energy Saving Passing Tempered Flat Glass Manufacturing Equipment with Latest Vortech Convection System for Sale

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control, Touch Screen Control

Send Inquiry

Product Description

Basic Specifications

Model NO.TPG-V series

Glass Thickness Range3 mm - 19 mm

Heating MethodConvection Heating, Radiant Heating

Suitable forLow-E Glass, Ordinary Flat Glass, Ultra-Clear Glass

Installed Capacity300kVA, 450kVA, 500kVA, 750kVA

Glass Thickness4-12mm, 4-19mm

Max. Loading DimensionCustomizable

Min. Loading Dimension300mm*300mm

Convection TypeVortech Convection

TypeGlass Tempering Furnace

StructureHorizontal

ConditionNew

HS Code8475299000

Product Overview

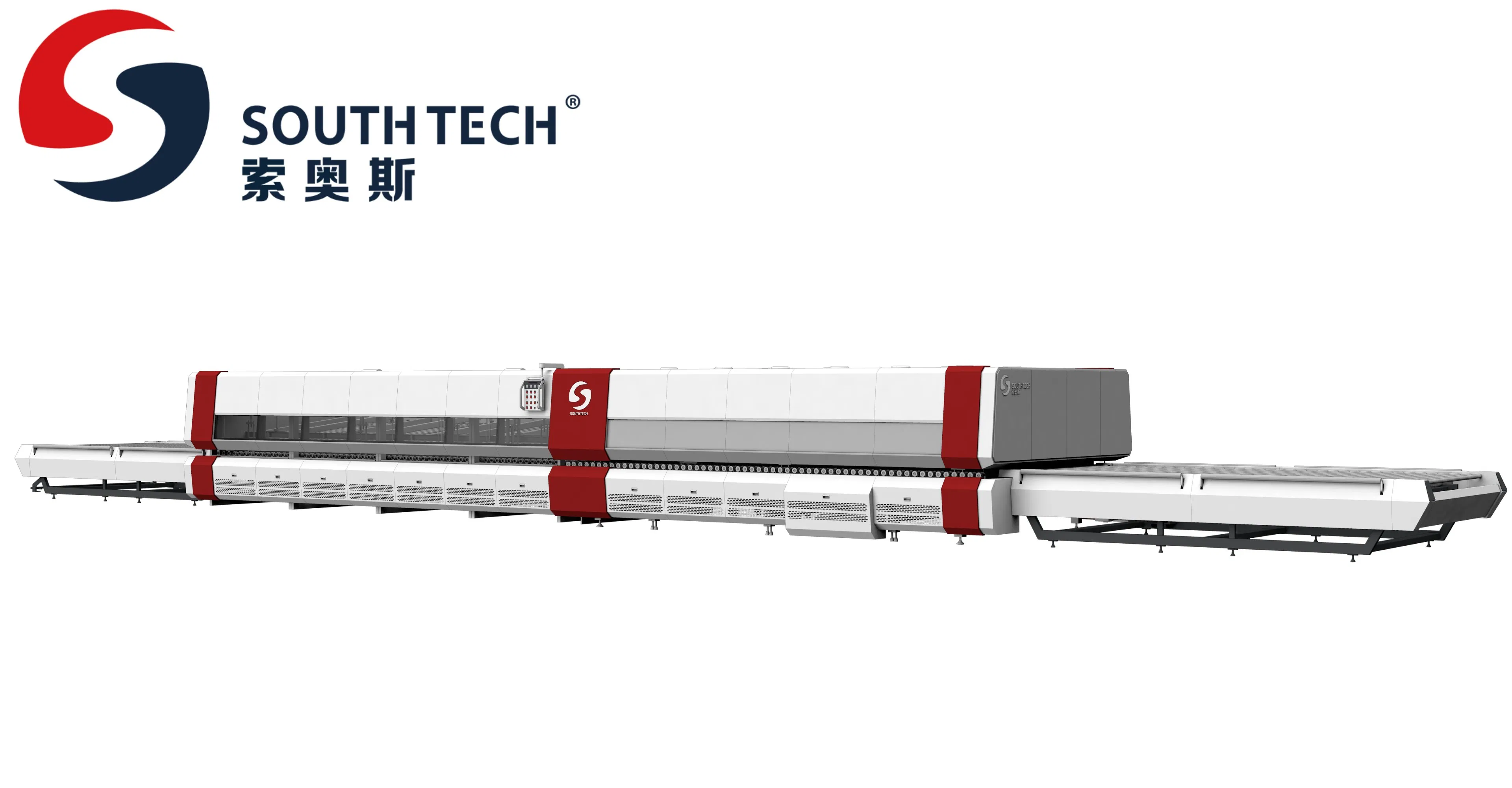

New Generation High Efficient Energy Saving Passing Tempered Flat Glass Manufacturing Equipment With Latest Vortech Convection System (TPG-V Series)

Equipped With Advanced Convection Heating System, TPG-V increases heating efficiency for all glass types.
Ensures uniformity of heating through optimized convection flow.
Inner cleaning structure reduces dust accumulation inside the furnace.
Low-temperature techniques produce superior high-quality glass.
Vortech Convection significantly increases production capacity compared to standard models.

Technical Parameters

Model	Max Loading (mm)	Min Size (mm)	Thickness (mm)	Production (m²/h)	Transformer (KVA)
TPG2515-V	2500×1500	250×100	2.85-15	52	≥300kva
TPG4012-V	4000×1250	300×100	2.85-15	69	≥400kva
TPG4224-V	4200×2440	300×100	3.8-19	170	≥630kva
TPG5026-V	5000×2600	300×100	3.8-19	205	≥800kva

Applications: High-grade domestic appliances, interior decorations, automobile, trains, ships, and architectural glass.

Core Advantages

I. Superior Product Quality

Certified for all float glass types, including soft-coated Low-E (Double/Triple silver, E=0.015).

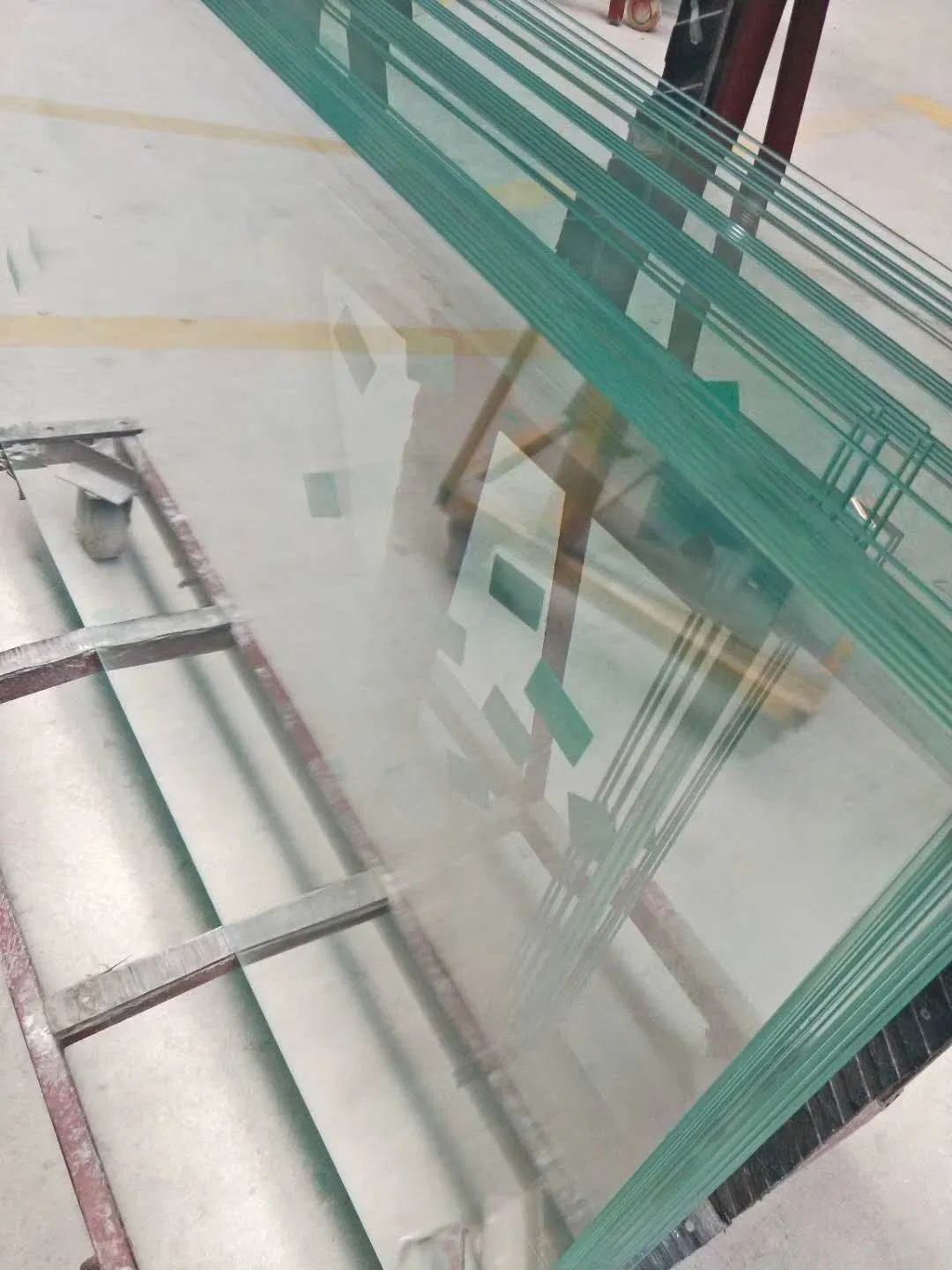

Glass flatness maintained at 1-1.2‰; wave degree below 1%.
Zero visual wind spots, stains, or white stripes.

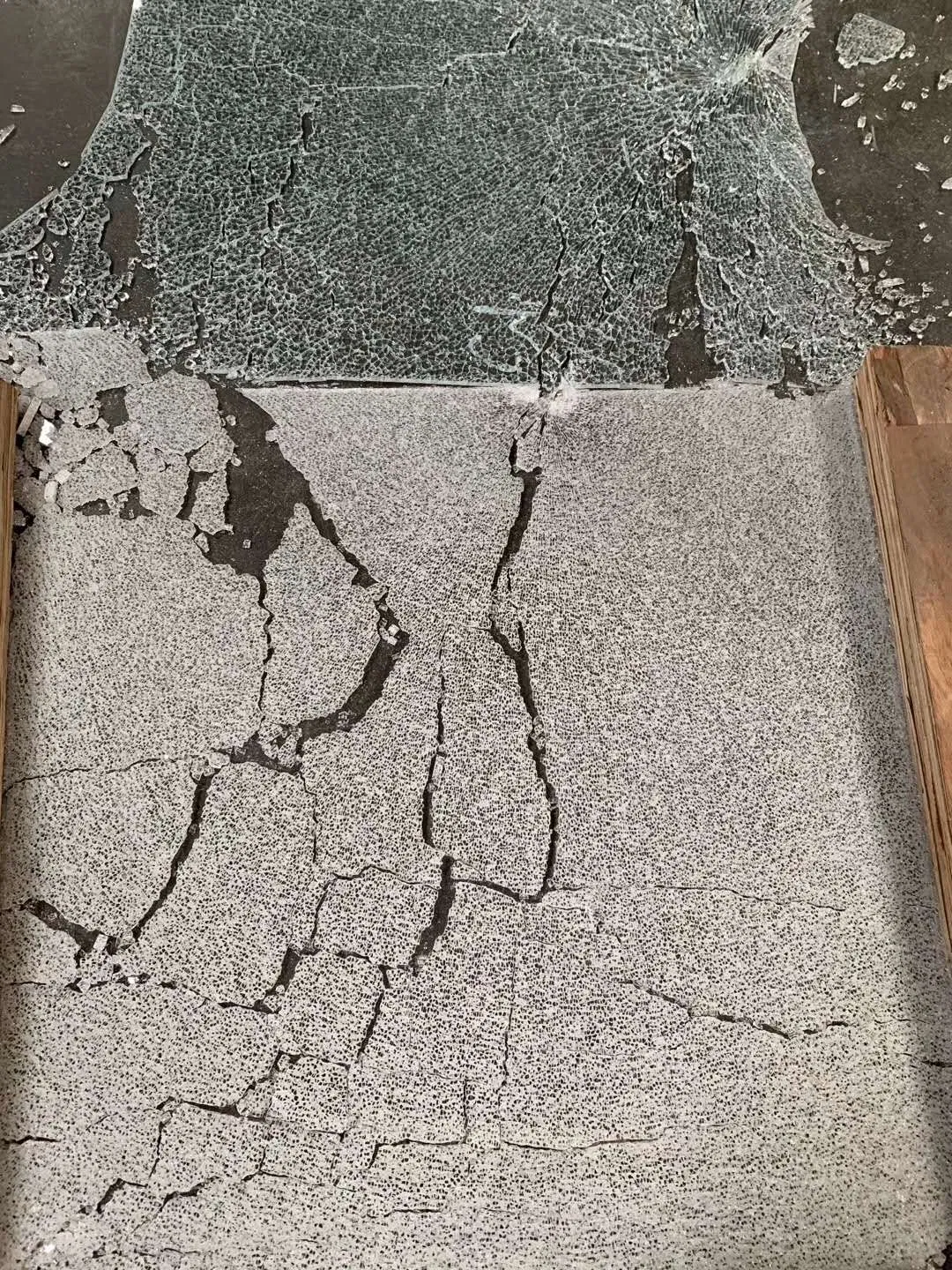

Breakage rate for 5mm glass is 80pcs/5 cm², double the international standard.

II. Machine Stability & Reliability

Proven long-life components: heating elements, thermocouples, and insulation.
5-year guarantee for specific components like ceramic rollers and air compressors.
Dual blower system ensures production continuity for 6-19mm thickness even if one blower fails.
UPS emergency driving system for power outages.
Main drive utilizes Siemens Reducer and USA-brand inverters.

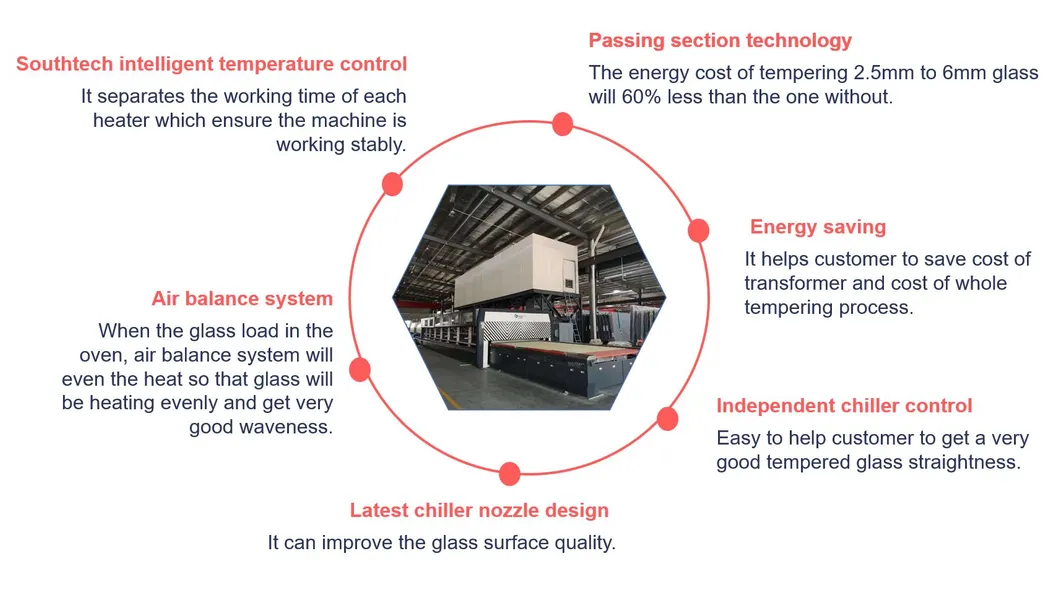

III. Energy Saving Technology

Voltage transformer capacity reduced by 200-300 KVA via power-adjustment tech.
Quenching section achieves 60% energy saving through unique passing technology.
Multiple heating zones with ±2°C tolerance.
Zero speed blower mode during stand-by to save power.
Rapid heat-up: only 20 minutes to reach 700°C from cold start.

IV. Intelligent Control Performance

In-house developed intelligent database for batch recording and recall.
Real-time monitoring and adjustment for individual heating zones.
Automatic detection and alerting for faulty heating elements.
Remote control service and mobile application for status diagnostics.

V. Installation & Maintenance

Combined structure for easy transport and rapid installation.
Zero maintenance convection system.
Plug-in electrical components for easy replacement.
On-screen scan system for defect location.

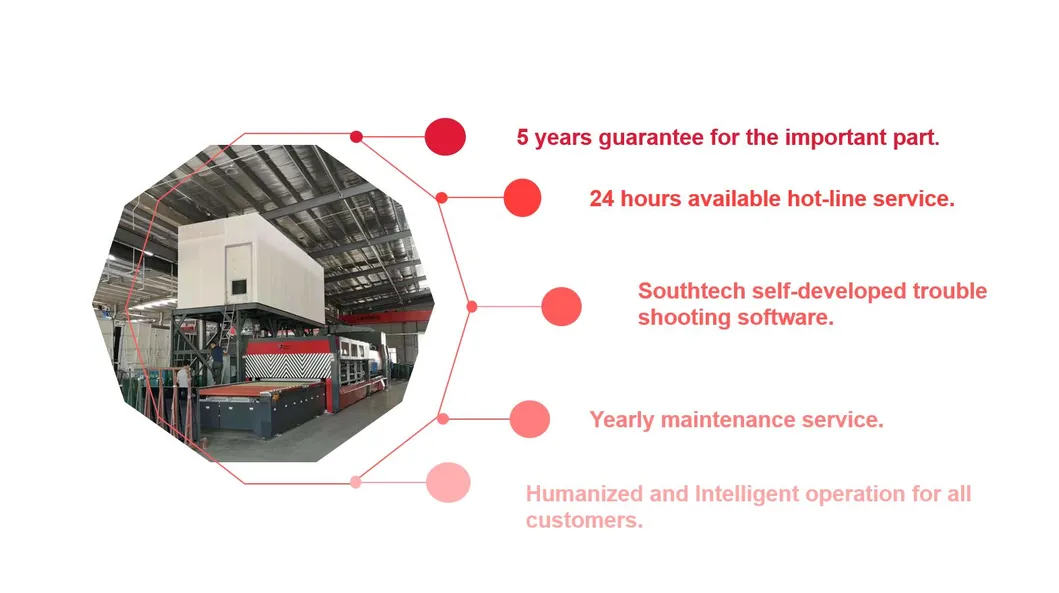

VI. After Sales Service & Support

We provide professional global maintenance and support. We deliver customized and tailor-made machines to help your business grow.

Frequently Asked Questions

1. What types of glass can be processed with the TPG-V series? The furnace is suitable for all kinds of float glass, particularly soft-coated Low-E glass (including double and triple silver), ordinary flat glass, and ultra-clear glass.

2. What is the thickness range for tempering? The equipment can handle a wide range of glass thicknesses from 3mm up to 19mm.

3. How does the Vortech Convection system benefit production? The Vortech Convection system increases heating efficiency and uniformity, leading to higher production capacity and better glass quality compared to radiant-only models.

4. Is the machine energy efficient? Yes, the machine utilizes advanced power-adjustment technology and a unique quenching section that can save up to 60% of energy during the quenching process.

5. How long does it take for the furnace to reach operating temperature? After being shut down, the furnace requires only about 20 minutes of heat-up time to reach the operating temperature of 700°C.

6. What happens in the event of a power failure? The machine is equipped with a UPS/AC battery emergency driving system to provide the necessary power to finish the current batch and protect the rollers and glass.
