This Homogenizer Storage Mixing Preparation Tank is used to dissolve powder or ethanol into water or other solvents according to technological proportions. It meets pharmaceutical, dairy, juice, and food industrial GMP & FDA requirements.
It is an essential liquid preparation equipment for the deployment of materials dissolved in solvents, reaching specific concentrations for bleaching and filtering processes. Ideal for pharmaceutical syrup solutions, water injections, infusion solutions, and lyophilized powders.

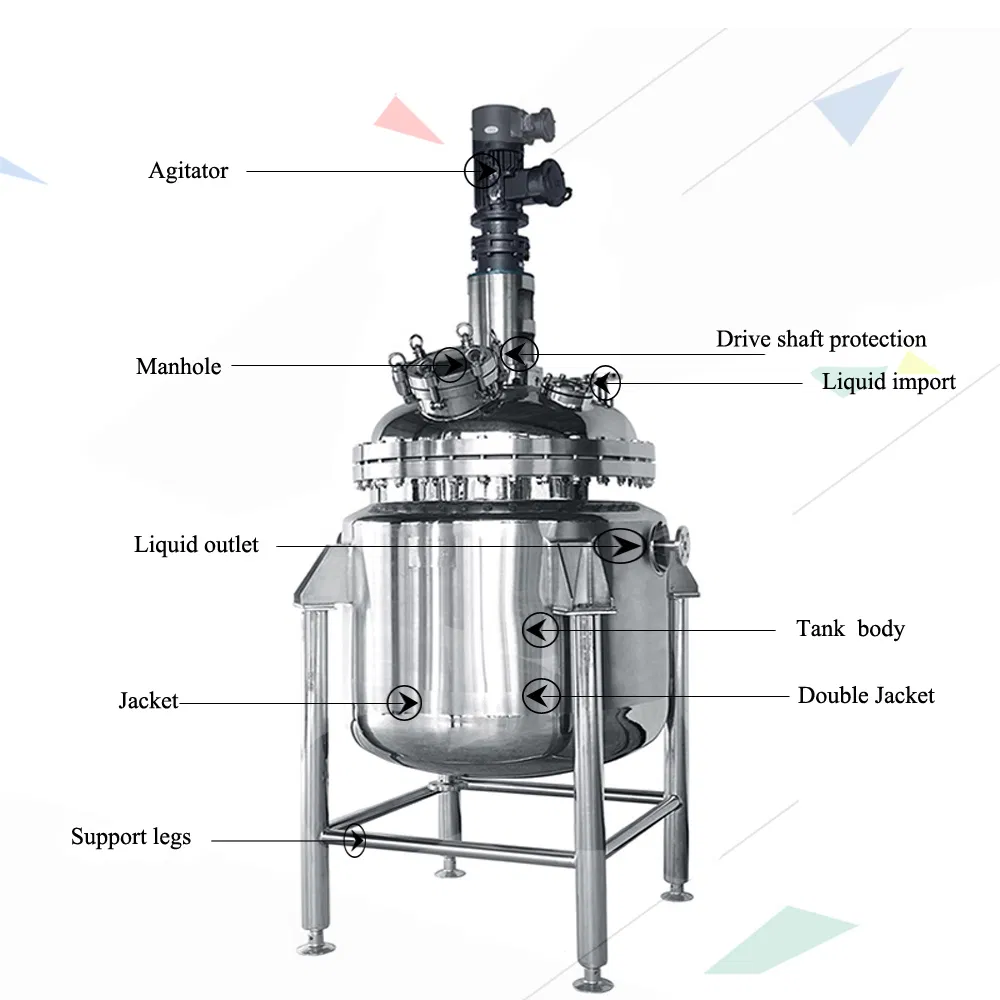

| Components Item | Function and Usage |
|---|---|
| CIP spray ball | Wash & clean tank inside surface and devices automatically |
| Vent filter | Filter air to prevent bacteria and release tank pressure |
| Temperature sensor | Indicate tank temperature and PID control |
| Pressure sensor | Indicate inside tank pressure |
| PH sensor | Indicate product PH data |
| Level sensor | Indicate tank product level height (pressure, ultrasonic, radar types) |
| VFD (inverter) | Control and adjust agitator speed |
| Safety valve | Release pressure to protect the tank |
| Sampling valve | Take product samples for offline checking |
| Model Item | ST-500 | ST-1000 | ST-3000 | ST-5000 | ST-10000 |
|---|---|---|---|---|---|
| Tank work volume (L) | 500 | 1000 | 3000 | 5000 | 10000 |
| Emulsifying Power (Kw) | 5.5 | 7.5 | 15 | 22 | 55 |
| Emulsifying Speed (RPM) | 0-1440 or 0-2900 | ||||
| Propeller Power (Kw) | 1.5 | 2.2 | 4.0 | 5.5 | 11 |
| Inside Shell Pressure (MPa) | -0.1 / 0.3 (Customizable) | ||||
