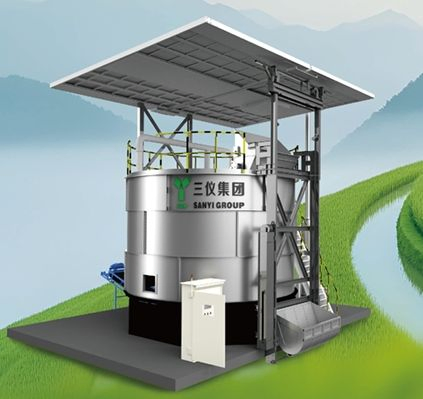

Factory Price Sustainable Soil Friendly Organic Fertilizer Organic Waste Fermenter Waste Value Adding System

Customization: Available
Type: Fermentation Tank
Usage: Agricultural Waste to Energy Treatment Equipment

Product Description

📊

Overview - Basic Info

Application
Chicken
Equipment Type
Air Duct / Ventilation
Computerized
Yes
Certification
ISO9001:2008
Condition
New
Deodorization
Integrated System
Feeding Method
Hydraulic Loading
Lubrication
Centralized
Delivery Time
15-20 Days
Transport Package
Carton
⚙️

Product Description

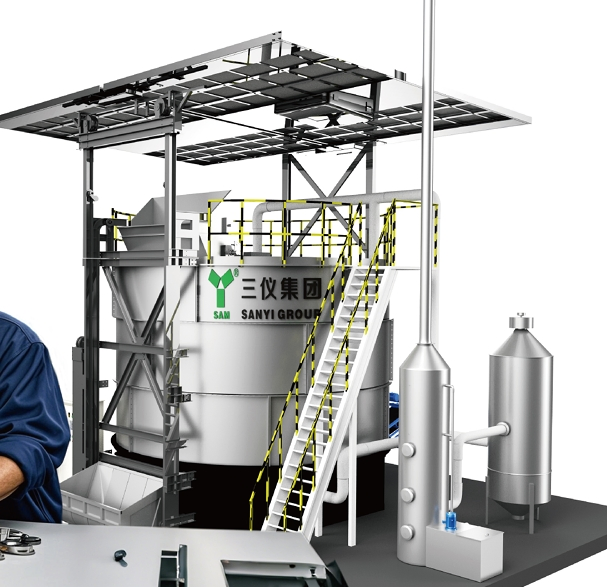

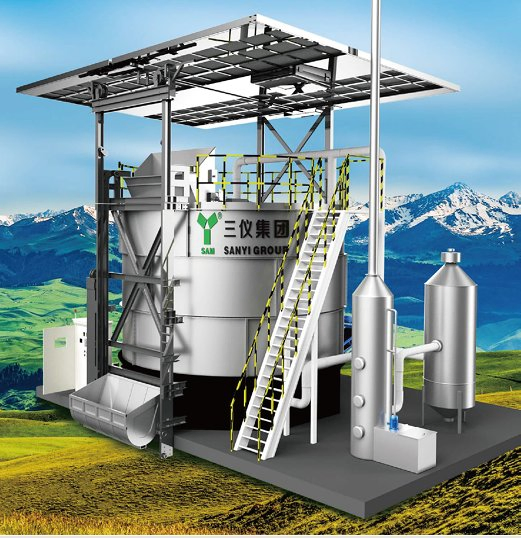

2.0 Version Energy-Saving Fermentation Tank

Our 2.0 version energy-saving fermentation tank utilizes four major energy-saving technologies to achieve an effective energy reduction of 40%. For manure with 75% water content, power consumption is reduced from 60 units to approximately 35 units per ton compared to previous models.

Equipment Introduction

The equipment structure is divided into three functional parts:

  • Lower Base: Houses hydraulic stations, scroll air pumps, cylinders, heating systems, and mixing shafts.
  • Middle Tank: Double-layer insulated tanks with automatic control systems and export devices. The inner wall is 304 stainless steel to extend lifespan and reduce residue. Polyurethane foam provides thermal insulation.
  • Upper Part: Composed of wind/rain sheds, testing platforms, and exhaust facilities.

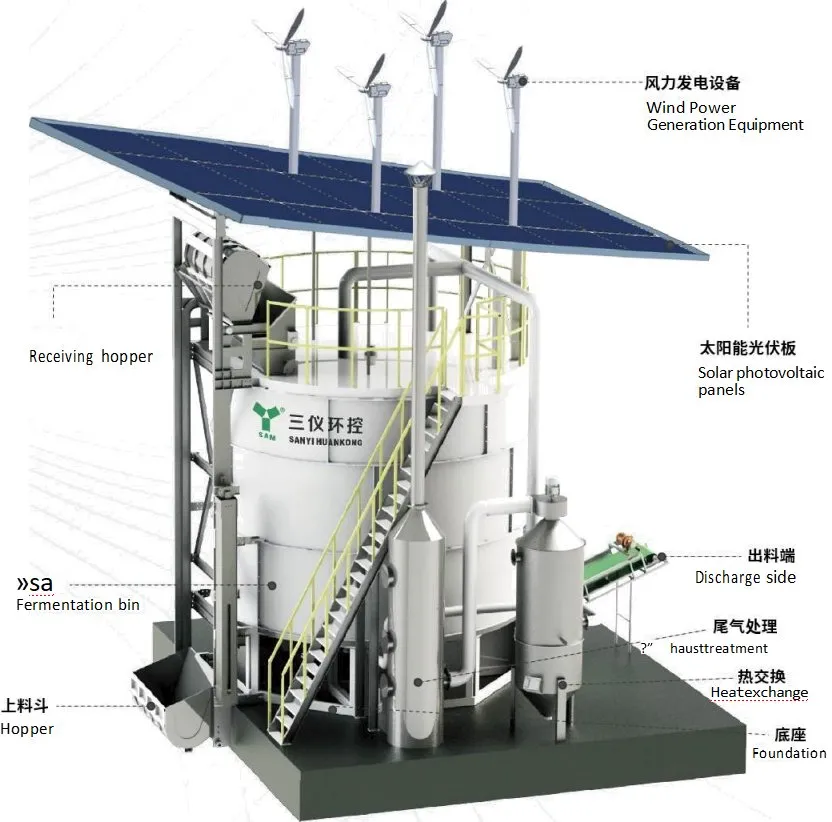

Fermentation Tank Structure

Process Principle

Livestock manure is processed in a closed warehouse through intelligent aerobic fermentation at high temperatures. This rapidly degrades odors and harmful substances into soil-friendly organic matter. Temperatures reach 65-75°C, effectively killing insect eggs and pathogenic bacteria, meeting the NY52S-2021 quality standards.

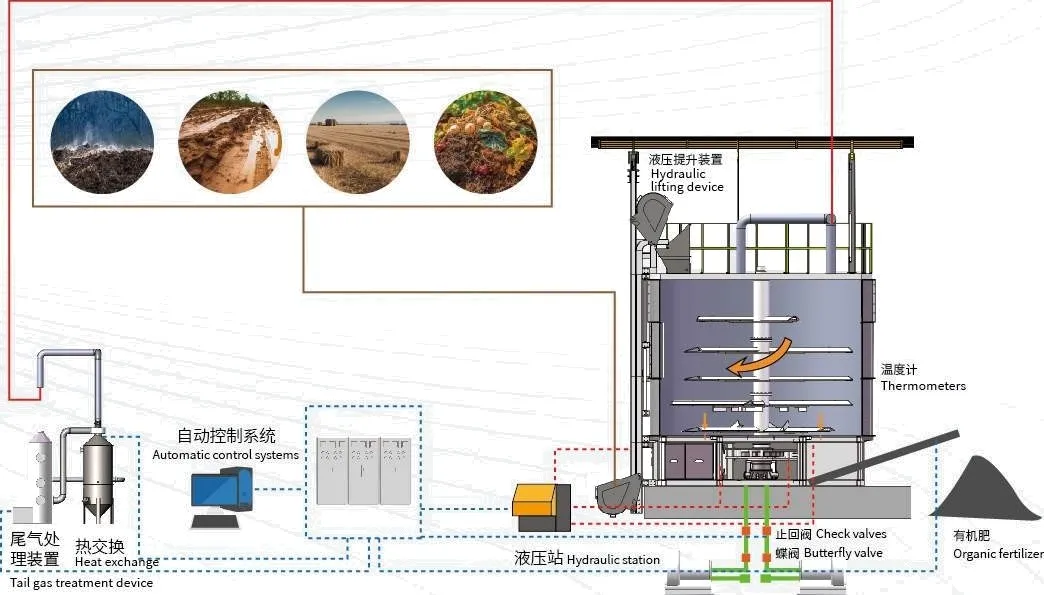

Fermentation Process
🚀

Process Advantages

💰 Low Operating Costs Utilizing aerobic high-temperature technology ensures treatment is efficient and cost-effective.
⏱️ Short Cycle Realize a full fermentation cycle in about 15 days, with daily intake and output possible.
📏 Standardized Production PLC-controlled real-time recording of process parameters for precise quality control.
🌍 Environmental Compliance Multi-layer biological deodorization ensures gas discharge standards are met without secondary pollution.
🤖 High Automation A single person can manage the entire process via the integrated control system.
🏗️ Small Footprint Requires only 70-105 square meters of floor space depending on the chosen model.
🌱

Applications

Suitable for the harmless treatment and resource utilization of organic waste including chicken manure, dry pig manure, solid-liquid separation solids, sludge, and kitchen waste.

📋

Parameters & Main Products

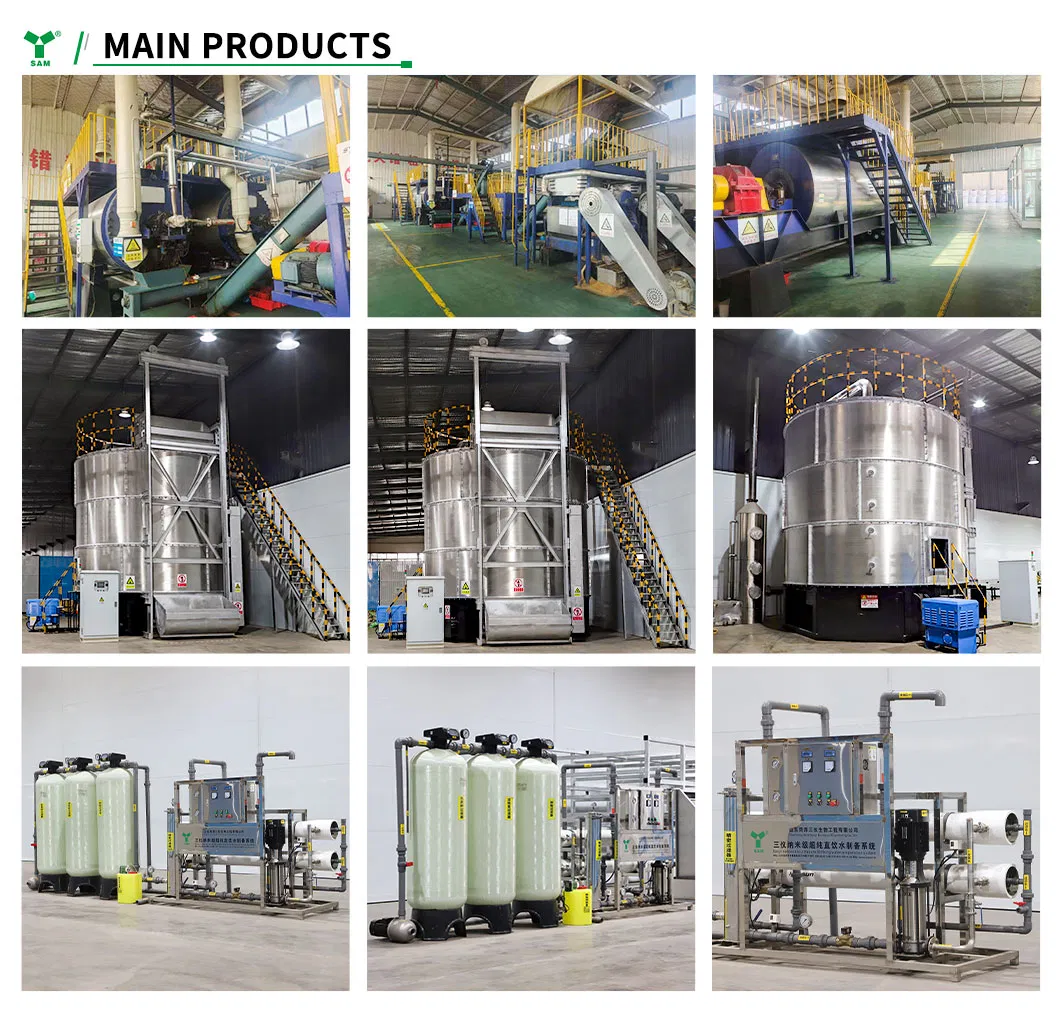

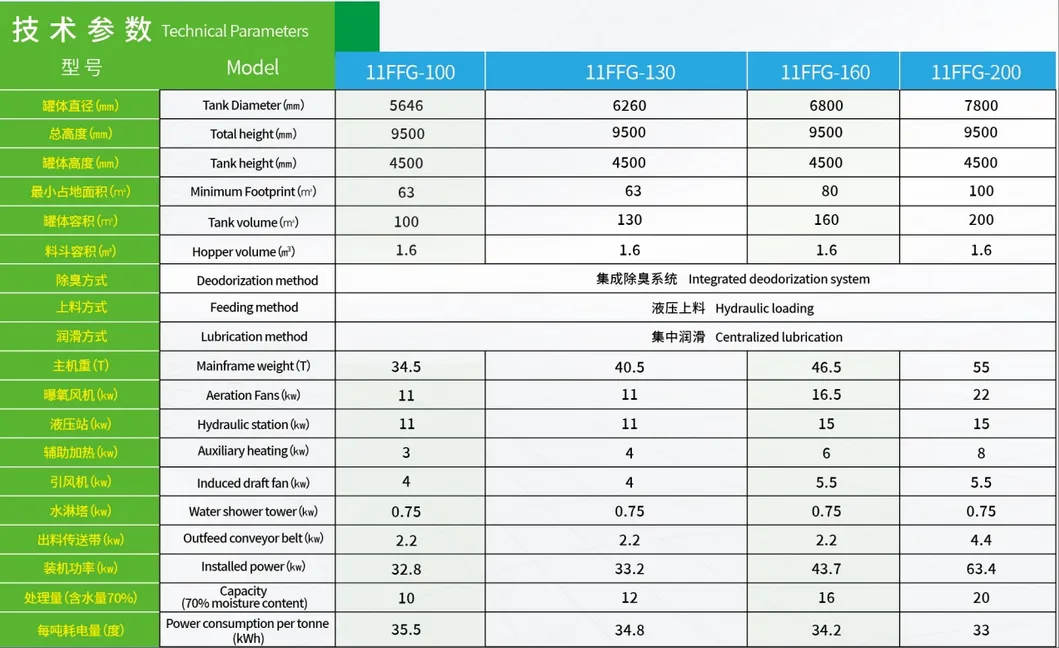

Product Parameters Main Product Range
🏢

Corporate Profile

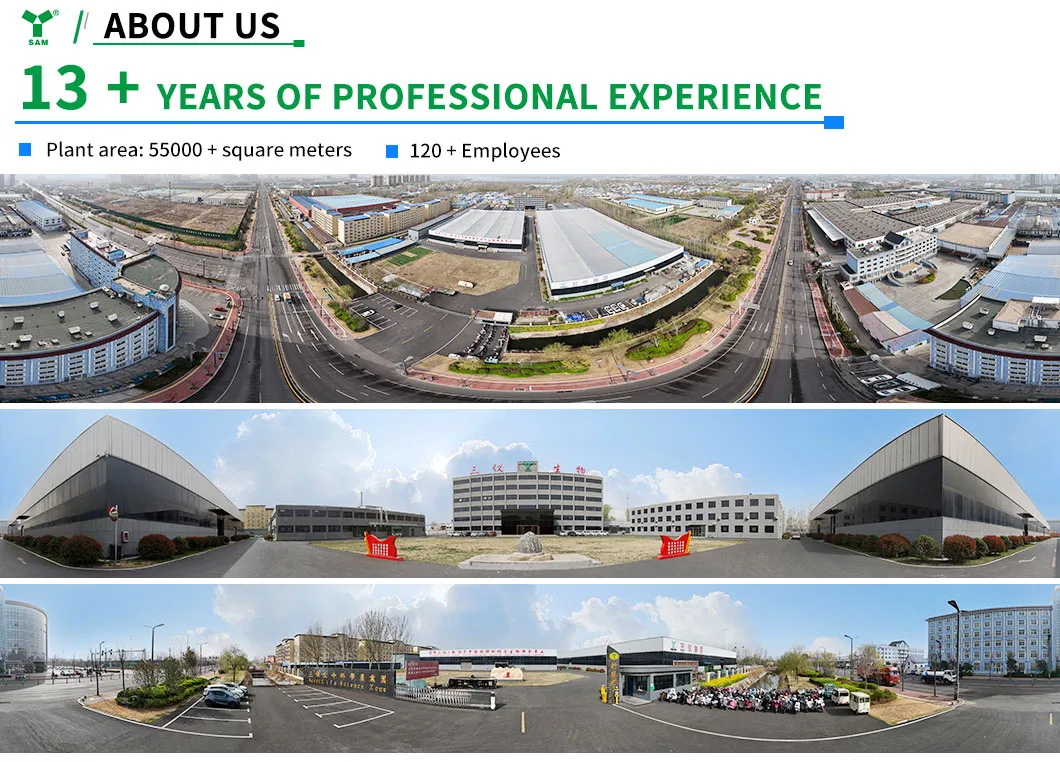

Facility Image

Founded in 1998, the group covers animal husbandry, environmental protection, animal health, and biological feed. With multiple production parks across several regions, the facility focusing on environmental protection was established in 2012. It employs over 120 staff members and operates across a factory area of 55,000 square meters.

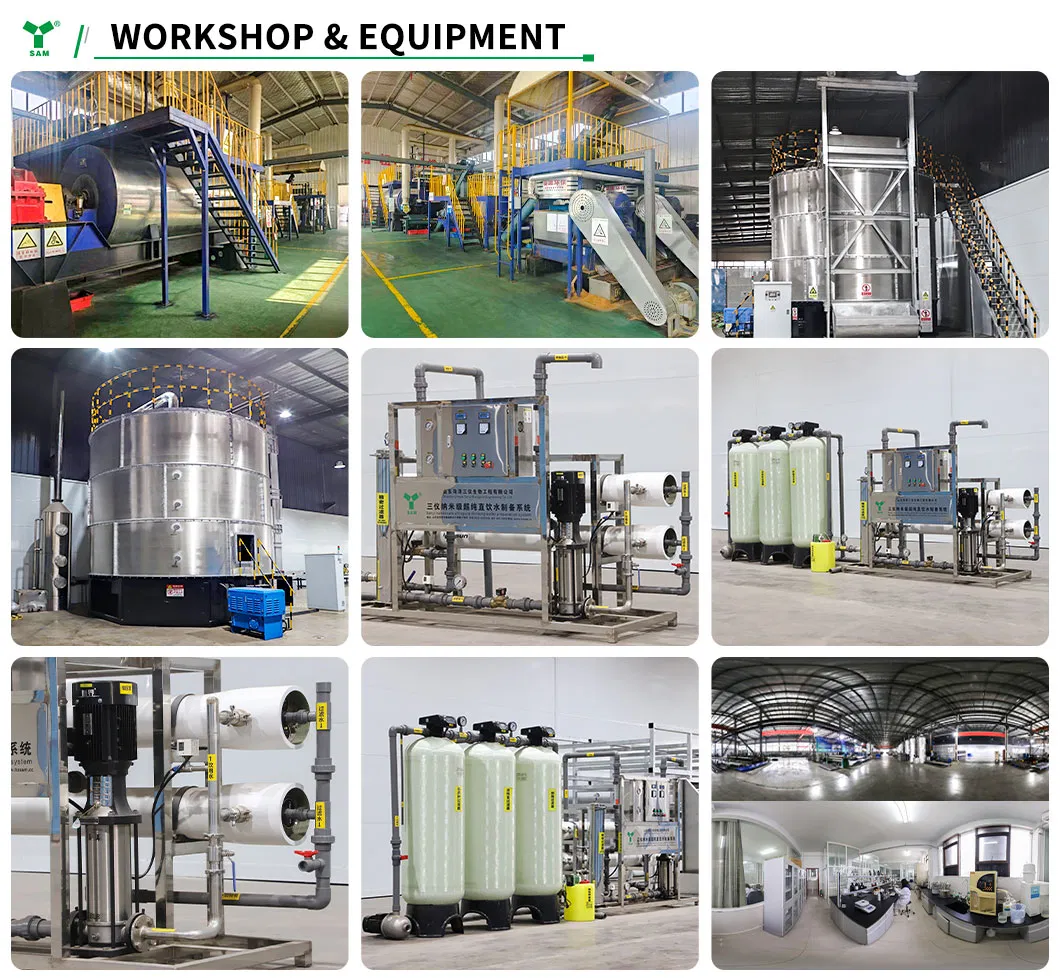

Production Workshop
🤝

Exhibitions & Certifications

Global Footprint

Global Exhibitions

Certifications

Certificates
📦

Packaging & Shipping

Logistics

Frequently Asked Questions

In which fields are high-temperature aerobic fermentation tanks mainly used?
They are ideal for livestock manure (pig, chicken, cow) composting, organic waste (straw, garden waste) recycling, municipal sludge, and kitchen or vegetable waste treatment.
What information is required before placing an order?
Please provide your requirements for the overall treatment process, material quality reports (type of waste), maximum treatment capacity needed, and the intended use of the final product.
What is the standard lead time for equipment?
Generally, the lead time is approximately 20 days, depending on specific customization needs and project scale.
Do you offer OEM or customization services?
Yes, we provide high-quality OEM services and can develop customized products tailored to specific buyer requirements.
What technical support is available?
We provide free technical support at any time and can assist in designing the entire treatment process for your specific project.
How does the system achieve energy savings?
The 2.0 version utilizes four major proprietary technologies to optimize heat retention and mechanical efficiency, reducing power consumption by up to 40%.
