Basic Information
Model NO.
Oral preparation dispensing system
Safety Features
Emergency Stop, Overload Protection, Interlock
Monitoring
Equipped System

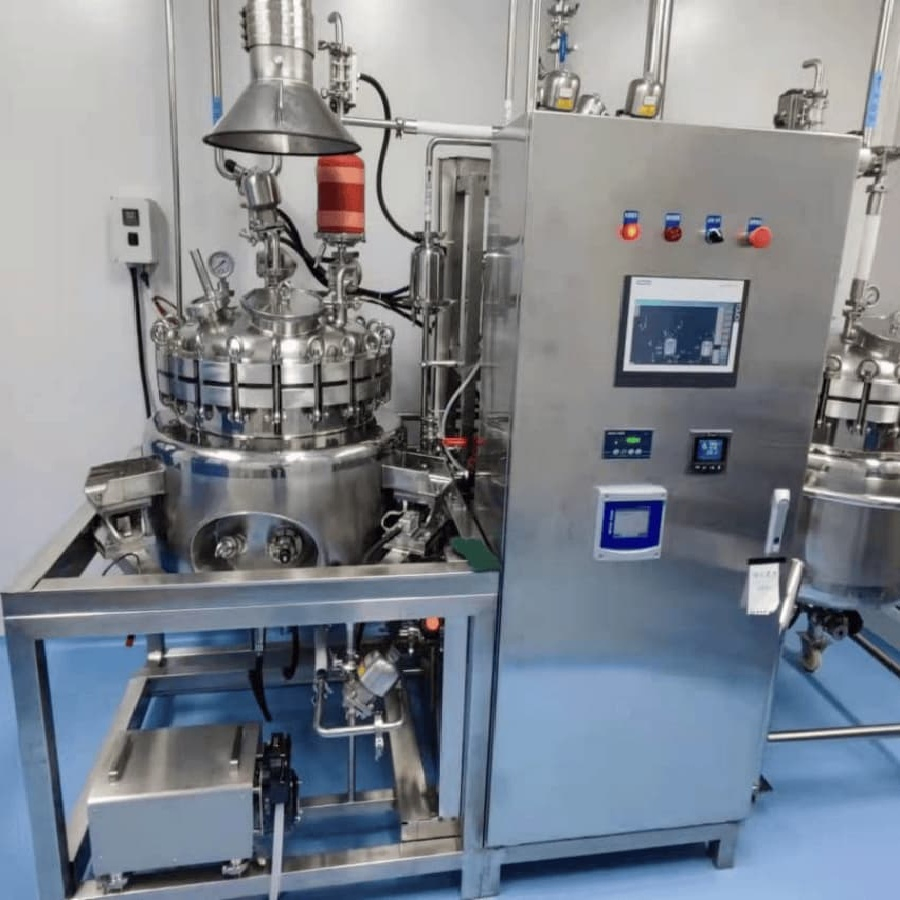

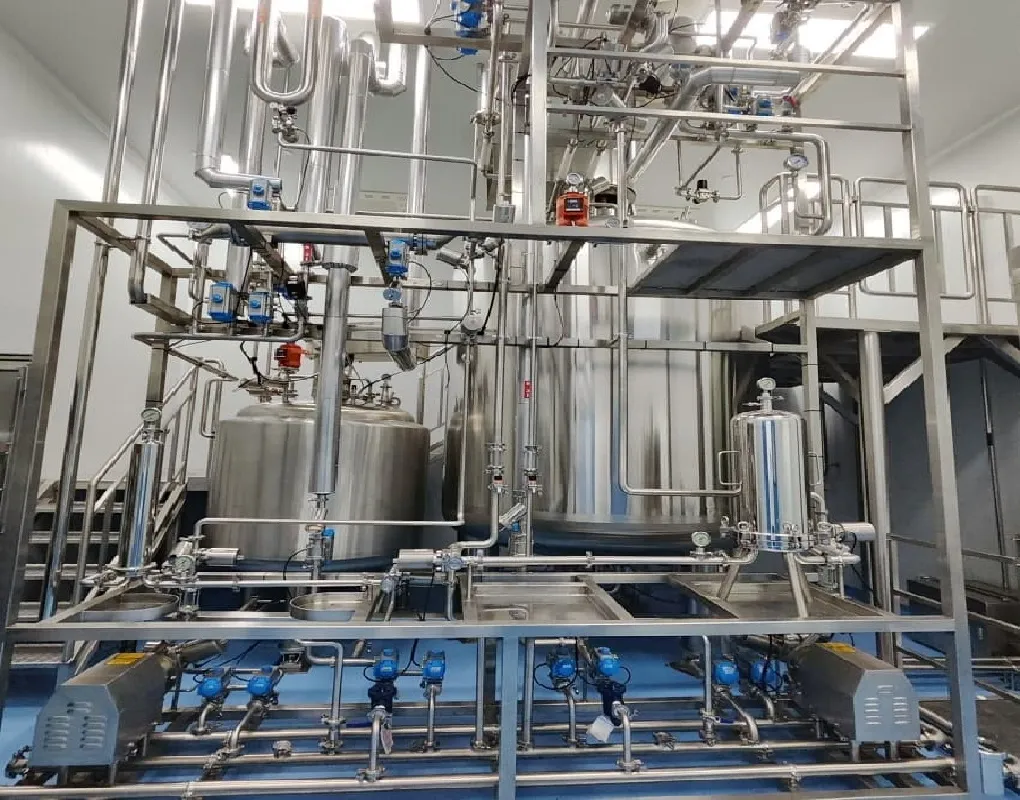

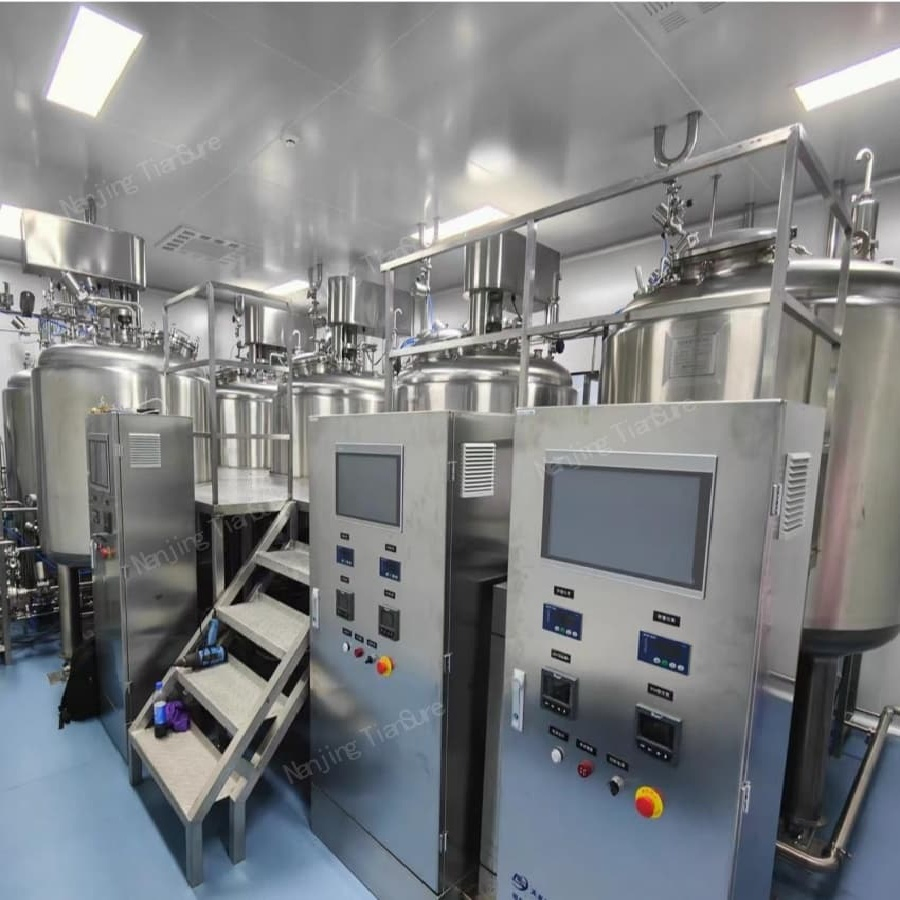

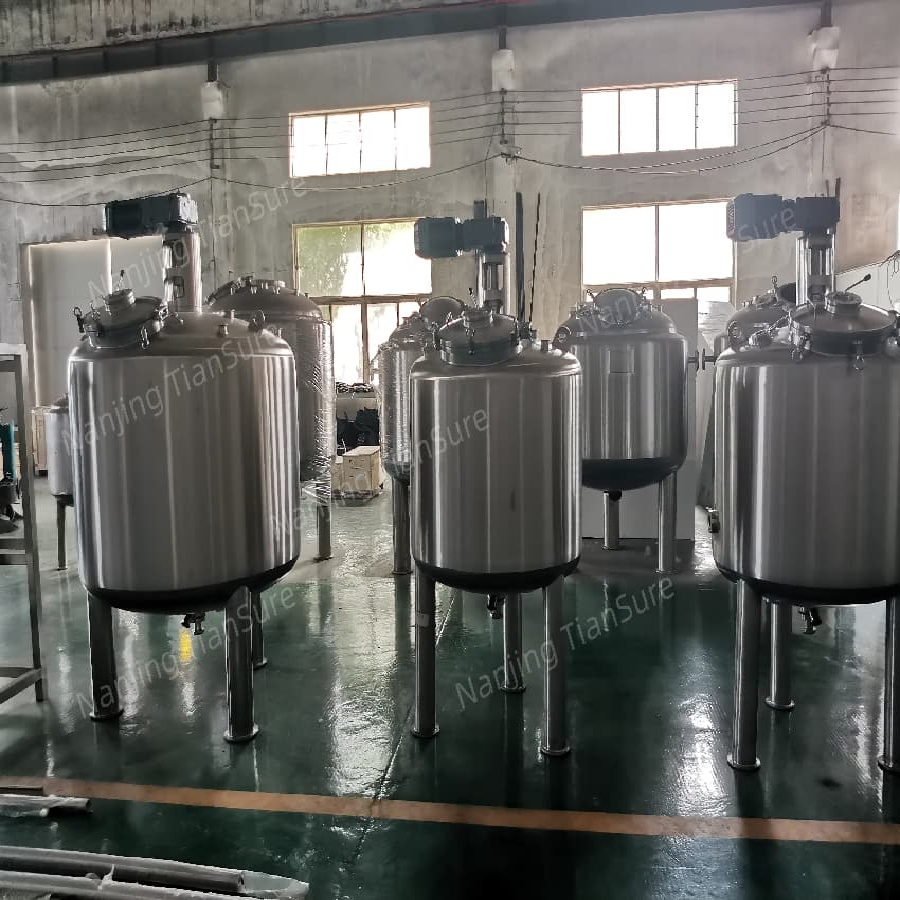

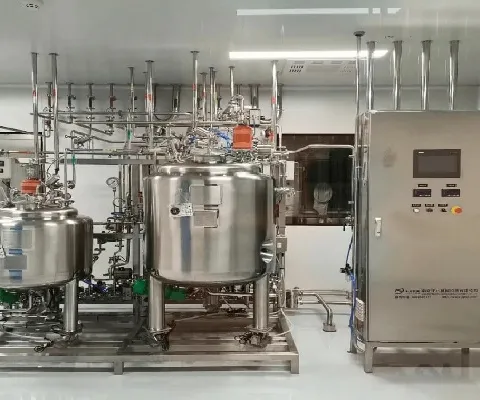

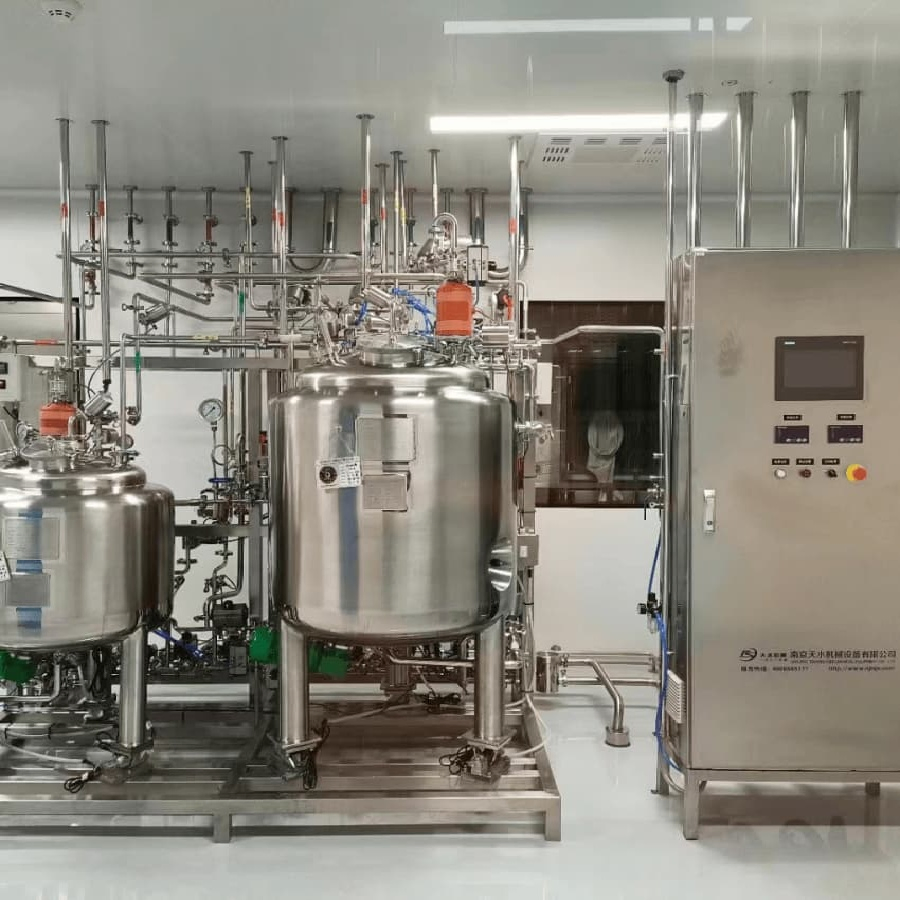

Liquid Preparation System Overview
The formulation system is a pharmaceutical device for mixing and dispensing liquids, through which raw materials or active ingredients are added to solvents such as water for injection, then made into pharmaceutical agents with desired concentration after stirring, heating, sterilization and filtration. It is widely applied in sterile or non-sterile pharmaceutical areas.
Liquid Preparation System Categories
• Oral Liquid Preparation System

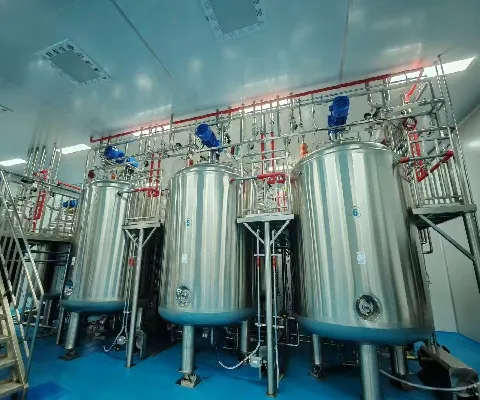

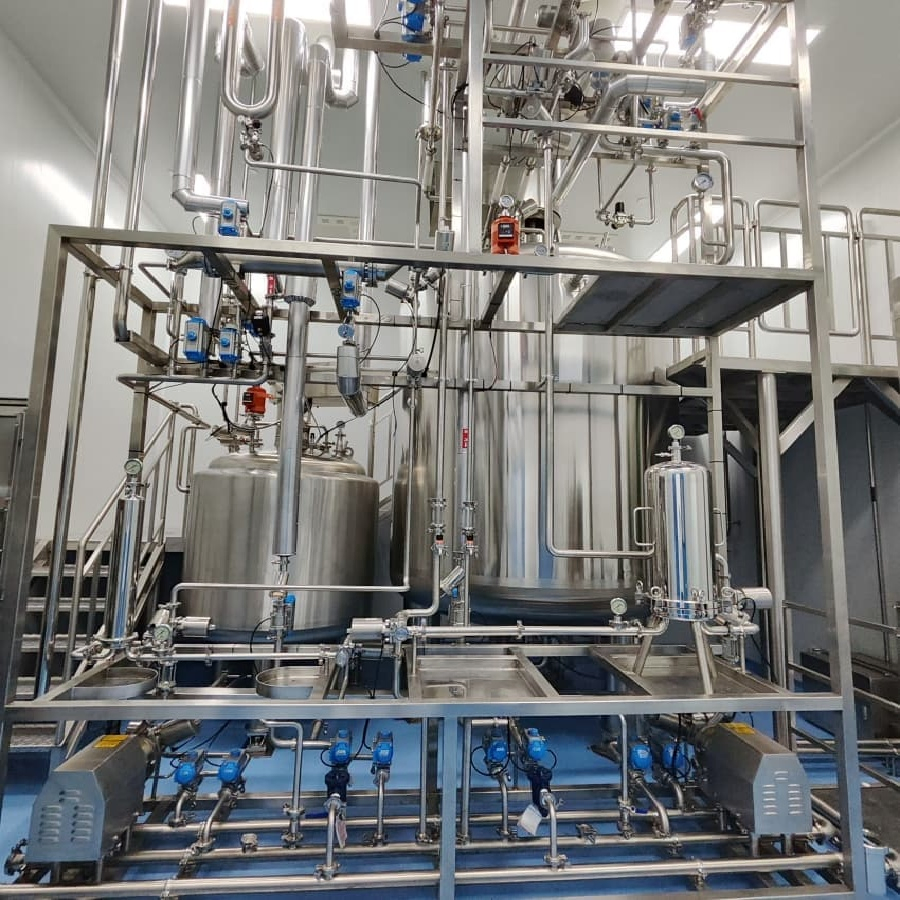

Encompasses sugar melting, initial preparation, cold storage, filtration/centrifugation, fine preparation, heating/cooling, material transfer, CIP/SIP, and an advanced control system.
• Sterile Preparation System
Includes large volume injection, powder injection, small volume injection, eye drops, and water injection. Features concentrated preparation, decarbonizing filtration, diluted preparation, sterile storage, and aseptic filtration.
• Extraction Preparation System
Covers extraction, enrichment, cold storage, water/alcohol sink, centrifugation, heating/cooling, and CIP/SIP.
• External Use Preparation Dispensing System
Technical Specifications
| Volume Range | 5 ~ 15,000L |
| Material Construction | 304, 316L Stainless Steel |
| Stirring Type | Upper mechanical stirring or lower magnetic stirring |
| Stirring Speed Control | 0 ~ 450 rpm |
| Temperature Control | Range: -10 ~ 150ºC |
| Pressure Control | Range: -0.01Mpa ~ 0.06Mpa (±0.01MPa) |
| Control Method | Semi-automatic / Full-automatic |
| Applications | Biopharmaceuticals, Chemotherapeutic drugs, Basic infusion |
Key Features & Advantages
- Integrated structure: Energy-efficient, pre-assembled equipment reduces energy consumption and startup time.
- Operational Flexibility: Semi-automatic control system for material feeding with manual adjustment capabilities.
- Full Traceability: Real-time production data monitoring (pressure, flow, time) with deviation alerts.
- Batch Management: Includes batch recording, data statistics, and error prompting functions.
- Compliance: Solutions designed to be compliant with pharmaceutical industry standards.

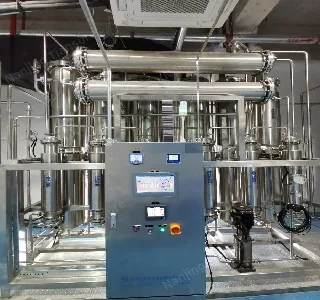

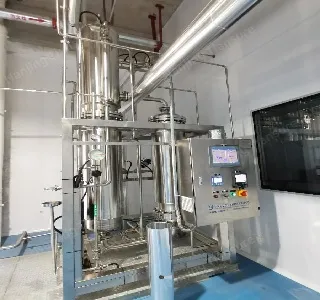

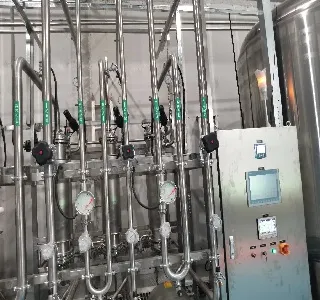

Related Equipment
Industrial Expertise
We are a leading pharmaceutical equipment manufacturer specializing in energy-efficient water and liquid preparation systems. Our solutions serve biopharma, chemicals, medical devices, aesthetics, food/beverage, and electronics industries globally.

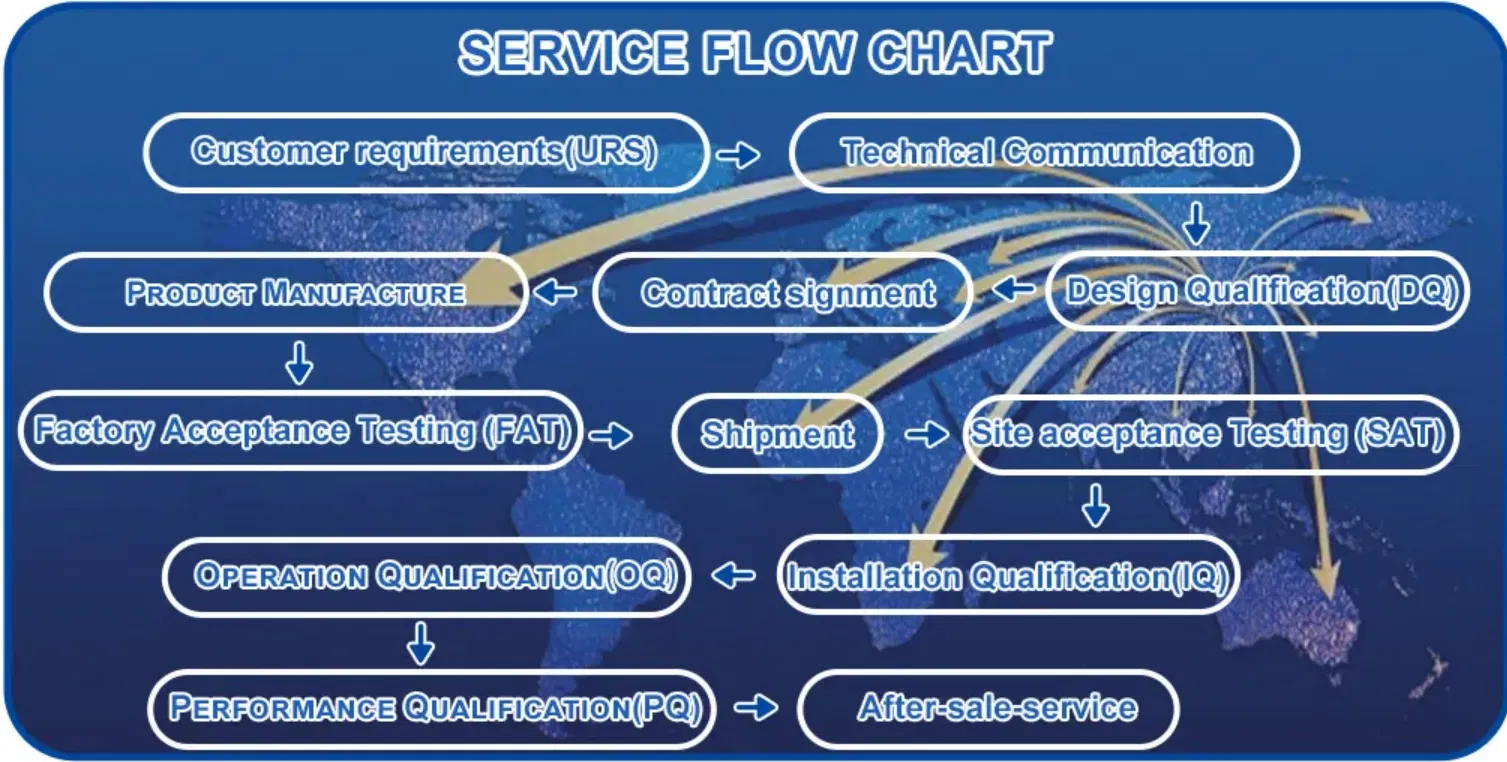

We deliver solutions through advanced engineering including Pharma Water Systems (PW, WFI, Pure Steam) and Liquid Preparation Systems (Aseptic, Oral & Topical). We provide full validation packages (URS to PQ) and turnkey installations backed by rigorous quality control.
Frequently Asked Questions
How do you ensure machine quality before delivery?
We perform 100% factory testing before packaging to ensure there are no issues. Our team checks all components to ensure nothing is omitted.
What after-sales support is provided for international clients?
We dispatch engineers to assist with line installation and project completion. We also offer video calls for daily maintenance guidance and project discussions.
How quickly can spare parts be sent?
We can send essential spare parts within 24 hours to minimize any downtime for your production line.
What are the available payment terms?
We accept flexible payment terms, including T/T and L/C, to accommodate different customer requirements.
What logistics and shipping services do you offer?
We work with experienced freight companies specializing in sea shipping to ensure high-quality service at competitive pricing.
Can the production process be monitored in real-time?
Yes, the system enables full-process data tracking, including pressure, flow rate, and time, allowing for manual adjustments if deviations occur.
