Q1 Versatile Energy Efficiency Heating Solution for Domestic Water Heating

Customization: Available
Capacity: 12L
Gas Type: Natural Gas

Product Description

Energy Efficiency Heating Solution
Basic Specifications
Model NO.WS/Q1TypeForced Exhaust
Energy Efficiency GradeOneInterior MaterialCopper
InstallationIndoor Standard Installation, Wall-MountedControl ModeMechanical Edition
UsageBathroom, Kitchen, Industrial, HomeFuelGas-Fired
MediaHot WaterExpansion Tank Volume8L
Power Supply220V~50HzCertificationISO9001, CCC
Product Introduction
💡

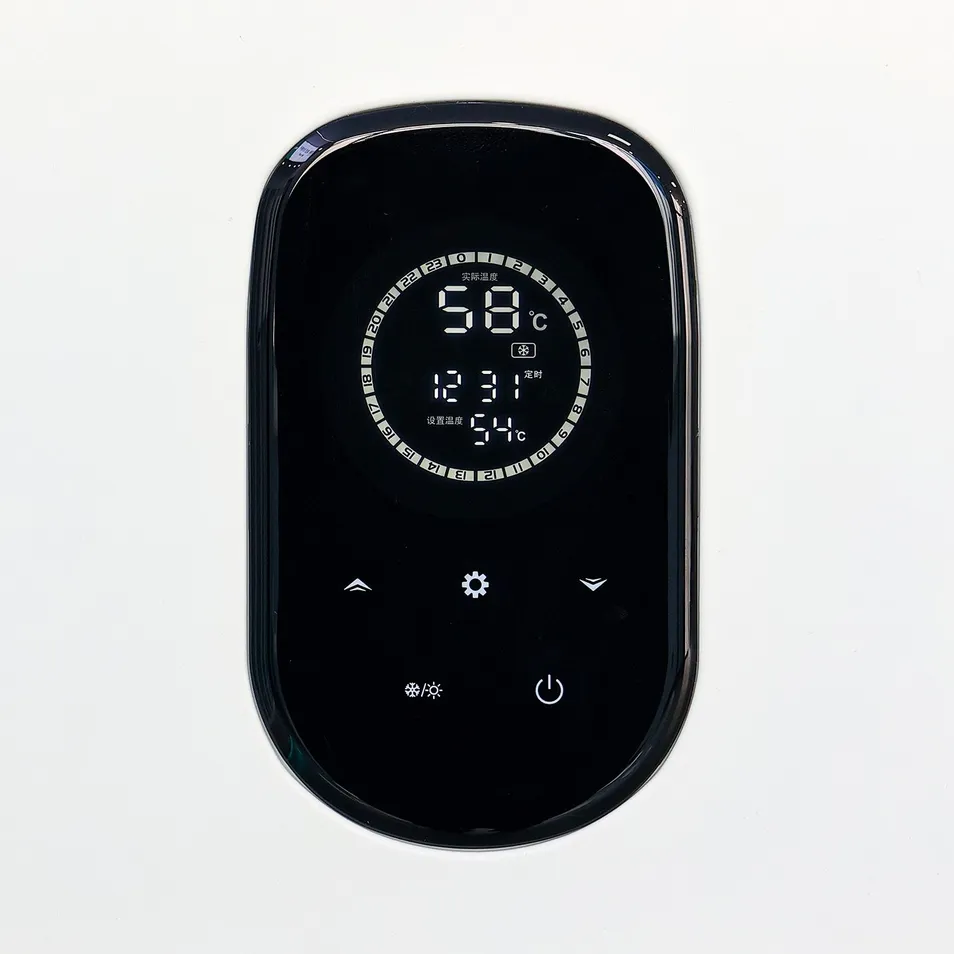

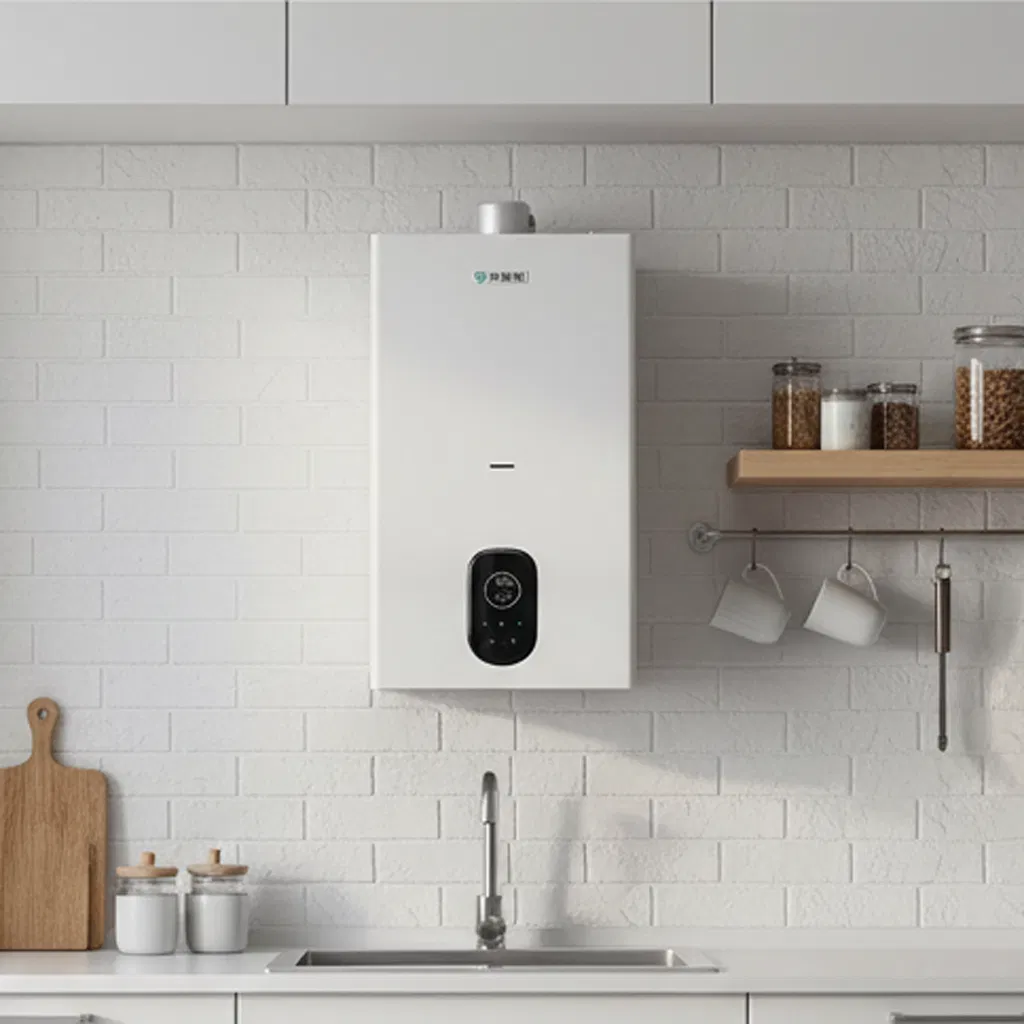

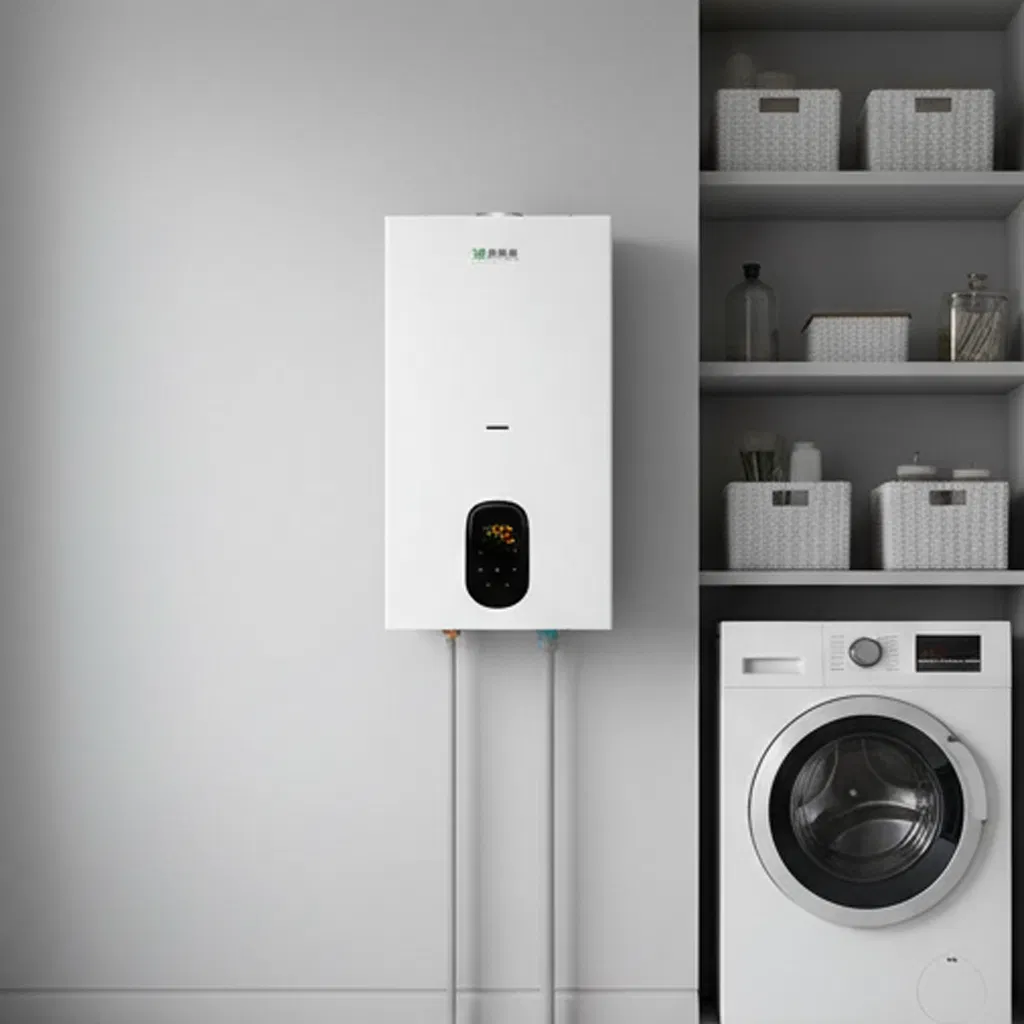

The WSA3-type gas heating hot water stove boasts a minimalist rectangular design with a matte white finish for seamless integration into kitchens or utility rooms. Its wall-mounted structure maximizes space, while the vertical profile maintains a modern aesthetic. A circular metallic vent handles exhaust, and a digital display panel allows for intuitive control of temperature, time, and mode settings.

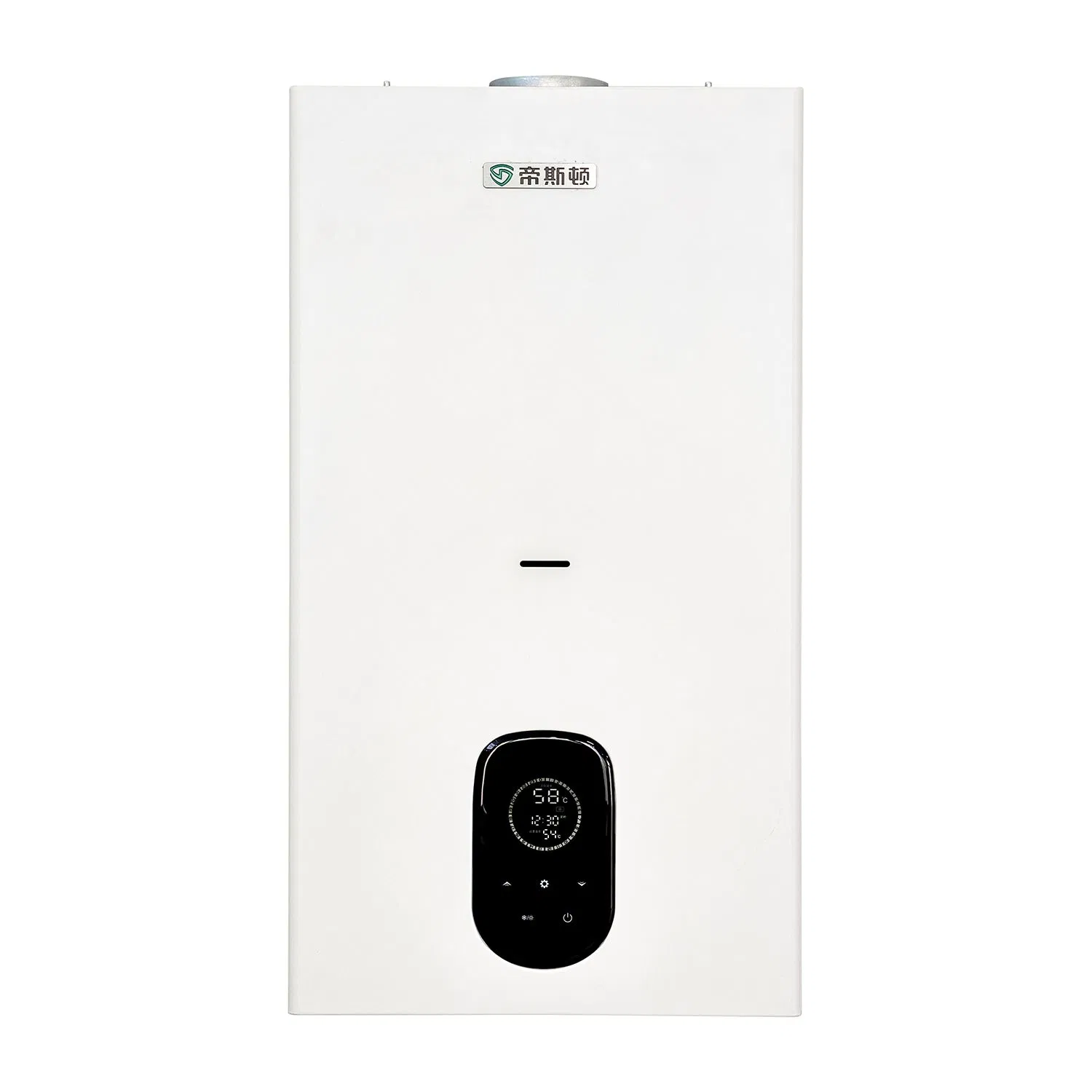

Product View
Core Functions & Advantages
Function
Dual-Purpose Performance: Efficiently heats water for radiators, underfloor systems, or direct delivery to taps.
Advantages
Cost-Effective Operation: Gas operation is more affordable than electric, providing on-demand hot water with minimal waste.
✔️
  • High thermal efficiency with synchronous dynamic adjustment.
  • DC inverter fan for silent and energy-saving operation.
  • System self-check and automatic flue adaptation.
  • Premium gold finish for enhanced interior design.
Product Technical Specifications
Parameter 20kW Model 24kW Model 28kW Model 36kW Model
Gas TypeNatural Gas (12T)
Rated Gas Pressure2000 Pa
Rated Heat Output (Heating)19 kW22.8 kW26.6 kW34.2 kW
Hot Water Capacity (Δt=25℃)10.5 kg/min12.8 kg/min15 kg/min19 kg/min
Enclosure ProtectionIPX4
Net Weight35 kg36 kg38 kg40 kg
Dimensions (HxWxT mm)740×410×305740×410×325
Main Product & Factory Display
Specializing in thermal energy equipment, the company integrates R&D, production, and service to provide safe, energy-saving, and environmentally friendly heating products. Our offerings include domestic gas furnaces, commercial premixed condensing water heaters, and air source heat pumps.

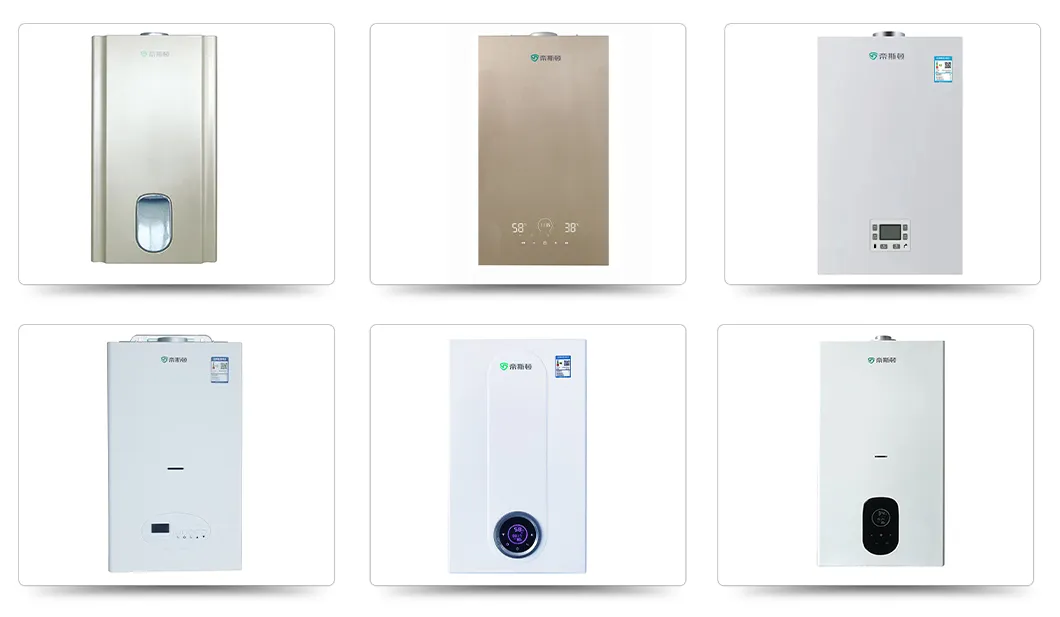

Main Product

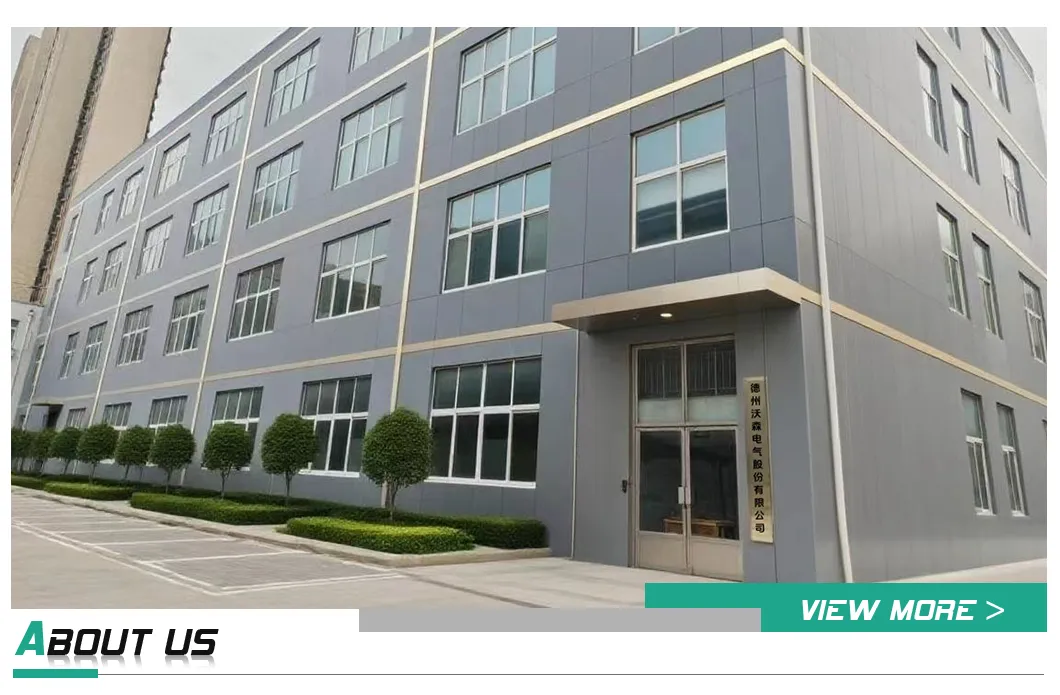

Facility

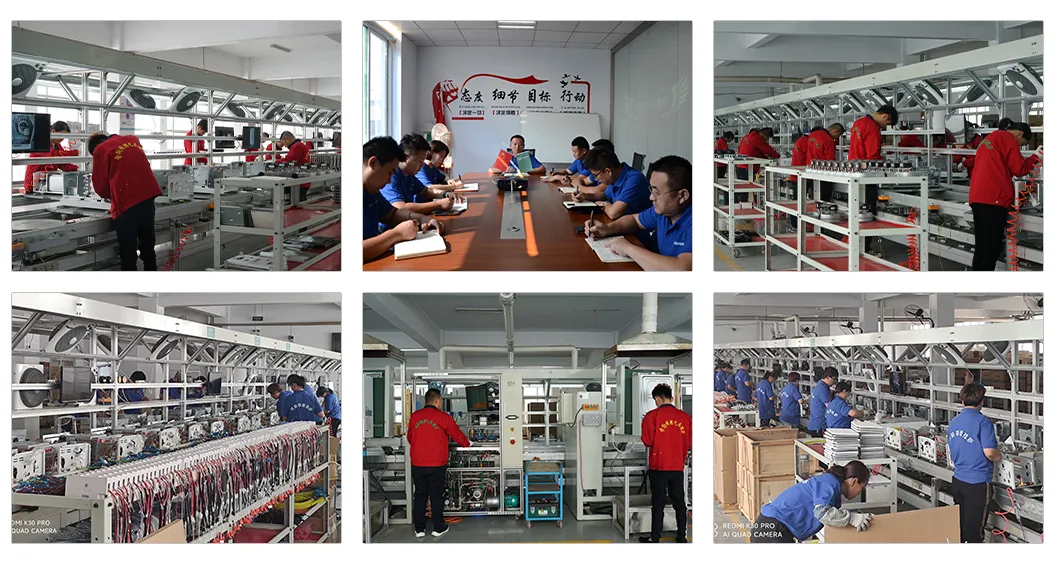

Factory
Certificates
Exhibition
Packaging
Frequently Asked Questions
How to choose the right power for my home?
For 80-150m² homes, 24KW is ideal for one kitchen and two bathrooms. For 150m²+ or villas, choose 28KW or higher. In colder regions or homes with poor insulation, consider increasing power by 20-30%.
Can it provide heating and hot water at the same time?
The system prioritizes hot water. Heating temporarily pauses when a hot water faucet is opened and resumes automatically once the faucet is closed.
What is the advantage of Level 1 Energy Efficiency?
Level 1 efficiency usually indicates a condensing boiler with thermal efficiency over 107%. It can save 15-20% on gas costs compared to standard non-condensing boilers.
Can I install this in an old house without pre-installed pipes?
Yes. For renovated or old houses, an open-air radiator system can be installed without damaging walls or existing decorations.
How to prevent freezing in winter when away?
For short absences, use the anti-freezing mode (keep power and gas on). For long absences, it is recommended to drain the water from the machine and pipes to prevent damage.
Does the boiler consume a lot of electricity?
No. The main power users are the fan and pump (100-200W). They only run during operation, and monthly consumption is similar to a standard household refrigerator.
